Adams Rite 4560-011-119, 4560-011-121, 4560-011-130, 4560-012-119, 4560-012-121 Specsheet

4560 Series

Deadlatch Handles

The 4560 Series Deadlatch Handles easily unlock the 4300,
4500 and 4900 Series Deadlatches. These handles fit solidly
into the cylinder hole of Adams Rite deadlatches.

4560 Series

Deadlatch

Handles

155

TRIM

Function

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a
natural downward hand movement, these handles incorporate an activator
cam disc that mounts on the handles' escutcheon and fits solidly into
the cylinder hole of the latch. Not intended for use as a door pull.

4560 handles feature an ADA compliant lever shaped to fit the hand.

4565 handles feature a thumbturn of minimum practical length.

4568 handles feature an ADA compliant lever shaped to fit the hand.

4569 handles feature a return end, often required by code.

Features

Handle

Handle of cast aluminum.

4560: ADA compliant lever is shaped
to fit the hand, with a concave thumb­rest portion that tends to keep knuckles
and thumb safely away from the jamb,
even on a short backset narrow stile.

4565: Thumbturn of minimum practical
length is designed to oer a firm grip
to the fingertips. Ideal for doors where
the latch is operated infrequently.

European styling of 4568 and 4569 oers
a generous hand grip with shank oset
from the narrow stile jamb for hand safety.
Rugged construction ensures dependable
performance, with a high-wear spring to
return the handle to position after use.

4568: ADA compliant lever is
shaped to fit the hand.

4569: ADA compliant lever features a return
end, often required by code. Please verify
local code requirements to ensure compliance.

Escutcheon

A 1/4" [6.4 mm] square heat-treated
spindle is part of escutcheon
assembly, which interlocks with the
cam plug. Finished to match lever.

4560, 4565 use the same sloping
1-3/8" x 4" [34.9 mm x 101.6 mm]
escutcheon, designed to match the
clean lines of a narrow stile door.

4568, 4569 use the same 1-3/8" x 4"
[34.9mm x 101.6mm] escutcheon, designed
to match the clean lines of a narrow stile
door. Steel mounted base is secured by
hidden screws and has two large helical
compression springs (one becomes
a “spare” once handing is given).

Cam Plug

Secured in latch body by cylinder set
screw, the plug is also rigidly tied to handle
escutcheon by hardened steel pins. Handing
can be reversed by removing a spring clip,
reversing the cam, and replacing the clip.

Standard Package

Individually packaged with mounting hardware
and cam plug handed LH or RH as specified.

4560

4565

4568

4569

Options

• Ordered for left hand (LH) or right hand
(RH) door, but is easily reconfigured in the
field to accommodate either door swing.

• Standard handles are for 1-3/4"
[44.5 mm] thick doors. Please contact
factory for doors up to 3-1/4"
[82.6 mm] available by special order.

• Available in choice of powder coat 119
to match 335 Black anodized, 121 to
match 313 Dark bronze anodized, and
130 to match 628 Clear anodized.

Copyr ight © 2018, Hanc hett Entry Sys tems, Inc., an AS SA ABLOY Group
compa ny. All righ ts reserve d. Reproduc tion in whole or in par t witho ut the
expre ss written per mission of Hanc hett Entry Sy stems, Inc. is pro hibited.

Patent pending and/or patent assabloydss.com/patents

Shipping Weight

2 lbs [0.91 kg].

4560, 4565 are also available bulk-packed
in cartons, up to 100 per carton. Please
contact factory for more information.

 800.872.3267  800.232.7329  adamsrite.com

10027 S. 51st Street, Ste 102, Phoenix, Arizona 85044ARM-014-9/17

156

TRIM

4560 Series
Deadlatch
Handles

5/8"

15.9mm

All measuremen ts are approxima te and are provided for informat ional
purpo ses only. Refer to the product Installation Ins tructions.

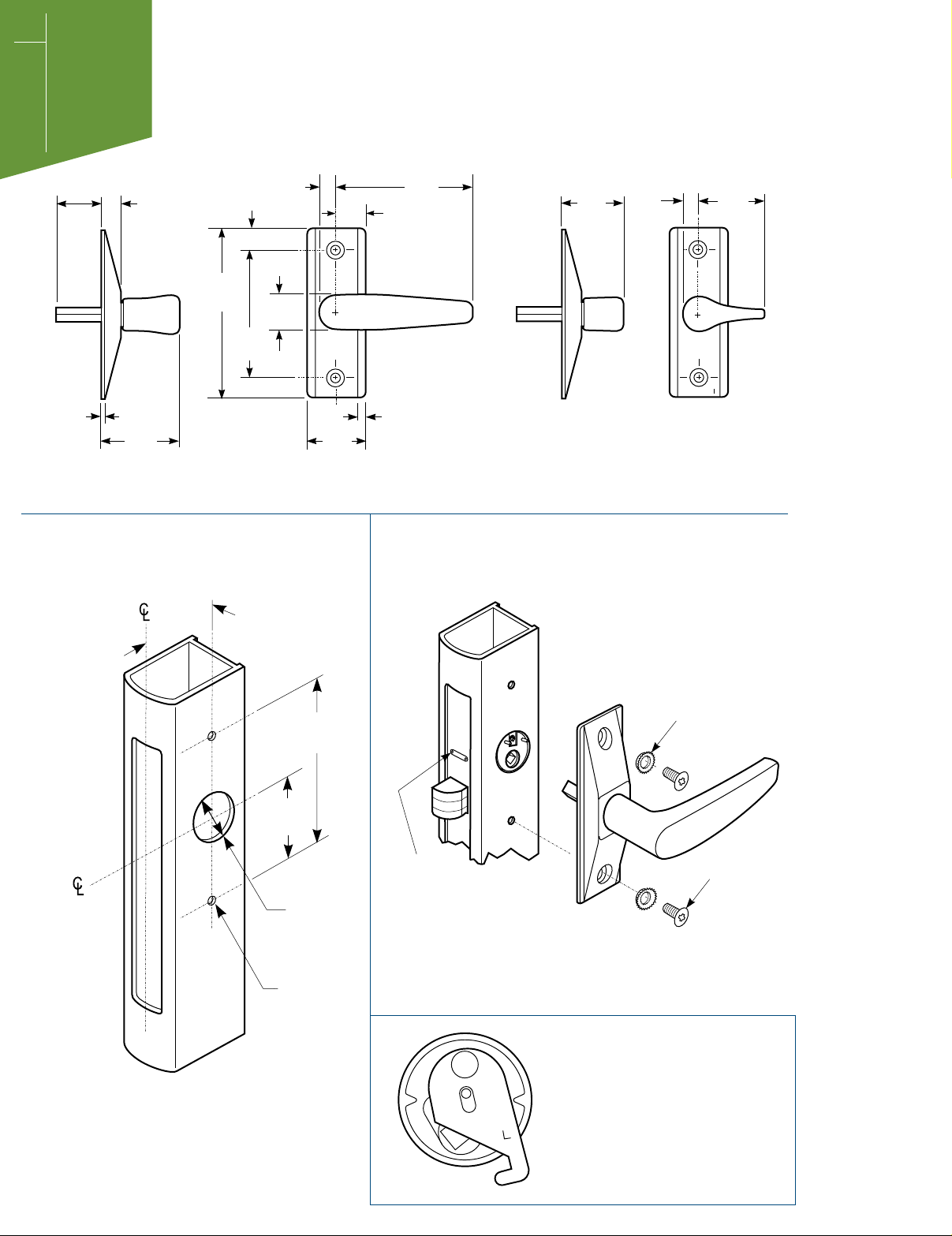

Dimensions

13/32"

1/2"

7/16"

11.1mm

4"

101.6mm

12.7mm

3"

76.2mm

10.3mm

57/64"

22.6mm

43/64"

17.1mm

4-1/8"

104.8mm
1-3/8"

34.9mm

13/32"

10.3mm

1-1/2"

38.1mm

3/64"

1.2mm
1-51/64"

45.6mm

4560

Narrow Stile
Preparation

STILELATCH

LATCH

CYLINDER

BACKSET

1-23/32"

43.7mm

1-1/4"

31.8mm

1-11/32"

34.1mm

3"

76.2mm

DIA.

11/64"

4.4mm

Installation

SETSCREW

4565

LOCK WASHERS

(2 REQ.)

10-32 SCREWS

(2 REQ.)

TAP #10-32

(2 PLCS)

REVERSIBLE 4580 CAM DISC

Included with 4560 Series
Deadlatch Handles.

Required to operate
4500 / 4900 / existing 4700 series latches.
