Standard & Heavy Duty Deadlatches

4900 Series Heavy Duty Deadlatch

• Function: Flexibility of traffic control and installation is of­fered by the 4900 Series Deadlatches. A reverse turn of the
key while bolt is held retracted retains the bolt, to allow two­way traffic for applications which require free entrance at
certain times and exit-only at other times. Interchangeable,
without stile modification, with any MS1850A or MS1850S
deadbolt of same backset and faceplate shape. Also retrofits
to existing 4500/4700 Deadlatch preparations. 1-3/4” Mini-

Adams Rite

mum door thickness required.

• Cylinder Backset: 1-1/8” or 1-1/2” only.

• Latch Bolt: 5/8” x 1” x 5/8” throw. Solid brass. Handing is eas­ily reversible using only a screwdriver.

• Auxiliary Latch Pin: Stainless Steel. Deadlocks latch bolt to
prevent case-knife entry.

• Case: Steel with corrosion-resistant plating. 7/8” x 5-13/16”.
Screw-fastenend tube spacer brackets allow for cleaner re­moval when tab mounting.

• Strikeplate: Standard strike furnished is 4902 for flat jamb
where door closes flush or nearly flush.

• Faceplate: 1” x 6-7/8”. Both flat and radius faceplates are
supplied. Flat faceplates can also be adjusted in the field for
right or left hand beveled edge doors.

• Retrofits: Existing latch locks & 8400 series exit devices.

Mfg.# Backset Finish EZ#

4900 35 101 313 1-1/8” Duronodic 085484

4900 35 101 628 1-1/8” Aluminum 085485

4900 46 101 628 1-1/2” Aluminum 085487

Field Reversible

Latch Bolt

4910

4513 Series Standard Duty Deadlatch

Sold Less Faceplate, Top & Bottom Yokes, & Strike Plate

• Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1­1/2” (by special order).

• Case :Steel with corrosion-resistant plating.
1“ x 5-13/16” x depth. (Depth varies by

backset. See table on back page.)

• Function: Flexibility of traffic control dur-

ing and after business hours is offered by

4510 Series Deadlatches. A reverse turn

of the key while bolt is held retracted

4513

retains the bolt, to allow two-way traf­fic for hospitals, banks, stores and other
buildings which require free entrance at
certain times and exit-only at other times.
Interchangeable, without stile modifi­cation, with any MS1850A or MS1850S
deadbolt of same backset and faceplate
shape. (They do not, however, provide the

Mfg. # Hand Backset EZ#

4513 15 LH 7/8” 085473

4513 25 LH 31/32" 035025

4513 26 RH 31/32" 035026

4513 35 LH 1-1/8" 035027

4513 36 RH 1-1/8" 035028

same maximum security level as the MS®
Deadbolt.)

• Latch Bolt: 1/2“ x 1” x 1/2” throw. All metal
with hardened steel internal pins. Hand­ing is reversible without special tools.

• Auxiliary Bolt: All metal. Deadlocks latch
bolt to prevent case-knife entry.

2

© 2008, 2009 International Distribution Network Canada Ltd.

www.idncanada.ca

Aluminum Door Locks

Series 1850/3 Maximum Security Laminated
Deadlock/Hookbolts

Adams Rite

• For single leaf doors where the gap between
door and jamb is large

Mfg. # Description Backset Finish EZ#

Hookbolt

MS1850S110 628 Long throw deadlock 7/8" Aluminum 025812

MS1853A 210 Long throw less faceplate

MS1853A 310 Long throw less faceplate

MS1850S410 628 Long throw deadlock 1-1/2" Aluminum 025815

MS1850S410 313 Long throw deadlock 1-1/2” Duronodic 090918

MS1850S150 628 Hookbolt with faceplate 7/8" Aluminum 025817

MS1853A 250MC Hookbolt less faceplate 31/32" -

MS1853A 350MC Hookbolt less faceplate 1-1/8" 035013

MS1850S450 628 Hookbolt with faceplate 1-1/2" Aluminum 025820

MS1850S220 628 Short throw deadlock 31/32" Aluminum 067343

MS1850S320 628 Short throw deadlock 1-1/8" Aluminum 067344

Bottom Rail Deadbolt Options

The MS1861 utilizes the same over center/pivot locking mechanism as the MS deadlock. For use in the
bottom rail of ultra-narrow stile doors and tempered glass doors (which have no stile at all.) Use the
1830 when the bottom rail is too shallow to accommodate the MS1861.

• Accepts standard mortise cylinder.

• Case Size: 1” x 6"

31/32" 035010

deadlock

1-1/8" 035012

deadlock

• Long Bolt: 5/8" x 1-3/8" throw

• Short & Hookbolt: 5/8" x 13/16"

035011

-

Long Throw

Deadlock (A)

Adams Rite

MS1830

Mfg. # Backset Description EZ#

1830 02 31/32” 5/8” Throw Swing Bolt 035007

1830 03 1-1/8” 5/8” Throw Swing Bolt 035008

MS1861 01 2-1/4” 13/16” Stainless Pin Bolt 035014

MS4070 20 628 31/32” 5/8” Throw Horizontal Bolt 025824

MS4070 30 628 1 /18” 5/8” Throw Horizontal Bolt 025825

Miscellaneous Locks

MS1848 Deadlock

• For Narrow Stile Sliding
Doors.

• Case: 1/2” x 3-3/16” x 1-1/8".

• Bolt: Anti-lift/Adjustable.

• Faceplate: Full radiused ends.

• Finish: 32D (Stainless)

MS+1890 Hookbolt

Deadlock & Latch

• Case Size: 1” x 7-3/8” throw.

• Latch Bolt: 5/8” x 5/8” x 7/16”
throw

• Armor Faceplate: 6-7/8” x 1” flat.

• Armored Strike: Furnished flat

• Finish: Clear satin anodized

MS4070

MS1861

2331 Deadlock

For Heavy Sliding

Doors

• Backset: 1-3/4" only.

• Case: 7/8" x 3-5/8" x 2­11/16".

• Bolt: 1/2" x 1-1/2".

• Strike: 1/8" x 1" x 4-11/16"
with 5/8" x 1-5/8" opening.

• Faceplate: Flat 1" x 5-3/4".

Mfg. # Description EZ#

MS1848 02 Patio Lock 035009

MS1890 3016 628 Bank Lock 025822

2331 626 Sliding Door Lock 000985

www.idncanada.ca

© 2008, 2009 International Distribution Network Canada Ltd.

3

Adams Rite

Keyless Entry & 7100 Electric Strikes

Eforce Keyless Entry

Mfg # Application Finish EZ #

3090 01 121 4500, 5700, 4900, & 8000 Series Exit Dark Bronze 101096

3090 01 626 4500, 5700, 4900, & 8000 Series Exit Satin Chrome 101095

3090 02 121 MS Deadbolts Dark Bronze 101098

3090 02 626 MS Deadbolts Satin Chrome 101097

Adams Rite

7100 Series Grade 1 Strikes

7100 & 7101

7110

7130

7140 & 7170

• Keypad programmable unit has up to
150 users including master, supervi-

sor, emergency users, & 2 one time
codes.

• For 1-3/4” to 2-1/4” left or right hand

aluminum, steel, & wood doors.

• Three Modes: Standard, operating, &

lockout.

• Free-wheeling lever with clutch.

• Powered by 4 AA batteries mounted

in front cast housing.

• Device operation is confirmed by both

a visual LED light indicator and an
audible sound generated by a piezo
horn.

• Measures: 1-3/4”W x 15-3/8”H

• Temperature Range: -35°C to 66°C

• Case: 1” x 3-3/8” x 1-5/8” except 7170 1-7/8” deep

• Fail Safe/Fail Secure: Field convertible from one mode to the other.
AC Intermittent solenoid cannot be operated continuously, only
DC strikes can be operated continuously.

• Strike Opening: Accepts latch of Adams Rite 4500 & 4900 series
and cylindrical latches

• UL Listed: UL listed for burglary resistance

• Handing: Non Handed. Flip over for opposite hand.

3090 01

626

Mfg # Voltage Faceplate Corners Latch Frame EZ#

7100 440 628 16VAC 4-7/8” x 1-1/4” Flat Radius 1/2” to 5/8” Aluminum 063463

7100 510 628 24VDC 4-7/8” x 1-1/4” Flat Radius 1/2” to 5/8” Aluminum 063464

7100 519 628 24VDC Monitor 4-7/8” x 1-1/4” Flat Radius 1/2” to 5/8” Aluminum 078048

7100 540 628 24VAC/12VDC 4-7/8” x 1-1/4” Flat Radius 1/2” to 5/8” Aluminum 061026

7101 510 628 24VDC 4-7/8” x 1-1/4” Radius Radius 1/2” to 5/8” Aluminum, Pair of Doors 063465

7101 540 628 24VAC/12VDC 4-7/8” x 1-1/4” Radius Radius 1/2” to 5/8 Aluminum, Pair of Doors 060916

7110 440 628 16VAC 7-15/16" x 1-7/16" Flat Radius 1/2” to 5/8 Aluminum, Hollow Metal & Wood 063466

7110 510 628 24VDC 7-15/16" x 1-7/16" Flat Radius 1/2” to 5/8 Aluminum, Hollow Metal & Wood 063467

7110 540 652 00 24VAC/12VDC 7-15/16" x 1-7/16" Flat Radius 1/2” to 5/8 Aluminum, Hollow Metal & Wood 061027

7130 510 628 24VDC 6-7/8" x 1-1/4" Flat Radius 1/2” to 5/8 Aluminum, MS Cutout 063469

7130 540 628 24VAC/12VDC 6-7/8" x 1-1/4" Flat Radius 1/2” to 5/8 Aluminum, MS Cutout 060918

7140 340 628 12VAC 4-7/8” x 1-1/4” Flat Square 1/2” to 5/8 Hollow Metal & Wood 062038

7140 440 628 16VAC 4-7/8” x 1-1/4” Flat Square 1/2” to 5/8 Hollow Metal & Wood 063470

7140 510 628 24VDC 4-7/8” x 1-1/4” Flat Square 1/2” to 5/8 Hollow Metal & Wood 060247

7140 540 628 24VAC/12VDC 4-7/8” x 1-1/4” Flat Square 1/2” to 5/8 Hollow Metal & Wood 025628

7170 540 628 00 24VAC/12VDC 4-7/8” x 1-1/4” Flat Square 3/4” Hollow Metal & Wood 001060

4

© 2008, 2009 International Distribution Network Canada Ltd.

www.idncanada.ca

Electric Strikes, eLatch, & Accessories

Adams Rite

7400 & 74 Series Grade 1 Ultraline Conventional & Exit
Device Strikes

Solution

The Ultraline strikes are fully adjustable for door
& frame related conditioning which allows for the
correct functioning of the strike under preload
conditions

Using jaw inserts of various
sizes, the UltraLine 7400
Series electric strikes are
adjustable to compensate
for door and frame related
preload and security prob­lems

7400

What is Preload?

Pressure is exerted on a door and transferred to the
electric strike keeper. This pressure prevents the
strike from releasing because of the pressure binds
the latch to the keeper. Even small amounts of “pre­load” can cause the electric strike to malfunction or
be disabled .

Preload Causes

Stack pressure caused by heating and air condition­ing, misaligned strike and locksets, or warped or
damaged metal and wood doors. These preloads can
under some conditions leave a door unlocked mak­ing building assets vulnerable.

• Single solenoid operates on 12,
16, or 24 volt AC/DC power

• Over 2000 lbs. of holding force

• Open electrically with 30 lbs of

preload

• Compact size - 1-1/16” overall
depth

• Field selectable - fail secure or
fail safe

• Retrofits previous Adams Rite

7500, 7800, 7000, & 7100 se-

74R1

Mfg # Faceplate Corners Latch Frame EZ #

7400 628 4-7/8” x 1-1/4” Flat Radius 1/2” to 5/8” Aluminum 090505

7410 628 7-15/16" x 1-7/16" Flat Radius 1/2” to 5/8” Aluminum, Hollow Metal & Wood 090507

7440 628 4-7/8” x 1-1/4” Flat Square 1/2” to 5/8” Hollow Metal, & Wood 090511

74R1 130 1-3/4” x 9 x 11/16” Deep - 3/4” Pullman Rim Aluminum, Hollow Metal & Wood 090502

74R2 130 1-5/8” x 9 x 1/2” Deep - 1/2” Narrow Rim Aluminum 090503

Adams Rite

ries , 74R1 & 74R2 replace old

71R1 & 71R2 series.

• Exceeds Grade 1 Standards

• Adjustable jaw

• Low Current Draw

• Five year limited warranty

Current Draw in Amps

Volts AC DC

12 .163 .440

16 .228 .458*

24 .084 .230

* 16VDC Requires VA 7400-16VDC

Adapter available by special order.

4200 Series eLatch™
Electrified Latch

Features and Benefits

• Continuous or intermittent duty

• Fail secure lock with form “C” latch status monitor

• Works with a variety of interior lever and paddle
operators such as 4590,4591,4560,4566, & 4568

Specification Data

• Current 0.2A @ 24VDC

• Temperature: -35 to +66°C

• Bolt Throw: 5/8”

• Lock Backset: 1 1/8”

Mfg# Hand EZ #

4200 35 101 628 24 RHR/LH 090917

4200 36 101 628 24 LHR /RH 090916

Electric Strike Accessories

4603

Converts low volt­age AC current to
DC of same voltage.
Installs in low volt­age line between
transformer and
strike. Full wave
bridge type. Rated 2
amps

www.idncanada.ca

© 2008, 2009 International Distribution Network Canada Ltd.

4605

Converts 120VAC to 12 or 24VAC. Rated 40
Volt-amp for plenty of power.

Mfg # Description EZ #

4603 Rectifier 001039

4605 12 or 24VAC Transformer 001040

5

Adams Rite

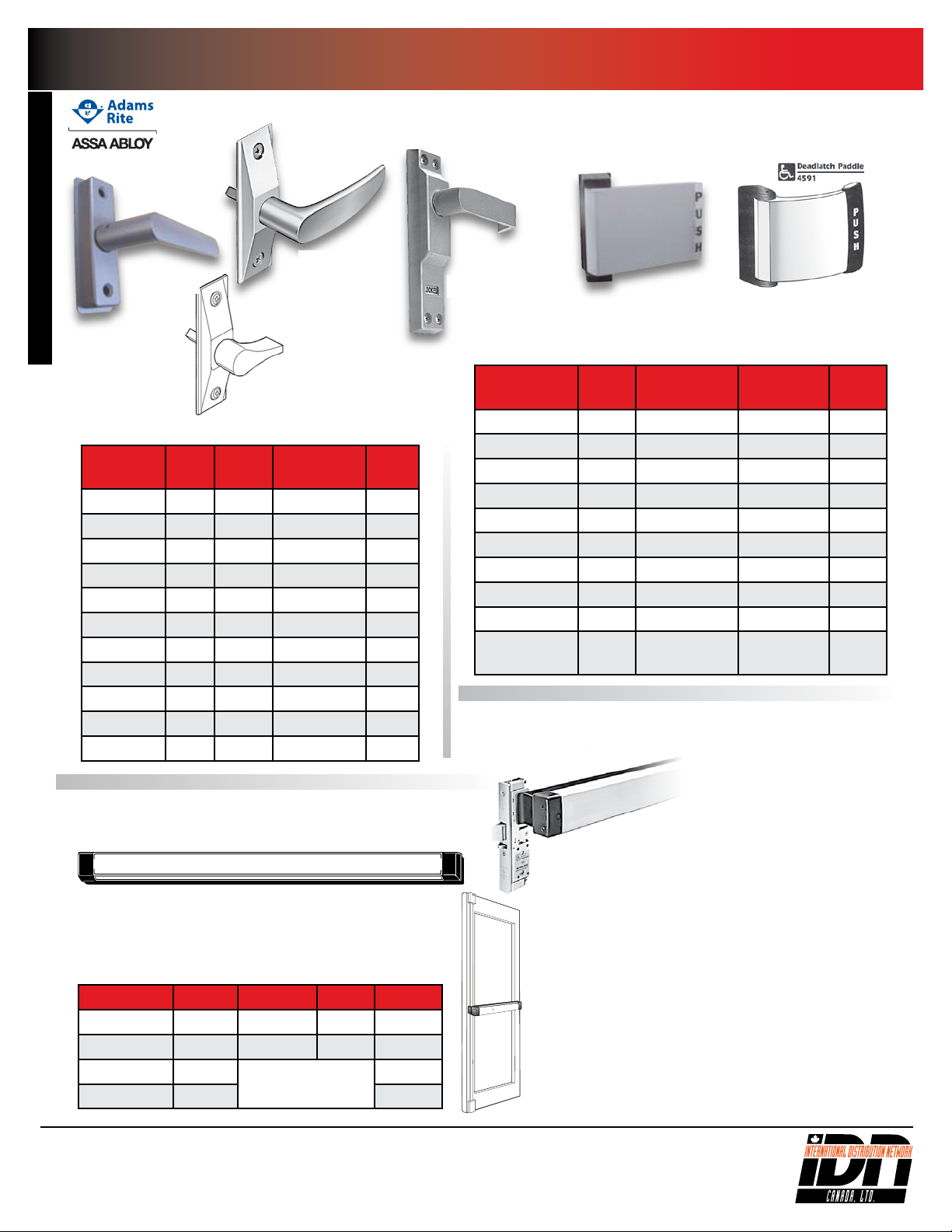

Handles, Paddles & Exit Devices

Lever Handles

4560

4568

Adams Rite

4565

4580 Reversible Hand Cam Disc Included.

Mfg # Hand Finish

4550L121 Rev Duro 1-3/4” to 2” 061495

4550L130 Rev Alum 1-3/4” to 2” 061496

4560 501 121 LH Duro 1-3/4” to 2” 001019

4560 501 130 LH Alum 1-3/4” to 2” 001016

4560 502 130 LH Alum 2-1/4” to 2-1/2” 079046

4560 601 121 RH Duro 1-3/4” to 2” 001018

4560 601 130 RH Alum 1-3/4” to 2” 001017

4565 501 121 LH Duro 1-3/4” to 2” 001023

4565 501 130 LH Alum 1-3/4” to 2” 001022

4565 601 130 RH Alum 1-3/4” to 2” 035020

4568 501 628 LH Alum 1-3/4” to 2” 001025

Door

Thickness

EZ #

Active Dummy Bar with Switch

8099

• Can be wired normally open or normally closed to operate
maglock, alarm, etc.

• No latching mechanism.

Latch Paddles

• Built-in exit
indicator

4550L

• For MS Locks
Only

4590

4591

ALL PADDLES ARE NOW REVERSIBLE

Mfg # Finish Handing

4590 02 00 313 Duro Push to Left 1-3/4” 001034

4590 02 00 628 Alum Push to Left 1-3/4” 001033

4590 02 02 628 Alum Push to Left 2-1/4” to 2-1/2” 080082

4590 04 00 313 Duro Push to Right 1-3/4” 001038

4590 04 00 628 Alum Push to Right 1-3/4” 001037

4591 02 00 313 Duro Push to Left 1-3/4” 074885

4591 02 00 628 Alum Push to Left 1-3/4” 074883

4591 04 00 313 Duro Push to Right 1-3/4” 074886

4591 04 00 628 Alum Push to Right 1-3/4” 074884

4591MA02 628 Alum Push to Left with

Monitor Switch

Door

Thickness

1-3/4” 074887

8400 Mortise Exit Device

• Fits standard narrow stile cutout used
for M.S. deadlock.

• 5/8" bolt throw.

• Minimum stile width is 2”.

• Strike for installations where 1-3/4"

8400

door closes flush with jamb.

• Push bars are extruded anodized alu­minum with black ABS end cap.

• Handing can be reversed

• U.L. Life-Safety Listed, ANSI Grade 1

8211 Surface Vertical Rod

EZ #

Mfg # Finish Backset Hand EZ#

8410 27136 628 Alum 31/32" RHR 025836

8410 37136 628 Alum 1-1/8" RHR 025837

8099 M1 3136 Alum 090488

8211 36 628 Alum 100823

6

© 2008, 2009 International Distribution Network Canada Ltd.

8211

www.idncanada.ca

• For 1-3/4” thick aluminum
doors with widths of 30” to
36” and heights up to 8’.

• Requires 2” stile minimum

• Will accept optional rim
cylinder.

• Patented top latching
mechanism interlocks door
to frame

• Adjustable rods encased in
contoured covers.

Latch & MS Locks Faceplates & Parts

Latch & MS Accessories & Parts

Mfg # Description For EZ#

22 0792 Mounting tabs MS & Latch 025807

4104 01 Mounting Clip - Radius MS & Latch 001005

4104 02 Mounting Clip - Flat MS & Latch 001006

4104 03 Mounting Clip - LH Bevel MS & Latch 001007

4104 04 Mounting Clip - RH Bevel MS & Latch 001008

S232B8 9/32N631 7/8” Set Screws MS & Latch 001047

S232C08 05 631 31/32” Set Screws MS & Latch 000993

S232C8 15/32 631 1-1/8” Set Screws MS & Latch 000970

4901 01 630 Strike long stainless for MS replacement Latch 001014

4902 01 630 Strike short stainless flat Latch 001015

4902 02 630 Standard radius double door strike Latch 035019

MS4001 031 628 Box strike for MS1850 MS Hook 035015

MS4002 012 628 Armoured Strike for MS1850 MS Flip 000996

22 0792

4901 01

4104

MS4001

4902 01
4902 02

MS4002

S232

Adams Rite

Adams Rite

24 0017

Latch & MS Faceplates

Flat

Radius

Radius with weatherstrip

RH Bevel

24-0384

Mfg # Type EZ

MS1805S or MS1850A (Measures 6-7/8” x 1”)

24 0384 010 313 Flat 000922

24 0384 010 628 Flat 000921

24 0384 110 628 Radius 000925

24 0384 310 628 RH Bevel 000933

24 0384 410 628 Radius with Weatherstrip 000936

MS1850S or MS1850A (Measures 7-3/8” x 1-1/4”

24 0398 010 628 Flat 000940

LH Bevel

Mfg # Type EZ#

4710, 4513 (Measures 6-7/8” x 1”)

24 0017 0220 313 Flat 000898

24 0017 0220 628 Flat 000897

24 0017 1220 628 Radius 000899

24 0017 2220 313 LH Bevel 000902

24 0017 2220 628 LH Bevel 000901

24 0017 3220 313 RH Bevel 000904

24 0017 3220 628 RH Bevel 000903

24 0017 4220 613 Radius with Weatherstrip 000906

24 0017 4220 628 Radius with Weatherstrip 000905

4720, 4520 (Measures 8” x 1-1/4”)

24 0015 020 628 Flat 035004

4730, 4530 (Measures 7-13/32” x 1-1/4”)

24 0016 020 628 Flat 000907

24 0016 320 628 RH Bevel 000910

Mfg # Type EZ #

4900 (Measures 6-7/8” x 1”

24 0137 03 313 Radius with Weatherstrip 085479

24 0137 03 628 Radius with Weatherstrip 085480

www.idncanada.ca

© 2008, 2009 International Distribution Network Canada Ltd.

7

Adams Rite

8000 Series Exit Device Parts

Adams Rite

41 0811 02 07

For 1-1/8” & 1-1/2” sizes
please see 4900 Series.

31 0265

25 0480

91 0995 04

Exit Device, Lever, & Paddle Parts

41 0801 08

29 0481

Mfg # Description Series EZ #

25 0480 Old Style Dogging Key 8800 000986

29 0481 New Style Dogging Key 8800 065417

31 0265 Dogging Assembly 8200 & 8800 067223

31 0944 IP Actuator Assembly 8600 090489

41 0801 01 Active End Cap 8400 035005

41 0801 08 Active End Cap 8800 028236

41 0811 02 07 31/32” Latch 8400 082757

91 0995 04 2-1/2” Thick Door Kit 8400 091151

4900 Series Paddle & 4560 Series Lever Parts

Mfg # Description Series EZ #

26 0188 09 Binder Post Paddle 000884

26 0398 Set Screw Paddle 000967

4580

28 0225

NJ 14 28

26 0188 09

26 0398

28 0225 Spring Lever 000944

31 0485 Spindle Assembly Lever 000955

4580 501 LH Cam Disc. Lever & Paddle 001029

4580 601 RH Cam Disc. Lever & Paddle 001030

91 0060 Spring Replacement Kit Paddle 067458

NJ14 28 Binder Post Nut Paddle 000961

91 0060

31 0485

8

© 2008, 2009 International Distribution Network Canada Ltd.

www.idncanada.ca
