SWINGING DOOR HARDWARE
Two-Point Deadbolt
For Roll-Up Doors/Grills
1875
ANSI/BHMA Type E86182 (Grade 2)
SW-8SW-8
Case
Steel with corrosion-resistant plating.
1“ x 6” x 2”-5/8”.
Bolt Arms
1-1/32” throw. Threaded for 1/4”-20 rods. Because of
design variations in this type of door, no standard bolt can
be offered to fit all makes of doors. Contact Adams Rite
factory concerning bolts, rods, bolt guides and strikes to fit
individual door designs.
Function
For overhead “garage” doors, roll-up security screens or similar
doors. Provides turn operation of two bolts from either or both
sides. Accepts standard mortise cylinders for key control of
bolts to secure them in either projected or retracted position.
4060 Turn
Cylinder Backset
Bolt arms require inside stile clearance of 1-11/16“ on
one side of cylinder center, 1” on the other.
4060 Turn
Zinc alloy escutcheon and handle. Finish is US26D. Steel
spindle is also available to accommodate various door
thicknesses.
Operation
o
90 rotation of turn throws or retracts bolts. 360 turn of
key deadlocks mechanism, preventing operation of the
turn in either locked or unlocked position.
260 Santa Fe Street
Pomona, California 91767
( ) ( )
800 872-3267 Fax: 800 232-7329
www.adamsrite.com
o
1875 Two-Point Deadbolt
for Roll-Up Doors/Grills

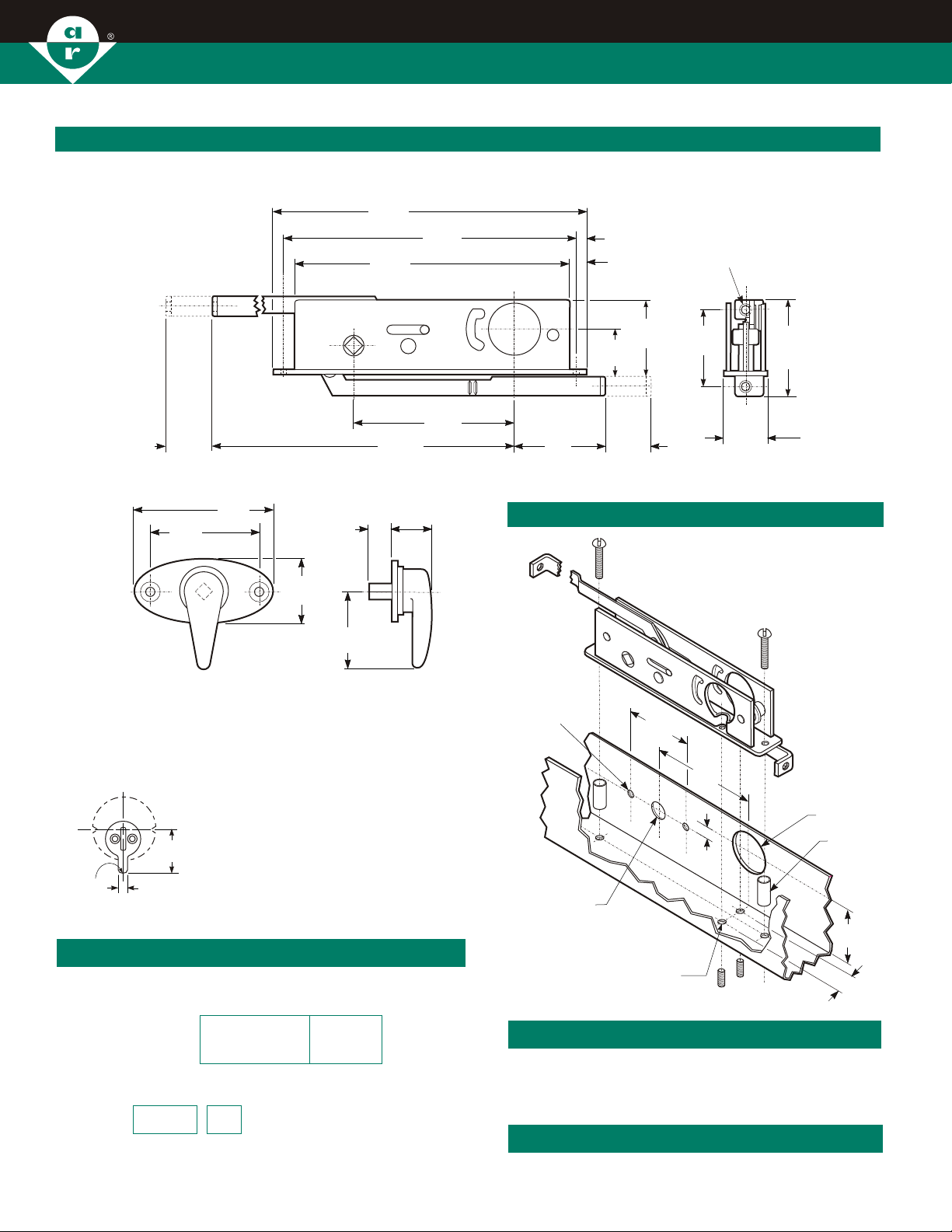

DIMENSIONS
INCHES
6.38
162.05
MILLIMETERS
.22
5.59
.34
8.64
(2 PLACES)
Nominal, subject to tolerance extremes.
6.81
172.97
6.00
152.40
1/4-20 NC
CYLINDER
C
L
.120R
3.05
4060 Turn
CAM TOLERANCE:
+
_
.005
+
_
.13
.800
20.32
.182
4.62
Order related hardware separately.
1.03
26.06
TRAVEL
2.125
53.98
2.87
72.90
1.22
30.99
1.50
38.10
*FOR 1-3/4" THICK DOOR
.87*
22.10
9.00
228.60
Cylinder Cam
1875 deadbolts are operable by any
standard 1-5/32“ diameter mortise cylinder
with special MS cam dimensioned as
®
shown. Cylinders with MS cams can be
readily obtained from most cylinder
manufacturers. See page SW-35 for cylinder
make and trim ring information.
HOW TO ORDER
Specify quantity and part number.
.80
20.32
3.503
88.98
2.00
50.80
10-32 NF, 2 PLCS
(HOLE LOCATION FOR
4060 HANDLE ASSY)
.50
DIA.
12.7
1.0
25.4
1.03
26.06
TRAVEL
1.63
41.40
1.72
43.69
INSTALLATION
2.125
53.98
3.503
88.98
.375
9.52
.187
DIA.
4.75
(2 PLCS)
2.63
66.80
MAX.
C
L
1.00
25.4
NOTE: INSTALLATION REQUIREMENTS
VARY ACCORDING TO RAIL DESIGN
1.25
DIA.
31.75
.687
MIN.
17.45
1.687
MIN.
42.85
.70
17.78
1875 - IB
Specify 4060 Turn separately, including quantity and door thickness.
-05
1-1/2“ Door Thickness
1-3/4“ Door Thickness
4060 05
-
Contact factory regarding mounting spacers, bolts, guides and strikes
for a particular door design.
©2009 ADAMS RITE MANUFACTURING CO.
-06
2“ Door Thickness
-07
OPTIONS
4060 Turn shown is available with choice of spindle lengths.
Bolts, connecting rods, bolt guides and strikes are available on
special order. Cylinders also available separately.
STANDARD PACKAGE
Shipping weight: 1-1/2 lbs.
