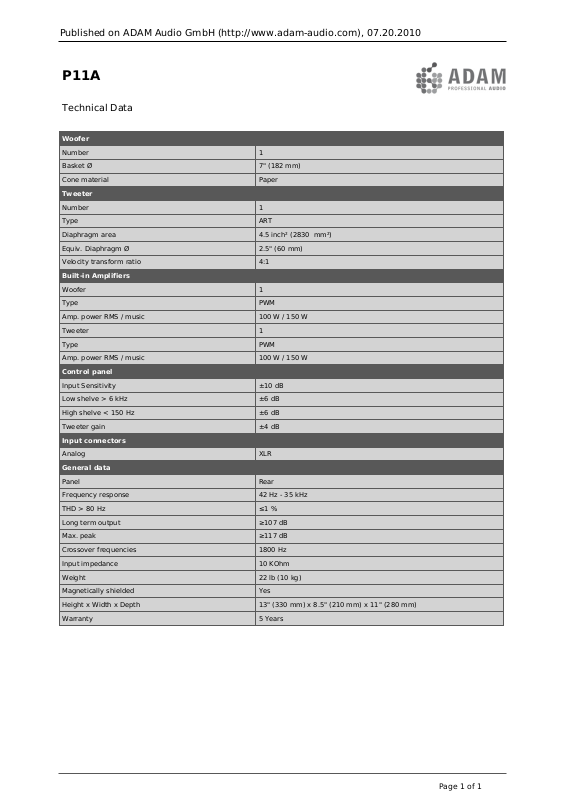

P11A
Technical Data
Woofer
Number 1
Basket Ø 7" (182 mm)
Cone material Paper
Tweeter
Number 1
Type ART
Diaphragm area 4.5 inch² (2830 mm²)
Equiv. Diaphragm Ø 2.5" (60 mm)
Velocity transform ratio 4:1
Built-in Amplifiers
Woofer 1
Type PWM
Amp. power RMS / music 100 W / 150 W
Tweeter 1
Type PWM
Amp. power RMS / music 100 W / 150 W
Control panel
Input Sensitivity ±10 dB
Low shelve > 6 kHz ±6 dB
High shelve < 150 Hz ±6 dB
Tweeter gain ±4 dB
Input connectors
Analog XLR
General data
Panel Rear
Frequency response 42 Hz - 35 kHz
THD > 80 Hz ≤1 %
Long term output ≥107 dB
Max. peak ≥117 dB
Crossover frequencies 1800 Hz
Input impedance 10 KOhm
Weight 22 lb (10 kg)
Magnetically shielded Yes
Height x Width x Depth 13" (330 mm) x 8.5" (210 mm) x 11" (280 mm)
Warranty 5 Years
