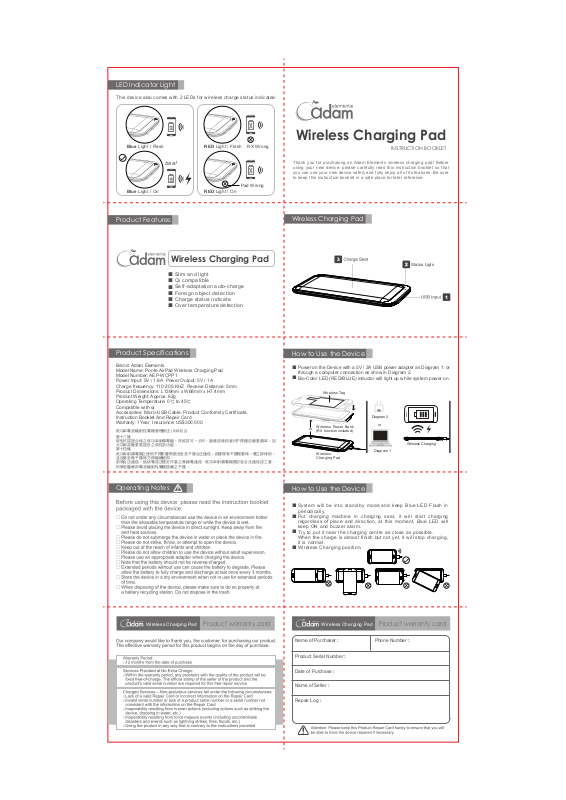

ADAM elements AEP-WCPP1 INSTRUCTION BOOKLET

LED Indicator Light

This device also comes with 2 LEDs for wireless charge status indicated.

Blue Light / Flash RED Light / Flash

RX Wrong

bee!

Blue Light / On

RED Light / On

Pad Wrong

Product Features

Wireless Charging Pad

Slim and light

■

Qi compatible

■

Self-adaptation auto-charge

■

Foreign object detection

■

Charge status indicate

■

Over temperature detection

■

Product Specifications

Brand: Adam Elements
Model Name: Ponte AirPad Wireless Charging Pad
Model Number: AEP-WCPP1
Power Input: 5V / 1.8A Power Output: 5V / 1A
Charge frequency: 110-205 KHZ Receive Distance: 5mm
Product Dimensions: L139mm x W68mm x H7.4mm
Product Weight: Approx. 62g
Operating Temperature: 0℃ to 45℃
Compatible with qi
Accessories: Micro-USB Cable, Product Conformity Certificate,
Instruction Booklet And Repair Card
Warranty: 1Year Insurance: US$300,000.

低功率電波輻射性電機管理辦法 (930322)
第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機需忍受合法通信或工業、
科學及醫療用電波輻射性電機設備之干擾。

Wireless Charging Pad

INSTRUCTION BOOKLET

Thank you for purchasing an Adam Elements wireless charging pad! Before
using your new device, please carefully read this instruction booklet so that
you can use your new device safely and fully enjoy all of its features. Be sure
to keep this instruction booklet in a safe place for later reference.

Wireless Charging Pad

Status Ligts

How to Use the Device

■

Power on the Device with a 5V / 2A USB power adapter as Diagram 1. or
through a computer connection as show in Diagram 2.

■

Bio-Color LED (RED/BLUE) inductor will light up while system power on.

Wireless Tag

Diagram 2

Wireless Power Bank

or

(RX function included)

Wireless
Charging Pad

or

Diagram 1

Wireless Charging

Operating Notes

Wireless Charging Pad

Product warranty card

How to Use the Device

■

System will be into stand-by mode and keep Blue LED Flash in
periodically.

■

Put charging machine in charging seat, it will start charging
regardless of place and direction, at this moment, Blue LED will
keep ON and buzzer alarm.

■

Try to put it near the charging centre as close as possible.
When the charge is almost finish but not yet, it will stop charging,
it is normal.

■

Wireless Charging position.

Wireless Charging Pad

Name of Purchaser :

Product Serial Number :

Date of Purchase :

Name of Seller :

Repair Log :

Product warranty card

Phone Number :

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 10cm between the radiator & your bod y.
