ADA instruments CUBE 360 Green Ultimate Edition, CUBE 2-360 Green Ultimate Edition User Manual
MEASUREMENT FOUNDATION
Operating manual
Laser level
Model: CUBE 360 Green
Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM
Table of contents
1. Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Technical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Safety requirements and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4. Order working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6. Safety precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Appendix 1- “Certicate of acceptance and sale”
Appendix 2- “Warranty card”
2
1. CAUTIONS
Laser level ADA CUBE 360 Green is an up-to-date functional and multi-prism device designed for indoor and
outdoor performance. The device emits:
one horizontal laser line (beam scan angle of 360°)
one vertical laser line (beam scan angle of 110°);
down point laser.
Do not look at the laser beam!
Do not install the device on the eye level!
Before using the device, do read this operating manual!
90°
horizontal line
vertical line
2. TECHNICAL REQUIREMENTS
2.1. FUNCTIONAL DESCRIPTION
Emitting a horizontal and vertical laser line.
Quick self-leveling: when line accuracy is out of the range the laser line
ashes and the warning sound is produced. Compensator locking system
for safe transportation. Intermediate compensator locking system for slope operation.
Indoor and outdoor performance function.
3
2
2.2. FEATURES
1. Laser lines on/off
2. Indoor/outdoor operating mode
3. Battery compartment
4. Tripod mount 1/4’’
5. Compensator switch
(ON/X/OFF)
6. Vertical laser window
7. Horizontal laser window
4
1
2
7
4
3
6
4
5
2.3. SPECIFICATIONS
Laser Horizontal line 360°/vertical line
Light sources 2 laser diodes with laser emission wave length of 532 nm
Laser safety class Class 2, <1mW
Accuracy ±3 mm/10 m
Self-leveling range ±4°
Operating range with/without receiver 70/20 m
Power source 3 alkaline batteries, AA type
Operation time Approx. 15 hours, if everything is on
Tripod thread 2х1/4”
Operating temperature -5°C +45°C
Weight 390 g
5
3. SAFETY REQUIREMENTS AND CARE
Follow safety requirements! Don’t face and stare at laser beam!
Laser level is an accurate Instrument, which should be stored and used with care.
Avoid shaking and vibrations! Store the Instrument and It’s accessories only In the carrying case.
In case of high humidity and low temperature, dry out the Instrument and clean It after the usage.
Do not store the Instrument at a temperature below -20°C and above 50°C, otherwise the Instrument can be
out of action.
Don’t put the Instrument Into the carrying case If the Instrument or case are wet. To avoid moisture condensation Inside the Instrument- dry out the case and laser Instrument!
Check regularly Instrument adjustment!
Keep the lens clean and dry. To clean the Instrument use a soft cotton napkin!
4. ORDER WORKING
Cube 360 Green is a reliable and convenient instrument. It will be irreplaceable instrument for many years.
1. Before use, remove battery compartment cover. Insert three batteries into battery compartment with proper
6
polarity, the put the cover back.
2. Set the compensator locking grip 5 into ON position, two laser beams will be on.
If the switch is ON,that means the power is on and the compensator is working.
If the switch 5 is in intermediate position, that means the power is opened,the compensation is still locked, but it
will not warn if you issue the slope. It’s the hand-mode.
If the switch 5 is OFF, that means that the instrument is off, the compensator is also locked.
3. Press button 1 only once- horizontal beam will turn on. Press the button 1 one more time - vertical laser beam
will turn on. Again press the button 1 - horizontal and vertical beams will turn on.
4. Press button 2 once. Otdoor mode is activated. Press button 2 one more time. The instrument begins to work
in indoor mode.
7
To check the accuracy of line laser level
To check the accuracy of line laser level
(slope of plane)
Place laser level on the tripod 5m away from the
wall so the horizontal laser line will be directed
to the wall.
Switch on the power. The instrument starts to
self-level. Mark point A on the wall to show the contact of laser beam with the wall. Turn the instrument
by 90° and mark points В, С, D on the wall. Measure
distance “h” between the highest and lowest points
(these are A and D points in the picture).
If “h”is ≤ 6 mm, the measurement accuracy is
good. If “h” exceeds 6 mm, apply service center.
8
To check plumb
Choose a wall and set laser 5 m away from the wall. Hang a plumb with the length 2.5 m on the
wall. Turn on the laser and make the vertical laser line meet the point of the plumb. The accuracy of
the line is in the range if the vertical line doesn’t exceed (up or down) the accuracy that is shown in
the specifications (±3 mm/10 m). If the accuracy isn’t corresponding with claimed accuracy, contact
the authorized service center.
Note: Because of construction of laser emitter laser beam may be unhomogeneous and has different intensity of brightness along the perimeter in different light conditions. Unhomogeneous of laser
beam: laser patch of light but the center of laser beam is identified. Different laser beam brightness:
difference of intensity is up to 50%.
9
5. APPLICATION

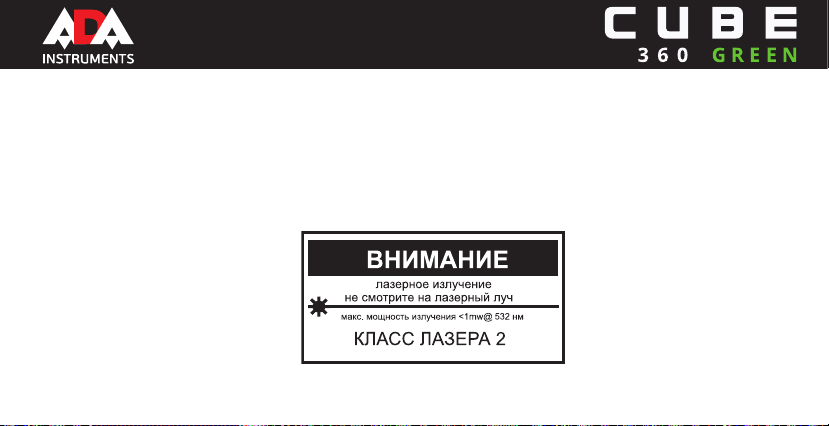

6. SAFETY PRECAUTION
10
CARE AND CLEANING
Please handle measuring instrument with care. Clean with soft cloth only after any use. If necessary damp cloth with some
water. If instrument is wet clean and dry it carefully. Pack it up only if it is perfectly dry. Transport in original container/case only.
Note: During transport On/Off compensator lock (5) must be set to position “OFF”. Disregard may lead to damage of compensator.
SPECIFIC REASONS FOR ERRONEOUS MEASURING RESULTS
• Measurements through glass or plastic windows;
• Dirty laser emitting window;
• After instrument has been dropped or hit. Please check the accuracy.
• Large uctuation of temperature: if instrument will be used in cold areas after it has been stored in warm areas (or the
other way round) please wait some minutes before carrying out measurements.
ELECTROMAGNETIC ACCEPTABILITY (EMC)
• It cannot be completely excluded that this instrument will disturb other instruments (e.g. navigation systems);
• will be disturbed by other instruments (e.g. intensive electromagnetic radiation nearby industrial facilities or radio trans-
mitters).
11
