Operating manual

Laser distance meter

Model: COSMO 100

Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM

COSMO 100

2

Table of contents

1. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2. Start up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. Menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4. Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5. Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Message codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7. Techical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

9. Exceptions from responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Appendix 1 - “Certificate of acceptance and sale”
Appendix 2 - “Warranty card”

COSMO 100

Congratulations on the purchase of laser distance meter ADA COSMO 100!

Permitted use

· Measuring distances

· Computing functions, e.g. areas, volumes, subtractions, Pythagorean calculation

· Storing measurements

The safety regulations and instructions along with the operating manual should be read carefully
before initial operation.The person responsible for the instrument must ensure that equipment is
used in accordance with the instructions. This person is also accountable for the deployment of
personnel and for their training and for the safety of the equipment when in use.

3

COSMO 100

4

SAFETY INSTRUCTION

Prohibited use

Please follow up instructions given in operating manual.
Do not use instrument in explosive environment (filling station, gas equipment, chemical production and so on).
Do not remove warning labels or safety instructions.
Do not open instrument housing, do not change it’s construction or modification.
Do not stare at beam. Laser beam can lead to eye injury (even from greater distances).
Do not aim laser beam at persons or animals.
Opening of the equipment by using tools (screwdrivers, etc.), as far as not specifically permitted for certain cases.
Inadequate safety precautions at the surveying site (e.g. when measuring on the roads, construction sites and so on).
Use the instrument in the places where it could be dangerous: on the air transport, near manufacturers,
production facilities, in the places where the work of laser distance meter can lead to the harmful effects on
people or animals.

START UP

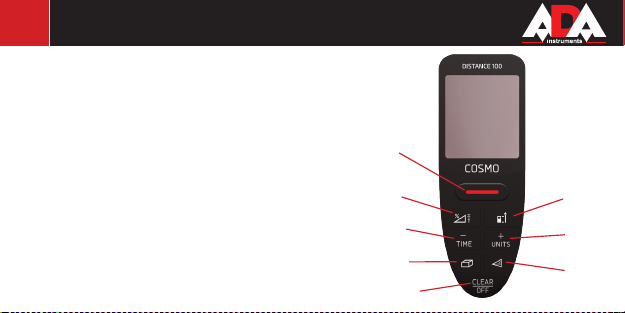

Keypad

1. ON / Measure

2. Angle / Stake out function button

3. Subtraction (-) / Timer

4. Area / Volume

5. Clear / OFF

6. Pythagorean measurement

7. Addition (+)/ Units

8. Reference point

COSMO 100

5

1

2

3

4

8

7

6

5

COSMO 100

6

10

9 8

1

2

7

6

3

5

Display

1. Laser ON

2. Reference (front/rear)

3. Area / volume/ Pythagorean

4. Main line

5. Line 2

6. Line 1

7. Units

8. Timer On

9. Battery display

10. Error

4

COSMO 100

Inserting / Replacing Batteries

Remove the end piece on 180º. Remove the battery cover, insert the battery correctly. Pay attention to
correct polarity.
Close the battery compartment.
Replace the battery when symbol constantly blinks in the display.
Batteries should be removed in case of danger of corrosion, if the device will not be used for a long time.

MENU FUNCTIONS

Swtich on and off

Press the button (1) to switch on the instrument and laser.
Press and hold key for about 2 seconds to start continuous measuring.
The device also switches off automatically after 3 minutes of inactivity i.e. no key is pressed within that
interval. To switch off the instrument press and hold button (5) for about 2 sec.

7

COSMO 100

8

Reference Setting

Default reference setting is from the rear of the device.
Press the button (8) to set the reference: the front or the rear.
When the end-piece is folded out fully, the reference rear is set.
You will see the reference symbol on the display.

Selecting Units

Press and hold the button (7) for 2 sec. until the desired unit is displayed.

Clear-Key

Cancel the last action. Press button (5).

COSMO 100

MEASUREMENTS

Single distance measurement

Press button (1) to activate the laser. When in continuous laser mode, press this button to trigger the distance measure­ment directly. The instrument will give acoustical signal.
The result is displayed immediately.

Continuous Measurement

Press and hold the button (1) for about 2 seconds to start continuous measuring.

Minimum/ Maximum measurement

This function allows the user to measure the minimum or maximum distance from a fixed measuring point. It is com­monly used to measure room diagonals (maximum values) or horizontal distances (minimum values).
Press and hold down the button (1), until you will hear acoustical signal. Then slowly sweep the laser back and forth

9

COSMO 100

10

and up and down over the desired target point (e.g. into the corner of a room).
Press (1) to stop continuous measurement. The values for maximum and minimum distances are shown on
the display as well as the last measured value in the main line.

FUNCTIONS

Addition/subtraction

Press button (7): next measurement is added to the previous one. Press button (3): next measurement is substracted
from the previous one.
To complete this function press button (1). Repeat this function to measure distances. The result is des­played in the main display area. Previous measured value is displayed in the first line, last measured value
is displayed in the second line. To finish working in this mode press button (5).

COSMO 100

Area

Press the button (4) once.The symbol “area” is displayed.
Press button (1) to take the first measurement (for example, length). Measured value is displayed in the
second line.
Press button (1) to take the second measurement (for example, width). Measured value is displayed in the
second line. First measurement (e.g. length) is displayed in the first line. The result of measured area is
displayed in the main display area.

Addition / Subtraction of areas

Area measuring – see Area.
Take the first measurement of area. Press button (7) to enter into the Addition mode or button (3) to enter
into the Subtraction mode. Area value is displayed in the second line.
Press button (1) to take the first measurement (for example, length). Press button (1) to take the second
measurement (for example, width).

11

COSMO 100

12

After the completion of area, press button (1) , the result of addition/substraction of areas is displayed in
the main display area. If the measurements are not finished, press button (7) (addition) or (3) (substraction)
to continue calculations.

Volume

For volume measurements, press button (4) twice until the indicator for volume measurement appears on
the display.
Press button (1) to take the first measurement (for example, length). Measured value is displayed in the
second line.
Press button (1) to take the second measurement (for example, width). Measured value is displayed in the
second line. Area value is displayed in the first line.
Press button (1) to take the third measurement (for example, height). Measured value is displayed in the
second line.
The volume value will be displayed in the main display area and the previous area value is displayed in the first line.

COSMO 100

Indirect measurement

Pythagorean measurement is used in the condition when the object is covered or has no effective reflect­ing surface and can’t be measured directly.

Make sure you adhere to the prescribed sequence of measurement:
All target points must be in a horizontal or vertical plane.
The best results are achieved when the instrument is rotated about a fixed point (e.g. with the positioning
bracket fully folded out and the instrument placed on a wall) or the instrument is mounted on a tripod.
Continious measurements can be used. This function is used for minimum/maximum measurements.
The minimum value must be used for measurements at right angles to the target; the maximum distance
for all other measurements.
Be sure that the first measurement and distance are measured at right angles. Use indirect measurement
function.

13

COSMO 100

14

Indirect measurement – determing a distance using 2 auxilary measurements

This function is used when height and distance can’t be measured directly.

Press button (6). The symbol “triangle” is displayed. The distance to be measured is blinking in the symbol
triangle.
Press button (1) to take distance measuring (hypothenuse of triangle). The result is displayed in the second line.
This measurement can be taken in the indirect measurement function. Press and hold button (1) for 2 sec. After
second pressure of the button (1) maximum value is fixed.
The second distance to be measured is blinking in the symbol triangle.
Press button (1) to take distance measuring. There is a right angle between laser beam and the length you need to
measure. That’s why you should work in continious mode. Press and hold button (1) for 2 sec. After second pres­sure of the button (1) maximum distance is fixed. The result of the measurement is displayed in the second line.
Previous measurement is displayed in the first line. The result of the function is displayed in the main
display area.

COSMO 100

Indirect measurement – determing a distance using 3 measurements

This function is used when it’s necessary to measure diagonals of rectangular areas, and also for calcula­tion of the length of frameworks, inclined distances and so on.

Press button (6) 2 times. The symbol “triangle” is displayed. The distance to be measured is blinking in
the symbol triangle.
Press button (1) to take distance measuring (side of the triangle) . The result of the function is displayed
in the second line. This measurement can be taken in the mode of continious measurement. Press and hold
button (1) for 2 sec. After second pression of the button (1) maximum value is fixed. The second distance to
be measured is blinking in the symbol triangle. It’s very important to have right angle between laser beam
and the length you need to measure. That’s why you should work in continious mode. Press and hold button
(1) for 2 sec. After second pressure of the button (1) maximum distance is fixed.

15

COSMO 100

16

Indirect horizontal distance

Press button (2). Symbol of angle measurement will be displayed on the screen. Press button (1) to measure inclination
and distance. Horizontal distance will be displayed in the summary line. The display must be upward when measuring.
The instrument stops measuring if it deviates from this position more than 10 degrees.

Marking function

Set distance a and then use it as a mark of the definite measurement. Add the distances: press the button (2) two times
until the symbol of the fixed distance is showed on the display. Distance volume is blinking on the display.
It is possible to set volumes for required marking of the distance with the help of buttons (3) and (7). press button (1) to
confirm the operation. Press button (1) to make measurement based on the mark.
Distance volume is displayed in the summary line between the marking dot and the instrument (see Setting of the
reference mark).
The distance is decreased if you slowly move the instrument along the marking line. The instrument starts to give
sound alarm at the distance less 0.1m from the following marking point.

COSMO 100

Adjusting of the angle meter

1. Turn on the instrument. Place the instrument on the horizontal surface with inclination no more than
5°. The display mus t be upward. Press and hold simulta neously buttons (2) and (8) to enter the
adjusting mod e.

2. Current angle is displayed in the line 1. Press button (1) to take first measurement.

3. Turn the instrument through 180° on the same place. Current angle is displayed on the 2 additional
filed of the display. Press button (1) to take the second measurement.

4. Press button (1) to confirm the result. Then press button (5). Press button (5) for cancellation and
repeated setting of the zero value. Press button (5) once again to quit this function. The result will not be
saved if you don’t confirm the setting.
NOTE: The surface for adjustment must be smooth and without vibrations.

Timer

Use timer for accurate measurements of large distances. Press and hold button (3) to set stoppage in 5 sec. When you

17

COSMO 100

18

release button you will see time that remains till the beginning of the measurement (in sec). Time displays on the display.
Time reading of last 5 sec. comes with acoustic signal. When you hear last signal, the instrument takes a measurement.

MESSAGE CODES

All message codes are displayed with either “Info” or symbol telephone receiver (Error). Following mis­takes can be corrected.

COSMO 100

Info CAUSE REMEDY

204

Calculation overflow Repeat procedure

252

Temperature too high Cool down instrument

253

Temperature too low Warm up instrument

255

Receiver signal too weak Use target plate

256

Received signal too strong Use target plate (grey side)

257

Wrong measurement Use target plate (brown side)

258

Wrong initialization Switch on – off the instrument

Hardware error

Switch on/off the device several times and check if the symbol
still appears. If so please call your dealer for assistance.

19

COSMO 100

20

TECHNICAL DATA

Range, without target, m 0.05 to 100

Accuracy, mm ±1.5*

Smallest unit displayed 1 mm

Distance measuring by tilt sensor 360°

Tilt sensor accuracy ±0.3°

Laser class 2

Laser type 635 nm, <1 mW

IP rating IP 54
