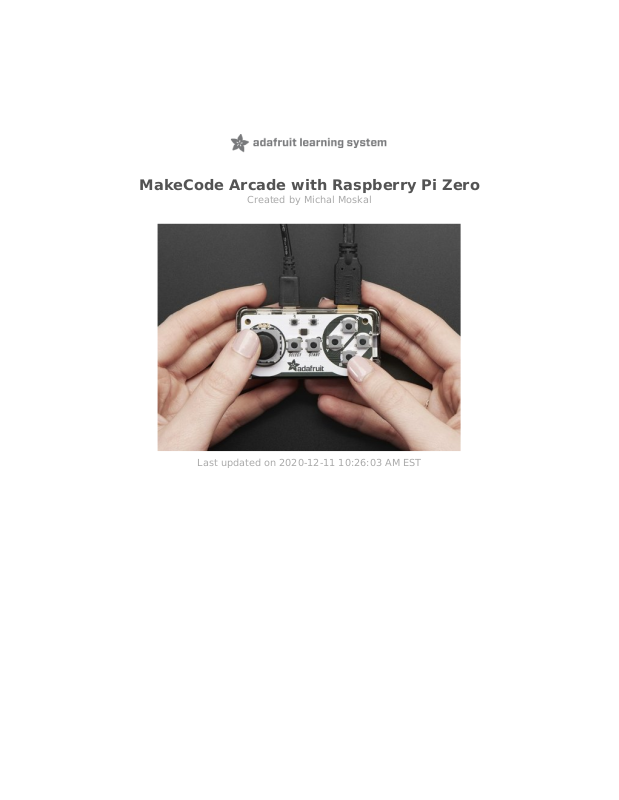

MakeCode Arcade with Raspberry Pi Zero
Created by Michal Moskal
Last updated on 2020-12-11 10:26:03 AM EST
What is MakeCode Arcade?
Microsoft MakeCode Arcade is a web-based beginner-friendly code editor to create retro arcade games
for the web and for microcontrollers. In this guide, you will learn how to assemble your own Arcade
hardware from different parts. MakeCode Arcade is open source on GitHub.
Arcade supports a 160x120 screen with 16 colors, and has a
2D game engine with sprites, platformer-style collisions, tile
maps, particle systems and more!
Arcade is a web-based code editor.
Just like the MakeCode Circuit Playground
Express (https://adafru.it/wpC) editor, you can use blocks or
JavaScript to build your program in your browser. Nothing to
install - it just works!
Arcade is friendly to beginners!
Get started with building your own retro games, using the
block editor and the many guides. You don't need to be a
programmer to get started!
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 3 of 12
Arcade is friendly to seasoned programmers too!
Switch to JavaScript and type away. MakeCode supports
Static TypeScript (https://adafru.it/DCX), a special flavor of
JavaScript optimized for compilation on micro-controllers.
Arcade runs on hardware (in particular SAMD51)!
While all games can be shared and played via the web, the
fun starts when you compile them for SAMD51-based boards,
like the Adafruit ItsyBitsy M4 Express.
https://adafru.it/DCY
https://adafru.it/DCY
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 4 of 12
Setup
This guide will show you how to build a MakeCode Arcade from a Raspberry Pi Zero or Pi 3A+. If you are
looking for Adafruit M4 boards, try this guide.
Raspberry Pi Zero setup
a Raspberry Pi Zero (we won't be using WiFi, but it's fine to buy the Pi Zero W if you want)
a HDMI to mini-HDMI cable or converter
a microUSB cable
a micro SD card (capacity and speed don't matter much)
If you want to get all in a single kit, get the budget packet. If you don't feel like soldering, get the Pi with
headers.
1 x Raspberry Pi Zero W Budget Pack - Includes Pi Zero W
All you need on the Raspberry Pi Zero side
1 x Raspberry Pi Zero WH (Zero W with Headers)
Great combo with the Bonnet
1 x Raspberry Pi Zero - Version 1.3
For the experts, add headers, power cables, HDMI cables and converters as needed!
Raspberry Pi 3A+ setup
You can use Pi 3A+ instead of Pi Zero. It always comes with headers and you don't need a HDMI to mini-
HDMI cable. On the other hand, you will need USB-A to USB-A cable.
1 x Raspberry Pi Model 3 A+
Pi 3A+
Controls
MakeCode Arcade uses 7 buttons. There are many options for buttons:
Adafruit Joy Bonnet and likely a plastic case for Pi Zero
Arcade Cabinet
random buttons and joystick that you wire up together
You can also get Joy Bonnect Pack with Pi Zero which includes many of the components.
1 x Adafruit Joy Bonnet for Raspberry Pi
(optional) Easy pluggable buttons!
1 x Joy Bonnet Pack for Raspberry Pi Zero - Includes Pi Zero W
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 5 of 12
A Pi Zero and Bonnet ready to go!
1 x Raspberry Pi Arcade Cabinet Pack
Can't beat the feeling of real arcade buttons
1 x Arcade Button - 30mm Translucent Blue
Just one of the many available buttons!
Out of
Stock
Out of
Stock
Add to Cart
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 6 of 12
Firmware
Firmware
If your SD card comes with files on it, delete them, or just format the SD card as FAT32. Do not format as
ExFAT. Then download the ZIP file below, unzip it, and copy all files to the root directory of the SD card.
After this, if your SD card drive is named D: , then there should be file D:\9.0.3.gz , and if your SD card is
called /Volumes/NO NAME , then you should have /Volumes/NO NAME/9.0.3.gz . There should not be an
arcade folder on the SD card. The ZIP below above contains binaries built from
https://github.com/microsoft/uf2-linux and https://github.com/microsoft/pxt-arcade-cabinet-menu
If you want to use Raspberry Pi Zero with Joy Bonnet, use the first file below. If you're building your own
arcade with your own buttons and Pi Zero, use the second file.
If you want to use Raspberry Pi 3A+ (other models like 3B or 4 will not work), use the third file. It's setup
for custom input by default, but if you want to use it with Joy Bonnet, just copy arcade.cfg file from the
first zip over to your SD card.
https://adafru.it/H4B
https://adafru.it/H4C
https://adafru.it/HAp
Joy Bonnet
If you're using the Joy Bonnet, then congratulations, you're done!
Just connect the Pi using HDMI cable to a screen, and using the MicroUSB cable to the computer. After a
few seconds you should see a menu much like the one below. Move to the next section to download
games to your Arcade.
Custom Inputs
If you want to use a big joystick and buttons, it's quite easy!
Using standard connection
When you load up the arcade-cardboard.zip on your Pi, it will show you pinout to follow. You would
generally connect buttons one by one, and see which one you have connected by looking at the screen.
Then you know which cable you've got, and you move it to the right pin.
https://adafru.it/H4B
https://adafru.it/H4C
https://adafru.it/HAp
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 7 of 12
Once you're done connecting everything, press ABABAB and the configuration program will be replaced
by the game menu program. This will be persisted after reset.
Using custom connections
The other option is to connect the buttons as you like and then tell your Pi where the buttons are
connected. This is done by editing arcade.cfg file on the SD card.
If you have the Arcade Cabinet Pack, follow the assembly guide. If you plug in the buttons the way it's
described in there, you will need the following in the arcade.cfg file:
BTN_A=4 BTN_B=25 BTN_RESET=11 BTN_EXIT=5 BTN_MENU=16 BTN_LEFT=10 BTN_RIGHT=22 BTN_UP=23 BTN_DOWN=27
If you are building a custom player arcade cabinet (1 or 2 players),
BTN_RESET=4 BTN_EXIT=3 BTN_MENU=2 BTN_A=26 BTN_B=19 BTN_LEFT=13 BTN_UP=6 BTN_RIGHT=5 BTN_DOWN=0 BTN_A2=11 BTN_B2=9 BTN_LEFT2=10 BTN_UP2=22 BTN_RIGHT2=27 BTN_DOWN2=17
Feel free to connect them differently, just follow these instructions and update the file with the right GPIO
numbers.
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 8 of 12
Downloading Games
Adding games
To add new games head to https://arcade.makecode.com !
Once you have created your game,
Press the Download button and say you don't want to pair anything if asked. You should then be
given options to select type of board.
Select Raspberry Pi (it will have the image of the menu above). This should create a file named
arcacde-something.uf2 .
Copy it to ARCADE drive that should be visible on the computer to which your Pi is connected with
the USB cable.
If the ARCADE drive doesn't show up, make sure the USB cable is plugged into the USB port on the Pi
that is closer to the HDMI port. The other one is power-only. If using a case, make sure it's plugged all the
way in.
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 9 of 12
Sharing Games
There are plenty of ways to share games with your friends, family and anyone else who you think might
enjoy something you've created!
Let's quickly go over a few of your options.
Online page
Click on the Share button and follow the steps to upload a
version of your game online. It will generate a URL for you.
Anyone with the generated URL will be able to play in a full
screen mode, or edit your game! They'll also be able to
download it onto their own Arcade if they have one.
This page supports oEmbed and other various embedding
options.
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 10 of 12
Save into an image
Click the disk icon will save your code into a PNG image. You
can import the image back or simply drag and drop it into the
editor to reload the code.
The image below contains the falling duck game.
You will literally want to download the image itself - its a polyglot file that contains data within its
pixels!
Downloaded .UF2 files
Downloaded .uf2 files also contain the game code. You can import them or drag and drop them into the
editor to reload the code.
GitHub repo
You can also use GitHub repositories to store and share your code. This is particularily useful if you end
up building a lot of code or if you want to share an extension with other users. Read all about getting
started with GitHub at https://makecode.com/extensions/github-authoring .
© Adafruit Industries https://learn.adafruit.com/makecode-arcade-with-raspberry-pi-zero Page 11 of 12
