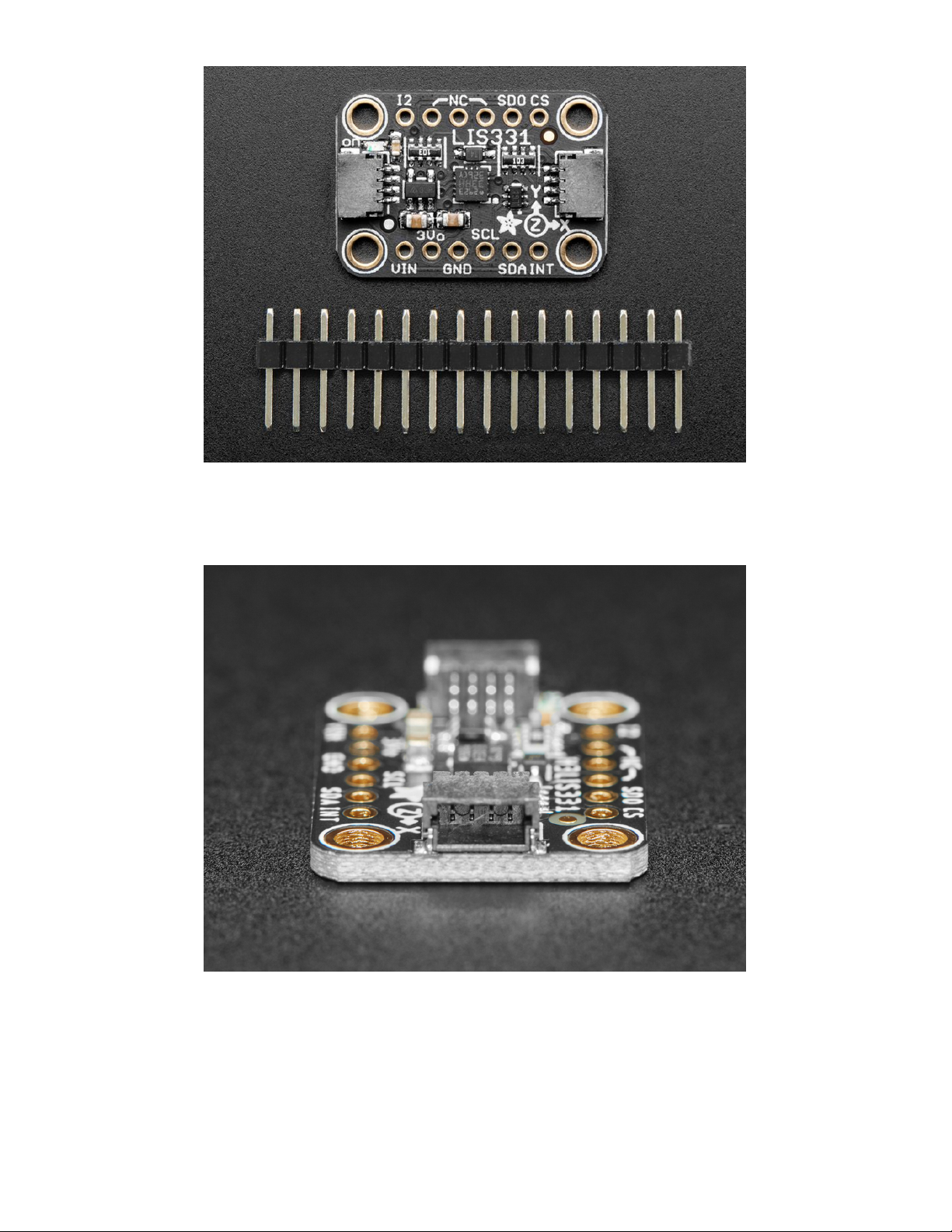

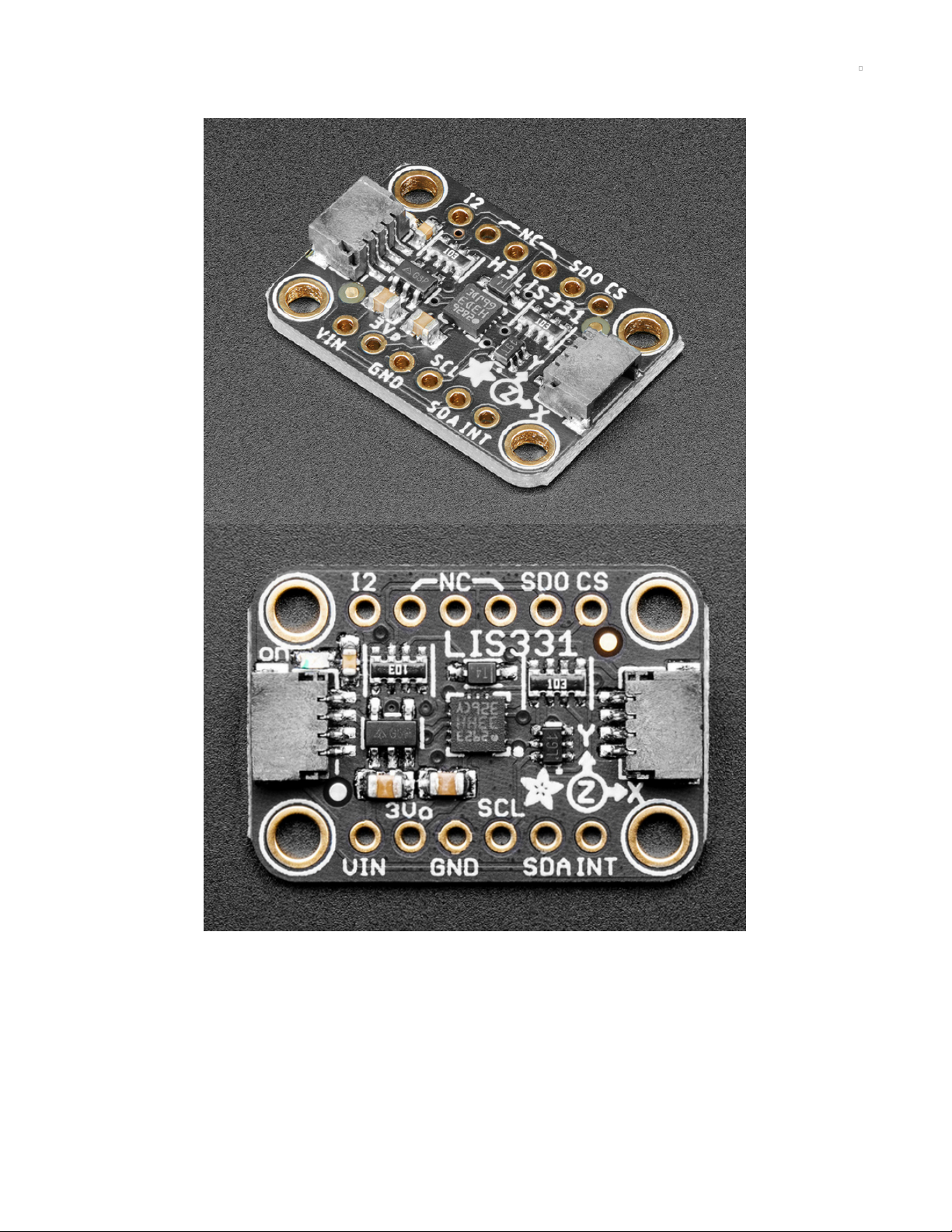

3Vo - this is the 3.3V output from the voltage regulator, you can grab up to 100mA from this if you like
GND - common ground for power and logic
I2C Pins
SCL - I2C clock pin, connect to your microcontrollers I2C clock line. Has a 10K pullup already on it.
SDA - I2C data pin, connect to your microcontrollers I2C data line. Has a 10K pullup already on it.
To use I2C, keep the CS pin either disconnected or tied to a high (3-5V) logic level.

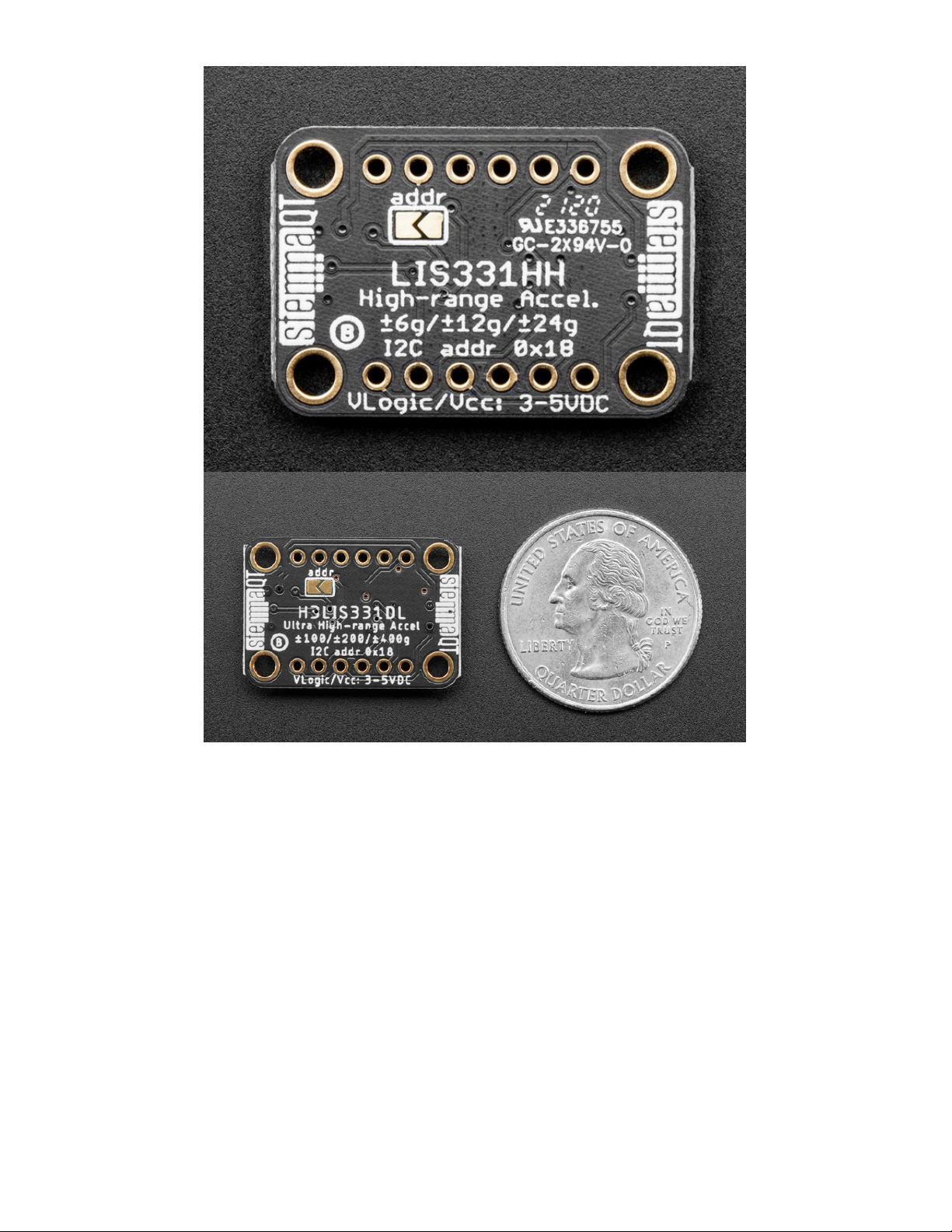

SDO - When in I2C mode, this pin can be used for address selection. When connected to GND or left
open, the address is 0x18 - it can also be connected to 3.3V to set the address to 0x19
SPI pins:
All pins going into the breakout have level shifting circuitry to make them 3-5V logic level safe. Use
whatever logic level is on Vin!
SCL - this is the SPI Clock pin, its an input to the chip
SDA - this is the Serial Data In / Microcontroller Out Sensor In pin, for data sent from your processor
to the LIS3DH
SDO - this is the Serial Data Out / Microcontroller In Sensor Out pin, for data sent from the LIS331's to
your processor. It's 3.3V logic level out
CS - this is the Chip Select pin, drop it low to start an SPI transaction. Its an input to the chip
If you want to connect multiple LIS331's to one microcontroller, have them share the SDI, SDO and SCK
pins. Then assign each one a unique CS pin.
Other pins
INT, I2 - The interrupt output pins. You can configure an interrupt to trigger on different events such
as data being available to either pin. Consult the datasheet linked on the Downloads page for more
information.
NC - These are No Connect pins, they are used for mechanical stability only
