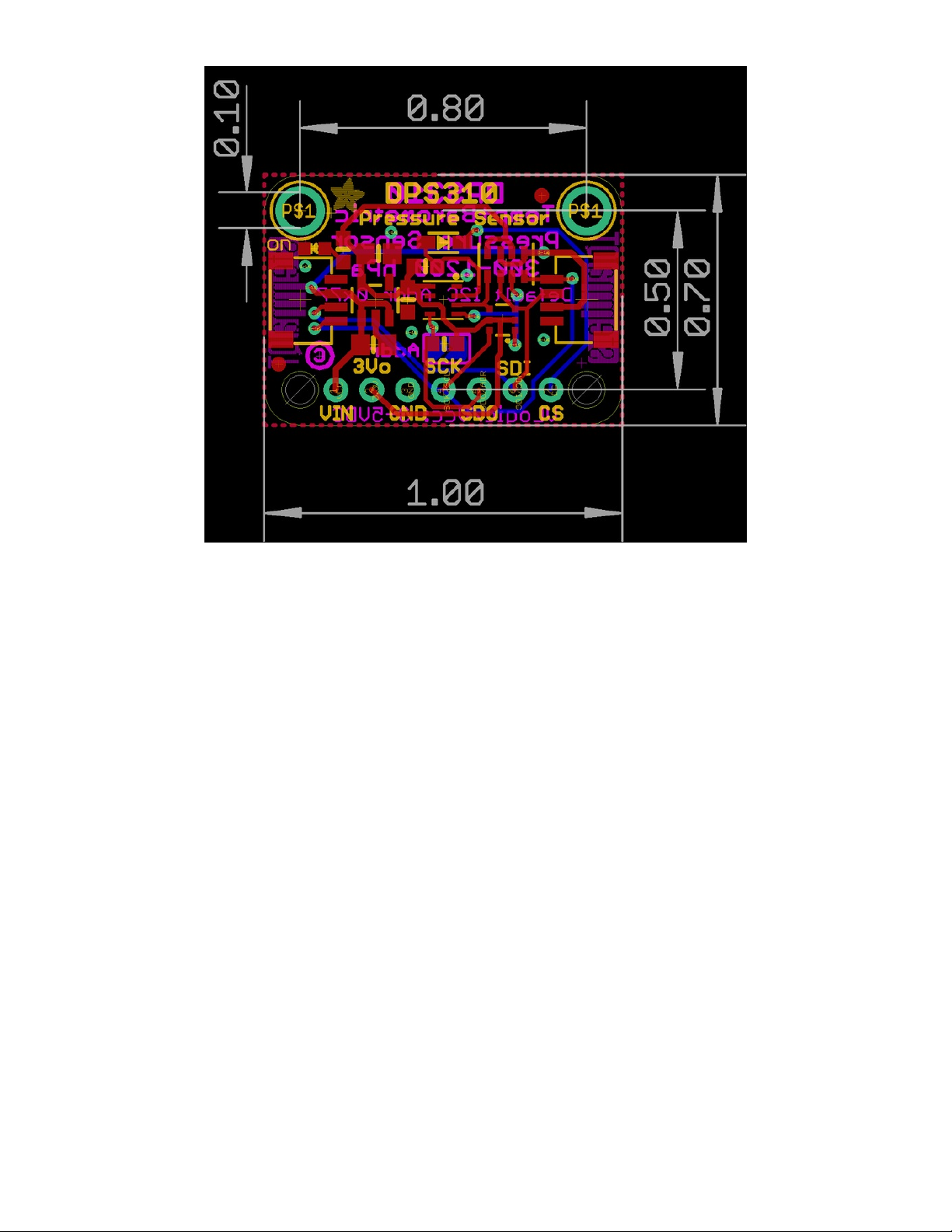

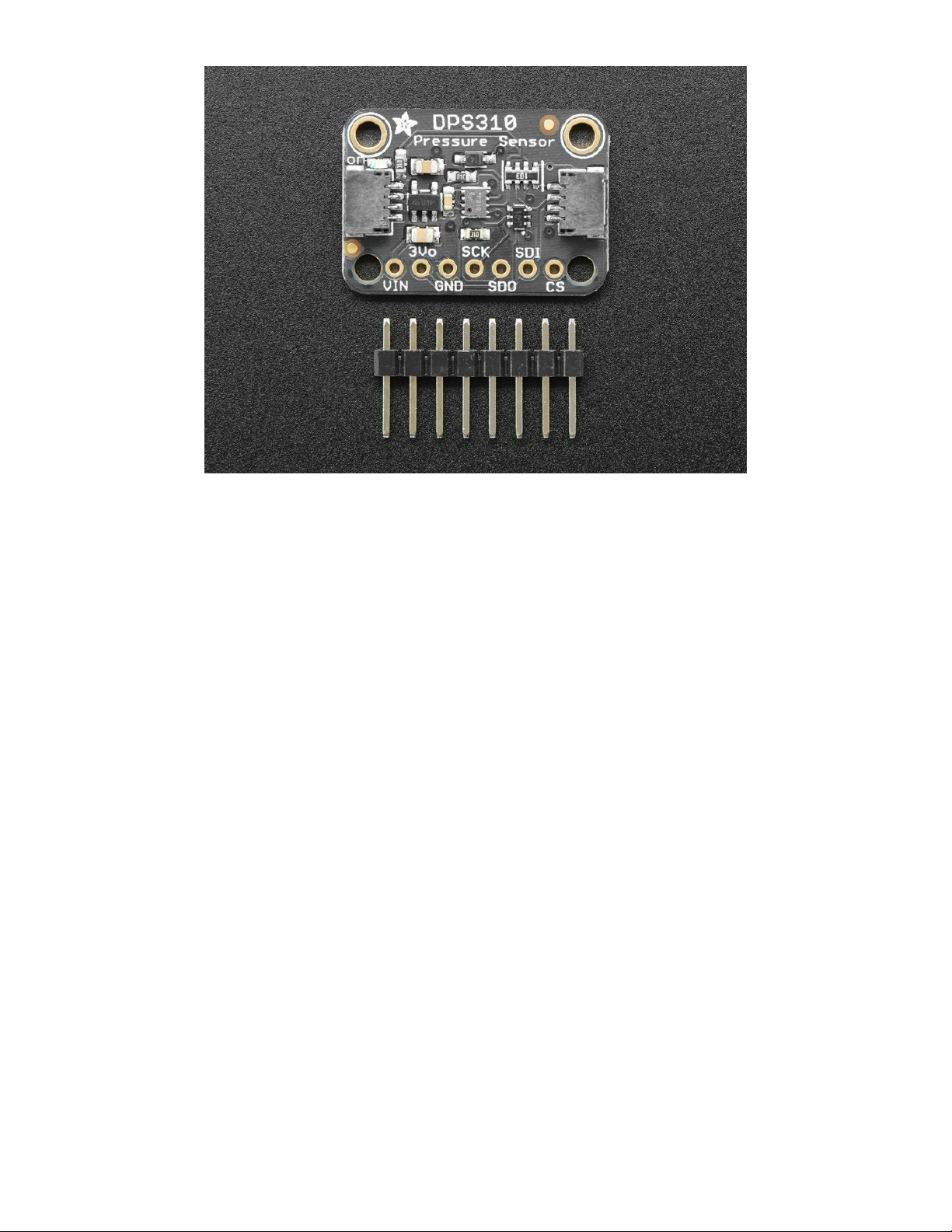

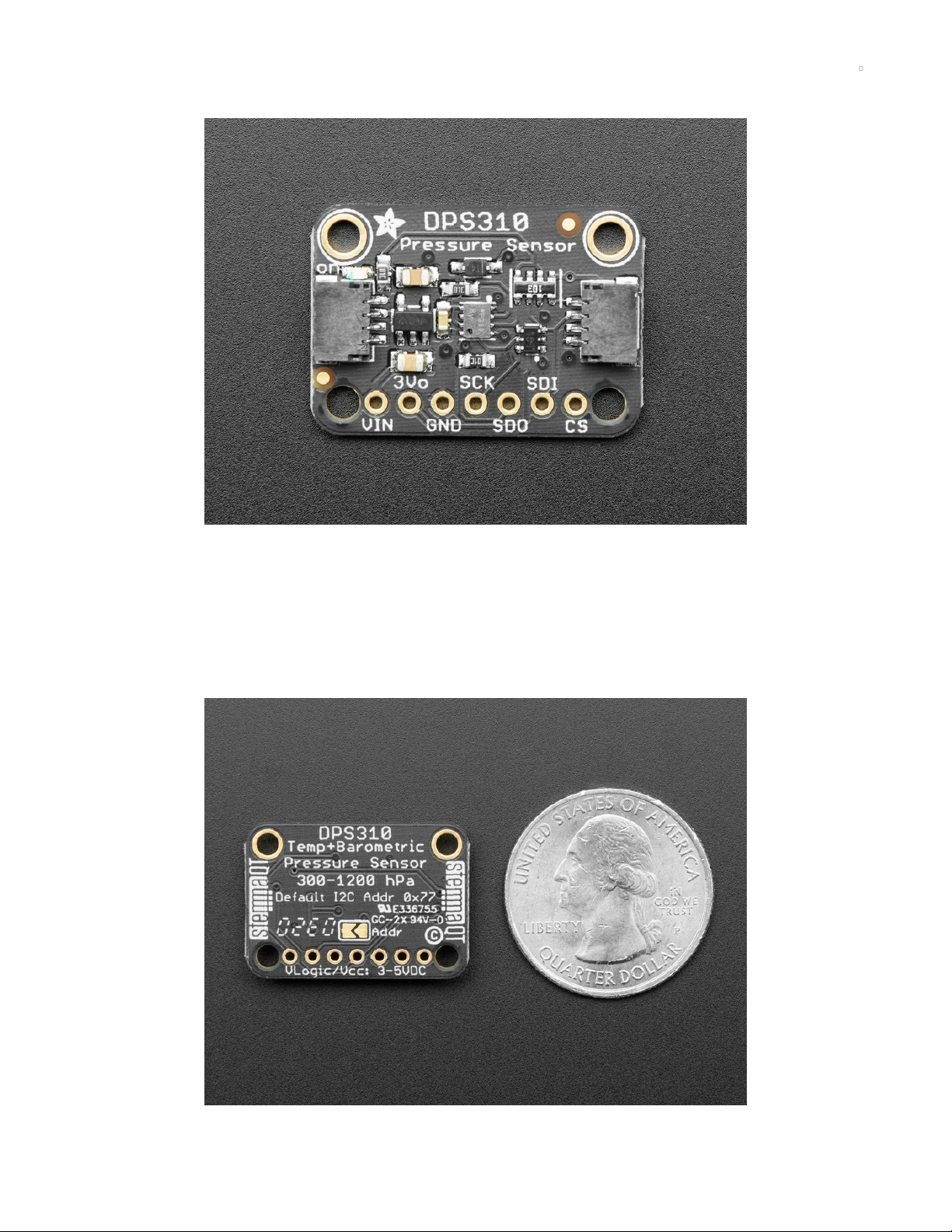

Pinouts

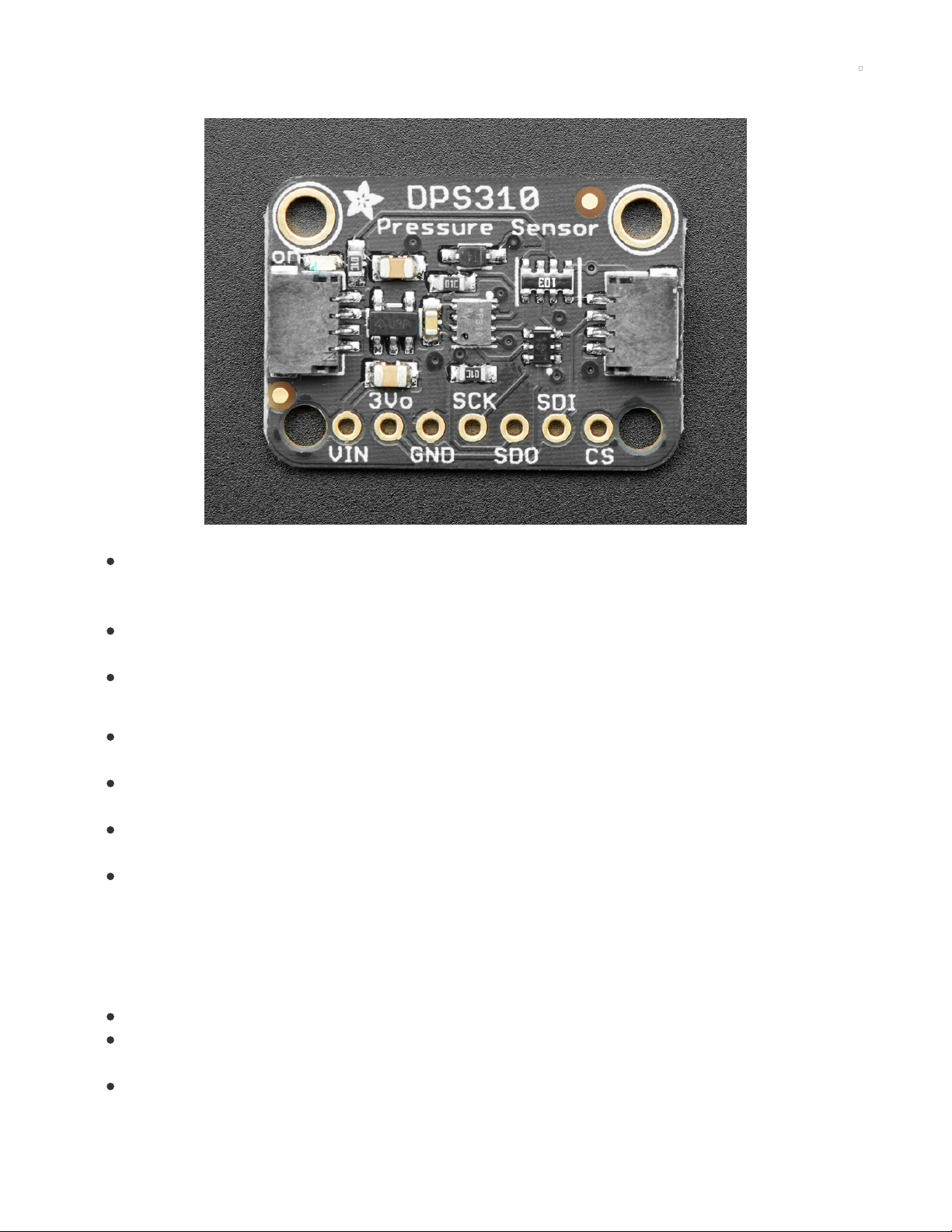

Power Pins
Vin - this is the power pin. Since the sensor chip uses 3 VDC, we have included a voltage regulator
on board that will take 3-5VDC and safely convert it down. To power the board, give it the same
power as the logic level of your microcontroller - e.g. for a 5V microcontroller like Arduino, use 5V
3Vo - this is the 3.3V output from the voltage regulator, you can grab up to 100mA from this if you
like
GND - common ground for power and logic
I2C Logic Pins:
SCK - This is
also
the I2C clock pin SCL, connect to your microcontroller's I2C clock line. This pin is
level shifted so you can use 3-5V logic, and there's a 10K pullup on this pin.
SDI - This is
also
the I2C data pin SDA, connect to your microcontroller's I2C data line. This pin is
level shifted so you can use 3-5V logic, and there's a 10K pullup on this pin.
SDO - This is
also

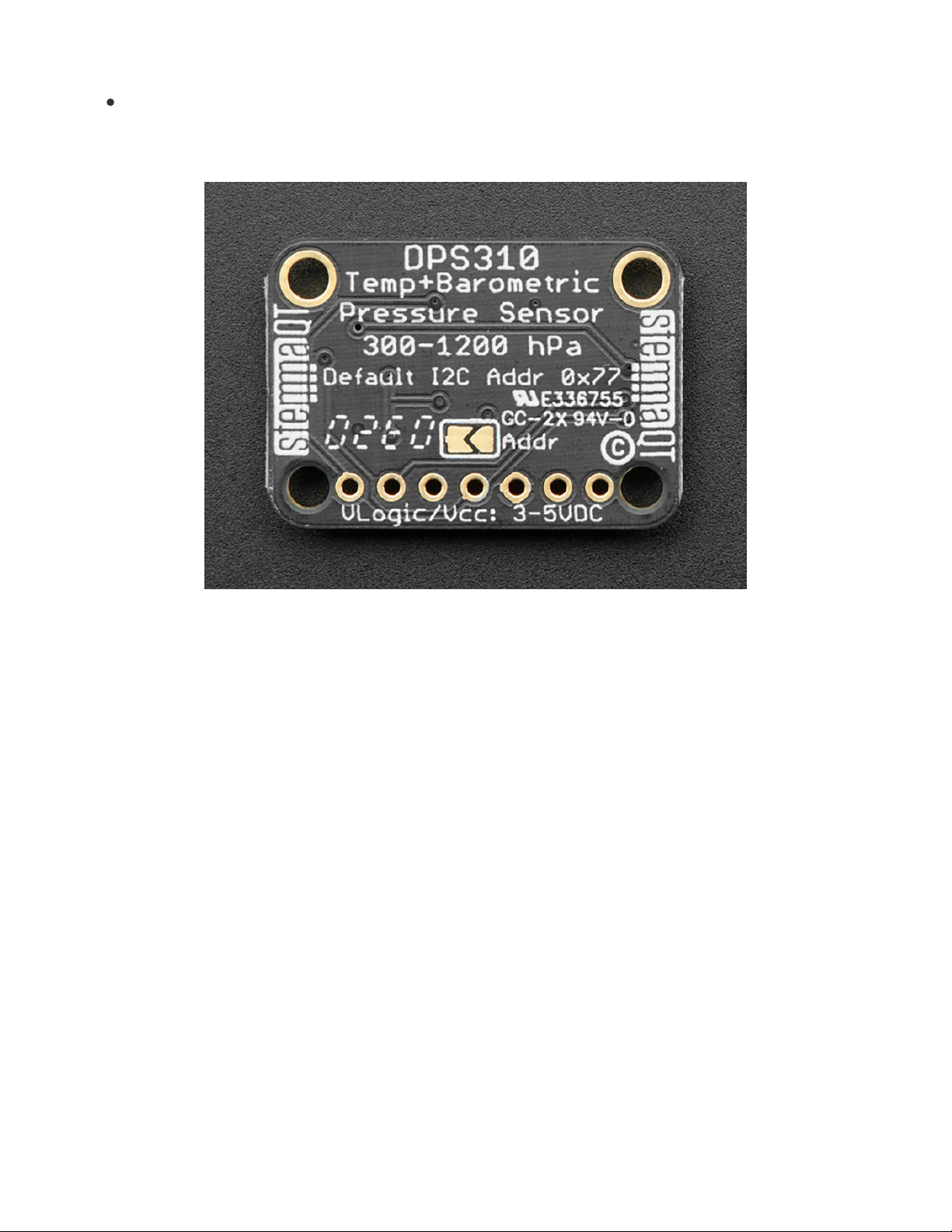

the I2C address pin ADR. Pulling this pin low to GND or bridging the solder jumper
on the back will change the I2C address from 0x77 to 0x76

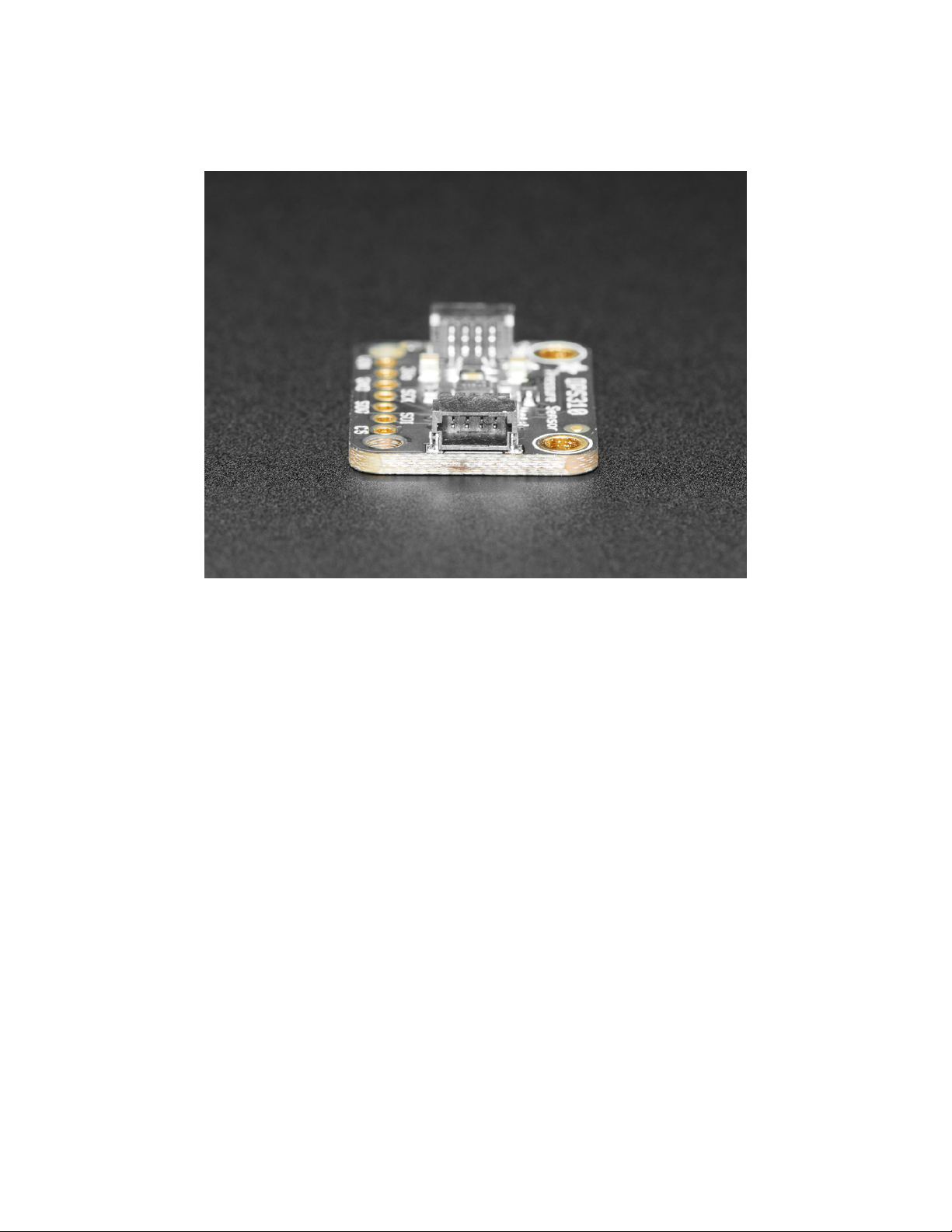

STEMMA QT (https://adafru.it/Ft4) - These connectors allow you to connect to dev boards with
STEMMA QT connectors or to other things with various associated accessories (https://adafru.it/Ft6)
SPI Logic pins:
All pins going into the breakout have level shifting circuitry to make them 3-5V logic level safe. Use
whatever logic level is on Vin!
SCK - The SPI Clock pin, it's an input to the chip
SDO - The Serial Data Out / Microcontroller In Sensor Out, for data sent from the DPS310 to your
processor.
SDI - The Serial Data In / Microcontroller Out Sensor In pin, for data sent from your processor to the
