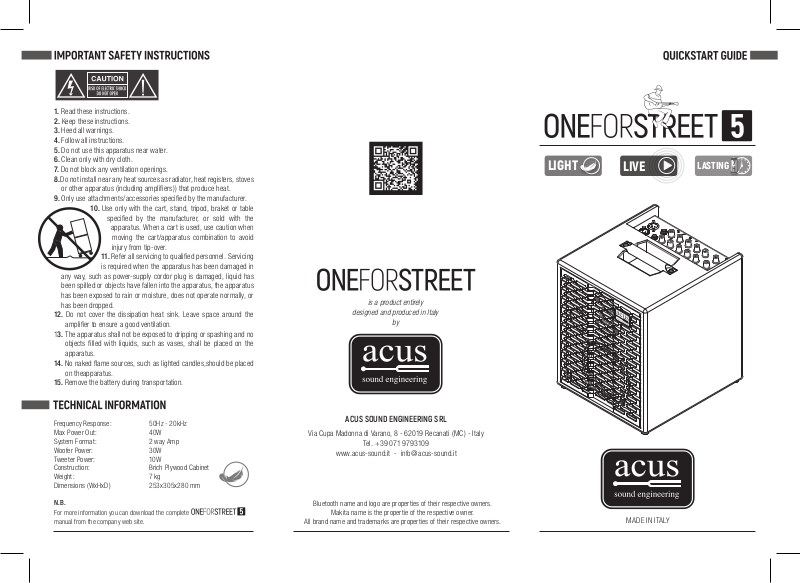

Acus One Forstreet 5 Quickstart guide

1. Read these instructions.

7
H

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

8. Do not install near any heat sources as radiator, heat registers, stoves

or other apparatus (including amplifiers)) that produce heat.

9. Only use attachments/accessories specified by the manufacturer.

10. Use only with the cart, stand, tripod, braket or table

specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid
injury from tip-over.

11. Refer all servicing to qualified personnel. Servicing

is required when the apparatus has been damaged in
any way, such as power-supply cordor plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or
has been dropped.

12. Do not cover the dissipation heat sink. Leave space around the

amplifier to ensure a good ventilation.

13. The apparatus shall not be exposed to dripping or spashing and no

objects filled with liquids, such as vases, shall be placed on the
apparatus.

14. No naked flame sources, such as lighted candles,should be placed

on theapparatus.

15. Remove the battery during transportation.

is a product entirely

designed and produced in Italy

by

LIGHT

LIVE

LASTING

Frequency Response: 50Hz - 20kHz
Max Power Out: 40W
System Format: 2 way Amp
Woofer Power: 30W
Tweeter Power: 10W
Construction: Brich Plywood Cabinet
Weight: 7 kg
Dimensions (WxHxD) 253x305x280 mm

N.B.
For more information you can download the complete
manual from the company web site.

Via Cupa Madonna di Varano, 8 - 62019 Recanati (MC) - Italy

Bluetooth name and logo are proper ties of their respective owners.

All brand name and trademarks are properties of their respective owners.

ACUS SOUND ENGINEERING SRL

Tel. [phone]

www.acus-sound.it - info@ acus-sound.it

Makita name is the propertie of the respective owner.

MADE IN ITALY

A

is not equipped with an inner power supply system.
Is possible to power it with 2 types of source:

1. Battery (not included): insert the battery in the dedicated sled.

2. External Power Supply (included): connect the power supply to the

relative connector.

COMPATIBILITY:

ACUS Sound Engineering SRL suggest the use of MAKITA 18V- 3 or 5 Ah.

BATTERY POWERING:

The system has 4 operative status:

1. Battery Full: Battery Status LED (9 ) is OFF

2. Slightly Discharged Battery Status: Battery Status LED (9) starts to

7

H

flash. In this status the LED ON Time is about 1/3 of LED Time OFF.

3. Very Low Battery Status: Battery Status LED ( 9) ON Time isthe same

of Time ON.

4. Completely Discharged Battery Status: Battery Status LED ( 9) if

always ON and the system stops to work. In this status is necessary
to replace the battery with another one full.

WARNING:

1. Is important to recharge the battery as soon as possible.

2. Avoiding to let the ON /OFF Switch (14) when the system isnot used

because the system continue to absorb energy.

3. Avoid to let a totally discharged battery inserted because the system

adsorbs a very little quantity of energy even with the ON/ OFF Switch
in the OFF position, and this fact (for a long time) will put the battery
in a very low discharged status, reducing the battery life.

EXTERNAL POWER SUPPLY POWERING.

The system works always in "Battery Full" status, so Batter y Status
LED ( 9) is always OFF.

WARNING:

Is no possible to recharge a battery with the amplifier power supply.

B

ACUS Artesia BT-1

A

1. MIC IN with 1kΩ of Impedance. You can connect any type of microphone on

it, even Condenser Microphone ( this input is equipped with a Phantom power,
always Active).

2. INSTRUMENT IN with 110kΩ of Impedance. You can connect any type of

Instrument on it. This input doesn't exclude the MIC IN (1).

3. GAIN / VOL: this knob permits to regulate the gain and the volume of the

system (its range is from -∞ to +20dB). Moving this knob to the minimum
(0 position) puts the volume of the channel to 0. Moving it to the maximum
(10 position) put the signal level to +20dB.

4. HIGH - MID - LOW: 3 band EQ with a dynamic from -15dB to +15dB.

5. EFF:

channel Effect Level. The system is equipped with a fixed length Reverb.

With this knob is possible to regulate this Reverb Level for the channel

6. MASTER VOL: Master Volume of the system.

7. AUX VOL: AUX IN

8. Power: L ED for indicating if the system is ON ( Led ON) or OFF.

9. Battery status : LED for indicating the External Bat tery Status.

10.-10dB: pushing this switch will reduce the DIRECT OUT (11) signal level of

10dB. This attenuation condition is indicated with a LED.

11. DIREC OUT:

12. AUX IN : section with 2 Inputs: a 3.5mm Jack and a mini-USB for Acus

Artesia BT-1 device. Both inputs are controlled with AUX VOL (7) knob.

13. EXTERNAL POWER IN: connector for the External Power Supply (Included).

14. ON/OFF: Power Switch for Turning-ON / OFF the system.

15. 18V BATTERY SLOT: slot connection for powering the system with the

external battery (not included).

(12 ) Inputs Volume.

balanced output for connecting the system with an External System.

1.

Make sure that the amplifier is powered off and connect the ACUS Artesia BT-1

Bluetooth Receiver to mini-USB AUX IN connector.

2. Turn the amplifier on. The ACUS Artesia BT-1 Bluetooth Receiver blue LED

indicator lamp should flash quickly. This lasts for about 5 seconds. Then it will
flash again every 7 seconds until it matches ( or pair) successfully with another
Bluetooth device.

3. After it has matched successfully, find ACUS Artesia BT-1 as an option on your

Bluetooth Device's Settings and then select it to connect.

4. When the blue LED Indicator lamp on the ACUS Ar tesia BT-1 Bluetooth

Receiver is ON steady with no flashing, then the two devices have been
successfully connected.

ACUS Artesia LS-1 - TRRS ADAPTER for your live streaming

LEFT
RIGHT
GND
MIC

CABLE NOT INCLUDED

3

1. 3.5 mm Right-Angle Stereo Plug:

connect to AUX IN Input.

2. 3-Pole XLR Female Connector:
connect to DIRECT OUT output.

3. 3.5 mm TRRS Jack Connector: connect to

recording /reproduction device used for your Live
Streaming with a 3.5mm TRRS Plug to Plug cable

(not included).

Suggestions: for obtaining better configuration is very

important to have a moderate volume to the amplifier DIRECT OUT output.
If the amplifier is equipped with the attenuation switch (labeled with -10dB)
push this switch for a very easy and fast signal level matching.
If the amplifier is not equipped with this switch, for best configuration please
reduce all channel volume more than half and then regulate the amplifier
master volume for obtaining the right sound to the speaker.

1

B

2
