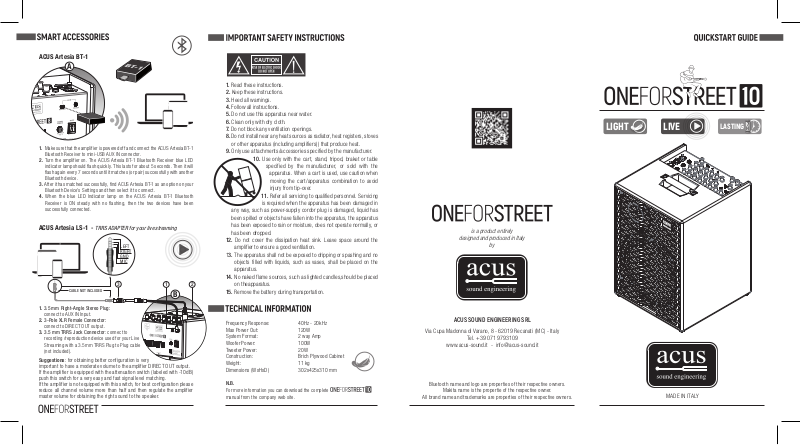

ACUS Artesia BT-1
7
H
A
1.
Make sure that the amplifier is powered off and connect the ACUS Artesia BT-1
Bluetooth Receiver to mini-USB AUX IN connector.
2. Turn the amplifier on. The ACUS Artesia BT-1 Bluetooth Receiver blue LED
indicator lamp should flash quickly. This lasts for about 5 seconds. Then it will
flash again every 7 seconds until it matches ( or pair) successfully with another
Bluetooth device.
3. After it has matched successfully, find ACUS Artesia BT-1 as an option on your
Bluetooth Device's Settings and then select it to connect.
4. When the blue LED Indicator lamp on the ACUS Ar tesia BT-1 Bluetooth
Receiver is ON steady with no flashing, then the two devices have been
successfully connected.
ACUS Artesia LS-1 - TRRS ADAPTER for your live streaming
LEFT
RIGHT
GND
MIC
CABLE NOT INCLUDED
3
1
B
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
LIGHT
LIVE
LASTING
8. Do not install near any heat sources as radiator, heat registers, stoves
or other apparatus (including amplifiers)) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, braket or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
11. Refer all servicing to qualified personnel. Servicing
is required when the apparatus has been damaged in
any way, such as power-supply cordor plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or
has been dropped.
12. Do not cover the dissipation heat sink. Leave space around the
amplifier to ensure a good ventilation.
is a product entirely
designed and produced in Italy
by
13. The apparatus shall not be exposed to dripping or spashing and no
objects filled with liquids, such as vases, shall be placed on the
apparatus.
14. No naked flame sources, such as lighted candles,should be placed
2
on theapparatus.
15. Remove the battery during transportation.
1. 3.5 mm Right-Angle Stereo Plug:
connect to AUX IN Input.
2. 3-Pole XLR Female Connector:
connect to DIRECT OUT output.
3. 3.5 mm TRRS Jack Connector: connect to
recording /reproduction device used for your Live
Streaming with a 3.5mm TRRS Plug to Plug cable
(not included).
Suggestions: for obtaining better configuration is very
important to have a moderate volume to the amplifier DIRECT OUT output.
If the amplifier is equipped with the attenuation switch (labeled with -10dB)
push this switch for a very easy and fast signal level matching.
If the amplifier is not equipped with this switch, for best configuration please
reduce all channel volume more than half and then regulate the amplifier
master volume for obtaining the right sound to the speaker.
Frequency Response: 40Hz - 20kHz
Max Power Out: 120W
System Format: 2 way Amp
Woofer Power: 100W
Tweeter Power: 20W
Construction: Brich Plywood Cabinet
Weight: 11 kg
Dimensions (WxHxD) 302x425x310 mm
N.B.
For more information you can download the complete
manual from the company web site.
Via Cupa Madonna di Varano, 8 - 62019 Recanati (MC) - Italy
Bluetooth name and logo are proper ties of their respective owners.
All brand name and trademarks are properties of their respective owners.
ACUS SOUND ENGINEERING SRL
Tel. +39 071 9793109
www.acus-sound.it - info@ acus-sound.it
Makita name is the propertie of the respective owner.
MADE IN ITALY
B
A
is not equipped with an inner power supply system.
Is possible to power it with 2 types of source:
1. Battery (not included): insert the battery in the dedicated sled
2. External Power Supply (included ): connect the power supply to the relative
connector.
COMPATIBILITY:
ACUS Sound Engineering SRL suggest the use of MAKITA 18V- 3 or 5 Ah.
BATTERY POWERING:
The system has 4 operative status:
1. Battery Full: Battery Status LED (17) is OFF
2. Slightly Discharged Battery Status: Battery Status LED (17) star ts to flash.
In this status the LED ON Time is about 1/3 of LED Time OFF.
3. Very Low Battery Status: Battery Status LED (17) ON Time is the same of
Time ON.
4. Completely Discharged Battery Status: Battery Status LED (17) if always
ON and the system stops to work. In this status is necessary to replace the
battery with another one full.
WARNING:
1. Is important to recharge the battery as soon as possible.
2. Avoiding to let the ON /OFF Switch (22) when the system is not used
because the system continue to absorb energy.
3. Avoid to let a totally discharged battery inserted because the system
adsorbs a very little quantity of energy even with the ON/ OFF Switch in the
OFF position, and this fact (for a long time ) will put the battery in a very low
discharged status, reducing the battery life.
EXTERNAL POWER SUPPLY POWERING.
The system works always in "Battery Full" status, so Batter y Status
LED (17) is always OFF.
WARNING:
Is no possible to recharge a battery with the amplifier power supply.
7
H
1.
MIC IN with 1kΩ of Impedance. You can connect any type of micropho-
ne on it, even Condenser Microphone (this input is equipped with a
Phantom power, always Active).
2.
INSTRUMENT IN with 110kΩ of Impedance. You can connect any type
of Instrument on it. This input doesn't exclude the MIC IN (1).
3.
GAIN: this knob permits to regulate the gain of the system (its range is
from -12 to +15dB).
4.
HIGH - MID - LOW: 3 band EQ with a dynamic from -15dB to +15dB.
5.
EFF: channel Effect Level. The system is equipped with a multi-effect. For
detail see points (14) and (15).
6.
VOLUME: channel Volume
7.
AUX VOL: AUX IN (20) Inputs Volume.
8.
MASTER VOL: Master Volume of the system.
9.
EFF RTN: Return of the Effect of the system. When you close totally this
knob (in the 0 position ) you close the effect volume on all channels.
10.
CH1 - COMPRESSOR ON/OFF SWITCH: the channel 1 is equipped with
a compressor. This switch is for turning ON /OFF the compressor. When
the compressor is ON its relative LED is ON.
11.
CH1 - COMPRESSOR THRESHOLD: with this knob you can regulate the
Ch1 Compressor Threshold if Ch1 Compressor ON/OFF is on ON position
(Compressor LED ON ).
12.
CH1 - COMPRESSOR RATIO: with this knob you can regulate the Ch1
Compressor Ratio if Ch1 Compressor ON/OFF is on ON position
(Compressor LED ON ).
13.
CH1 - STYLES SWITCH: with this switch is possible to change the
channel 1 equalization and the 3 bands EQ center frequency. You have 3
position: FLAT is the standard equalization (channels 2 and 3 have only
this type of equalization). BASS is designed for instruments that operate
in bass frequency range (like Bass Guitar and Double Bass). JAZZ is for
Electrinc Guitar and Jazz Guitar.
14.
EFFECT SECTION SWITCH: with this switch is possible to select one of
the 4 effect of the system. Effect are Short Reverb ( REV 1), Long Reverb
(REV 2), Chorus (CHR) and Delay ( DEL)
15.
EFFECT SECTION EFF LENGTH: with this knob is possible to change the
peculiarity of the selected effect. For both reverb this knob regulates the
Reverb Length. For Chorus this knob regulates the Chorus Rate. For Delay
this knob regulates the Delay Time.
16.
POWER: LED for indicating if the system is ON (Led ON ) or OFF
17.
BATTERY STATUS: LED for indicating the External Battery Status.
18.
-10dB : pushing this switch will reduce the DIRECT OUT (19) signal level
of 10dB. This attenuation condition is indicated with a LED.
19.
DIREC OUT: balanced output for connecting the system with an External
System.
20.
AUX IN : section with 2 Inputs: a 3.5mm Jack and a mini-USB for Acus
Artesia BT-1 device. Both inputs are controlled with AUX VOL (7) knob.
EXTERNAL POWER IN: connector for the External Power Supply (Included)
21.
ON/OFF: Power Switch for Turning-ON / OFF the system.
22.
18V BATTERY SLOTS: slot connection for powering the system with the
23.
external battery ( not included).
