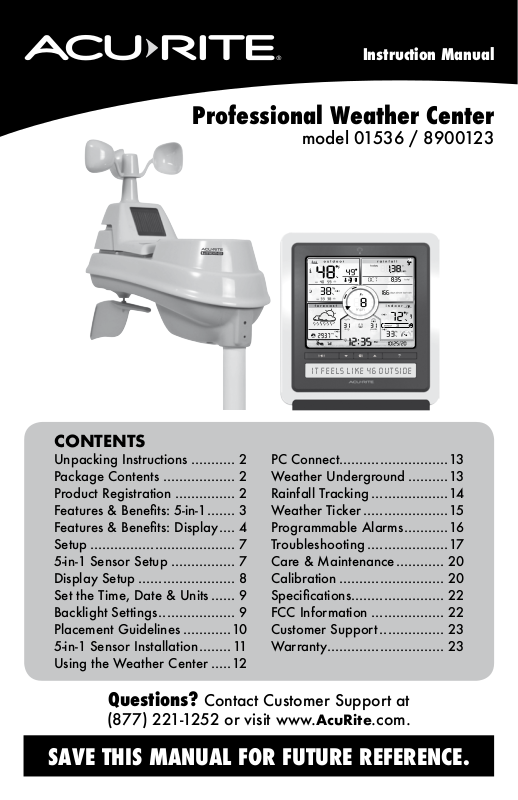

AcuRite 01536 Users manual

Instruction Manual

Professional Weather Center

model 01536 / 8900123

IT F EELS LIKE 46 OUTSIDE

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: 5-in-1....... 3

Features & Benets: Display.... 4

Setup .................................... 7

5-in-1 Sensor Setup ................ 7

Display Setup ........................ 8

Set the Time, Date & Units ...... 9

Backlight Settings ................... 9

Placement Guidelines ............10

5-in-1 Sensor Installation........ 11

Using the Weather Center .....12

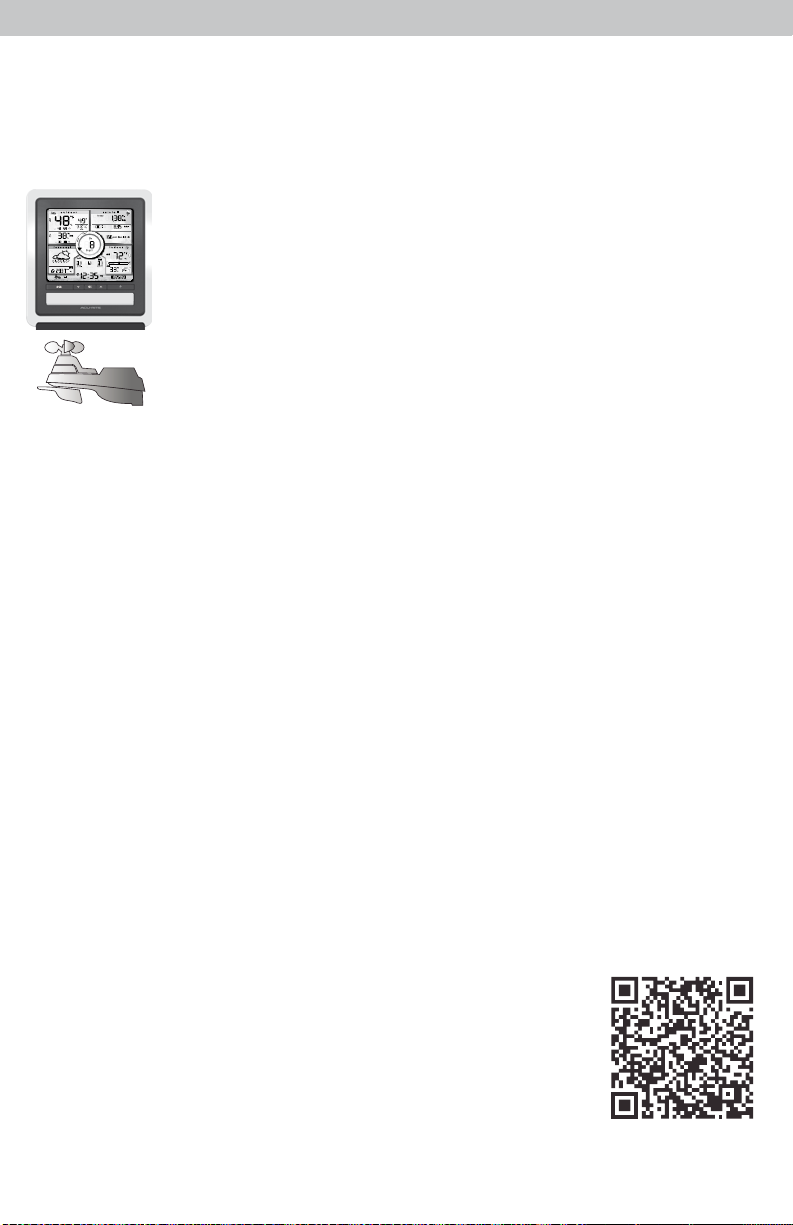

PC Connect...........................13

Weather Underground ..........13

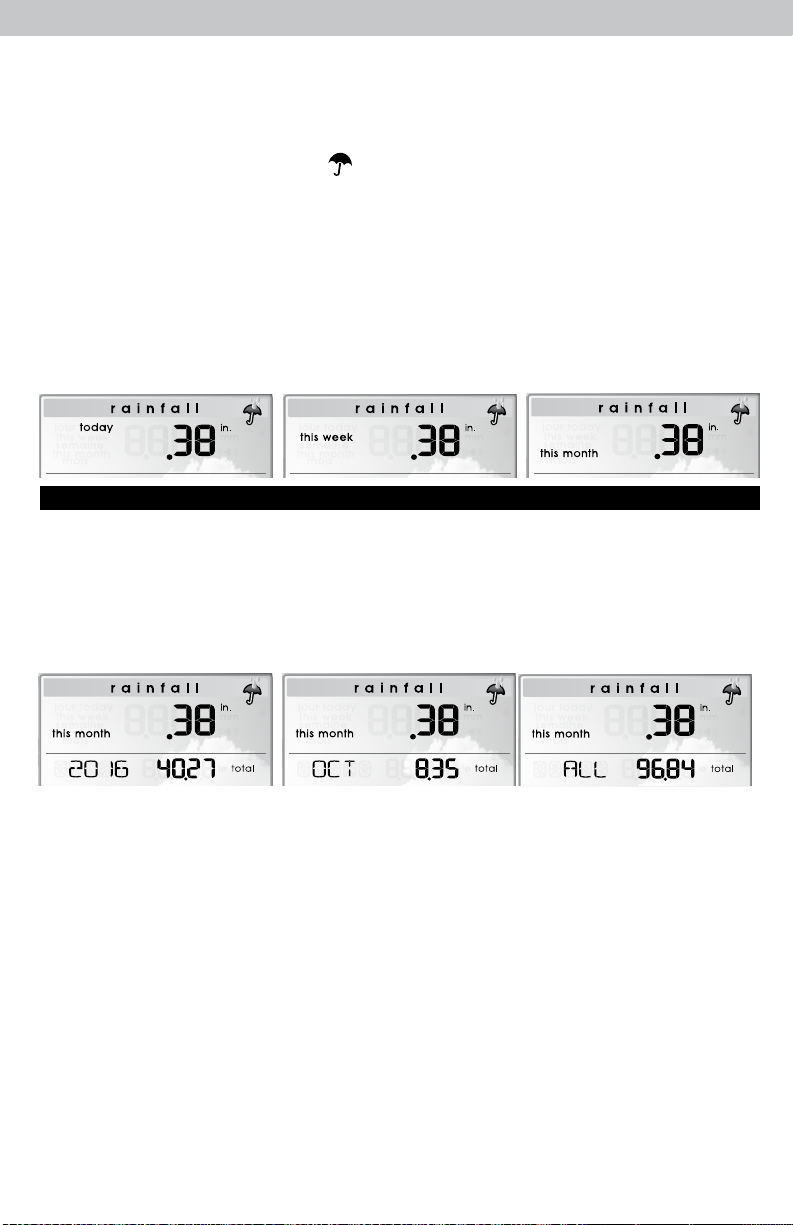

Rainfall Tracking ...................14

Weather Ticker .....................15

Programmable Alarms...........16

Troubleshooting ....................17

Care & Maintenance............ 20

Calibration .......................... 20

Specications....................... 22

FCC Information .................. 22

Customer Support ................ 23

Warranty............................. 23

Questions? Contact Customer Support at

[phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.

Package Contents

1. Display with Tabletop Stand

2. 5-in-1 Sensor

3. Sensor Mounting Bracket

4. Mounting Hardware

5. Power Adapter

6. USB Cable

7. 4 Alkaline Batteries

8. Instruction Manual

PRODUCT MUST BE REGISTERED

IMPORTANT

TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

Register online to receive 1 year warranty protection

www.AcuRite.com

2

Features & Benets

11

6

1

2

3

7

9

4

5

8

10

5-in-1 SENSOR

1. Rainfall Collector Funnel

2. Solar Cell Panel

Converts sunlight into power to run
internal aspirating fan.

Internal Aspirating Fan

(not shown)

Draws ambient air into
sensor to reduce solar radiation
heating, resulting in more accurate

temperature measurement.

3. A-B-C Switch

ID code that must match display’s
A-B-C switch to ensure units
synchronize.

4. Battery Compartment

5. Temperature & Humidity Sensors

(internal)

6. Mounting Point

7. Wind Speed Anemometer

8. Wind Direction Vane

9. Mounting Bracket

10. Mounting Hardware

Includes 5 anchors & the following
screws:

Qty Diameter Length

5 #4 3/4”
1 #4 1/2”
1 #6 1/2”

11. Debris Filter

Pre-installed to prevent debris from

entering the rain gauge.

3

Features & Benets

Display

35
34

1

2 3 1 4 5

13Bln .

.

8.35 totol

6
7

33
32

31
30

29
28

27
26

25

24

12 days since last rain

IT F EELS LIKE 46 OUTSIDE

23 22 21 20 1918 17 16

8
9

10
11
12

13
14

15

4

1. Current Wind Direction

2. Previous 2 Wind Directions

3. Seasonal Display

Heat Index calculation displays when

temperature is 80°F (27°C) or higher.

Dew Point calculation displays when
temperature is 79°F (26°C) or below.
Wind chill calculation displays when
temperature is 40°F (4°C) or lower.

4. Button

For momentary backlight and dimmer

settings.

5. Current Wind Speed

6. Rainfall

Displays most recent rainfall total
(today, this week or this month).

7. Rainfall History

Displays historical rainfall totals

(see page 14).

8. Indoor Indicator

Indicates indoor (display unit)

conditions are being shown.

9. Current Temperature for #8 or #12

Arrow icon indicates direction

temperature is trending.

10. Add-On Sensor Signal Strength

If applicable (see page 13).

11. Auto-Cycle Indicator

Indicates auto-cycle mode is enabled. If
applicable (see page 13).

12. Add-On Sensor Indicator

If applicable (see page 13).

13. Humidity Level Indicator

Indicates a high, low, or ideal humidity
comfort level.

14. Current Humidity for #8 or #12

Arrow icon indicates direction humidity

is trending.

15. Date

16. Button

Press to view rainfall records (#6 and #7).

17. Display Low Battery Icon

18. Peak Wind Speed

Highest speed from the last 60 minutes.

19. Button

For setup preferences and manually
cycling through Weather Ticker messages
(when display is not connected to
additional sensors). For manually cycling
add-on sensor data (when display is
connected to additional sensors).

ox

20. Button

For setup preferences.

21. Clock

22. Button

For setup preferences and manually
cycling through Weather Ticker messages
(when display is not connected to
additional sensors). For manually cycling
add-on sensor data (when display is
connected to additional sensors).

23. Button

For alarm setup preferences.

24. Weather Ticker

Streams real-time data (see page 15).

25. 5-in-1 Sensor Signal Strength

26. Sensor Low Battery Icon

27. Icon

Indicates display is in auto-dimming

brightness mode (see page 9).

28. Barometric Pressure

Arrow icon indicates direction pressure

is trending.

29. Average Wind Speed

Average wind speed over the past

2 minutes.

30. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data
from your 5-in-1 sensor to generate
your personal forecast.

31. Learning Mode Icon

Disappears after weather forecast
self-calibration is complete (see page 12).

32. High/Low Humidity Records

Highest and lowest outdoor humidity

recorded since midnight.

33. Current Outdoor Humidity

Arrow icon indicates direction humidity

is trending.

34. High/Low Temperature Records

Highest and lowest outdoor temperature

recorded since midnight.

35. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

TM

5

Back of Display

############

DEVICE ID

1

2

3

4

BACK OF DISPLAY

Wind Chill
Refroidissement Éolien

Dew Point
Point De Rosée

01536-RX

RX : DC 4.5V 3x AA
AC/DC ADAPTER INPUT : 100-240AC 50-60Hz
OUTPUT: 5.0V 250mA
CAN RSS-Gen/CNR-Gen
MODEL : 01536CDI

5

8

6

7

9

1. Plug-in for Power Adapter

2. Plug-in for USB Cable

3. Integrated Keyhole

For easy wall mounting.

4. DEVICE ID

12 digit unique ID required for
online connectivity functions.

5. Backup Battery Compartment

6. A-B-C Switch

ID code that must match 5-in-1
sensor’s A-B-C switch to ensure
units synchronize.

7. CLEAR RECORD / RESET Button

Press and HOLD for 8 seconds
to clear all records. Press and
HOLD for 10 seconds for full
reset to factory defaults.

8. Power Adapter

9. USB Cable for PC Connection

10. Battery Compartment Cover

(not shown)

6

SETUP

5-in-1 Sensor Setup

Set the A-B-C Switch

1

Locate the A-B-C switch inside the

•

battery compartment. Set the A-B-C
switch to A, B or C. You must select
the same letter choices for both the
sensor and the display in order for
the units to synchronize.

2

Install or Replace Batteries

Batteries MUST be installed for

•

this product to operate. AcuRite
recommends high quality alkaline
or lithium batteries for the best
product performance. Heavy duty
or rechargeable batteries are not

recommended.

The 5-in-1 sensor requires lithium
batteries in low temperature
conditions. Cold temperatures can
cause alkaline batteries to function

improperly. Use lithium batteries in

the 5-in-1 sensor for temperatures

below -4ºF/-20ºC.

1. Slide off the battery

compartment cover.

2. Insert 4 x AA batteries into the

battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

3

Remove Rain Gauge Stabilizer

Locate and remove the rain gauge

•

stabilizer (plastic tab) taped into

the bottom of the sensor. The rain

gauge will not function until this is

removed.

A B C

A-B-C Switch

1

Set to match

•

display

Rain Gauge Stabilizer

3

Install Batteries

2

4 AA Batteries

Remove and discard

•

NOTE: If add-on sensors are being used with the display (see page 12), set them up at this
time. If pairing more than one wireless sensor with the display, the A-B-C channel must differ
between each add-on sensor. The display will automatically begin searching for add-on sensors
during initial setup.

7

Display Setup

Set the A-B-C Switch

1

The A-B-C switch is located inside

•

the battery compartment. It can
be set to A, B or C. However, you
must select the same letter choices

for both the 5-in-1 Sensor and the

display in order for the units to
synchronize.

Plug Power Adapter into

2

Electric Outlet

•

A-B-C Switch

1

set to match

•

5-in-1 Sensor

A B C

Write Down the DEVICE ID

3

12 digit unique ID needed for

•

online connectivity functions.

24 C8 6E

4

Install or Replace Backup
Batteries (optional)

•

Insert 3 x AA alkaline batteries into
the battery compartment, as shown.
Follow the polarity (+/-) diagram in
the battery compartment.

Write Down

3

DEVICE ID

12 digit number

•

4

Install Backup
Batteries

3 AA Batteries

Plug in Power

2

Adapter

•

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to
be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of
used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries

in re, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT

recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

IMPORTANT: Batteries are a backup
power source to preserve records
in the event of a power outage.
Power adapter is the recommended

primary power source to enjoy the
full functionality of this product.

8

Set the Time, Date & Units

The display will automatically enter SET MODE after the unit has powered on.
Once in set mode, the preference you are currently setting will blink on the
display.

To adjust the currently selected (ashing) item, press and release the “ “ or
“ “ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust
the next preference. The preference set order is as follows:

ox

LANGUAGE (English, French)
TIME ZONE (EST, CST, MST, PST, AKT, HAT, NST, AST)
AUTO DST CHANGE (YES, NO)*
WEATHER TICKER SPEED (SLOW, MEDIUM, FAST)
CLOCK HOUR
CLOCK MINUTE
CALENDAR MONTH
CALENDAR DATE
CALENDAR YEAR
TEMPERATURE UNITS (°F or °C)
WIND SPEED UNITS (mph, km/h, knots)
RAINFALL UNITS (inches or mm)
PRESSURE UNITS (inHg or hPa)

*If you live in an area that observes Daylight Saving Time, DST should be set
to YES, even if it is not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 20 seconds.
Enter setup mode at any time by pressing the “ ” button.

ox

Display Backlight Settings

This weather station’s color display features three different lighting settings:
High (100%) brightness, Medium (60%) brightness and Low (15%) brightness.

Using battery power alone, the backlight is available momentarily for 10
seconds by pressing the “ ” button.

When display is powered with the power adapter, backlight remains on at
100% brightness. Press the “ ” button once to dim to 60% brightness. Press
again to dim to 15%. Press a 3rd time to enter “AUTO DIM” mode. The “ ”
icon appears to the left of the time to indicate that auto-dim mode is ON.

NOTE: Pressing and holding the “ ” button for 5 seconds will disable the

backlight. Once any button is pressed, the backlight will return to your selected

setting.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day.

6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 15% brightness

9

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of both the display and the sensor are critical to the accuracy and

performance of this product.

Display Placement

Place the display in a dry area free of dirt and dust. To ensure
accurate temperature measurement, place out of direct sunlight

IT F EELS LIKE 46 OUTSIDE

and away from heat sources or vents. Display stands upright for
tabletop use or is wall-mountable.

5-in-1 Sensor Placement

The 5-in-1 sensor is designed to remain outdoors all year long.
Choose an open location with no obstructions above or around

the sensor for the most accurate measurements.

Important Placement Guidelines

Display and sensor must be within 330 feet (100 meters) of each other.

MAXIMIZE WIRELESS RANGE

Place units away from large metallic items, thick walls, metal surfaces, or other
objects that may limit wireless communication.

PREVENT WIRELESS INTERFERENCE

Place units at least 3 feet (.9 m) away from electronic devices (TV, computer,

microwave, radio, etc.).

LOCATE AWAY FROM HEAT SOURCES

Position sensor away from heaters, air conditioners, chimneys, exhaust vents,
asphalt and concrete (surfaces that radiate heat).

LOCATE AWAY FROM HUMIDITY SOURCES

Avoid installing the sensor near pools, spas, or other bodies of water. Water
sources may impact humidity accuracy.

LOCATE AWAY FROM SPRINKLER HEADS

DO NOT install the sensor where it will be sprayed by a sprinkler system. This
may force water inside the sensor.

LOCATE AWAY FROM WIND & RAIN OBSTRUCTIONS

DO NOT mount the sensor with obstructions around it.
Consider a location that is a wide open area, with few

structures around to ensure accurate wind measurement.

Visit us online to view installation photos and
video, or learn more about AcuRite technology:

www.AcuRite.com/5in1

10

View Video

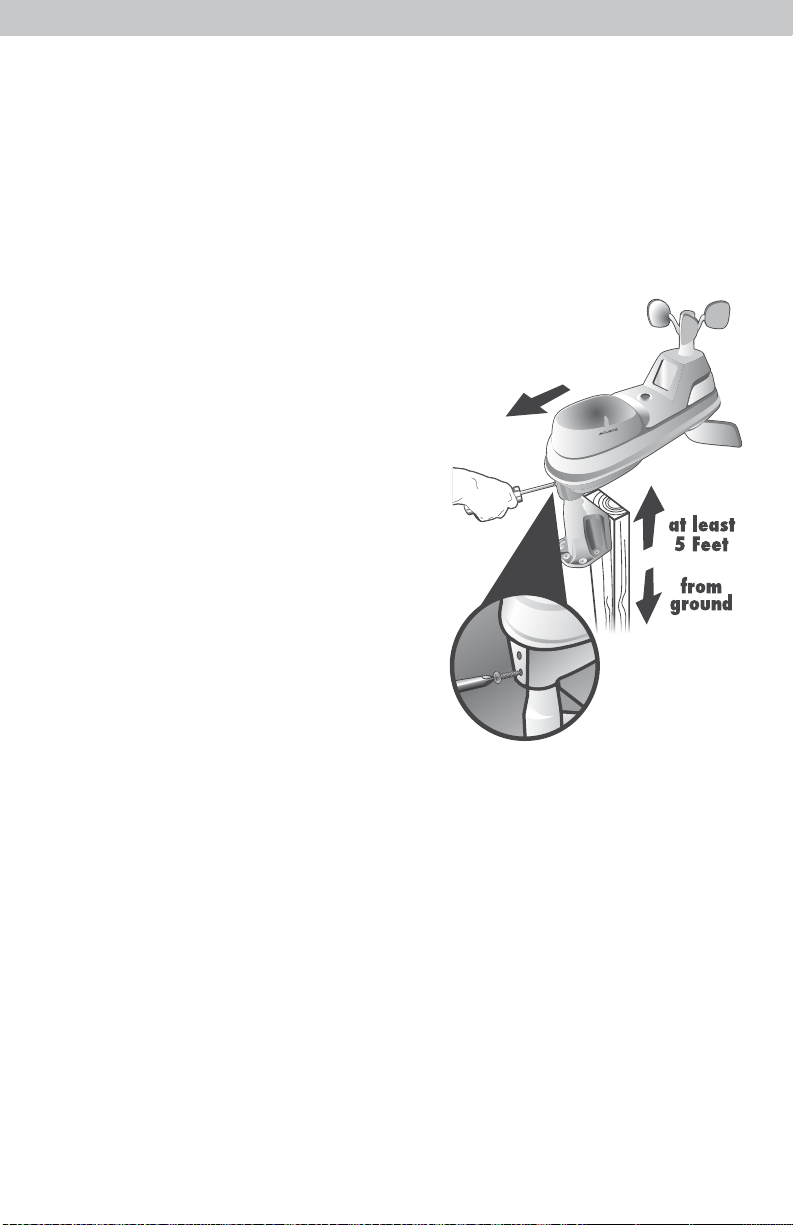

5-in-1 Sensor Installation Guidelines

INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet

(1.5 meters) off the ground, in an open area. Higher is better for wind

~

t

~

at least

5 Feet

(1.5 meters)

l from

ground

measurements - the National Weather Service recommends 33 feet

(10 meters) high!

MOUNTING OPTIONS The included mounting bracket is designed to screw

directly onto wooden posts or surfaces that are 2”x 4” or larger. The sensor
can also be mounted directly to 3/4” steel pipe (available at hardware stores

and home centers).

SOLAR CELL INSTALLATION Install the sensor

with the solar cell facing SOUTH. This ensures

the cell receives as much sun as possible and

orients wind direction.

5-in-1 Sensor Installation

1. Fasten mounting base (included) to a post

or pole (not included) using the 4 longer
screws included in the hardware bag.

2. Insert the mounting base into the hole on

the bottom of the sensor.

3. Make sure the arrows on the top of the

sensor are pointed in the proper direction

and the bubble level is centered. The
solar cell should be facing south to
properly orient the wind direction.

NO OBSTRUCTIONS

ABOVE OR AROUND

SOUTH

4. Fasten the sensor into the mounting base

using the 2 shorter screws included in the

hardware bag.

The 5-in-1 sensor is now ready to use.

Clear Data Collected During Installation

When installation is complete, clear erroneous data from the display by
pressing and HOLDING the “CLEAR RECORD/ RESET” button for 8 seconds,
on the back of the display inside the battery compartment. This button will
clear all records.

Basic Setup is Complete

The 5-in-1 sensor will now synchronize with the display. It may take a few
minutes for synchronization to complete. If both or one of the units appear to
be functioning improperly, please refer to the troubleshooting section.

11

OPERATION

Using the Professional Weather Center
Learning Mode

Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over
a time period (called Learning Mode) to determine your altitude. After 14 days, the

icon disappears from the display screen. At this point, the self-calibrated pressure is

tuned in to your location and the unit is ready for superior weather prediction.

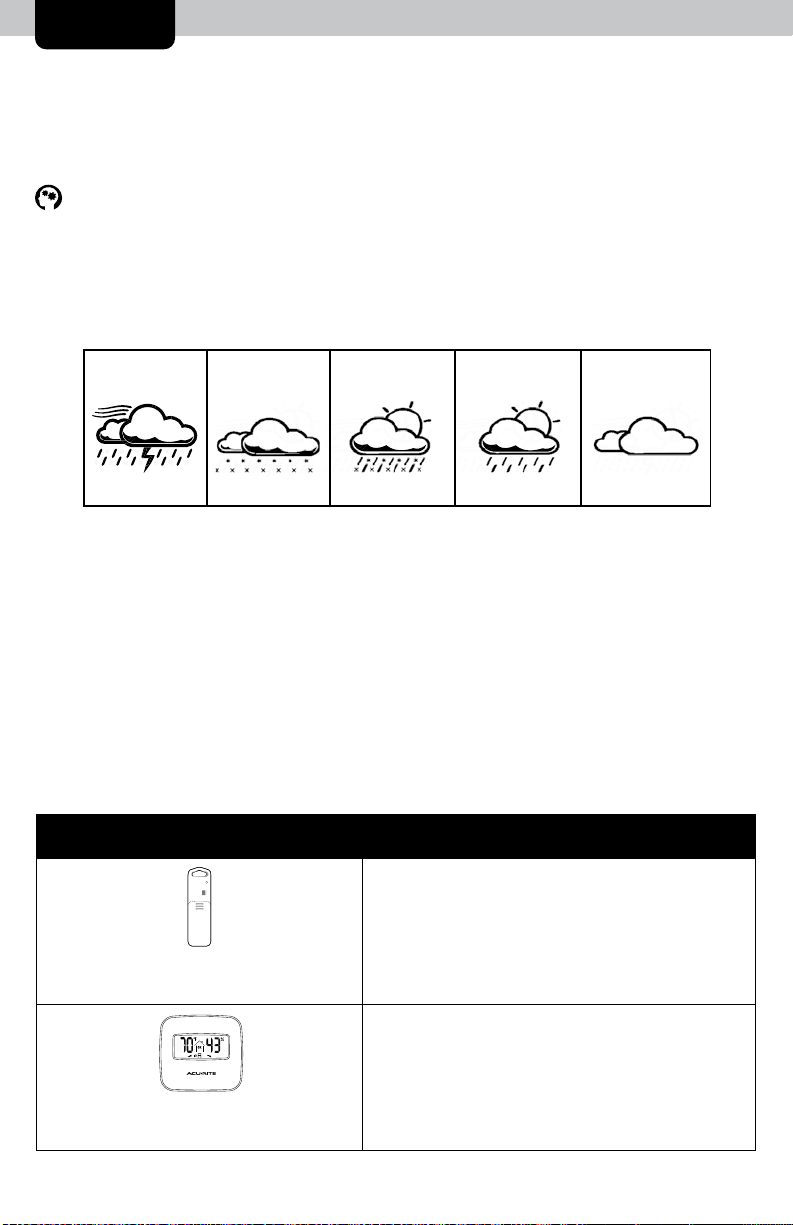

Weather Forecast

AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast of weather
conditions for the next 12 to 24 hours by collecting data from the sensor in your backyard.

It generates a forecast with pinpoint accuracy - personalized for your exact location.

STORMY

& WINDY

(flashing=stormy)

View the complete list of icons at www.AcuRite.com/acurite-icons

SNOW
LIKELY

SNOW / RAIN

MIX LIKELY

RAIN

LIKELY

CLOUDY

Barometric Pressure

Subtle variations in barometric pressure greatly affect the weather. This weather
center displays the current pressure with an arrow icon to indicate the direction the
pressure is trending (FALLING, STEADY, or RISING).

Expand the System

The display features built-in sensors for measuring temperature and humidity
at its location. The display can be expanded to track additional areas by using
compatible Temperature & Humidity Sensors (optional; sold separately). Add up
to 3 indoor/outdoor sensors to observe conditions in additional locations within

330 ft (100 m).

Compatible Sensors Perfect for:

Temperature & Humidity Sensor

Temperature & Humidity Sensor

Compatible Sensors are available at: www.AcuRite.com

E

Model 06002RM

Model 06044M

• Indoor and outdoor applications

• Integrated digital display for conditions

at a glance

• Measures temperature and humidity

• For indoor applications

12

View Indoor/Add-On Sensor Readings

(PC)

The weather station displays the current indoor temperature and humidity readings,
by default.

If the weather station is being used with additional sensors (see Expand the
System), toggle between indoor readings and each sensor’s readings by pressing
and releasing the “

In auto-cycle mode, the display will automatically cycle through indoor and each
sensor’s data. Auto-cycle mode can be activated by pressing and releasing the
“

“ or “ “ buttons until the “ “ indicator appears.

The Sensor Indicator is used to determine which add-on sensor readings you are
viewing. For example, if the Sensor Indicator is displaying “A”, the readings are
being transmitted from the sensor with the A-B-C switch set to “A”.

“ or “ “ buttons.

PC Connect

PC Connect works with PCs to provide access to your Weather Center data in the
following ways:

• Data File: The display logs (or stores) data so that you can download it to a

CSV (comma separated values) data le on your PC.

• Web Browser or Smartphone: Monitor sensor data remotely using AcuRite’s

free AcuRite online software, or from a mobile device using the free AcuRite
app, available from the iOS App Store or Google Play Store.

• Weather Underground: This weather station is compatible for streaming data

to the Weather Underground Personal Weather Station Network. For more
information, navigate to: www.acurite.com > Support > Downloads

Download the Software

The PC Connect software is available online as a free download. A manual (PDF) is
included with the software download.

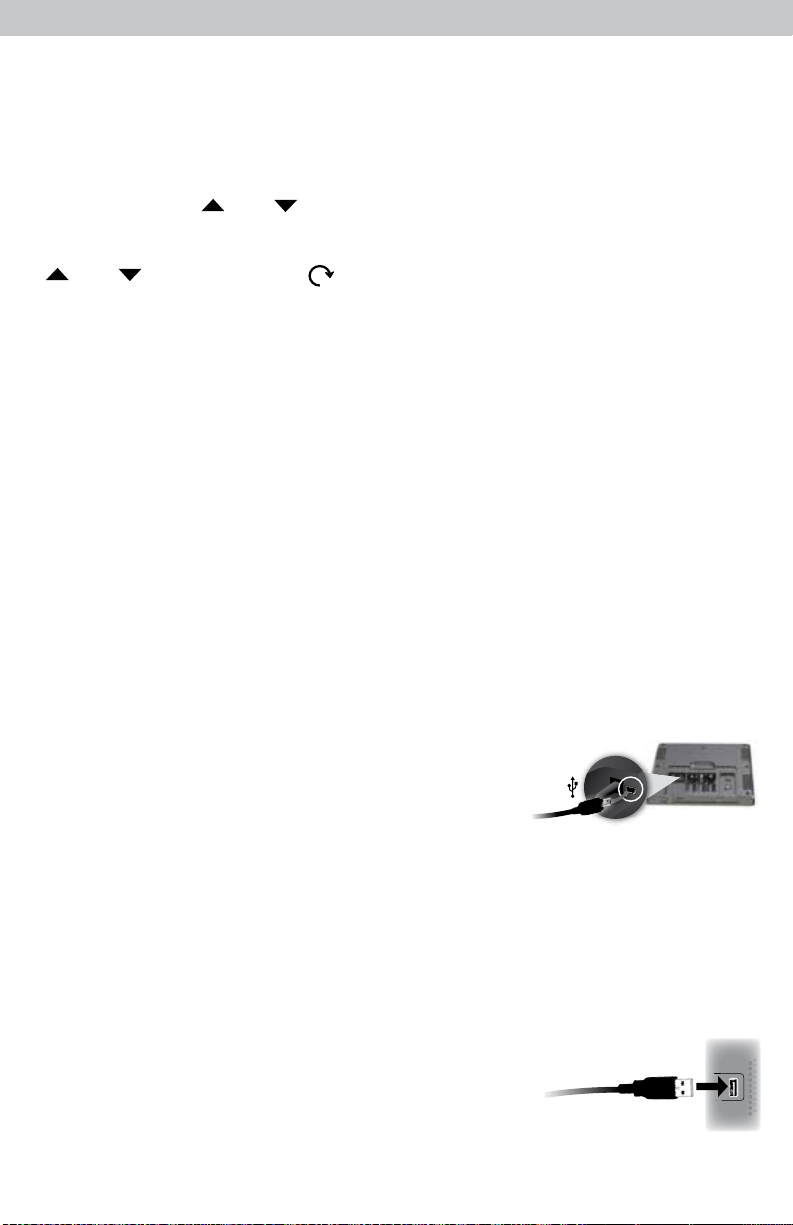

Before setting up the PC Connect software, verify that the display
is ON with the power adapter plugged in. Next, connect
the mini-USB (small end of the cable) into the USB port

on the display, located inside the battery compartment.

Download PC Connect software to your computer by visiting:

1

www.acurite.com > Support > Downloads

Open the le that was downloaded in step 1 and follow the on-screen
instructions to install the software.

2

After PC Connect is installed on the computer, the initial conguration will

3

begin automatically. Select where to save weather data downloaded from the
display. By default, this will create a folder named “AcuRite Weather Station”

in the Documents folder.
When prompted by the software to plug in the display, connect the USB

4

(larger end of the cable) into a USB port on the computer.

PC Connect is installed and ready for use.

Follow the instructions within the PC Connect app to complete setup and

begin using the software.

13

Rainfall Tracking

This weather station features enhanced tracking of historical rainfall data.
Rain accumulation data is displayed for the current day, week, or month (most
recent rainfall total). Press the “ ” button to review historical rainfall records.

Records are shown in the following order:

CURRENT YEAR TOTAL (default)
PREVIOUS MONTHLY TOTALS WITH RAIN (up to 12 months prior)
CURRENT YEAR TOTAL
PREVIOUS YEAR TOTAL
ALL-TIME TOTAL

Rainfall Data

rainfall

today

TODAY WEEK

Displays rainfall

recorded TODAY

since 12:00am,

if applicable.

this week

If there hasn’t been any

rainfall today, the current

week’s rainfall (Sunday to

Saturday) is displayed, if

Rainfall History

L__ rainfall .,,.

this month

381n

•

20 l6 '-10 . .? l total

CURRENT YEAR TOTAL RAINFALL ALL-TIME TOTAL RAINFALL

TOTAL RAINFALL FOR MONTH SHOWN

(default)

rainfall

this month this month

orT

LI

rainfall . ,t'

38

,n.

•

applicable.

.,,.

381n

•

8.3S

total

IL_

rainfall

this month

MONTH

If there hasn’t been any

rainfall this week, the

current month’s rainfall is

displayed.

rainfall

38in.

•

ALL

96.B'-I

.,,.

total

14

Weather Ticker

The Weather Ticker automatically ashes your real-time weather information
and alerts as text in the lower part of the display unit screen.

The possible WEATHER TICKER messages are as follows:

™

HEAT INDEX-XX
WIND CHILL-XX
DEW POINT-XX
IT FEELS LIKE XX OUTSIDE
TODAY’S HIGH HUMIDITY...OUTDOOR XX / INDOOR XX
TODAY’S LOW HUMIDITY...OUTDOOR XX / INDOOR XX
TODAY’S HIGH TEMP...OUTDOOR XX / INDOOR XX
TODAY’S LOW TEMP...OUTDOOR XX / INDOOR XX
7 DAY HIGH TEMP. XX - MM/DD
7 DAY LOW TEMP. XX - MM/DD
30 DAY HIGH TEMP. XX - MM/DD
30 DAY LOW TEMP. XX - MM/DD
ALL TIME HIGH TEMP. XXX...RECORDED MM/DD/YY
ALL TIME LOW TEMP. XXX...RECORDED MM/DD/YY
24 HOUR TEMP. CHANGE +XX
ALL TIME HIGH WIND XX MPH...RECORDED MM/DD/YY
7 DAY AVERAGE WIND XX MPH
TODAY’S AVERAGE WIND XX MPH
MOON - NEW
MOON - WAXING CRESCENT
MOON - FIRST QUARTER
MOON - WAXING GIBBOUS
MOON - FULL
MOON - WANING GIBBOUS
MOON - LAST QUARTER
MOON - WANING CRESCENT
INDOOR HUMIDITY OK
INDOOR HUMIDITY HIGH
INDOOR HUMIDITY LOW
NEW LOW TEMP. RECORD XX
NEW HIGH TEMP. RECORD XX
NEW WIND RECORD TODAY XX
CURRENT RAINFALL X.XX/HR.
RAIN EVENT STARTED XX HRS. AGO
SENSOR BATTERIES LOW
DISPLAY BATTERIES LOW
SENSOR SIGNAL LOST...CHECK BATTERIES AND PLACEMENT
CAUTION- HEAT INDEX IS XXX
CAUTION- WIND CHILL IS XXX
CALIBRATION
DATA LOGGER FULL...CONNECT TO PC TO TRANSFER

15

Programmable Weather Alarms

Each selectable weather category features an alarm option. When an alarm
sounds, the display emits audible beeping and ashes the affected category, its
alarm settings, and any other relevant data.

Alarms can be customized to alert you when your programmed value is reached
(high and low). Alarms include:

OUTDOOR TEMPERATURE
OUTDOOR HUMIDITY
BAROMETRIC PRESSURE
WIND SPEED
RAINFALL
INDOOR TEMPERATURE
INDOOR HUMIDITY

Setup an Alarm

1. Press and release the “ ” button to enter ALARM SET MODE.

2. Press and release the “ ” or “ ” buttons until the reading for which you

wish to set an alarm is shown on the display.

3. Press and release the “ ” button.

4. Press and release the “ ” or “ ” buttons until “ON” is ashing on the

Weather Ticker screen.

5. Press and release the “ ” button. The current HIGH alarm value will be

shown.

6. Press and release the “ ” or “ ” buttons to adjust the alarm’s HIGH value.

7. Press and release the “ ” button. The current LOW alarm value will be

shown.

8. Press and release the “ ” or “ ” buttons to adjust the alarm’s LOW value.

9. Press and release the “ ” button.

10. Repeat steps 1-9, as needed.

(((.«)))

......

ox

......

ox

......

OX

......

ox

....

....

Disable an Alarm

1. Press and release the “ ” button to enter ALARM SET MODE.

2. Press and release the “ ” or “ ” buttons until the reading for which you
wish to disable is shown on the display.

3. Press and release the “ ” button.

4. Press and release the “ ” or “ ” buttons until “OFF” is ashing on the

Weather Ticker screen.

5. Press and release the “ ” button.

6. Repeat steps 1-5, as needed.

NOTE: To disable ALL alarms at once, press and HOLD the “ ” button for

15 seconds.

ox

......

ox

16

Troubleshooting

Problem Possible Solution

No outdoor sensor

reception

no bars

T111I

Outdoor

temperature

is ashing or

showing dashes

• Relocate the display and/or the 5-in-1 sensor.

The units must be within 330 ft (100 m) of each other.

• Make sure both units are placed at least 3 feet

(.9 m) away from electronics that may interfere with
the wireless communication (such as TVs, microwaves,

computers, etc).

• Use standard alkaline batteries (or lithium batteries

in sensor when temperature is below -20ºC/-4ºF). Do
not use heavy duty or rechargeable batteries.
It may take a few minutes for display and sensor to
synchronize after batteries are replaced.

• Synchronize the units:

1. Bring both the sensor and display indoors and

remove power adapter/batteries from each.

2. Reinstall batteries in outdoor sensor.

3. Reinstall power adapter/batteries in display.

4. Let the units sit within a couple feet of each other

for a few minutes to gain a strong connection.

Flashing of the outdoor temperature may be an
indication of wireless interference.

• Make sure the A-B-C switch in the battery
compartments of both the display and sensor are
switched to the same letter. You may choose A, B or
C; but both units must match to sync up. Sometimes
changing to a different channel can help.

NOTE:

Inaccurate forecast

• Weather Forecast icon predicts conditions for the next
12 to 24 hours, not current conditions.

• Has Learning Mode icon disappeared from the
display? Learning Mode must complete before
forecast and pressure will be accurate.

• Allow unit to run continuously for 33 days. Battery
removal or resetting the display will restart Learning
Mode. After 14 days, forecast should be fairly
accurate, however Learning Mode calibrates for a
total of 33 days.

17

Troubleshooting

Problem Possible Solution

Inaccurate

temperature or

humidity

No rainfall

Inaccurate wind

readings

• Make sure both the display and 5-in-1 sensor are
placed away from any heat sources or vents

(see page 10).

• Make sure both units are positioned away from

moisture sources (see page 10).

• Make sure 5-in-1 sensor is mounted at least 1.5 m

(5 ft) off of the ground.

• Calibrate indoor and outdoor temperature and
humidity (see page 20).

• Check to ensure the rain gauge stabilizer (plastic tab)

has been removed from the bottom of the sensor (see
page 7).

• Clear debris, such as leaves, out of the rain collector
funnel and debris screen.

• Calibrate the Rain Gauge (see page 21).

• What is wind reading being compared to? Pro
weather stations are typically mounted at 30 ft (9 m)

high or more. Make sure to compare data using a
sensor positioned at the same mounting height.

• Check location of the sensor. Ensure it’s mounted a

minimum of 5 ft (1.5 m) in the air with no obstructions

around it (within several feet).

• Ensure wind cups are spinning freely. If they hesitate
or stop try lubricating with graphite powder or spray
lubricant.

• Check that the batteries are installed correctly.
Batteries may need to be replaced.

Display screen

not working

• Reset the display by pressing and holding the CLEAR
RECORD / RESET button for 10 seconds, located in
the battery compartment of the display. Date and
time will need to be entered after a reset.

If your AcuRite product does not operate properly after trying
the troubleshooting steps, visit www.AcuRite.com or call
[phone] for assistance.

18

Troubleshooting

Problem Possible Solution

Cannot access data

online or on the

AcuRite mobile app

No data received from

indoor display

Add-on Sensor

not recognized

• Verify under Status that data was received from the
indoor display. The timestamp should update every

18-36 seconds.

• Verify that you created an account or logged into an

existing account at www.MyAcuRite.com or in the
AcuRite app, and that you input the display’s
DEVICE ID as a part of the account setup.

• Verify the PC that the display is connected to is
always powered ON.

• Verify the PC that the display is connected to is
always connected to the internet.

• Verify that the display’s DEVICE ID is entered
correctly in the PC Connect software on your PC.

• Verify that “Sharing” is enabled in the PC Connect
software on your PC.

• Verify that the display’s DEVICE ID is correct in your
www.MyAcuRite.com and/or AcuRite mobile app account.

• Follow on-screen troubleshooting steps in the PC
Connect software.

• Verify that the USB cable is securely connected to the

display AND to the PC.

• Verify the display is powered ON.

• Restart the PC Connect software.

• Unplug the USB cable from the PC for 1 minute,

then plug the cable back in again.

• USB port may be malfunctioning, try using a different
USB port.

If the display is being used with add-on Temperature &
Humidity Sensors (models 06002 or 06044), the A-B-C
channels must differ between each add-on sensor.

1. Bring the display and wireless sensors together and

position them side-by-side.

2. Unplug cord & remove the batteries from the display.

3. Verify that each sensor has a different A-B-C

channel selected.

• Model 06002 - Locate the A-B-C switch inside the

battery compartment to adjust channel setting.

• Model 06044 - Locate the A-B-C button on the back

of the sensor to adjust channel setting (indicated on
sensor display).

4. Re-install sensor batteries (if applicable).

5. Plug in & re-install display batteries.

NOTE: It may take a few minutes for the display and
sensor(s) to synchronized after batteries are replaced.

19

Care & Maintenance

Display Care

Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away
from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air.

5-in-1 Sensor Care

Clean the Sensor

Clean with a soft damp cloth. Do not use caustic cleaners or abrasives that will mar the
polished surfaces of the rain collection funnel or the solar cell. Scratches will result in
decreased performance and reliability.

Insect Prevention

Insects may cause obstructions and interrupt data by nesting in or on the 5-in-1 sensor.
To limit this problem, spray sensor with a household insect repellent. Consult the insect
repellent instructions prior to use.

Snow & Freezing Weather

The 5-in-1 sensor will not be damaged by freezing conditions. NOTE: If the rain
collector cup lls with snow and then melts, it will register as rain on the display.

Clean the Rain Collector Cup

Remove and empty rain collector debris lter. The debris lter is located in the rain
collector funnel. Remove from the top by gently squeezing and pulling out.

Clean the Wind Vane & Anemometer

Remove foreign matter from the outside of the sensor for free movement of the wind

vane and anemometer. If needed, use a small amount of spray lubricant, clear silicone

or graphite powder on the anemometer for improved movement.

Calibration

The indoor and outdoor temperature and humidity readings, and barometric pressure
can be calibrated on the display to improve accuracy. Calibration can improve
accuracy when sensor placement or environmental factors impact the data accuracy.

1. To access calibration mode, press AND HOLD the “
simultaneously for at least 5 seconds.

2. To adjust the currently selected (ashing) item, press and release the “ “ or “ “
buttons to calibrate the data value higher or lower from the actual reading.

3. To save your adjustments, press and release the “ ” button to adjust the next
preference. The “

The preference set order is as follows:
OUTDOOR TEMPERATURE
OUTDOOR HUMIDITY
INDOOR TEMPERATURE
INDOOR HUMIDITY
BAROMETRIC PRESSURE (must be set to MANUAL mode to calibrate)*

” icon will remain illuminated next to calibrated values.

20

”, “ ”, and “ ” buttons

.....

ox

*To change from AUTO to MANUAL pressure mode and vice versa, press AND
HOLD the “
mode selected, “AUTO” or “MANUAL”. The “
barometric pressure to indicate that MANUAL mode has been activated. Press and
HOLD the “

After 5-10 seconds of inactivity, the display will save the adjustments and exit
calibration mode. NOTE: Calibrations will be erased if the display is reset or if batteries
are removed and the power adapter is unplugged.

” button for 5-7 seconds. The display indicates the current pressure

ox

” button for 5-7 seconds to return to AUTO mode.

ox

” icon will appear next to the

Calibrate the Rain Gauge

The rain gauge on the 5-in-1 sensor can be calibrated to improve accuracy.
Items Needed: 5-in-1 sensor, display, plastic cup, pin, screw driver

1. First, ensure 5-in-1 sensor is perfectly level using built-in bubble level.

2. Place display close so you can monitor it during calibration.

3. Make a pin hole in the bottom of a plastic cup. Hold the cup over the rain gauge and

ll it with exactly 1 cup (8oz) of water, allowing the water to drip into the rain gauge.
You should hear the internal buckets tip and see water drain through the rain gauge.

4. A few seconds after each bucket tip, the display displays rainfall in approximately

0.01” (.25 mm) or more increments.

5. The cup of water should take more than 20 minutes to empty; a quicker period will

result in inaccurate calibration. Try to simulate a normal steady rainfall. When cup is
empty of water, display should register 1.06” (27 mm).

Tips

• There should be nearly an equal number of water drops (about 25 water drops)

between bucket tips. If not, adjust the calibration screws on the bottom of the 5-in-1
sensor until an equal number of water drops are tipping the buckets. Then, restart the
calibration procedure.

• If you don’t hear the buckets tipping and see water dripping alternately out of

each drain, there may be an issue with the rain gauge or it’s adjustment. See
Troubleshooting on page 18.

Adjustment

If the rain gauge doesn’t register close to 1.06” (27 mm), make an EQUAL adjustment
to the two calibration screws on the bottom of the 5-in-1 sensor. Turning screws
clockwise increases rainfall; counter clockwise decreases rainfall.

• To adjust the rainfall reading by 2% turn both screws 1/8 of a turn.

• To adjust the rainfall reading by 4% turn both screws 1/4 of a turn.

• To adjust the rainfall reading by 8% turn both screws 1/2 of a turn.

Watch the video at www.acurite.com/5in1

21

Specications

TEMPERATURE RANGE

HUMIDITY RANGE

WIND SPEED

WIND DIRECTION
INDICATORS

RAINFALL
WIRELESS RANGE
OPERATING FREQUENCY
POWER

DATA REPORTING

DISPLAY MEMORY

PC CONNECT SYSTEM
REQUIREMENTS

Outdoor: -40ºF to 158ºF; -40ºC to 70ºC

Indoor: 32ºF to 122ºF; 0ºC to 50ºC
Outdoor: 1% to 99%

Indoor: 1% to 99%
0 to 99 mph; 0 to 159 km/h

16 points

0.01 inches (0.25 mm) and up

330ft / 100m depending on home construction materials
433 MHz
Display: 5V AC, 250mA adapter

3 x AA alkaline batteries (optional)
Sensor: 4 x AA alkaline or lithium batteries

Wind Speed: 18 second updates; Direction: 30 seconds
Outdoor temperature & humidity: 36 second updates
Indoor temperature & humidity: 60 second updates
PC Connect CSV Data Logging: 12 minute intervals
PC Connect to AcuRite Software/App: 18 seconds

512 kilobytes (not expandable)

Windows 10 / 8.1 / 8 / 7; 1 GHz or faster processor;
1 GB (32-bit) or 2 GB (64-bit) of RAM; available USB

2.0 port

High speed internet is required for some advanced
features of PC Connect, such as Weather Underground
Rapid Fire Updates.

FCC Information

This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip
ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment.
Such modications could void the user authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

22

-

23

Limited 1 Year Warranty

AcuRite is a wholly owned subsidiary of Chaney

Instrument Company. For purchases of AcuRite

products, AcuRite provides the benets and services set

forth herein. For purchases of Chaney products, Chaney

provides the benets and services set forth herein.

We warrant that all products we manufacture under this

warranty are of good material and workmanship and, when

properly installed and operated, will be free of defects for a

period of one year from the date of purchase.

Any product which, under normal use and service, is proven

to breach the warranty contained herein within ONE YEAR

from date of sale will, upon examination by us, and at our sole

option, be repaired or replaced by us. Transportation costs and

charges for returned goods shall be paid for by the purchaser.

We hereby disclaim all responsibility for such transportation

costs and charges. This warranty will not be breached, and we

will give no credit for products which have received normal

wear and tear not affecting the functionality of the product,

been damaged (including by acts of nature), tampered,

abused, improperly installed, or repaired or altered by others

than our authorized representatives.

Remedy for breach of this warranty is limited to repair or

replacement of the defective item(s). If we determine that repair

or replacement is not feasible, we may, at our option, refund

the amount of the original purchase price

THE ABOVE-DESCRIBED WARRANTY IS THE SOLE WARRANTY

FOR THE PRODUCTS AND IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED. ALL OTHER WARRANTIES

OTHER THAN THE EXPRESS WARRANTY SET FORTH HEREIN

ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING WITHOUT

LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY

AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR

We expressly disclaim all liability for special, consequential,

Canada, please consult the policies applicable to the country in

PURPOSE.

State of Wisconsin.
Wisconsin; and purchaser consents to jurisdiction within the
federal or State courts having jurisdiction in Walworth County,
dispute relating to this Policy shall be brought exclusively in the
laws of the United States and the State of Wisconsin. Any
This Return, Refund, and Warranty Policy is governed by the

Governing Law

resale sites such as eBay or Craigslist.
refund, or warranty services if you buy products used or from
of our products. We do cannot and do not offer any return,
Additionally, this Policy applies only to the original purchaser

which you made your purchase.

purchases made in a country other than the United States or
purchases made in the United States and Canada. For
This Return, Refund, and Warranty Policy applies only to

Applicability of Policy

original purchase price paid for the product.
products, your purchase or your use thereof, exceed the
In no case shall our liability for any claim relating to our

writing and signed by a duly authorized agent of ours.
to modify or waive the terms of this warranty unless done in

Furthermore, no person, rm or corporation is authorized

or liability in connection with the sale of our products.
or corporation is authorized to bind us to any other obligation

consequences arising from their use or misuse. No person, rm

any of our products, the purchaser assumes all liability for the
its products to the extent permitted by law. By acceptance of
We further disclaim liability from personal injury relating to

so the above limitation or exclusion may not apply to you.
exclusion or limitation of incidental or consequential damages,
from any breach of this warranty. Some states do not allow the
or incidental damages, whether arising in tort or by contract

www.AcuRite.com

PRODUCT REGIS TRATION

TO RECEIVE WARRANT Y SERVICE
PRODUCT MUS T BE REGIS TERED

Regist er online t o receive 1 year war ranty prot ection

IMPORTANT

[phone]

Q)

► Replacement Parts ► Submit Feedback & Ideas
► Instruction Manuals ► Support User Forum
► Installation Videos ► Register your Product

Visit us at www.AcuRite.com

product available and contact us in any of the following ways:
class service. For assistance, please have the model number of this

AcuRite customer support is committed to providing you with best-in-

Customer Support

ACU

►

RITE®

Weather Temperature Weather Kitchen

Stations & Humidity Alert Radio Thermometers

It’s More than Accurate, it’s

AcuRite offers an extensive assortment of precision instruments,

designed to provide you with information you can depend on to

Plan your day with condence

& Timers

ACU

►

.

™

Clocks

RITE.

www.AcuRite.com

©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of
the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy-

Printed in China

01536 INST 052416 Visit www.AcuRite.com/patents for details.

rights are the property of their respective owners. AcuRite uses patented technology.
