AcuRite 01190 Users manual

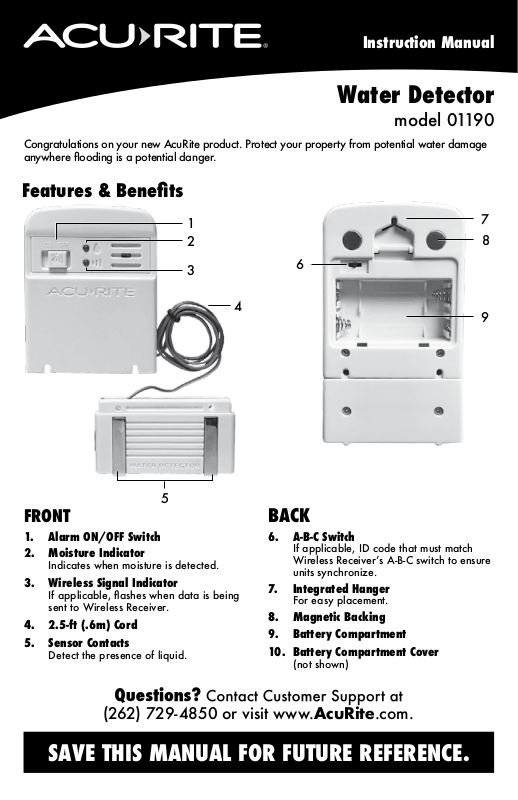

Instruction Manual
Water Detector
model 01190
Congratulations on your new AcuRite product. Protect your property from potential water damage
anywhere ooding is a potential danger.
Features & Benets
5
FRONT
1. Alarm ON/OFF Switch
2. Moisture Indicator
Indicates when moisture is detected.
3. Wireless Signal Indicator
If applicable, ashes when data is being
sent to Wireless Receiver.
4. 2.5-ft (.6m) Cord
5. Sensor Contacts
Detect the presence of liquid.
1
2
3
6
4
•
-----
BACK
6. A-B-C Switch
If applicable, ID code that must match
Wireless Receiver’s A-B-C switch to ensure
units synchronize.
7. Integrated Hanger
For easy placement.
8. Magnetic Backing
9. Battery Compartment
10. Battery Compartment Cover
(not shown)
7
8
9
Questions? Contact Customer Support at
(262) 729-4850 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
SETUP
Remove the battery compartment
1
cover.
•
If purchased with a Wireless
2
Receiver, set the A-B-C switch
•
located inside the battery
compartment.
You must select the same letter
choices for both the detector and
the receiver in order for the units to
synchronize.
Insert 2 x AA batteries into the
3
battery compartment as shown.
•
Follow the polarity (+/-) diagram in
the battery compartment.
Replace the battery cover.
4
•
Water Detector Setup
Remove Battery
1
Compartment
A-B-C Switch
2
Set to match receiver
(if applicable).
A B C
3
Install Batteries
2 AA batteries
Using the Water Detector
The Water Detector works as a stand-alone unit which can be placed where leaks may occur and
has an audible alert when liquid is detected. It may also be used with a Wireless Receiver (sold
separately) which can be placed in a living area, ensuring that you hear the alert.
Placement Guidelines
Water will naturally ow towards the low point of the area that is beings monitored. For the best
results, place Water Detector in an area where water is most likely to collect.
You may place the Water Detector upright in the desired location (Figure A), or mount the base with
the wired sensor placed on ground level (Figure B).
NOTE: The sensor is water-resistant and is designed to detect the presence of liquid/leaks. However,
to extend it’s life, place the Water Detector in an area where it will not remain submerged in liquid.
ON OFF
l1S1::~1 DD
WATER DETEC TOR
Specications
POWER
WIRELESS RANGE
CORD
DATA REPORTING
SOUND INTENSITY
FIGURE BFIGURE A
ON OFF
fi
DD
DD
r---------1
D
2 x AA alkaline batteries
330 ft / 100 m (depending on home construction materials)
2.5 ft (.6m) length; Water-resistant
1 second updates once water is detected
85 dB at 3.3 ft (1 meter)
