ACU•RITE.
Self Empty ng
Instruction Manual
Rain Gauge
model 00899
CONTENTS
Unpacking Instructions ............. 2
Package Contents .................... 2
Product Registration ................. 2
Features & Benets: Rain Gauge ... 3
Features & Benets: Display ........ 4
Setup ...................................... 5
Rain Gauge Setup.................... 5
Display Setup .......................... 6
Set Time, Date & Units.............. 7
Placement Guidelines ............... 7
Rain Gauge Installation ............ 8
Using the Rain Gauge .............. 9
Programmable Rain Alarm...... 10
Troubleshooting ......................11
Calibration ............................ 12
Care & Maintenance.............. 13
Specications......................... 13
FCC Information .................... 13
Customer Support .................. 14
Warranty............................... 14
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove. Remove packing materials
from inside of the rain gauge.
Package Contents
1. Display
2. Rain Gauge
3. Instruction Manual
PRODUCT MUST BE REGISTERED
IMPORTANT
TO RECEIVE WARRANTY SERVICE
PRODUCT REGISTRATION
Register online to receive 1 year warranty protection
www.AcuRite.com
2
Features & Benets
1
2
3
SQUEEZE
4
RAIN GAUGE
1. Rain Gauge Cover
2. Rain Gauge Tipping Cups
Collects and empties rain for
continuous rain measurement.
A B C
5
3. Battery Compartment &
Electronics Box
4. Rain Gauge Base
5. A-B-C Switch
ID code that must match display’s A-B-C
switch to ensure units synchronize.
3
Features & Benets
1
2
17
16
15
14
13
12
11
3
5
7
4
6
8
DISPLAY
1. MODE Button
Toggle between rainfall readings
for EVENT, 1 DAY, WEEK, TOTAL
A or TOTAL B.
2 . CLEAR Button
Clears data being viewed for
current mode (#1).
3. HIST Button
Displays historical data.
4. FLOOD WATCH ALARM Indicator
Indicates conditions are present
that could lead to ooding.
5. RAIN ALARM Indicator
Indicates that a rain event has
begun.
6. Display Low Battery Indicator
7. HISTORY Icon
Indicates historical data is being
viewed.
ODAY 5 - MF & OAT
9
8. Clock
9. Date
10. SET Button
For setup preferences.
11. + Button
For setup preferences.
12. Rain Gauge Signal Strength
13. RAIN ALARM Button
Activates/Deactivates rain alarm.
14. Rain Gauge Low Battery Indicator
15. FLOOD WATCH Button
Activates/deactivates ood watch alarm.
16. Rainfall Total
For current mode selected (#1).
17. Mode
Indicates mode displayed (#1).
10
4
SETUP
Rain Gauge Setup
Install or Replace Batteries
AcuRite recommends high quality alkaline batteries for the best product
performance. Heavy duty or rechargeable batteries are not recommended.
1
SQUEEZE
SQUEEZE TABS TO OPEN
1. Separate rain gauge cover from the base by gently
squeezing tabs and pulling the cover upwards.
2. Remove battery box by squeezing the two tabs on
each end together.
3. Remove and discard cardboard rain gauge stabilizer.
4. Insert 2 x AA batteries into the battery compartment
as shown. Follow the polarity (+/-) diagram in the
battery compartment.
5. Securely place the battery box back into the rain
gauge base.
6. Securely re-attach the rain gauge cover onto rain
gauge base.
2
SQUEEZE
LARGE
TAB
•
3 4
SQUEEZE
LARGE
TAB
Set the A-B-C Switch
Locate the A-B-C switch inside the
battery compartment. Set the A-B-C
switch to A, B or C. You must select
the same letter choices for both the
rain gauge and the display in order
for the units to synchronize.
5
•
6
•
A-B-C Switch
Set to match
display
A B C
5
Display Setup
Set the A-B-C Switch
1
Locate the A-B-C switch inside the
•
battery compartment. Set the A-B-C
switch to A, B or C. You must select
the same letter choices for both
the display and the rain gauge in
order for the units to synchronize.
1
A-B-C Switch
Set to match
•
rain gauge
A B C
2
Install or Replace Batteries
1. Remove the battery
•
compartment cover.
2. Insert 3 x AA alkaline batteries
into the battery compartment,
as shown. Follow the polarity
(+/–) diagram in the battery
compartment.
3. Replace the battery cover.
•
2
Install Batteries
3 AA batteries
•
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used
batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire,
as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge
non-rechargeable batteries. DO NOT short-circuit the supply terminals.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be
6
Set the Time, Date & Units
(30 meters)
This rain gauge is equipped with historical data and alarms that require accurate
time and date settings to function properly. It is important to set the time, date and
units before using the rain gauge.
Press and hold the “SET” button for 3 seconds to enter SET MODE. Once in set
mode, the preference you are currently setting will blink on the display.
To adjust the currently selected (ashing) item, press and release the “+” or “-”
button (press and HOLD to fast adjust).
To save your adjustments, press and release the “SET” button again to adjust the
next preference. The preference set order is as follows:
CLOCK HOUR (note AM/PM indicators)
CLOCK MINUTE
CALENDAR MONTH
CALENDAR DATE
CALENDAR YEAR
UNITS (INCH or MM)
You will automatically exit SET MODE if no buttons are pressed for 20 seconds. Enter
SET MODE at any time by pressing and holding the “SET” button for 3 seconds.
Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of both the display and rain gauge are critical to the accuracy and
performance of this product.
Display Placement
Place the display in a dry area free of dirt and dust.
Display stands upright for tabletop use or is wall-mountable.
Important Placement Guidelines
• Display and rain gauge must be within 100 ft (30 m) of each other.
• To maximize wireless range and communication, install the rain gauge at
least 3 ft (.9 m) above ground. Place both the display and the rain gauge
away from large metallic items, thick walls, metal surfaces, or other objects
that may limit wireless communication.
• To prevent wireless interference, place both units at least 3 ft (0.9 m) away
from electronic devices (TV, computer, microwave, radio, etc.)
AT
LEAST
TV
3
APART
100 feet maximum
7

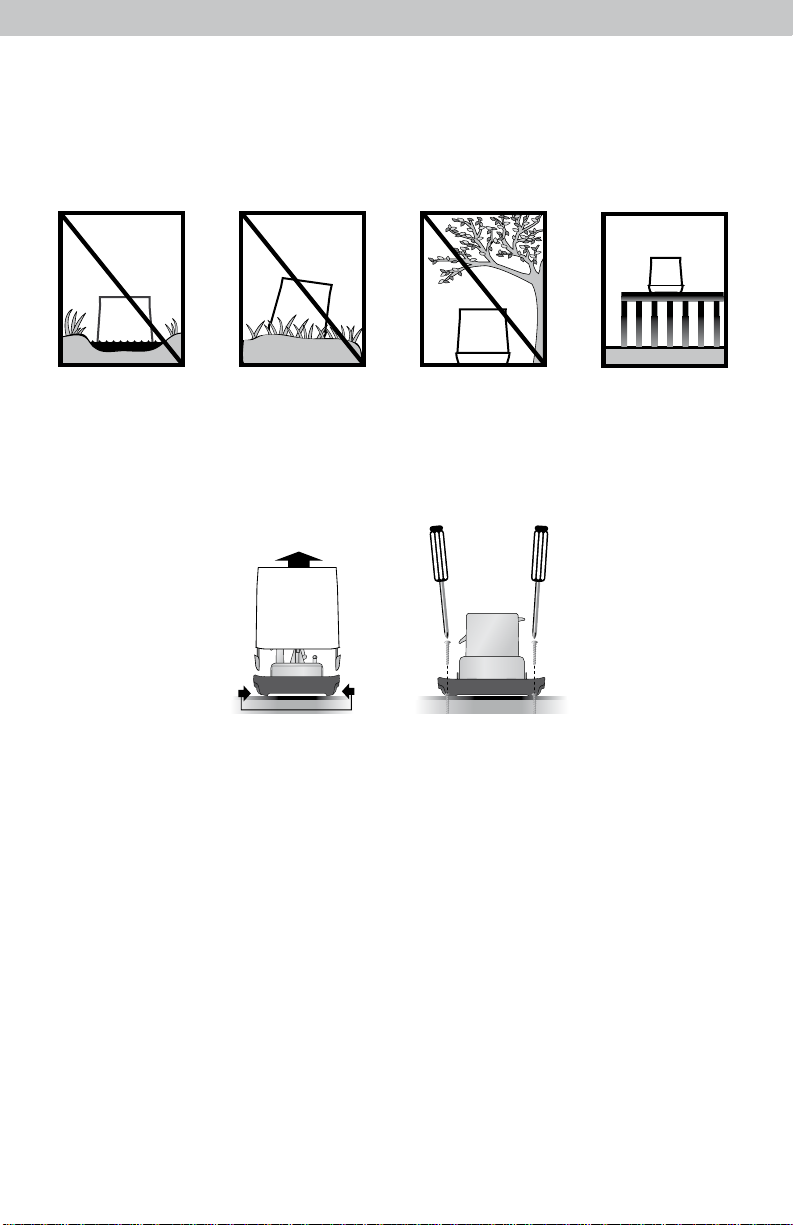

Rain Gauge Installation
SQUEEZE
• To ensure accurate rain measurement, the rain gauge MUST be
placed on a at, level surface.
• Ensure the rain gauge is not placed in a low spot that could become
ooded or in an area where there are obstructions above it.
OK
1. Separate the rain gauge cover from the rain gauge base.
2. Locate the two holes on the rain gauge base.
3. Fasten the rain gauge base to a sturdy surface, like a deck railing or a fence
post, with screws (included) using hand tools. (Power tools may slip during
installation, causing damage to the rain gauge.)
r
Setup is Complete
The rain gauge will now synchronize with the display. It may take a few minutes
for synchronization to complete. Please refer to the troubleshooting section of this
manual if anything appears to be functioning improperly.
8
OPERATION
Using the Rain Gauge
Modes & Historical Data
Press the MODE button to view rainfall data for different modes. While a mode
is being viewed, press the CLEAR button to erase the reading being viewed or
press the HIST button to view historical readings. You will automatically exit
HIST mode if no buttons are pressed for 30 seconds. Enter HIST mode at any
time by pressing the HIST button.
EVENT Mode
When EVENT mode is selected, rainfall data is shown for the most recent
rainfall. An event ends when no rainfall has been detected for 8 hours. An
event may be a brief drizzle, or a multi-day storm.
To display the last 7 rain event rainfall totals, press the HIST button. Each time
the HIST button is pressed, one rain event is displayed with the event’s time
and date. To clear an event from memory, press AND HOLD the CLEAR button
while the event is being viewed. Clearing data from EVENT mode does not
impact other modes.
1 DAY Mode
When 1 DAY mode is selected, rainfall data is shown for today.
To display the DAILY RAIN for the last 7 days, press the HIST button. Each time
the HIST button is pressed, the total rainfall recorded for the day will be shown
with the time rainfall started (if applicable) and date. To clear any DAY rainfall
total from memory, press AND HOLD the CLEAR button while the data for the
day is being viewed. Clearing a day’s rainfall data will subtract that rainfall
amount from the WEEK, TOTAL A and TOTAL B modes.
WEEK Mode
When WEEK mode is selected, rainfall data is shown for the past calendar
week (Sunday through Saturday).
To display the WEEKLY RAIN for the last 7 weeks, press the HIST button. Each
time the HIST button is pressed, the total rainfall recorded for the week will
be shown with the time rainfall started (if applicable) and date. To clear any
WEEK rainfall total from memory, press AND HOLD the CLEAR button while
the data for the week is being viewed. Clearing a week’s rainfall data will
subtract that rainfall amount from TOTAL A and TOTAL B modes.
TOTAL A/B Mode
TOTAL A and TOTAL B are total rainfall measured since the rain gauge was
powered on or since the last time the mode was cleared. To display the start
time and date for TOTAL A or TOTAL B, press the HIST button. To clear
TOTAL A or TOTAL B mode, press AND HOLD the CLEAR button while the
mode is being viewed.
9
Alarms
Flood Watch Alarm
Press the FLOOD WATCH button to activate or deactivate the FLOOD WATCH
ALARM. When the alarm is ON and ood and saturation conditions are
present, an alarm will sound and the FLOOD WATCH indicator will highlight on
the display. Flood conditions include:
> 3” (76.2 mm) in the last 7 days, and then >0.7” (17.78 mm) in the last 2 hours or
>1” (25.4 mm) in the last 24 hours
> 2.3” (58.4 mm) in the last 4 days, and then >0.7” (17.78 mm) in the last 2 hours or
>1” (25.4 mm) in the last 24 hours
> 1.5” (38.1 mm) in the last 2 days, and then >0.7” (17.78 mm) in the last 2 hours or
>1” (25.4 mm) in the last 24 hours
> 1.4” (35.6 mm) in the last 2 hours
> 1.6” (40.6 mm) in the last 8 hours
> 1.8” (45.7 mm) in the last 24 hours
If ood or saturation conditions occur, the alarm sounds for 1 minute or until
any button is pressed. If no buttons are pressed, the FLOOD WATCH indicator
will ash on the display, and the alarm will sound three times on the hour for
the next 8 hours.
NOTE: The rain gauge measures rainfall even while the ood alarm is off.
Rain Alarm
Press the RAIN ALARM button to activate or deactivate the RAIN ALARM.
When the alarm is ON and any rainfall is detected an alarm will sound and
the RAIN ALARM indicator will highlight on the display. The alarm sounds for
1 minute or until any button is pressed. If no buttons are pressed, the alarm will
stop and the RAIN ALARM icon will ash for up to 30 minutes.
NOTE: The FLOOD WATCH ALARM and RAIN ALARM are NOT intended to
be a safety device or warning system.
10
Troubleshooting
No rainfall:
Display shows
dashes
Dashes indicate that the display and rain gauge are not
synchronized.
• Relocate the display and/or the rain gauge. The units
must be within 100 ft (30 m) of each other.
•
Make sure both units are placed at least 3 feet (0.9 m)
away from electronics that may interfere with the
wireless communication (such as TVs, microwaves,
computers, etc).
• Use standard alkaline batteries. Do not use heavy
duty or rechargeable batteries. NOTE: It may take a
few minutes for display and rain gauge to synchronize
after batteries are replaced.
• Try resetting the units:
1. Bring both the display and rain gauge indoors and
position side by side.
2. Remove the batteries from both units.
3. Reinstall batteries in the rain gauge rst.
4. Reinstall batteries in the display last.
5. Let the units sit within a couple feet of each other
for a few minutes to gain a strong connection.
No rainfall:
Display shows
zeroes
Rainfall registering
when there’s
no rain
Can the rain gauge
remain outdoors in
freezing temperatures?
Display screen
not working
Remove rain gauge cover. Does the tipping lever ip
back and forth easily? Try tipping it manually to see
if it will register this as rain. If not try the reset steps
listed above.
• Make sure the rain gauge is mounted securely so that
it cannot move or sway in the wind. The rain gauge
should be mounted on a solid and level surface in a
clear area away from any overhead obstructions that
may block rainfall.
• Make sure you are using standard alkaline batteries
(not heavy duty, max or rechargeable).
No, the rainfall gauge should be brought indoors when
there is a possibility of freezing temperatures. Water
expands when it freezes. If any water is left within the
collector during a freeze, it can crack the plastic and
cause permanent damage.
• Check that the batteries are installed correctly.
Batteries may need to be replaced.
If your AcuRite product does not operate properly after trying
the troubleshooting steps, visit www.AcuRite.com or call
(877) 221-1252 for assistance.
11
Calibration
Calibrate the Rain Gauge
The rain gauge can be calibrated to improve accuracy.
Items Needed: rain gauge, display, plastic cup, pin, screw driver
1. First, place the rain gauge on a level surface.
2. Place the display close by so you can monitor it during calibration.
3. Make a pin hole in the bottom of a plastic cup. Hold the cup over the rain
gauge and ll it with exactly 1 cup (8 oz.) of water, allowing the water to
slowly drip into the rain gauge. You should hear the internal cups tipping
and see the water drain through the rain gauge.
4. A few seconds after each cup tip, the display will display rainfall in
approximately 0.01”
5. The cup of water should take more than 20 minutes to empty; a quicker
period will result in an inaccurate calibration. Try to simulate a normal
steady rainfall. When the cup is empty of water, the display
should register 1.68”
Tips
• There should be nearly an equal number of water drops between cup tips.
If not, then adjust the calibration screws beneath the tipping lever until
an equal number of water drops are tipping the cups. Then, restart the
calibration procedure.
(0.2 mm)
or more increments.
(42.67 mm).
• If you don’t hear the cups tipping and see water dripping alternately out of
each drain, there may be an issue with the rain gauge or it’s adjustment.
Adjustment

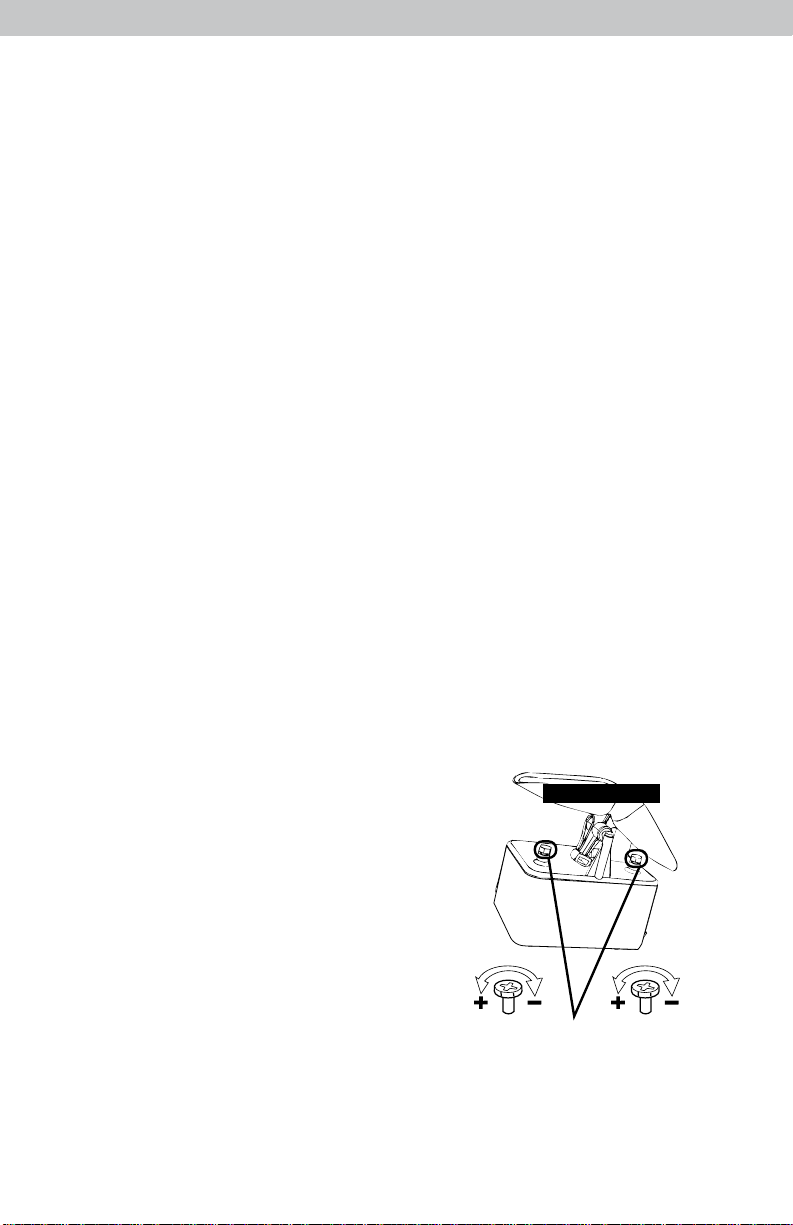

If the rain gauge doesn’t register close to
1.68”
(42.67 mm)
make an EQUAL adjustment to the two
calibration screws, located beneath the
after the cup is empty,
tipping cups. Turn screws counter-clockwise
COLLECTING CUP
to increase rainfall; turn screw clockwise to
decrease rainfall.
• To adjust the rainfall reading by 2%
turn both screws 1/4 of a turn.
• To adjust the rainfall reading by 4%
turn both screws 1/2 of a turn.
• To adjust the rainfall reading by 8%
turn both screws 1 full turn.
Increase Decrease Increase Decrease
Rainfall Rainfall Rainfall Rainfall
2 CALIBRATION SCREWS
12
Care & Maintenance
Display Care
Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep
away from dust, dirt and moisture. Clean ventilation ports regularly with a
gentle puff of air.
Rain Gauge Care
Clean with a soft damp cloth. Do not use caustic cleaners or abrasives that
could mar the polished surface of the rain collector or tipping cups. If the rain
gauge becomes dirty, rain water may not ow correctly through the rain
collector. Some environmental conditions may require more frequent, periodic
cleaning of the rain gauge. After a cleaning, it is recommend to apply a small
amount of liquid water repellent (found in the automotive section) to the tipping
cups and collector funnel for optimal rain collection.
The rain gauge cannot be used in the winter during freezing temperatures.
Water expands when it freezes. If any water is left within the unit during a
freeze, it can crack the plastic and permanently damage the unit.
Specications
RAINFALL RANGE
WIRELESS RANGE
WIRELESS FREQUENCY
POWER
0.01 inches (0.25 mm) and up
100 ft / 30 m depending on home construction materials
433 MHz
Display: 3 x AA alkaline batteries
Rain Gauge: 2 x AA alkaline batteries
DATA REPORTING
60 second updates
FCC Information
This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip
ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment.
Such modications could void the user authority to operate the equipment.
-
13
Limited 1-Year Warranty
PURPOSE.
We expressly disclaim all liability for special, consequential,
Canada, please consult the policies applicable to the country in
14
State of Wisconsin.
Wisconsin; and purchaser consents to jurisdiction within the
federal or State courts having jurisdiction in Walworth County,
dispute relating to this Policy shall be brought exclusively in the
laws of the United States and the State of Wisconsin. Any
This Return, Refund, and Warranty Policy is governed by the
Governing Law
resale sites such as eBay or Craigslist.
refund, or warranty services if you buy products used or from
of our products. We cannot and do not offer any return,
Additionally, this Policy applies only to the original purchaser
which you made your purchase.
purchases made in a country other than the United States or
purchases made in the United States and Canada. For
This Return, Refund, and Warranty Policy applies only to
Applicability of Policy
original purchase price paid for the product.
products, your purchase or your use thereof, exceed the
In no case shall our liability for any claim relating to our
writing and signed by a duly authorized agent of ours.
to modify or waive the terms of this warranty unless done in
Furthermore, no person, rm or corporation is authorized
or liability in connection with the sale of our products.
or corporation is authorized to bind us to any other obligation
consequences arising from their use or misuse. No person, rm
any of our products, the purchaser assumes all liability for the
our products to the extent permitted by law. By acceptance of
We further disclaim liability from personal injury relating to
so the above limitation or exclusion may not apply to you.
exclusion or limitation of incidental or consequential damages,
from any breach of this warranty. Some states do not allow the
or incidental damages, whether arising in tort or by contract
AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY
ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING WITHOUT
OTHER THAN THE EXPRESS WARRANTY SET FORTH HEREIN
WARRANTIES, EXPRESS OR IMPLIED. ALL OTHER WARRANTIES
FOR THE PRODUCTS AND IS EXPRESSLY IN LIEU OF ALL OTHER
THE ABOVE-DESCRIBED WARRANTY IS THE SOLE WARRANTY
the amount of the original purchase price.
or replacement is not feasible, we may, at our option, refund
replacement of the defective item(s). If we determine that repair
Remedy for breach of this warranty is limited to repair or
than our authorized representatives.
abused, improperly installed, or repaired or altered by others
been damaged (including by acts of nature), tampered,
wear and tear not affecting the functionality of the product,
will give no credit for products which have received normal
costs and charges. This warranty will not be breached, and we
We hereby disclaim all responsibility for such transportation
charges for returned goods shall be paid for by the purchaser.
option, be repaired or replaced by us. Transportation costs and
from date of sale will, upon examination by us, and at our sole
to breach the warranty contained herein within ONE YEAR
Any product which, under normal use and service, is proven
period of one year from the date of purchase.
properly installed and operated, will be free of defects for a
warranty are of good material and workmanship and, when
We warrant that all products we manufacture under this
provides the benets and services set forth herein.
forth herein. For purchases of Chaney products, Chaney
products, AcuRite provides the benets and services set
Instrument Company. For purchases of AcuRite
AcuRite is a wholly owned subsidiary of Chaney
www.AcuRite.com
PRODUCT REGIS TRATION
TO RECEIVE WARRANT Y SERVICE
PRODUCT MUS T BE REGIS TERED
Regist er online t o receive 1 year war ranty prot ection
IMPORTANT
(877) 221-1252
► Replacement Parts ► Submit Feedback & Ideas
► Instruction Manuals ► Support User Forum
► Installation Videos ► Register your Product
Visit us at www.AcuRite.com
Q)
product available and contact us in any of the following ways:
class service. For assistance, please have the model number of this
AcuRite customer support is committed to providing you with best-in-
Customer Support
15
ACU
►
RITE®
Weather Temperature Weather Kitchen
Stations & Humidity Alert Radio Thermometers
It’s more than accurate, it’s
AcuRite offers an extensive assortment of precision instruments,
designed to provide you with information you can depend on to
Plan your day with condence
& Timers
ACU RITE.
.
™
Clocks
www.AcuRite.com
© Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the
Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights
Printed in China
00899 INST 092216 Visit www.AcuRite.com/patents for details.
are the property of their respective owners. AcuRite uses patented technology.
Loading...
