Acura RL NAVIGATION 2011 User Manual

2011 RL

Navigation Manual

(Unlinked)

This document does not contain hyperlinks and may be formatted for printing instead of web use. This is due to changes in content and specifications of the vehicle that happen throughout the model year. This manual will be replaced with a hyperlinked version at the end of the model year.

Table of Contents

Introduction ..................................4

Manual Overview............................4

System Overview ............................4

Accessories Precautions ..................5

Important Safety Information..........5

Map Overview.................................6

Current Street .................................... 6

Verified/Unverified Street .................. 6

User Agreement ............................8

Getting Started ...........................10

System Controls ............................10

Voice Control Basics.....................13

Using the Voice Control System ...... 14

Improving Voice Recognition .......... 14

Selecting an Item (Button) on the

Screen .........................................15

Selecting an Item in a List.............15

Entering Information .....................16

System Start-up ............................17

Bluetooth® HandsFreeLink®........18

Remote Keyless Entry Setting ...... 18

Map Screen Legend.......................20

Map Screen Description ................21

Zoom In/Out..................................... 21

Map Scrolling .................................. 21

Displaying Current Location ........21

Traffic Display Legend..................22

AcuraLink Real-Time Traffic™....23

Traffic Status Indicator....................23

Viewing Flow Data ..........................24

Viewing Incident Reports.................25

System Function Diagram .............27

Entering a Destination .............. 28

By Address ....................................29

Selecting the State or Province........ 29

Selecting the City.............................29

Selecting the Street ..........................31

Entering the Street Number .............33

By Address Book ..........................33

Adding Addresses to the Personal

Address Book................................ 34

By Places .......................................34

Finding the Place by Category........35

Finding the Place by Name..............39

Finding the Place by Phone

Number......................................... 39

Finding the Place by Zagat 2010..... 40

By Intersection...............................41

Selecting the State or Province........ 41

Selecting the City.............................41

Selecting the Street ..........................43

By Previous Destinations...............45

By Map Input.................................46

Showing the Map of Current

Position......................................... 46

Showing the Map of City..................47

Showing the Map of State ................48

Showing the Map of Continental

USA............................................... 49

By Today’s Destinations................49

Editing Today’s Destinations List.... 50

Adding Destinations to the List........50

By Go Home .................................51

Driving to Your Destination ..... 52

Driving to Your Destination ..........52

Calculate Route to Screen..............52

Changing the Routing

Method ......................................... 53

Viewing the Routes...........................54

Viewing the Destination Map ..........55

Map Screen ....................................55

Route Line ........................................55

Voice Guidance Prompts ................. 56

Map Screen Legend .........................57

Guidance Screen ............................58

Guidance Screen Legend .................58

Distance and Time to

Destination..................................59

Map Menu......................................59

Direction List.................................60

Navigation System 1

Table of Contents

EXIT INFO

(Freeway Exit Information).......... 60

Guidance Mode ............................61

Map Scale ......................................62

Map Orientation ...........................63

Destination Icon ............................63

Various Other Icons.......................64

Landmark Icons .............................. 64

Incident Icons .................................64

Weather Icons .................................65

Showing Icons on the Map .............. 68

Icon Options ...................................68

Going Off the Route......................70

Off-road Tracking .........................70

Viewing/Saving the Current

Location .....................................71

Pop-Ups and Disclaimers ..............72

Traffic Rerouting...........................73

Changing the Route ......................74

MENU Screen (Route) ..................... 74

Cancel Route.................................... 74

Change Method................................ 74

Search Waypoint.............................. 75

Delete Waypoint ..............................76

Back to Route................................... 76

Avoid Street...................................... 76

Detour..............................................76

Changing Your Destination...........77

Find Nearest (Voice command).......77

Go Home (Voice command)............. 77

Using Interface Dial to Change

Destination ................................... 77

Entering a Destination from the Menu

Screen (while en route) ................ 78

Continue Trip Screen ....................78

AcuraLink Messages .....................79

Information Features ................ 80

INFO Screen (Main Info) ..............80

Messages........................................80

Traffic Incidents ............................80

Weather Information......................81

Viewing Weather Forecast .............. 81

Viewing Warning List ...................... 82

Viewing Warning Map..................... 82

Weather Information on Map ..........83

Trip Computer ...............................84

Cellular Phone ...............................85

Calendar ........................................85

Entering Your Schedule ................... 86

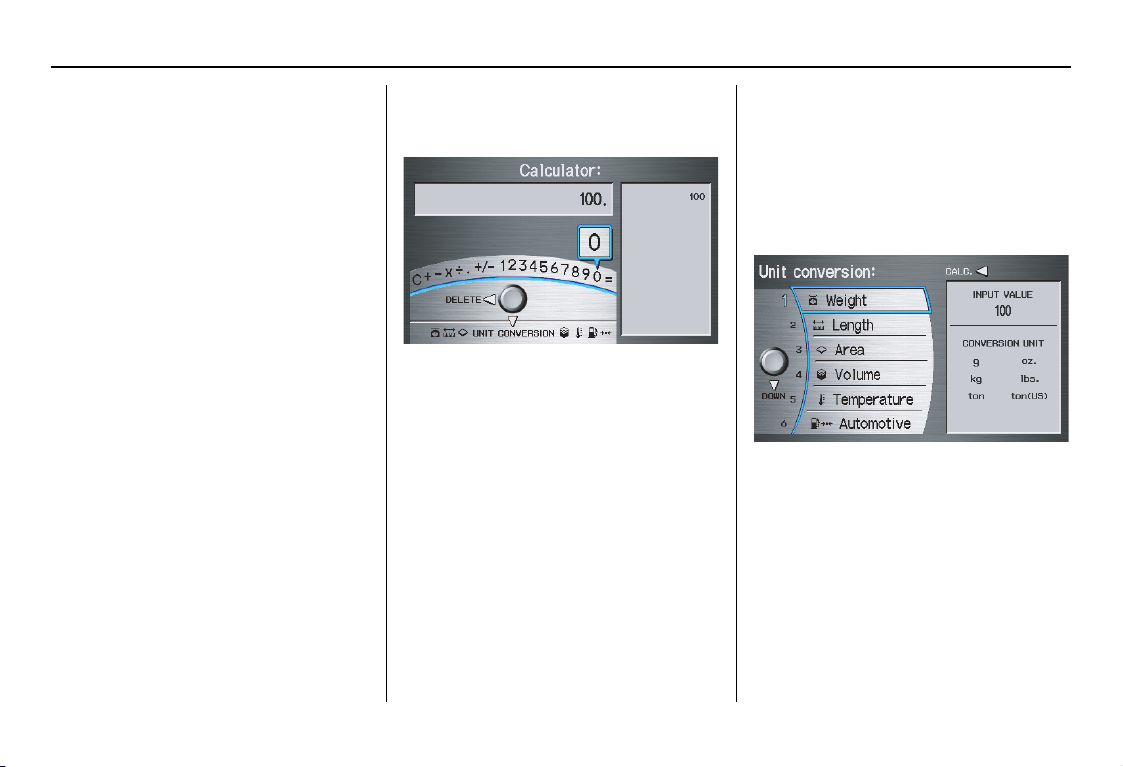

Calculator.......................................87

Unit Conversion...............................87

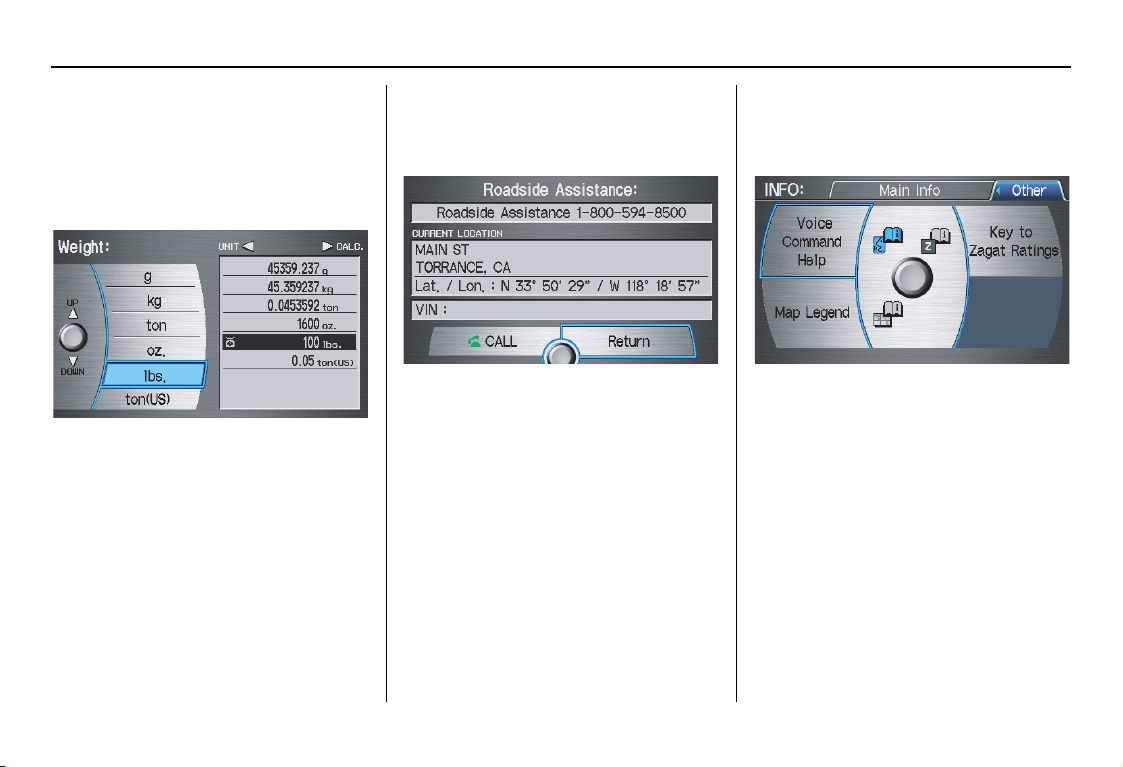

Roadside Assistance ......................88

INFO Screen (Other) .....................88

Voice Command Help ...................89

Map Legend...................................90

Key to Zagat Ratings .....................90

System Setup .............................. 92

SETUP Mode ................................92

SETUP Screen (Main Setup).........92

Brightness .......................................92

Contrast ..........................................93

Black Level ...................................... 93

Volume ............................................93

Interface Dial Feedback .................93

Guidance Prompts .......................... 93

SETUP Screen (Other) ..................94

Personal Information .....................94

Address Book ..................................95

Home Address .................................98

PIN Number ....................................99

Previous Destinations .................... 100

Basic Settings ..............................100

Units (mile or km) .........................101

Voice Recognition

Feedback ................................... 101

Auto Volume for Speed .................101

Routing & Guidance ...................101

Rerouting ......................................101

Unverified Area Routing ............... 102

Traffic Rerouting............................106

Edit Avoid Area..............................106

2 Navigation System

Table of Contents

Edit Waypoint Search Area .......... 108

Guidance Mode ............................. 109

Clock Adjustment .......................110

Auto Daylight ................................ 110

Auto Time Zone ............................. 111

Daylight Savings Time (DST) Selection

(Change DST Schedule) ............. 111

Time Adjustment ........................... 111

Vehicle.........................................112

Off-road Tracking ......................... 112

Correct Vehicle Position ............... 112

Verbal Reminder ........................... 113

Color............................................113

Map Color ..................................... 114

Menu Color ...................................114

Switching Display Mode

Manually .................................... 114

Switching Display Mode

Automatically .............................115

AcuraLink/Messages...................117

Traffic & Weather Status.............117

System Information ..................... 118

Rearview Camera .......................118

Rearview Camera Brightness

Adjustment.................................. 118

System Initialization.................119

System Initialization....................119

Entering the Security Code..........119

GPS Initialization ........................120

Map Matching..............................120

System Limitations .................. 121

Database Limitations............... 123

Client Assistance...................... 125

Reporting Errors ..........................125

Acura Automobile Client

Services.....................................125

Visiting Your Dealer ...................126

Obtaining a Navigation Update

DVD .........................................127

Changing the DVD ......................127

PC Card........................................128

Coverage Areas........................ 129

Map Coverage..............................129

U.S. Detailed Coverage Areas.......129

Canada Detailed Coverage

Areas........................................... 135

Operation in Alaska and Hawaii..145

Alaska ............................................ 145

Hawaii............................................ 145

Information Screen Differences.....146

Shipping a Vehicle To or From

Hawaii ........................................ 147

Frequently Asked Questions... 148

Troubleshooting....................... 156

Glossary .................................... 157

Glossary .......................................157

Voice Command Index............ 160

Global Commands .......................160

Navigation General Commands...160 Navigation Display Commands...161

Find Place Commands .................162

Climate Control Commands ........163

Temperature Voice Commands ...164

Radio Voice Commands..............164

CD Voice Commands..................165

DVD Voice Commands...............166

AUX Voice Commands...............166

INFO Screen Voice

Commands................................167

SETUP Screen (Main Setup)

Commands................................167

On-Screen Commands.................168

On-Screen Spelling Assist .............. 168

Index ......................................... 172

Navigation System 3

Introduction

NOTICE

Manual Overview

The manual is divided into the following sections:

• Getting Started - A basic introduction that discusses the controls and how to communicate with the system.

• Entering a Destination - How to enter an address or locate a point of interest (POI).

• Driving to Your Destination - An explanation of the map features, guidance, and cautions.

• Information Features - Messages, Traffic Incidents, Weather Information, Trip Computer, Cellular Phone, Calendar, Calculator, Roadside Assistance, Voice Command Help, Map Legend, and Key to Zagat Ratings.

• System Setup - How to set up and tailor the system for your personal use and use the Address Book.

The back of this manual contains:

• Map Coverage (page 129)

• Cities with Traffic Coverage (page 143)

• Frequently Asked Questions (FAQs) (page 147)

• Troubleshooting Guide (page 155)

• Glossary of Terms (page 156)

• Voice Command List (page 159)

• Operation Specific to Alaska and Hawaii (page 144)

System Overview

Your navigation system is a highly sophisticated location system with voice control that uses satellites and a map database to show you where you are and to help guide you to a desired destination.

The navigation system receives signals from the global positioning system (GPS), a network of 24 satellites in orbit around the earth. By receiving signals from several of these satellites, the navigation system can determine the latitude, longitude, and elevation of your vehicle. In addition, a gyroscopic yaw sensor and a vehicle speed sensor in your vehicle keep track of the direction and speed of travel at all times.

This vehicle’s navigation display, if so equipped, includes mercury-containing components. Upon removal, please reuse, recycle, or dispose of as hazardous waste.

4 Navigation System

Introduction

The navigation system applies location, direction, and speed information to the maps and calculates a route to the destination you enter. As you drive to that destination, the system provides map and voice guidance.

The navigation system is easy to use. The locations of many places of business and entertainment are already entered in the system. You can select any of them as a destination by using the Interface Dial or voice control.

There are several ways to enter a destination, such as by point of interest (POI), by address, by phone number, and by selecting it from the map. The last 50 destinations are saved for reuse at a later date. The system also allows you to store a home address to simplify returning home from your destination.

Accessories Precautions

If you have rear window tinting installed, be aware that if the tint has metallic properties, it can seriously degrade or prevent GPS reception. This is because the GPS antenna is located under the rear window.

If you plan to install electronic components, such as radar detectors, vehicle tracking devices, remote starters, additional amplifiers, or other audio components, ensure that they are not located near the navigation control unit in the trunk, near the navigation display in the dash, or near the GPS antenna under the rear window. Signal noise emanating from these devices can cause intermittent disruption of the navigation system.

Important Safety Information

The navigation system can distract your attention from the road if you focus on the screen or operate the system’s controls while driving.

Enter as much information as possible into the system before you begin driving, or when the vehicle is stopped. Then, as you drive, listen to the audio instructions and use voice commands when possible.

Navigation System 5

Using the navigation system while driving can take your attention away from the road, causing a crash in which you could be seriously injured or killed.

Only operate system controls when the conditions permit you to safely do so.

WARNING

“Unverified” Road

“Verified” Road

Introduction

While driving, do not look at the screen or operate the system controls for more than a second or so at a time, and only after deciding you can do so safely. Pull to the side of the road if you need more time to look at the screen or operate the controls.

6 Navigation System

The navigation system is designed to provide route information to help you reach your destination. However, this route guidance may sometimes conflict with current road conditions such as street closures, road construction, detours, and out-of-date map data.

Additionally, the system itself has certain limitations (see page 121). Therefore, you must verify the audio and visual route information provided by the system by carefully observing the roadway, signs and signals, etc. If you are unsure, proceed with caution. Always use your own good judgment, and obey traffic laws while driving.

Map Overview

Current Street

The current street on which your vehicle is located appears at the bottom of the map screen (see page 20). A message saying “Not on a digitized road” may appear instead when you drive half a mile away from a mapped road. For more details, see Off-road Tracking on page 70.

Verified/Unverified Street

Your navigation system has two kinds of streets: verified (dark colored) and unverified (light colored). The differences between the two types of streets are contrasted in the chart on page 7.

When displayed

Street color

Map quality

Routing differences

Cautions

Guidance voice

Time and distance “to go”

Verified streets (dark colored) Unverified streets (light colored)

These roads are found within metropolitan areas, and include interstate freeways and major roads connecting cities.

Shown on daytime map screen as black or red, such as interstate freeways.

The database vendor has verified these streets. Information like turn restrictions, average speed, and whether it is a one-way street have been gathered and used when creating your route to a destination.

While driving to your destination, the displayed route line is solid blue. The system provides voice and map guidance to your destination.

There are no pop-up boxes urging extra caution during a route. However, because roads constantly change, you are urged to use common sense, and always obey posted traffic restrictions.

Voice guidance issues maneuvers such as “In a halfmile, make a right turn.”

The time and distance “to go,” displayed while en route to a destination, is based on the average speed and distance for the roads used for your route.

Introduction

These roads are found in rural areas, and typically include residential streets away from the center of a town.

Shown on the daytime map screen as light brown.

These streets have not been verified by the database vendor. The system does not contain information on one-way streets, turn restrictions, or the road’s average speed. They are shown on the map for reference and may have errors in map location, naming, and address range.

Your route line is either a blue dotted “vector line,” or a dashed pink/blue line. For information on selecting this option, and the routing differences, see Unverified Area Routing on page 102.

Regardless of whether the user chooses route guidance, there are cautionary screens before and during the route urging the user to be extra cautious, and obey all traffic restrictions. See Unverified Area Routing on page 102.

The suffix “if possible” is added to each guidance maneuver. For example: “In a half-mile, make a right turn, if possible.”

Because the average speed of these roads is not known, the time and distance “to go” is based on a fixed average speed of 25 mph for these roads.

Navigation System 7

User Agreement

In using this DVD “Satellite Linked Navigation System” (the “DVD”), which includes HONDA MOTOR CO., LTD. software, ALPINE ELECTRONICS, INC. software, NAVTEQ database contents, INFO USA CORPORATION database, ZAGAT SURVEY database contents, and ZENRIN CO. database contents (hereinafter referred to as “Licensors”), you are bound by the terms and conditions set forth below. By using your copy of the DVD, you have expressed your Agreement to the terms and conditions of this Agreement. You should, therefore, make sure that you read and understand the following provisions. If for any reason you do not wish to be bound by the terms of this Agreement, please return the DVD to your dealer.

• The DVD may not be copied, duplicated, or otherwise modified, in whole or in part, without the express written permission of the Licensors.

• The DVD may not be transferred or sublicensed to any third party for profit, rent or loan, or licensed for reuse in any manner.

• The DVD may not be decompiled, reverse engineered or otherwise disassembled, in whole or in part.

• The DVD may not be used in a network or by any other manner of simultaneous use in multiple systems.

• The DVD is intended solely for personal use (or internal use where the end-user is a business) by the consumer. The DVD is not to be used for commercial purposes.

• The Licensors do not guarantee to the client that the functions included in the DVD meet the specific objectives of the user.

• Licensor shall not be responsible for any damages caused by the use of the DVD to the actual user or to any third party.

• The warranty on the DVD shall not extend to an exchange or refund due to misspelling, omission of letters, or any other cosmetic discrepancy in the contents of the DVD.

• The right to use the DVD shall expire either when the user destroys the DVD or software, or when any of the terms of this Agreement are violated and the Licensors exercise the option to revoke the license to use the DVD or software.

8 Navigation System

User Agreement

• The terms and conditions hereof apply to all subsequent users and owners as well as to the original purchaser.

• The logos of oil companies, hotels, convenience stores, and other businesses are displayed for your information and convenience, and in no way imply any sponsorship, approval or endorsement of these companies, or their products. The logos are trademarks of their respective owners.

The user shall indemnify and save harmless the Licensors, and their officers, employees and agents, from and against any claim, demand or action, irrespective of the nature of the cause of the claim, demand or action, alleging loss, costs, expense, damages or injuries (including injuries resulting in death) arising out of the use or possession of the DVD or software.

Use, duplication, or disclosure of this DVD by or on behalf of the United States government is subject to “Restricted Rights” as set forth at FAR

52.227-14, -19 or DFARS 252.2277013, as applicable. Manufacturers are the Licensors, including HONDA MOTOR CO., LTD., 2-1-1 Minami Aoyama Minato-Ku Tokyo 107-8556 JAPAN., Alpine Electronics, Inc., 20-1 Yoshima Kogyodanchi, Iwaki, Fukushima 970-1192 JAPAN., NAVTEQ Corporation, 222 Merchandise Mart, Suite 900, Chicago, IL, 60654, INFO USA CORPORATION, 5711 South 86th Circle, Omaha, NE 68127., Zagat Survey, LLC, 4 Columbus Circle, New York, NY, 10019., and ZENRIN CO., LTD., 1-1-1 Muromachi, Kokurakita-ku, Kitakyushu, Fukuoka 803-8630, JAPAN.

Navigation System 9

Getting Started

CANCEL button

Display Mode button

SET UP button

INFO button

A/C button

Interface Dial/ENTER button

MENU button

AUDIO button

MAP/GUIDE button

Screen

Upper Display

Passenger’s Temperature

Time (set by Navigation syste

Time (set by Navigation system)

Driver

Driver’s Temperatures TemperatureDriver’s Temperature

Audio Functions

Audio FunctionsAudio Functions

System Controls

10 Navigation System

MAP/GUIDE button

Displays the map. When en route, switches between the map and guidance screens. See page 20 or 57.

AUDIO button

Press to display the audio screen. For more information on audio system features, see the Audio section of your Owner’s Manual.

MENU button

Displays the “Enter destination by” options on the MENU screen. When en route, displays the “Route” options on the MENU screen. See page 28 or 74.

A/C button

Press to display the climate screen.

INFO button

Displays the “Main Info” options on the INFO screen. When selecting the “Other” tab, displays the “Other” options on the INFO screen. See page 80 or 88.

Getting Started

Selector

ENTER

Knob

SET UP button

Displays the SETUP screen where you can customize information in the system. See page 92.

Display Mode button

Switches the display between Day mode, Night mode, and OFF. See page 114.

CANCEL button

Cancels the current screen and returns to the previous screen display.

NOTE:

The NAVI BACK button performs the same basic function.

Other buttons

See your Owner’s Manual.

Interface Dial/ENTER button

The Interface Dial moves left, right, up, and down. Use the Interface Dial to look around a displayed map. Moving the Interface Dial up or down can also be used to scroll up or down a page in a list. You can also rotate the Interface Dial knob to move the highlighting around the display or to scroll through a list. After making a selection in a menu or list, push in on the Interface Dial (ENTER button) to enter the selection into the system.

In almost all cases, you can enter a selection into the system by pushing in on the Interface Dial.

When you are displaying a map, rotating the Interface Dial knob allows you to change the scale. Rotating it clockwise reduces the scale, showing less area with greater detail. Rotating it counterclockwise increases the scale, showing more area with less detail.

Navigation System 11

Getting Started

Screen

All selections and instructions are displayed on the screen. The Display is not a “touch screen” - you enter information into the system either by voice or by using the Interface Dial.

Clean the screen with a soft, damp cloth. You may use a mild cleaner intended for use on liquid crystal displays (LCDs). Harsher chemicals may damage the screen.

NOTE:

Whenever you shift to R (Reverse), the rear view behind the vehicle is shown on the navigation system screen. See page 118.

Upper Display

Shows a summary of the audio and climate control information, as well as the time. This summary is helpful as a confirmation when adjusting audio or climate by voice.

The audio summary consists of the radio band, frequency, and volume. For XM radio, a brief description of the station and current music is displayed.

The climate status consists of the driver’s and passenger’s temperature displays. The time is automatically set by the navigation system. Settings can be adjusted in SETUP (see Time Adjustment on page 111).

12 Navigation System

Getting Started

NAVI TALK button

NAVI BACK button

HFL button

HFL BACK button

Navi/HFL Microphone (on the ceiling)

Voice Control Basics

Your vehicle has a voice control system that allows hands-free operation of most of the navigation system functions. You can also control the audio and climate control system. The voice control system uses the NAVI TALK and NAVI BACK buttons on the steering wheel and a microphone near the map light on the ceiling.

NOTE:

While using the voice control system, all of the speakers are muted.

NAVI TALK button

This button activates the voice control system. Press and release it when you want to give a voice command. See Voice Command Index on page 159 for a list of voice commands.

NAVI BACK button

This button has the same function as the CANCEL button. When you press and release it, the display returns to the previous screen. When the previous screen appears, the system replays the last prompt. This button is enabled for navigation system commands only. However, it can be used to cancel an audio or climate control voice command up to one second after the command confirmation.

NOTE:

The NAVI TALK and NAVI BACK buttons are deactivated while using the Bluetooth® HandsFreeLink® feature. See your Owner’s Manual and the official website (www.acura.com/ handsfreelink) for information on this system.

Navigation System 13

Getting Started

Using the Voice Control System

You should use the voice control system as much as possible, and consider manual entry using the Interface Dial as a backup method of entry.

Most of the system’s functions can be controlled by voice commands activated with the NAVI TALK button. To control the navigation system by voice:

• Press and release the NAVI TALK button.

• Wait for the beep (the is displayed on the top left of the screen).

• Give a voice command.

Once the microphone picks up your command, the system changes the display in response to the command and prompts you for the next command. Using the NAVI TALK button, answer the prompts as required.

If the system does not understand a command or you wait too long to give a command, it responds with “Pardon,” “Please repeat,” or “Would you say again.” If the system cannot perform a command or the command is not appropriate for the screen you are on, it sounds a beep.

Anytime you are unsure of what voice commands are available on a screen, you can always say “Help.” The system will then read the list of available commands to you.

When you give a command, the system generally either repeats the command as a confirmation or asks you for further information. If you do not wish to hear this feedback, you can turn it off. However, hearing the feedback will familiarize you with the way the system expects commands to be phrased. See the Voice Recognition Feedback setting in SETUP.

If you hear a prompt such as “Please use the Interface Dial to...” or “Please choose an area with the Interface Dial,” the system is asking for input that cannot be performed using the voice control system.

Improving Voice Recognition

To achieve optimum voice recognition when using either the navigation or Bluetooth® HandsFreeLink® voice control system, the following guidelines should be followed:

NOTE:

Make sure the correct screen is displayed for the voice command that you are using. See Voice Command

Index on page 159.

• It is best if the windows and sunroof are closed. If you drive with the windows or sunroof open, speak a little louder to overcome the wind noises.

• Adjust the dashboard and side vents so air does not blow against the microphone on the ceiling.

14 Navigation System

Getting Started

• If more than one person is speaking at the same time, the system may misinterpret your command.

• After pressing and releasing the NAVI TALK button, wait for the beep, then give a voice command while is displayed on the top left of the screen.

• Give a voice command in a clear, natural speaking voice without pausing between words.

• If the system cannot recognize your command because of background noise, speak louder.

• If you are still having trouble with the voice control system, refer to Voice Command Help on the INFO screen (Other) or say “Help” while

is displayed on the top left of the

screen.

NOTE:

The voice control system can be used only in the driver’s seat because the microphone unit removes noises from the front passenger’s side.

Selecting an Item (Button) on the Screen

On most screens, there are items that can be selected (like buttons with titles such as OK or Return). To select an item on any screen, do one of the following:

• Use the voice control system and say the name of the desired item. Almost all selectable items on the screen, including some listed items, are recognized by the voice control system.

• Move the highlighting to the desired item with the Interface Dial or its

knob, then push in on the Interface Dial.

Tip:

If items are grayed out, this means that they cannot be selected.

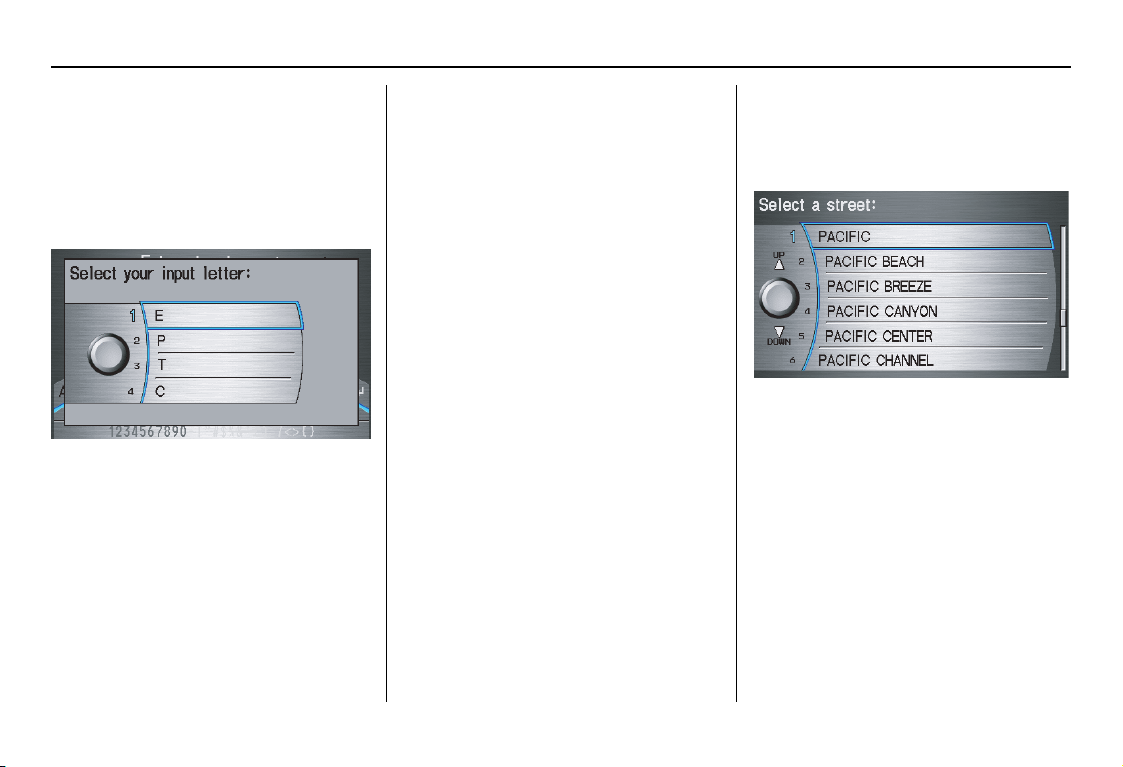

Selecting an Item in a List

To scroll through a list, do one of the following:

• Rotate the Interface Dial knob to

scroll one item at a time.

• Use the voice control system to scroll page by page. For example, to scroll up, say “Up” or “Previous.” To scroll down, say “Next” or “Down.”

•Move the Interface Dial up or down to scroll through the list page by page.

If you cannot find the desired name, or have made an error, return to the previous screen by pressing the CANCEL or the NAVI BACK button on the steering wheel.

To select the desired item in the list, do one of the following:

• Use the voice control system, and say the item number of the desired item.

• Rotate the Interface Dial knob to move the highlighting to the item, then push in on the Interface Dial.

Navigation System 15

Getting Started

Entering Information

When the system needs input from you, the display changes to a screen similar to the one at the right. You can then use the displayed letters, numbers, or symbols to enter information. You can enter your keyboard input in either of the following ways:

• Say the desired letter, number, or symbol on the screen if you are entering a City or Street name.

• Move the highlighting to the desired letter, number, or symbol by rotating the Interface Dial knob, then push in on the Interface Dial.

Each entered letter will appear at the top of the display. Move the Interface Dial right to enter a space between words. If necessary, move it to the left to delete an entry.

When entering an address, the system searches the database for words that match the letters you are entering. As a result, you will notice that some letters are no longer available.

When the system finds only one entry that matches, it completes the name entry for you. If the system finds more than one entry that matches your input, a list of these matches is displayed.

Tip:

When entering a name of a city, street, or place, or if you are unsure of the spelling of the name, enter the letters that you are sure of, then move the Interface Dial up to select LIST. The system will display a list of names that most closely match your input.

NOTE:

The voice command names that can be used for each letter are shown below. For additional keyboard symbols, see page 167.

Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”

A Alpha/Apple B Bravo/Boy I India/Igloo P Papa/Paul W Whiskey/William C Charlie J Juliet/John Q Quebec/Queen X X-ray D Delta/Dog K Kilo/King R Romeo/Robert Y Yankee/Yellow E Echo/Edward L Lima/Larry S Sierra/Sam Z Zulu/Zebra F Foxtrot/Frank M Mike/Mary T Tango/Tom Enter G Golf/George N November/Nancy U Uniform/Uncle

H Hotel/Henry O Oscar V Victor

16 Navigation System

Getting Started

System Start-up

When you turn the ignition to ON (II), it takes several seconds for the navigation system to boot up.

The first screen to appear is the navigation system globe screen. The screen then changes to the Disclaimer screen:

NOTE:

•The OK button does not appear immediately. It appears after the software is loaded.

• The symbol is explained on page 18.

Read this disclaimer carefully so you understand it before continuing. Push in on the Interface Dial to select OK, and the map screen will appear on the display. The “OK” cannot be activated by voice.

If you do not push in on the Interface Dial, the screen will go dark after 30 seconds. To return to the Disclaimer screen, press any navigation or voice control button.

NOTE:

If you do not select OK, and then enter the SETUP or INFO screen, some items are not available and will show up as darkened buttons (grayed out). See

System Function Diagram on page 27.

If you have entered any Calendar reminders, they are displayed after you select OK.

The Calendar reminder screen remains displayed until you select OK or Remind Later by rotating the Interface Dial knob and pushing in on the Interface Dial, or press the CANCEL button.

If you select OK and push in on the Interface Dial, the reminder will not show up again. If you wish to have the reminder show up again later in the day, select Remind Later and push in on the Interface Dial.

Navigation System 17

Getting Started

If you press the CANCEL button, the message will be displayed the next time you start the vehicle.

NOTE:

The system will display the current message and any older or previously unread messages, with the newest message listed first.

Bluetooth® HandsFreeLink

If you have a Bluetooth-compatible cell phone that is paired, then CALL on the Calculate route to screen is enabled.

When you select CALL, the system dials the number shown on the screen. If CALL is not available (grayed out), and your phone is paired, then make sure the phone has service or that HFL is not in use; press the HFL BACK button.

For more information on Bluetooth® HandsFreeLink®, see your Owner’s Manual and the official website (www.acura.com/handsfreelink).

Remote Keyless Entry Setting

When you unlock the door and enter the vehicle, the Multi-Information Display (MID) in the gauge assembly welcomes you with one of the following displays: “Welcome Driver 1,” “Welcome Driver 2,” or just “Welcome.” The vehicle “senses” the driver number based on which Remote Keyless Entry is used to unlock the vehicle. If both drivers approach the vehicle with remotes, the welcome display and related settings are based on which remote the vehicle senses first.

NOTE:

• If both remotes come within range simultaneously, the “Welcome” display may be unpredictable.

• If only “Welcome” is displayed, then all Setup settings revert to factory defaults, and all personal data (such as Address Book or Calendar) are not available.

18 Navigation System

Getting Started

The navigation system uses the driver number (as recognized by the MID) to personalize the navigation system. For example, if Driver 1 unlocks the vehicle, the “Driver 1” Personal Address Book and other navigation settings are automatically loaded when the vehicle is started. There is no way to change from one driver’s settings to the other’s while driving. Throughout this manual, the icon is used to indicate features that are dependent on the “Driver number” as displayed on the MID “Welcome” display.

When the Remote Keyless Entry is deliberately “unlinked” (as when giving the key to a valet), the MID will display “Welcome.” Then the following occurs:

• Some settings (e.g., the Personal Address Book and the Calendar Information feature) are not selectable (buttons grayed out).

• Setup values (like volume, brightness, etc.) may be changed but are not remembered the next time you restart the vehicle.

NOTE:

Your Owner’s Manual has additional information regarding “linking” and “unlinking” for the Remote Keyless Entry.

Navigation System 19

Getting Started

Acura Dealer

School

Restaurant

AT M

Parking Lot

Post Office

Honda Dealer

Hospital

Grocery Store

Gas Station

Hotel/Lodging

Parking Garage

Freeway Exit Information

Vehicle Position

(see page 71) (Use voice command “Display the current location,” or use the Interface Dial to show current location.)

Landmark Icon - Generic (see page 64)

Current Map Scale

(see page 62)

Map Features

NOTE:

If you move the Interface Dial over an area (map features shown above), the name is displayed on the screen.

: Par k

: Hospital

: Shopping Mall

: Golf Course

: Water Area

: Cemetery

: University

: Indian Reservation

: Airport/Stadium/Business

Current Street

(see page 6)

NOTE:

See Map Legend on the INFO screen (Other) for further explanation.

GPS Signal Strength

: Best Reception : Good Reception

Missing: Poor/No Reception

“North Up”

“Heading Up”

Map Orientation

(see page 63)

Map Menu

(see page 59) (Push in on the Interface Dial to view.)

Map Scale Adjustment

(Mile or km per half-inch appears only when you zoom in or out by rotating the Interface Dial knob.)

Traffic Status Indicator

(see page 23)

Breadcrumbs

(see Off-road Tracking on page 70)

Weather Icon

(see page 65)

One-Way Traffic Icon (1/20 mile scale only) (see page 64)

Message Icon (see page 79) Indicates that you have a message. View messages by pushing in on the Interface Dial.

Warning Icon

Indicates that there are weather warnings. To check the warning list, see page 83.

Streets

(see Map Overview on page 6)

Interstates or Freeways Verified Streets Unverified Streets

No Entry Icon

Map Screen Legend

20 Navigation System

Getting Started

Map Screen Description

Zoom In/Out

Rotate the Interface Dial knob to change the map scale. Zooming in increases the detail, while zooming out gives you a wide area view. After changing the scale, give the system a few moments to update the display.

Map Scrolling

To view other map areas, move the Interface Dial left, right, up, or down. The map will shift in that direction. To return the map to your current location, press either the MAP/GUIDE, CANCEL, or NAVI BACK button on the steering wheel.

Displaying Current Location

You can see the current address, latitude, longitude, and elevation at any time by doing one of the following:

• Use the voice control system and say “Display current location.”

• Push in on the Interface Dial, select

Show Icon on Map, push in on the Interface Dial again, and then move the Interface Dial left to select the CURRENT LOCATION.

The Current location screen will appear on the display.

NOTE:

• Save is not available when the

keyless remotes are unlinked (guest mode).

• The elevation will not appear when the system is temporarily lacking proper GPS information. The system elevation may not agree with elevations shown on roadside elevation signs, and may fluctuate plus or minus 100 feet or more.

You can save the current location in your Address Book by doing one of the following:

• Use the voice control system and say “Save current position.”

• Push in on the Interface Dial. The system will prompt you to save the address. Select Save, and then push in on the Interface Dial again.

Select Return to return to the previous screen.

Navigation System 21

Getting Started

20mi

NOTE:

When driving to a destination on freeways that have traffic flow data, the route line is used to display moderate and heavy traffic flow status instead of the colored bands on the side of the road. The route line color indicates the following conditions:

• Free Flow Traffic - a section of the blue route line will be bordered with a light

green line (this may be difficult to see)

• Moderate Traffic Flow - a section of the route line will change from blue to

orange

• Heavy Traffic Flow - a section of the route line will change from blue to red

• Unknown Traffic Flow - a section of the route line is blue

Map Scale

Traffic flow and incident icons are displayed on the 5 mile (8 km) or less map scale.

Incident Icons

Incident Icon Update Details:

• Typically M–F, 5:00 AM – 7:00 PM (varies by metropolitan area)

• Continuously updated

Accident / Incident (other)

Construction

Road Closed

Weather

Traffic Flow Data (using bands parallel to the road)

Heavy traffic: 0 – 24 mph (approx.) Moderate traffic: 24 – 52 mph (approx.) Free flow traffic: 52+ mph

(approx.) (shown for both sides of the freeway where available)

Viewing Incident Details:

To view the incident details, use the Interface Dial to position the cursor (round red circle) over an incident icon and push in.

Hearing Incident Details:

To have the message read to you, push in on the Interface Dial a second time.

To return to current position, say or select Return.

Traffic Flow Data Update Details:

• Available 24 hours a day, 7 days a week

• Continuously updated

Traffic Display Legend

22 Navigation System

Getting Started

AcuraLink Real-Time Traffic™

The navigation screen can display upto-the-minute traffic information when available, including flow (traffic speed), accidents, and construction on freeways in more than 40 major metro areas. See page 143 for a list of the current U.S. cities that offer traffic information.

The display of traffic flow and incidents on your map screen is optional and can be turned On/Off by selecting the “Traffic” icon on the Icon bar (see Showing Icons on the Map on page 68).

The current metropolitan areas that have traffic coverage can be seen on page 143. For more current metro coverage information, go to www.acura.com/realtimetraffic. This link offers additional information on real-time information, including the following:

• The latest list of metro areas that have AcuraLink Real-Time Traffic

• Detailed coverage information for each metro area showing what roads have traffic speed, traffic icons, or both

• An AcuraLink Real-Time Traffic demonstration

• Frequently asked questions (FAQs)

NOTE:

• Real-Time Traffic relies on a satellite signal. It will not work correctly in Hawaii and Alaska.

• AcuraLink Real-Time Traffic is only available if you have a current traffic subscription with XM®. See page 117 for more information.

Traffic Status Indicator

You can confirm the reception status of traffic information (traffic flow and incidents). The “TRF” icon indicates the following status:

Icon Status

Traffic information is available. Flow or Incident data is not

available. No traffic information available.

•Traffic display is turned off.

•Traffic information cannot be displayed on the current map scale.

Missing

No traffic information available (Out of coverage area).

NOTE:

• Traffic information can be turned on

or off. See Showing Icons on the Map on page 68.

• Traffic information can be displayed on the 5 mile (8 km) or less map scale.

Navigation System 23

Getting Started

Viewing Flow Data

Traffic flow data is displayed as colored bands on either side of the freeway (see Traffic Display Legend on page 22). The different colored bands represent the average road speeds as determined by “under-road sensors.”

While driving to your destination on a road that has traffic flow data, your route line color is used to display the traffic flow data. This means that when the map scale is set to one of the traffic scales (1/20 through 5 mile scale), your blue route line may appear as alternating orange, red, or blue segments (see Traffic Display Legend on page 22).

NOTE:

A blue route line segment on a freeway can mean one of two things:

• The under-road sensors indicate free flow traffic.

• The road has no sensors, and traffic conditions are unknown (they could be congested).

Naturally, only roads with these sensors will show traffic information. The amount of flow data varies considerably from one city to another. This map display is refreshed continuously. You can only view traffic information in the city where you are located.

NOTE:

• Traffic flow and incident icons are displayed on the 5 miles (8 km) or less map scale.

• Not all freeways within a metropolitan area have traffic flow data (colored bands on the side of the freeways) - this is normal, and you cannot assume that a lack of data implies no traffic.

• Not all cities have traffic flow information. See cities listed on page 143.

• Due to freeway maintenance and construction, traffic flow may be available only for one side of a road, or be missing entirely for some portion of the freeway.

• The displayed traffic flow may disagree with information from other audio or Internet-based traffic displays.

• If traffic flow is not showing, verify that the “TRAFFIC” selection for the Icon Bar is ON, and that the icon options for traffic are both ON (see page 68).

24 Navigation System

Getting Started

Viewing Incident Reports

Incident reports appear as small diamond or circle-shaped icons (see Traffic Display Legend on page 22 for examples). There are four ways to view traffic incidents:

• By voice control, say “Display traffic incidents.”

• Select “Traffic Incidents” from the Map menu.

• Select “Traffic Incidents” on the INFO screen (Main Info).

• Select an incident icon from the map screen.

NOTE:

The first method is recommended because it works on any scale and requires the minimum input.

Listing Traffic Incidents by Voice Control

From the map screen (any scale), say “Display traffic incidents” or “Display traffic list.” The Traffic Incidents screen will be displayed, which includes the “All” and “On Route” tabs.

When you select the “All” tab, a list of all incidents within the metro traffic area will be displayed. When you select the “On Route” tab, a list of all incidents on the current route will be displayed. Incidents are listed by distance from your current position outward in all directions.

To view incident’s details, select an incident from the list, and push in on the Interface Dial.

NOTE:

The “On Route” tab can be selected only when you are en route.

Listing Traffic Incidents from the INFO screen or MAP Menu

Select Traffic Incidents from the

INFO screen (Main Info) or Map menu. The Traffic Incidents screen

will be displayed, which includes the “All” and “On Route” tabs. When you select the “All” tab, a list of all incidents within the metro traffic area will be displayed. When you select the “On Route” tab, a list of all incidents on the current route will be displayed.

NOTE:

The “On Route” tab can be selected only when you are en route.

Navigation System 25

Getting Started

No Traffic Incidents

If you say “Display traffic incidents” or select

Traffic Incidents

incidents around your current location, the following screen will be displayed.

, but there are no

Selecting an Incident Icon from the Map Screen

Zoom in or out so that you are between the 1/20 and 5 mile scales. (The map must be on the 1/20 to 5 mile scales to view the incident icons.) To view the details of a specific incident, use the Interface Dial to position the cursor (round red circle) over the incident icon you are interested in. Then push in on the Interface Dial to view a pop-up box summary describing the incident. To see and hear the incident details, push in on the Interface Dial a second time. To return to your current position map screen, say or select Return. To continue viewing incidents in your “scrolled to” location, press the CANCEL button.

NOTE:

• Incident reports may be displayed on roads that have no traffic flow data available.

• Freeway incident reports can lag behind the actual incident, or remain displayed after an incident has cleared. This is normal, and is dependent on the reporting agency and the speed at which the data is updated.

• The displayed incidents may conflict with information from other audio or Internet-based traffic information displays.

26 Navigation System

System Function Diagram

’

(

)

(

)

(

)

VOICE:

"HELP"

(ALL)

(pg. 159)

VOICE:

"INFORMATION

SCREEN"

(pg. 80)

VOICE: "MENU" (to change ro

ute)

(pg. 74)

VOICE:

"HOW FAR OR LO

TO THE DESTI

TION?"

(pg. 160)

VOICE:

"DISPLAY (OR SAVE)

CURRE

NT LOCA

TIO

(pg. 71)

ADD BOOK (pg.

95)

PINs (pg. 99)

UNITS MI/KM (pg.

101)

AUTO VOL. (pg. 101)

UNV

ERIFIED (pg.

102)

VOID AREAS (pg. 106)

TIME ZONE (pg.

111)

ADJ. TIME (pg.

111)

DAYLIGHT SA

V. (pg. 111)

OFF-ROAD

TRACKI

(pg. 70, 112)

CORRECT VEHICLE

POSITION (pg.

112)

MAP COLOR (pg. 114)

NU COLOR (pg.

114)

GUIDE. PROMPTS (pg. 93)

VERSION (pg. 118)

BRIGHT

NESS (pg.

92)

VOLUME (pg. 93)

INTERFA

CE DIAL (pg.

93)

VIEW CURRE

NT (pg.

84)

INPORT, SEARCH, DELETE (pg. 85)

INCIDE

NT LIST (pg.

80)

SELECT CA

TEGORY(pg. 79)

ENTER (pg.

86)

LIST (pg. 85)

MATH (pg. 87)

VER

T (pg.

87)

AP LEG

(pg.

90)

VOICE HELP (pg. 89)

CALL (pg. 88)

KEY TO ZAGAT RATI

NGS (pg. 90)

PRESS

SELECTED

MESSAGE

TRAFFIC

WEATHER

CALE

CALCULAT

TRIP COMPUTER

INFO SCREEN

THER)

ROADSIDE ASSIS

ANCE

SELECT BAND/

FREQ

UENCY

VOL BALA

NCE

FUNCTIONS

OTHER

AUDIO

BRIGHT

NESS

REAR CAMERA(RE

VERSE)

SET UP

UTTON

(pg. 92)

UDIO

BUTTON

(pg.

10)

INFO

UTTON

(pg. 80)

(

)

VOICE: "FI

NEAREST..."

ATM, ETC.

(pg. 161)

SELECT A

DESTI

TIO

WITH

INTERFACE DIAL

(pg. 77)

VOICE:

"GO HOME"

(pg. 51)

VOICE:

"MENU" FOR

ENTER

DESTINATION

SCREEN

(pg. 28)

CONTINUE

TO THE

DESTINATION

(RESUME)

AFTER RESTART

(pg. 78)

VOICE:

"ZOOM I

N/ZOOM O

UT"

(pg. 62, 160)

VOICE:

"HIDE/DISPLAY ICONS"

(pg. 66, 160)

VIEW TRAFFIC

(pg. 23)

KEY

PERSO

NAL

BASIC

ROUTING

GUIDANCE

CLOCK

ADJUSTME

VEHICLE

COLOR

SYSTEM I

NFO

INFO

SCREE

(pg. 166)

UDIO (pg. 163 - 165)

CLIMA

TE CO

NTR

(pg. 162, 163)

BLA

CK LEVEL (pg. 93)

NTRAST (pg.

93)

SETUP

SCREE

(MAI

FORECAST W

NING (pg.

81)

VOICE:

"AUDIO"

(pg. 163 - 165)

VOICE:

CLIMATE

FAN, TEMP

(pg. 162, 163)

ENTER

WAYPOINTS

(pg. 75)

VIEW

TRAFFIC

(pg. 22)

VOICE:

"WHAT TIME

IS IT?"

(pg. 159)

A/C

BUTT

(pg. 10)

SET TEMP

C ON/OFF

VENT

FAN

TFC REROUTING

(pg. 73, 106)

CURALINK

MESSAGES (pg. 117)

TFC & WTHR

STA

TUS

RECEPTIO

N (pg.

117)

NOT

SELECTED

CELLULAR PHO

This diagram shows the navigation system features, starting at the center and working outward in layers. The navigation program starts at “Key ON,” and then displays the globe screen (blue). If OK is selected on the Disclaimer screen, the functions in the yellow segments of the diagram become available in the SETUP and INFO screens. The white segments of the diagram are available anytime, even if you do not select OK.

The items above the map screen show various methods to begin driving to your destination (orange). You are provided with map/voice guidance, routing cautions, and a direction list. While driving to your destination, use the voice control system as much as possible to interact with the navigation, audio, and climate control systems (green).

Getting Started

Navigation System 27

Entering a Destination

When you press the MENU button, the display changes to:

NOTE:

If you press the MENU button while en route, the MENU screen (Route) will be displayed. To enter the destination, select the “Enter destination by” tab by moving the Interface Dial to the left.

Address (see page 29) This selection requires you to enter the

city (and possibly the state) and the address that you want to go to.

Address Book (see page 33) This selection allows you to select a

stored address. The system can store up to a combined total of 200 Driver 1 and Driver 2 addresses.

Places (see page 34) The system has been programmed with

the locations of many businesses, parks, hospitals, etc. This selection lets you search these by category, name, phone number, or Zagat 2010 (for restaurants).

Intersection (see page 41) This selection allows you to enter the

names of two intersecting streets in a city. This is useful if you know the general location of your destination, but not the exact address.

Previous Destinations (see page 45) When you enter a destination with any

of the available selections (except Address Book and Go Home), the last 50 destinations are saved by the system. Use this selection to choose a destination again.

NOTE:

If Previous Destinations is grayed out, there are no Previous Destinations entered.

Map Input (see page 46) This selection allows you to point to a

destination on the map using the Interface Dial. This allows you to enter a destination or address that may not be listed in the database.

Today’s Destinations (see page 49) You can enter and sort up to five

destinations and store them in the Today’s Destinations list. You can then use the Today’s Destinations selection.

NOTE:

If Today’s Destinations is grayed out, there are no Today’s Destinations entered.

Go Home

This selection allows you to select your home or a common place as a destination.

NOTE:

If you have no home address entered, the system prompts you for one.

(see page 51)

28 Navigation System

Entering a Destination

By Address

After you select Address from the

MENU screen (Enter destination by), the display changes to:

Tip:

• When entering an address by voice, it is more efficient to say the city name first, then the street name.

• When entering an address by the Interface Dial, it is usually easier to enter the street first. A city or cities that the street appears in will be displayed. For your convenience, you do not have to enter both city and street.

NOTE:

• If you find that your city is not listed, it may be part of a larger metropolitan area. Try entering the street first.

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

Selecting the State or Province

The state you are in is displayed at the top of the screen. If your desired destination is in another state, select

CHANGE STATE by moving the Interface Dial down.

The display then changes to the Select a state screen. Use the voice control

system and say the name of the state, or rotate the Interface Dial knob to select the state.

Selecting the City

This is helpful if the street runs through several cities, and you know what city includes the street. The city you are in is displayed on the screen. If the city you want is displayed on the screen, say “Select current city.” If your desired destination is in another city, say or enter that city.

By Voice Control:

Say “City” on the Find address by screen, and the display changes to the Say city name screen. Say the city name and the searching will begin.

NOTE:

To improve voice recognition when saying the city name, pronounce the syllables as clearly as possible.

Navigation System 29

Entering a Destination

To enter the city name by voice spelling, say or select CHANGE TO SPELL MODE on the Say city name screen, and the display will change to the Enter city name screen. Say the city name by saying individual letters, or words that represent the letters, one at a time.

The system has a talk back function. If your spoken letter is not recognized, the system will talk back to you. For example, if you say “E” but the system does not recognize the command, it will ask you, “Please select the number of the input letter from the list,” and the following pop-up box will appear:

You should select a letter by saying the number.

Alternatively, to improve voice recognition, you can say “Echo” or “Edward” instead of “E.” See page 16 for a list of available words for each letter.

By Interface Dial:

Select City, and the display then changes to the Enter city name screen. Use the Interface Dial to enter the name of the city.

The system will display a list of city names, with the closest match to the name you entered at the top of the list. Select the number (1-6) of the desired city from the list.

30 Navigation System

Entering a Destination

If the system does not find an exact match, select LIST when you finish entering the name of the city. Most of the cities and towns for that state are listed.

Listings of cities and towns in the nondetailed coverage area may have an asterisk “*” next to their names. If you select one, a pop-up box is displayed saying, “No detailed street data...”, and a street address cannot be entered (see Map Coverage on page 129). Try entering the street first, and then select the city if available.

Select View Dest. Map and use the Interface Dial to select an icon, approximate area, or street you wish to choose as your destination. Otherwise, a central location of the city will be selected. If you select a point of interest (POI) or road in an unverified area, you may or may not have routing in these areas. See Map Overview on page 6.

Selecting the Street

By Voice Control:

After you have selected the city, or if you say “Street” on the Find address

by screen, the display changes to the Say street name screen. Say the street

name and the searching will begin.

To enter the street name by voice spelling, say or select CHANGE TO

SPELL MODE on the Say street name screen, and the display will

change to the Enter street name screen.

Say the street name by saying individual letters or numbers, or words that represent the letters, one at a time.

Navigation System 31

Entering a Destination

You should select a letter by saying the number.

Alternatively, to improve voice recognition, you can say “Echo” or “Edward” instead of “E.” See page 16 for a list of available words for each letter.

By Interface Dial:

After you have selected the city, or if you selected Street in the beginning, the display changes to the Enter street name screen. Use the Interface Dial to enter the name of the street (like ELM or 42ND) that is your destination.

To enter the name of a major highway, you must use the full name, including a hyphen. For interstates, use an “I” (I-

10). For U.S. highways, use “US” (US-

18). For state highways, use the two

character state designation (CA-101). For county roads, use the appropriate designation (G-2, for example).

Tip:

When entering a street, you do not need to enter the direction (N, S, E, W) or the type (St, Ave, etc.). The system will automatically determine that for you, based on your entered city and street number.

The system will display a list of street names, with the closest match to the name you entered at the top of the list. Select the number (1-6) of the desired street from the list.

32 Navigation System

Entering a Destination

Entering the Street Number

After you have completed the street name, the display changes to the Enter street number screen. Use the voice control system and say the address number as a continuous string of numbers. For example, the address 1527 should be spoken as “One, five, two, seven.” You can also use the Interface Dial to enter the street number.

Some address numbers may not be available on the selected street. For example, let’s say the individual address ranges for a selected street name are 1 20 and 9,000 - 10,000, with an overall range shown on the display of 1 to 10,000. If you try to enter a number outside the individual address ranges such as 500, the system will show this number as unavailable (grayed out).

• When using the Interface Dial, the

system only allows you to choose available address numbers.

• When using voice control, the system beeps if you try to select an unavailable (grayed out) address number.

If you did not select a city in the beginning, the street name you selected might appear in more than one city. The system will give you a list of cities that the street appears in. Select the desired city from the list. The system then displays the Calculate route to screen (see Driving to Your Destination on page 52).

Tip:

If the particular address you want cannot be found, select Map Input on the MENU screen (Enter destination by) and use the Interface Dial to select the appropriate location on the map (see By Map Input on page 46).

Select View Dest. Map and use the Interface Dial to select an icon,

approximate area, or street you wish to choose as your destination. Otherwise, a central location of the street will be selected. If you select a point of interest (POI) or road in an unverified area, you may or may not have routing in these areas. See Map Overview on page 6.

By Address Book

This selection allows you to choose a personal address entry for a destination. After you select Address Book from the MENU screen (Enter destination by), the display changes to:

If a PIN Number has been set in SETUP, the system prompts you to enter your PIN.

The system then displays a list of the places entered in your personal Address Book. By using the Interface Dial, you can sort the displayed addresses by ALL, BUSINESS, PERSONAL, or by other categories you may create.

Navigation System 33

Entering a Destination

Scroll through the list to find your desired destination. After you select it, the system then displays the Calculate

route to screen (see Driving to Your Destination on page 52).

Tip:

If you select New Address in the list, you can store a new address in the personal Address Book.

Adding Addresses to the Personal Address Book

There are three ways to enter addresses to the personal Address Book:

• Selecting New Address on the

Select an address screen (see page 33).

• Entering them in the personal Address Book feature in SETUP (see page 95).

• Adding them in the Address Book directly from the Calculate route to screen (see page 52).

NOTE:

• Destinations chosen from the Address Book do not show up in Previous Destinations.

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

• For information on the available voice commands, see Voice Command Index on page 159.

By Places

After you select Places from the

MENU screen (Enter destination by), the display changes to:

There are four ways to find a place or point of interest (POI), by Category,

Name, Phone Number, or ZAGAT

2010.

Let’s assume you want to find a coffee shop (restaurant) called “Bucks.”

• If you know the phone number of the

coffee shop, select Phone Number, then enter the 10-digit number with area code. This is the quickest way to find it.

34 Navigation System

Entering a Destination

•

The second best method is to select

Category, Restaurant COFFEE SHOP Place Name by Keyword and

search method, enter the keyword “Bucks.” The list will include all restaurants that have the letters “bucks” anywhere in the name.

• You can try to enter “Bucks” using

Name, but you may have to search through a list that might include Bucks Welding, Bucks Surplus, etc.

NOTE:

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

• You can enter the desired destination using the voice control system. For information on the available voice commands, see Voice Command

Index on page 159.

, and

. After you select

CAFÉ/

Finding the Place by Category

The Category option gives you a list of categories or types of businesses to select from with the following screen:

Tip:

If you are not sure of the spelling of a place, the best way to find it is to use the keyword search. Select Category, choose a category and subcategory from the menus, then select Place Name by Keyword, and enter the partial name.

After selecting a category and subcategory, the system will give you the options of Place Name by

Keyword, Sort by Distance to Travel, City Vicinity, or Place Name with the following screen:

Navigation System 35

Entering a Destination

Acura Dealers Auto Repair & Maintenance Bed & Breakfast Resort All Shopping*2 Office Supplies/Electronics Honda Dealers Car Wash & Detailing Hotel/Motel Accessories/Jewelry Pharmacy/Drug Store Gas Station Motorcycle Dealers Hydrogen Station Other Car Dealers Amusement Park Museum Books/Music/Video Sewing/Linen Auto Parts & Electronics Roadside Assistance Golf Course Park/Recreation Area Clothing Shoes/Bags

Banking

ATM Check Cashing/Money Transfer Marina Sports Complex Home Improvement Toys/Arts/Crafts Bank Currency Exchange Movie Theater Tourist Attraction Mall/Department Store

Historical Monument Performing Arts Groceries Sporting Goods

Leisure

Auto Parts & Electronics Pet Food/Supplies

Community Restaurant Travel

Auto Service Lodging Shopping

Business Higher Education All Types*1 Indian Airport Parking Lot City Hall Library All Types (Zagat Only) Italian Automobile Club Rental Car Agency Civic/Community Center Post Office American Japanese Bed & Breakfast Resort Convention/Exhibition Center School Café/Coffee Shop Korean Bus Station Rest Area Court House Californian Mexican Camping Ski Area

Emergency

Hospital Roadside Assistance Continental Seafood Ferry Terminal Tourist Information Police Station Veterinarian Fast Food Thai Hotel/Motel Train Station

Chinese Pizza Commuter Rail Station Tourist Attraction

French Vegetarian Named Place Travel Agency German Vietnamese Park & Ride Truck Stop/Plaza Greek Other Parking Garage/House

Advanced

*1 When trying to find a specific restaurant, select the category ALL TYPES. Some restaurants may be

miscategorized.

*2 When trying to find a specific store, select the category ALL SHOPPING. Some stores may be

miscategorized.

If the category you want is not listed, you can try to find it with a keyword. When you select this option, the display changes to the Enter keyword for category screen. If the system finds any categories with the keyword you entered, the display changes to the Select a category screen. Select the desired category.

36 Navigation System

Entering a Destination

Finding a restaurant

The ZAGAT SURVEY for some restaurants is available in the system. See the INFO screen (Other), “Key to Zagat Ratings” for an explanation of these ratings (see page 90).

On the Select a place screen, restaurants with a Zagat Rating have a

icon at the end of the line. To list

only restaurants with Zagat Reviews, say “Zagat” or select ZAGAT 2010. You can view the complete Zagat Review for a selected restaurant by selecting the tab.

By voice, select the tab by saying “Zagat list number X” (where X is the line number 1-3). Alternatively, use the Interface Dial to first select the line item, and move the dial to the right to view the survey.

Say “Read List” or move the Interface Dial down, and the review will be read to you. Say OK or push in on the Interface Dial to display the Calculate route to screen.

NOTE:

Scrolling through the Zagat Review is disabled when the vehicle is moving.

When you say “Question mark” or select the “?” tab, you can see the description of ratings and symbols for Zagat Review.

NOTE:

For information on the ratings and symbols for Zagat Review, you can also select Key to Zagat Ratings on the

INFO screen (Other). See Key to Zagat Ratings on page 90.

Navigation System 37

Entering a Destination

Place Name by Keyword

If you do not know the exact name of the destination, you can find the place with a keyword. When you select this option, the display changes to:

You can find your destination with a keyword using the Sort by Distance to Travel option or City Vicinity option.

If you select the Sort by Distance to

Travel option, the Enter keyword for place screen appears. Enter the

keyword using the Interface Dial. If the system does not find an exact match, select LIST when you finish entering the keyword. The system starts searching for places that match the entered keyword. If you see your desired place, select it from the list. If not, scroll through the list to find the desired place.

If you select the City Vicinity option, the Enter city name screen appears. Enter the name of the city using the Interface Dial. The system will display a list of city names, with the closest match to the name you entered at the top of the list. Select your desired city name from the list. Once you have selected your desired city name, the Enter keyword for place screen appears. Enter the keyword using the Interface Dial to specify the desired place.

Once you select a place, the system then displays the Calculate route to screen (see Driving to Your Destination on page 52).

Sort by Distance to Travel

When you select this option, the system gives you a list of all the places in the subcategory. This list is arranged by distance from your current location, with the closest at the top of the list.

The distance and direction to the destination at the top of the list are shown in the screen. The distance shown is straight line distance (as the crow flies), not driving distance. Say or select the number (1-4) of the desired destination from the list.

Once you select a place, the system then displays the Calculate route to screen (see Driving to Your Destination on page 52).

38 Navigation System

Entering a Destination

City Vicinity

The system allows you to find points of interest in the vicinity of the city you entered. When you select this option, the display changes to the Enter city name screen. Enter the name of the city using the Interface Dial. If the system does not find an exact match, select LIST when you finish entering the name of the city. Select a desired city from the list.

Once you have selected the city, the display changes to the Enter a place name screen. Enter the name of the place using the Interface Dial.

Once you select a place, the system then displays the Calculate route to screen (see Driving to Your Destination on page 52).

Place Name

When you select this option, the display changes to the Enter a place name screen. Enter your selection, using the Interface Dial.

Once you select a place, the system then displays the Calculate route to screen (see Driving to Your Destination on page 52).

Finding the Place by Name

The Name option allows you to enter the name of a business, and then shows you a list of businesses with the same or similar names to select from. Use the name option only if you know the exact spelling of the place. If unsure, use the Category option.

Finding the Place by Phone Number

The Phone Number option allows you to select a destination by its telephone number. Only telephone numbers stored in the system under the Places (of business) option are recognized. The system does not contain residential telephone numbers, or numbers you may have entered in your personal Address Book.

Tip:

If you know the phone number of a point of interest (POI), its uniqueness makes it the fastest entry method. When using the voice control system, the entry should be spoken as a continuous string of numbers. For example, the telephone number (310) 555-4000 should be spoken as “Three, one, zero, five, five, five, four, zero, zero, zero.”

Navigation System 39

Entering a Destination

Finding the Place by Zagat 2010

The ZAGAT 2010 option allows you to find a restaurant by the Zagat Rating information. The system lets you select the metro area, neighborhood, and food type to search the restaurant you like. After you select the food type, the following display appears:

Name - When you select Name, the restaurants will be listed by alphabetical order.

Food, Decor, Service - When you select Food, Decor, or Service, the restaurant will be listed by rating value.

Cost - When you select Cost, the restaurant will be listed by the average cost of a meal (including drink and tip).

When you select a sorting method, the list of restaurants will appear.

You can see the survey for a listed item by selecting the tab, or by saying “Zagat list number X” (where X is the number 1-3).

Once you select a restaurant, the system then displays the Calculate route to screen (see Driving to Your Destination on page 52).

NOTE:

• Not every type of food is listed in each metro area or neighborhood. Only types of foods that are available in those areas will be listed.

• For details on the ratings and symbols, say “Question mark” or select the “?” tab using the

Interface Dial, or see Key to Zagat Ratings on page 90.

40 Navigation System

Entering a Destination

By Intersection

After you select Intersection from the

MENU screen (Enter destination by), the display changes to:

Tip:

When entering an address, it is usually easier to enter the street first. A city or cities that the street appears in will be displayed. For your convenience, you do not have to enter both city and street.

NOTE:

• If you find that your city is not listed, it may be part of a larger metropolitan area. Try entering the street first.

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

Selecting the State or Province

The state you are in is displayed at the top of the screen. If your desired destination is in another state, select

CHANGE STATE by moving the Interface Dial down.

The display then changes to the Select a state screen. Use the voice control

system and say the name of the state, or rotate the Interface Dial knob to select the state.

Selecting the City

By Voice Control:

Say “City” on the Find intersection by screen, and the display changes to the Say city name screen. Say the city name and searching will begin.

Navigation System 41

Entering a Destination

You should select a letter by saying the number.

Alternatively, to improve voice recognition, you can say “Echo” or “Edward” instead of “E.” See page 16 for a list of available words for each letter.

By Interface Dial:

Select City, and the display then changes to the Enter city name screen. Use the Interface Dial to enter the name of the city.

The system will display a list of city names, with the closest match to the name you entered at the top of the list. Select the number (1-6) of the desired city from the list.

42 Navigation System

Entering a Destination

If the system does not find an exact match, select LIST when you finish entering the name of the city. Most of the cities and towns for that state are listed.

Selecting the Street

By Voice Control:

After you have selected the city, or if you say “Street” on the Find intersection by screen, the display changes to the Say street name screen. Say the street name and the searching will begin.

To enter the street name by voice spelling, say or select CHANGE TO

SPELL MODE on the Say street name screen, and the display will

change to the Enter street name screen.

Say the street name by saying individual letters or numbers, or words that represent the letters, one at a time.

After you have completed the first name, the display changes to the Say intersecting street screen. Say the name of the other intersecting street.

Navigation System 43

Entering a Destination

You should select a letter by saying the number.

Alternatively, to improve voice recognition, you can say “Echo” or “Edward” instead of “E.” See page 16 for a list of available words for each letter.

By Interface Dial:

After you have selected the city, or if you select Street in the beginning, the display changes to the Enter street name screen. Use the Interface Dial to enter one of the names (like ELM or 42ND) of the intersecting streets.

To enter the name of a major highway, you must use the full name, including a hyphen. For interstates, use an “I” (I-

10). For U.S. highways, use “US” (US-

18). For state highways, use the two

character state designation (CA-101). For county roads, use the appropriate designation (G-2, for example).

Tip:

When entering a street, you do not need to enter the direction (N, S, E, W) or the type (St, Ave, etc.). The system will automatically determine that for you.

The system will display a list of street names, with the closest match to the name you entered at the top of the list. Select the number (1-6) of the desired street from the list.

After you have completed the first street name, the display changes to the Enter intersecting street screen. Enter the name of the other intersecting street by saying the item number, or selecting the item number using the

Interface Dial.

44 Navigation System

Entering a Destination

If you did not select a city in the beginning, and the intersection appears in more than one city, you will see the Select a city screen. The system will give you a list of cities that the intersection appears in. Select the desired city from the list. If more than one intersection appears in the city, select the desired intersection from the Select an intersection screen. The system then displays the Calculate

route to screen (see Driving to Your Destination on page 52).

Tip:

If the particular intersection you want cannot be found, select Map Input and use the Interface Dial to select the appropriate location on the map (see By

Map Input on page 46).

Select View Dest. Map and use the Interface Dial to select an icon, approximate area, or street you wish to choose as your destination. Otherwise, a central location of the street will be selected. If you select a point of interest (POI) or road in an unverified area, you may or may not have routing in these areas. See Map Overview on page 6.

By Previous Destinations

Every time you route to a destination, that destination is saved by the system. Up to 50 destinations can be stored. Select Previous Destinations from the MENU screen (Enter destination by) to choose one of those destinations.

After you select Previous Destinations, the display lists the last 50 destinations entered, with the most recent appearing first.

NOTE:

•If Previous Destinations is

grayed out, there are no Previous Destinations entered.

Navigation System 45

Entering a Destination

• When finishing a “Today’s Destinations” trip, the Today’s Destinations list entries are stored to this list, beginning with the date (e.g., item 1 shown on the previous screen).

• Because both the Home and personal Address Book list can be protected by a PIN, they do not show up in the previous destination list.

Scroll through the list and say the line number (1-6) of the destination, or select the desired destination you want.

Once you select the desired destination, the system then displays the Calculate

route to screen (see Driving to Your Destination on page 52).

NOTE:

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

• For information on the available voice commands, see Voice Command Index on page 159.

By Map Input

After you select Map Input from the

MENU screen (Enter destination by), the display changes to:

NOTE:

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

• For information on the available voice commands, see Voice Command Index on page 159.

Showing the Map of Current Position

The Current Position selection assumes that you are looking for a destination in the immediate area. The display changes to:

The red arrow indicates your vehicle position. Find your desired destination by moving the Interface Dial left, right, up, or down. The map and crosshairs will move in the same direction.

The yellow box indicates the area you will see when you click on the current map with the Interface Dial. The scale will decrease each time you push in on the Interface Dial, until Select a destination appears at the top of the screen.

46 Navigation System

Entering a Destination

If desired, rotate the

knob

to change the map scale. When you have the crosshairs in the desired icon, map feature, or road, push in on the

Interface Dial

location will appear at the top of the screen.

NOTE:

The selected icon or road segment is displayed on the 1/2 mile (800 meter) or less map scale.

If this is the desired address, push in on the Interface Dial again. If not, use the Interface Dial to reposition the crosshairs, then push in on the Interface Dial again to display the new address.

Interface Dial

. The address of the

If you select a single icon or road segment within the target mark, the following screen appears. Select Set as Dest. to calculate a route to the selected destination.

If you select multiple icons within the cursor radius, the following screen appears. Select an item from the list. Then select OK to calculate a route to the selected destination.

Showing the Map of City

With the City selection, the display changes to the Enter city name screen.

When you have entered the desired city, the display changes to a map. The starting location will be the central position in the selected city.

See Showing the Map of Current Position on page 46 for instructions on finding and entering your desired destination.

Navigation System 47

Entering a Destination

Showing the Map of State

With the State selection, the display changes to the Select a state screen.

After you select the desired state, the display changes to a map of the state, with the crosshairs located near the middle.

Use the Interface Dial to move the crosshairs to the area of the state close to your intended destination. If desired, rotate the Interface Dial knob to change the map scale. When you have the crosshairs in the desired area, push in on the Interface Dial. The address of the location you have selected will appear at the top of the screen.

NOTE:

The selected icon or road segment is displayed on the 1/2 mile (800 meter) or less map scale.

If this is the desired address, push in on the Interface Dial again. If not, use the Interface Dial to reposition the crosshairs, then push in on the Interface Dial again to display the new address.

If you selected a single icon or road segment, select Set as Dest. to calculate a route to the selected destination. If you selected multiple icons within the cursor radius, select an item from the list. Then select OK to calculate a route to the selected destination.

48 Navigation System

Entering a Destination

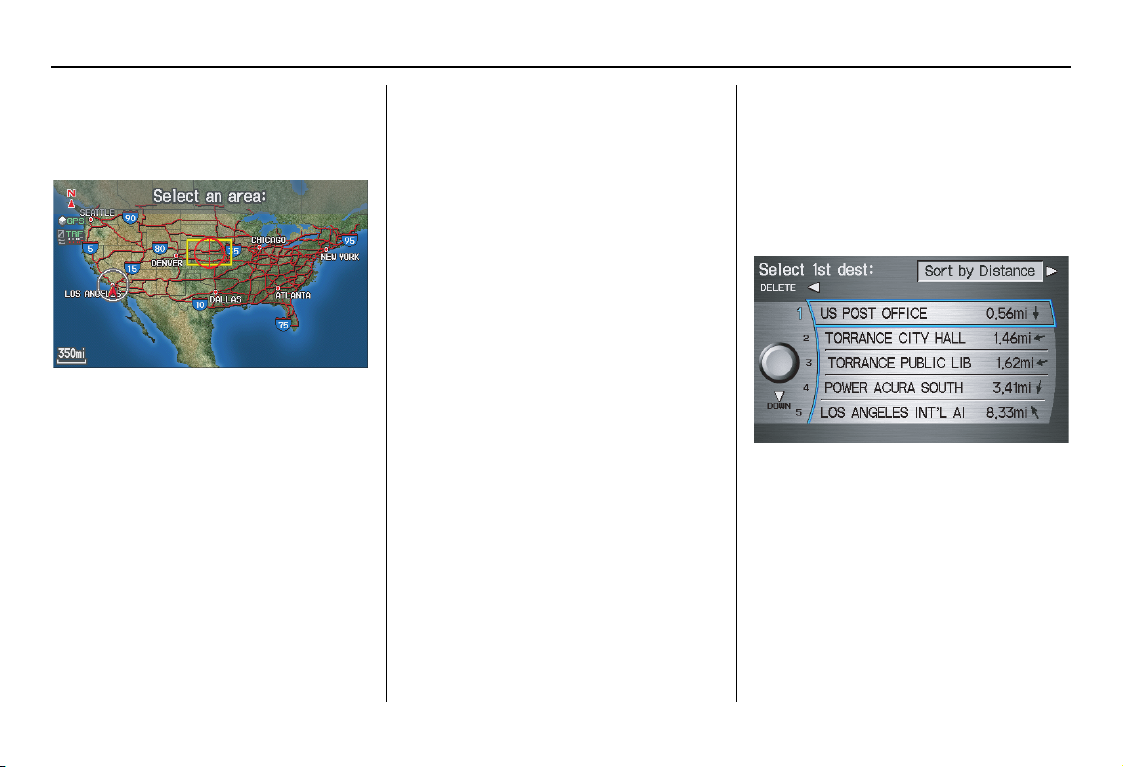

Showing the Map of Continental USA

With the Continental USA selection, the display changes to:

Use the Interface Dial to move the crosshairs to the area of the country close to your intended destination. Then push in on the Interface Dial.

If desired, rotate the Interface Dial knob to change the map scale. When you have the crosshairs on the desired icon, map feature, or road, push in on the Interface Dial. The address of the location you have selected will appear at the top of the screen.

NOTE:

The selected icon or road segment is displayed on the 1/2 mile (800 meter) or less map scale.

If this is the desired address, push in on the Interface Dial again. If not, use the Interface Dial to reposition the crosshairs, then push in on the Interface Dial again to display the new address.

By Today’s Destinations

You can create a “trip” by combining up to five destinations previously selected on the Calculate route to screen.

Select Today’s Destinations from the MENU screen (Enter destination by) and the display changes to:

NOTE:

If Today’s Destinations is grayed out, there are no Today’s Destinations entered.

Navigation System 49

Entering a Destination

Editing Today’s Destinations List

If you change your plans, you can modify the Today’s Destinations list order by distance, or by order of entry.

Say or select Sort by Entry to sort the list by the entry order, and say or select Sort by Distance to sort the list by the distance order. To delete a destination, say or select DELETE and the display changes to Select a destination to delete screen. Select the destination to delete. Say or select DONE to perform the deletion, and the display returns to the previous screen. To cancel the deletion, press the CANCEL button.

NOTE:

For information on the available voice commands, see Voice Command Index on page 159.

Adding Destinations to the List

After you have used any of the other selections from the MENU screen (Enter destination by) to select a destination, the display changes to:

To add this to the Today’s Destinations list, select ADD TO Today’s Dest.

NOTE:

If ADD TO Today’s Dest. is grayed out, the Today’s Destinations list is already full (five destinations have been stored).

The display then changes to show you all the current entries on the Today’s Destinations list. Select DONE to return to the MENU screen (Enter destination by).

The system automatically sorts the destinations stored in the Today’s Destinations list for the best path.

If the displayed list shows your plans, select the first destination. The system will guide you to the destination according to the order of the list. When you reach the destination, it will be automatically removed from the list.

50 Navigation System

Entering a Destination

NOTE:

When finishing a “Today’s Destinations” trip, the Today’s Destinations list entries are stored to the Previous Destinations list, beginning with the date (e.g., item 1 shown below). This entry contains all the destinations that were included in the Today’s Destinations itinerary. This allows you to reselect the entire Today’s Destinations content at a later date.

By Go Home

Selecting Go Home from the MENU screen (Enter destination by) takes you home or to a frequently used address you have chosen. The displayed address will correspond to which Remote Keyless Entry (Driver 1, Driver

2) is being used.

If a PIN Number has been set, the system prompts you to enter your PIN. Say or enter your PIN, and the system will then display the Calculate route to screen (see Driving to Your Destination on page 52).

If a PIN Number has not been set, the system displays the Calculate route to screen after you select Go Home (see Driving to Your Destination on page 52).

NOTE:

• To edit Home Address, see Home Address in System Setup on page 98.

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

• PINs are optional. If you choose to use a PIN, make sure you remember it. If you forget your PIN, your dealer will have to reset it for you.

• If a PIN is desired, enter it using the Personal preference PIN number feature in SETUP. See page 99 for information on entering your PIN number.

Navigation System 51

Driving to Your Destination

A route typically has three phases.

• Initial route calculation (Calculate route to screen) (see page 52).

• Change the route while en route (see page 74).

• Resume the route when restarting the engine (see Continue Trip Screen on page 78).

Calculate Route to Screen

Say or select OK. The system calculates the route using the method shown on the screen (see Map Screen on page 55).

NOTE:

• Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 106.

• For information on the available voice commands, see Voice

Command Index on page 159.

Further selections from the Calculate route to screen include:

ADD TO Address Book

Allows you to add the destination to your Address Book. See By Address Book on page 33.

NOTE:

If EDIT Address Book is displayed, the destination is already stored in your Address Book. You can edit the address in your Address Book by selecting this button. For information on editing your Address Book, see Address Book on page 95.

ADD TO Today’s Destinations

Allows you to add the destination to your Today’s Destinations list. See By Today’s Destinations on page 49.

NOTE:

If the button is grayed out, the Today’s Destinations list is already full (five destinations have been stored).

CALL

Dials the number on the screen when available. See Bluetooth® HandsFreeLink® on page 18.

52 Navigation System

Driving to Your Destination

Changing the Routing Method

The system lets you select the way you want to drive to your destination. Before selecting OK to calculate a route, you can change the routing method by moving the Interface Dial down. The route choices will appear in the address box.

NOTE:

When you are en route and want to change the routing method, press the

MENU button, and select Change Method on the MENU screen (Route).

• “Direct Route” (the factory default) is the route that is the quickest (least time) and is usually the best choice. If you choose any other method, it becomes the new default for all future routing. Make sure to check the routing method if the displayed route is not what you expected to see.

• “Easy Route” produces a route with the least turns.

• “Maximize Freeways,” “Minimize Freeways,” and “Minimize Toll Roads” are also available.

NOTE:

• If the keyless remotes are unlinked (guest mode), changes to the routing method are not saved.

• If the trip is greater than 100 miles, then “Minimize Freeways” and “Minimize Toll Roads” may be grayed out. This is normal.

The generated route may not be the route you would choose. For safety reasons, the system generally applies the following rules to your route:

• It tries to avoid shortcuts through residential areas.

• Right turns are favored over left turns or U-turns.

• Restricted turns (turns that cannot be made during certain hours) are not used for routing.

Navigation System 53

Driving to Your Destination

Viewing the Routes

Selecting View Routes on the Calculate route to screen allows you to scroll through and view the various routes (Direct, Easy, Maximize Freeways, etc.) to your destination. If you select View Routes, the display allows you to see the distance and time to go for each route.

NOTE:

• You may only view routes as shown above from the Calculate route to screen.

• The selected route method is shown at the top of the screen.

• It may take several minutes (the system displays an hourglass while it is calculating) to show all route methods, and it is not unusual for the different methods to pick the same route. Voice commands cannot be used while the system is calculating.

• If the trip is greater than 100 miles, then “Minimize Toll Roads” and “Minimize Freeways” may be grayed out. This is normal.

Based on the route data, you can change the routing method by rotating the Interface Dial knob. Once you confirm your selection, say the number of the desired routing method or push in on the Interface Dial.

NOTE:

Distances and times shown for each method are approximate.

After calculating the route with the new method, the system displays a map of your current location. The calculated route will be highlighted as a blue line, and a voice prompt will tell you how to proceed along the highlighted route. Push in on the Interface Dial and select Voice to have the guidance repeated.

54 Navigation System

Driving to Your Destination

Viewing the Destination Map

Selecting View Dest. Map displays a map of the destination vicinity. Press the CANCEL or NAVI BACK button to return. You can view the destination map anytime while en route by saying, “Display destination map.”

Map Screen

When you select OK on the Calculate route to screen, the map screen

appears, showing your highlighted route in real time.

Route Line

When driving to a destination on verified roads in a metropolitan area, the route line is displayed as a blue line. When driving in rural areas on unverified streets (light brown color), the route line changes to either a blue dotted “vector line” pointing to your destination, or a blue-pink line. See Unverified Area Routing on page 102 for a detailed explanation of how to enable unverified routing, and the related cautions and disclaimers.

NOTE:

• You can always view the entire route by simply saying, “Display entire route.”

• When your route line uses streets that display traffic information, the route line may consist of orange or red segments. This is normal. See Traffic

Display Legend on page 22, and Viewing Flow Data on page 24.

“Vector line” (unverified routing off)

Blue-pink unverified route line (unverified routing on)

Navigation System 55

Driving to Your Destination

Voice Guidance Prompts

As you get near the maneuver, you will hear a voice reminder and see a pop-up window showing you the maneuver. The number of reminders that you will hear before a maneuver is determined by Guidance Prompts in SETUP on page 93.

With the factory default (NORMAL), typically you will hear two prompts:

• The first is about 1/4 mile from the maneuver.

• The final prompt is close to your actual turn.

If the distance between the next two driving maneuvers is very small, both maneuvers are displayed on the screen in a single window, and the voice will remind you of both of them at the same time.

NOTE:

• You can say “Voice” at any time, or

select Voice after pushing on the Interface Dial to be reminded of the next maneuver. For information on the available voice commands, see Voice Command Index on page 159.

• Typically, a pop-up guidance window shows your next turn, and a voice guidance prompt is heard. The timing of these prompts varies, depending on the type of road you are on, and the distance to your next maneuver.

When given guidance in unverified areas, the words “if possible” are inserted before each guidance prompt. See Unverified Area Routing on page 102 for more details about unverified routing.

56 Navigation System

Map Screen Legend

Acura Dealer

School

Restaurant

AT M

Parking Lot

Post Office

Honda Dealer

Hospital

Grocery Store

Gas Station

Hotel/Lodging

Parking Garage

Freeway Exit Information

Landmark Icon - Generic (see page 64)

Destination Icon (see page 63) Map Features

NOTE:

If you move the Interface Dial over an area (map features shown above), the name is displayed on the screen.

: Par k

: Hospital

: Shopping Mall

: Golf Course

: Water Area

: Cemetery

: University

: Indian Reservation

: Airport/Stadium/Business

Map Scale Adjustment

(Mile or km per half-inch appears only when you zoom in or out by rotating the Interface Dial knob.) (see page 62)

NOTE:

See Map Legend on the INFO screen (Other) for further explanation (see page 90).

Current Map Scale

(see page 62)

Current Street

(see page 71)

Vehicle Position

(see page 71)

Breadcrumbs

(see Off-road Tracking on page 70)

Direction of Destination (when en route) (see page 59)

Map Orientation

(see page 63)

Distance to Destination (see page 59)

Time to Destination (see page 59)

Waypoint (see page 75)

Blue Line

Calculated route (see page 55)

Map Menu (see page 59) (Push in on the Interface Dial to view.)

One-Way Traffic Icon (1/20 mile scale only) (see page 64)

Streets

(see Map Overview on page 6, or Unverified Area Routing on page 102)

Interstates or Freeways Verified Streets Unverified Streets

No Entry Icon

Driving to Your Destination

Navigation System 57

Milestone to Destination (see page 58)

Direction of Destination, “as the crow flies” (see page 59)

Distance to Next Driving Maneuver

Street Name of Next Driving Maneuver

Scroll: to view guidance maneuvers

(move Interface Dial up or down)

Current Street (see page 6)

Time to Destination (see page 59)

Distance to Destination (see page 59)

Vehicle Heading (black indicates North) (see page 63)

Driving to Your Destination

Guidance Screen

The guidance screen offers an alternative way to view your route information. Many of the icons and screen features are similar to those on the map screen. While driving to your destination, press the MAP/GUIDE button to switch between the map and guidance screens. The guidance screen shows you:

Milestone to Destination - The position of the small circular icon shows your trip progress. As you get closer to your destination, the indicator will approach “DEST.”

Vehicle Heading - The black portion of the compass symbol indicates north.

NOTE:

• The map and voice guidance in unverified areas differ from those in verified areas.

• Current maneuvers and those within 1000 feet will show on the Countdown bar, indicating the distance until the next maneuver.

Guidance Screen Legend

58 Navigation System

Driving to Your Destination

Distance and Time to Destination

When you select a destination, the distance to the destination is the actual road distance of the calculated route, and not “as the crow flies.” When viewing a list of destinations (points of interest), such as restaurants, the distance is “as the crow flies” (see Sort by Distance to Travel on page 38).

The displayed time to the destination may differ from the actual travel time because the time is calculated based on the posted road speed data and your current speed. If part of your route includes unverified roads, the “distance” and “time to go” for that portion is estimated using 25 mph as an average speed.

Map Menu

When the map screen is displayed, pressing in on the Interface Dial displays the Map menu. If the map is scrolled, the Map menu will not appear. Move the Interface Dial left or press the CANCEL button to return to the basic map screen.

Voice - Button shown if currently en route. Select to hear the next guidance maneuver (see page 56).

North-up/Heading-up - Select Heading-up or North-up button to change map orientation. See Map Orientation on page 63 for details. On scales greater than 1 mile, this button is grayed out (North-up only mode).

New Messages - Button indicates that there are AcuraLink messages for you to read. These messages consist of quick tips and other information communicated to you by Acura. If the button is grayed out, you have no messages. See page 79 for more information on this feature.

Directions -

route. Select to see a list of directions to your destination (see page 56).

Show Icon on Map -

the icons displayed on the map (for a thorough description of this feature, see

Showing Icons on the Map

By voice control, you can select the icon by saying the name of the icon (“gas station,” “ATM,” etc.). Say the icon name again to turn the icon off.

Traffic Incidents -

display a list of the traffic incidents around your current position or on your current route. You can view this same list by saying “Display traffic incidents.” See page 25 for a discussion of this feature.

Weather Info. -

weather forecast, warning list, and warning map.

Button shown if currently en

Allows you to select

Select this button to

Allows you to view the

See

Weather Information

on page 68).

on page 81.

Navigation System 59

Driving to Your Destination

Direction List

If you select Directions from the Map menu, the display changes to:

NOTE:

• The map and voice guidance in unverified areas differ from those in verified areas. See Unverified Area Routing on page 102.

• Only maneuvers that occur at freeway exits or contain freeway exit information will show the exit info icon ( ) on the right end of the items in the direction list. If no exit info icon is shown on the list, the EXIT INFO is not displayed.

You can see the direction list and the distance to each maneuver. Press the MAP/GUIDE button or the CANCEL button to return to the previous screen.

You can scroll through the Direction list screen by screen by moving the Interface Dial up or down, or one instruction at a time by rotating the Interface Dial knob.

EXIT INFO (Freeway Exit Information)

You can search freeway exit information and add new destinations or waypoints to the calculated route as a new destination or waypoint. The exit info icon ( ) on the right end of the items in the direction list indicates that there is freeway exit information available. Say or select EXIT INFO, and choose the exit and place to set as a new destination or waypoint.

60 Navigation System

Driving to Your Destination

On the map screen, you can display freeway exit information using the Interface Dial. The exit info icon will only be displayed on the map screen if there is any freeway exit information available. Choose the 1/4, 1/2, or 1 mile scale, then move the crosshairs to the desired exit info icon and push in on the Interface Dial. Choose a place from the list and set it as a new destination or waypoint.

NOTE:

To turn on “Freeway exit information” on the map screen, display the icon bar and select the icon (see page 68).

Guidance Mode

When en route to a destination, you have two display options: single-screen mode (the factory default) and the splitscreen mode.

Single-screen mode - A map is displayed with occasional guidance pop-up windows as you approach a maneuver.

Split-screen mode - The map is always displayed on the left of the screen, and the maneuver or direction list is displayed on the right-hand side of the screen.

Guidance mode can be changed in either SETUP (see Guidance Mode on page 109), or by accessing the icon bar (see CHANGE GUIDANCE MODE on page 68).

When you get near the maneuver, the map screen changes to:

On the map screen, the location of the maneuver is marked with a small yellow square. The guidance window is simply an enlargement of the area indicated by the yellow square. After you complete the maneuver, the display returns to a full map screen when the single-screen mode is set, or to a map and direction list screen when the split-screen mode is set.

Navigation System 61

Driving to Your Destination

Map Scale

Rotate the Interface Dial knob or say a voice command such as “Display 1/2 mile scale” (see page 160) to change the scale of the map. Zooming in increases the detail, while zooming out gives you a view of a wider area. After changing the scale, give the system a few moments to update the display.

Functions available at various map scales

Map Scale (English and Metric)

For selecting units, see page 101.

POI icon symbols (like ATM) page 64 XX Breadcrumbs (off-road tracking dots) Freeway exit information icons page 64 XXX One-way traffic icon page 64 X Unverified road display (light brown) Map orientation “Heading-up” page 63 XXXXX Map orientation “North-up” page 63 XXXXXXXXXXX Map features (park, golf course, etc.) Avoid area shown on map page 106 XXX Avoid area scales (when creating) page 106 XXX Waypoint “flag” icons page 75 XXXXXXXXXXX Traffic speed / incident page 22 XXXXXXX Weather Information page 65 XXXXXXXXXXX

page 70 XXXX

page 102 XXX

page 57 XXXXXXXXXX

1/20 mi.

80 m 200 m 400 m 800 m

1/8 mi. 1/4 mi. 1/2 mi. 1 mi. 2 mi. 5 mi. 15 mi. 50 mi. 150 mi. 350 mi.

1.6 km

3 km 8 km 24 km 80 km

240 km 560 km

NOTE:

• You can change between miles or kilometers in SETUP (see Units on page 101).

• For information on the available voice commands, see Voice Command Index on page 159.

62 Navigation System

Driving to Your Destination

Map Orientation

The map can be orientated two ways:

• North-up: North pointing up as you would normally view a paper map.

• Heading-up: The map constantly rotates so the road you are driving on always points up (as you see the road through your front windshield).

“North Up”

“Heading Up”

NOTE:

The red arrow in both heading symbols always shows the direction north.

Push in on the Interface Dial on the map or guidance screen and select

North-up or Heading-up to switch between the available orientation, or say “Display heading up” or “Display north up.”

In the larger map scales (above 1 mile or

1.6 kilometer), the map is always oriented with north facing upward. You cannot change the orientation.

NOTE:

For information on the available voice commands, see Voice Command Index on page 159.

Destination Icon

The destination icon only shows the approximate location of the destination. This occurs because a city block can have as many as 100 possible addresses (for example, the 1400 block is followed by the 1500 block). Most cities use only a portion of the 100 possible addresses (for example, in the 1400 block, the addresses may only go up to 1425 before the 1500 block starts). Therefore, the address 1425 will be shown a quarter of the way down the block by the system instead of near the end of the block where the destination is actually located.

Tip:

When en route, you can view a map showing your destination. Using voice control, say “Display destination map.”

Navigation System 63

Acura Dealer

School

Restaurant

AT M

Parking Lot

Post Office

Honda Dealer

Hospital

Grocery Store

Gas Station

Hotel/Lodging

Parking Garage

Freeway Exit Information

Weather

Road Closed

Accident/Incident

Construction

Congestion

Driving to Your Destination

The display automatically changes to the map screen when you reach your destination. Press the MENU button to return to the MENU screen (Enter destination by).

NOTE:

• For information on the available voice commands, see Voice Command Index on page 159.

• If you are en route and the Interface Dial is moved, the “Time to Destination” and “Distance to Destination” indicators are replaced with an indicator showing distance from the current vehicle location.

64 Navigation System

Various Other Icons

Landmark Icons

Landmark icons are shown in the map screen on the 1/20 and 1/8 mile scales or 80 and 200 meter scales. The Freeway Exit information is displayed on the 1/4, 1/2, and 1 mile scales. The icons are:

Incident Icons

Incident icons are displayed on the 1/20 through 5 mile scales. The icons are:

NOTE:

The Congestion icon is not displayed on the map screen. This icon is displayed on the Traffic Incident screen (see

Listing Traffic Incidents by Voice Control on page 25).

One-Way Traffic Icon

The one-way traffic icons (see Map Screen Legend on page 57) are only

shown on the 1/20 mile scale and only when turned on in ICON OPTIONS (see page 68).

Driving to Your Destination

Partly Cloudy

Fog

Freezing Rain

Clear

Cloudy

Rain

Snow

Partly Cloudy

Fog

Freezing Rain

Clear

Cloudy

Rain

Snow

Weather Icons

Weather icons are displayed on all map scales. The icons are:

Daytime mode

Nighttime mode

Some icons can be turned on or off; you can either display them or hide them by pushing in on the Interface Dial on the map or guidance screen and select Show Icon on Map (see page 68), or by using voice commands (see page 159). You can select most landmark, traffic, or weather icons with the Interface Dial to display the icon’s information. See the table on the following page for exceptions.

NOTE:

• The same icon list can be viewed on

the screen by selecting Map Legend from the INFO screen (Other).

• When there are overlapping landmark icons, a list of the points of interest (POIs) is displayed.

• Weather icons are only visible if you have a current traffic/weather subscription with XM. See page 117.

• If the keyless remotes are unlinked (guest mode), the displayed icon changes are not saved.

• For information on the available voice commands, see Voice Command Index on page 159.

Navigation System 65

Driving to Your Destination

For some icons, you can choose either to show or hide them on the map, while others like Acura Dealer are always shown. The table below shows the features for each icon type. Some Points of Interest (POIs) like Police Stations are not shown as an icon, but you can still locate the nearest one with the voice command, “Find nearest Police Station.”

Landmark icon

POI type

Honda/Acura dealer Yes, always No No Yes Yes Hospital Yes Yes Yes Yes Yes School Yes Yes Yes Yes Yes ATM Yes Yes Yes Yes Yes Gas station*1 Yes Yes Yes Yes Yes Restaurants*1 *2 Yes Yes Yes Yes Yes Post office Yes Yes Yes Yes Yes Grocery store*1 Yes Yes Yes Yes Yes Hotel*1/ Lodging Yes Yes Yes Yes Yes Police station No icon No icon No No Yes Shopping, Tourist attraction, Bank No icon No icon No No Yes Parking garage/Parking lot Yes Yes Yes Yes Yes Freeway exit information Yes Yes Yes Yes (choose POI) No

Icon can be manually displayed

Icon can be manually hidden

Icon selection by voice

Icon can be selected as a destination on the map screen with the

Interface Dial

*1. When these types are selected for view on the map, some icons are shown as “brand icons.” *2. When selecting Restaurant on the Select category for icon settings screen (see Icon Options on page 68), specialty types

of restaurants, like Chinese or Italian, can be individually displayed or hidden. See Show Icon on Map on page 158. Also see the Voice Command Index on page 159 for the “Display,” “Hide,” and “Find” commands.

POI can be found on the map screen using voice command “Find...”

66 Navigation System

Driving to Your Destination

Incident icon

POI type

Traffic speed Yes Yes Yes No No Traffic incident Yes Yes Yes No Yes *1 One-way traffic icon Yes Yes Yes No No

Icon can be manually displayed

Icon can be manually hidden

Icon selection by voice

Icon can be selected as a destination on the map screen with the

Interface Dial

*1.You can display the nearest traffic incidents by saying, “Display traffic incidents.”

Weather icon

POI type

Weather information Yes Yes Yes No No

Icon can be manually displayed

Icon can be manually hidden

Icon selection by voice

Icon can be selected as a destination on the map screen with the

Interface Dial

POI can be found on the map screen using voice command “Find...”

Navigation System 67

Driving to Your Destination

Showing Icons on the Map

Selecting Show Icon on Map from the Map menu (see page 59) displays the following screen:

The screen consists of the following items:

Icon Bar (curved row of icon symbols)

The icon bar allows you to manually select the icons that are displayed on the map (see page 64 for a list of these icons). In the screen above, traffic, gas stations, and restaurants are selected. Rotate the Interface Dial knob and push in to select (goes blue) or remove them (symbol is gray). You can also display or hide the same icons by using the “Display” or “Hide” voice commands (see page 160).

CURRENT LOCATION

(Interface

Dial Left)

This allows you to display and/or save your current location. See page 71 for more information.

ICON OPTIONS

(Interface Dial

Right)

This feature allows you to “fine tune” some of the icons on the Icon bar (see Icon Options for more information).

CHANGE GUIDANCE MODE (Interface Dial Down)

When en route, this item allows you to select between a single-screen (with occasional pop-up guidance windows), or a split-screen (containing one-half map and one-half guidance/directions list window). See page 61 for an explanation of this feature, and see page 109 for SETUP.

Exit Screen

Press the CANCEL button to return to the map screen.

Icon Options

Selecting ICON OPTIONS from the Icon bar displays the following screen:

This feature allows you to “fine tune” some of the icons on the Icon bar. The five icon choices – “Parking” (lot or garage), “Restaurant” (specific type or types of food), “Other Icons” (hospitals, schools, etc.), “Traffic” (traffic speed or incident), and “Weather” (weather or warning) – can each be tailored to your needs.

68 Navigation System

Driving to Your Destination

For instance, let’s assume that school is not displayed on the map, and you want to make sure that your settings are correct. You would do the following:

• First, you would ensure that the “OTHER ICON” button on the Icon bar is blue (see Icon Bar on page 68).

• Second, you select ICON OPTIONS and verify that the school option is also on (blue). This procedure is explained below.

If you select Other Icons from the Select category for icon settings screen, the other icon options are displayed:

In the previous example, only ATM and POST OFFICE are selected and will show up on the map. To also see SCHOOL on the map, this would need to be turned on by first selecting it and then pushing in on the Interface Dial to select it so it appears as below.

Exit, and save your settings by moving the Interface Dial to the right (DONE).

NOTE:

• When viewing the map screen, you can turn some icons on using voice control.

•See Voice Command Index on page 160 for the available “Display” and “Hide” icon command.

Navigation System 69

Driving to Your Destination

Going Off the Route

If you leave the calculated route, “Recalculating...” is displayed at the top of the screen. The system will recalculate the route from your current location and direction to the desired destination, and then give you a new route instruction. This is done automatically if you have set Rerouting to AUTOMATIC

SETUP

If the Rerouting option in SETUP is set to MANUAL, “Off route” appears at the top of the screen when you leave the calculated route. Say “Recalculate” or select Recalculation whenever you want the system to perform a recalculation.

screen (

Other) (see page 101).

on the

Off-road Tracking

If you drive more than half a mile from a mapped road, “Not on a digitized road” appears at the bottom of the screen.

The

map

series of dots (breadcrumbs) to show the path you have taken if

Tracking

(

Other

screen starts displaying a

on the

) is set to ON (see page 112).

Off-road

SETUP

screen

By following the dots, you can backtrack to the mapped road you originally left. “Breadcrumbs” may occasionally be displayed in urban areas, such as large parking lots in shopping malls, or in new subdivisions where the roads are not yet in the database. In other cases, you may see dots if the system temporarily goes off route, like in a parking garage where the GPS signal is unavailable.

These dots appear only in the 1/20, 1/8, 1/4, and 1/2 mile (or 80, 200, 400, and 800 meter) map scales. Rotate the Interface Dial knob to change scales if necessary.

Tracking continues for approximately 150 miles; dots at the beginning of the trail will start disappearing when you exceed that distance. When you reach a mapped road, the system stops displaying dots.

70 Navigation System

Driving to Your Destination

Viewing/Saving the Current Location

Whenever you are on a map screen, you can always obtain your current location either by pushing in on the Interface Dial, selecting Show Icon on Map, and selecting Current Location, or by using the voice control system and saying “Display current location.” A screen pops up which shows the address of your current location, as well as the latitude, longitude, and elevation.

NOTE:

• Save is not available when the

keyless remotes are unlinked (guest mode).

You can store the current location for later use. It does not change or cancel your current route.

For example, you are following the system’s directions to get to a destination. While sitting at a stoplight you notice a store on the corner, but do not have time to visit it right now. You can save the location to select as a destination at a later date.

To save the location, say “Save current location” or select Save on the Current

location screen. The Edit address book screen with the current location

data will appear. You can edit the name, phone number, or category name to be saved in your personal Address Book.

After the location is saved, select Return to return to the map screen. You can then use Address Book from the MENU screen (Enter destination by) to select the saved location and return to the same spot.

Navigation System 71

Driving to Your Destination

Pop-Ups and Disclaimers

When you say “OK” in the Calculate Route to screen, or if you change your

route, the system checks your route and provides you with pop-up messages for the following situations:

• Your route takes you into an area that you previously set as an “Avoid Area” (see Edit Avoid Area on page 106).

• Your route passes near or bypasses unverified areas (see Unverified Area Routing on page 102).

• Your route includes unverified areas (see Unverified Area Routing on page 102).

• You are about to enter an unverified area (see Unverified Area Routing on page 102).

• You actually entered an unverified area (see Unverified Area Routing on page 102).

72 Navigation System

Driving to Your Destination

Traffic Rerouting

When driving en route to your destination, if the system detects a traffic incident to be avoided ahead on the route, the system automatically calculates the detour route and displays the pop-up box which shows you the information of the incident.

You can manually recalculate the route avoiding the road with the traffic event icon. Say “Display traffic incidents” or “Display traffic list,” and select the “On Route” tab on the Traffic Incidents screen. You can also select Traffic

Incidents from the Map menu or the INFO screen (Main Info).

Select an incident from the list, and push in on the Interface Dial twice. The system will read the incident information, displaying the confirmation screen:

When you say or select Avoid, the system recalculates a detour route avoiding the road.

NOTE:

• When you select the “All” tab, Avoid is not displayed.

• To activate this function, you need to set Traffic Rerouting to ON in the Routing & Guidance settings (see page 106).

• Because the criterion for whether the traffic event is to be detoured or not is included in the traffic event data itself, the traffic rerouting is not performed for all the traffic incidents ahead on the route.

• Even when the route recalculation is performed for a traffic event, if the system cannot find any detour route or a quicker detour route, the event location is not always avoided.

• Traffic rerouting is available only if you have a current traffic/weather subscription with XM. See page 117.

Navigation System 73

Driving to Your Destination

Changing the Route

While en route, you may wish to alter your route, add an interim “Waypoint” (pit stop), choose a different destination, or cancel your current destination. To change your present route, you can do any of the following:

Say “Menu,” or press the MENU button to view the MENU screen (Route):

• Cancel route (page 74)

• Change method (page 74)

• Search waypoint (page 75)

• Delete waypoint (page 76)

• Back to route (page 76)

• Avoid street (page 76)

• Detour (page 76)

Choose a different destination (other methods) by:

• Saying “Find nearest...” to find a POI (page 77).

• Saying “Go home” (page 77).

• Using the Interface Dial to select a

different POI or address on the map (page 77).

•Pressing the MENU button and

selecting the “Enter destination by” tab on the MENU screen (page 78).

MENU Screen (Route)

Pressing the MENU button displays the MENU screen (Route):

NOTE:

The “Route” tab can be selected only when you are en route.

Cancel Route

Cancels the current route (and any waypoints) and returns you to the map screen.

Change Method

From the MENU screen (Route), if you say or select Change Method, then the Select routing method screen is displayed. See Changing the Routing Method on page 53 for details.

NOTE:

If the keyless remotes are unlinked (guest mode), changes to the routing method are not saved.

74 Navigation System

Driving to Your Destination

Search Waypoint

Waypoints allow you to add an interim “pit stop” while traveling to a destination. For instance, you may want to stop for gas or food, and then continue on to your destination. Although you can enter up to five waypoints at a time, typically you may never use more than one at a time. Waypoints are routed to in the order they were entered (number 1 first, etc.), with your final destination routed to last. If you wish to create a custom route of several destinations, and then control the order of routing, the function “Today’s Destinations” is probably a better choice (see By Today’s Destinations on page 49).

When you enter waypoints, they appear on the map screen as small red flags numbered 1-5.

Adding Waypoint

From the MENU screen (Route), if you say or select Search Waypoint, then the Select a search method screen is displayed. Select either Places Along

the Route or Places Around the Destination.

Next, select your “Waypoint Category,” then follow the menu prompts to select a destination. When the system performs a search from Places Along the Route, it displays matches that lie within a corridor on either side and in front of you along your route.

Navigation System 75

Driving to Your Destination

From Places Around the Destination, the system displays

matches in a spiral pattern outward from the destination. The search “corridor” distance value can be changed in Edit Waypoint Search Area in SETUP (see page 108).

To add another waypoint, press the MENU button and repeat the procedure. If Search Waypoint is grayed out, the maximum of five waypoints has been entered.

NOTE:

The system does not allow you to select the roads you want to use to get to a destination. However, after you enter a destination, you can select intersections or POI waypoints that the system will use to tailor your route.

Delete Waypoint

From the MENU screen (Route), if you say “Delete” or select Delete

Waypoint, then the Select a waypoint to delete screen is displayed. Say the

line number of the waypoint(s) you wish to delete, or select them by using the Interface Dial. Say or select DONE to return to the map screen.

The route is recalculated to reflect the changes you made to the waypoint(s).

Back to Route

Returns you to the original map screen.

Avoid Street

From the MENU screen (Route), if you say or select Avoid Street, the system displays a list of streets that will get you to your destination. This feature allows you to avoid a street or streets along your route. This is helpful if you know of road construction, closures, or excessive traffic along the route. Simply select the street or streets you wish to avoid. You cannot avoid your current street, or the streets of your waypoint(s) or destination (system beeps if selected).

NOTE:

Although you can choose streets to avoid, you cannot choose specific streets you want to use.

Detour

Calculates a detour route for you if you encounter an unexpected obstacle such as a closed road or extremely heavy traffic congestion. If a detour is selected, the system will attempt to recalculate a new route, avoiding the next 2 miles (while on a freeway) or 1/2 mile (while on a surface street).

76 Navigation System

Driving to Your Destination

Changing Your Destination

There are four methods by which you can change or add a waypoint to your route. These are:

Find Nearest (Voice command)

From the map screen, say one of the “Find Nearest...” voice commands to locate the nearest gas station, ATM, restaurant, or other point of interest. See the “Find Nearest” voice commands listing on page 161.

Go Home (Voice command)

From the map screen, say “Go home.” If you have entered a “Go home” address, then the system will display a confirmation screen.

Using Interface Dial to Change Destination

While following a calculated route, you can select a new destination with the map screen and the Interface Dial.

With the

Interface Dial

icon. It will change to crosshairs. Use the

Interface Dial

on your desired new destination, street, or icon, then push in on the

Dial

pop-up menu will be displayed.

NOTE:

The displayed when the crosshairs are positioned near multiple icons or locations. A pop-up menu will be displayed when the crosshairs are positioned on a particular street, icon, or location.

If this is not your desired new destination, press the CANCEL button or the NAVI BACK button on the steering wheel to return to the map screen. Reposition the crosshairs with the Interface Dial, then push in on the Interface Dial again to see the new address.

map

screen displayed, use the

to move the position

to position the crosshairs

. The

Select a place

Interface

screen or a

screen will be

When the Select a place screen is displayed, select an item from the list, and the Calculate route to screen is displayed. Then select OK and push in on the Interface Dial. You can select either Set as New Destination or Set as Waypoint for your specified position.

Navigation System 77

Driving to Your Destination

When the pop-up menu is displayed, select Set as Dest. to set your location as a replacement destination, or Set as Waypoint to set as a waypoint.

The system will return to the map screen and recalculate the route to your new destination or waypoint.

NOTE:

When you scroll the map screen while en route to a destination, some voice controls will not function. These include:

• Display “Heading up”

• Display “North up”

Entering a Destination from the Menu Screen (while en route)

If you say “Menu,” or press the MENU button and select the “Enter destination by” tab, the system displays the MENU screen (Enter destination by). Follow the procedure described in Entering a Destination, which begins on page 28.

When the Calculate route to screen is displayed, select OK and push in on the

Interface Dial. You can select either Set as New Destination or Set as Waypoint for your specified position.

When the pop-up menu is displayed, select Set as Dest. to set your location as a replacement destination, or Set as Waypoint to set as a waypoint.

The system will return to the map screen, and recalculate the route to your specified new destination or waypoint.

Tip:

You can also press the MENU button twice to display the MENU screen (Enter destination by).

Continue Trip Screen

If you restart the vehicle without having completed your prior trip, you will see the following screen:

• To continue to your destination or

other waypoints, say or select OK.

• To cancel your destination, press the

CANCEL button or the NAVI BACK button on the steering wheel,

or using the voice control system, say “Cancel” or “Back.”

• If you wish to change the routing

method, say or select CHANGE

METHOD by moving the Interface Dial down.

78 Navigation System

Driving to Your Destination

• For additional information on changing the routing method, see Changing the Routing Method on page 53.

NOTE:

The Continue trip to screen will not appear when the keyless remotes are unlinked (guest mode). In this case, select your destination from the Previous Destinations list. See page 45.

AcuraLink Messages

AcuraLink enhances your ownership experience by providing a direct communication link between you and Acura. AcuraLink messages are displayed on the navigation screen. Working through the XM Satellite Radio, AcuraLink works in conjunction with your vehicle’s navigation,

Bluetooth

audio systems to send and receive several kinds of message. These include:

• Operating tips and information on

• Important recall and safety

• Maintenance information to keep

• Diagnostic information to provide

NOTE:

• See your Owner’s Manual for more

• AcuraLink relies on a satellite signal.

® HandsFreeLink® (HFL), and

your vehicle’s features.

information.

your vehicle in top condition.

information about any problems with your vehicle.

details on this feature.

It will not work correctly in Hawaii and Alaska.

When service information is received from your vehicle or AcuraLink, an envelope icon is displayed in the upper right corner of the navigation screen.

The Interface Dial controls most AcuraLink functions. For more information on AcuraLink, refer to:

• The Advanced Technology Guide for features and a function overview.

• Your Owner’s Manual for a detailed explanation of the system.

Navigation System 79

Information Features

The INFO function consists of two main screens. To display the INFO screen (Main Info), say “Information” or press the INFO button. To change it to the INFO screen (Other), select the “Other” tab. You can switch screens by selecting the tab.

You can use the voice control system to select any item on the INFO screen.

NOTE:

• If some items appear to be grayed out and cannot be selected, it is because you did not select OK on the initial

Disclaimer screen (see System Start- up on page 17), or there is no phone

paired to the system (see Bluetooth® HandsFreeLink® on page 18).

• For information on the available voice commands, see Voice Command Index on page 159.

INFO Screen (Main Info)

When you say “Information” or press the INFO button, the display changes to:

Messages

See AcuraLink Messages on page 79.

Traffic Incidents

When you say or select Traffic Incidents, you can view a list of the

traffic incidents near your current position or along your calculated route. See Viewing Incident Reports on page 25 and Traffic Rerouting on page 73.

NOTE:

To receive traffic information, your XM traffic/weather subscription must be paid. See page 117 for details.

80 Navigation System

Information Features

Weather Information

The Weather Information option allows you to view the weather forecast, warning list, and warning map. When you say or select Weather Information, the following screen appears:

NOTE:

• You can view the same screen by selecting Weather Info. from the Map menu (see page 59).

• To receive weather information, your XM traffic/weather subscription must be paid. See page 117 for details.

Viewing Weather Forecast

You can view the weather forecast for the current position or the city you selected. Say or select Weather Forecast, and the display changes to:

When you select Current Position, the Forecast screen will be displayed. When you select City Vicinity, the Enter city name screen will be displayed. Enter the name of the city using the Interface Dial. If the system does not find an exact match, select LIST when you finish entering the name of the city. Select a desired city from the list. The Forecast screen will be displayed.

When you select the “1 Day” tab, you can view the one-day forecast and get information about the current weather, forecast (three/six hours ahead), and temperature (high/low). When you select the “3 Day” tab, you can view the three-day forecast (day/night).

NOTE:

• When the GPS signal or weather information cannot be received, “NA” or “Data Not Available” will be displayed.

• You can view the same list by selecting the weather icon on the map screen.

Navigation System 81

Information Features

Viewing Warning List

You can view a list of all weather warnings in the United States. Say or select Warning List Sorted by Distance, and the display changes to:

You can view three types of lists by selecting a sorting method from “All US,” “Within 500mi,” or “On Route.” A warning icon in the list indicates that your vehicle is in the warning area, or the calculated route runs through the area. When you select a listed item by pushing in on the Interface Dial, the detailed information will be displayed.

Say “Read List” or move the Interface Dial down, and the information will be read to you.

NOTE:

• The “On Route” tab can be selected only when en route.

• Scrolling through the Weather Warning screen is disabled when the vehicle is moving.

Viewing Warning Map

You can view the warning map, which contains different colors according to the type of warning. Say or select Warning Map, and the display changes to:

Select the colored area by moving the Interface Dial left, right, up, or down. If desired, rotate the Interface Dial to change the map scale (15, 50, or 150 miles). When you have the crosshairs in the desired area, push in on the

Interface Dial. The Weather Warning screen will be displayed.

82 Navigation System

Information Features

Weather Information on Map

Weather Icons

The weather icons can be displayed on the

map

page 68). The weather icons appear next to the city names on all map scales.

When you scroll through the map using the Interface Dial, the weather icon is displayed at the top right of the screen. This shows you the weather at the cursor position.

screen when turned on (see

When you select the weather icon next to a city name and push in the Interface Dial, the Forecast screen will be displayed. To return to the map screen, press the CANCEL button or move the Interface Dial to the left.

Warning Icon

The warning icon indicates that a weather warning area exists near your current location or along your calculated route. To check the weather warnings, see Weather Information on page 81.

Weather Information for Destination

When you select a destination from the MENU screen (Enter destination by), the Calculate route to screen will be displayed.

The weather information for the selected destination is displayed when the weather icon setting is turned on (see page 68).

Navigation System 83

Information Features

You can also view the weather information for your destination when you select the destination directly from the map screen (use the Interface Dial to position the target mark on your desired destination, and then push in on the Interface Dial).

NOTE:

When the GPS signal or weather information cannot be received, “NA” will be displayed.

When the system calculates a route and there is a warning on the route, the following screen will be displayed:

Select Check Info., and the warning list will be displayed (see page 82).

Trip Computer

The Trip computer screen displays the trip information from the gauge assembly.

When you say or select Trip Computer, the display changes to:

Instant Fuel

Shows you the current instantaneous fuel economy in miles per gallon (mpg).

Average Fuel

Shows you the average fuel economy in miles per gallon (mpg) since the gauge trip meter was last reset.

84 Navigation System

Information Features

Elapsed Time

Shows the elapsed time that the ignition has been on.

Average Speed

Shows you the average speed in miles per hour (mph) since the trip meter was last reset.

Range

Shows the estimated distance you can travel on the fuel remaining in the tank. This distance is estimated from the average fuel economy over the last several miles, so it will vary with changes in speed, traffic, etc.

NOTE:

• Information from the Trip Computer will be displayed only when the ignition is on.

• The “Instant Fuel” and “Average Fuel” may vary from actual fuel consumed. These values are estimates only.

• The “Range” is only an estimate. Always monitor your vehicle’s fuel gauge to determine the appropriate time to refuel.

Cellular Phone

The Cellular Phone option allows you to store up to 1,000 names and 10,000 phone numbers in the phonebook of Bluetooth® HandsFreeLink® from your cellular phonebook. With the HFL, you can then automatically dial any name or number in the phonebook. Say or select Cellular Phone from the INFO screen (Main Info), and the display changes to:

NOTE:

• For more information on this feature, see your Owner’s Manual.

• For questions about the HFL Cellular Phonebook, call HandsFreeLink customer support at 1-888-528-7876, or visit www.acura.com/

handsfreelink.

Calendar

The Calendar option allows you to enter events and be reminded of them in the future. When you say or select Calendar, the system shows the calendar with the current calendar day highlighted.

Dates with an icon indicate there is a schedule entry for that date.

Navigation System 85

Information Features

You can scroll through the calendar day by day by rotating the Interface Dial knob, or select the day by voice. When you move the Interface Dial up or down, you can also scroll through the calendar week by week. To change the month, say “Next month” or “Previous month,” or move the Interface Dial right or left.

Entering Your Schedule

Set your schedule by selecting the day on the calendar, and the display changes to:

Reminder

The default for Reminder is ON. This allows the system to remind you of the calendar item the next time you start the vehicle. See System Start-up on page 17.

Edit Date

This allows you to move your calendar entry to a different date. If you say or select Edit Date, the Calendar screen is displayed with existing entries grayed out. Select a new day and the display returns to the Edit schedule screen with a new date.

Edit Title

Say or select Edit Title, then enter the name of your title using the Interface Dial. Once you have entered the title, say or select DONE. The title will be displayed on the specified date of the Calendar screen.

Edit Message

Say or select Edit Message, and the system will show the Edit Message screen. You can enter a message on two lines. Use to change the line. Once you have entered the message, say or select DONE. The message will be displayed on the specified date of the Calendar screen.

Message Icon

Say or select Message Icon, and the system displays a list of icons you can select to help identify the type of message you entered. The message icon you choose will be displayed alongside the specified date on the Calendar screen.

86 Navigation System

Information Features

Delete

From the Calendar screen, select the date of the schedule you wish to remove. To remove the schedule, say or select DELETE.

Done

Once you have finished entering the schedule, say or select DONE. The Calendar screen is redisplayed and the entered schedule is shown.

NOTE:

• Only one entry can be stored for each calendar day.

• A maximum of 50 entries can be stored in the schedule.

• To reactivate a previous message, turn the Reminder setting from OFF to ON. If it is not turned on, the reminder will not be displayed when you start the vehicle.

• The system displays active calendar entries only after you answer OK on the Disclaimer screen.

• For more information, see System Start-up on page 17.

Calculator

When you say or select Calculator, the display changes to:

Use the Interface Dial and its Knob to use the following features:

Calculator

The calculator function operates like a standard handheld calculator.

Unit Conversion

Values entered on the calculator can be converted from one unit to another (e.g., inches to millimeters).

Unit Conversion

To perform a conversion:

1. Enter a numeric value to be converted (for example, 100).

2. Move the Interface Dial down to select UNIT CONVERSION. The screen changes to:

3. Rotate the Interface Dial knob to select the type of unit you want to convert (for example, weight) and push in on the dial to select. The screen for that conversion type appears (see illustration in step 4).

Navigation System 87

Information Features

4. Select the base unit (e.g., pounds) that you wish to convert to some other unit. All other units will change automatically depending on the base unit value. In the example below, 100 lbs converts to 1600 ounces, 0.05 ton (U.S.), etc.

NOTE:

• If you do not enter a value to be converted, only “Temperature” units are selectable.

• Conversions using negative values may produce meaningless or physically impossible values.

Roadside Assistance

When you say or select Roadside Assistance, you will see the following

screen:

An Acura Roadside Assistance number is provided as a courtesy to Acura clients. If you have a paired Bluetooth phone and it is on, then you can call Acura Roadside Assistance by using your system. Select CALL by voice or by using the Interface Dial, and then select Yes on the confirmation screen.

INFO Screen (Other)

Select the “Other” tab to view additional information and the following screen appears:

88 Navigation System

Information Features

Voice Command Help

When you say or select Voice Command Help, you will see the

following screen:

NOTE:

You can select an item by saying either the line number or the item name.

There is a tutorial available for the voice command help. Say or select Getting started, and the display changes to:

Select the line number of the desired tutorial you want to view, and the tutorial will automatically be read. Select STOP by moving the Interface Dial right to stop the reading, or press the CANCEL button.

When you make a command help selection under any of the help screens, you will see the help commands that can be used with the voice control. You can say “Read List” or select by moving the Interface Dial right, and the system will read the list to you.

For a listing of all voice commands, see Voice Command Index on page 159.

Navigation System 89

Information Features

Map Legend

You can use the Map legend screens to learn the meaning of map features, icons, colors, etc. used in this system. When you say or select Map Legend, the display changes to:

Say or select the desired item or item number to view each section of the map legend.

Key to Zagat Ratings

When you display data for a Zagatsurveyed restaurant on the Select a place screen, you will see the description of ratings as follows:

By saying or selecting Key to Zagat Ratings on the INFO screen (Other), you can see the explanation of the data displayed for the Zagat-surveyed restaurants.

• “Food,” “Decor,” and “Service” categories (red circle) are rated using numbered values (e.g., 0-9, 10-15, etc.)

• “Cost” (white circle) is the average cost of a meal (including drink and tip).

• The symbols, if displayed (blue circle), indicates the following information:

open on Sunday closed on Sunday open on Monday closed on Monday open for lunch lunch not served serving after 11 PM no credit card accepted

90 Navigation System

Use the Interface Dial to scroll through the Key to Zagat Ratings screens.

Information Features

Navigation System 91

System Setup

SETUP Mode

The SETUP function consists of two main screens that allow you to change and update information in the system. To display the SETUP screen (Main Setup), use the voice control system and say “Setup” or press the SET UP button. To change it to the SETUP screen (Other), select the “Other” tab. You can switch screens by selecting the tab.

You can use the voice control system to select any item on the SETUP screen.

NOTE:

• If some items appear to be grayed out and cannot be selected, it is because you did not select OK on the initial

Disclaimer screen. See System Start- up on page 17.

• Setup items in this manual with the

symbol indicate that the display settings depend on what “Driver #” was displayed on the MID when the vehicle was started. See Remote Keyless Entry Setting on page 18.

• If only “Welcome” is displayed, then all Setup settings revert to factory defaults, and all personal data (such as Address Book or Calendar) are not available.

• For information on the available voice commands, see Voice Command Index on page 166.

SETUP Screen (Main Setup)

From any screen, say “Setup screen” or press the SET UP button, and the following screen appears:

Brightness

The screen brightness has 11 settings. To change the brightness, use the voice control system and say “Brightness up” or “Brightness down.” You can also select Brightness and change the setting by rotating the Interface Dial knob.

Tip:

If you are having trouble viewing the screen in bright lighting conditions, try increasing the brightness.

92 Navigation System

System Setup

Contrast

The screen contrast has 11 settings. To adjust the contrast, use the voice control system and say “Contrast up” or “Contrast down.” You can also select Contrast and change the setting by rotating the Interface Dial knob.

Black Level

The screen black level has 11 settings. To change the black level, use the voice control system and say “Black level up” or “Black level down.” You can also select Black Level and change the setting by rotating the Interface Dial knob.

NOTE:

You can have separate daytime and nighttime settings for Brightness, Contrast, and Black Level. Adjust each setting when the display is in either daytime or nighttime mode. Use the Display Mode button (page 11 and 114) to select Daytime or Nighttime mode.

Volume

The navigation voice volume can be adjusted by:

• Using the voice control system and saying “Volume up” or “Volume down.”

• Selecting Volume and changing the setting by rotating the Interface Dial knob.

• Saying “Volume Off,” or selecting Volume and then OFF.

NOTE:

If you turn the volume off, you will not hear route guidance or voice command confirmations.

Interface Dial Feedback

This setting allows you to control when (and if) the system will read the current selection you choose with the Interface Dial. The purpose of this feature is to minimize the need to look at the screen while operating the dial. You can set one of the three settings explained in the following table. The factory default is AUTO.

Setting Degree of assistance

ON When selection is made,

AUTO

(factory default)

OFF No voice assistance when

the system always reads what is selected.

The system reads selection only when moving.

selecting.

Guidance Prompts

While you drive to your destination, the system displays and announces guidance prompts for your next maneuver. This setting allows you to adjust the number of guidance prompts before each maneuver. The settings MIN, NORMAL, and MAX are described below. The factory default is NORMAL, so you can adequately prepare for the next maneuver. If you wish to change the number of guidance prompts, select your preferred setting, as shown in the following table.

Navigation System 93

System Setup

Setting

MIN Yes NORMAL

(factory default) MAX Yes* Yes* Yes

Distance before maneuver

About 1/2 mile

Yes Yes Yes

About 1/4 mile

Just before maneuver

* Uses street name in guidance phrase.

NOTE:

To temporarily turn off voice guidance prompts, select OFF for the Volume setting in Setup.

SETUP Screen (Other)

Select the “Other” tab to view additional SETUP functions and the following screen appears:

Personal Information

From the SETUP screen (Other), say or select Personal Information and the following screen appears:

NOTE:

If most items in “Personal Information” are grayed out, then you must link the Remote Keyless Entry. Setup settings will not be saved if the Remote Keyless Entry is unlinked (see page 18).

94 Navigation System

System Setup

Address Book

The Address Book allows up to a total of 200 address entries. After 200 entries, the ADD TO Address Book button is grayed out. The 200 addresses are shared between Driver 1 and Driver 2. For example, if Driver 1 has 150 addresses, Driver 2 can only have 50. You can add, modify, and delete information in the personal Address Book list.

You may choose to use a Personal Identification Number (PIN) to protect your privacy. However, PINs are optional, and if you decide to use one, record it in case you forget the number (see page 99).

You can do the following functions in the address book:

• Enter an address (see page 96)

• Edit an existing address (see page 98)

• Delete an existing address (see page 98)

Accessing the Address Book List

After selecting Address Book, If a PIN has been set, the system prompts you to enter your PIN. After entering your PIN correctly by voice or by using the Interface Dial, the system displays your Address Book.

If no PIN has been set, the system displays your Address Book after selecting Address Book.

NOTE:

• If the Remote Keyless Entry is unlinked, this feature is unavailable.

• Personal information cannot be backed up or moved to another navigation system.

Navigation System 95

System Setup

Entering an Address

After you select Address Book, your Address Book list appears:

Select New Address by pushing the Interface Dial when beginning to build your Address Book list.

Edit Name

You may use the “Name” field to give the entry a name or title that you will recognize later, such as “Doctor Smith” or “Broadway Theatre.” If you do not give the address a name, the system will assign one (Address 001, etc.).

Say or select Edit Name. Then use the Interface Dial to enter the name. Select DONE when finished.

NOTE:

You can always re-enter, edit, or make changes to any entry. “Address” is the only required field.

Edit Address

When you say or select Edit Address, the display changes to:

Current Position - Allows you to use your current position as the address.

Address - Requires you to enter the city and address you wish to store. The operation is the same as selecting Address from the MENU screen (Enter destination by). See page 28.

96 Navigation System

System Setup

Places - Allows you to select one of the

Point of Interest (POI) locations already stored in the system as one of your personal addresses. This operation is the same as selecting Places from the MENU screen (Enter destination by). See page 34.

Previous Destinations - Allows you to choose one of the locations in the Previous Destination list for your Address Book list. This operation is the same as selecting Previous Destinations from the MENU screen (Enter destination by). See page 45.

After you have used one of these four options to enter the address, the initial screen for entering the personal address is redisplayed, with the address shown in the “Address” field. If you have entered the address using Places, the phone number corresponding to the address also appears in the “Phone Number” field.

Edit Phone Number

You can enter the telephone number of the address. If the address was chosen with Places, and it has a telephone number, that number is entered automatically.

Say or select Edit Phone Number to display the Enter phone number screen. Enter the telephone number, including the area code, by using the voice control system (say the entire phone number one digit at a time) or by using the Interface Dial. Say or select DONE when finished.

Edit Category

If desired, you can specify the category of the address. Say or select Edit

Category to display the Select a category screen.

Scroll the screen and select a category by saying the number next to your choice, or by pushing in on the Interface Dial.

If you wish to set, add, or edit a new category, select EDIT CATEGORY in the upper right corner on the screen by moving the Interface Dial to the right. The system will show the Select a category to edit screen. Follow the onscreen prompts to add, change, or delete a category.

Navigation System 97

System Setup

If you delete a category that was used to categorize addresses, the category for those addresses becomes “UNFILED.”

NOTE:

You may have up to 100 categories. These are shared between Driver 1 and Driver 2.

The system will then display everything that you have entered. If all the information is correct, say or select Done. This will return you to the Address Book list.

If you want to enter another address, select New Address in the list, then repeat the procedures above. If not, press the CANCEL button.

Edit/Delete an Address

This feature allows you to select an address to edit or delete. Once an address is selected, choose the appropriate function and push in on the Interface Dial to select.

Home Address

This feature lets you return “Home” from any location simply by saying “Go home” at the map screen. Alternatively, you can select Go Home on the MENU screen (Enter destination by). See By Go Home on page 51.

Enter the name, address, and phone number in the same way as entering a personal address, then say or select

Done. To leave the screen, press the CANCEL button.

NOTE:

If your Home address cannot be found in the system, while located on the street close to your home, select “Current Position” when entering the “Edit Address” field.

98 Navigation System

System Setup

PIN Number

You can set a four-digit PIN (Personal Identification Number) for accessing the following features, if desired:

•Setup:

- Address Book

- Home Address

-PIN Number

• MENU screen (Enter destination by)

- Address Book

-Go Home

• Map screen:

- Go Home (by voice control)

• INFO screen:

- Calendar

Once you set your PIN, the system will ask you to enter the PIN when you access these features.

1. Select PIN Number. The display

changes to:

2. Enter your new four-digit PIN. If you

do not wish to use a PIN, select DO NOT USE PIN.

NOTE:

The factory default is no PIN.

3. When you have entered your PIN, the display changes to the Please re- enter new PIN screen. Enter the same number to validate the number you have selected.

4. If you have entered the same number both times, the display returns to the Edit personal information screen. If not, “INCORRECT PIN” appears. Enter your PIN again.

NOTE:

• If you start the vehicle and the MID only displays “Welcome,” the PINaccessible features are unavailable.

• If you wish to remove your PIN, return to the same screen and, after entering your PIN correctly, select DO NOT USE PIN.

• PINs are optional. If you choose to use a PIN, make sure you remember it. If you forget your PIN, your dealer will have to reset it for you.

Navigation System 99
