Acura NSX 2018 User Manual

2018

NAVIGATION MANUAL

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,

NOTICE

WARNING

however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.

Accessories Precautions

The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS reception.

Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can disrupt the navigation system. If you install any such item, install it away from the navigation display and antenna.

Important Safety Information

Using the navigation system while driving can take your attention away from the road, causing a crash in which you could be seriously injured or killed.

Only operate system controls when the conditions permit you to safely do so.

Avoid focusing on the screen or manually operating the system controls while driving.

Certain on-screen controls are disabled when driving, however most of the voice commands continue to function. Pull to the side of the road if you need to devote more attention and time to look at the screen or access additional menus.

Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.

The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgment and obey traffic laws.

System Limitations

This vehicle’s navigation display, if so equipped, includes mercury-containing components. Upon removal, please reuse, recycle, or dispose of as hazardous waste.

Clean the screen with a soft, damp cloth. You may use a mild cleaner intended for use on navigation screens.

P. 130

00X31-T6N-8100 2018 Acura NSX Navigation Manual NM-05526

2 System Setup P. 15

Start-up 16 Personal Information 18 Display Mode Settings 26 Map & Vehicle 28 Navigation 36 Traffic 45 Other Settings 46 Data Reset 52

2 Navigation P. 53

Entering a Destination 54 Calculating the Route 73 Driving to Your Destination 76 Map Operation 80 Changing Your Route 90 Changing Your Destination 93

2 Other Features P. 107

About Apps Menu 108 ecoRouteTM109 Information Functions 117

2 Troubleshooting P. 123

Troubleshooting 124

2 Reference Information P. 129

System Limitations 130 Customer Assistance 132 Legal Information 134

2 Voice Commands P. 137

Voice Commands 138 List of Categories 140

Quick Reference Guide

System Setup

Navigation

Other Features

Troubleshooting

Reference Information

Voice Commands

Index

P. 2

P. 15

P. 53

P. 107

P. 123

P. 129

P. 137

P. 141

Quick Reference Guide

Store home address

(P18)

home address.

Track route

(P76)

Follow your route in real-time with voice guidance.

Store contacts

(P19)

Store locations to use as the destination.

Enter destination

(P54)

Select your destination using several methods.

Select route

(P74)

Set route preferences and select one of the available routes.

Avoid certain areas

(P39)

Set streets and areas to detour around.

Add waypoints

(P92)

Add “pit stops” along your route.

Traffic Information* (P85)

View and avoid congestion and traffic incidents.

*: Available only in certain areas.

Overview—Functions at a Glance

Navigation

You can select any place/landmark as a destination by using the touchscreen. The navigation system gives you turn-by-turn driving directions to your destination.

Quick Reference Guide

HOME Screen

(Home) Display the HOME screen. VOL (Volume) Increase or decrease the audio volume.

(Menu) Display the map menu.

(Back) Go back to the previous screen.

(Display Mode) Switch between Day and Night modes manually.

Display the map screen.

Navigation

Display the navigation feature that was used the last time. At start-up, the navigation top screen is displayed.

GPS signal strength (P121)

Display the satellites' status.

Where To? (P54)

Select search methods to enter a destination for route guidance.

Apps (P108)

Display the useful functions incorporated into the navigation system.

View Map (P6)

Display the map screen.

Settings (P15)

Change the settings for the navigation functions.

The system displays various functions from the HOME screen. Press the (Home) icon at any time to return to the main HOME screen.

Navigation Top Screen

Display the map screen and operate the navigation features. From the HOME screen, select and then press the (Back) icon. The navigation top screen is displayed.

Quick Reference Guide

Touchscreen Operation

You can operate the system using your finger on the touchscreen. The touchscreen can be operated if you are wearing thin gloves, but it may be more difficult for the system to respond.

Tap

Touch the screen lightly with your finger to select an option on the screen.

Swipe

Lightly sweep your finger side to side or up and down to scroll a list or map.

You can change the touchscreen sensitivity setting.

2 Refer to the Owners Manual.

Slide

Move your finger slowly across the screen to scroll the map.

Pinch In/Out

Open or close your fingers on the screen in a pinching motion to zoom in or out of the map.

Quick Reference Guide

On input search screens, the suggested search terms are displayed. Select to display a list of possible entries.

How to Enter Information

You can enter information (e.g., city names, street names, numbers, and symbols) when prompted on input screens.

Using Voice Commands

When you see in this manual, voice commands are available for that feature.

The system recognizes only certain commands. Available navigation commands (P138)

 Press the (Talk) button, and say the letter, number, or symbol

(e.g., say “1”).

 If a voice command is not recognized, a list is displayed with

possible options.

On list screens:

 Say the number of the list item (e.g., say “Three” to select

item 3).

 Say “Main menu” to return to the voice command menu

screen.

 Say “Back” to return to the previous screen.

 Say “Page Up” to scroll up one page.

 Say “Page Down” to scroll down one page.

 Say “Exit” to end the voice command function.

Using the Touchscreen

Select a character or icon on the screen to select it.

 Select to remove the last entered character.

 Select to remove all entered characters.

 Select to display upper/lower case characters.

 Select to enter a space character.

 Select to display other types of characters.

 Select to change the keypad language.

Quick Reference Guide

Map Screen Legend

Map operation icons

(P80)

Map menu (P81)

Map scale (P80)

Current vehicle position

Streets

Landmark icons

Traffic incident icons

Traffic flow indicator

Traffic is flowing normally.

Traffic is slightly congested.

Traffic is heavily congested or stopped.

Searching specific category (P54)

Traffic has not updated.

Map buttons (P33)

Feature areas

The color of the map is different depending on the selected Map Theme.

Quick Reference Guide

Dashboards (P76)

Next guidance indicator (P76)

Distance to the next guidance point and street name of next guidance point.

Where To? (P54)

Waypoint

Calculated route

Speed limit

Cancel route

Street name of next guidance point

Distance to next guidance pointEstimated time to

next guidance point

Scrolls key

Select this key to scroll the display.

Day Mode Night Mode

Remaining distance

Street name of next guidance point

Next driving maneuver is approaching.

During Route Guidance

During route guidance, route information is displayed on the map screen. You can see the detailed information on the turn information screen.

Map Screen

Guidance Screen

Day or Night Mode

Press the (Display Mode) icon to manually switch between Day and Night modes.

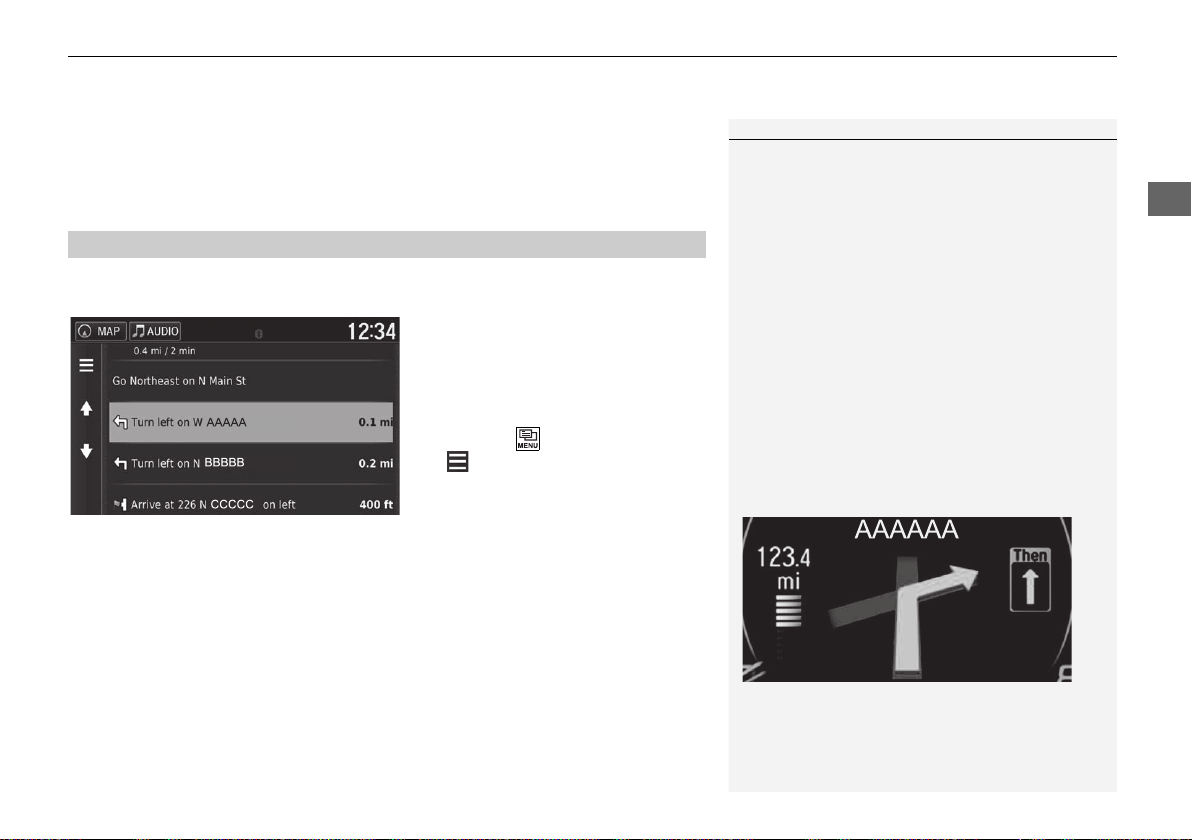

Turn-by-Turn Directions

The next guidance point appears on the Multi-Information Display (MID).

Quick Reference Guide

Navigation—Home Addresses and Going Home

The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home. You can store one home address. (P18) The order of the steps may change depending on the map data loaded on your system.

Storing Your Home Address

a Select . b Select .

c Press the (Menu) icon and then

select Set Home Location.

d Select Enter My Address.

e Select Search All.

f Enter a house number and then select

Done.

g Enter a street and then select Done.

h Select a street from the list.

If the select city screen is displayed, select a city.

i Select an address from the list. j Select Select.

Going Home

a Select . b Select .

c Select Go Home.

Alternatively, you can say “Navigation” and then “Go Home” from any screen.

Quick Reference Guide

Navigation—Entering a Destination

Enter your destination using one of several methods, then follow route guidance on the map to your destination. The order of the steps may change depending on the map data loaded on your system.

a Select . b Select .

c Select Address.

d Select Search All.

e Enter the house number and select

Done if necessary.

f Enter the name of your destination

street and select Done.

g Select your destination street from

the list.

If the select city screen is displayed, select a city.

h Select an address from the list.

i Select Go!.

Route guidance to the destination begins.

 Routes: Choose one of multiple routes.

 : Display your destination map and

save a place.

Quick Reference Guide

Navigation—Changing Route or Destination

You can alter your route by adding waypoints to visit, or changing your destination during route guidance.

Adding a Waypoint (“Pit Stop”)

You can add waypoints along your route.

(P92)

a Select . b Select . c Select a search method. d Select the location to add to the

destination list and select Go!.

e Select Add to Active Route.

f If necessary, edit the order of the

destinations and select Done.

Changing Your Destination

There are several methods you can use to specify a new destination during route guidance.

 Searching nearby hospitals, police

stations, or gas stations (P94) Select the vehicle icon and select an option.

 Selecting an icon on the map (P93)

Select a place/landmark icon or a new area on the map twice.

 Entering a new destination (P96)

Select Where to? and then enter a new destination.

Canceling Your Route

a Select .

Alternatively, you can say “Navigation” and then “Stop route” from any screen.

Help

This navigation system comes with help information, which tells you how to use this navigation. (P117)

a Press the (Home) icon and then

select .

b Press the (Back) icon.

c Select Apps. d Select Help.

e Select a help topic.

Select to search help topics by keyword.

 You can also display a help topic to

select on each menu screen.

Quick Reference Guide

Voice Control Operation

Voice Portal Screen

a Press and release the (Talk)

button. The system prompts you to say a voice command. Press and release the

(Talk) button again to bypass this prompt.

 The system beeps when ready for a

command. Press the (Hang-Up/ Back) button or the (Back) icon to cancel.

b Say “Navigation.”

The Voice Command screen is displayed. After that, follow the voice prompt and say a voice command.

 The audio system is muted during voice

control mode.

 You can use other voice commands on

the Voice Portal screen.

 Set Voice Prompt to Off to bypass the

voice prompt. See the Owner's Manual.

 Carefully read the usage note for the

voice control. Voice Control System (P17)

 You can use other voice commands on

the Voice Command screen for navigation.

Voice Commands (P138)

Voice Command Screen

a After saying “Navigation” from

the Voice Portal screen, the below screen appears.

b Listen for the voice prompt, then say a

voice command.

 You do not need to press the (Talk)

button again in the Voice Command screen.

 Available voice commands are

highlighted on the screen.

Quick Reference Guide

Troubleshooting

For more Information

(P123)

Why does the vehicle position icon on the map appear slightly off my actual position, especially at intersections?

This is normal. The navigation system is unaware of the width of intersections. Large differences in vehicle position can indicate a temporary loss of the GPS signal.

Why does the “Arrival time” display sometimes increase even though I am getting closer to my destination?

The “Arrival time” is based on the speed limit on each road. Depending on the traffic conditions, the “arrival time” may be calculated to be earlier or later.

Why does my clock frequently change the time forward and backward by one hour?

The clock setting is automatically updated based on your GPS location. If you are driving near a time zone border, the automatic update likely is the reason.

How do I turn on the navigation system voice guidance?

Press the (Home) icon. Select Settings > System > Sound/Beep tab. Turn up Guidance Volume, if guidance volume is low.

Select and then press the (Back) icon. Select Settings > Navigation. Check that Voice Prompts is not set to off. For more details, see the Owner’s Manual.

How do I specify a destination when an entered city or street could not be found?

Try selecting the destination directly from the map.

How to Use This Manual

Searching the Table of Contents

(P1)

First, find the general chapter related to what you are looking for (e.g., entering a destination from the Saved Places). Then, go to that chapter to view a more specific table of contents.

Searching the Index

(P141)

This more detailed table of contents shows you exactly what information is listed by section and title.

The Index consists of main terms and subentries. The sub-entries help you get to the desired page depending on what you are looking for.

Table of Contents

Chapter Contents

Navigation Screen

Index

Two types of Tables of Contents help you find your desired information.

Menu items displayed on the navigation screen (e.g., Saved) can be found individually in the Index.

More Detailed

Contents

Go to the

This section explains different methods on how you can easily find information in this manual.

Select the item on the system control panel.

Menu Tree

The menu tree helps guide you through the system’s menu options. To get to your desired function, follow the menu tree in order of the steps shown.

Select the menu option.

After following the menu tree, step-by-step instructions explain how to achieve the desired result.

* Sample pages and images in this section may differ from the actual ones.

Select Saved.

(Home)

Saved

System Setup

This section describes the start-up procedure and the navigation and setup functions.

Start-up ....................................................16

Voice Control System ..............................17

Voice Recognition ...................................17

Personal Information...............................18

Setting Home Location............................18

Saved Locations ......................................19

Display Mode Settings ............................26

Switching Display Mode Manually ...........26

Map & Vehicle ..........................................28

Vehicle....................................................29

Driving Map View (Map Orientation) .......30

Map Detail..............................................31

Map Theme ............................................32

Map Buttons...........................................33

Map Layers ............................................ 34

Dashboards............................................ 34

myMaps................................................. 35

Navigation............................................... 36

Calculation Mode................................... 37

Avoidances ............................................ 38

Custom Avoidances ............................... 39

Traffic....................................................... 45

Other Settings......................................... 46

Units ...................................................... 46

Language & Keyboard............................ 47

Device.................................................... 50

Data Reset ............................................... 52

Reset Factory Default Settings ................ 52

System Setup

Start-up

1 Start-up

Avoid focusing on the screen and drive safely following the actual traffic restrictions.

When you use the navigation system, the system may close other apps.

When you select Navigation, the system displays the navigation feature that was used the last time. At start-up, the navigation top screen is displayed.

The navigation system starts automatically when you set the power mode to ACCESSORY or ON. At start-up, the following confirmation screen is displayed.

Limitations for Manual Operation

■

Certain manual functions are disabled or inoperable while the vehicle is in motion. You cannot select a grayed-out option until the vehicle is stopped. Voice commands are still operable while the vehicle is in motion.

1. Select OK.

u The HOME screen is displayed. u If you do not select OK, the

system will automatically select OK after a certain period of time.

u The system will automatically

start up the feature that was used the last time.

2. Select .

u The map screen is displayed. u When you want to display the

navigation top screen, you press the (Back) icon.

System Setup

Voice Control System

1 Voice Control System

When you press the (Talk) button, the system prompts you to say a voice command. Press and release the (Talk) button again to bypass this prompt and give a command.

1 Voice Recognition

The voice control system can only be used from the driver’s seat because the microphone unit removes noises from the passenger’s side.

Your vehicle has a voice control system that allows hands-free operation of the navigation system functions. The voice control system uses the (Talk) and (Hang-Up/Back) buttons on the steering wheel and a microphone near the map lights on the ceiling. For details of the (Talk) button, (Hang-Up/Back) button and microphone position, see the Owner's Manual.

Voice Recognition

To achieve optimum voice recognition when using the navigation voice control system:

• Make sure the correct screen is displayed for the voice command that you are using. The system recognizes only certain commands. Available navigation voice command.

2 Voice Commands P. 138

• Close the windows.

• Adjust the dashboard and side vents so air does not blow onto the microphone on the ceiling.

• Speak clearly in a clear, natural speaking voice without pausing between words.

• Reduce any background noise if possible. The system may misinterpret your command if more than one person is speaking at the same time.

System Setup

Personal Information

1 Personal Information

You can also display the same screen by selecting on the Where To? screen.

If you want to delete a shortcut(s), select Remove Shortcut(s).

2 Deleting Shortcuts P. 59

The home location can be overwritten.

Setting Home Location

H uu (Menu)

Use the personal information menu to set your home location.

The following options are available:

• Enter My Address: Sets the home location by entering the address.

2 Storing Your Home Address P. 8

• Use Current Location: Sets your current location as your home location.

• Recently Found: Sets the home location from a recently found location.

1. Select Set Home Location.

2. Select an option.

u Select Use Current Location

to set home location.

u Select Enter My Address or

Recently Found, proceed to

steps 3 and 4.

3. Select the home location.

4. Select Select.

System Setup

Saved Locations

You can save locations so you can quickly find them and create routes to them.

■

H u

uuPersonal Information u Saved Locations

Saving a Saved Location

1. Select a search method.

u Find a location that you want to

save.

2 Entering a Destination P. 54

2. Select .

3. Press the (Menu) icon or select

4. Select Save.

u If necessary, enter a name and

select Done.

5. Select OK.

Continued

uuPersonal Information u Saved Locations

System Setup

Saving a Saved Location Manually

■

H u (Back) u View Map

1. Select a destination from the map.

2 Map Input P. 72

2. Select the destination name at the

bottom of the map.

3. Press the (Menu) icon or select .

4. Select Save.

u On some places other than POI,

you can edit the place name.

5. Select OK.

System Setup

Saving Your Current Location

1 Saving Your Current Location

Vehicle position may not be displayed when:

•

The vehicle is traveling off-road.

•

The vehicle position data cannot be updated.

■

H u (Back) u View Map

uuPersonal Information u Saved Locations

1. Select the vehicle icon.

2. Select Save.

3. Enter a name of the location.

4. Select Done.

5. Select OK.

Continued

uuPersonal Information u Saved Locations

System Setup

Editing a Saved Location

■

H uuSaved

1. Select a saved location you want

to edit.

2. Select .

3. Press the (Menu) icon or select

4. Select Edit.

System Setup

The following options are available:

• Name: Enters a new name for the location.

• Phone Number: Enters a phone number.

• Categories: Creates or changes the category in which this location is saved.

• Change Map Symbol: Select a new symbol.

uuPersonal Information u Saved Locations

5. Select an option.

Continued

uuPersonal Information u Saved Locations

System Setup

Deleting a Saved Location

■

H uuSaved

1. Select a saved location you want

to delete.

2. Select .

3. Press the (Menu) icon or select

4. Select Delete.

5. Select Yes.

System Setup

■

H uuSaved

uuPersonal Information u Saved Locations

Deleting Saved Locations

1. Press the (Menu) icon or select .

2. Select Delete Saved Places.

3. Select a saved location you want

to delete.

u Select Select All to delete all

saved locations.

4. Select Delete.

5. Select Yes.

System Setup

Display Mode Settings

1 Switching Display Mode Manually

You can also adjust the display brightness by sliding or swiping on the Brightness bar.

You can change the touchscreen sensitivity setting.

2 Refer to the Owners Manual.

Switching Display Mode Manually

Set the screen brightness separately for Day and Night modes. Press the (Display Mode) icon to cycle through the display modes (Day to Night to Off).

Press the (Display Mode) icon.

u The Brightness bar is displayed for

a few seconds.

u Select or to adjust the

brightness.

uuDisplay Mode SettingsuSwitching Display Mode Manually

System Setup

Illumination

control

(Display

Mode) icon

Sunlight sensor (see your Owner’s Manual for location)

Dash illumination adjustment buttons (see your Owner’s Manual for location)

Headlights (Auto/ On/Off)

Operation

Selects Day or Night display mode when the user wants to change the brightness of the display temporarily. Remember: This icon overrides all other display brightness adjustments either set automatically by the sunlight sensor or manually from the System settings screen.

If the sunlight sensor detects daylight and the headlights are turned on, the system automatically overrides the Night display and displays the Day display mode. Remember: If desired, use the (Display Mode) icon to override this automatic choice.

When the headlights are turned on, and you wish to have the Day display mode, adjust the illumination to the full brightness (beeps). Remember: Adjust the dash brightness back to midrange to allow auto switching by sensing the headlights are on or off.

When turned on, the display changes to Night display mode. The previous three controls listed above can “cancel” this function. Remember: Use the (Display Mode) icon to adjust the brightness of the display.

System Setup

Map & Vehicle

H u (Back) u Settings u Map & Vehicle

Change the map settings.

The following options are available:

• Vehicle: Changes the icon to represent your position on the map.

2 Vehicle P. 29

• Driving Map View: Sets the perspective on the map.

2 Driving Map View (Map Orientation) P. 30

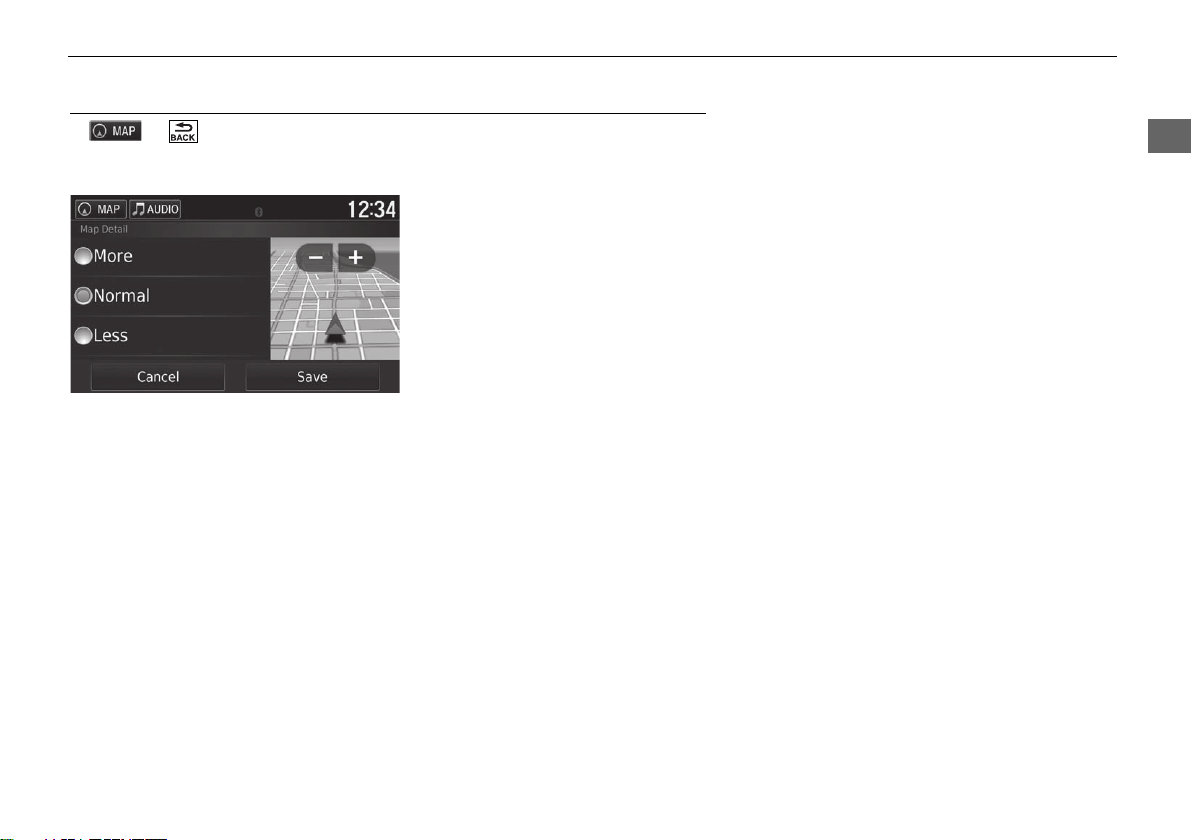

• Map Detail: Sets the level of detail on the map. More detail may cause the map to draw slower.

2 Map Detail P. 31

• Map Theme: Changes the color of the map data.

2 Map Theme P. 32

• Map Buttons: Sets which icons are included on the map. Up to three icons can be included on the map.

2 Map Buttons P. 33

• Map Layers: Sets the data that appears on the map.

2 Map Layers P. 34

• Dashboards: Sets the map dashboard layout.

2 Dashboards P. 34

Select an option.

+ 117 hidden pages
