Acura ILX User Manual

2014 ILX

Online Reference Owner's Manual

QRG

This owner’s manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of your vehicle. You may find descriptions of equipment and features that are not on your particular model.

Images throughout this owner’s manual (including the front cover) represent features and equipment that are available on some, but not all, models. Your particular model may not have some of these features.

This owner’s manual is for vehicles sold in the United States and Canada.

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.

QRG

TOC

Index

Navigation Key

Quick Reference Guide

Chapter Table of Contents

Index

Book Table of Contents

2 Safe Driving P. 21

For Safe Driving P. 22 Seat Belts P. 26 Airbags P. 33

2 Instrument Panel P. 63

Indicators P. 64 Gauges and Multi-Information Display P. 78

2 Controls P. 91

Setting the Clock P. 92 Locking and Unlocking the Doors P. 93 Opening and Closing the Moonroof P. 111 Adjusting the Seats P. 123

2 Features P. 141

Audio System P. 142 Audio System Basic Operation P. 145 HomeLink® Universal Transceiver

P. 177

2 Driving P. 209

Before Driving P. 210 Towing a Trailer P. 215 Multi-View Rear Camera P. 242 Refueling P. 243

2 Maintenance P. 247

Before Performing Maintenance P. 248 Maintenance MinderTM P. 251 Checking and Maintaining Wiper Blades P. 284 Climate Control System Maintenance P. 297

2 Handling the Unexpected P. 303

Tools P. 304 If a Tire Goes Flat P. 305 Overheating P. 318 Indicator, Coming On/Blinking P. 320

2 Information P. 329

Specifications P. 330 Identification Numbers P. 334 Emissions Testing P. 337 Warranty Coverages P. 339

Child Safety P. 48 Exhaust Gas Hazard P. 60 Safety Labels P. 61

Contents

2014 ILX

Quick Reference Guide

P. 2

Opening and Closing the Trunk P. 102 Security System P. 106 Opening and Closing the Windows P. 108 Operating the Switches Around the Steering Wheel P. 112 Adjusting the Mirrors P. 121 Interior Lights/Interior Convenience Items P. 131 Climate Control System P. 136

Audio Error Messages* P. 170 General Information on the Audio System P. 173 Bluetooth® HandsFreeLink® P. 179

When Driving P. 216 Braking P. 237 Parking Your Vehicle P. 241 Fuel Economy P. 245 Accessories and Modifications P. 246

Maintenance Under the Hood P. 256 Replacing Light Bulbs P. 274 Checking and Maintaining Tires P. 286 Battery P. 295 Remote Transmitter Care P. 296 Cleaning P. 298

Engine Does Not Start P. 311 Jump Starting P. 314 Shift Lever Does Not Move P. 317 Fuses P. 324 Emergency Towing P. 327

Safe Driving

Instrument Panel

Controls

Features

Driving

Maintenance

Handling the Unexpected

Information

Index

P. 21

P. 63

P. 91

P. 141

P. 209

P. 247

P. 303

P. 329

P. 343

Devices that Emit Radio Waves P. 335 Reporting Safety Defects P. 336 Authorized Manuals P. 341 Client Service Information P. 342

Quick Referen ce Guide

QRG

TOC

Chapter Table of Contents

Navigation Key

Index

Home

Book Table of Contents

Quick Reference Guide - 2014 ILX

❙ Audio System (P 142)

❙ Rear Window Defogger/

Heated Mirror Button

(P 120)

❙ Steering Wheel Adjustments (P 120)

❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 233)

❙ Climate Control System (P 136)

❙ System Indicators (P 64) ❙ Gauges (P 78) ❙ Multi-Information Display (P 79)

❙ Hazard Warning Button

❙ ENGINE START/STOP Button (P 112)

❙ Navigation System

() See Navigation System Manual

❙ Audio/Information Screen

(P 146)

QRG

Quick Reference Guide

Visual Index

Index

* Not available on all models

❙ Wipers/Washers (P 118)

❙ Cruise Control Buttons (P 229)

❙ Remote Audio Control Buttons (P 149)

❙ SEL/RESET Button (P 79) ❙ (Information) Button (P 79)

❙ Brightness Control (P 119)

❙ Headlights/Turn Signals (P 114) ❙ Fog Lights

(P 117)

❙ Paddle Shifter (Shift down)

(P 225)

❙ Paddle Shifter (Shift up)

(P 225)

❙ Horn (Press an area around .)

❙ Navigation System Voice Control Buttons

() See Navigation System Manual

❙ Bluetooth® HandsFreeLink® System

Voice Control Buttons

(P 179)

* Not available on all models

QRG

Quick Reference Guide - 2014 ILX

Index

❙ Door Mirror Controls (P 122)

❙ Parking Brake (P 237)

❙ Rearview Mirror (P 121)

❙ Power Door Lock Master Switch (P 100)

❙ Power Window Switches (P 108)

❙ Driver's Front Airbag (P 36)

❙ Seat Heater Switches

(P 135)

❙ Trunk Release (P 102) ❙ Fuel Fill Door Release Handle (P 244)

❙ Hood Release Handle (P 258)

❙ Interior Fuse Box (P 325)

❙ Passenger's Front Airbag

(P 36)

❙ USB Adapter Cable (P143 )

❙ Shift Lever

Automatic Transmission

(P 222)

Manual Transmission*

(P 226)

❙ Glove Box (P 132)

❙ Auxiliary Input Jack (P 143) ❙ Accessory Power Socket

(P 134)

QRG

Quick Reference Guide - 2014 ILX

Visual Index

Index

* Not available on all models

QRG

Quick Reference Guide - 2014 ILX

❙ Ceiling Light (P 131)

❙ Side Curtain Airbags (P 43) ❙ Coat Hook (P 134)

❙ Grab Handle

❙ Seat Belts (P 26)

❙ Moonroof Switch (P 111)

❙ Map Lights (P 131)

❙ Sun Visors

❙ Vanity Mirrors

❙ Front Seat (P 123)

❙ Side Airbags (P 40)

❙ Seat Belt (Installing a Child Seat) (P 55)

Index

❙ Seat Belt to Secure a Child Seat (P 57) ❙ Rear Seat (P 129) ❙ LATCH to Secure a Child Seat (P 53)

❙ Maintenance Under the Hood (P 256) ❙ Windshield Wipers (P 118)

❙ Tires (P 286)

❙ Door Lock/Unlock Control (P 95)

❙ Power Door Mirrors (P 122)

❙ Headlights (P 114) ❙ Front Turn Signal/Parking/Side Marker Lights

(P 114)

❙ How to Refuel (P 244) ❙ High-Mount Brake Light (P 283)

❙ Emergency Trunk Release Lever (P 105)

❙ Opening/Closing the Trunk (P 102)

❙ Fog Lights

(P 117)

❙ Back-Up Lights (P 282)

❙ Multi-View Rear Camera (P 242)

❙ Trunk Release Button (P 103)

❙ Rear Side Marker Lights (P 280) ❙ Brake/Taillights (P 280)

❙ Rear Turn Signal Lights (P 280)

QRG

Quick Reference Guide - 2014 ILX

Visual Index

(P 257)

(P 284)

Index

(P 274)

(P 305)

(P 276)

(P 278)

(P 279)

* Not available on all models

Fasten your lap belt as low as possible.

QRG

Quick Reference Guide - 2014 ILX

Index

Safe Driving (P 21)

Airbags (P 33)

● Your vehicle is fitted with airbags to help protect you and your passengers during a moderate-to-severe collision.

Child Safety (P 48)

● All children 12 and younger should be seated in the rear seat.

● Smaller children should be properly restrained in a forward-facing child seat.

● Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard (P 60)

● Your vehicle emits dangerous exhaust gases that contain carbon monoxide. Do not run the engine in confined spaces where carbon monoxide gas can accumulate.

Seat Belts (P 26)

● Fasten your seat belt and sit upright well back in the seat.

● Check that your passengers are wearing their seat belts correctly.

Before Driving Checklist (P 25)

● Before driving, check that the front seats, head restraints, steering wheel, and mirrors have been properly adjusted.

Instrument Panel (P 63)

System Indicators

Malfunction Indicator Lamp

Low Oil Pressure Indicator

Charging System Indicator

Anti-lock Brake System (ABS) Indicator

Vehicle Stability Assist (VSA®) System Indicator

VSA® OFF Indicator

Electric Power Steering (EPS) System Indicator

Lights Reminders

Lights On Indicator

High Beam Indicator

Fog Light Indicator

Immobilizer System Indicator

Seat Belt Reminder Indicator

System Indicators

CRUISE CONTROL

Indicator

System Message Indicator

Parking Brake and Brake System Indicator

Supplemental Restraint System Indicator

Side Airbag Off Indicator

Door and Trunk Open Indicator

CRUISE MAIN Indicator

Low Fuel Indicator

Gauges (P 78)/Multi-Information Display (P 79)/System Indicators (P 64)

Low Tire Pressure/ TPMS Indicator

Turn Signal and Hazard Warning Indicators

Keyless Access System Indicator

Temperature Gauge

Security System Alarm Indicator

Fuel Gauge

Tachometer

Multi-Information Display

Speedometer

Shift Lever Position Indicator

Gear Position Indicator

Canada

U.S.

Canada

U.S.

QRG

Quick Reference Guide - 2014 ILX

Index

* Not available on all models

Controls (P 91)

Turn Signal Control Lever

Right

Left

Light Control Switches

Low Beam

High Beam

Flashing

Wiper/Washer Control Lever

Adjustment Ring

: Long Delay : Short Delay

MIST OFF INT: Low speed with intermittent LO: Low speed wipe HI: High speed wipe

Pull toward you to spray washer fluid.

* Not available on all models

QRG

Quick Reference Guide - 2014 ILX

ENGINE START/STOP Button

Press the button to changes the vehicle's power mode.

(P 112)

Turn Signals (P 114)

Wipers and Washers

(P 118)

Index

Lights (P 114)

Trunk Release

Selector Switch

Adjustment Switch

Power Window Lock Button

Window Switch

Indicator

QRG

Quick Reference Guide - 2014 ILX

Steering Wheel (P 120)

● To adjust, pull the adjustment lever towards you, adjust to the desired position, then lock the lever back in place.

Unlocking the Front Doors from the Inside

(P 99)

● Pull either front door inner handle to unlock and open it at the same time.

Trunk (P 102)

● To unlock and open the trunk:

• Pull the trunk release.

• Press the trunk release button on the

keyless access remote.

• Press the trunk release button on the trunk lid.

Power Door Mirrors

(P 122)

● With the power mode in ON, move the selector switch to L or R.

● Push the appropriate edge of the adjustment switch to adjust the mirror.

Power Windows (P 108)

● With the power mode in ON, open and close the power windows.

● If the power window lock button is in the off position, each passenger's window can be opened and closed with its own switch.

● If the power window lock button is in the on position (indicator is on), each passenger's window switch is disabled.

Index

Climate Control System (P 136)

On models with navigation system

Driver's Side Temperature Control Dial

A/C (Air Conditioning) Button

Air flows from floor and windshield defroster vents.

Air flows from floor vents.

Air flows from floor and dashboard vents.

Air flows from dashboard vents.

AUTO Button

(Recirculation) Button

Passenger's Side Temperature Control Dial

MODE Control Button

(ON/OFF) Button

SYNC (Synchronized) Button

(Windshield Defroster) Button

/ (Fan Control) Buttons

(Rear Window Defogger/

Heated Mirror) Button

Models without navigation system

Models with navigation system

● Press the AUTO button to activate the climate control system.

QRG

● Press the button to turn the system on or off.

Quick Reference Guide - 2014 ILX

● Press the button to defrost the windshield.

Clock (P 92)

a Press the CLOCK (AUX) button until the

displayed time begins flashing.

The climate control system is voice operable. See Navigation System Manual for complete details.

Index

b Press Preset (4 (Hour) or (5 (Minute)

to set the time. Press Preset to set the time to the nearest hour.

(6 (Reset)

c Press the CLOCK button again to set

the time.

The navigation system receives signals from GPS satellites, updating the clock automatically.

Features (P 141)

CH Button

MODE Button

VOL Button

QRG

Quick Reference Guide - 2014 ILX

Audio system (P 142) For navigation system operation

() See Navigation System Manual

Index

AM Button FM Button

(CD Eject) Button

(XM®) Button

FM/AM Button

FOLDER Bar

CATEGORY Bar

SCAN Button

BACK Button

● Audio Remote Controls (P 149)

Audio/ Information Screen

● VOL (Volume) Button

VOL / (Volume/Power) Knob

CD Slot

CD Button

AUX Button

Preset Buttons

SKIP Bar

A.SEL (Auto Select)

Button

DISPLAY Button

SETUP ButtonPHONE Button

Selector Knob

Press / to adjust the volume up/ down.

● MODE Button Press and release to change the audio mode: FM1/FM2/AM/XM1

● CH (Channel) Button Radio:Press and release to change the

preset station. Press and hold to select the next or previous strong station.

CD/USB device:

Press and release to skip to the beginning of the next song or return to the beginning of the current song. Press and hold to change a folder.

/XM2*/CD/AUX.

Driving (P 209)

Release Button

Depress the brake pedal and press the release button to move out of

(P.

Move the shift lever without pressing the release button.

Press the release button to move the shift lever.

Manual Transmission (P 226) Automatic Transmission (P 222)

● Shift to

(P and depress the brake pedal when starting

the engine.

● Shifting

Park

Turn off or start the engine. Transmission is locked.

Reverse

Neutral

Transmission is not locked.

S Position

Sequential shift mode can be used.

Drive

Normal driving. D-paddle shift mode can be used.

Paddle Shifters (P225)

● Paddle shifters allow you to shift gears much like a manual transmission (1st through 5th). This is useful for engine braking.

● D-paddle shift mode: The transmission will shift back to automatic mode once the system detects that the vehicle is cruising.

● Sequential shift mode: Holds the selected gear, and the M indicator comes on.

● The selected gear position is shown in the instrument panel.

M Indicator

Shift Lever Position Indicator

Shift Lever

Selected Gear Number

Shift Down (- Paddle Shifter

Shift Up (+ Paddle Shifter

* Not available on all models

QRG

Quick Reference Guide - 2014 ILX

Index

U.S. models only

QRG

Quick Reference Guide - 2014 ILX

VSA® OFF Button (P 233)

● The vehicle stability assist (VSA®) system helps stabilize the vehicle during cornering, and helps maintain traction while accelerating on loose or slippery road surfaces.

● VSA® comes on automatically every time you start the engine.

● To turn VSA® on or off, press and hold the button until you hear a beep.

Cruise Control (P 229)

● Cruise control allows you to maintain a set speed without keeping your foot on the accelerator pedal.

● To use cruise control, press the CRUISE button, then press DECEL/SET once you have achieved the desired speed (above 25 mph or 40 km/h).

Tire Pressure Monitoring System (TPMS)

● TPMS monitors tire pressure.

● TPMS is turned on automatically every

time you start the engine.

(P 234)

Refueling (P 243)

Fuel recommendation: Unleaded premium gasoline with a pump octane

number 91 or higher recommended

Fuel tank capacity: 13.2 US gal (50 L)

a Push the fuel fill door

release handle.

b Turn the fuel fill

cap slowly to remove the cap.

c Place the cap in the

holder on the fuel fill door.

d After refueling, screw

the cap back on until it clicks at least once.

Index

Maintenance (P 247)

Under the Hood (P 256)

● Check engine oil, engine coolant, and windshield washer fluid. Add when necessary.

● Check brake fluid and clutch fluid.

● Check the battery condition monthly.

a Pull the hood release handle under the corner of

the dashboard.

b Locate the hood latch lever, slide the lever and lift

the hood.

c When finished, close the hood and make sure it is firmly

locked in place.

Lights (P 274)

● Inspect all lights regularly.

Wiper Blades (P 284)

● Replace blades if they leave streaks across the windshield.

Tires (P 286)

● Inspect tires and wheels regularly.

● Check tire pressures regularly.

● Install snow tires for winter driving.

QRG

Quick Reference Guide - 2014 ILX

(P 257)

Index

QRG

Quick Reference Guide - 2014 ILX

Handling the Unexpected (P 303)

Flat Tire (P 305)

● Park in a safe location and replace the flat tire with the compact spare tire in the trunk.

Engine Won't Start (P 311)

● If the battery is dead, jump start using a booster battery.

Overheating (P 318)

● Park in a safe location. If you do not see steam under the hood, open the hood, and let the engine cool down.

Index

Indicators Come On

(P 320)

● Identify the indicator and consult the owner's manual.

Blown Fuse (P 324)

● Check for a blown fuse if an electrical device does not operate.

Emergency Towing

(P 327)

● Call a professional towing service if you need to tow your vehicle.

What to Do If

QRG

Quick Reference Guide - 2014 ILX

The power mode does not change from VEHICLE OFF (LOCK) to ACCESSORY. Why?

●

The steering wheel may be locked.

●

Move the steering wheel left and right after pressing the ENGINE START/STOP button.

Index

The power mode does not change from ON to VEHICLE OFF (LOCK). Why?

Why does the brake pedal pulsate slightly when applying the brakes?

The rear door cannot be opened from inside the vehicle. Why?

The shift lever should be moved to (P.

This can occur when the ABS activates, and does not indicate a problem. Apply firm, steady pressure on the brake pedal. Never pump the brake pedal.

Check if the childproof lock is in the LOCK position. If so, open the rear door with the outside door handle. To cancel this function, push the lever to the UNLOCK position.

QRG

Quick Reference Guide - 2014 ILX

Why do the doors lock after I unlocked the doors using a remote transmitter?

If you do not open the doors within 30 seconds, the doors are relocked automatically for security.

Index

Why does the beeper sound when I open the driver's door?

Why does the beeper sound when I start driving?

Why do I hear a screeching sound when I apply the brake pedal?

Is it possible to use unleaded gasoline with a Pump Octane Number (PON) of 87 or higher on this vehicle?

The beeper sounds when:

●

The power mode is in ACCESSORY.

●

The exterior lights are left on.

The beeper sounds when:

●

Driver and/or front passenger are not wearing their seat belts.

●

The parking brake lever is not fully released.

The brake pads may need to be replaced. Have your vehicle inspected by a dealer.

Unleaded gasoline with a Pump Octane Number (PON) of 91 or higher is recommended. Use of lower octane gasoline can cause occasional metallic knocking noise in the engine and will result in decreased engine performance. Use of gasoline with a pump octane less than 87 can lead to engine damage.

California Proposition 65 Warning

WARNING: This product contains or emits

chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

NOTICE

QRG

Quick Reference Guide - 2014 ILX

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

Event Data Recorders

This vehicle is equipped with an event data recorder (EDR).

The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related

to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

• How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and

Index

crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

The data belongs to the vehicle owner and may not be accessed by anyone else except as legally required or with the permission of the vehicle owner.

Service Diagnostic Recorders

This vehicle is equipped with service-related devices that record information about powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains confidential.

California Perchlorate Contamination Prevention Act

The airbags, seat belt tensioners, and CR type batteries in this vehicle may contain perchlorate materials - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/

As you read this manual, you will find information that is preceded by a symbol. This information is intended to help you avoid damage to your vehicle, other property, or the environment.

3DANGER

3WARNING

3CAUTION

QRG

Quick Reference Guide - 2014 ILX

A Few Words About Safety

Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

You will find this important safety information in a variety of forms, including:

● Safety Labels - on the vehicle.

● Safety Messages - preceded by a safety alert symbol

one of three signal words: DANGER, WARNING, or CAUTION. These signal words mean:

You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

3 and

Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.

Index

You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.

You CAN be HURT if you don't follow instructions.

● Safety Headings - such as Important Safety Precautions.

● Safety Section - such as Safe Driving.

● Instructions - how to use this vehicle correctly and safely.

This entire book is filled with important safety information - please read it carefully.

QRG

2014 ILX

Safe Driving

You can find many safety recommendations throughout this chapter, and throughout this manual.

Index

For Safe Driving

Important Safety Precautions ............. 22

Your Vehicle's Safety Features............ 24

Seat Belts

About Your Seat Belts........................ 26

Fastening a Seat Belt.......................... 29

Seat Belt Inspection............................ 32

Airbags

Airbag System Components............... 33

Types of Airbags ................................ 36

Front Airbags (SRS) ............................ 36

Side Airbags....................................... 40

Side Curtain Airbags .......................... 43

Airbag System Indicators.................... 44

Airbag Care ....................................... 47

Child Safety

Protecting Child Passengers ............... 48

Safety of Infants and Small Children.......50

Safety of Larger Children ................... 58

Exhaust Gas Hazard

Carbon Monoxide Gas....................... 60

Safety Labels

Label Locations .................................. 61

Safe Driving

1Important Safety Precautions

Some states, provinces and territories prohibit the use of cell phones other than hands-free devices by the driver while driving.

QRG

2014 ILX

TOC

For Safe Driving

The following pages explain your vehicle's safety features and how to use them properly. The safety precautions below are ones that we consider to be among the most important.

Important Safety Precautions

■ Always wear your seat belt

A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly.

■ Restrain all children

Children age 12 and under should ride properly restrained in a back seat, not the front seat. Infants and small children should be restrained in a child seat. Larger children should use a booster seat and a lap/shoulder seat belt until they can use the belt properly without a booster seat.

■ Be aware of airbag hazards

While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual.

Index

■ Don't drink and drive

Alcohol and driving don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don't drink and drive, and don't let your friends drink and drive, either.

QRG

2014 ILX

■ Pay appropriate attention to the task of driving safely

Engaging in cell phone conversation or other activities that keep you from paying

TOC

close attention to the road, other vehicles, and pedestrians could lead to a crash.

Safe Driving

Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.

■ Control your speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.

■ Keep your vehicle in safe condition

Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance.

uuFor Safe DrivinguImportant Safety Precautions

Index

uuFor Safe DrivinguYour Vehicle's Safety Features

Safe Driving

1Your Vehicle's Safety Features

Your vehicle is equipped with many features that work together to help protect you and your passengers during a crash.

Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering column, and tensioners that tighten the front seat belts in a sufficient crash.

However, you and your passengers cannot take full advantage of these features unless you remain seated in the correct position and always wear your seat belts. In fact, some safety features can contribute to injuries if they are not used properly.

Safety Cage Crush Zones Seats and Seat-Backs Head Restraints Collapsible Steering Column Seat Belts Front Airbags

Side Curtain Airbags Door Locks

Occupant Position Detection System (OPDS) Sensor

Side Airbags

Seat Belt Tensioners

2014 ILX

QRG

Your Vehicle's Safety Features

9 9

TOC

Index

The following checklist will help you take an active role in protecting yourself and your passengers.

1Safety Checklist

If the door and trunk open indicator is on, a door and/or the trunk is not completely closed. Close all doors and the trunk tightly until the indicator goes off.

2 Door and Trunk Open Indicator P. 69

QRG

2014 ILX

Safety Checklist

■

For the safety of you and your passengers, make a habit of checking these items

TOC

Safe Driving

each time before you drive.

• After everyone has entered the vehicle, be sure all doors are closed and locked. Locking the doors helps prevent an occupant from being ejected and an outsider from unexpectedly opening a door.

2 Locking/Unlocking the Doors from the Inside P. 99

• Adjust your seat to a position suitable for driving. Be sure the front seats are adjusted as far to the rear as possible while allowing the driver to control the vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a crash.

2 Adjusting the Seats P. 123

• Adjust head restraints to the proper position. Head restraints are most effective when the center of the head restraint aligns with the center of your head. Taller persons should adjust their head restraint to the highest position.

2 Adjusting the Head Restraints P. 126

• Always wear your seat belt, and make sure you wear it properly. Confirm that any passengers are properly belted as well.

2 Fastening a Seat Belt P. 29

uuFor Safe DrivinguYour Vehicle's Safety Features

Index

• Protect children by using seat belts or child seats according to a child's age, height and weight.

2 Child Safety P. 48

Safe Driving

Seat Belts

1About Your Seat Belts

Seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury.

Most states and all Canadian provinces and territories require you to wear seat belts.

WARNING

Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.

Be sure you and your passengers always wear seat belts and wear them properly.

2014 ILX

QRG

TOC

About Your Seat Belts

Seat belts are the single most effective safety device because they keep you connected to the vehicle so that you can take advantage of many built-in safety features. They also help keep you from being thrown against the inside of the vehicle, against other passengers, or out of the vehicle. When worn properly, seat belts also keep your body properly positioned in a crash so that you can take full advantage of the additional protection provided by the airbags.

In addition, seat belts help protect you in almost every type of crash, including:

- frontal impacts

- side impacts

- rear impacts

- rollovers

■ Lap/shoulder seat belts

Index

All five seating positions are equipped with lap/shoulder seat belts with emergency locking retractors. In normal driving the retractor lets you move freely while keeping some tension on the belt. During a collision or sudden stop the retractor locks to restrain your body. The front passenger's and rear seat belts also have a lockable retractor for use with child seats.

2 Installing a Child Seat with a Lap/Shoulder Seat Belt P. 55

1About Your Seat Belts

If a rear seat passenger moves around and extends the seat belt, the lockable retractor may activate. If this happens, release the retractor by unfastening the seat belt and allow the belt to retract completely. Then refasten the belt.

1Seat Belt Reminder

The indicator will also come on if a front passenger does not fasten their seat belt within 6 seconds after the power mode is set to ON.

When no one is sitting in the front passenger's seat, or a child or small adult is riding there, the indicator will not come on.

This is because the weight sensors in the seat cannot detect their presence.

QRG

2014 ILX

■ Proper use of seat belts

Follow these guidelines for proper use:

TOC

• All occupants should sit upright, well back in the seat, and remain in that position

Safe Driving

Index

for the duration of the trip. Slouching and leaning reduces the effectiveness of the belt and can increase the chance of serious injury in a crash.

• Never place the shoulder part of a lap/shoulder seat belt under your arm or behind your back. This could cause very serious injuries in a crash.

• Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.

• Do not put any accessories on the seat belts. Devices intended to improve comfort or reposition the shoulder part of a seat belt can reduce the protective capability and increase the chance of serious injury in a crash.

Seat Belt Reminder

■

Your vehicle monitors front seat belt use. If the power mode is set to ON before the driver's seat belt is fastened, a beeper will sound and the indicator will blink. If the driver does not fasten the belt before the beeper stops, the indicator will remain on.

The beeper will also periodically sound and the indicator will blink while driving until the driver's and front passenger’s seat belts are fastened.

Continued

uuSeat BeltsuAbout Your Seat Belts

Safe Driving

1Automatic Seat Belt Tensioners

The seat belt tensioners can only operate once. If a tensioner is activated, the SRS indicator will come on. Have a dealer replace the tensioner and thoroughly inspect the seat belt system as it may not offer protection in a subsequent crash.

During a moderate-to-severe side impact, the tensioner on that side of the vehicle also activates.

QRG

2014 ILX

TOC

uuSeat BeltsuAbout Your Seat Belts

Automatic Seat Belt Tensioners

■

The front seats are equipped with automatic seat belt tensioners to enhance safety.

The tensioners automatically tighten the front seat belts during a moderate-tosevere frontal collision, sometimes even if the collision is not severe enough to inflate the front airbags.

Index

Fastening a Seat Belt

1Fastening a Seat Belt

No one should sit in a seat with an inoperative seat belt or one that does not appear to be working correctly. Using a seat belt that is not working properly may not protect the occupant in a crash. Have a dealer check the belt as soon as possible.

Never insert any foreign objects into the buckle or retractor mechanism.

Pull out slowly.

Correct Seated Posture.

Latch Plate

Buckle

2014 ILX

QRG

After adjusting a front seat to the proper position, and while sitting upright and well back in the seat:

TOC

Safe Driving

2 Adjusting the Seats P. 123

1. Pull the seat belt out slowly.

2. Insert the latch plate into the buckle, then

tug on the belt to make sure the buckle is secure.

u Make sure that the belt is not twisted or

caught on anything.

uuSeat BeltsuFastening a Seat Belt

Index

Continued

uuSeat BeltsuFastening a Seat Belt

Safe Driving

1Fastening a Seat Belt

To release the belt, push the red PRESS button then guide the belt by hand until it has retracted completely. When exiting the vehicle, be sure the belt is out of the way and will not get caught by closing the door.

WARNING

Improperly positioning the seat belts can cause serious injury or death in a crash.

Make sure all seat belts are properly positioned before driving.

Lap belt as low as possible

1Adjusting the Shoulder Anchor

The shoulder anchor height can be adjusted to four levels. If the belt contacts your neck, lower the height one level at a time.

After an adjustment, make sure that the shoulder anchor position is secure.

Push

2014 ILX

QRG

TOC

Adjusting the Shoulder Anchor

■

The front seats have adjustable shoulder anchors to accommodate taller and shorter occupants.

Index

3. Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt so the lap part fits snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.

4. If necessary, pull up on the belt again to remove any slack, then check that the belt rests across the center of your chest and over your shoulder. This spreads the forces of a crash over the strongest bones in your upper body.

1. Move the anchor up and down while holding the release button.

2. Position the anchor so that the belt rests across the center of your chest and over your shoulder.

1Advice for Pregnant Women

Each time you have a checkup, ask your doctor if it is okay for you to drive.

To reduce the risk of injuries to both you and your unborn child that can be caused by an inflating front airbag:

• When driving, sit upright and adjust the seat as far

back as possible while allowing full control of the vehicle.

• When sitting in the front passenger's seat, adjust

the seat as far back as possible.

Wear the shoulder belt across the chest avoiding the abdomen.

Wear the lap part of the belt as low as possible across the hips.

QRG

2014 ILX

Advice for Pregnant Women

■

If you are pregnant, the best way to protect yourself and your unborn child when

TOC

Safe Driving

driving or riding in a vehicle is to always wear a seat belt and keep the lap part of the belt as low as possible across the hips.

uuSeat BeltsuFastening a Seat Belt

Index

uuSeat BeltsuSeat Belt Inspection

Safe Driving

1Seat Belt Inspection

WARNING

Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.

Check your seat belts regularly and have any problem corrected as soon as possible.

2014 ILX

QRG

TOC

Seat Belt Inspection

Regularly check the condition of your seat belts as follows:

• Pull each belt out fully, and look for frays, cuts, burns, and wear.

• Check that the latches work smoothly and the belts retract easily.

u If a belt does not retract easily, cleaning the belt may correct the problem. Only

Any belt that is not in good condition or working properly will not provide proper protection and should be replaced as soon as possible.

A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash. Have your seat belts inspected by a dealer after any collision.

use a mild soap and warm water. Do not use bleach or cleaning solvents. Make sure the belt is completely dry before allowing it to retract.

Index

Airbags

2014 ILX

Airbag System Components

QRG

TOC

Safe Driving

Index

Continued

Safe Driving

QRG

2014 ILX

Component Locations

TOC

uuAirbagsu Airbag System Components

The front, front side, and side curtain airbags are deployed according to the direction and severity of impact. The airbag system includes:

a Two SRS (Supplemental Restraint System)

front airbags. The driver's airbag is stored in the center of the steering wheel; the front passenger's airbag is stored in the dashboard. Both are marked SRS AIRBAG.

b Two side airbags, one for the driver and

one for a front passenger. The airbags are stored in the outer edges of the seatbacks. Both are marked SIDE AIRBAG.

c Two side curtain airbags, one for each

side of the vehicle. The airbags are stored in the ceiling, above the side windows. The front and rear pillars are marked SIDE CURTAIN AIRBAG.

d An electronic control unit that continually

monitors and records information about the sensors, the airbag activators, the seat belt tensioners, and driver and front passenger seat belt use when the power mode is in ON.

e Automatic front seat belt tensioners. The

driver's and front passenger's seat belts incorporate sensors that detect whether or not they are fastened.

f A driver's seat position sensor. If the seat

is too far forward, the airbag will inflate with less force.

g Weight sensors in the front passenger's

seat. The front passenger's airbag will be turned off if the weight on the seat is 65 lbs (29 kg) or less (the weight of an infant or small child).

h Impact sensors that can detect a

moderate to severe front or side collision.

i An indicator on the dashboard that alerts

you that the front passenger's front airbag has been turned off.

j Sensors that can detect if a child or small

statured adult is in the deployment path of the front passenger's side airbag.

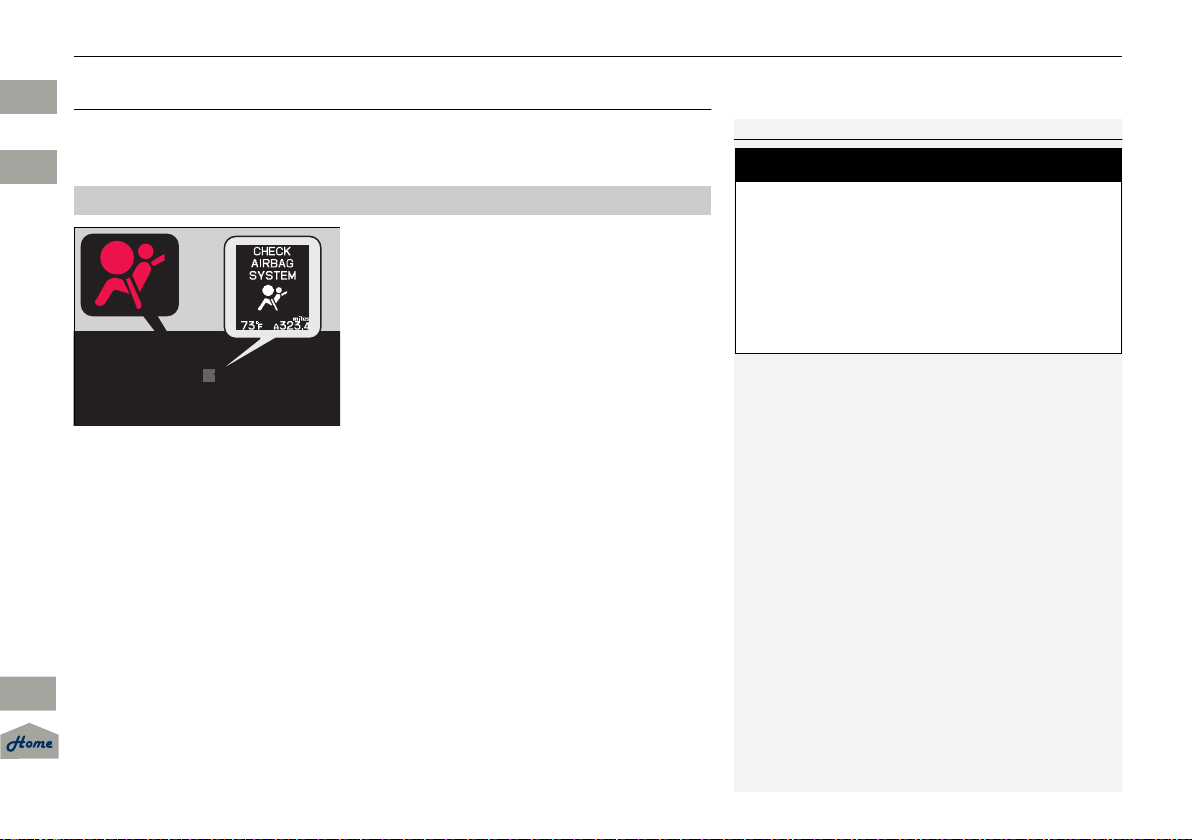

k An indicator on the instrument panel that

alerts you to a possible problem with your airbag system or seat belt tensioners.

l An indicator on the instrument panel that

alerts you that the front passenger's side airbag has been turned off.

Index

1Important Facts About Your Airbags

Do not attempt to deactivate your airbags. Together, airbags and seat belts provide the best protection.

When driving, keep hands and arms out of the deployment path of the front airbag by holding each side of the steering wheel. Do not cross an arm over the airbag cover.

QRG

2014 ILX

Important Facts About Your Airbags

■

Airbags can pose serious hazards. To do their job, airbags must inflate with

TOC

Safe Driving

tremendous force. So, while airbags help save lives, they can cause minor injuries, sometimes even fatal ones if occupants are not wearing their seat belts properly and sitting correctly.

What you should do: Always wear your seat belt properly, and sit upright and as far back from the steering wheel as possible while allowing full control of the vehicle. A front passenger should move their seat as far back from the dashboard as possible.

Remember, however, that no safety system can prevent all injuries or deaths that can occur in a severe crash, even when seat belts are properly worn and the airbags deploy.

Do not place hard or sharp objects between yourself and a front airbag. Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.

Do not attach or place objects on the front airbag covers. Objects on the covers marked SRS AIRBAG could interfere with the proper operation of the airbags or be propelled inside the vehicle and hurt someone if the airbags inflate.

uuAirbags uAirbag System Components

Index

uuAirbagsu Types of Airbags

Safe Driving

1Types of Airbags

The airbags can inflate whenever the power mode is in ON.

1Front Airbags (SRS)

Dual-Stage, Multiple-Threshold Front Airbags (SRS)

Your vehicle is equipped with dual-stage, multiplethreshold front airbags (SRS).

During a frontal crash severe enough to cause one or both front airbags to deploy, the airbags can inflate at different rates, depending on the severity of the crash, whether or not the seat belts are latched, and/ or other factors. Frontal airbags are designed to supplement the seat belts to help reduce the likelihood of head and chest injuries in frontal crashes.

2014 ILX

QRG

Types of Airbags

Your vehicle is equipped with three types of airbags:

TOC

• Front airbags: Airbags in front of the driver's and front passenger's seats.

• Side airbags: Airbags in the driver's and front passenger's seat-backs.

• Side curtain airbags: Airbags above the side windows.

Each is discussed in the following pages.

Front Airbags (SRS)

The front SRS airbags inflate in a moderate to severe frontal collision to help protect the head and chest of the driver and/or front passenger.

SRS (Supplemental Restraint System) indicates that the airbags are designed to supplement seat belts, not replace them. Seat belts are the occupant's primary restraint system.

Housing Locations

■

Index

The front airbags are housed in the center of the steering wheel for the driver, and in the dashboard for the front passenger. Both airbags are marked SRS AIRBAG.

1How the Front Airbags Work

After a front airbag inflates in a crash, you may see what looks like smoke. This is actually powder from the airbag's surface. Although the powder is not harmful, people with respiratory problems may experience some temporary discomfort. If this occurs, get out of the vehicle as soon as it is safe to do so.

Although the driver's and front passenger's airbags normally inflate within a split second of each other, it is possible for only one airbag to deploy. This can happen if the severity of a collision is at the margin, or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide sufficient protection, and the supplemental protection offered by the airbag would be minimal.

QRG

2014 ILX

Operation

■

Front airbags are designed to inflate during moderate-to-severe frontal collisions.

TOC

Safe Driving

When the vehicle decelerates suddenly, the sensors send information to the control unit which signals one or both front airbags to inflate.

A frontal collision can be either head-on or angled between two vehicles, or when a vehicle crashes into a stationary object, such as a concrete wall.

How the Front Airbags Work

■

While your seat belt restrains your torso, the front airbag provides supplemental protection for your head and chest.

uuAirbags u Front Airbags (SRS)

The total time for inflation and deflation is so fast that most occupants are not aware that the airbags deployed until they see them lying in front of them.

Index

The front airbags deflate immediately so that they won't interfere with the driver's visibility or the ability to steer or operate other controls.

Continued

Safe Driving

QRG

2014 ILX

TOC

Index

uuAirbagsu Front Airbags (SRS)

■ When front airbags should not deploy

Minor frontal crashes: Front airbags were designed to supplement seat belts and help save lives, not to prevent minor scrapes, or even broken bones that might occur during a less than moderate-to-severe frontal crash.

Side impacts: Front airbags can provide protection when a sudden deceleration causes a driver or front passenger to move towards the front of the vehicle. Side airbags and side curtain airbags have been specifically designed to help reduce the severity of injuries that can occur during a moderate-to-severe side impact which can cause the driver or passenger to move towards the side of the vehicle.

Rear impacts: Head restraints and seat belts are your best protection during a rear impact. Front airbags cannot provide any significant protection and are not designed to deploy in such collisions.

Rollovers: Seat belts and, in vehicles equipped with a rollover sensor, side airbags and side curtain airbags offer the best protection in a rollover. Because front airbags could provide little if any protection, they are not designed to deploy during a rollover.

■ When front airbags deploy with little or no visible damage

Because the airbag system senses sudden deceleration, a strong impact to the vehicle framework or suspension might cause one or more of the airbags to deploy. Examples include running into a curb, the edge of a hole, or other low fixed object that causes a sudden deceleration in the vehicle chassis. Since the impact is underneath the vehicle, damage may not be readily apparent.

■ When front airbags may not deploy, even

though exterior damage

Since crushable body parts absorb crash energy during an impact, the amount of visible damage does not always indicate proper airbag operation. In fact, some collisions can result in severe damage but no airbag deployment because the airbags would not have been needed or would not have provided protection even if they had deployed.

appears severe

1Advanced Airbags

If there is a problem with the driver's seat position sensor, the SRS indicator will come on and the airbag will inflate with full (normal) force, regardless of the driver's seating position.

For both advanced front airbags to work properly:

• Do not spill any liquid on or under the seats.

• Do not put any object under the passenger’s seat.

• Make sure any objects are positioned properly on

the floor. Improperly positioned objects can interfere with the advanced airbag sensors.

• All occupants should sit upright and wear their seat

belts properly.

• Do not place any cover over the passenger side

dashboard.

Make sure the floor mat behind the front passenger's seat is hooked to the floor mat anchor. An improperly placed mat can interfere with the advanced airbag sensors.

2 Floor Mats P. 299

Driver’s Seat Position Sensor

Passenger’s Seat Weight Sensors

QRG

2014 ILX

Advanced Airbags

■

Your front airbags have advanced features to help reduce the likelihood of airbag

TOC

Safe Driving

related injuries to smaller occupants.

Index

uuAirbags u Front Airbags (SRS)

The driver's advanced front airbag system includes a seat position sensor.

If the seat is too far forward, the airbag inflates with less force, regardless of the severity of the impact.

The passenger's advanced front airbag system has weight sensors.

Although we recommend against carrying an infant or small child in front, if the sensors detect the weight of a child (up to about 65 lbs or 29 kg), the system will automatically turn off the passenger's front airbag.

uuAirbagsu Side Airbags

Safe Driving

1Side Airbags

Do not attach accessories on or near the side airbags. They can interfere with the proper operation of the airbags, or hurt someone if an airbag inflates.

If the impact is on the passenger side, the airbag deploys even if there is no passenger’s in the passenger seat.

Do not cover or replace the front seat-back covers without consulting a dealer.

Improperly replacing or covering front seat-back covers can prevent your side airbags from properly deploying during a side impact.

Housing Location

When inflated

Side Airbag

2014 ILX

QRG

Side Airbags

The side airbags help protect the upper torso of the driver or a front passenger during a moderate to severe side impact.

TOC

Index

Housing Locations

■

Operation

■

The side airbags are housed in the outside edge of the driver's and passenger's seat-backs.

Both are marked SIDE AIRBAG.

When the sensors detect a moderate-tosevere side impact, the control unit signals the side airbag on the impact side to immediately inflate.

QRG

2014 ILX

■ When a side airbag deploys with little or no visible damage

Because the airbag system senses sudden acceleration, a strong impact to the side

TOC

of the vehicle's framework can cause a side airbag to deploy. In such cases, there

Safe Driving

may be little or no damage, but the side impact sensors detected a severe enough impact to deploy the airbag.

■ When a side airbag may not deploy, even though visible damage

appears severe

It is possible for a side airbag to not deploy during an impact that results in apparently severe damage. This can occur when the point of impact was towards the far front or rear of the vehicle, or when the vehicle's crushable body parts absorbed most of the crash energy. In either case, the side airbag would not have been needed nor provided protection even if it had deployed.

uuAirbags u Side Airbags

Index

Continued

uuAirbagsu Side Airbags

Safe Driving

1Side Airbag Cutoff System

The sensors that monitor the front passenger's height and body position may not work if:

• The seat-back is wet

• The passenger is touching a metal or other

electrical conductive object

• A seat cushion is on the seat

• The passenger is wearing excessively thick clothing

Sensor that monitor the passenger’s height.

Sensor that monitor the passenger’s position.

2014 ILX

QRG

Side Airbag Cutoff System

■

TOC

To reduce the likelihood that a front passenger may be injured by an inflating side airbag, the passenger side airbag is automatically turned off when:

• The height sensors detect a child or short-statured adult is seated in the front passenger seat.

• The position sensor detects that the front passenger is leaning into the deployment path of the side airbag.

When the side airbag cutoff system is activated, the side airbag off indicator comes on.

2 Side Airbag Off Indicator P. 46

Side Airbag Off Indicator

■

If the side airbag off indicator comes on, have the passenger sit upright. A few seconds after the passenger is sitting properly, the side airbag will automatically be turned on, and the indicator will go off.

If the front passenger is a child, stop when it is safe to do so, and have the child sit properly restrained in a rear seat.

Index

Side Curtain Airbags

1Side Curtain Airbags

The side curtain airbags are most effective when an occupant is wearing their seat belt properly and sitting upright, well back in their seat.

Do not attach any objects to the side windows or roof pillars as they can interfere with the proper operation of the side curtain airbags.

Side Curtain Airbag Storage

Deployed Side Curtain Airbag

2014 ILX

QRG

The side curtain airbags help protect the heads of the driver and passengers in outer seating positions during a moderate-to-severe side impact.

TOC

Safe Driving

Housing Locations

■

Operation

■

The side curtain airbags are located in the ceiling above the side windows on both sides of the vehicle.

The side curtain airbag is designed to deploy in a moderate-to-severe side impact.

uuAirbagsu Side Curtain Airbags

Index

■ When side curtain airbags deploy in a frontal collision

One or both side curtain airbags may inflate in a moderate to severe angled frontal collision.

In this case, the side curtain airbags will deploy slightly after the front airbags.

uuAirbagsu Airbag System Indicators

Safe Driving

1SRS (Supplemental Restraint System) Indicator

WARNING

Ignoring the SRS indicator can result in serious injury or death if the airbag systems or tensioners do not work properly.

Have your vehicle checked by a dealer as soon as possible if the SRS indicator alerts you to a possible problem.

2014 ILX

QRG

TOC

Index

Airbag System Indicators

If a problem occurs in the airbag system, the SRS indicator will come on and a message appears on the multi-information display.

SRS (Supplemental Restraint System) Indicator

■

If the indicator comes on at any other time, or does not come on at all, have the system checked by a dealer as soon as possible. If you don't, your airbags and seat belt tensioners may not work properly when they are needed.

■ When the power mode is set to ON

The indicator comes on for a few seconds, then goes off. This tells you the system is working properly.

1Passenger Airbag Off Indicator

If the indicator comes on with no front passenger and no objects on the passenger’s seat, or with an adult riding there, something may be interfering with the weight sensors. Such as:

• An object hanging on the seat or in the seat-back

pocket.

• A child seat or other object pressing against the

rear of the seat-back.

• A rear passenger pushing or pulling on the back of

the front passenger's seat.

• The front seat or seat-back is forced back against

an object on the seat or floor behind it.

• An object placed under the front passenger's seat.

If none of these conditions exist, have your vehicle checked by a dealer as soon as possible.

The passenger airbag off indicator may come on and goes off repeatedly if the total weight on the seat is near the airbag cutoff threshold.

U.S. Canada

QRG

2014 ILX

Passenger Airbag Off Indicator

■

TOC

Safe Driving

Infants and small children should always ride properly restrained in a back seat.

2 Child Safety P. 48

Objects placed on the seat can also cause the indicator to come on.

If the front passenger seat is empty, the passenger's front airbag will not deploy and the indicator will not come on.

Index

uuAirbagsu Airbag System Indicators

■ When the passenger airbag off

indicator comes on

The indicator comes on to alert you that the passenger's front airbag has been turned off. This occurs when the front passenger’s weight sensors detect 65 lbs (29 kg) or less, the weight of an infant or small child, on the seat.

Continued

Safe Driving

1Side Airbag Off Indicator

When you set the power mode to ON, the indicator should come on for a few seconds and then go out. If it doesn't come on, stays on, or comes on while driving without a passenger in the front seat, have the system checked by a dealer as soon as possible.

U.S.

CanadaU.S.

Canada

QRG

2014 ILX

TOC

uuAirbagsu Airbag System Indicators

Side Airbag Off Indicator

■

■ When the side airbag off indicator comes on

This indicator comes on if the passenger's side airbag has been turned off because the passenger is too small to be sitting in the front seat, is slouching or not sitting upright, or has leaned into the airbag's deployment path.

Unless the passenger is a smaller statured adult or a child, the indicator should go off when the passenger returns to a proper upright sitting position.

Index

Airbag Care

1Airbag Care

We recommend against the use of salvaged airbag system components, including the airbag, tensioners, sensors, and control unit.

2014 ILX

QRG

You do not need to, and should not, perform any maintenance on or replace any airbag system components yourself. However, you should have your vehicle

TOC

inspected by a dealer in the following situations:

Safe Driving

■ When the airbags have deployed

If an airbag has inflated, the control unit and other related parts must be replaced. Similarly, once an automatic seat belt tensioner has been activated, it must be replaced.

■ When the vehicle has been in a moderate-to-severe collision

Even if the airbags did not inflate, have your dealer inspect the following: the driver’s seat position sensor, weight sensors in the passenger’s seat, front seat belt tensioners, and each seat belt that was worn during the crash.

■ Do not remove or modify a front seat without consulting a dealer

This would likely disable the driver's seat position sensor or the passenger's weight sensors. If it is necessary to remove or modify a front seat to accommodate a person with disabilities, contact an Acura dealer, or for U.S. vehicles, Acura Client Relations at 1-800-382-2238 and for Canadian vehicles, Canadian Acura Client Service at 1-888-9-ACURA-9.

uuAirbags u Airbag Care

Index

Safe Driving

Child Safety

1Protecting Child Passengers

The National Highway Traffic Safety Administration and Transport Canada recommend that all children age 12 and under be properly restrained in a rear seat. Some states or provinces/territories have laws restricting where children may ride.

WARNING

Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash.

Any child too small for a seat belt should be properly restrained in a child seat. A larger child should be properly restrained with a seat belt, using a booster seat if necessary.

2014 ILX

QRG

TOC

Protecting Child Passengers

Each year, many children are injured or killed in vehicle crashes because they are either unrestrained or not properly restrained. In fact, vehicle accidents are the number one cause of death of children age 12 and under.

To reduce the number of child deaths and injuries, every state, Canadian province and territory requires that infants and children be properly restrained when they ride in a vehicle.

Children should sit properly restrained in a rear seat. This is because:

• An inflating front or side airbag can injure or kill a child sitting in the front seat.

• A child in the front seat is more likely to interfere with the driver's ability to safely control the vehicle.

• Statistics show that children of all sizes and ages are safer when they are properly restrained in a rear seat.

Index

1Protecting Child Passengers

To deactivate a lockable retractor, release the buckle and allow the seat belt to wind up all the way.

To remind you of the passenger's front airbag hazards and child safety, your vehicle has warning labels on the dashboard (U.S. models) and on the front visors. Please read and follow the instructions on these labels.

2 Safety Labels P. 61

WARNING

Allowing a child to play with a seat belt or wrap one around their neck can result in serious injury or death.

Instruct children not to play with any seat belt and make sure any unused seat belt a child can reach is buckled, fully retracted, and locked.

QRG

2014 ILX

• Any child who is too small to wear a seat belt correctly must be restrained in an approved child seat that is properly secured to the vehicle using either the lap belt

TOC

Safe Driving

portion of the lap/shoulder belt or the lower anchors of the LATCH system.

• Never hold a child on your lap because it is impossible to protect them in the event of a collision.

• Never put a seat belt over yourself and a child. During a crash, the belt would likely press deep into the child and cause serious or fatal injuries.

• Never let two children use the same seat belt. Both children could be very seriously injured in a crash.

• Do not allow children to operate the doors, windows or seat adjustments.

• Do not leave children in the vehicle unattended, especially in hot weather when

the inside of the vehicle can get hot enough to kill them. They could also activate vehicle controls causing it to move unexpectedly.

uuChild SafetyuProtecting Child Passengers

Index

uuChild Safety u Safety of Infants and Small Children

Safe Driving

1Protecting Infants

Rear-facing child seats should never be installed in a forward facing position.

Always refer to the child seat manufacturer’s instructions before installation.

WARNING

Placing a rear-facing child seat in the front seat can result in serious injury or death during a crash.

Always place a rear-facing child seat in the rear seat, not the front.

2014 ILX

QRG

TOC

Index

Safety of Infants and Small Children

Protecting Infants

■

An infant must be properly restrained in a rear-facing, reclining child seat until the infant reaches the seat maker's weight or height limit for the seat, and the infant is at least one year old.

When properly installed, a rear-facing child seat may prevent the driver or a front passenger from moving their seat all the way back, or from locking their seat-back in the desired position.

It can also interfere with proper operation of the passenger's advanced front airbag system.

2 Airbags P. 33

If this occurs, we recommend that you install the child seat directly behind the front passenger's seat, move the seat as far forward as needed, and leave it unoccupied. Or, you may wish to get a smaller rear-facing child seat.

■ Positioning a rear-facing child seat

Child seats must be placed and secured in a rear seating position.

1Protecting Smaller Children

Educate yourself about the laws and regulations regarding child seat use where you are driving, and follow the child seat manufacturer's instructions.

Many experts recommend use of a rear-facing seat up to age two, if the child’s height and weight are appropriate for a rear-facing seat.

WARNING

Placing a forward-facing child seat in the front seat can result in serious injury or death if the front airbag inflates.

If you must place a forward-facing child seat in front, move the vehicle seat as far back as possible, and properly restrain the child.

QRG

2014 ILX

Protecting Smaller Children

■

If a child is at least one year old and within the weight range indicated by the child

TOC

Safe Driving

seat manufacturer, the child should be properly restrained in a firmly secured forward-facing child seat.

Placing a forward-facing child seat in the front seat can be hazardous, even with advanced front airbags that automatically turn the passenger's front airbag off. A rear seat is the safest place for a child.

uuChild SafetyuSafety of Infants and Small Children

■ Forward-facing child seat placement

We strongly recommend placing a forwardfacing child seat in a rear seating position.

Index

Continued

uuChild Safety u Safety of Infants and Small Children

Safe Driving

1Selecting a Child Seat

Installation of a LATCH-compatible child seat is simple.

LATCH-compatible child seats have been developed to simplify the installation process and reduce the likelihood of injuries caused by incorrect installation.

2014 ILX

QRG

Selecting a Child Seat

■

TOC

Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren). Some have a rigid-type connector, while others have a flexible-type connector. Both are equally easy to use. Some existing and previously owned child seats can only be installed using the seat belt. Whichever type you choose, follow the child seat manufacturer's use and care instructions as well as the instructions in this manual. Proper installation is key to maximizing your child's safety.

In seating positions and vehicles not equipped with LATCH, a LATCH compatible child seat can be installed using the seat belt and a top tether for added security. This is because all child seats are required to be designed so that they can be secured with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat once a child reaches a specified weight. Please read the child seat owner’s manual for proper installation instructions.

■ Important consideration when selecting a child seat

Make sure the child seat meets the following three requirements:

• The child seat is the correct type and size for the child.

• The child seat is the correct type for the seating position.

• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or

Index

Canadian Motor Vehicle Safety Standard 213.

Marks

Rigid Type

Lower Anchors

QRG

2014 ILX

Installing a LATCH-Compatible Child Seat

■

A LATCH-compatible child seat can be installed in either of the two outer rear

TOC

Safe Driving

seats. A child seat is attached to the lower anchors with either the rigid or flexible type of connectors.

1. Locate the lower anchors under the marks.

2. Place the child seat on the vehicle seat then

attach the child seat to the lower anchors according to the instructions that came with the child seat.

u When installing the child seat, make sure

that the lower anchors are not obstructed by the seat belt or any other object.

uuChild SafetyuSafety of Infants and Small Children

Index

Continued

uuChild Safety u Safety of Infants and Small Children

Safe Driving

Flexible Type

1Installing a LATCH-Compatible Child Seat

For your child's safety, when using a child seat installed using the LATCH system, make sure that the seat is properly secured to the vehicle. A child seat that is not properly secured will not adequately protect a child in a crash and may cause injury to the child or other vehicle occupants.

Tether Strap Hook

Anchor

2014 ILX

QRG

TOC

Index

3. Open the tether anchor cover behind the head restraint.

4. Raise the head restraint to its highest position, then route the tether strap between the head restraint legs, and secure the tether strap hook onto the anchor.

5. Tighten the tether strap as instructed by the child seat maker.

6. Make sure the child seat is firmly secured by rocking it forward and back and side to side; little movement should be felt.

7. Make sure any unused seat belt that a child can reach is buckled, the lockable retractor is activated, and the belt is fully retracted and locked.

1Installing a Child Seat with a Lap/Shoulder Seat Belt

A child seat that is not properly secured will not adequately protect a child in a crash and may cause injury to the child or other vehicle occupants.

QRG

2014 ILX

■

TOC

Safe Driving

uuChild SafetyuSafety of Infants and Small Children

Installing a Child Seat with a Lap/Shoulder Seat Belt

1. Place the child seat on the vehicle seat.

2. Route the seat belt through the child seat

according to the seat maker's instructions, and insert the latch plate into the buckle.

u Insert the latch plate fully until it clicks.

3. Slowly pull the shoulder part of the belt all the way out until it stops. This activates the lockable retractor.

4. Let the seat belt completely wind up into the retractor, then try to pull it out to make sure the retractor is locked.

u If you are able to pull the shoulder belt

out, the lockable retractor is not activated. Pull the seat belt all the way out, and repeat steps 2 – 4.

Index

5. Grab the shoulder part of the seat belt near the buckle, and pull up to remove any slack from the lap part of the belt.

u When doing this, place your weight

on the child seat and push it into the vehicle seat.

Continued

Safe Driving

1Installing a Child Seat with a Lap/Shoulder Seat Belt

To deactivate a lockable retractor, release the buckle and allow the seat belt to wind up all the way.

QRG

2014 ILX

TOC

uuChild Safety u Safety of Infants and Small Children

6. Make sure the child seat is firmly secured by rocking it forward and back and side to side; little movement should be felt.

7. Make sure any unused seat belt that a child can reach is buckled, the lockable retractor is activated, and the belt is fully retracted and locked.

Index

1Adding Security with a Tether

Since a tether can provide additional security to the lap/shoulder seat belt installation, we recommend using a tether whenever one is available.

Tether Anchorage Points

CoverAnchor

Tether Strap Hook

Anchor

Outer Position

Center Position

Tether Strap Hook

Anchor

QRG

2014 ILX

Adding Security with a Tether

■

TOC

Safe Driving

Index

uuChild SafetyuSafety of Infants and Small Children

A tether anchorage point is provided behind each rear seating position. A child seat that is installed with a seat belt and comes with a tether can use the tether for additional security.

1. Locate the appropriate tether anchorage point and lift the cover.

2. Raise the head restraint to its highest position, then route the tether strap through the head restraint legs. Make sure the strap is not twisted.

3. Secure the tether strap hook onto the anchor.

4. Tighten the tether strap as instructed by the child seat manufacturer.

uuChild Safety u Safety of Larger Children

Safe Driving

1Safety of Larger Children

WARNING

Allowing a child age 12 or under to sit in front can result in injury or death if the passenger's front airbag inflates.

If a larger child must ride in front, move the vehicle seat as far to the rear as possible, have the child sit up properly and wear the seat belt properly, using a booster seat if needed.

2014 ILX

QRG

TOC

Index

Safety of Larger Children

Protecting Larger Children

■

The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for a child who must sit in front.

Checking Seat Belt Fit

■

When a child is too big for a child seat, secure the child in a rear seat using the lap/ shoulder seat belt. Have the child sit upright and all the way back, then answer the following questions.

If you answer yes to all these questions, the child is ready to wear the lap/shoulder seat belt correctly. If you answer no to any question, the child needs to ride on a booster seat until the seat belt fits properly without a booster seat.

■ Checklist

• Do the child's knees bend comfortably over the edge of the seat?

• Does the shoulder belt cross between the child's neck and arm?

• Is the lap part of the seat belt as low as possible, touching the child's thighs?

• Will the child be able to stay seated like this for the whole trip?

1Booster Seats

When installing a booster seat, make sure to read the instructions that came with it, and install the seat accordingly.

There are high- and low-type booster seats. Choose a booster seat that allows the child to wear the seat belt correctly.

Some U.S. states and Canadian provinces and territories require children to use a booster seat until they reach a given age or weight (e.g. 6 years or 60 lbs). Be sure to check current laws in the state or province, or territory where you intend to drive.

1Protecting Larger Children-Final Checks

WARNING

Allowing a child age 12 or under to sit in front can result in injury or death if the passenger's front airbag inflates.

If a larger child must ride in front, move the vehicle seat as far to the rear as possible, have the child sit up properly and wear the seat belt properly, using a booster seat if needed.

QRG

2014 ILX

Booster Seats

■

TOC

Safe Driving

Protecting Larger Children-Final Checks

■

Your vehicle has a rear seat where children can be properly restrained. If you ever

Index

have to carry a group of children, and a child must ride in front:

• Make sure you read and fully understand the instructions and safety information in this manual.

• Move the front passenger seat as far back as possible.

• Have the child sit upright and well back in the seat.

• Check that the seat belt is properly positioned so that the child is secure in

the seat.

■ Monitoring child passengers

We strongly recommend that you keep an eye on child passengers. Even older, more mature children sometimes need to be reminded to fasten their seat belts and sit up properly.

uuChild Safetyu Safety of Larger Children

If a lap/shoulder seat belt cannot be used properly, position the child in a booster seat in a rear seating position. For the child's safety, check that the child meets the booster seat manufacturer's recommendations.

Safe Driving

Exhaust Gas Hazard

1Carbon Monoxide Gas

An enclosed area such as a garage can quickly fill up with carbon monoxide gas. Do not run the engine with the garage door closed. Even when the garage door is open, drive out of the garage immediately after starting the engine.

WARNING

Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any enclosed areas or activities that expose you to carbon monoxide.

2014 ILX

QRG

TOC

Carbon Monoxide Gas

The engine exhaust from this vehicle contains carbon monoxide, a colorless, odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon monoxide gas will not get into the interior.

■ Have the exhaust system inspected for leaks whenever

• The exhaust system is making an unusual noise.

• The exhaust system may have been damaged.

• The vehicle is raised for an oil change.

When you operate a vehicle with the trunk open, airflow can pull exhaust gas into the interior and create a hazardous condition. If you must drive with the trunk open, open all the windows and set the climate control system as shown below.

1. Select the fresh air mode.

Index

2. Select the mode.

3. Set the fan speed to high.

4. Set the temperature control to a comfortable setting.

Adjust the climate control system in the same manner if you sit in your parked vehicle with the engine running.

Safety Labels

U.S. models Canadian models

Radiator Cap

U.S. models

U.S. models only

Dashboard

Canadian models

Doorjambs

Sun Visor

2014 ILX

Label Locations

QRG

These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully.

TOC

Safe Driving

If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer for a replacement.

Index

QRG

2014 ILX

Index

QRG

2014 ILX

Instrument Panel

This chapter describes the buttons, indicators, and gauges that are used while driving.

Indicators ............................................ 64

Multi-Information Display Warning and

Information Messages...................... 73

Gauges and Multi-Information Display

Gauges.............................................. 78

Multi-Information Display .................. 79

Index

Instrument Panel

QRG

2014 ILX

TOC

Indicators

Indicator Name On/Blinking Explanation Message

U.S.

Canada

Parking Brake and Brake System Indicator

●

Comes on for a few seconds when you set the power mode to ON, then goes off.

●

Comes on when the parking brake is applied, and goes off when it is released.

●

Comes on when the brake fluid level is low.

●

Comes on if there is a problem with the brake system.

●

The beeper sounds and the indicator comes on if you drive with the parking brake not fully released.

●

Comes on while driving - Make sure the parking brake is released. Check the brake fluid level.

2 What to do when the indicator comes

●

on while driving P. 322

Comes on along with the ABS indicator

- Have the vehicle checked by a dealer.

2 If the Brake System Indicator Comes

On P. 322

Index

Low Oil Pressure Indicator

●

Comes on when you set the power mode to ON, and goes off when the engine starts.

●

Comes on when the engine oil pressure is low.

●

Comes on while driving - Immediately stop in a safe place.

2 If the Low Oil Pressure Indicator

Comes On P. 320

* Not available on all models

QRG

2014 ILX

TOC

Instrument Panel

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

Malfunction Indicator Lamp

Charging System Indicator

●

Comes on when you set the power mode to ON, and goes off either when the engine starts or after several seconds if the engine is not started. If “readiness codes” have not been set, it blinks five times before it goes off.

●

Comes on if there is a problem with the emissions control system.

●

Blinks when a misfire in the engine's cylinders is detected.

●

Comes on when you set the power mode to ON, and goes off when the engine starts.

●

Comes on when the battery is not charging.

●

Readiness codes are part of the on board diagnostics for the emissions control systems.

2 Testing of Readiness Codes P. 337

●

Comes on while driving - Have the vehicle checked by a dealer.

●

Blinks while driving - Stop in a safe place where there are no flammable objects. Stop the engine for 10 minutes or more, and wait for it to cool down. Then, take the vehicle to a dealer.

2 If the Malfunction Indicator Lamp

Comes On or Blinks P. 321

●

Comes on while driving - Turn off the climate control system and rear defogger in order to reduce electricity consumption.

2 If the Charging System Indicator

Comes On P. 320

Index

Shift Lever Position Indicator

●

Indicates current shift lever position.

2 Shifting P. 222

—

Continued

Instrument Panel

* Not available on all models

QRG

2014 ILX

TOC

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

Transmission Indicator

●

Blinks if the transmission system has a problem.

●

Blinks while driving - Avoid sudden starts and acceleration and have the vehicle checked by a dealer immediately.

Index

M (sequential shift mode) Indicator/Gear Position Indicator

Seat Belt Reminder Indicator

●

Comes on when the manual sequential shift mode is applied.

●

Comes on and the beeper sounds if you are not wearing a seat belt when you set the power mode to ON.

●

If the front passenger is not wearing a seat belt, the indicator comes on about a few seconds later.

●

Blinks while driving if either you or the front passenger has not fastened a seat belt. The beeper sounds and the indicator blinks at regular intervals.

2 Sequential Shift Mode P. 224

●

The beeper stops and the indicator goes off when you and the front passenger fasten their seat belts.

●

Stays on after you or the front passenger has fastened the seat belt -

A detection error may have occurred in the sensor. Have the vehicle checked by a dealer.

2 Seat Belt Reminder P. 27

—

QRG

2014 ILX

TOC

Instrument Panel

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

Low Fuel Indicator

●

Comes on when the fuel reserve is running low (approximately 1.9 U.S. gal./7.5 Liter left).

●

Blinks if there is a problem with the

●

Comes on - Refuel your vehicle as soon as possible.

●

Blinks - Have the vehicle checked by a dealer.

fuel gauge.

Index

ABS (Anti-lock Brake System) Indicator

Supplemental Restraint System Indicator

●

Comes on for a few seconds when you set the power mode to ON, then goes off.

●

If it comes on at any other time, there is a problem with the ABS.

●

Comes on for a few seconds when you set the power mode to ON, then goes off.

●

Comes on if a problem with any of the following is detected:

- Supplemental restraint system

- Side airbag system

- Side curtain airbag system

- Seat belt tensioner

●

Stays on constantly - Have the vehicle checked by a dealer. With this indicator on, your vehicle still has normal braking ability but no anti-lock function.

2 ABS (Anti-lock Brake System) P. 239

●

Stays on constantly or does not come on at all - Have the vehicle checked by a

dealer.

Continued

Instrument Panel

QRG

2014 ILX

TOC

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

Electric Power Steering (EPS) System Indicator

●

Comes on when you set the power mode to ON, and goes off when the engine starts.

●

Comes on if there is a problem with the EPS system.

●

Stays on constantly or does not come on at all - Have the vehicle checked by a

dealer.

2 If the Electric Power Steering (EPS)

System Indicator Comes On P. 322

Index

VSA® (Vehicle Stability Assist) System Indicator

VSA® (Vehicle Stability Assist) OFF Indicator

●

Comes on for a few seconds when you set the power mode to ON, then goes off.

●

Blinks when VSA® is active.

●

Comes on if there is a problem with the VSA system or hill start assist system.

●

Comes on for a few seconds when you set the power mode to ON, then goes off.

●

Comes on when you deactivate VSA®.

●

Stays on constantly - Have the vehicle checked by a dealer.

2 VSA® (Vehicle Stability Assist), aka ESC

(Electronic Stability Control), System

P. 232

2 VSA® (Vehicle Stability Assist), aka ESC

(Electronic Stability Control), System

P. 232

—

QRG

2014 ILX

TOC

Instrument Panel

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

Door and Trunk Open Indicator

●

Comes on for a few seconds if you set the power mode to ON, then goes off.

●

Comes on if any door or the trunk is

●

Goes off when all doors and the trunk are closed.

not completely closed.

Index

U.S. models only

Low Tire Pressure/ TPMS Indicator

●

Comes on for a few seconds when you set the power mode to ON.

●

Comes on if the tire pressure of any of the tires becomes significantly low.

●

Blinks for about one minute, and then stays on if there is a problem with the TPMS, or when a compact spare tire is temporarily installed.

●

Comes on while driving - Stop in a safe place, check tire pressures, and inflate the tire(s) if necessary.

●

Blinks and remains on - Have the vehicle checked by a dealer. If the vehicle is fitted with a compact spare, get your regular tire repaired or replaced and put back on your vehicle as soon as you can.

Continued

Instrument Panel

* Not available on all models

QRG

2014 ILX

TOC

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

●

System Message Indicator

Comes on for a few seconds when you set the power mode to ON, then goes off.

●

Comes on along with a beep when a problem is detected. A system message on the multi-information display appears at the same time.

●

While the indicator is on, press the (information) button to see the message again.

●

Refer to the Indicators information in this chapter when a system message appears on the multi-information display. Take the appropriate action for the message.

●

The multi-information display does not return

—

to the normal screen unless the warning is canceled, or the button is pressed.

Turn Signal Indicators

●

The turn signal indicators blink when you operate the turn signal lever.

●

If you press the hazard warning button, both indicators and all turn

●

Does not blink or blinks rapidly - A turn signal light bulb has blown. Change the bulb immediately.

2 Replacing Light Bulbs P. 278

P. 280

—

signals blink at the same time.

●

High-Beam Indicator

Comes on when the high beam headlights are on.

— —

Index

Lights On Indicator

Fog Light Indicator

●

Comes on whenever the light switch is on, or in AUTO when the exterior lights are on.

●

If you set the power mode to ACCESSORY or VEHICLE OFF (LOCK) while the exterior lights are on, a chime sounds when the

—

driver's door is opened.

●

Comes on when the fog lights are

on.

— —

QRG

2014 ILX

TOC

Instrument Panel

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

U.S.

Canada

Side Airbag Off Indicator

●

Comes on for a few seconds when you set the power mode to ON, then goes off.

●

Comes on when the passenger side airbag system is automatically shut off.

●

It does not mean there is a problem with your side airbags.

●

Comes on when nobody is sitting in the passenger seat - Have the vehicle checked

by a dealer.

●

Comes on when someone is sitting in the seat - Have the passenger sit properly.

U.S.

Canada

Index

Immobilizer System Indicator

●

Comes on briefly when you set the power mode to ON, then goes off.

●

Comes on if the immobilizer system cannot recognize the key information.

●

Blinks - You cannot start the engine. Set the power mode to VEHICLE OFF (LOCK), then select the ON mode again.

●

Repeatedly blinks - The system may be malfunctioning. Have the vehicle checked by a dealer.

●

Do not attempt to alter this system or add other devices to it. Electrical problems can occur.

—

Continued

Instrument Panel

Indicator

QRG

2014 ILX

TOC

uuIndicatorsu

Indicator Name On/Blinking Explanation Message

●

Blinks when the Security System

Security System Alarm Indicator

Alarm has been set.

●

Comes on for a few seconds when

2 Security System Alarm P. 106

●

Have your vehicle checked by a dealer.

—

you set the power mode to ON.

●

Comes on as soon as a problem is detected in the keyless access system

or keyless starting system. Keyless Access System Indicator

●

CRUISE MAIN Indicator

Comes on when you press the

CRUISE button.

2 Cruise Control P. 229

—

Index

CRUISE CONTROL

Indicator

●

Comes on if you have set a speed for

cruise control.

2 Cruise Control P. 229

—

uuIndicatorsuMulti-Information Display Warning and Information Messages

2014 ILX

Multi-Information Display Warning and Information Messages

QRG

The following messages appear only on the multi-information display. Press the (information) button to see the message again with the system message indicator on.

Message Condition Explanation

●

TOC

Instrument Panel

Appears when the fuel fill cap is loose or is not installed.

2 Check/Tighten Fuel Cap Message P. 321

Index

Canadian models

●

Appears when the washer fluid is low.

●

Appears when the scheduled maintenance is due soon.

●

Consequently, SERVICE DUE NOW and SERVICE PAST DUE follow.

●

Refill washer fluid.

2 Refilling Window Washer Fluid P. 273

2 Maintenance Minder Messages on the Multi-

Information Display P. 253

Continued

Instrument Panel

QRG

2014 ILX

TOC

uuIndicatorsuMulti-Information Display Warning and Information Messages

Message Condition Explanation

●

Appears when the engine coolant temperature gets abnormally high.

2 Overheating P. 318

Index

●

Appears when the engine coolant temperature gets high.

●

Appears when there is a problem with the sensor on the battery.

●

Appears when the battery is not charging.

●

Drive slowly to prevent overheating.

●

Have your vehicle checked by a dealer.

2 Checking the Battery P. 295

●

Appears along with the battery charging system indicator - Turn off the climate control system and rear

defogger to reduce electricity consumption.

2 If the Charging System Indicator Comes On P. 320

QRG

2014 ILX

TOC

Instrument Panel

uuIndicatorsuMulti-Information Display Warning and Information Messages

Message Condition Explanation

U.S.

●

Appears when the starting system has a problem.

●

As a temporary measure, press and hold the ENGINE START/STOP button for 15 seconds while pressing the

brake pedal and manually start the engine. Have the vehicle checked by a dealer.

Canada

●

Appears if the keyless access remote battery is too weak to start the engine or the key is not with you to start the engine. A beeper sounds six times.

2 If the Keyless Access Remote Battery is Weak P. 312

Index

●

Appears after the driver’s door is opened when the power mode is in ACCESSORY.

●

Press the ENGINE START/STOP button twice with your foot off the brake pedal (automatic transmission) or the clutch pedal (manual transmission) to change the power mode to VEHICLE OFF (LOCK).

Continued

Instrument Panel

QRG

2014 ILX

uuIndicatorsuMulti-Information Display Warning and Information Messages

Message Condition Explanation

●

Appears when the power mode is in ACCESSORY.

TOC

Index

●

Appears when you close the door with the power mode in ON without the keyless access remote inside the vehicle.

●

Appears when the keyless access remote battery becomes weak.

●

Appears three seconds after the TO START ENGINE message appears.

—

●

Disappears when you bring the keyless access remote back inside the vehicle and close the door.

2 Keyless Access Remote Reminder P. 113

●

Replace the battery as soon as possible.

2 Replacing the Button Battery P. 296

2 Starting the Engine P. 216

QRG

2014 ILX

TOC

Instrument Panel

uuIndicatorsuMulti-Information Display Warning and Information Messages

Message Condition Explanation

●

Appears after you unlock and open the driver’s door.

2 Starting the Engine P. 216

Index

●

Appears when the steering wheel is locked.

●

Appears if you push the ENGINE START/STOP button to turn the engine off without the shift lever in (P.

●

Move the steering wheel left and right after pressing the ENGINE START/STOP button.

●

Push the ENGINE START/STOP button twice after moving the shift lever to (P .

Instrument Panel

Gauges and Multi-Information Display

1Fuel Gauge

NOTICE

You should refuel when the needle approaches . Running out of fuel can cause the engine to misfire, damaging the catalytic converter.

The actual amount of remaining fuel may differ from the fuel gauge reading.

1Temperature Gauge

NOTICE

Driving with the temperature gauge pointer in the upper zone can cause serious engine damage. Pull safely to the side of the road and allow engine temperature to return to normal.

2 Overheating P. 318

2014 ILX

QRG

TOC

Index

Gauges

Gauges include the speedometer, tachometer, fuel gauge, and related indicators. They are displayed when the power mode is in ON.

Speedometer

■

Displays your driving speed in mph (U.S.) or km/h (Canada).

Tachometer

■

Shows the number of engine revolutions per minute.

Fuel Gauge

■

Displays the amount of fuel left in the fuel tank.

Temperature Gauge

■

Displays the temperature of the engine coolant.

uuGauges and Multi-Information Display uMulti-Information Display

SEL/RESET

Button

Engine Oil LifeCustomize Settings Elapsed Time A

Button

OFF

Average Speed A

Range

Average Fuel Economy/ Instant Fuel Economy

2014 ILX

Multi-Information Display

QRG

The multi-information display shows the odometer, trip meter, outside temperature indicator, and other gauges. It also displays important messages such as warnings and other helpful information.

Switching the Display

■

TOC

Instrument Panel

Press the (information) button or the SEL/RESET button to change the display.

Index

Continued

Instrument Panel

Odometer

Outside temperature

Trip A Trip B

SEL/RESET

Button

SEL/RESET Button

SEL/RESET

Button

1Trip Meter

Switch between trip meter A and trip meter B by pressing the SEL/RESET button.

QRG

2014 ILX

TOC

uuGauges and Multi-Information DisplayuMulti-Information Display

Odometer

■

Shows the total number of miles or kilometers that your vehicle has accumulated.

Trip Meter

■

Shows the total number of miles or kilometers driven since the last reset. Meters A and B can be used to measure two separate trips.

Index

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip meter is reset to 0.0.

■ Resetting a trip meter

1Outside Temperature

The temperature sensor is in the front bumper. Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be updated after the temperature reading has stabilized.

Use the multi-information display's customized features to correct the temperature.

2 Customized Features P. 83

1Average Fuel Economy

You can change the way the average fuel economy is reset.

2 Customized Features P. 83

QRG

2014 ILX

Outside Temperature

■

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■ Adjusting the outside temperature display

TOC

Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading

Instrument Panel

seems incorrect.

Average Fuel Economy

■

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Instant Fuel Economy

■

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

Index

Range

■

Shows the estimated distance you can travel on the remaining fuel. This distance is estimated from the fuel economy of your trips in the past.

Elapsed Time

■

Shows the time elapsed since the last time Trip A or Trip B was reset.

uuGauges and Multi-Information Display uMulti-Information Display

Continued

Instrument Panel

QRG

2014 ILX

uuGauges and Multi-Information DisplayuMulti-Information Display

Average Speed

■

Shows the average speed in mph or km/h since the last time Trip A or Trip B was reset.

TOC

Index

Engine Oil Life

■

Shows the remaining oil life and Maintenance Minder

2 Maintenance MinderTM P. 251

1Customized Features

To customize other features, press the button.

2 List of customizable options P. 85

When you customize settings:

Shift to

Set the parking brake

Automatic transmission models

Manual transmission models

Multi-Information Display:

Goes to customize settings.

SEL/RESET Button:

Enters the selected item

Button: Changes the customize menus and items

QRG

2014 ILX

Customized Features

■

Use the multi-information display to customize certain features.

■ How to customize

TOC

Press the button to select CUSTOMIZE SETTINGS while the power mode

Instrument Panel

is in ON.

uuGauges and Multi-Information Display uMulti-Information Display

Index

Continued

uuGauges and Multi-Information DisplayuMulti-Information Display

Instrument Panel

SEL/RESET SEL/RESET

SEL/RESET

CUSTOMIZE SETTINGS METER SETUP

KEYLESS ACCESS SETUP

LIGHTING SETUP

DOOR SETUP

MAINTENANCE INFO.

DEFAULT ALL

LANGUAGE SELECTION

ADJUST OUTSIDE TEMP. DISPLAY

“TRIP A” RESET TIMING “TRIP B” RESET TIMING

KEYLESS START GUIDANCE SCREENS

DOOR UNLOCK MODE

KEYLESS ACCESS LIGHT FLASH

KEYLESS ACCESS BEEP

INTERIOR LIGHT DIMMING TIME

HEADLIGHT AUTO OFF TIMER

AUTO LIGHT SENSITIVITY

AUTO DOOR LOCK

AUTO DOOR UNLOCK

DOOR LOCK MODE

KEYLESS LOCK ACKNOWLEDGMENT

SECURITY RELOCK TIMER

RESET/CANCEL

CANCEL/SET

2014 ILX

QRG

■ Customization flow

Press the button to select CUSTOMIZE SETTINGS and press the SEL/ RESET button.

TOC

Index

QRG

2014 ILX

■ List of customizable options

uuGauges and Multi-Information Display uMulti-Information Display

TOC

Instrument Panel

Index

Setup Group

METER SETUP

KEYLESS ACCESS SETUP

*1: Default Setting

Customizable

Features

LANGUAGE SELECTION

ADJUST OUTSIDE TEMP. DISPLAY

“TRIP A” RESET TIMING

“TRIP B” RESET TIMING

KEYLESS START GUIDANCE SCREENS

DOOR UNLOCK MODE

KEYLESS ACCESS LIGHT FLASH

KEYLESS ACCESS BEEP

Description Selectable settings

Changes the displayed language.

ENGLISH*1/FRENCH/ SPANISH

-5°F ~ ±0°F*1 ~ +5°F (U.S.)

Adjust the temperature reading by a few degrees.

-3°C ~ ±0°C*1 ~ +3°C (Canada)

Changes the setting of how to reset trip meter A, average fuel economy A, average speed A, and elapsed time A.

Changes the setting of how to reset trip meter B, average fuel economy B, average speed B, and elapsed time B.

WITH REFUEL/IGN OFF/ MANUALLY RESET

Changes the display of the keyless start guidance screens. ON*1/OFF

Changes which doors unlock when you grab the driver’s door handle.

Causes some exterior lights to blink when you unlock/lock the doors.

DRIVER DOOR ONLY DOORS

/OFF

Causes the beeper to sound when you unlock/lock the doors. ON*1/OFF

/ALL

Continued

Instrument Panel

QRG

2014 ILX

uuGauges and Multi-Information DisplayuMulti-Information Display

TOC

Index

Setup

Group

LIGHTING SETUP

DOOR SETUP

Customizable Features Description Selectable settings

INTERIOR LIGHT DIMMING TIME

HEADLIGHT AUTO OFF TIMER

Changes the length of time the interior lights stay on after you close the doors.

Changes the length of time the exterior lights stay on after you close the driver’s door.

60sec/30sec*1/15sec

60sec/30sec/15sec*1/0sec

AUTO LIGHT SENSITIVITY Changes the timing for the headlights to come on. MAX/HIGH/MID*1/LOW/MIN

AUTO DOOR LOCK

Changes the setting for the automatic locking feature.

OFF/WITH VEH SPD*1/SHIFT FROM

(P (A/T only)

OFF/DRIVER DOOR with SHIFT to

(A/T only)/ALL DOORS with

SHIFT to (P (A/T only)/DRIVER

DOOR with IGN OFF

/ALL

AUTO DOOR UNLOCK

Changes the setting for when the doors unlock automatically.

DOORS with IGN OFF

DOOR LOCK MODE

KEYLESS LOCK ACKNOWLEDGMENT

SECURITY RELOCK TIMER

Sets up either the driver’s door or all doors to unlock on the first operation of the remote or built-in key.

LOCK/UNLOCK - The exterior lights flash LOCK (2nd push) - The beeper sounds

Changes the time it takes for the doors to relock and the security system to set after you unlock the vehicle without opening any door.

DRIVER DOOR

/OFF

90sec/60sec/30sec

/ALL DOORS

*1:Default Setting *2:Default Setting for automatic transmission *3:Default Setting for manual transmission

QRG

2014 ILX

TOC

Instrument Panel

uuGauges and Multi-Information Display uMulti-Information Display

Setup Group Customizable Features Description Selectable settings

MAINTENANCE INFO. Reset the Maintenance MinderTM. RESET/CANCEL

DEFAULT ALL Sets/Cancels all the customized settings as default. CANCEL/SET

Index

Continued

Instrument Panel

QRG

2014 ILX

TOC

Index

uuGauges and Multi-Information DisplayuMulti-Information Display

■ Example of customization settings

The steps for changing the “TRIP A” RESET TIMING setting to ON are shown below. The default setting for “TRIP A” RESET TIMING is MANUALLY RESET.

1. Press and release the button until CUSTOMIZE SETTINGS appears on the display.

2. Press the SEL/RESET button to go into the METER SETUP group.

3. Press the SEL/RESET button again.

u LANGUAGE SELECTION appears first

on the display.

4. Press the button until “TRIP A” RESET TIMING appears on the display, then press the SEL/RESET button.

u The display switches to the SETUP

screen, where you can select WITH

REFUEL, IGN OFF, MANUALLY RESET, or EXIT.

QRG

2014 ILX

TOC

Instrument Panel

uuGauges and Multi-Information Display uMulti-Information Display

5. Press the button and select MANUALLY RESET, then press the SEL/ RESET button.

u The MANUALLY RESET setup screen

appears, then the display returns to the customize item screen.

6. Press the button until EXIT appears on the display, then press the

SEL/RESET button.

7. Repeat Step 6 until you return to the

normal screen.

Index

QRG

2014 ILX

Index

* Not available on all models

QRG

2014 ILX

Controls

This chapter explains how to operate the various controls necessary for driving.

Setting the Clock ................................ 92

Locking and Unlocking the Doors

Key Types and Functions .................... 93

Low Keyless Access Remote Signal

Strength........................................... 94

Locking/Unlocking the Doors from the

Outside ............................................ 95

Locking/Unlocking the Doors from the

Inside ............................................... 99

Index

Childproof Door Locks .....................100

Auto Door Locking/Unlocking ..........101

Opening and Closing the Trunk....... 102

Security System ................................ 106

Immobilizer System .......................... 106

Security System Alarm...................... 106

Opening and Closing the Windows .... 108

Opening and Closing the Moonroof

Operating the Switches Around the

Steering Wheel

ENGINE START/STOP Button............. 112

Turn Signals..................................... 114

Light Switches.................................. 114

Fog Lights

Daytime Running Lights ................... 117

Wipers and Washers ........................ 118

Brightness Control ........................... 119

Rear Defogger/Heated Door Mirror Button...120

Adjusting the Steering Wheel........... 120

...................................... 117

....... 111

Adjusting the Mirrors....................... 121

Interior Rearview Mirror ................... 121

Power Door Mirrors ......................... 122

Adjusting the Seats .......................... 123

Adjusting the Seat Positions............. 123

Interior Lights/Interior Convenience

Items ................................................ 131

Interior Lights .................................. 131

Interior Convenience Items .............. 132

Climate Control System ................... 136

Using Automatic Climate Control .... 136

Synchronized Mode ......................... 138

Automatic Climate Control Sensors......139

Controls

Setting the Clock

1Clock

These indications are used to show how to operate the selector knob. Rotate to select. Press to enter.

The clock is automatically updated through the navigation system, so the time does not need to be adjusted.

Models with navigation system

Models without navigation system

SETUP Button

2014 ILX

QRG

Clock

You can adjust the time in the clock display, with the power mode in ON.

TOC

Index

1. Press the SETUP button.

2. Rotate to select Adjust Clock on the

screen.

3. Press . Adjust Clock appears.

4. Rotate to select the item you want to

adjust (12/24 hour mode, hour, minute). Then press .

5. Rotate to make the adjustment.

6. Press to enter your selection. The display

returns to Adjust Clock. Repeat steps 4 to 6 to adjust other items.

7. To enter the selection, rotate and select Set, then press .

Locking and Unlocking the Doors

1Key Types and Functions

All of the keys have an immobilizer system. The immobilizer system helps to protect against vehicle theft.

2 Immobilizer System P. 106

The keys contain precision electronics. Adhere to the following advice to prevent damage to the electronics:

• Do not leave the keys in direct sunlight, or in

locations with high temperature or high humidity.

• Do not drop the keys or set heavy objects on them.

• Keep the keys away from liquids.

• Do not take the keys apart except for replacing the

battery.

If the circuits in the keys are damaged, the engine may not start, and the keyless access system may not work.

If the keys do not work properly, have them inspected by a dealer.

Built-in Key

Release Button

2014 ILX

Key Types and Functions

QRG

This vehicle comes with the following keys:

Keys

■

■ Keyless access remote

TOC

Controls

Use the keyless access remote to start and stop the engine, to lock and unlock the doors and to open the trunk.

There is a PANIC button in the remote transmitter.

Index

The built-in key can be used to lock/unlock the doors when the keyless access remote battery becomes weak and the power door lock/ unlock operation is disabled.

To remove the built-in key, pull it out while pressing the release button. To reinstall the built-in key, push the built-in key into the keyless access remote until it clicks.

Continued

uuLocking and Unlocking the Doors uLow Keyless Access Remote Signal Strength

Controls

1Key Number Tag

Keep the key number tag separate from the key in a safe place outside of your vehicle. If you wish to purchase an additional key, contact a dealer.

If you lose your key and you cannot start the engine, contact a dealer.

1Low Keyless Access Remote Signal Strength

Communication between the keyless access remote and the vehicle consumes the keyless access remote’s battery.

Battery life is about two years, but this varies depending on regularity of use.

The battery is consumed whenever the keyless access remote is receiving strong radio waves. Avoid placing it near electrical appliances such as televisions and personal computers.

2014 ILX

QRG

Key Number Tag

■

TOC

Low Keyless Access Remote Signal Strength

The vehicle transmits radio waves to locate the keyless access remote when locking/ unlocking the doors, opening the trunk, or to start the engine.

In the following cases, locking/unlocking the doors, opening the trunk, or starting the engine may be inhibited or operation may be unstable:

• Strong radio waves are being transmitted by nearby equipment.

Index

• You are carrying the keyless access remote together with telecommunications equipment, laptop computers, cell phones, or wireless devices.

• A metallic object is touching or covering the keyless access remote.

Contains a number that you will need if you purchase a replacement key.

Locking/Unlocking the Doors from the Outside

1Locking/Unlocking the Doors from the Outside

You can lock or unlock doors using the remote transmitter or keyless access system only when the power mode is in VEHICLE OFF.

1Using the Remote Transmitter

If you do not open a door within 30 seconds of unlocking the vehicle with the remote transmitter, the doors will automatically relock.

You can change the relock timer setting.

2 Customized Features P. 83

If the interior light switch is in the door activated position, the interior lights come on when you press the UNLOCK button.

No doors opened: The lights fade out after 30 seconds.

Doors relocked with the remote: The lights go off immediately.

2 Interior Lights P. 131

The remote transmitter uses low-power signals, so the operating range may vary depending on the surroundings.

The remote will not lock the vehicle when a door is open.

LED

Unlock Button

Lock Button

2014 ILX

QRG

Using the Remote Transmitter

■

TOC

Controls

uuLocking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside

■ Locking the doors

Press the LOCK button.

Once:

u Some exterior lights flash, all the doors

lock, and the security system sets.

Twice (within five seconds after the first push):

u A beeper sounds and verifies the security

system is set.

■ Unlocking the doors

Press the UNLOCK button.

Once:

u Some exterior lights flash twice, and the

driver's door unlocks.

Twice:

u The remaining doors unlock.

Index

Continued

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside

Controls

Door Lock Button

1Using the Keyless Access System

• Do not leave the keyless access remote in the

vehicle when you get out. Carry it with you.

• A person who is not carrying the keyless access

remote can lock/unlock the doors if a person who is carrying it is within range.

• The door may be unlocked if the door handle is

covered with water in heavy rain or in a car wash if the keyless access remote is within range.

• If you grip a front door handle wearing gloves, the

door sensor may be slow to respond or may not respond by unlocking the doors.

• The door might not open if you pull it immediately

after gripping the door handle. Grip the handle again and confirm that the door is unlocked before pulling the handle.

If the distance at which it works varies, the battery is probably low.

If the LED does not come on when you press a button, the battery is dead.

2 Replacing the Button Battery P. 296

You can customize the door lock mode and keyless lock acknowledgement setting.

2 Customized Features P. 83

2014 ILX

QRG

Using the Keyless Access System

■

TOC

■ Locking the vehicle

When you carry the keyless access remote, you can lock/unlock the doors and open the trunk.

You can lock/unlock the doors within a radius of about 32 inches (80 cm) of the outside door handle. You can open the trunk within about 32 inches (80 cm) radius from the trunk release button.

Press the door lock button on the front door.

u Some exterior lights flash; the beeper

sounds; all the doors lock; and the security system sets.

Index

Trunk Release Button

1Using the Keyless Access System

• Even within the 32 inches (80 cm) radius, you may

not be able to lock/unlock the doors with the keyless access remote if it is above or below the outside handle.

• The keyless access remote may not operate if it is

too close to the door and door glass.

If you do not open a door within 30 seconds of unlocking the vehicle, the doors will automatically relock.

The light flash, beep and unlock settings can be customized using the multi-information display.

2 Customized Features P. 83

QRG

2014 ILX

■ Unlocking the vehicle

TOC

Controls

Index

uuLocking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside

Grab the driver’s door handle:

u The driver’s door unlocks. u Some exterior lights flash twice and the

beeper sounds twice.

Grab the front passenger’s door handle:

u All the doors unlock. u Some exterior lights flash twice and the

beeper sounds twice.

Press the trunk release button:

u The trunk unlocks and opens. u A beeper will sound.

2 Using the Trunk Release Button P. 103

Continued

Controls

1Locking/Unlocking the Doors Using a Key

When you lock the driver's door with a key, all the other doors lock at the same time. When unlocking, the driver's door unlocks first. Turn the key a second time within a few seconds to unlock the remaining doors.

You can customize the door unlock mode setting.

2 Customized Features P. 83

Lock

Unlock

1Locking a Door Without Using a Key

When you lock the driver's door, all the other doors lock at the same time. Make sure you have the key in your hand before locking the door to prevent it from being locked in the vehicle.

QRG

2014 ILX

TOC

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside

Locking/Unlocking the Doors Using a Key

■

Fully insert the key and turn it.

Locking a Door Without Using a Key

■

■ Locking the front doors

Push the lock tab forward a or push the master door lock switch in the lock direction

b, and close the door.

■ Locking the rear doors

Push the lock tab forward and close the door.

Index

■ Lockout prevention system

The doors cannot be locked when the keyless access remote is inside the vehicle, and any door is open.

Locking/Unlocking the Doors from the Inside

1Using the Lock Tab

When you lock the door using the lock tab on the driver's door, all the other doors lock at the same time.

When you unlock the door using the lock tab on the driver's door, only the driver's door will unlock.

To Unlock

Lock Tab

To Lock

1Unlocking Using the Inner Handle of Front Doors

The inner front door handles are designed to allow front seat occupants to open the door in one motion. However this feature requires that front seat occupants never pull a front door inner handle while the vehicle is in motion.

Children should always ride in a rear seat where childproof door locks are provided.

2 Childproof Door Locks P. 100

Inner Handle

2014 ILX

QRG

Using the Lock Tab

■

■ Locking a door

Push the lock tab forward.

■ Unlocking a door

Pull the lock tab rearward.

TOC

Controls

Unlocking Using the Inner Handle of Front Doors

■

Pull the front door inner handle.

u The door unlocks and opens in one

motion.

uuLocking and Unlocking the Doors u Locking/Unlocking the Doors from the Inside

Index

Continued

Acura ILX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

2014 ILX

Quick Reference Guide

Visual Index

Safe Driving (P 21)

Instrument Panel (P 63)

Controls (P 91)

Features (P 141)

Driving (P 209)

Maintenance (P 247)

Handling the Unexpected (P 303)

What to Do If

A Few Words About Safety

Safe Driving

For Safe Driving

Seat Belts

Airbags

Child Safety

Exhaust Gas Hazard

Safety Labels

Instrument Panel

Indicators

Gauges and Multi-Information Display

Controls

Setting the Clock

Locking and Unlocking the Doors
