Table of Contents
)
Warning .................................................
Mission Statement ....................................
One Year Limited Warranty .....................
EON Basix
The Components ......................................
Operating Your EON Basix
Attaching Your Heart Rate Monitor ......
Buttons and Functions .........................
Modes of Operation ...........................
Time/Date Mode ............................
Heart Rate/Stopwatch Mode .........
Time in HR Target Zone Mode ....
Time in above HR Target Zone Mode .....
Time in below HR Target Zone Mode .....
Calorie Mode ..............................
Fitness Index Mode ......................
Determining Your Exercise Factor ...........
Battery Replacement ..............................
General Precautions ..............................
Technical Specifications .........................
Technical Display Guide ........................
Service and Repair ...............................
Overexertion can cause serious injury, including heart
attacks. Some individuals cannot safely elevate their heart
rate to the levels of typically used heart rate training zones.
No one should begin an exercise program without first
obtaining medical clearance, especially if there is a personal
or family history of heart disease, high blood pressure, if
you are over age 40, have diabetes, high cholesterol, smoke
cigarettes, are overweight or are taking certain medications.
Stop exercising and seek medical attention if you notice
signs of overexertion or heart problems, such as pain or
pressure in the left or mid-chest area or left neck area,
shoulder or arm, light-headedness, cold sweat, unusual
paleness or fainting. Also note that the signals used by this
monitor may interfere with a pacemaker or other implanted
devices. Consult the manufacturer of the implant device
and/or your physician prior to using this monitor.
plus
(ES) Features ....................
plus
(ES) ...........
1
2
3
3
4
5
5
6
6
7
9
11
11
12
12
12
13
14
15
16
17
18
(
EON
Congratulations!
Welcome to the future of wireless heart rate
technology! Your purchase shows that you are
serious about your exercise and are committed
to achieving your best. Today, getting the most
from your exercise doesn’t necessarily mean
you have to spend longer periods of time to
achieve your goals. With Target Heart Rate
Training, you will increase the effectiveness
of your workout by monitoring and quantifying
your results every step of the way. For most
individuals as little as 20 minutes in your target
heart rate zone each session is enough to
achieve substantial health improvements. The
Acumen EON Basix
personal coach and guide you to your fitness
goals more effectively.
plus
(ES) will act as your
Mission Statement
At Acumen we have listened to what people
such as yourself have been asking for in a
heart rate monitor and are committed to your
satisfaction. We know you will enjoy all of the
added features, along with those never found
before in other heart rate monitors, and the
ease of use incorporated into our products. If
you ever have any questions, comments or
suggestions, please write or call our staff. We
greatly value your feedback and look forward
to continuing to provide you with products and
support that‘s second to none. Thank you for
your purchase and anticipated support.
Product Development Team
One Year Limited Warranty
This product is warranted by Acumen Inc. for
one year from date of purchase (with the
exception of batteries and elastic chest strap)
against defects in workmanship and material.
During that period, these defects will be repaired
or the product will be replaced at Acumen Inc.
option without charge. This warranty covers
normal consumer usage and does not cover
damage which occurs in shipment or failure
which results from accident, misuse, abuse,
tampering, alteration or disassembling of the
product or improper maintenance. This warranty
is effective only if the product is purchased and
operated in the USA and does not extend to
any units which have been used in violation of
written instructions furnished by Acumen Inc.,
or to units which have been altered or modified
without authorization of Acumen Inc., or to
damage to products or parts thereof which have
had the serial number removed, altered,
defected or rendered illegible. Product must be
returned to local authorized dealer for service
if purchased outside USA. .
Note: Please return product to local authorized
dealer for service if purchased outside USA.
Please visit our website http://www.acumen
inc.com for warranty registration
EON Basix
• Shock resistant design
• Water resistant to 30 meters
• ECG accurate heart rate
• EZ-Set Target Zone
programming with audible and visual alarm
indicators
• Time in/above/below Heart Rate Target Zone
• 12/24 hr. Time/Date display with daily alarm
• Stopwatch with 1 button quick start
• Calorie
• Fitness Index
3
plus
(ES) Features
Pat. NO.US6345197B1
automatic
• Smart Lite EL night light with auto activation
The Components
plus
plus
(ES) package includes:
ES)
plus
or EON
Your EON Basix
A.) Pulse watch receiver (EON Basix
Basix
• Sleek, sporty styling with an easy to read
display and comfortable button locations.
B.) Chest Transmitter
• Soft flexible electrodes comfortably hug your
chest providing optimum stability. .
C.) Adjustable elastic strap with EZ-Fit Belt Clip
• Easy to adjust and includes a unique angled
design patented clip which helps eliminate
slippage and provides added comfort.
A
4
EON Basix
C
“Angle-Fit” Belt Clip
plus
EON Basix
Elastic Strap
B
Chest Transmitter
plus
ES
Operating Y our EON Basix
plus
(ES)
I. Attaching Your Heart Rate Monitor
1.) Attach the transmitter belt to your chest.
Attach the adjustable strap: insert round end
of clip through the hole and twist (Fig.1).
Fig. 1
Elastic
Transmitter
Transmitter
Strap
Belt Clip
Patented Angle Design
Adjust the tension of the strap: to fit snugly
but comfortably around your chest (Fig.2).
Fig. 2
Moisten the transmitter electrodes: apply a
small drop of water on each of the two contact
areas (Fig.3).
Fig. 3
Belt Clip
Elastic
Strap
Electrode
2.) Attach your wrist monitor. The watch does
not have to be attached to your wrist to register
your heart rate, but it should be within 3 feet
of your chest.
5
3.) Press the MODE/SET button to start the
heart rate reading.
II. Buttons and Functions
• MODE/SET Button
- Press momentarily to
change modes; to
/
proceed to the next
item in the setting
mode.
- Press and hold to
enter or exit the setting
STR/STP
RESET
mode.
•
/ Button
- Press momentarily to activate the night light
for 3 seconds; to decrease the digits in the
setting mode (press and hold to change it
fast). .
- Press and hold to switch alarm sound ON/OFF
in Time/Date or Heart Rate/Stopwatch Mode
(indicated by “
” icon displaying on the
screen).
• STR/STP/RESET Button
- Press momentarily to start or stop the
stopwatch; to increase the digits in the setting
mode (press and hold to change it fast).
- Press and hold to clear the data of the
stopwatch in Heart Rate/Stopwatch Mode when
the stopwatch is stopped. If not clear, it will
add up when the stopwatch restarts (But the
data of stopwatch and other records, such as
time in/ below/above heart rate target zone,
calories and fitness index will saved until they
are replaced with new data by starting a new
workout.). .
Note: All buttons produce one short beep
when pressed. Press and hold operation also
produces another beep. When the daily alarm
is beeping, it can be silenced by pressing any
button.
MODE
/SET
III. Modes of Operation
To toggle through different modes, press the
MODE /SET button.
6
Press & Hold
Time/Date
Press MODE/SET button
Heart Rate
/Stopwatch
Press MODE/SET button
Time in HR
Target Zone
Press MODE/SET button
Time in above
HR Target Zone
Press MODE/SET button
Time in below
HR Target Zone
Press MODE/SET button
Calories
Press MODE/SET button
Fitness Index
MODE/SET button
MODE/SET button
Press & Hold
Set Time, Date & Daily Alarm
Set Personal Data
Note: If no button is pressed for 60 seconds,
the watch will automatically exit the setting mode.
Time/Date Mode
The watch firstly enter Time/Date Mode when
turned on.

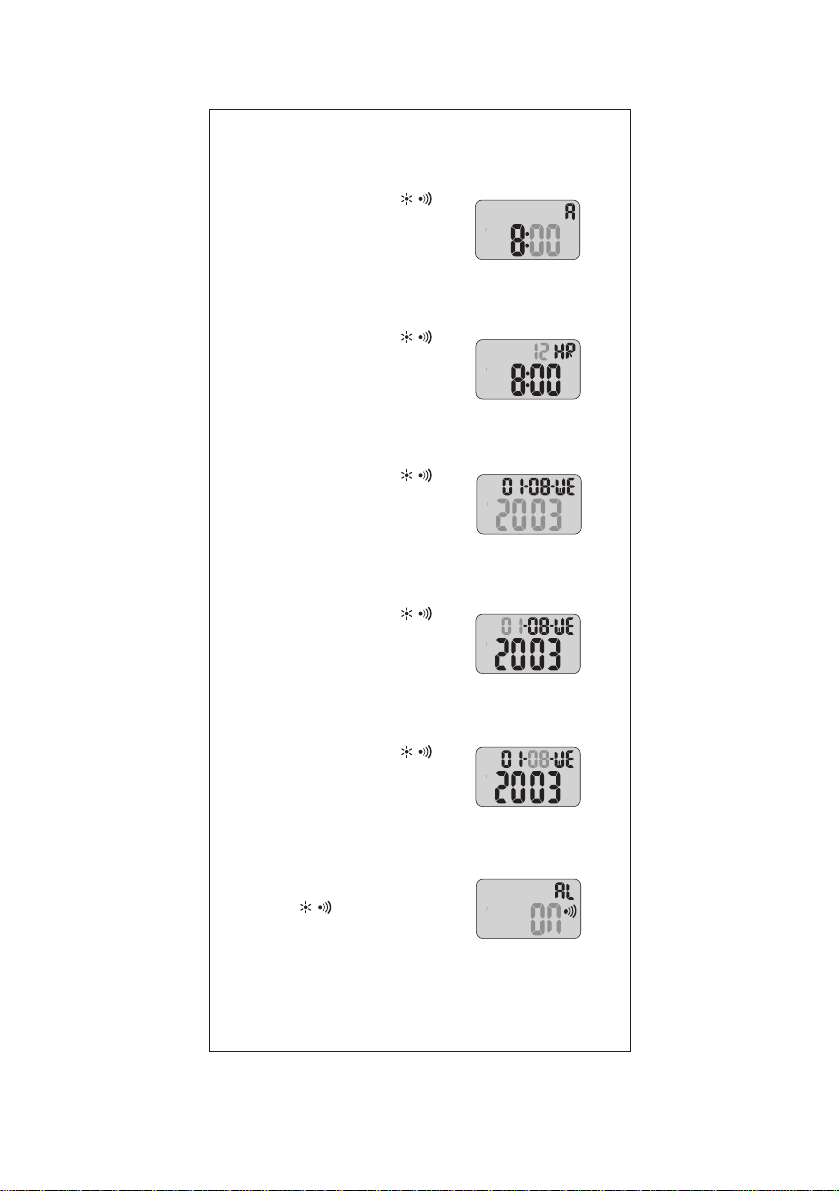

Setting the time
1. From Time/Date
Mode, press and hold
the MODE /SET button
to enter the setting
mode.
2. Hour (blinking)
- Set by using the /
button or the
STR/STOP /RESET
button.
- Press the MODE/
SET button to proceed
to the next item.
7
3. Minutes (blinking)
- Set by using the
button or the STR/STP
/RESET button.
- Press the MODE/
SET button to proceed
to the next item.
4. 12/24 Hr. Time (blinking)
- Set by using the
button or the STR/STP/
RESET button.
- Press the MODE/
SET button to proceed
to the next item.
5. Year (blinking)
- Set by using the
button or the STR/STP/
RESET button.
- Press the MODE/
SET button to proceed
to the next item.
6. Month (blinking)
- Set by using the
button or the STR/STP/
RESET button.
- Press the MODE/
SET button to proceed
to the next item.
7. Day (blinking)
- Set by using the
button or the STR/STP/
RESET button.
- Press the MODE/
SET button to proceed
to the next item.
/
/
/
/
/

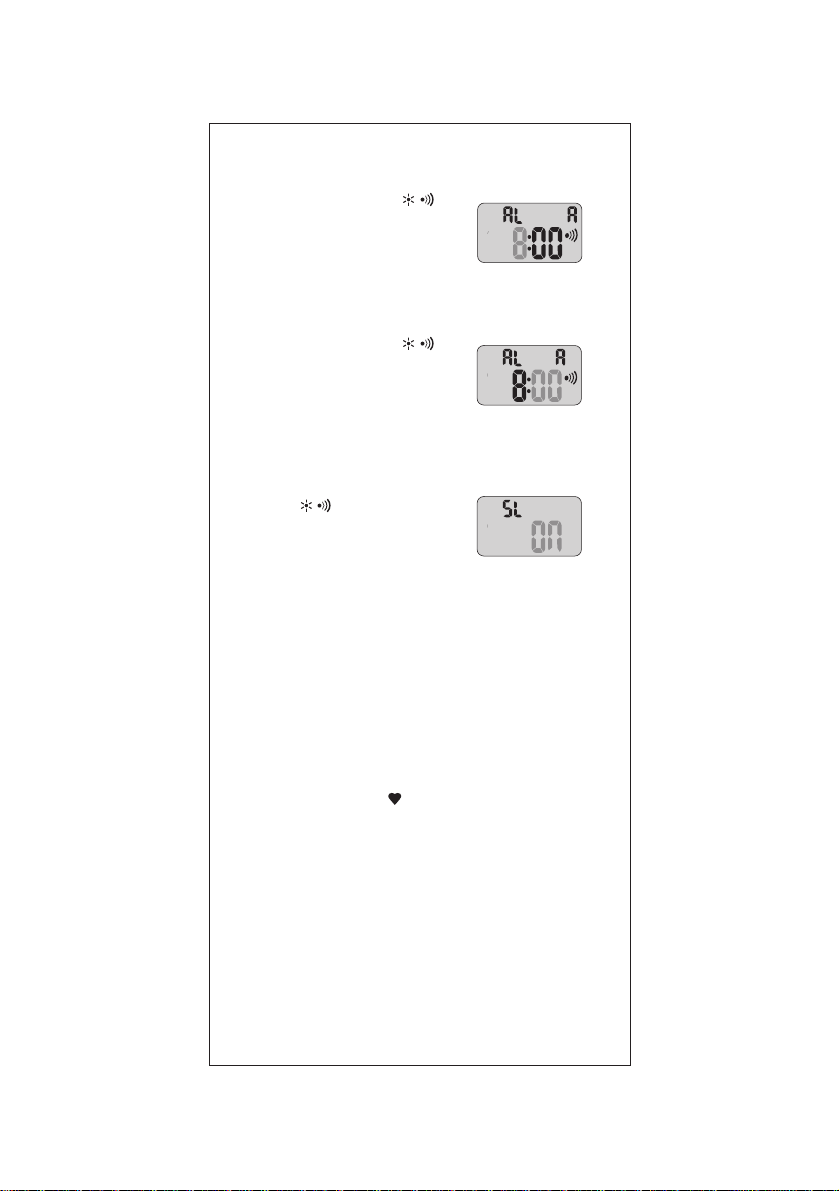

8. Daily Alarm (blinking)
- Set ON or OFF by using
the
/ button or the
STR/STP/RESET
button.
- Press the MODE/
SET button to proceed
to the next item.
8
9. Alarm Hour (blinking)
- Set by using the /
button or the STR/STP/
RESET button.
- Press the MODE/
SET button to proceed
to the next item.
10. Alarm Minutes (blinking)
- Set by using the /
button or the STR/STP
/RESET button.
- Press the MODE/
SET button to proceed
to the next item.
11. Smart Lite (blinking)
- Set ON or OFF by using
the / button or the
STR/STP/RESET
button (This feature will
activate the night light
for 3 seconds between
6 p.m. and 6 a.m. with
any button pressed.).
- Press the MODE/
SET button to exit the
setting mode.
Heart Rate/Stopwatch Mode
From Time/Date Mode, press the MODE/SET
button once to go to Heart Rate/Stopwatch
Mode and begin your exercise.
Heart Rate -The “
rate circuit is on. If your transmitter is correctly
attached, the clock indicator should begin to
blink and your current heart rate in beats per
minute will come up on the display. If no heart
rate or no key action for 15 seconds and for 5
minutes between two heart rates, the heart rate
circuit will switch itself off. To restart it by
pressing the MODE /SET button.

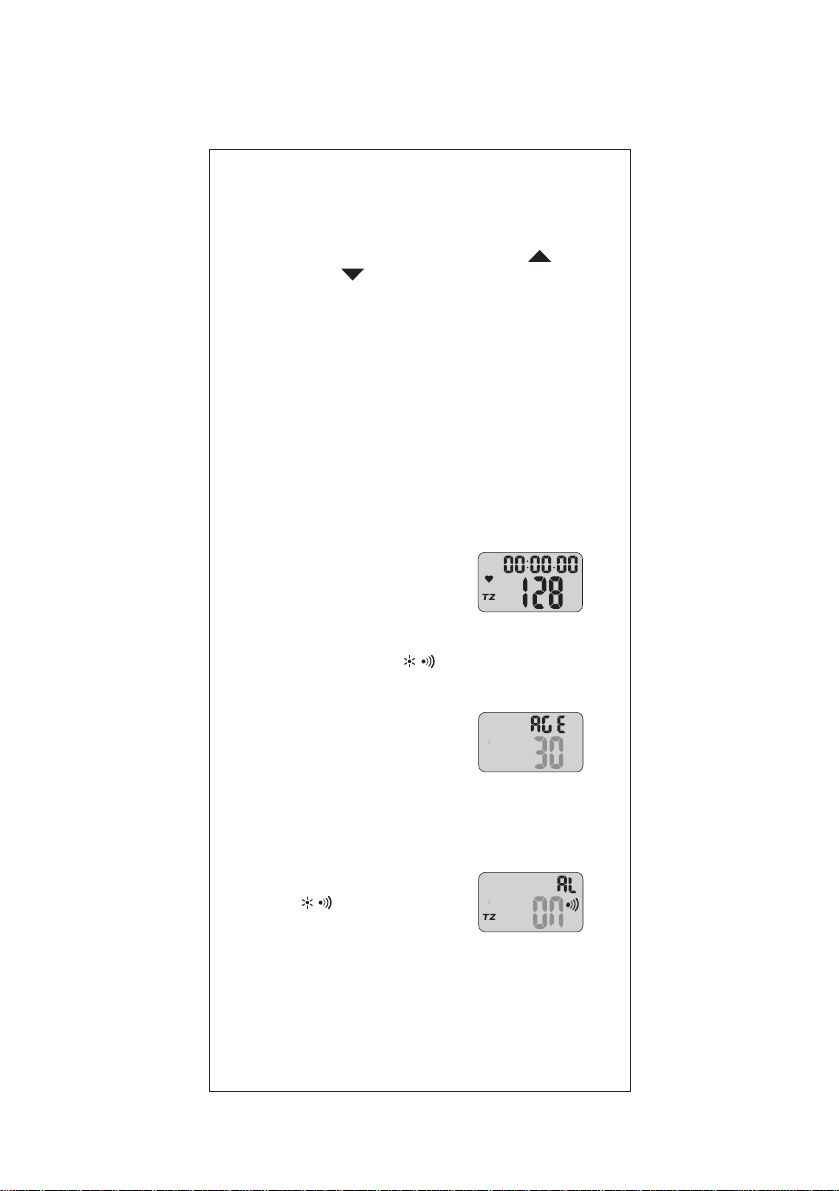

Target Zone Alarm - Your Target Zone autosets
based on age setting, modifying it is optional.
9
” icon indicates the heart
Your watch will provide both a visual indicator
(by flashing the heart rate digits) and an audible
alarm (by beeping with the rhythmic beating of
your current heart rate) if your heart rate is
above or below your target zone. The “
“TZ” or “TZ
heart rate is above, within or below the target
zone respectively.
The Stopwatch - From any Mode, press the
STR/STP/RESET button to activate the
stopwatch.You can pause and restart by
pressing this button. You can also press the
MODE/SET button to view other modes without
interrupting the stopwatch. To reset the
stopwatch, just press and hold the STR/STP/
RESET button for 3 seconds in Heart Rate/
Stopwatch Mode while the stopwatch is stopped.
Setting Your Personal Data
1. From Heart Rate/Stop-
watch Mode, press and
hold the MODE/SET
button to enter the setting
mode.
2. Age (blinking)
- Set by using the
button or the STR/STP/
RESET button.
- Press the MODE/SET
button to proceed to the
next item (If you want to
use the built-in EZsetting of 65-85% of you
max., set only your age
and skip steps 4&5.).
3. Target Zone Alarm
(blinking)
- Set ON or OFF by using
the
STR/STP/RESET
button.
- Press the MODE/SET
button to proceed to the
next item.
10
” icons will indicate that your
/
/ button or the
TZ”,
4. Upper Target Zone
Limit (blinking)
- Set by using the /
button or the STR/STP
/RESET button.
- Press the
MODE/SET button to
proceed to the next item.
5. Lower Target Zone
Limit (blinking)
- Set by using the /
button or the STR/STP/
RESET button.
- Press the MODE/
SET button to proceed
to the next item.
6. Exercise Factor(blinking)
- Set by using the /
button or the STR/STP/
RESET button.
- Press the MODE/
SET button to exit the
setting mode.
Time in HR Target Zone Mode
From Heart Rate/Stopwatch
Mode, press the MODE/
SET button to enter Time
in HR Target Zone Mode.
The watch automatically
records the time when your
heart rate is within the target zone. By working
within the correct target zone, you will achieve
your fitness goals and strengthen your
cardiovascular system in less time. Effective
conditioning requires that you maintain your
heart rate at the proper level for at least 20
minutes per workout (or per day).

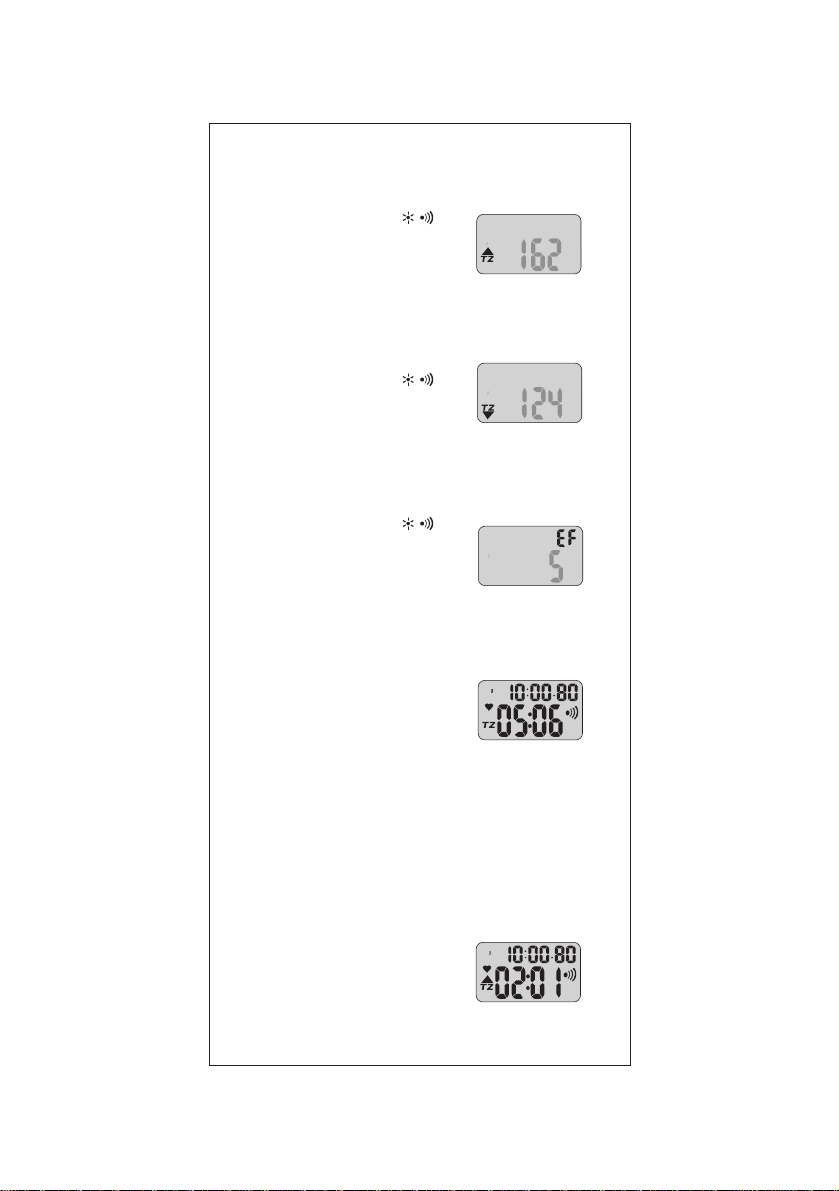

Time in above HR Target Zone Mode
From Heart Rate/
Stopwatch Mode, press the
MODE/SET button to enter
Time in above
11
activate it, just stop the stopwatch when you
finish exercising. The watch will automatically
switch to the Fitness Index Mode and begin
a 60-second-countdown timer. During this
countdown, you should be concentrating on
bringing your body down to a comfortable
rest, by taking deep slow breathes and
relaxing your muscles. When the countdown
timer reaches zero, the watch will beep twice
and display a number between 0 - 99. The
higher this number, the better your recovery
rate.
Note: The chest transmitter needs to remain
attached to your chest for this feature to work.
Fitness Index Level Grade
0~20
21~40
41~60
61~80
81~100
Poor
Fair
OK
Good
Excellent
Determining Your Exercise
Factor
The Exercise Factor is one of the variables
used by the watch in estimating the amount of
calories burned during your workout. The most
common forms of exercise are listed in the table
below. Select a number from the table below
based on how hard you plan to exercise for a
given activity and set your watch accordingly
(see Setting Instructions on page 11). If you do
not find the particular activity you are looking
for, refer to one that is similar.
13
Table of Exercise Factor Settings
Exercise
Aerobics
Basketball
Bowling
Cycling
Dancing
Football
Golf
Hiking
Jumping Rope
Running
Skating (Ice/Inline)
Skiing (Cross-
Country)
Skiing
(Downhill/Water)
Swimming
Stair Climbing
Tennis
Volleyball
Intensity Level
Light
6
7
2
3-5
3
6-7
4-5
3-5
8
8-10
5
6-7
5
4
4
4-5
3
3
3-4
Medium
7,8
8,9
3
6-8
4-6
8
6
5-8
9,10
11-15
6,7
8-10
6,7
5-7
5,6
6-7
4,5
4-6
5-8
High
9
10-12
4
9,10
7,8
9,10
7
9-11
11,12
16,17
8,9
11,12
8
8-10
7,8
8,9
6
7
9,10
Battery Replacement
We recommend that you should take it to a
local jewelry store or an authorized Acumen
service center in order to guarantee that it will
maintain its water resistance. Improper battery
replacement or service will void the warranty.
If you fell comfortable replacing your own
batteries, be careful to notice how the old
battery comes out and the proper positioning
of the hold-down contacts before removing it.
Also, be careful to line up the o-ring gasket
properly before replacing the battery door
cover. To insure battery water resistance, it’s
a good idea to smear a small drop of silicone
lubricant spray on the rubber o-ring.
Note: The watch will enter the shelf mode (i.e.
blank screen) after changing battery. Press any
button to return to normal mode.
14
General Precautions
Do not operate buttons under water. Although
your watch is water resistant, be sure that you
do not operate its buttons under water as
pressure can cause them to leak.
Dry off transmitter after use. The transmitter
will automatically shut itself off once you have
disconnected it from your chest. However, it
is important to thoroughly dry it off after every
use, since moisture in the electrodes can cause
it to remain on longer.
Electrode precautions. Be sure not to
excessively twist or bend the electrode portions
of the chest transmitter (never bend
backwards), especially when storing it. This
can permanently damage their conductivity
and cause mechanical damage to the internal
circuit.
Global Reset. If your watch should ever get
stuck or act erratically due to dropping it, static
shock or some other unforeseen reasons, this
feature will allow you to reset the watch and
return all settings back to their internal defaults.
To perform this function by pressing and holding
all buttons at once. The watch will enter the
shelf mode, which is of the blank screen. Press
any button to restart it. .
Caution: THIS WILL CLEAR EVERYTHING!
Including all of your personal settings.
15
Technical Specifications
Shock Resistance
Water Resistance
Operating
Temperature
Battery Type
Battery Life
Memory Recall
Items
Time Default
Mode
Global Reset
Shock resistant design
98 feet (~ 30 meters)
Not intended for diving
32˚F to 122˚F (0˚C to 50˚C)
Chest transmitter:
Lithium CR2050 or
CR2032
Watch: Lithium CR2032
Approx. 2.5 years, average
use of 1 hr./day, 7 days/
week.
Total elapsed time, time in/
below/above TZ, calories
and fitness index.
The watch will
automatically return to Time
Mode if no heart rate or no
key action for 5 minutes.
This feature will clear all
memory data and user
settings and return all
settings to the default
values listed. Press and
hold all 3 buttons for 3
seconds, the watch will
enter the shelf mode (also
happens at battery replacement), which is of the blank
screen. Press any button
to restart it.
16
Technical Display Guide
Display Items
Time
Alarm Time
Date
Age
Heart Rate Display
TZ Alarm
Upper Target
Zone Limit
Lower Target
Zone Limit
Note: Upper TZ Limit cannot be set less than Lower TZ
Limit and Lower TZ Limit cannot be set more than Upper
TZ Limit. However, they can be set within 1 beat of each
other, or either one can be set to OFF.
Exercise Factor
Stopwatch
Capacity
Time in TZ
Time in above
TZ
Time in below
TZ
Calorie Display
Fitness Index
Default Setting
8 AM/12 Hr.
AM & PM
*
indicators shown
only in the Setting
Mode.
8 AM/ OFF
01/01/2001
30
OFF
162 beats per
minute
124 beats per
minute
5
00:00:00
0
0
0
0
0
Range
12/24 hr. clock
ON/OFF
To 12/31/2099
7 - 99
20 - 250 bpm
ON/OFF
OFF, 20 - 250
OFF, 20 - 250
0 - 20
To 23:59:59 (rolls
over at 24 hours)
0 - 24:00
0 - 24:00
0 - 24:00
0 - 9999 Kcal.
(rolls over at 10000)
0 - 99
17
Service and Repair
Do not attempt to repair your product. Should
the product malfunction, you should first call
(703) 904-0405 between the hours of 9 a.m. 5 p.m. Eastern Time and ask for CONSUMER
CUSTOMER SERVICE stating that you are a
consumer with a problem. If the problem cannot
be resolved, you will be asked to return the
product to the factory for repair. Under no
circumstances should you attempt to open
housing and repair the product. Should you do
this, your warranty will be voided. Securely
package and return the product prepaid to:
101 A Executive Drive Suite 100
Be sure to enclose:
a. Your name, address and phone number.
b. The date of purchase (or receipt as a gift)
c. An explanation of the malfunction or reason
for return.
d. Seven dollars and fifty cents ($7.50) Check
or Money Order payable to Acumen Inc. for
return postage and handling.
e. To insure prompt ‘In warranty’ service, be
sure to include proof of date of purchase.
We recommend you take the necessary
precaution of insuring the parcel.
Acumen Inc.,
Sterling, VA 20166. USA.
To Return for Service
18
©Copyright 2003 ACUMEN, INC., 101A Executive
Drive Suite 100 Sterling, VA 20166 USA
All rights reserved. No part of this manual may be
used or reproduced in any form or by any means
without prior written permission of ACUMEN, INC.
Acumen™ & EZ-Set Target Zone™ are trademarks of
Acumen, Inc.
EZ-Set Target Zone
Angled Belt Clip
Pat. NO. US6345197B1
Pat.NO. US5657514
Revised on Jan.8’03 P/N: 81-030301-00
Loading...
