technical information/business aids
Radio Waves
VHF
AM
SW
TV
FM Microwave
Cooking
Infrared
Cooking
Infrared
Vision
Tanning
Rays
ActivePure
UVX
Medical
X-Rays
Food Radiation
Nuclear
Power
Incandescent &
Fluorescent
Light Bulbs
RADAR
Sun Rays
Oxidation/Sterilization
Ionizing Radiation
Penetrating Radiation
Microwaves Infrared
Visible Light
UV Rays X-Rays Gamma Rays
Oxidation/Sterilization

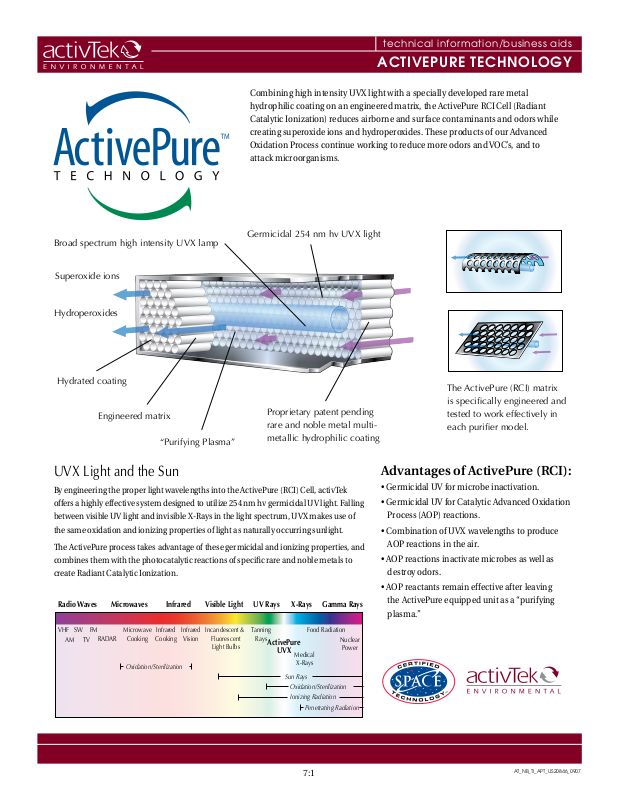

activepure technology
Combining high intensity UVX light with a specially developed rare metal
hydrophilic coating on an engineered matrix, the ActivePure RCI Cell (Radiant
Catalytic Ionization) reduces airborne and surface contaminants and odors while
creating superoxide ions and hydroperoxides. These products of our Advanced
Oxidation Process continue working to reduce more odors and VOC’s, and to
attack microorganisms.
Broad spectrum high intensity UVX lamp
Germicidal 254 nm hv UVX light
Superoxide ions
Hydroperoxides
Hydrated coating
Engineered matrix
Proprietary patent pending
rare and noble metal multi-
“Purifying Plasma”
metallic hydrophilic coating
UVX Light and the Sun
By engineering the proper light wavelengths into the ActivePure (RCI) Cell, activTek
offers a highly effective system designed to utilize 254 nm hv germicidal UV light. Falling
between visible UV light and invisible X-Rays in the light spectrum, UVX makes use of
the same oxidation and ionizing properties of light as naturally occurring sunlight.
The ActivePure process takes advantage of these germicidal and ionizing properties, and
combines them with the photocatalytic reactions of specific rare and noble metals to
create Radiant Catalytic Ionization.
The ActivePure (RCI) matrix
is specically engineered and
tested to work effectively in
each purier model.
Advantages of ActivePure (RCI):
• Germicidal UV for microbe inactivation.
• Germicidal UV for Catalytic Advanced Oxidation
Process (AOP) reactions.
• Combination of UVX wavelengths to produce
AOP reactions in the air.
• AOP reactions inactivate microbes as well as
destroy odors.
• AOP reactants remain effective after leaving
the ActivePure equipped unit as a “purifying
plasma.”
7:1
AT_NB_TI_APT_US20846_0907
Page 2
uSeFul ForMulaS
Area
– Is the calculation of the size of a room or building
for determining the correct unit to place based on area – for
example, the Eagle 5000 is generally for areas up to 3500 square
feet (ft2).
•
Area = length times (X) width
• Area is almost always given in
of a room or building
– square feet (ft2)
– square meters (m2)
• Since length and width are in feet, therefore ft x ft = square
feet (ft2)
• Example 1:
– You are given an application for a reception area in a
nursing home with moderate odors. The area measures 50
by 60 feet.
– The area equals: 50 ft x 60 ft = 3000 ft
2..
– Therefore a Fresh Air SE which is rated up to 3000 ft2 could
be used in this application.
Volume
– Is the calculation of the size of a room or building
in volume for the purpose of determining the correct unit
to place based on volume – for example the EcoAir 4000 is
generally for coolers or freezers, volumes of up to 4000 cubic
feet (ft3).
Converting “Tons” and “CFM”
– Some of our Commercial
equipment is recommended for a range of air flows usually
given in CFM. For example, the activTek INDUCT 5000 120VAC
is recommended for 18,000 to 26,000 CFM.
• Since: One (1) ton = 550 CFM/ton
• 18,000 CFM/550 CFM/ton = up to approximately (~) 32 tons
capacity
• Given: A 20 ton unit services this building
– 20 tons X 550 CFM/ton = 11,000 CFM
– This means that (1) activTek INDUCT 5000 will work
1 Thes e exa mpl es do not t ake any s pecia l circ umsta nce s into cons ide ration – su ch as
mol d, pre vious fl ooding , and etc. These calcu latio ns merely serv e a s an e xampl e.
2 Alth ough dif ferent auth ori ties u se di fferen t equ iva lents rangi ng fro m 400 to
600 CFM/t on, a ctivTek Envi ron mental choo ses to use the most widel y acce pted
sta ndard of 55 0 C FM/ton .
Volume = length times (X) width times (X) height
•
of a
room, cooler, freezer, or building
• Volume is almost always given in
– cubic feet (ft3)
– cubic meters (m3)
• Since length, width, and height are in feet, therefore ft x ft x ft
= cubic feet (ft3)
• Example 2:
– A fruit cooler needs an air purifier
– You are told that the width is 10 feet and the length is
30 feet
– The area is 10 feet wide x 30 feet long = 300 ft2 total area
– You measure the floor to ceiling height and discover it’s
8 feet
– Now, 10 feet x 30 feet x 8 feet = 2400 cubic feet (ft3)
– Therefore the cooler can be serviced by an EcoAir 4000
7:2
