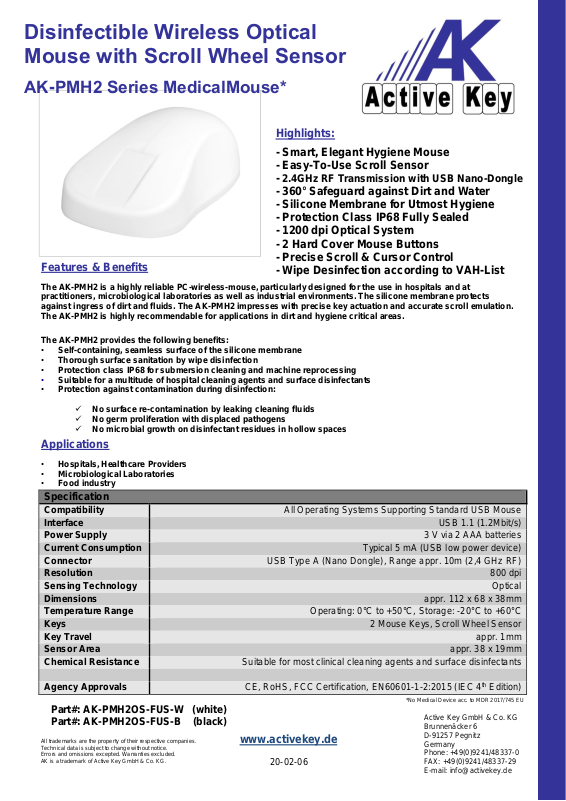

Active Key AK-PMH2 User Manual

*No Medical Device acc. to MDR 2017/745 EU

Part#: AK-PMH2OS-FUS-W (white)
Part#: AK-PMH2OS-FUS-B (black)

Specification

Compatibility

All Operating Systems Supporting Standard USB Mouse

Interface

USB 1.1 (1.2Mbit/s)

Power Supply

3 V via 2 AAA batteries

Current Consumption

Typical 5 mA (USB low power device)

Connector

USB Type A (Nano Dongle), Range appr. 10m (2,4 GHz RF)

Resolution

800 dpi

Sensing Technology

Optical

Dimensions

appr. 112 x 68 x 38mm

Temperature Range

Operating: 0°C to +50°C, Storage: -20°C to +60°C

Keys

2 Mouse Keys, Scroll Wheel Sensor

Key Travel

appr. 1mm

Sensor Area

appr. 38 x 19mm

Chemical Resistance

Suitable for most clinical cleaning agents and surface disinfectants

Agency Approvals

CE, RoHS, FCC Certification, EN60601-1-2:2015 (IEC 4th Edition)

Disinfectible Wireless Optical

Mouse with Scroll Wheel Sensor

AK-PMH2 Series MedicalMouse*

20-02-06

Features & Benefits

The AK-PMH2 is a highly reliable PC-wireless-mouse, particularly designed for the use in hospitals and at
practitioners, microbiological laboratories as well as industrial environments. The silicone membrane protects
against ingress of dirt and fluids. The AK-PMH2 impresses with precise key actuation and accurate scroll emulation.
The AK-PMH2 is highly recommendable for applications in dirt and hygiene critical areas.

The AK-PMH2 provides the following benefits:

• Self-containing, seamless surface of the silicone membrane

• Thorough surface sanitation by wipe disinfection

• Protection class IP68 for submersion cleaning and machine reprocessing

• Suitable for a multitude of hospital cleaning agents and surface disinfectants

• Protection against contamination during disinfection:

 No surface re-contamination by leaking cleaning fluids
 No germ proliferation with displaced pathogens
 No microbial growth on disinfectant residues in hollow spaces

Applications

• Hospitals, Healthcare Providers

• Microbiological Laboratories

• Food industry

www.activekey.de

Highlights:

- Smart, Elegant Hygiene Mouse

- Easy-To-Use Scroll Sensor

- 2.4GHz RF Transmission with USB Nano-Dongle

- 360° Safeguard against Dirt and Water

- Silicone Membrane for Utmost Hygiene

- Protection Class IP68 Fully Sealed

- 1200 dpi Optical System

- 2 Hard Cover Mouse Buttons

- Precise Scroll & Cursor Control

- Wipe Desinfection according to VAH-List
