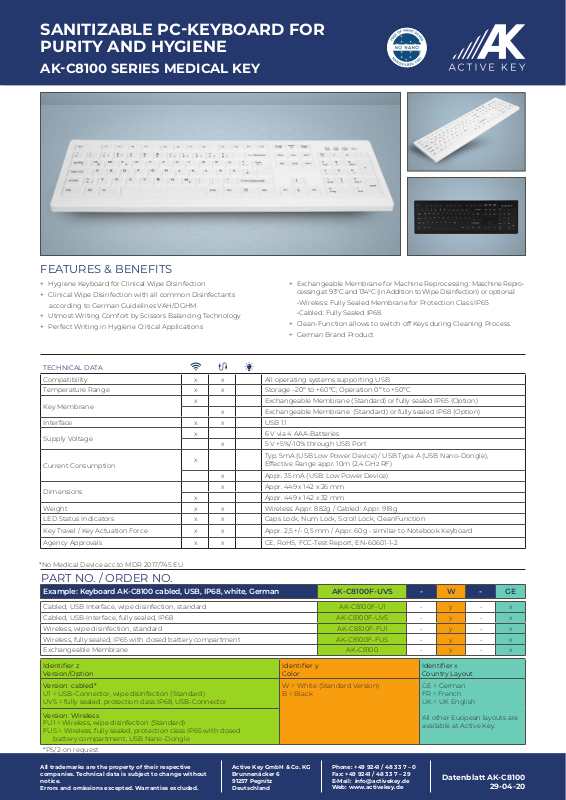

Active Key AK-C8100F User Manual

SANITIZABLE PCKEYBOARD FOR PURITY AND HYGIENE

AKC8100 SERIES MEDICAL KEY

FEATURES & BENEFITS

+ Hygiene Keyboard for Clinical Wipe Disinfection + Clinical Wipe Disinfection with all common Disinfectants

according to German Guidelines VAH/DGHM

+ Utmost Writing Comfort by Scissors Balancing Technology + Perfect Writing in Hygiene Critical Applications

+ Exchangeable Membrane for Machine Reprocessing: Maschine Repro-

cessing at 93°C and 134°C (in Addition to Wipe Disinfection) or optional:

• Wireless: Fully Sealed Membrane for Protection Class IP65

• Cabled: Fully Sealed IP68 + Clean-Function allows to switch off Keys during Cleaning Process + German Brand Product

TECHNICAL DATA

Compatibility x x All operating systems supporting USB Temperature Range x x Storage –20º to +60ºC; Operation 0º to +50ºC

Key Membrane

Interface x x USB 1.1

Supply Voltage

Current Consumption

Dimensions

Weight x x Wireless: Appr. 882g / Cabled: Appr. 918g LED Status Indicators x x Caps Lock, Num Lock, Scroll Lock, CleanFunction

Key Travel / Key Actuation Force x x Appr. 2,5 +/- 0,5 mm / Appr. 60g - similiar to Notebook Keyboard

Agency Approvals x x CE, RoHS, FCC-Test Report, EN-60601-1-2

*No Medical Device acc.to MDR 2017/745 EU

x Exchangeable Membrane (Standard) or fully sealed IP65 (Option)

x Exchangeable Membrane (Standard) or fully sealed IP68 (Option)

x 6 V via 4 AAA-Batteries

x 5 V +5%/-10% through USB Port

x Appr. 35 mA (USB: Low Power Device) x Appr. 449 x 142 x 26 mm

x Appr. 449 x 142 x 32 mm

Typ. 5mA (USB Low Power Device) / USB Type A (USB Nano-Dongle), Effective Range appr. 10m (2,4 GHz RF)

PART NO.  ORDER NO.

Example: Keyboard AK-C8100 cabled, USB, IP68, white, German AK-C8100F-UVS - W - GE

Cabled, USB Interface, wipe disinfection, standard AK-C8100F-U1 - y - x Cabled, USB-Interface, fully sealed, IP68 AK-C8100F-UVS - y - x Wireless, wipe disinfection, standard AK-C8100F-FU1 - y - x Wireless, fully sealed, IP65 with closed battery compartment AK-C8100F-FUS - y - x Exchangeable Membrane AK-C8100 - y - x

Identiﬁer z Version/Option

Version: cabled*

U1 = USB-Connector, wipe disinfection (Standard) UVS = fully sealed, protection class IP68, USB-Connector

Version: Wireless FU1 = Wireless, wipe disinfection (Standard) FUS = Wireless, fully sealed, protection class IP65 with closed battery compartment, USB Nano-Dongle

*PS/2-on request

Identiﬁer y Color

W = White (Standard Version) B = Black

Identiﬁer x Country Layout

GE = German FR = French UK = UK English

All other Euopean layouts are available at Active Key.

All trademarks are the property of their respective companies. Technical data is subject to change without notice. Errors and omissions excepted. Warranties excluded.

Active Key GmbH & Co. KG Brunnenäcker 6 91257 Pegnitz Deutschland

Phone: +49 9241 / 48 33 7 – 0 Fax: +49 9241 / 48 33 7 – 29 E-Mail: info@activekey.de Web: www.activekey.de

Datenblatt AK-C8100

29-04-20
