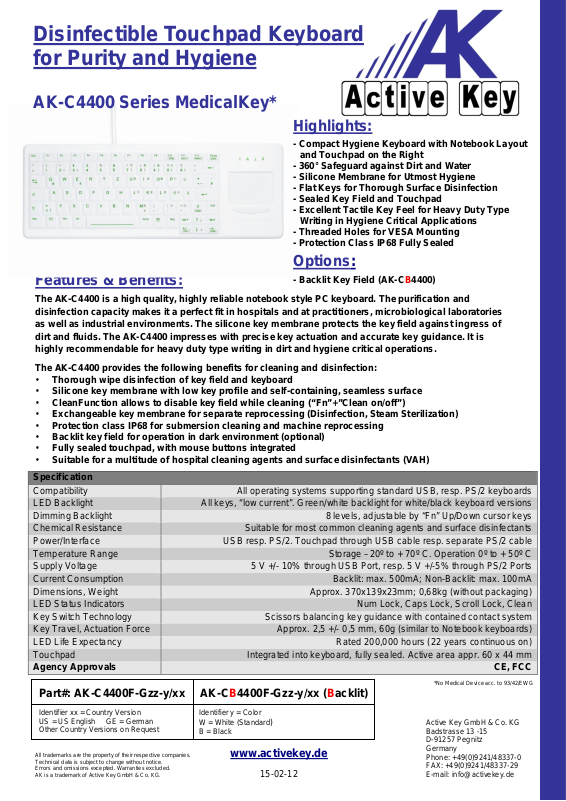

Active Key AK-C4400 User Manual

Features & Benefits:

• Suitable for a multitude of hospital cleaning agents and surface disinfectants (VAH)

Specification

Compatibility

All operating systems supporting standard USB, resp. PS/2 keyboards

LED Backlight

All keys, “low current”. Green/white backlight for white/black keyboard versions

Dimming Backlight

8 levels, adjustable by “Fn” Up/Down cursor keys

Chemical Resistance

Suitable for most common cleaning agents and surface disinfectants

Power/Interface

USB resp. PS/2. Touchpad through USB cable resp. separate PS/2 cable

Temperature Range

Storage –20º to + 70º C. Operation 0º to + 50º C

Supply Voltage

5 V +/- 10% through USB Port, resp. 5 V +/-5% throug h PS/2 Ports

Current Consumption

Backlit: max. 500mA; Non-Backlit: max. 100mA

Dimensions, Weight

Approx. 370x139x23mm; 0,68kg (without packaging)

LED Status Indicators

Num Lock, Caps Lock, Scroll Lock, Clean

Key Switch Technology

Scissors balancing key guidance with contained contact system

Key Travel, Actuation Force

Approx. 2,5 +/- 0,5 mm, 60g (similar to Notebook keyboards)

LED Life Expectancy

Rated 200,000 hours (22 years continuous on)

Touchpad

Integrated into keyboard, fully sealed. Active area appr. 60 x 44 mm

Agency Approvals

CE, FCC

Disinfectible Touchpad Keyboard

Highlights:

- Backlit Key Field (AK-CB4400)

www.activekey.de

Part#: AK-C4400F-Gzz-y/xx

Identifier xx = Country Version

Identifier y = Color
B = Black

Active Key GmbH & Co. KG

All trademarks are the property of their respective companies.

*No Medical Device acc. to 93/42/EWG

AK-CB4400F-Gzz-y/xx (Backlit)

for Purity and Hygiene

AK-C440 0 S eries MedicalKey*

The AK-C4400 is a high quality, highly reliable notebook style PC keyboard. The purification and
disinfection capacity makes it a perfect fit in hospitals and at practitioners, microbiological laboratories
as well as industrial environments. The silicone key membrane protects the key field against ingress of
dirt and fluids. The AK -C4400 impresses with precise key actuation and accurate key guidance. It is
highly recommendable for heavy duty type writing in dirt and hygiene critical operations.

The AK-C4400 provides the following benefits for cleaning and disinfection:

• Thorough wipe disinfection of key fi eld and keyboard

• Silicone key membrane with low key profile and self-containing, seamless surface

• CleanFunction allows to disable key field while cleaning (“Fn”+”Clean on/off”)

• Exchangeable key membrane for separate rep ro ce ssin g (Disinfection, Steam Sterilization)

• Protection class IP68 for submersion cleaning and machine reprocessing

• Backlit key field for operation in dark environment (optional)

• Fully sealed touchpad, with mouse buttons integrated

- Compact Hygiene Keyboard with Notebook Layout
and Touchpad on the Right

- 360° Safeguard against Dirt and Water

- Silicone Membrane for Utmost Hygiene

- Flat Keys for Thorough Surface Disinfection

- Sealed Key Field and Touchpad

- Excellent Tactile Key Feel for Heavy Duty Type
Writing in Hygiene Critical Applications

- Threaded Holes for VESA Mounting

- Protection Class IP68 Fully Sealed

Options:

US = US English GE = German
Other Country Versions on Request

W = White (Standard)

Technical data is subject to change without notice.
Errors and omissions excepted. Warranties excluded.
AK is a trademark of Active Key GmbH & Co. KG.

15-02-12

Badstrasse 13 -15
D-91257 Pegnitz
Germany
