INSTRUCTION MANUAL
SUPREME V2400
CORDLESS WET|DRY VAC
INSTRUCTION MANUAL
2
INDEX PG PG
IMPORTANT SAFEGUARDS 4
ABOUT YOUR DIRTTAMER SUPREME 6
VACUUM DESCRIPTION 7
WALL MOUNTABLE CHARGING BASE 8
BATTERY CHARGING PROCEDURE 9
CHARGE AND LOW BATTERY INDICATORS 10
CLEANING TOOLS 11-12
DIRT FINDING HEADLIGHT 12
3-STAGE FILTRATION SYSTEM 13
HOW TO USE 14
Picking Up Dry Debris
Picking Up Liquid & Wet Debris
CLEANING TIPS 15
MAINTENANCE/FILTER REPLACEMENT 16-18
Emptying/Cleaning Pre-Filter and Bowl
Cleaning/Replacing Foam and HEPA Filters
Cleaning Vacuum Cleaner
BATTERY REPLACEMENT 19
ACCESSORIES 19
WARRANTY Back Cover
3
Congratulations!
You now own a top-quality FilterStream
®
DirtTamer Supreme V2400 Cordless Wet|Dry Vacuum.
To ensure maximum satisfaction, please
take a few moments to review the following
important information before using this item.
Thank You!
4
IMPORTANT SAFEGUARDS
When using electrical appliances, always follow
basic precautions, including the following:
PLEASE READ ALL INSTRUCTIONS CAREFULLY
BEFORE USING THIS APPLIANCE
WARNING: To reduce the risk of
fire, electrical shock or injury:
• Close supervision is necessary when any appliance is used by or near children. Do not allow
this vacuum cleaner to be used as a toy.
• Do not use without bowl and filters in place.
Clean bowl, pre-filter, filter cover, and foam filter
(or HEPA filter) after picking up any perishable
food items.
• To protect against risk of electrical shock, do not
put unit or charging base in water or other liquid.
• Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
• Avoid picking up hard, sharp objects with the
vacuum as they may damage the vacuum and
the filters.
• Do not use to pick up toxic substances, flammable or combustible liquids, such as gasoline, or
operate in the presence of explosive or flammable fumes. Although this vacuum is designed to
pick up liquids, only the nozzle end of the bowl
should be placed in a liquid. Do not immerse the
entire vacuum in any liquid.
• Do not operate in the presence of explosives
and/or flammable fumes or liquids.
• Do not unplug the charger by pulling on the
cord. Never carry the charger or base by the
cord or yank to disconnect from an outlet;
instead, grasp the charger and pull to disconnect. Do not pull cord around sharp edges or
corners.
• Do not allow the cord to hang over the edge of
a table or counter or touch hot surfaces. The
vacuum should be placed or mounted away from
sinks and hot surfaces.
• The use of an extension cord is not recommended. Only plug the charger into a standard
electrical outlet (120V/60 Hz).
5
• Use only the charger supplied with this unit to
recharge this vacuum.
• Do not attempt to use the charger with any
other product.
• Never handle the plug or vacuum with wet hands.
• Do not operate with a damaged cord or charger.
If this unit has been dropped into water, or if it
malfunctions, return the unit to the store where
it was purchased.
• Unplug the charger from outlet before any routine cleaning or maintenance.
• Do not put any object into openings. Do not use
with any opening blocked; keep free of dust,
lint, hair, or anything that may reduce airflow.
• Do not operate vacuum without filters in place.
Replace any damaged filter promptly.
• Do not use on or near hot surfaces.
• Use extra care when cleaning on stairs.
• This vacuum is intended for household use only
and not for commercial or industrial use.
• Use only as described in this manual. Use only
FilterStream
®
DirtTamer®accessories and filters.
• This product contains a sealed lead acid battery.
Do not incinerate the battery as it will explode at
high temperatures.
Always dispose of the battery in accordance with
your state’s laws.
• Leaks from a battery can occur under extreme
conditions. If the battery liquid gets on skin,
wash immediately with water. If it gets in your
eyes, immediately flush your eyes with a mild
solution of baking soda and water and seek
medical attention.
SAVE THESE INSTRUCTIONS
6
ABOUT YOUR DIRTTAMER SUPREME
Your DirtTamer Supreme V2400 Cordless Wet/Dry
Vacuum is the most advanced hand-held vacuum
of its kind. Exhibiting superior suction, extra long
runtime, patented 3-stage filtration, and the
unique ability to trap 99.97% of allergy causing
particles with the included HEPA filter, your
DirtTamer Supreme will clean your home better
than any other cordless hand-held vacuum.
Your DirtTamer Supreme V2400 comes com-
plete with a headlight, exclusive charge and low
battery level indicators, charging base, foam filter,
HEPA filter and 3 handy cleaning tools, so you can
clean anywhere, anytime.
Please follow this manual for the proper set-up,
use, and care of this revolutionary cleaning product.
Your DirtTamer Supreme vacuum
contains the following parts:
Charging Base
Bowl
Bowl Nozzle
Bowl Latch
Charge and Low Battery Indicators
On/Off Switch
Handle/Housing
Battery Compartment
Charger and Cord
Squeegee
Upholstery Brush
Extendible Wand/Crevice Tool
Plastic Wall Anchors
Screws
Filter Cover
Pre Filter
Foam Filter
HEPA Filter
Exhaust Port
Dirt Finding Headlight
7
VACUUM DESCRIPTION
SUPREME 12V
16
17
18
19
20
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
4
5
3
2
1
19
17
16
15
14
13
12
11
10
9
8
7
6
18
17
20
8
WALL MOUNTABLE CHARGING BASE
The Charging Base recharges your DirtTamer
Supreme V2400 vacuum and stores the vacuum
with its cleaning tools for convenient access.
The Charging Base can be mounted vertically
(see Figure A) or placed on a horizontal surface
such as a counter, shelf, etc.
If you choose to wall mount the Charging Base,
please follow these steps:
1.Pick a convenient position within 6 feet of an
electrical outlet. If the Charging Base will be
mounted closer to an outlet, wrap any excess
cord in the storage area on the back of the
Charging Base. (Note: Do not use an outlet
which is controlled with a wall switch).
2. Place the Charging Base against the wall in the
desired location and mark the center of each hole.
3.Drill a
3
⁄16” diameter hole through the center of
the top mark. Push a Plastic Wall Anchor into the
drilled hole.
4.Insert one of the included screws and turn it until
the screw head is
1
⁄
4” above the wall surface.
5.Recheck that the hole alignment is straight, then
drill the second hole and install the other Plastic
Wall Anchor and Screw.
6.Slide the Charging Base into place making sure
the cord exits through one of the slots.
Wall
Mounting
Base
Charging
Plug
Figure A
9
BATTERY CHARGING PROCEDURE
1. Plug the Charging Base into a 110/120 volt
electrical outlet.
2. IMPORTANT:
Make sure that the On/Off switch is turned to
the “Off” position before charging. Otherwise,
your vacuum will not charge.
3.Slide the vacuum downward onto the Charging
Base making sure that the vacuum firmly hooks
onto the Charging Base (see Figure B). Your vacuum will begin charging and the Green LED light
on the Charge Indicator will glow to show charging is taking place. If your DirtTamer Supreme
V2400 is completely out of power, a full
recharge will take approximately 10 hours.
NOTE: before first use, charge your
vacuum for at least 24 hours.
4.To maintain a charge, keep the Charger plugged
into a standard wall outlet at all times. When
charging, the Charger may be warm to the
touch. This is normal.
SUPREME 12V
Figure B
10
CHARGE AND LOW BATTERY INDICATORS
Unique LED lights monitor the power condition of
your DirtTamer Supreme V2400 vacuum
Green Light Only:
Indicates that the vacuum is charging or “on” and
operating at an acceptable level of power.
Red Light Only:
The red light will illuminate when your vacuum is
almost out of power and needs to be recharged.
Charging/On
Low Charge
Green
Red
11
Your DirtTamer Supreme V2400 vacuum includes
the following unique cleaning tools that will make
your cleaning tasks easier.
1. SQUEEGEE
This tool has rubber edges for picking up liquid
spills on hard surfaces such as floors, countertops, etc. Attach the Squeegee to your vacuum
by pushing the tool firmly into the Bowl Nozzle.
2. EXTENDIBLE WAND/CREVICE TOOL
This “two in one” tool works great as a long
reach cleaning wand or a crevice tool.
To use as a long reach cleaning wand, simply
extend the tool by pulling each end of the tool
in opposite directions (the tool will expand like
an accordion) and insert the larger end into the
Bowl Nozzle. The wand is then ready for cleaning hard to reach areas (e.g. ceiling corners,
under appliances, etc.).
To use as a crevice tool: simply compress the
tool to your desired length and insert the larger
end of the tool into the Bowl Nozzle. The crevice
tool is then ready to use in tight places such as
between car seats, in corners, etc.
2
CLEANING TOOLS
1
12
DIRT FINDING HEADLIGHT
3. UPHOLSTERY BRUSH
This tool is used for picking up dirt and dust
debris from upholstery, tables, etc. Attach the
Upholstery Brush to your vacuum by pushing the
tool firmly into the Bowl Nozzle with the brush
facing down.
Your DirtTamer Supreme vacuum is equipped with
a unique Dirt Finding Headlight which allows you
to easily see dirt and dust under furniture or in
dark corners.
The headlight will operate when the vacuum is
switched “On”.
REPLACEMENT LAMPS FOR HEADLIGHT
The lamp in your DirtTamer Supreme headlight will
last for years of normal household use.
LAMP REPLACEMENT INSTRUCTIONS
1. Insert the tip of a flat head screwdriver into the
slot at the front of the lamp and twist to remove
the lamp cartridge.
2. Remove the used lamp cartridge with your fingers.
3. Insert a new replacement lamp
cartridge. Use only a genuine
FilterStream
®
V2400-LAMP
lamp cartridge.
For a replacement lamp,
please call us at 1-800-211-9607
CLEANING TOOLS
3
13

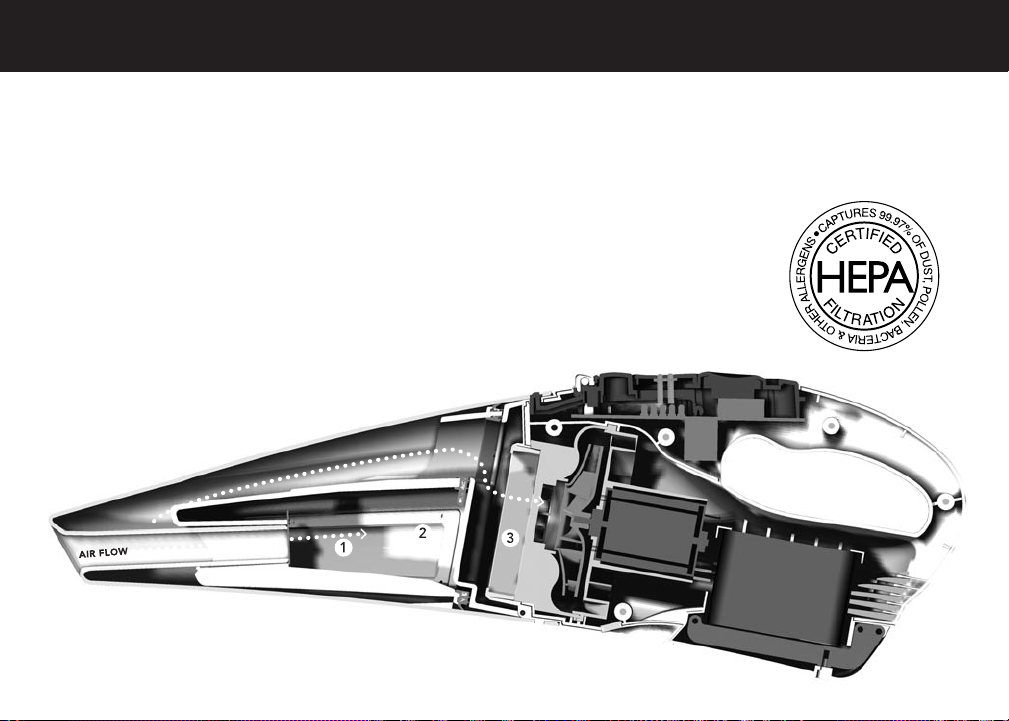

3-STAGE FILTRATION SYSTEM
Dirt Tamer Supreme has a revolutionary, patented
3-stage filtration system that provides superior
suction for a longer period of time.
Stage 1: Large particles of debris are separated
from liquids and air. The large particles
remain in the Pre-Filter for easy disposal (see “Maintenance” section of
this manual for Pre-Filter and Bowl
emptying instructions).
Stage 2: Liquids and smaller dirt particles are sepa-
rated from air and collected
in the Bowl.
Stage 3: Fine dust/dirt particles are trapped by the
standard Foam Filter (included), or, with
the included HEPA filter, 99.97% of dust,
pollen, bacteria and
other allergens down
to 0.3 microns in size
can be captured.
14
HOW TO USE
Remove your vacuum from the Charging Base
and slide the On/Off Switch to the “On” position to operate. Slide the On/Off Switch to the
“Off” position between cleaning tasks to conserve power.
PICKING UP DRY DEBRIS
Use your vacuum for picking up dirt, dust, food
crumbs, etc. from counters, bare floors, rugs, automobile interiors, upholstered furniture, etc. After
dry pickups, empty and clean the Bowl and Foam
Filter before picking up liquid or wet spills.
Note: If using a HEPA Filter in place of the Foam
Filter, shake loose, or brush off any dust or debris
from the HEPA Filter if you notice any build-up.
DO NOT WASH OR RINSE THE HEPA FILTER, as
this may damage the HEPA material.
If the HEPA Filter accidentally gets wet from vacuuming wet spills, remove the HEPA Filter, pat it
dry with a paper towel, and allow it to thoroughly
air dry before next use.
PICKING UP LIQUIDS OR WET DEBRIS
Use your vacuum to pick up liquids or wet debris.
For ideal performance, we recommend the use of
the Foam Filter for liquid debris.
(a) For liquid pickups, insert the Squeegee into
the Bowl Nozzle and pull the Squeegee
through the liquid.
(b) Do not fill the Bowl beyond the end of the Pre-
Filter (about 9 oz. of liquid). If there is any liquid in the Bowl, hold the Bowl Nozzle down to
avoid leakage. Tipping the Bowl Nozzle up
may cause the liquid to enter the fan area.
(c) After picking up per-
ishable spills (e.g.
milk, juice, etc.),
empty your vacuum’s
Bowl and Pre-Filter
immediately and thoroughly clean the
Bowl, Pre-Filter, Filter
Cover and Foam Filter
to prevent mold and
mildew from forming.
15
CLEANING TIPS
Your DirtTamer Supreme V2400 vacuum will be
more effective at cleaning up spills if you adhere
to the following procedures:
CARPET CLEAN UPS
1.Immediately vacuum up as much of the spill as
possible.
2.For oily spills
, work some low sudsing carpet
shampoo into the area according to the directions on the shampoo container (do not use solvent based cleaners). Vacuum up shampoo and
spill residue, then proceed to step #3.
For water soluble spills
, dampen the spill area
using a spray bottle of cold, clean water. Be
careful not to saturate the carpet.
3.Work water into the nap of the carpet.
4.Vacuum up water and spill residue.
5.Repeat the above procedure if necessary.
6.Cover the cleaned spill area with several layers
of paper towels or a terry cloth towel. Step on
the towels several times to soak up the moisture.
7.Brush up the nap of the carpet.
UPHOLSTERY CLEAN UPS
1.Immediately vacuum up as much of the spill as
possible.
2.Follow your furniture manufacturer’s instructions
for spot cleaning upholstery.
Note: Never use flammable cleaners with your
vacuum.
16
MAINTENANCE
EMPTYING/CLEANING PRE-FILTER AND BOWL
Liquids, dirt and debris (wet and dry) picked up
by your vacuum will collect in the Pre-Filter and
Bowl. To empty/clean these parts, please follow
these steps:
(a) Holding the Bowl
with one hand and
the Handle/
Housing with the
other, depress the
Bowl Latch and
swing the Bowl
away from the
Handle/Housing.
(b) While holding the
Bowl in one hand,
remove the PreFilter with your
other hand by
grasping the pulltab on top of the
Pre-Filter with your
fingers. Empty any
dirt, debris, or liquid from the Bowl and PreFilter into the sink or wastebasket.
(c) Rinse or hand wash the Pre-Filter, Bowl and
Filter Cover with water (if needed, with warm,
soapy water).
Note: The Pre-Filter, Bowl and Filter Cover can
be washed in the dishwasher (top rack only).
(d) Allow the Pre-Filter, Bowl and Filter Cover to
dry. Then reinsert the Pre-Filter into the Bowl,
snap the Filter Cover onto the Handle/Housing,
and reattach the Bowl to the Handle/Housing.
a
b
CLEANING/REPLACING FOAM AND
HEPA FILTERS
To remove/replace the
Filter (either foam or
HEPA) from the vacuum, please follow
these steps:
(a) Remove the Filter
Cover from the vacuum Handle/
Housing.
(b) Remove the Filter
from the Handle/
Housing.
(c) Clean the Filter as
follows.
Foam Filter Cleaning:
Wash the Foam Filter in
warm, soapy water until clean. Allow the Foam
Filter to dry before reinserting into the
Handle/Housing.
Note: Use only mild soap. Avoid detergents,
chemical cleaners or solvents as these may damage the plastic.
HEPA Filter Cleaning: Use your finger to lightly
clean the paper surface of the HEPA Filter, clearing off any dirt, dust, and hair.
NOTE 1: Do not wash the HEPA Filter. Water
will permanently damage the filter.
NOTE 2: Under normal household use, the
HEPA filter will last six (6) months to one (1)
year
(d) Insert either side of the clean Filter (or if neces-
sary, a new Filter) into the Handle/ Housing,
then snap-on the Filter Cover and reattach the
Bowl to the Handle/Housing (making sure that
the Pre-Filter is inserted into the Bowl).
NOTE: Filters should be replaced periodically to
provide best performance or when the filter has
been damaged.
17
MAINTENANCE/FILTER REPLACEMENT
a
b
18
MAINTENANCE/FILTER REPLACEMENT
Your DirtTamer Supreme V2400 includes a stan-
dard Foam Filter for trapping fine dust and dirt
particles, and a FilterStream
®
certified HEPA filter
to trap microscopic particles that can aggravate
allergies during vacuuming. With the HEPA filter,
99.97% of dust, pollen, bacteria, and other allergens down to 0.3 microns in size can be captured.
CLEANING THE VACUUM HOUSING
Clean the vacuum’s Handle/Housing with a damp
cloth. Never immerse the Handle/Housing in water.
Battery Removal and Disposal: This product uses
a sealed lead acid battery. When the battery no
longer recharges, it should be removed from the
vacuum and recycled in accordance with state laws.
The battery must not be incinerated or composted.
WARNING: In some areas, it is illegal to place
used lead acid batteries in the trash or in
municipal solid waste streams.
To remove the battery, follow these steps:
(a) Use a Phillips screwdriver to unscrew the Battery
Compartment retaining screw and remove
the cover.
a
(b) Remove the two rear screws from the Battery
Bracket leaving the front screw in place.
(c) Pivot the Battery Bracket out of the battery’s
way so the battery can slide free from the
bracket. If the battery has leaked or vented,
protective gloves should be worn before
touching the case. Remove the case by grasping the edges and sliding the battery out of
the unit.
(d) Unfasten the battery wire where the clips are
connected.
(e) When replacing the battery, ensure that the
wires are not pinched against each other or
between the battery and the housing.
19
BATTERY REPLACEMENT
b
FRONT
REAR
c
d
2 YEAR LIMITED WARRANTY
FilterStream Company warrants that this product
is free from defects in materials or workmanship
for a period of two (2) years from the date of original purchase.
If the product fails to operate in accordance with
the manufacturer’s specifications, simply return the
product to the retail location where you purchased
it where you purchased it or contact FilterStream
customer service at service@filterstream.
com or
call 1-800-685-0710 to obtain an authorization
number (RA#). Once you have been issued an
authorization number, please return the defective
product to us and we will, at our option, repair or
replace the product and ship it back to you via
postal mail or UPS at no charge.
This warranty does not cover damage resulting
from accident, misuse or abuse, lack of reasonable
care, the affixing of any attachment not provided
with the product, or loss of parts, or subjecting
the product to anything but the specified voltage
or batteries.
THIS WARRANTY IS IN LIEU OF ANY OTHER
WARRANTY, EXPRESS OR IMPLIED. ALL IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO TWO (2) YEARS FROM THE DATE
OF ORIGINAL PURCHASE. IN NO EVENT WILL
FILTERSTREAM COMPANY BE RESPONSIBLE FOR
INCIDENTAL, CONSEQUENTIAL, OR SPECIAL
DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT.
Some states do not allow limitation on how long
an implied warranty lasts and/or the exclusion or
limitation of incidental or consequential damages,
so the above limitation may not apply to you. This
warranty gives you specific legal rights which vary
from state to state.
To speak with a FilterStream Customer Service
Representative, please call: 1-800-685-0710
www.ActiveForever.com
Loading...
