Activeforever Drive Bariatric All in One Steel Commode User Manual

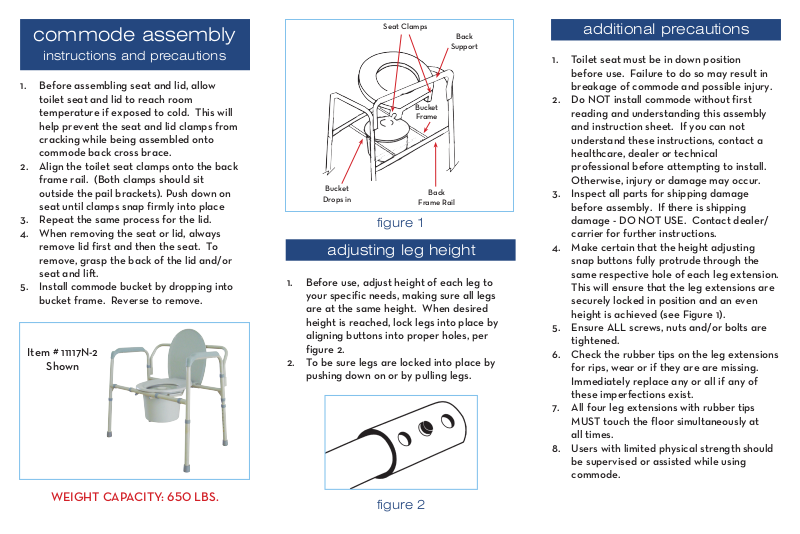

commode assembly

instructions and precautions

1. Before assembling seat and lid, allow
toilet seat and lid to reach room
temperature if exposed to cold. This will
help prevent the seat and lid clamps from
cracking while being assembled onto
commode back cross brace.

2. Align the toilet seat clamps onto the back
frame rail. (Both clamps should sit
outside the pail brackets). Push down on
seat until clamps snap firmly into place

3. Repeat the same process for the lid.

4. When removing the seat or lid, always
remove lid first and then the seat. To
remove, grasp the back of the lid and/or
seat and lift.

5. Install commode bucket by dropping into
bucket frame. Reverse to remove.

Item # 11117N-2

Shown

Seat Clamps

Back

Support

Bucket

Frame

Bucket

Drops in

Back

Frame Rail

figure 1

adjusting leg height

1. Before use, adjust height of each leg to
your specific needs, making sure all legs
are at the same height. When desired
height is reached, lock legs into place by
aligning buttons into proper holes, per
figure 2.

2. To be sure legs are locked into place by
pushing down on or by pulling legs.

additional precautions

1. Toilet seat must be in down position
before use. Failure to do so may result in
breakage of commode and possible injury.

2. Do NOT install commode without first
reading and understanding this assembly
and instruction sheet. If you can not
understand these instructions, contact a
healthcare, dealer or technical
professional before attempting to install.
Otherwise, injury or damage may occur.

3. Inspect all parts for shipping damage
before assembly. If there is shipping
damage - DO NOT USE. Contact dealer/
carrier for further instructions.

4. Make certain that the height adjusting
snap buttons fully protrude through the
same respective hole of each leg extension.
This will ensure that the leg extensions are
securely locked in position and an even
height is achieved (see Figure 1).

5. Ensure ALL screws, nuts and/or bolts are
tightened.

6. Check the rubber tips on the leg extensions
for rips, wear or if they are are missing.
Immediately replace any or all if any of
these imperfections exist.

7. All four leg extensions with rubber tips
MUST touch the floor simultaneously at
all times.

8. Users with limited physical strength should
be supervised or assisted while using
commode.

WEIGHTCAPACITYLBS

figure 2
