Page 1
e wheelse wheels
TM
Owners Manual
www.ActiveForever.com
EW-500
Page 2
e wheelse wheels
TM
Charging
www.ActiveForever.com
Plug charger into any 110 wall outlet. You can charge your battery in two ways. Battery in or battery out.
Charging with the battery in the moped you simply connect the charger via the plug under the seat. Charging
the battery out of the moped you simply connect the charger via the plug at the top of the battery. Complete
charge takes 4-6 hours.
Left Side Hand Controls
A. Headlight regular / high beam
B. Turn signal - Note: Simply push right or left to
indicate direction. Depress button to switch back to
neutral.
C. Horn
A.
B.
C.
Right Side Hand Controls
A. Aux switch
B. Running light / headlight
C. Horn
D. High speed / low speed
E. Twist throttle w/ cruise control
Cruise control is activated after 90 sec. at the same
speed. Deactivated by rear wheel brake lever.
A.
B.
C.
D.
E.
C.
B.
A.
Ignition Positions
A. Front end lock position
B. Power off position
C. Power on position
Page 3
e wheelse wheels
TM

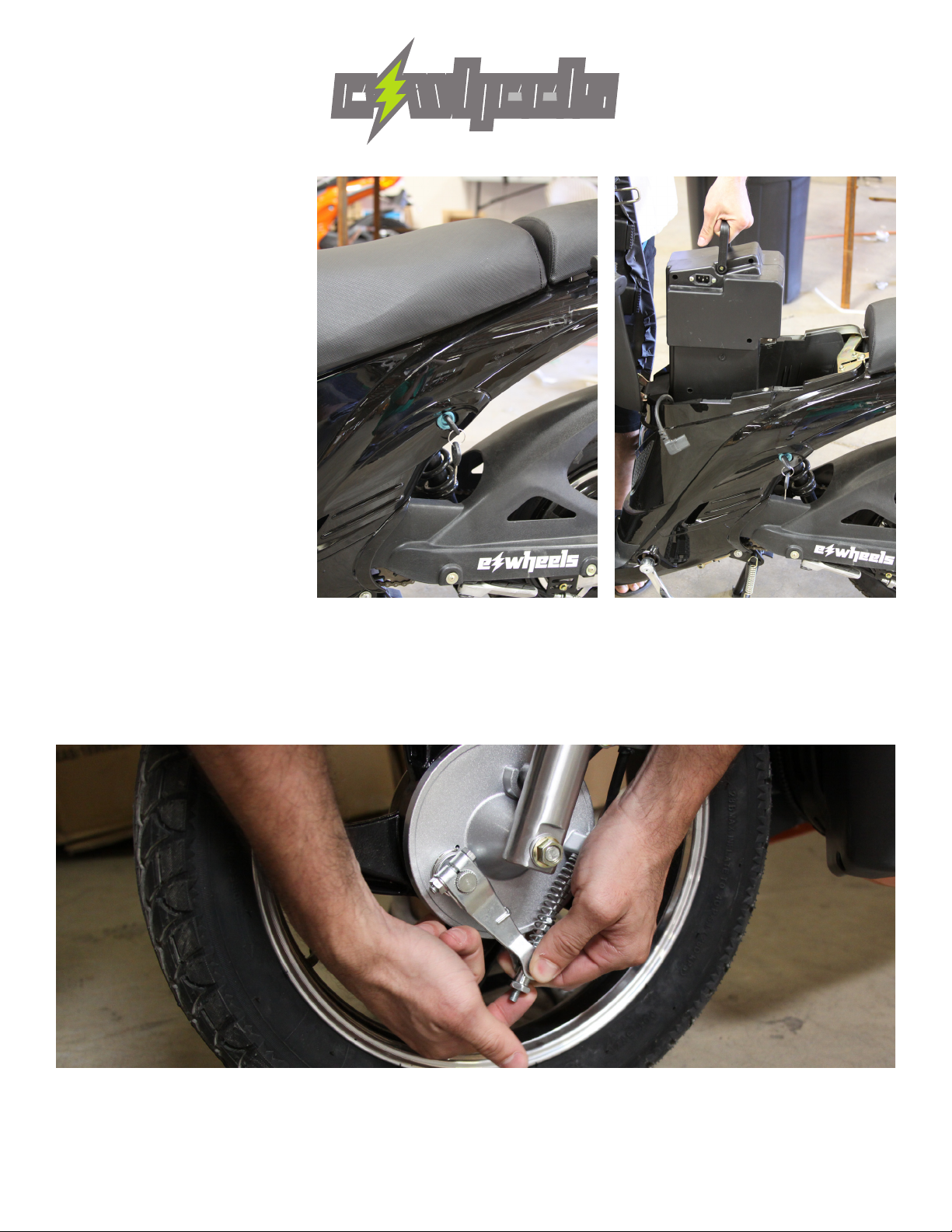

Removing The Battery
www.ActiveForever.com
Use your ignition key to unlock
the seat. Lock is located on the
left side just below the seat.
Move seat up until it stops.
Unplug the battery from the
moped and pull on the handle.
Front And Rear Brake Adjustment
Tighten or loosen the saddle nut at the end of the brake cable to create tension or release tension on the brakes.
Test the brake as you tighten or loosen the saddle nut. Tighten or loosen until brake lever has about .75”
between the lever and grip or desired distance. This adjustment is on the front brake and rear.
Page 4
e wheelse wheels
TM

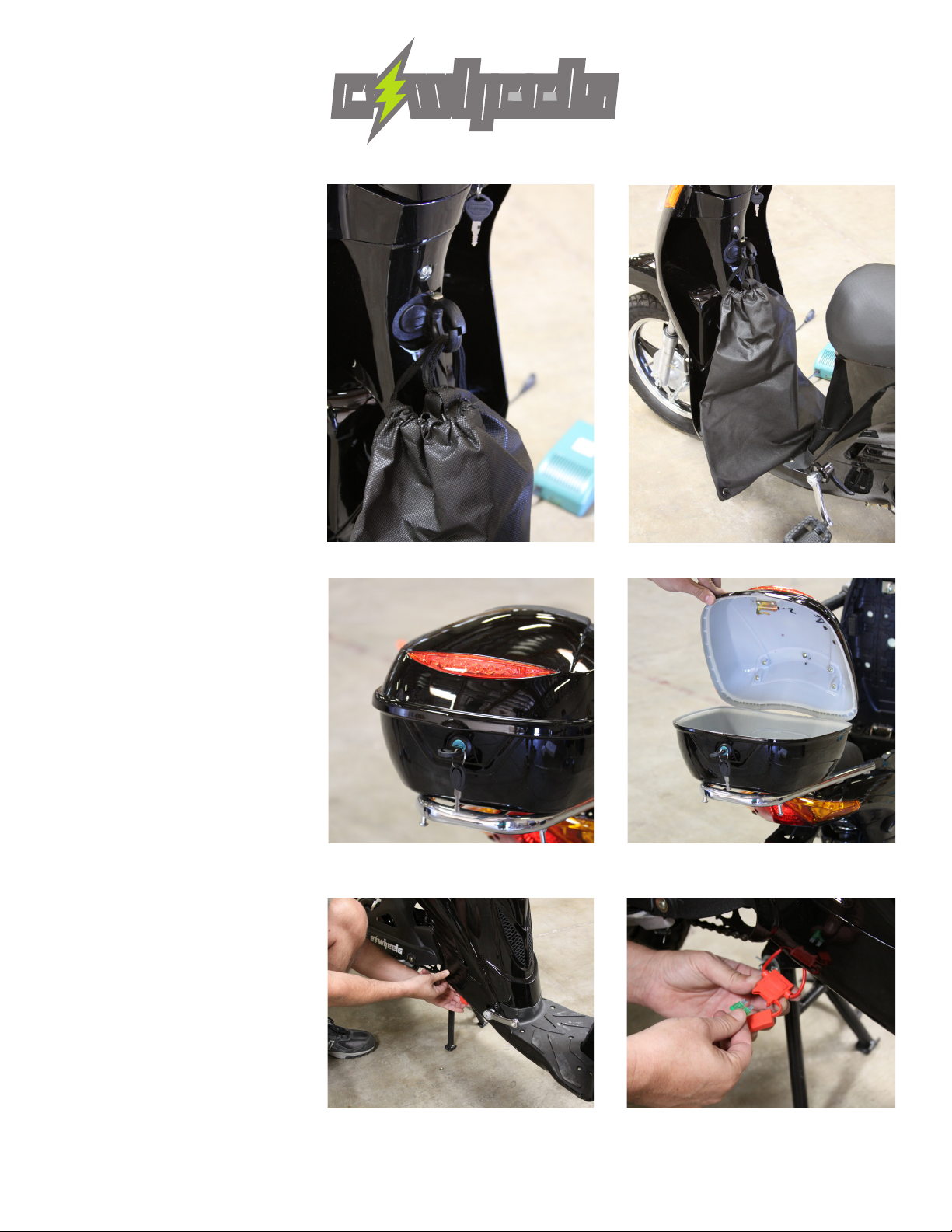

Bag Latch
www.ActiveForever.com
Storage Trunk
Use the key provided to lock and
unlock the storage trunk
Fuse Location
Fuse is located under the left
side body shell behind the
foot pad.
