Activeforever AXS Semi Portable Aquatic Pool Lift User Manual

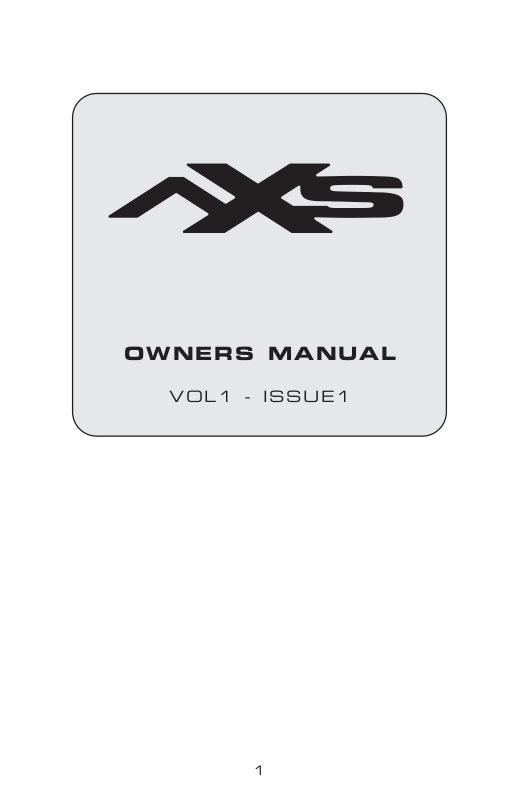

O W N E R S M A N U A L

V OL1 - I S S U E 1

aXs Aquatic Lift System

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Component Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Unpacking & Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . 9

Operating the aXs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Emergency Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Deck Anchor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Long Term Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17

Product Specifications

– Dimensions/Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

– Actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

– Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

– Range of Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

– Materials and Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

TABLE OF CONTENTS

INTRODUCTION

The purpose of this document is to provide information relating to the operation,

care and maintenance of the aXs Aquatic Lift System.

Our goal is to provide our customers with the most advanced and innovative

designs that offer exceptional quality at affordable prices. We design and

manufacture our products so that all individuals with disabilities and mobility

impairments can have access and enjoy the recreational activity of their choice.

We offer lifts for virtually any type of aquatic environment, including those

under the mandates of ADAAG 2004.

Please feel free to contact us if you have any questions about our current product

line or if there is anything we can do to help meet your accessibility needs.

aXs and aXs logo are registered trademarks

of RehaMed International, LLC.

STANDARD aXs

PRODUCT OVERVIEW

The aXs is specifically designed for both residential applications as well as

hospitality and multi-unit facilities who are seeking a sensible solution for

providing access to their swimming pools for users with disabilities.

The aXs is easy to operate and maintain, is transportable, is reliable, and is

priced to fit into any budget. In addition, the aXs features an attractive design

which blends into any pool environment without projecting an institutional

appearance.

Standing a mere 32 inches above the deck, the aXs provides 360º rotation to

insure sufficient clear deck space for safe transfers on and off the lift. The aXs

is intended to be used with simple pool gutter configurations having a deck to

water distance of no more than six inches.

The aXs is fabricated using both aluminum extrusions and stainless steel. All

surfaces are treated with a tough and attractive powder coated finish to protect

against prolonged exposure to the elements. Custom colors are available. The

housing is formed from ABS plastic with an acrylic cap to minimize

discoloration due to exposure to the sun.

With a lifting capacity of 300 pounds, the Basic versions of the aXs meets all

Americans with Disabilities Act Accessibility Guidelines (ADAAG), and

features our exclusive seating system. This system, designed by people with

disabilities for people with disabilities, is wider and deeper than most

conventional seats, and has no edges to restrict transfers.

THE aXs –

SEMI-PORTABLE AQUATIC LIFT SYSTEMS

PRODUCT COMPONENTS

Component Description

The following are the key components used in the aXs:

Base Assembly: The base assembly (not shown) connects the aXs to the pool deck and includes the turning elements of the lift. The insert portion of the base assembly is inserted into the deck anchor. The mast is attached to the base assembly using two nylon locking nuts.

Mast: The main vertical component of the lift, the mast is fabricated in stainless steel and treated with a durable powder coated finish.

Actuator Arm: Primary lifting arm of the lift. Fabricated from an aluminum extrusion, the actuator arm connects the mast to the seat arm and is raised by the attached actuator. The actuator arm is treated with a durable powder coated finish.

STANDARD aXs
