DATA SHEET

Issue 2.00

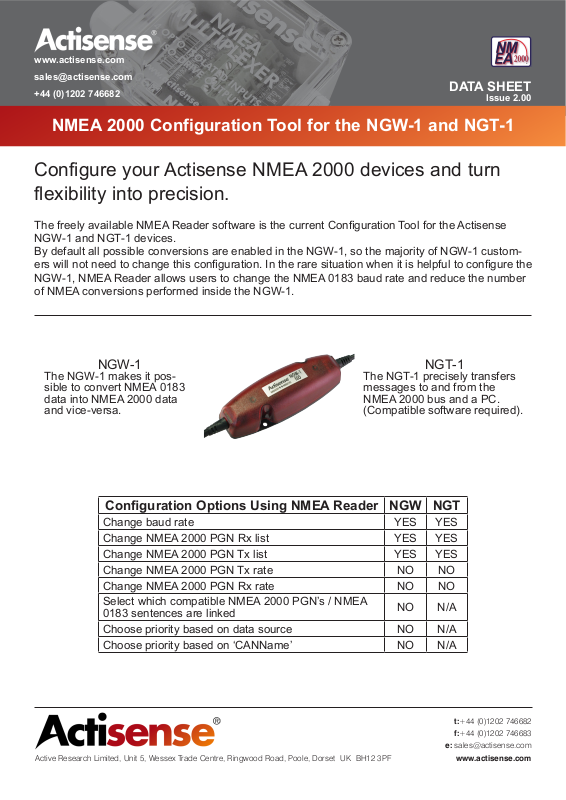

NMEA 2000 Configuration Tool for the NGW-1 and NGT-1

Configure your Actisense NMEA 2000 devices and turn
flexibility into precision.

The freely available NMEA Reader software is the current Conguration Tool for the Actisense

NGW-1 and NGT-1 devices.
By default all possible conversions are enabled in the NGW-1, so the majority of NGW-1 custom-

ers will not need to change this conguration. In the rare situation when it is helpful to congure the

NGW-1, NMEA Reader allows users to change the NMEA 0183 baud rate and reduce the number
of NMEA conversions performed inside the NGW-1.

NGW-1

The NGW-1 makes it pos­sible to convert NMEA 0183
data into NMEA 2000 data
and vice-versa.

Conguration Options Using NMEA Reader NGW NGT

Change baud rate YES YES
Change NMEA 2000 PGN Rx list YES YES
Change NMEA 2000 PGN Tx list YES YES
Change NMEA 2000 PGN Tx rate NO NO
Change NMEA 2000 PGN Rx rate NO NO
Select which compatible NMEA 2000 PGN’s / NMEA

0183 sentences are linked
Choose priority based on data source NO N/A
Choose priority based on ‘CANName’ NO N/A

NGT-1

The NGT-1 precisely transfers
messages to and from the
NMEA 2000 bus and a PC.
(Compatible software required).

NO N/A
