Page 1
Call Center
User Manual
Ver 1.1
Model #: UP102
Page 2
Table of Contents
1 Introduction
Package Contents Features System Requirements Getting to Know Call Center Technical Support
2 Installing Skype Software
Downloading and Installing Skype Creating a Skype Account Adding Contacts Assigning a Speed-Dial Number
3 Connecting Call Center Hardware
Single-Line Connection Dual-Line Connection
4 Installing Call Center Software
5 Conguring Call Center
Conguring Call Center Features Other Conguration Options
6 Using Call Center
Before Using Call Center Using Call Center in Single-Line Mode Using Call Center in Dual-Line Mode Quick Reference Tables
a Specications
Notices
Regulatory Compliance Notices
Modications
Miscellaneous Legal Notices
Limited Warranty
1
1 2 2 3 4
5
5 8 9
11
13
13 14
19 23
23 27
31
31 33 34 39
41 43
43 43 44
45
i
Page 3
Actiontec VoSKY Internet Phone Wizard User Manual
ii
Page 4
Actiontec VoSKY Call Center User Manual
Introduction
1
Thank you for purchasing the Actiontec VoSKY Call Center. Call Center allows you to make free calls over the Internet and budget calls with Skype™ any time, anywhere. With Call Center, you can use your regular telephone to make long distance calls and even international calls at dramatically reduced rates. New features include the ability to make remote Internet calls from any regular phone, receive Internet calls on any regular phone, and set up a phone alert when a contact goes online. If you want to take your communications to the next level and save money while doing it, the Actiontec VoSKY Call Center is sure to be one of the keys to your success.
Package Contents
Actiontec VoSKY Call Center USB cable Telephone cable (RJ-11) Quick Start Guide Installation CD-ROM (includes this user manual)
1
Page 5
Actiontec VoSKY Call Center User Manual
Features
Outgoing call forwarding (Internet calls to regular phone calls)
Incoming call forwarding (regular phone calls to Inter­net calls)
Calls back your regular phone number when Skype contact is online
Computer answering machine Connect directly to your regular telephone so you can
make and receive Internet calls from your phone Patented “I-Phone Switch” for switching your tele-
phone between Internet and regular phone modes Call waiting
Caller ID for Internet calls Supports Skype speed-dial and SkypeOut service Voice menu No external power required Echo-cancellation technology
System Requirements Minimum
IBM PC-compatible computer with one available USB port, Celeron 800 MHz or faster processor, 128 MB RAM, 15 MB available hard disk space, and a CD-ROM drive
Microsoft Windows 2000 or XP
A touch-tone analog phone
LAN or modem-based Internet connection Analog telephone line (optional)
2
Page 6
Actiontec VoSKY Call Center User Manual
Getting to Know Call Center
This section contains a quick description of Call Center’s lights (LEDs) and ports. Call Center has several indicator lights on its front panel, and a series of ports on its rear panel.
Front Panel
The front panel of Call Center features three lights: Regular Call, Internet Call, and Ready.
Regular Call
The Regular Call light illuminates when Call Center is in regular (analog) phone mode, blinks rapidly when an incoming regular call comes in, and blinks steadily when a regular call is on hold.
Internet Call
The Internet Call light illuminates when Call Center is in Inter­net phone mode, blinks rapidly when an incoming Internet call comes in, and blinks steadily when an Internet call is on hold.
Ready
The Ready light illuminates when Call Center is correctly con­nected to the computer and ready to answer calls.
3
Page 7
Actiontec VoSKY Call Center User Manual
Rear Panel
The rear panel of Call Center contains three ports: USB, Line, and Phone.
USB Port
The USB port is used to connect a computer to Call Center via USB cable.
Line Port
The Line port is used to connect Call Center to a wall phone line outlet or modem via phone cable.
Phone Port
The Phone port is used to connect Call Center to a tele­phone via phone cable.
Technical Support
For troubleshooting issues, frequently asked questions, and tech­nical support, go to: www.vosky.com
4
Page 8
Actiontec VoSKY Call Center User Manual
Installing Skype Software
The rst step in setting up Call Center is installing Skype™ on the
computer connected to Call Center. This chapter describes the Skype installation procedure in four parts: downloading and in­stalling Skype, creating an account, adding contacts, and assign­ing speed-dial numbers.
Downloading and Installing Skype
If Skype has already been installed on the computer, make sure it is the latest version. If it is, skip this section and go to “Assigning a Speed-Dial Number” on page 8. If not, install the latest version by following this procedure:
1. Open a Web browser and, in the address bar, enter:http:// www.skype.com/
2
2. When the Skype Web page appears, click Download Skype.
Download Skype
3. After downloading, double-click on the “SkypeSetup” icon.
5
Page 9
Actiontec VoSKY Call Center User Manual
4. In the window that appears, read the on-screen instructions, select a language, then click Next.
5. In the next window, read the license agreement, click in the circle next to “I accept the agreement,” then click Next.
6
Page 10
Actiontec VoSKY Call Center User Manual
6. Select a location on the computer’s hard drive to download the Skype software, then click Next.
7. In the next window, set up additional tasks, if needed, then click Next.
7
Page 11
Actiontec VoSKY Call Center User Manual
8. Skype installs. Click Finish in the last window to complete the
installation.
The Skype software is installed on the computer. Go to the next section to create a Skype account.
Creating a Skype Account
To create a Skype account:
1. After Skype installs, the “Create a new Skype account” window appears. Enter the required information (denoted by a red aster­isk). Click Next.
8
Page 12
Actiontec VoSKY Call Center User Manual
2. In the next window, enter additional information. Click Next.
The Skype account is created. Go to the next section to add con­tacts to the account.
Adding Contacts
To add contacts to your Skype account:
1. Go to the main Skype account window and click Add Contact.
9
Page 13
Actiontec VoSKY Call Center User Manual
2. When the “Add a Contact” window appears, enter the name of another Skype user in the appropriate text box, then click Search.
3. Use your mouse to select the person you are looking for, then click Add Selected Contact.
10
Page 14
Actiontec VoSKY Call Center User Manual
4. A “say Hello! ” window appears, then click OK.
The contact has been added. To view the contact list, select the “Contact” tab from the main Skype window. To add assign a speed-dial number to a contact, go to the next section.
Assigning a Speed-Dial Number
To assign a speed-dial number to a contact:
1. From the main Skype window, select the Contact tab, right­click on a contact name, and in the menu that appears, select
Set Speed-Dial.
11
Page 15
Actiontec VoSKY Call Center User Manual
2. In the next window, enter a speed-dial number, then click OK.
3. The speed-dial number is assigned to the contact.
4. Repeat to assign a speed-dial number to other contacts.
After nishing with the installation and conguration of Skype, go
to the next chapter (“Connecting Call Center Hardware”) to con­tinue setting up Call Center.
12
Page 16
Actiontec VoSKY Call Center User Manual
Connecting Call Center Hardware
3
This chapter explains how to physically connect Call Center to a telephone and phone line. There are two basic ways to connect Call Center: Single-Line or Dual-Line.
Caution: Make sure the Call Center is not connected to the computer until instructed to do so by Call Center’s installation program (see chapter 4, “Installing Call Center Software”).
Single-Line Connection
When Call Center is in Single-Line mode, it can be used to make or receive Internet (computer-to-computer) phone calls using Skype only. It cannot make regular calls to regular (land-line or mobile) telephones while in Single-Line mode. Also, features such as Remote Internet Calling, Call Forwarding, Call Return, and Computer Answering Machine will not be available.
To connect Call Center in Single-Line mode:
1. Get the phone cable from the telephone and insert one end in the “Phone” port on the rear panel of Call Center.
2. Connect the other end of the phone cable to the telephone. The
components should be connected similarly to the gure below:
Call Center is connected in Single-Line mode. Next, go to chapter 4, “Installing Call Center Software.”
13
Page 17
Actiontec VoSKY Call Center User Manual
Single-Line Connection with Dial-Up Modem
If the computer is connected to the Internet via dial-up modem with no other phone line in the home, Call Center can only be set up in Single-Line mode.
To connect IPW in Single-Line mode with a dial-up modem:
1. Get the phone cable from the telephone and insert one end in the “Phone” port on the rear panel of Call Center.
2. Connect the other end of the phone cable to the telephone.
3. Optional: To make and receive normal calls while the comput-
er is powered down, use the supplied phone cable and insert one end of the cable in the “Line” port on the rear panel of Call Center.
4. Optional: Insert the other end of the phone cable in the “Phone” port of the dial-up modem. The components should be
connected similarly to the gure below:
Call Center is connected in Single-Line mode. Next, go to chapter 4, “Installing Call Center Software.”
Dual-Line Connection
When Call Center is set up in Dual-Line mode, it can make and receive both Internet (computer-to-computer) calls and regular (computer-to-land-line telephone or computer-to-mobile telephone) calls. Also, features such as Remote Internet Calling, Call Forward­ing, Call Return, and Computer Answering Machine will be available.
This procedure assumes the computer is connected to a cable mo­dem. If the computer is connected to the Internet via DSL modem, see “Dual-Line Connection with DSL Modem” on page 16.
14
Page 18
Actiontec VoSKY Call Center User Manual

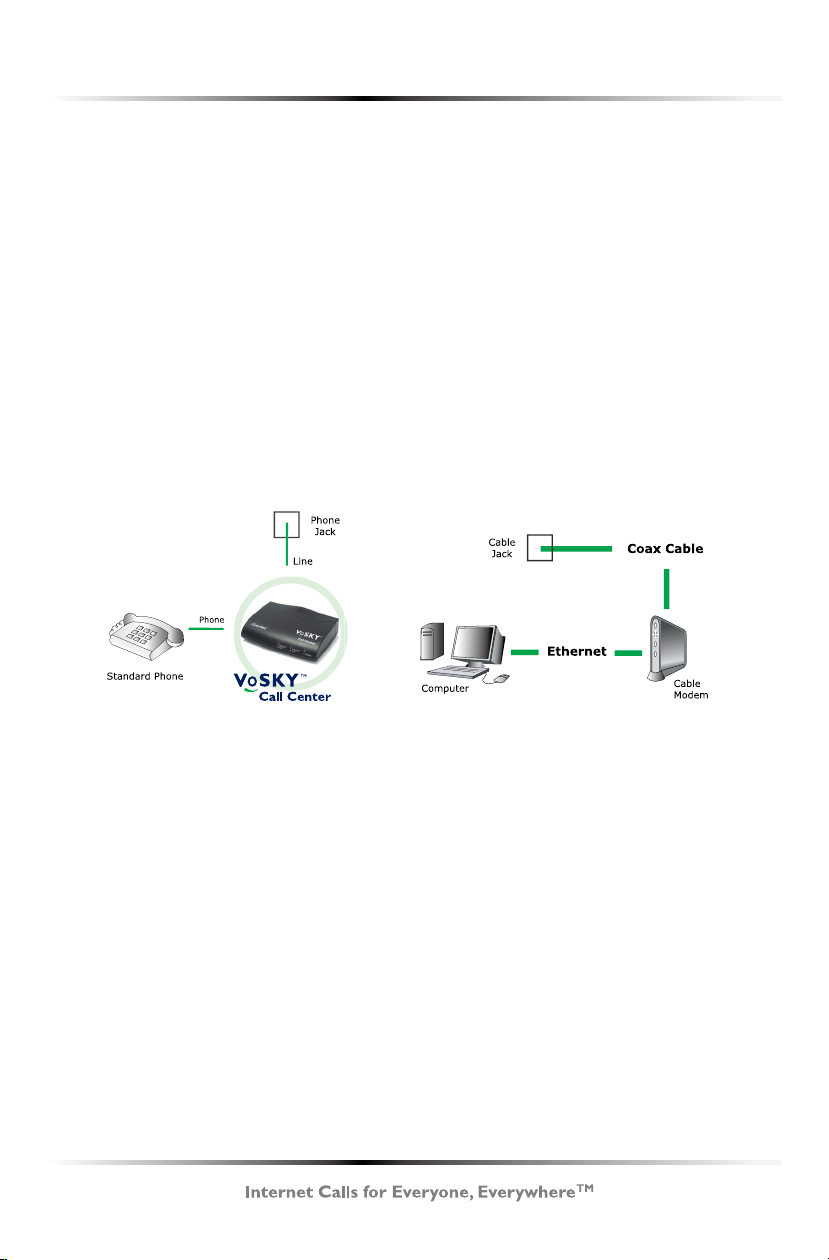

To connect Call Center in Dual-Line mode:
1. Get the phone cable from the telephone and insert one end in the “Phone” port on the rear panel of Call Center.
2. Connect the other end of the phone cable to the telephone.
3. Using the supplied phone cable, insert one end in the “Line”
port on the rear panel of Call Center.
4. Insert the other end of the supplied phone cable in a standard phone line outlet. The components should be connected similarly
to the gure below:
Call Center is connected in Dual-Line mode. Next, go to chapter 4, “Installing Call Center Software.”
15
Page 19
Actiontec VoSKY Call Center User Manual
Dual-Line Connection with DSL Modem
Since DSL modems are connected via phone line (like Call Cen­ter), there are two ways to connect Call Center when a DSL mo­dem is present: Connecting to a Phone Line Splitter, and Connect-
ing to a DSL Filter. Select the conguration matching the current
computer/DSL set up, and follow the instructions.

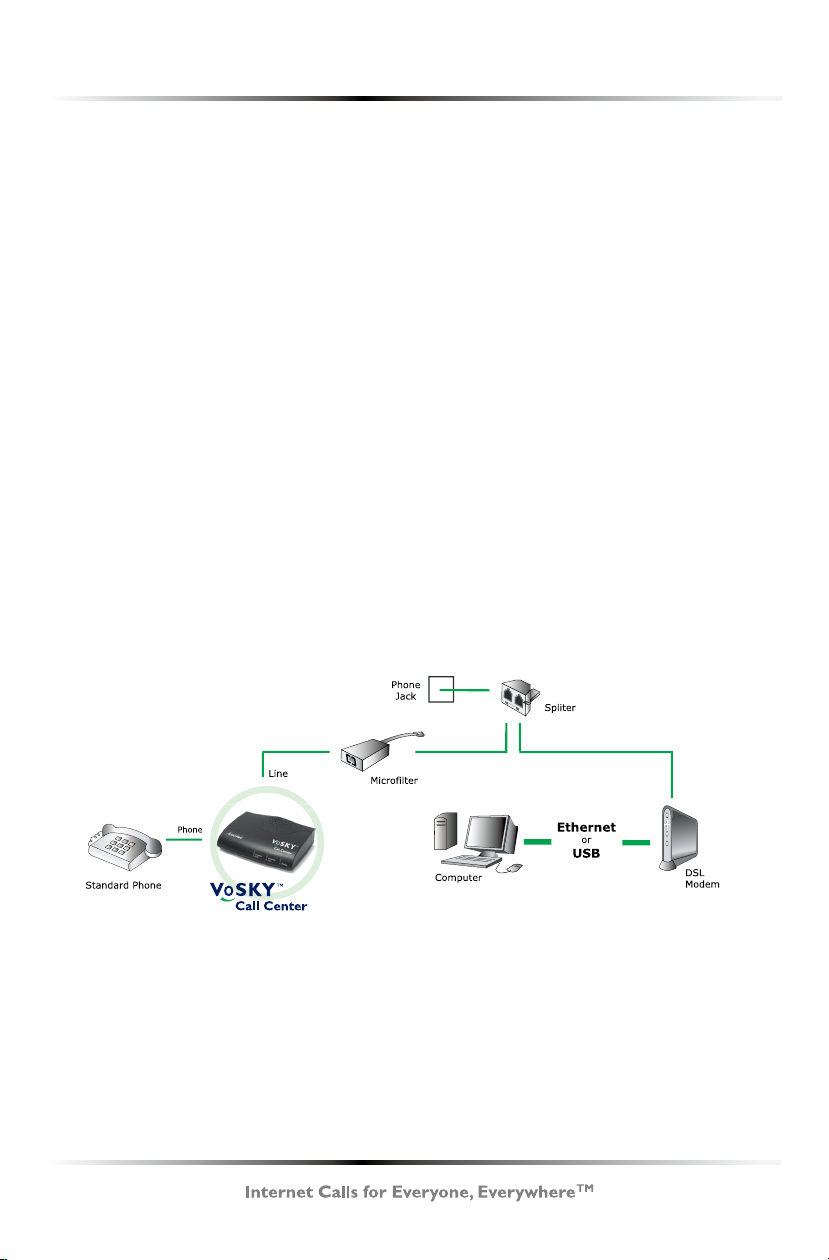

Connecting to a Phone Line Splitter
If the telephone is connected to the phone line via a phone line splitter, follow this procedure to connect Call Center:
1. Use the supplied phone cable and insert it in the “Line” port of Call Center.
2. Insert the other end of the supplied phone cable in the micro-
lter.
3. Get the phone cable from the telephone and insert one end in the “Phone” port on the rear panel of Call Center.
4. Connect the other end of the phone cable to the telephone. The
components should be connected similarly to the gure below:
d
Call Center is connected in Dual-Line mode. Next, go to chapter 4, “Installing Call Center Software.”
16
Page 20
Actiontec VoSKY Call Center User Manual

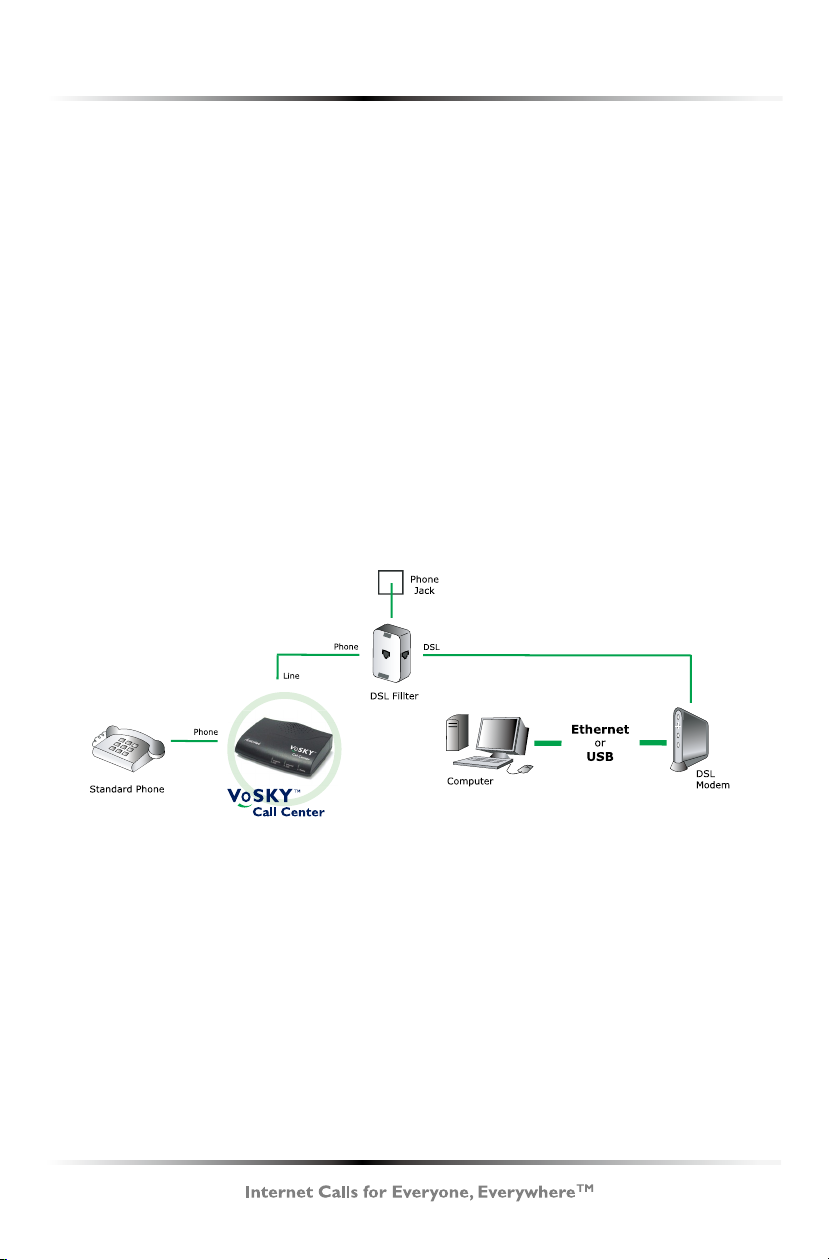

Connecting to a DSL Splitter
If the telephone is connected to the phone line via a wall
mount DSL lter, follow this procedure to connect Call Center:
1. Use the supplied phone cable and insert one end in the “Line” port of Call Center.
2. Insert the other end of the supplied phone cable in the “Phone”
port of the DSL lter.
3. Get the phone cable from the telephone and insert one end in the “Phone” port on the rear panel of Call Center.
4. Connect the other end of the phone cable to the telephone. The
components should be connected similarly to the gure below:
Call Center is connected in Dual-Line mode. Next, go to chapter 4, “Installing Call Center Software.”
17
Page 21
Actiontec VoSKY Call Center User Manual
Installing Call Center Software
4
After connecting Call Center hardware (see chapter 3), Call Center software must be installed on the computer.
To install Call Center software:

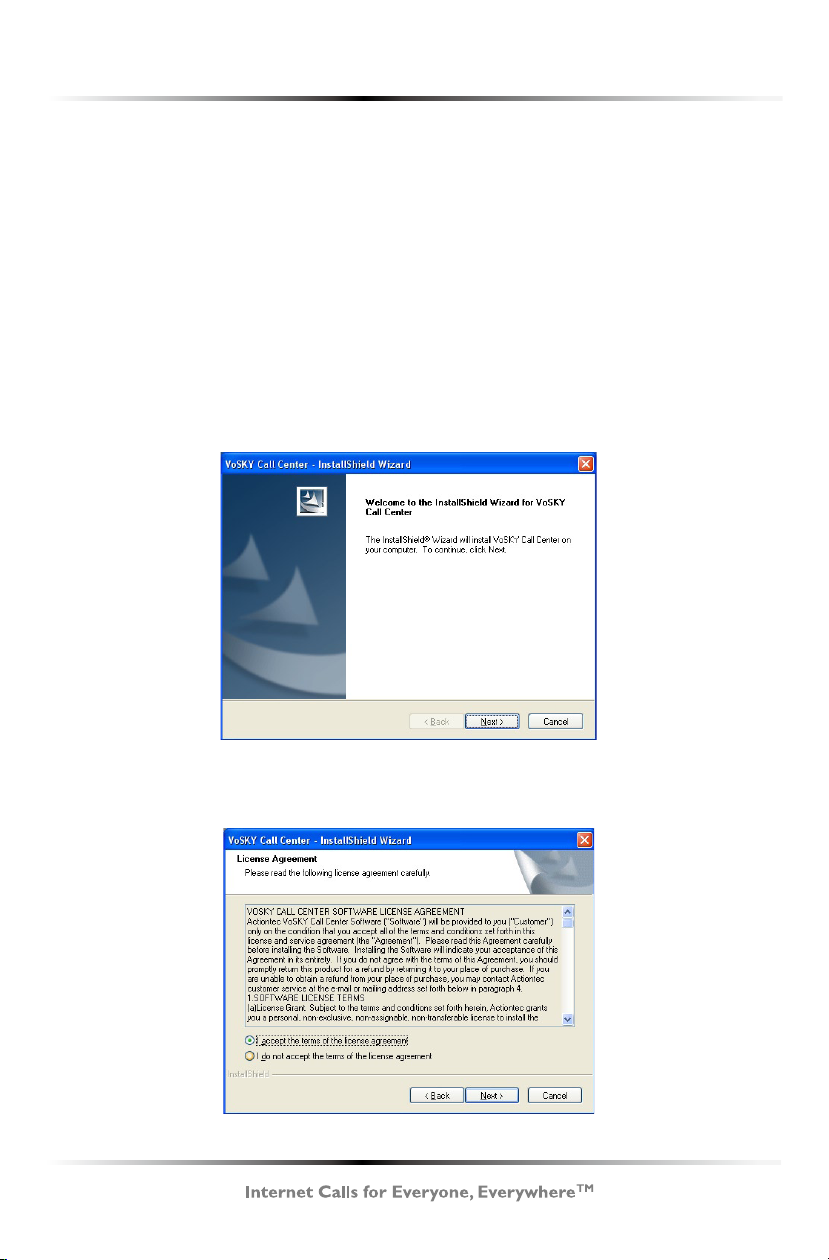

1. Insert the Installation CD in the CD-ROM drive of the computer,
then, from the rst “InstallShield Wizard” window, click Next.
2. In the next window, read the license agreement and click in the
circle next to “I accept the terms of the license agreement”. Click
Next.
18
Page 22
Actiontec VoSKY Call Center User Manual

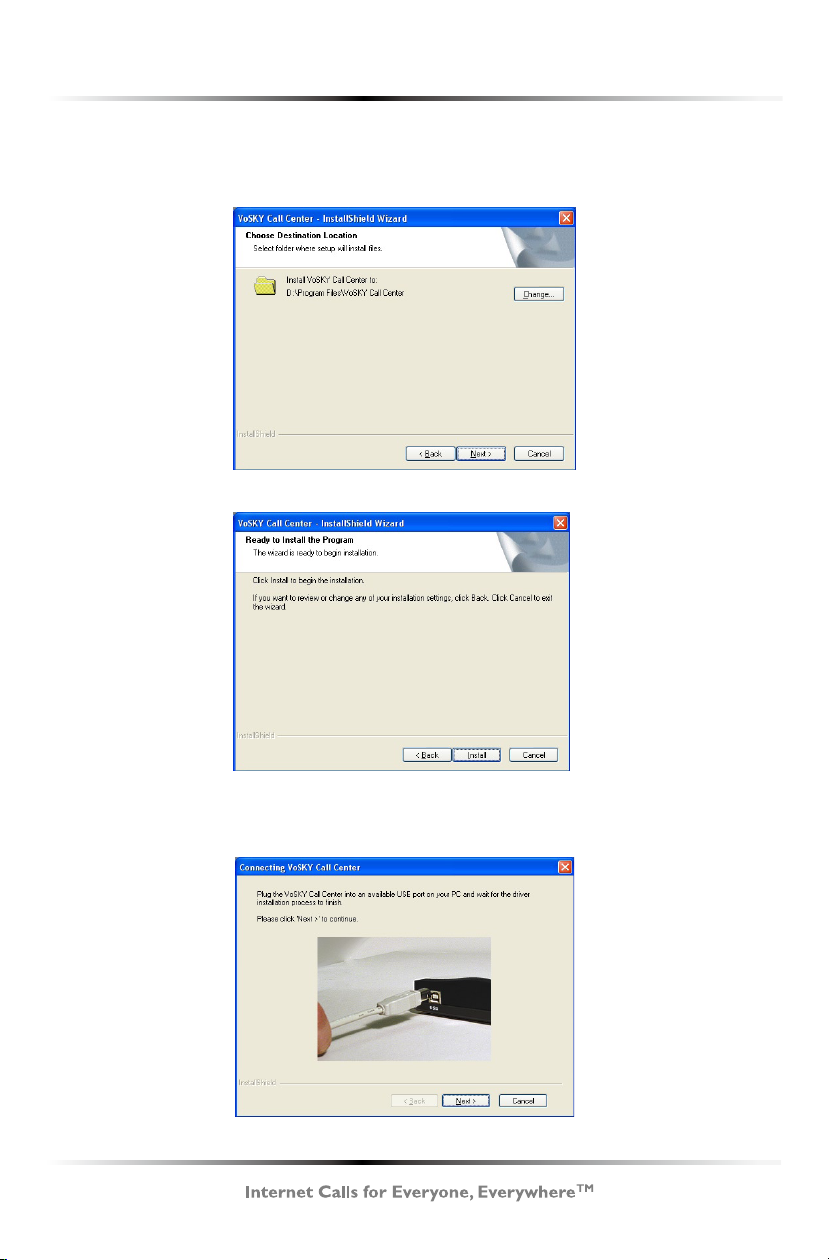

3. When the next window appears, either click Change to select a cus-
tom location to install Call Center software, or click Next to install the software in the default location (...\Program Files\VoSKY Call Center).
4. When the next window appears, read the on-screen instructions. Click Install.
5. The software installs. When nished, follow the instructions in the next
window, using the picture as a reference. Use the supplied USB cable to connect the computer’s USB port to Call Center’s USB port. Click Next.
19
Page 23
Actiontec VoSKY Call Center User Manual

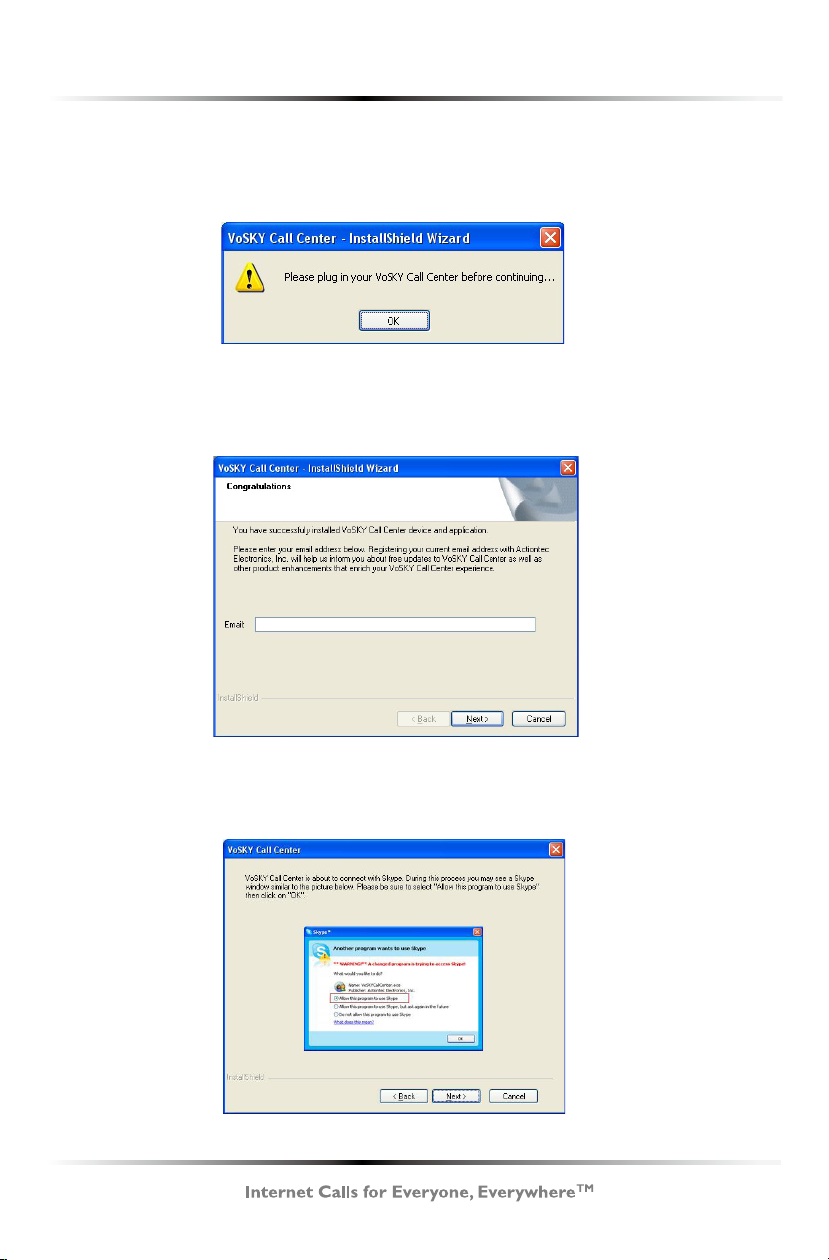

If Call Center was not connected correctly, a warning window appears. If this occurs, connect Call Center as described in step 5, click OK, then continue to step 6.
6. Another window appears. Enter an email address to be contacted about future online updates. Click Next.
7. A window with information about using Skype with Call Center ap­pears. Read the on-screen information, then click Next.
20
Page 24
Actiontec VoSKY Call Center User Manual

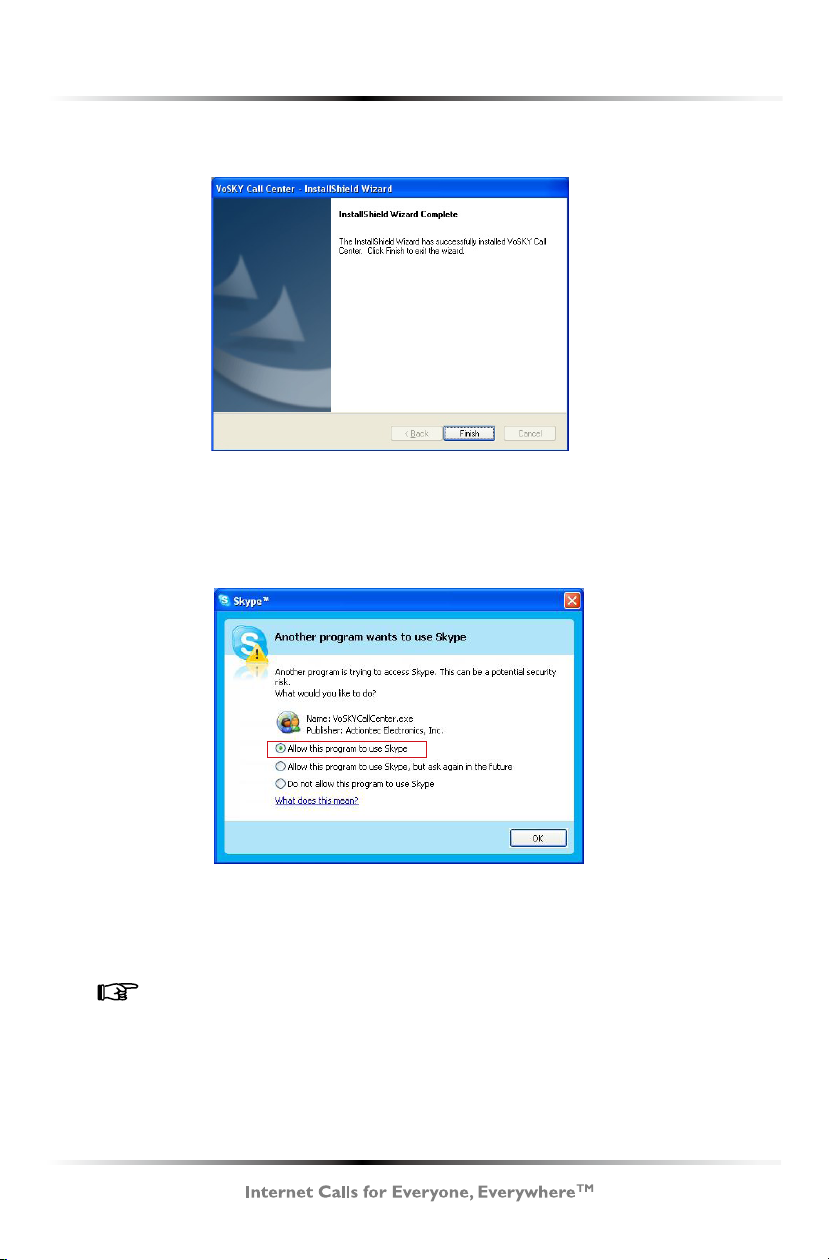

8. The last window appears. Click Finish.
9. Wait for the Call Center application to launch (this may take up to a
minute). When the following window appears, select “Allow this pro­gram to use Skype” by clicking in the appropriate circle, then click OK.
The Call Center Conguration window appears. The Call Center software is installed. To learn how to use Call Center Conguration utility, see chapter 5, “Conguring Call Center.”
Note: If the Line Port was not connected, the Congura- tion window will not appear. Instead, a phone line warning message appears. Click OK to close the message.
21
Page 25
Actiontec VoSKY Call Center User Manual
Conguring Call Center
5
This chapter explains how to congure Call Center software for
Remote Internet Calling, Computer Answering Machine, Call
Forwarding, and Call Return. It also describes other conguration
features available with Call Center.
Conguring Call Center Features
Call Center must be congured to use Remote Internet Calling,
Computer Answering Machine, Call Forwarding, and Call Return.
Note: The features listed above are only available when Call Center is set up in Dual-Line mode.
Remote Internet Calling
Remote Internet Calling allows the user to make a Skype or SkypeOut call from any regular telephone, including mobile tele­phones.
Note: Remote Internet Calling does not work in conjunction with standard answering machines or voice mail services. If Call Center is connected to a phone line with an answering machine or voice mail service, they must be deactivated. To allow callers to leave messages when Call Center is in use, activate the Computer Answering Machine feature (see next page).

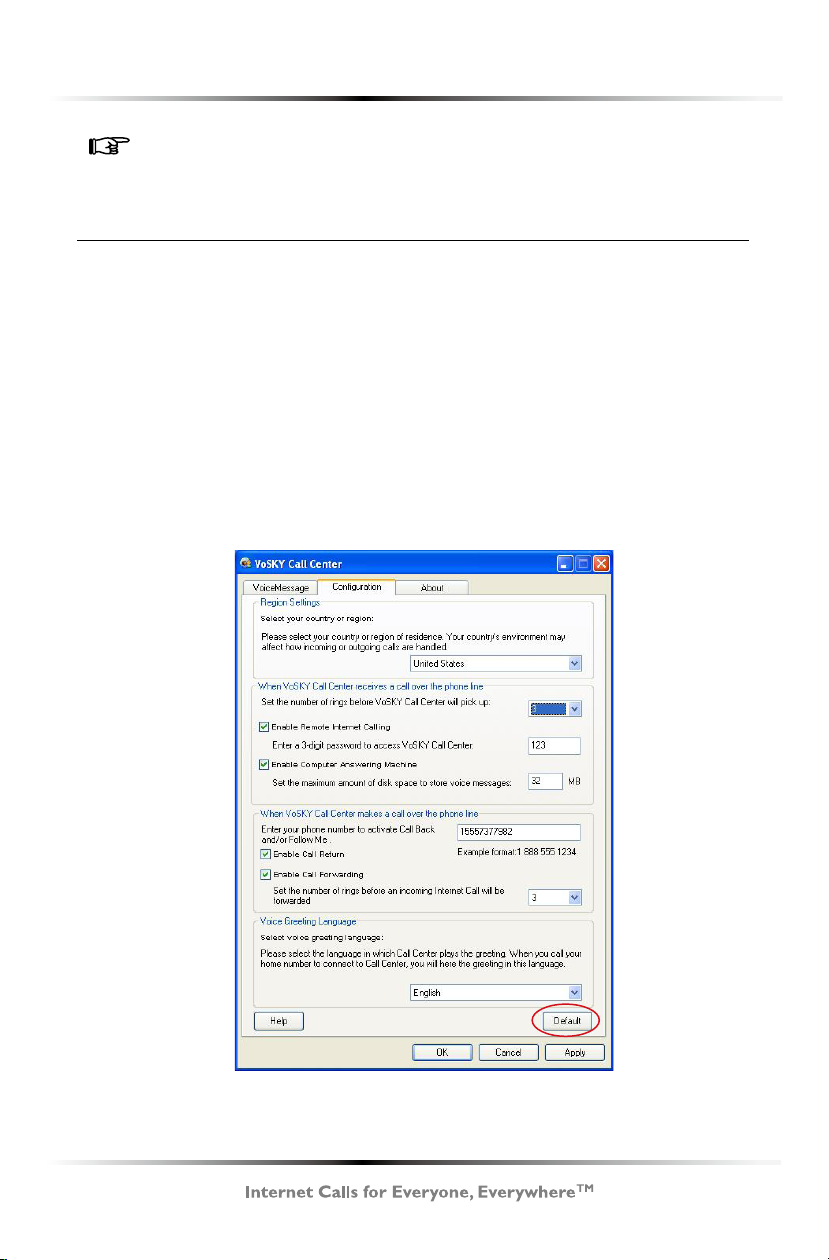

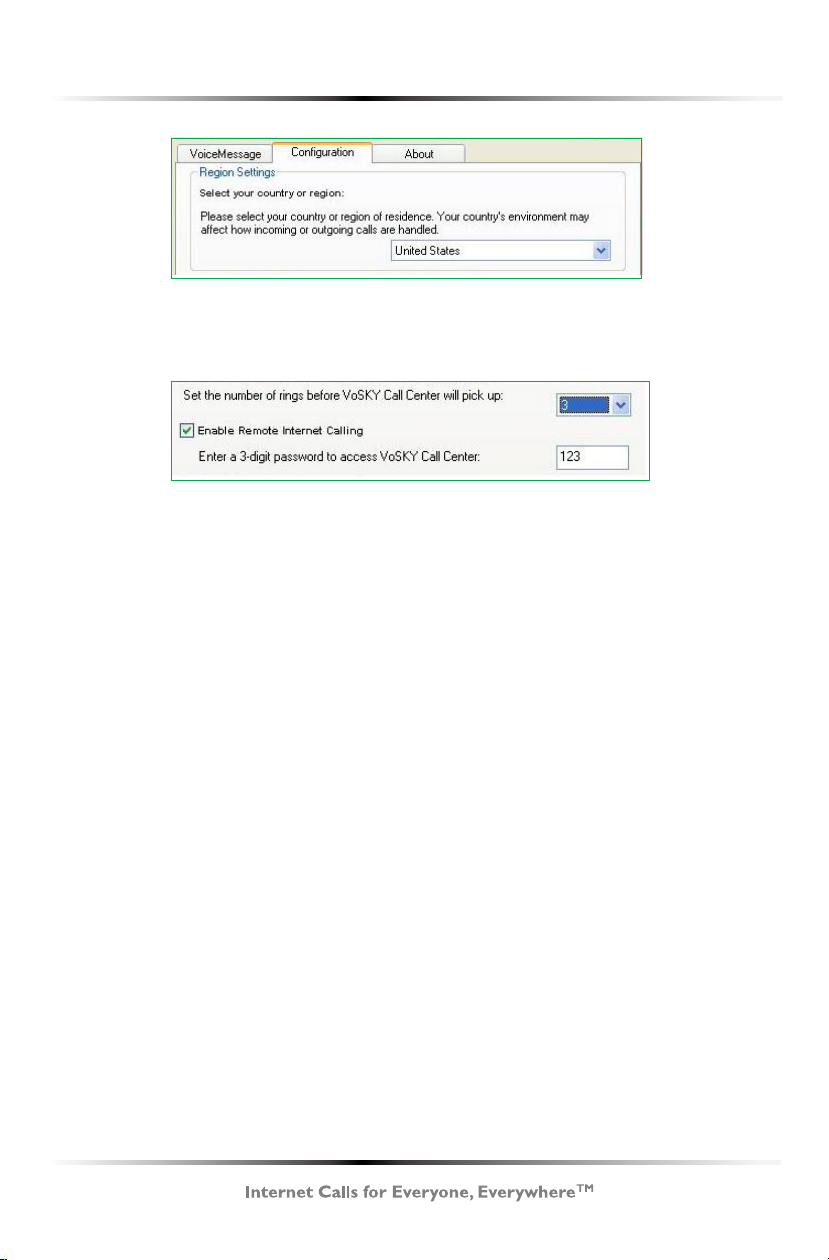

To congure Remote Internet Calling, double-click the Call Center
icon in the system tray, which generates the VoSKY Call Center
conguration window.
Note: If the Call Center icon does not appear in the system tray, the Call Center application has not launched. Double­click on the Call Center icon on the desktop to launch. The Call Center icon will then appear in the system tray.
1. In the “Conguration” tab, go to the drop-down menu in the
Country or Region Selection section. Select the country or region in which Call Center is being used.
22
Page 26
Actiontec VoSKY Call Center User Manual
2. Click in the check box next to “Enable Remote Internet Calling.”
3. Enter a three-digit password in the appropriate text box to pro-
vide security for Call Center access.
4. Select the number of times the telephone line rings before Call Center picks up from the drop-down menu. Actiontec recom­mends selecting a number neither too large nor small, so that both incoming regular phone calls and Remote Internet Calling needs are met.
5. Click OK to save the changes.
To make a Remote Internet Call, see “Making a Remote Internet Call” on page 36.
Computer Answering Machine
Computer Answering Machine allows parties who call Call Center’s phone number to leave messages on the computer when their call goes unanswered. If using this feature, disable any other answer­ing machine or voice mail services. This feature is especially use­ful when used with Remote Internet Calling.
To congure Computer Answering Machine, double-click the Call
Center icon in the system tray, which generates the VoSKY Call
Center conguration window.
23
Page 27
Actiontec VoSKY Call Center User Manual
Note: If the Call Center icon does not appear in the system tray, the Call Center application has not launched. Double­click on the Call Center icon on the desktop to launch. The Call Center icon will then appear in the system tray.To con-
gure Remote Internet Calling, double-click the Call Center
icon in the system tray, which generates the VoSKY Call
Center conguration window.
1. In the “Conguration” tab, go to the drop-down menu in the
Country or Region Selection section. Select the country or region in which Call Center is being used.
2. Click in the check box next to “Enable Computer Answering Machine.”
3. Select the maximum amount of space (in MBs) on the comput­er’s hard drive to use for voice messages.
4. Click OK to save changes.
To access voice mail messages, see “Checking Computer Voice Mail” on page 37.

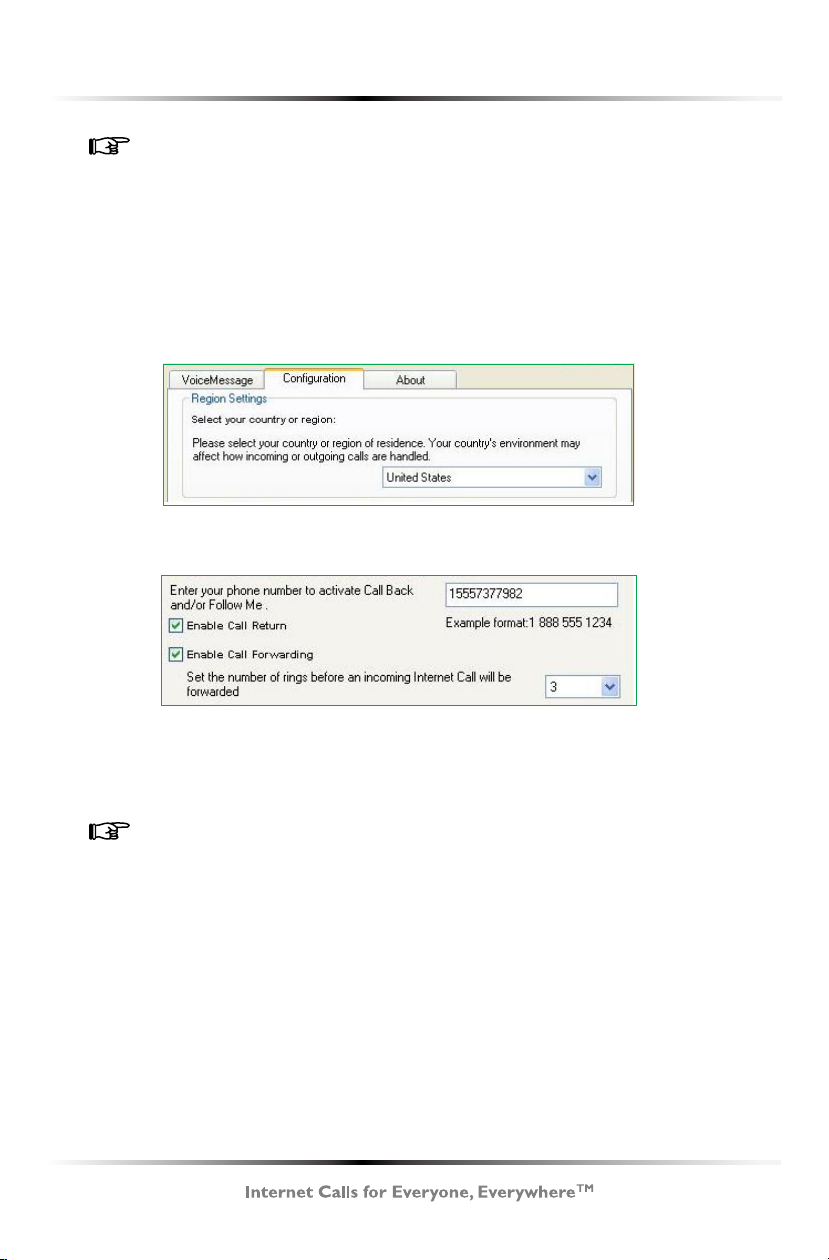

Call Forwarding
Call Forwarding forwards any unanswered Internet calls to a se­lected regular telephone.
To congure Call Forwarding, double-click the Call Center icon in the system tray, which generates the VoSKY Call Center congu-
ration window.
24
Page 28
Actiontec VoSKY Call Center User Manual
Note: If the Call Center icon does not appear in the system tray, the Call Center application has not launched. Double­click on the Call Center icon on the desktop to launch. The Call Center icon will then appear in the system tray.
1. In the “Conguration” tab, go to the drop-down menu in the
Country or Region Selection section. Select the country or region in which Call Center is being used.
2. Click in the check box next to “Enable Call Forwarding.”
3. Enter the number of the telephone to which Internet calls will
be forwarded. Make sure to enter the number in its exact number sequence (i.e., as if dialing it from another telephone).
Note: Only one telephone number can be used for both Call Forwarding and Call Return.
4. Enter the number of rings before an incoming Internet call is forwarded in the appropriate text box.
5. Click OK to save changes.
To answer a forwarded call, see “Answering a Forwarded Call” on page 36.
25
Page 29
Actiontec VoSKY Call Center User Manual

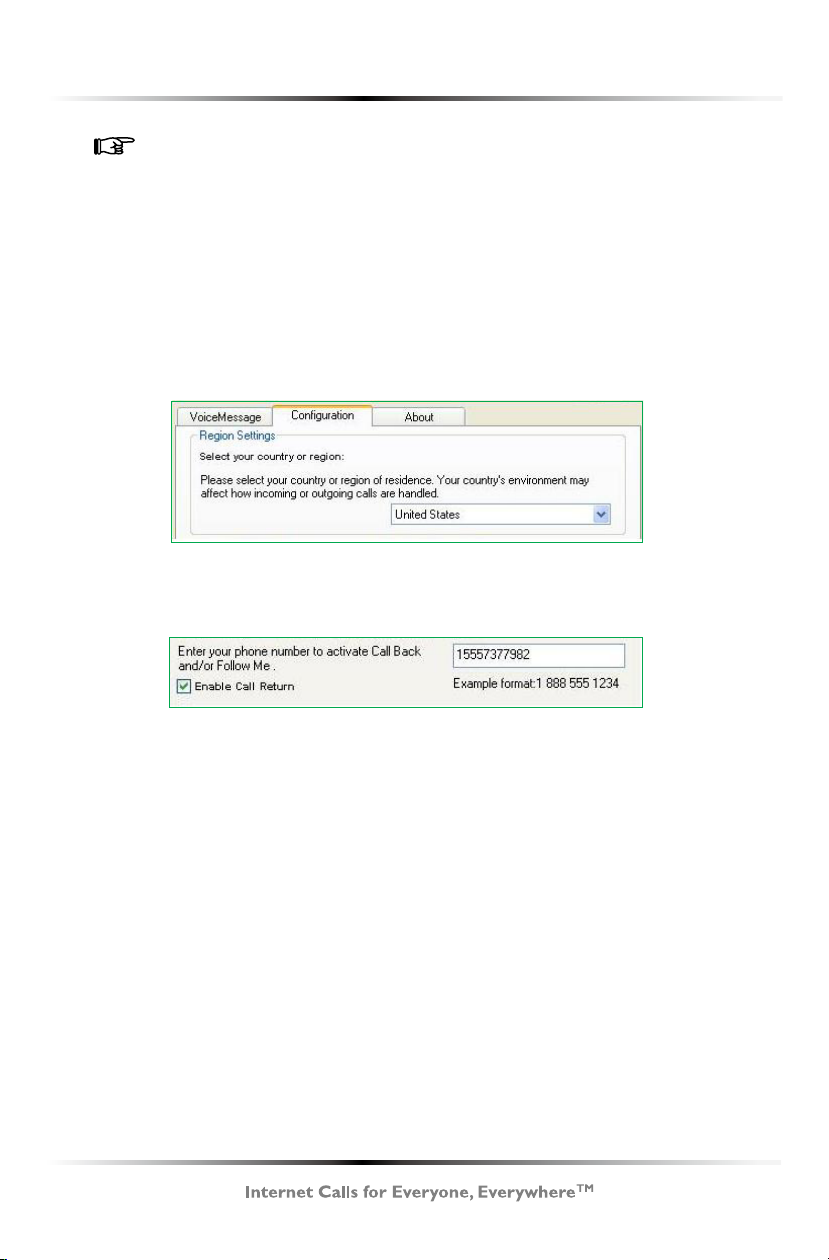

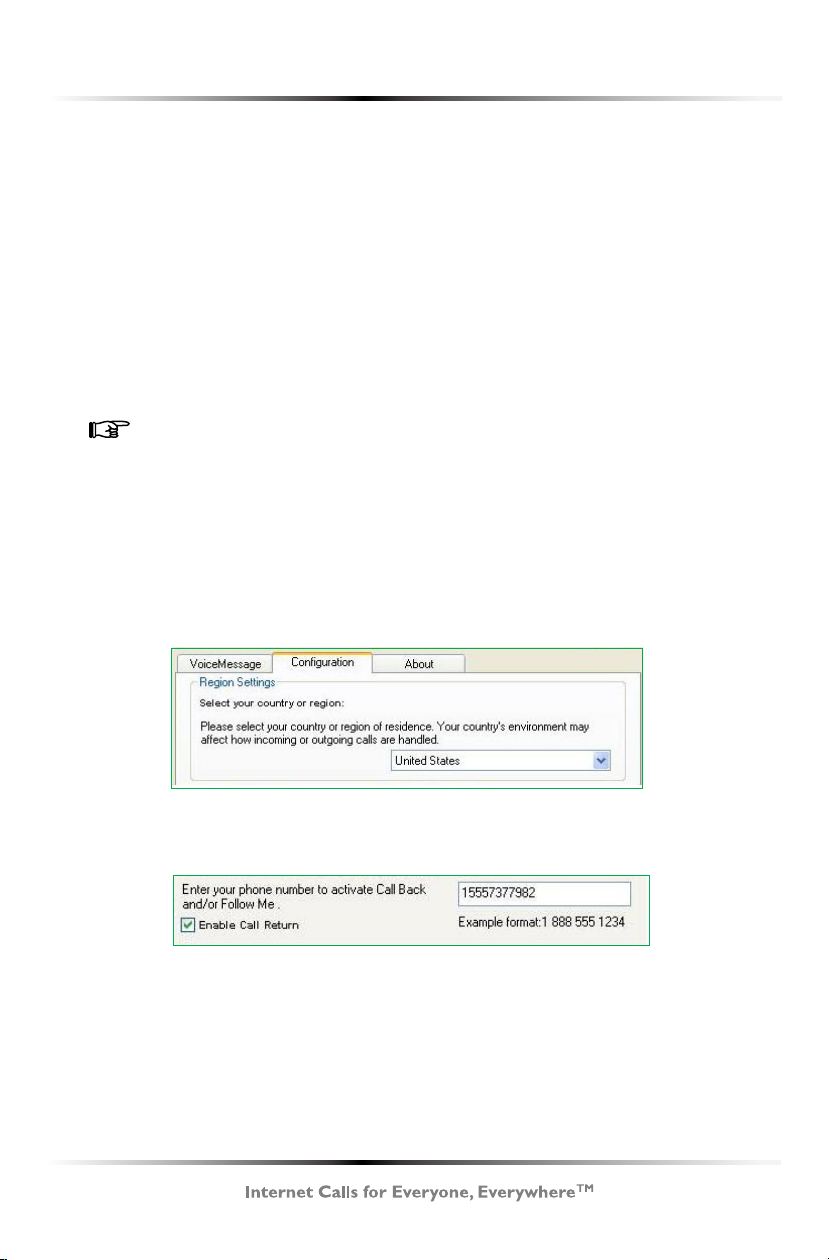

Call Return
Call Return is used in conjunction with Remote Internet Calling. When a previously dialed and unavailable Internet contact comes back online, Call Center places a call to a selected regular tele­phone. This feature is especially useful when used with Remote Internet Calling.
To congure Call Return, double-click the Call Center icon in the system tray, which generates the VoSKY Call Center conguration
window.
Note: If the Call Center icon does not appear in the system tray, the Call Center application has not launched. Double­click on the Call Center icon on the desktop to launch. The Call Center icon will then appear in the system tray.
1. In the “Conguration” tab, go to the drop-down menu in the
Country or Region Selection section. Select the country or region in which Call Center is being used.
2. Click in the check box next to “Enable Call Return.”
3. Enter the number of the telephone to which a Call Return alert
will be forwarded in the appropriate text box. Make sure to enter the number in its exact number sequence (i.e., as if dialing it from another telephone).
26
Page 30
Actiontec VoSKY Call Center User Manual
Note: Only one telephone number can be used for both Call Forwarding and Call Return.
Other Conguration Options
This section describes additional conguration options available on
Call Center.
Default
To reset Call Center to its default settings, click Default at the bot-
tom of the Conguration tab. All settings congured by the user
will be lost.
27
Page 31
Actiontec VoSKY Call Center User Manual

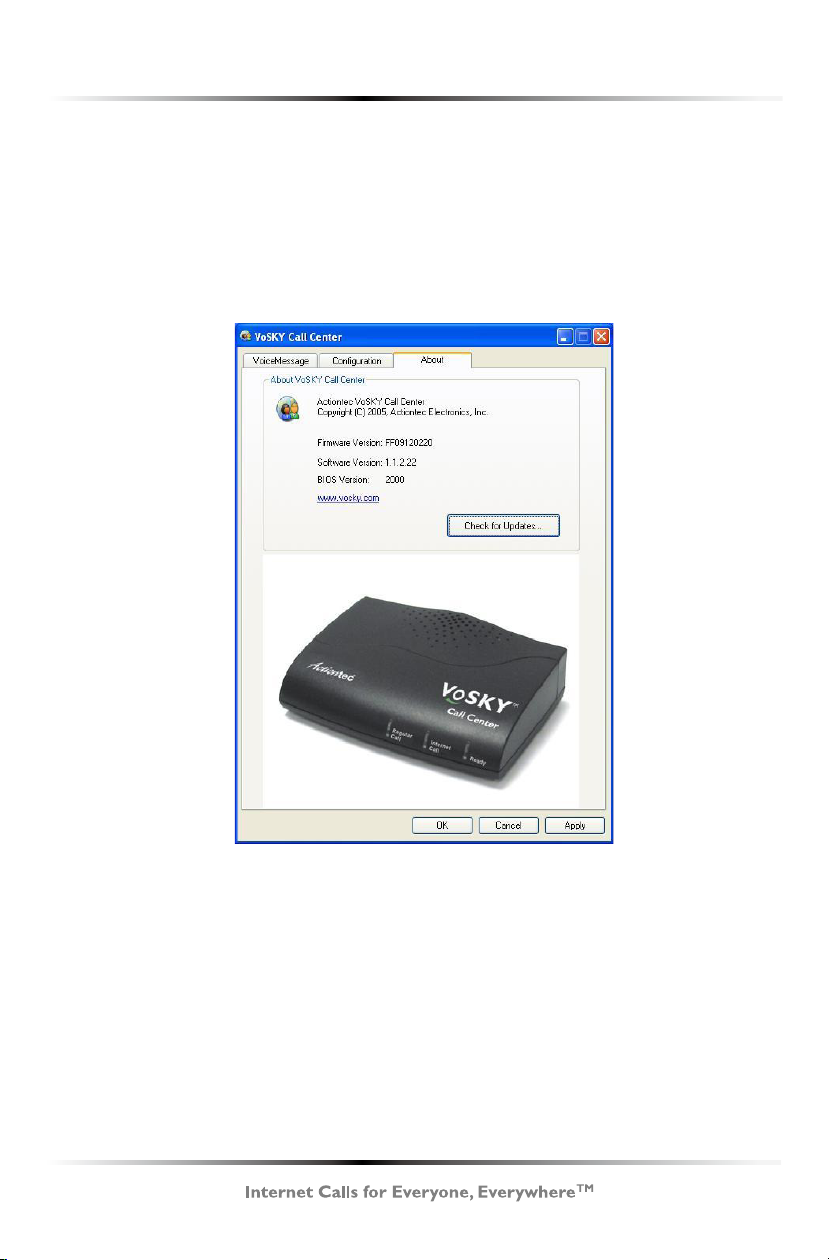

About
Clicking About in the VoSKY Call Center window generates the
“About” tab. Here, Call Center’s rmware, software, and BIOS
versions are displayed. Also, the user can check for updates.
28
Page 32
Actiontec VoSKY Call Center User Manual

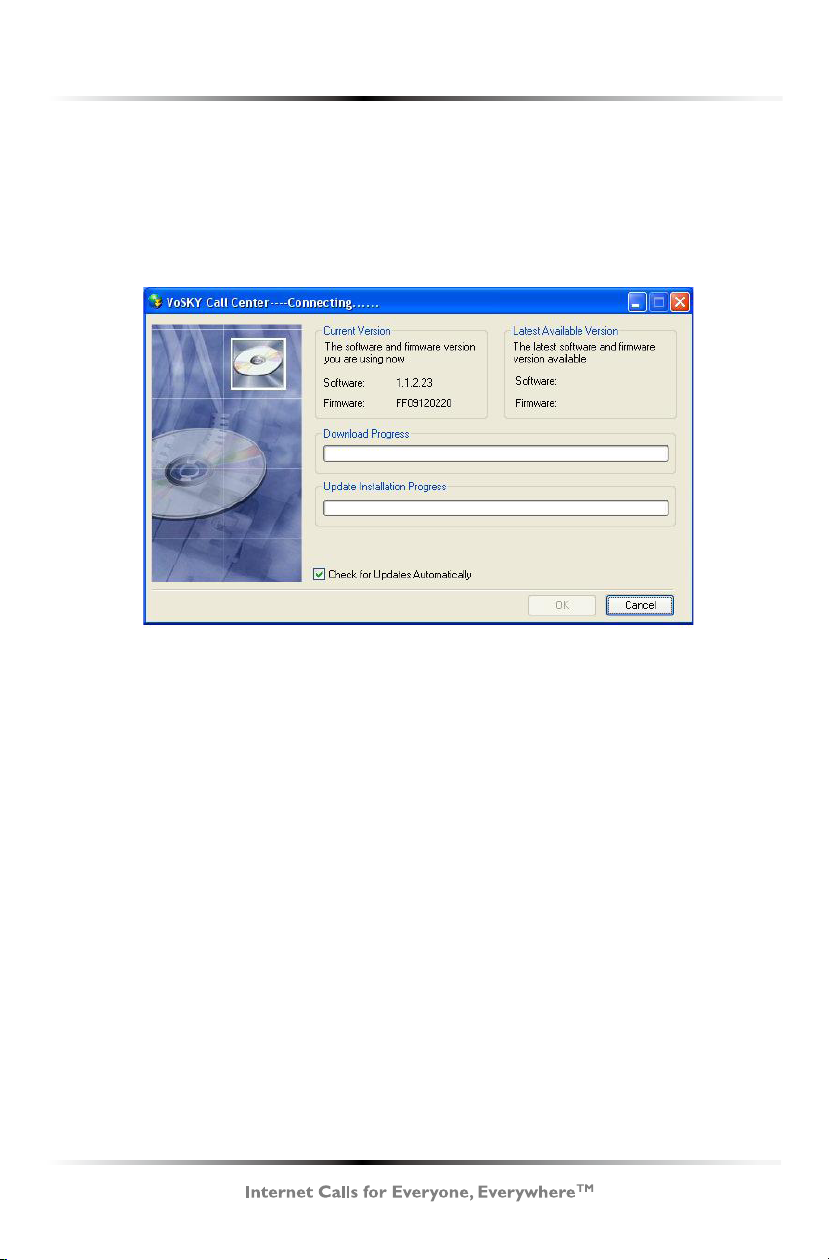

Check for Updates
To check for Call Center software or rmware updates, click Check
for Updates in the About tab. The following window appears:
If a new software or rmware is available for Call Center, a pop-up
message appears. Select Yes to download and install the update, or No to cancel the installation.
A pop-up window will also appear when no updates are available. Click OK to close the window.
29
Page 33
Actiontec VoSKY Call Center User Manual
Using Call Center
6
This chapter explains how make calls using Call Center, includ­ing calling an Internet telephone, calling a regular telephone, and answering a call.
Before Using Call Center
Before making a call with Call Center, make sure of the following:
The computer meets or exceeds the minimum system requirements
The computer is connected to the Internet A Skype account has been created and contacts have
been added to it Call Center is connected to the computer via USB A telephone is connected to Call Center via phone cable If using Dual-Line mode, a phone line is connected to Call
Center “Line” port Call Center drivers and software are installed and running
on the computer Call Center icon in the system tray of the computer’s desktop (next to the clock) is “Ready”:
Call Center Icons
Ready
Not Connected
Active or In Conversation
30
Page 34
Actiontec VoSKY Call Center User Manual
Using Call Center in Single-Line Mode
This section describes how to use Call Center in Single-Line mode. When in Single-Line mode, Call Center can make and receive calls from Internet contacts. Calls can also be made to regular telephone numbers using the SkypeOut service. All calls must be conducted using the telephone connected to Call Center.
Calling an Internet Contact
To call an Internet contact:
1. Pick up the telephone receiver. The Call Center greeting is heard.
2. Dial the speed-dial number of the party being called.
3. Wait for the party to answer the telephone.
Calling a Regular Telephone Using SkypeOut
To make a call to a regular telephone number while Call Center is in Single-Line mode, SkypeOut service must be used. SkypeOut offers low rates, and is especially useful for international calls. Go to www. skype.com for more information about subscribing to SkypeOut.
1. Pick up the telephone receiver. The Call Center greeting is heard.
2. Dial the SkypeOut contact’s assigned speed-dial number.
Note: If the SkypeOut contact does not have a speed­dial number, dial the number using the following format: 00+Country Code+Area Code+Local Phone Number.
3. Wait for the party to answer the telephone.
Receiving a Call
To receive a call:
1. The telephone connected to Call Center rings and Call Center’s
Internet Call light ashes.
2. Pick up the telephone receiver and begin a conversation.
31
Page 35
Actiontec VoSKY Call Center User Manual
Ending a Call
To end a call, put the receiver back onto the telephone.
Making a Conference Call
Call Center supports up to four other Skype contacts (not including the user) participating in a conference call.
To make a conference call:
1. From the Skype window, click Tools, then Create Conference.
2. In the left window, select the contacts to add to the conference
call. More than one contact at a time can be selected by simultane­ously pressing the Ctrl key on the keyboard and clicking on each contact’s name. After selecting the contact(s), click Add to add each name to the conference call.
3. Click Start to start the conference call.
To add another contact to a conference call:
1. From the Skype window, select Contacts.
2. Right-click on the contact’s name and click Invite to Conference.
3. Wait for the contact to join the conference call.
Caller ID
If the telephone being used supports Caller ID, Call Center displays the contact’s Skype ID when he/she calls.
Note: Caller ID for incoming Internet calls is currently not supported for some types of BellSouth telephones.
Call Waiting
If an Internet call is received while an Internet call is being con­ducted, a short beep is heard. Press the “#” key on the telephone keypad twice to answer the new call. To go back to the previous call, press the “#” key twice again.
32
Page 36
Actiontec VoSKY Call Center User Manual
Using Call Center in Dual-Line Mode
When Call Center is set up in Dual-Line mode, all Single-Line mode features are available. Additional features include making and receiving regular calls (computer-to-land-line or computer­to-mobile phone), Remote Internet Calling, Call Forwarding, Call Return, and Computer Answering Machine.
Dual-Line Mode From the Local Telephone
The following features are available from the telephone connected to Call Center:
Switching Between Regular and Internet Call Modes
In Dual-Line mode, Call Center can be in either Internet Call or Regular Call mode. When Call Center is in Internet Call mode, all Single-Line features are available. When Call Cen­ter is in Regular Call mode, the telephone connected to Call Center can be used to make and receive regular phone calls. By default, Call Center is in Regular Call mode. Press the “#” key on the telephone’s keypad twice to switch Call Center to Internet Call mode. Pressing the “#” key twice again returns Call Center to Regular Call mode.
Calling an Internet Contact
To call an Internet contact:
1. Pick up the telephone receiver. The Regular Call light illumi­nates.
2. Press the “#” key twice on the telephone keypad to switch Call Center to Internet Call mode.
3. Dial the speed-dial number of the party being called.
4. Wait for the party to answer the telephone.
Calling a Regular Telephone Number
There are two ways to call a regular (land-line or mobile) tele­phone: using Regular Call mode (exactly like making a normal phone call, with all the usual costs); or, using SkypeOut service while in Internet Call mode (with SkypeOut’s low rates, this meth­od is especially useful for making international calls). Go to www. skype.com for more information about subscribing to SkypeOut.
33
Page 37
Actiontec VoSKY Call Center User Manual
Using Regular Call Mode
To use Regular Call mode to make a call:
1. Pick up the telephone receiver. The Regular Call light illuminates.
2. Dial the telephone number.
3. Wait for the party to answer.
Using Internet Call Mode and SkypeOut
Before making this type of call, make sure the SkypeOut sub­scription is active:
1. Pick up the telephone receiver. The Regular Call light illuminates.
2. Press the “#” key on the telephone keypad twice to switch to Internet Call mode. The Call Center greeting is heard.
3. Dial the SkypeOut contact’s assigned speed-dial number. Note: If the SkypeOut contact does not have a speed-
dial number, dial the number using the following format: 00+Country Code+Area Code+Local Phone Number.
4. Wait for the party to answer the telephone.
Receiving a Call
To receive a call:
1. The telephone connected to Call Center rings.
2. The Regular Call or Internet Call light illuminates, depending
on what kind of call it is. Call Center automatically selects the correct mode.
3. Pick up the telephone receiver and begin a conversation.
Call Waiting
If a call is received (regular or Internet) while an Internet Call is being conducted, a short beep is heard. Press the “#” key twice on the telephone keypad to answer the new call. To go back to the previous call, press the “#” key twice again.
34
Page 38
Actiontec VoSKY Call Center User Manual
Ringback Alert
If the phone is hung up while a previous call is on hold, Call Center rings back to alert the user that a call is still on hold. To continue the call on hold, pick up the receiver.
Dual-Line Mode From a Remote Phone
The following features are available when using any telephone in the world (including mobile telephones):
Making a Remote Internet Call
Call Center can call any Skype or SkypeOut contact. To do this:
1. Pick up the telephone’s receiver.
2. Dial Call Center’s phone number.
3. Wait for the telephone to ring x times (“x” being the num-
ber of rings set in Call Center’s Conguration tab; see “Remote
Internet Calling” on page 23).
4. A Call Center or Computer Answering Machine greeting is
heard. Enter the three-digit password (set in Call Center’s Con-
guration tab; see “Remote Internet Calling” on page 23).
5. The Call Center welcome greeting is heard. Enter the con-
tact’s assigned speed-dial number.
Note: If placing a SkypeOut call and the SkypeOut con­tact does not have a speed-dial number, dial the num­ber using the following format: 00+Country Code+Area Code+Local Phone Number.
Answering a Forwarded Call
If Call Forwarding is activated on Call Center (see “Call For­warding” on page 25), an unanswered Internet call will be forwarded to the telephone whose number has been entered
in Call Center’s Conguration tab. Answer the telephone and
conduct a conversation.
35
Page 39
Actiontec VoSKY Call Center User Manual
Using Call Return
If Call Return is activated on Call Center (see “Call Return” on page 26), when an Internet call is made and the contact is not online, an alert will be sent when the contact returns online to the telephone whose number has been entered in Call Center’s
Conguration tab. A typical scenario:
1. A remote Internet call is made, but the contact is not online.
2. A message, stating the contact is not available, is heard.
Press the “1” key on the telephone keypad.
3. When the contact goes online, a call is placed to the regular
telephone.
4. Pick up the telephone and press “1” again to have Call Cen-
ter call the contact via the Internet.
Checking Computer Voice Mail
With Computer Answering Machine activated, parties calling into Call Center can leave messages on the computer.
Note: Before using Computer Answering Machine, it must be activated (see page 24). Also, any standard an­swering machine or voice mail service connected to the same phone line as Call Center (i.e., having the same phone number) must be deactivated.
36
Page 40
Actiontec VoSKY Call Center User Manual

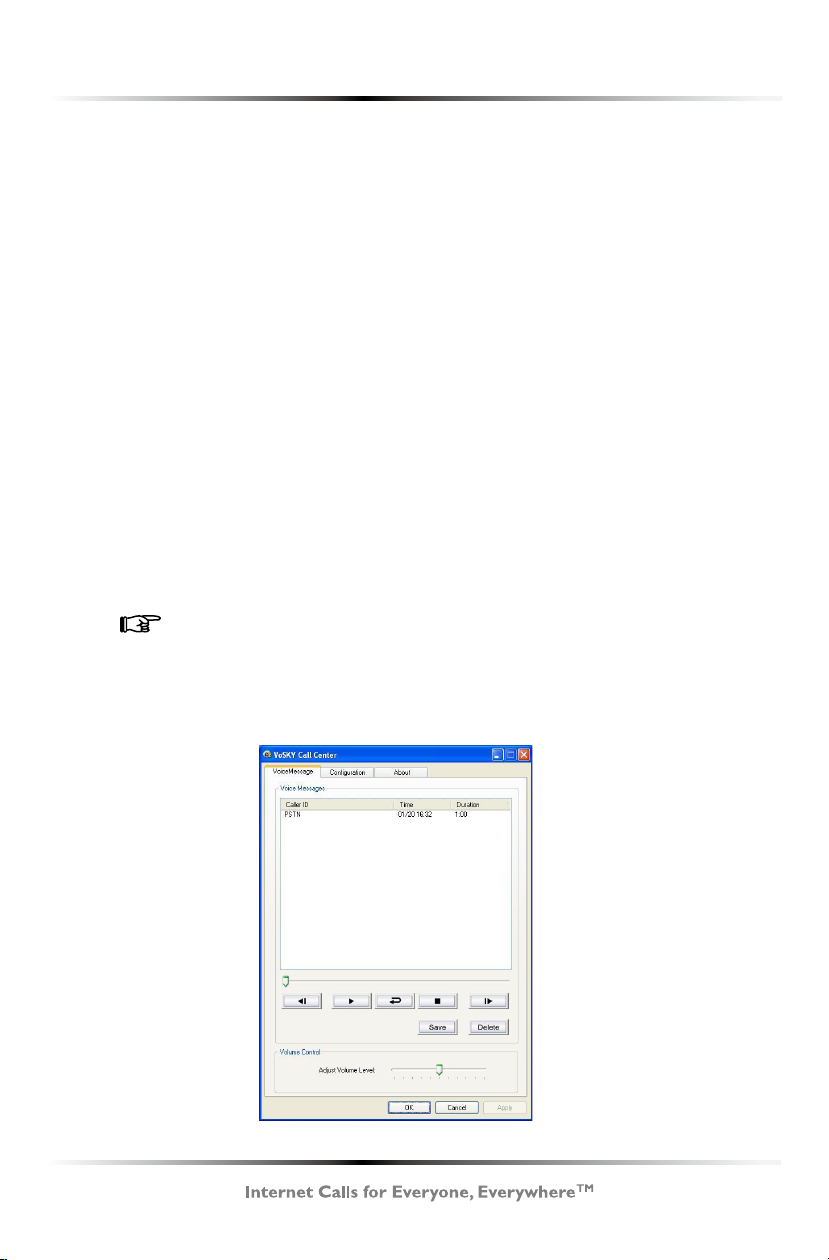

To check voice mail on the Computer Answering Machine:
1. Double-click the Call Center icon in the system tray or desk-
top of the computer. The “VoSKY Call Center” window appears.
2. Select the “Voicemail” tab. In the top part of the tab is the
“Voice Messages” list box, which displays all messages that have not been played, or have been saved.
Playing Voice Mail
To play a voice mail, click on it, then press the “Play” (triangle) button. To fast-forward or rewind through a message, slide the Play button in the appropriate direction.
Stopping Playback
To stop a voice mail during playback, press the “Stop” (rect­angle) button.
Next/Previous Message
To skip to the next message, click the “Next Message” (tri­angle-bar) button. To return to the previous message, click the “Previous Message” (bar-triangle) button.
Restarting
To restart a voice mail while it plays, press the “Repeat” (curved arrow) button.
Saving or Deleting
To save or delete a voice mail, click on it in the Voice Message list box, then click the appropriate button. Saved voice mails will remain in the Voice Message list box.
Adjusting Volume
To adjust the volume while listening to a voice mail, move the “Adjust Volume Level” slider in the appropriate direction.
37
Page 41
Actiontec VoSKY Call Center User Manual
Quick Reference Tables
Consult these tables (Basic or Advanced) for quick reference.
Basic Procedures
Action Instruction
Make a Skype Call
Make Skype Con­ference call
Make a SkypeOut Call
1. Pick up the telephone’s receiver.
2. Make sure IPW is in Internet Call mode
(indicated by the Internet Call light illumi nating). If not, press the “#” key twice.
3. Wait for the IPW dial tone.
4. Dial the Skype contact’s speed-dial
number.
1. Pick up the telephone receiver and make sure Call Center is in Internet Call mode.
2. Dial the 1st one’s speed-dial number of the parties being called.
3. Press “*” key on the telephone keypad and dial the 2nd one’s speed-dial number.
4. Continue the operation to add all the parties.
5. Press “#” key to begin the conference call.
1. Pick up the telephone’s receiver.
2. Make sure Call Center is in Internet Call
mode (indicated by the Internet Call light illuminating). If not, press the “#” key twice.
3. Wait for the Call Center greeting
4. Dial the SkypeOut contact’s assigned
speed-dial number. If the SkypeOut con­tact does not have a speed-dial num­ber, dial the number using the follow­ing format: 00+Country Code+Area
Code+Local Phone Number
38
Page 42
Actiontec VoSKY Call Center User Manual
Make an Ordinary Call*
Receive an Ordi nary* or Internet Call
Call Waiting
*Line Port must be set up.
Pick up the telephone’s receiver and dial normally.
-
When the telephone rings, pick up the re­ceiver and begin talking. Call Center auto­matically selects the correct mode.
1. While on an Internet call and an incoming regular* or Internet call is received, a call waiting tone is heard.
2. Press the “#” key on the telephone key pad twice to pick up the new call while putting the current call on hold.
3. Press the “#” key twice again to switch back and forth between the two calls.
39
Page 43
Actiontec VoSKY Call Center User Manual
Advanced Procedures
For Advanced Procedures, the Line Port must be set up and the
corresponding feature must be enabled in the Conguration
screen.
Basic Procedures
Action Instruction
Make a Skype Call From Any Tele­phone (Remote Internet Calling)
Make Skype Con­ference call
1. Pick up the telephone’s receiver.
2. Dial Call Center’s phone number.
3. Wait for the telephone to ring x times
(“x” being the number of rings set in Call
Center’s Conguration tab).
4. A Call Center or Answering Machine greeting is heard. Enter the three-digit pass word.
5. A welcome greeting is heard. Enter the contact’s assigned speed-dial number.
1. Pick up the telephone’s receiver.
2. Dial Call Center’s phone number.
3. Wait for the telephone to ring x times (“x”
being the number of rings set in Call
Center’s Conguration tab).
4. A Call Center or Answering Machine greet­ing is heard. Enter the three-digit pass word.
5. A welcome greeting is heard. Enter the contact’s assigned SkypeOut speed-dial number. If the SkypeOut contact does not have a speed-dial number, dial the number using the following format:
00+Country Code+Area Code+Local Phone Number
40
Page 44
Actiontec VoSKY Call Center User Manual
Call Forwarding
Call Return 1. An Internet call is made, but the contact
If an Internet call is left unanswered, it is forwarded through the phone line to the phone number chosen by the user.
is not online.
2. A message, stating the contact is not available, is heard. Press the “1” key on
the telephone keypad.
3. When the contact goes online, a call is placed to the regular phone.
4. Pick up the telephone receiver and press “1” again to have Call Center call the contact via the Internet.
41
Page 45
Actiontec VoSKY Call Center User Manual
Specications
Model Number
UP102G (VoSKY Call Center)
Interface Ports
USB Audio Device Class 1.0 compatible RJ11 port: for connecting with analog telephone RJ11 port: for connecting with PSTN line
LED indicators
Regular Call, Internet Call, Ready
Linear Audio Signal Support
16-bit
a
Power Consumption
5V DC supply through USB cable
Operating Current
130 mA
Peak Ringing
400 mA
Standby/Hibernating Current
10 mA
RJ11 Port Impedance
600 Ohms
42
Page 46
Actiontec VoSKY Call Center User Manual
On-Hook Voltage
48V DC
Off-Hook Loop Current
25 mA DC
Ringing Voltage
110V peak to peak; 25 Hz
Dimensions (LxWxH)
11.5 x 8.5 x 2.5 cm (4.5 x 3.3 x 1 in.)
Weight
125 g (4.4 oz.)
Operating temperature
0° - 55° C (32° - 131° F)
Relative Humidity
> 80 % (non-condensing)
Certications
FCC, CE, CCC, JATE, DGT
Note: Specications are subject to change
without notice.
43
Page 47
Actiontec VoSKY Call Center User Manual
Notices
Regulatory Compliance Notices
Class B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the in­structions, may cause harmful interference to radio communica­tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by implementing one or more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected;
Consult the dealer or an experienced radio or television technician for help.
Modications
The FCC requires the user to be notied that any changes or modi­cations made to this device that are not expressly approved by
Actiontec Electronics, Inc., may void the user’s authority to operate the equipment.
Declaration of conformity for products marked with the FCC logo– United States only.
44
Page 48
Actiontec VoSKY Call Center User Manual
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received,
including interference that may cause unwanted operation
Note: To comply with FCC RF exposure compliance requirements, the antenna used for this transmit­ter must be installed to provide a separation dis­tance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
For questions regarding your product or the FCC decla­ration, contact:
Actiontec Electronics, Inc. 760 North Mary Ave. Sunnyvale, CA 94085 United States Tel: (408) 752-7700 Fax: (408) 541-9005
Miscellaneous Legal Notices
©2005 Actiontec Electronics, Inc. Actiontec, the Actiontec logo, Internet calls Everyone,Everywhere, VoSKY, and the VoSKY logo are trademarks or registered trademarks of Actiontec Electronics, Inc. All other names are the property of their respective owners. Product photo may differ from actual product; functionality, how­ever, remains as stated in this manual.
45
Page 49
Actiontec VoSKY Call Center User Manual
Limited Warranty
Hardware: Actiontec Electronics, Inc., warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use and service, for twelve (12) months from the date of purchase (US) or twenty­four (24) months from the date of purchase (Europe) from Action­tec Electronics or its authorized reseller.
Actiontec Electronics’ sole obligation under this express warranty shall be, at Actiontec’s option and expense, to repair the defec­tive product or part, deliver to Customer an equivalent product or part to replace the defective item, or if neither of the two forego­ing options is reasonably available, Actiontec Electronics may, in its sole discretion, refund to Customer the purchase price paid for the defective product. All products that are replaced will become the property of Actiontec Electronics, Inc. Replacement products may be new or reconditioned. Actiontec Electronics warrants any replaced or repaired product or part for ninety (90) days from shipment, or the remainder of the initial warranty period, which­ever is longer.
Software: Actiontec Electronics warrants to Customer that each software program licensed from it will perform in substantial
conformance to its program specications, for a period of ninety
(90) days from the date of purchase from Actiontec Electronics or its authorized reseller. Actiontec Electronics warrants the media containing software against failure during the warranty period. The only updates that will be provided are at the sole discretion of Actiontec Electronics and will only be available for download at the Actiontec Web site, www.actiontec.com. Actiontec Electronics’ sole obligation under this express warranty shall be, at Actiontec Electronics’ option and expense, to refund the purchase price paid by Customer for any defective software product, or to replace any defective media with software which substantially conforms to ap-
plicable Actiontec Electronics published specications. Customer
assumes responsibility for the selection of the appropriate ap­plications program and associated reference materials. Actiontec Electronics makes no warranty or representation that its software
46
Page 50
Actiontec VoSKY Call Center User Manual
products will meet Customer’s requirements or work in combina­tion with any hardware or applications software products provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected. For any third-party products listed in the Actiontec Electronics software product documentation or
specications as being compatible, Actiontec Electronics will make
reasonable efforts to provide compatibility, except where the non­compatibility is caused by a “bug” or defect in the third party’s product or from use of the software product not in accordance
with Actiontec Electronics published specications or user guide.
THIS ACTIONTEC ELECTRONICS PRODUCT MAY INCLUDE OR BE BUNDLED WITH THIRD-PARTY SOFTWARE, THE USE OF WHICH IS GOVERNED BY A SEPARATE END-USER LICENSE AGREEMENT.
THIS ACTIONTEC ELECTRONICS WARRANTY DOES NOT APPLY TO SUCH THIRD-PARTY SOFTWARE. FOR THE APPLICABLE WAR­RANTY, PLEASE REFER TO THE END-USER LICENSE AGREEMENT GOVERNING THE USE OF SUCH SOFTWARE.
Obtaining Warranty Service: Customer may contact Actiontec Electronics Technical Support Center within the applicable war­ranty period to obtain warranty service authorization. Dated proof of purchase from Actiontec Electronics or its authorized reseller may be required. Products returned to Actiontec Electronics must be pre-authorized by Actiontec Electronics with a Return Merchan­dise Authorization (RMA) number marked on the outside of the package, and sent prepaid and packaged appropriately for safe shipment, and it is recommended that they be insured or sent by a method that provides for tracking of the package. The repaired or replaced item will be shipped to Customer, at Actiontec Elec­tronics’ expense, not later than thirty (30) days after Actiontec Electronics receives the defective product.
Return the product to: (In the United States) Actiontec Electronics, Inc. 760 North Mary Avenue Sunnyvale, CA 94085
47
Page 51
Actiontec VoSKY Call Center User Manual
Actiontec Electronics shall not be responsible for any software,
rmware, information, memory data, or Customer data contained
in, stored on, or integrated with any products returned to Action­tec Electronics for repair, whether under warranty or not.
WARRANTIES EXCLUSIVE: IF AN ACTIONTEC ELECTRONICS PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REM­EDY FOR BREACH OF THAT WARRANTY SHALL BE REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT ACTIONTEC ELECTRON­ICS’ OPTION. TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGO­ING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, TERMS OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABIL­ITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, AND NON-INFRINGEMENT, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. ACTIONTEC ELECTRONICS NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTAL­LATION, MAINTENANCE OR USE OF ITS PRODUCTS.
ACTIONTEC ELECTRONICS SHALL NOT BE LIABLE UNDER THIS WARRAN­TY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPT TO OPEN, REPAIR OR MODIFY THE PRODUCT, OR ANY OTHER CAUSE BE­YOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW, ACTIONTEC ELECTRONICS ALSO EXCLUDES FOR ITSELF AND ITS SUP­PLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (IN­CLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVE­NUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAIL­URE, OR INTERRUPTION OF ITS PRODUCT, EVEN IF ACTIONTEC ELEC­TRONICS OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT ACTION­TEC ELECTRONICS’ OPTION. THIS DISCLAIMER OF LIABILITY FOR DAM­AGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
48
Page 52
Actiontec VoSKY Call Center User Manual
Disclaimer: Some countries, states or provinces do not allow the exclu-
sion or limitation of implied warranties or the limitation of incidental or consequential damages for certain products supplied to consumers, or the limitation of liability for personal injury, so the above limitations and exclusions may be limited in their application to you. When the implied warranties are not allowed to be excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty
gives you specic legal rights which may vary depending on local law.
Dispute Resolution: The customer may contact the Director of Techni-
cal Support in the event the Customer is not satised with Actiontec Elec­tronics’ response to the complaint. In the event that the Customer is still
not satised with the response of the Director of Technical Support, the
Customer is instructed to contact the Director of Marketing. In the event
that the Customer is still not satised with the response of the Director of
Marketing, the Customer is instructed to contact the Chief Financial Of-
cer and/or President.
Governing Law: This Limited Warranty shall be governed by the laws of
the State of California, U.S.A., excluding its conicts of laws and prin­ciples, and excluding the United Nations Convention on Contracts for the International Sale of Goods.
49
Page 53
Page 54
Page 55
P/N
Loading...
