ACTi SMAX-0004 User Manual

2013/12/06

Outdoor-Ready Box

Mounting on a Corner Wall
using the Accessory Set

Installation Guide

For Models:

KCM-5511 / KCM-5611 / KCM-5x11E

www.acti.com

Installation Guide

Table of Contents

Installation Procedures ..................................................... 3

Step 1: Attach the Corner Mount .............................................................. 3

Step 2: Install the Bracket ......................................................................... 4

Step 3: Remove the Back Cover ............................................................... 5

Step 4: Prepare the Flex Conduit ............................................................. 5

Step 5: Connect the Ethernet Cable ......................................................... 8

Step 6: Install the Camera ......................................................................... 9

Step 7: Access the Camera Live View .................................................... 11

Appendices ....................................................................... 12

Connecting a Power Adaptor (Optional) ................................ ................ 12

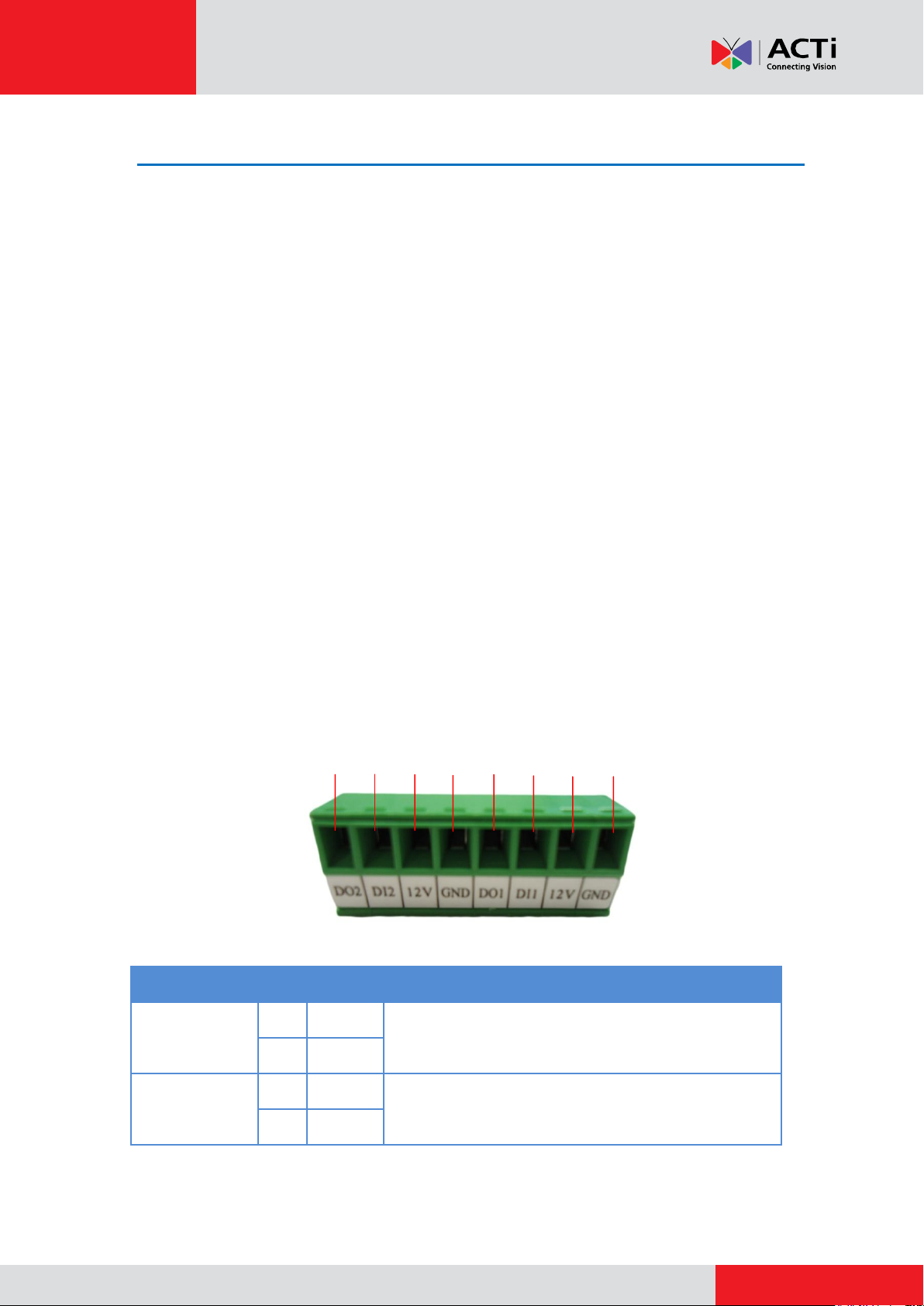

Connecting DI/DO Devices (Optional) .................................................... 14

Connecting a Serial Device (Optional) ................................................... 17

Safety Information ............................................................ 19

2

www.acti.com

Installation Guide

Installation Procedures

This section provides step-by-step procedures in installing the camera on a corner wall using the
accessory set (SMAX-0004) and how to waterproof the cables.

Before installation, prepare the following tools and accessories which are not included in the
camera package thus must be purchased separately:

 Corner Mount with Mounting Bracket (SMAX-0004)
 Flexible Conduit (Trade size = 1/2”)
 Ethernet Cable
 Screwdriver

Step 1: Attach the Corner Mount

1. Align the Corner Mount to the corner wall and mark the location of the eight (8) screw holes.

NOTE:

 The illustration above shows only the screw holes on one side of the wall.

Remember to mark the screw holes on the other side of the wall, too.

 Due to different corner surfaces and shapes, it is recommended to use the

actual Corner Mount to mark the holes for drilling.

2. Drill the eight (8) screw holes.

3

www.acti.com

Installation Guide

3. Attach eight (8) screws (not included in the package) to secure the Corner Mount to the wall.

NOTE: Purchase screws applicable to the wall type you are mounting the Corner Mount to.

Step 2: Install the Bracket

1. Remove the screw to detach the camera holder from the bracket. Set the holder aside for
later use.

2. Attach the bracket to the corner mount using the three (3) screws supplied in the corner
mount kit.

4

www.acti.com

Installation Guide

Step 3: Remove the Back Cover

Loosen the four (4) screws to detach the back cover of the camera.

Step 4: Prepare the Flex Conduit

1. From the network side, insert the Ethernet cable and other cables (if any) through the flex
conduit.

NOTE: To connect an external power adaptor, digital input/output (DI/DO) or serial devices,

insert the cables without connectors through the flex conduit and as well as audio
input/output device cables at this point.

5

www.acti.com

Installation Guide

Sealing Insert

Clamping Nut

Conduit Gland

Body

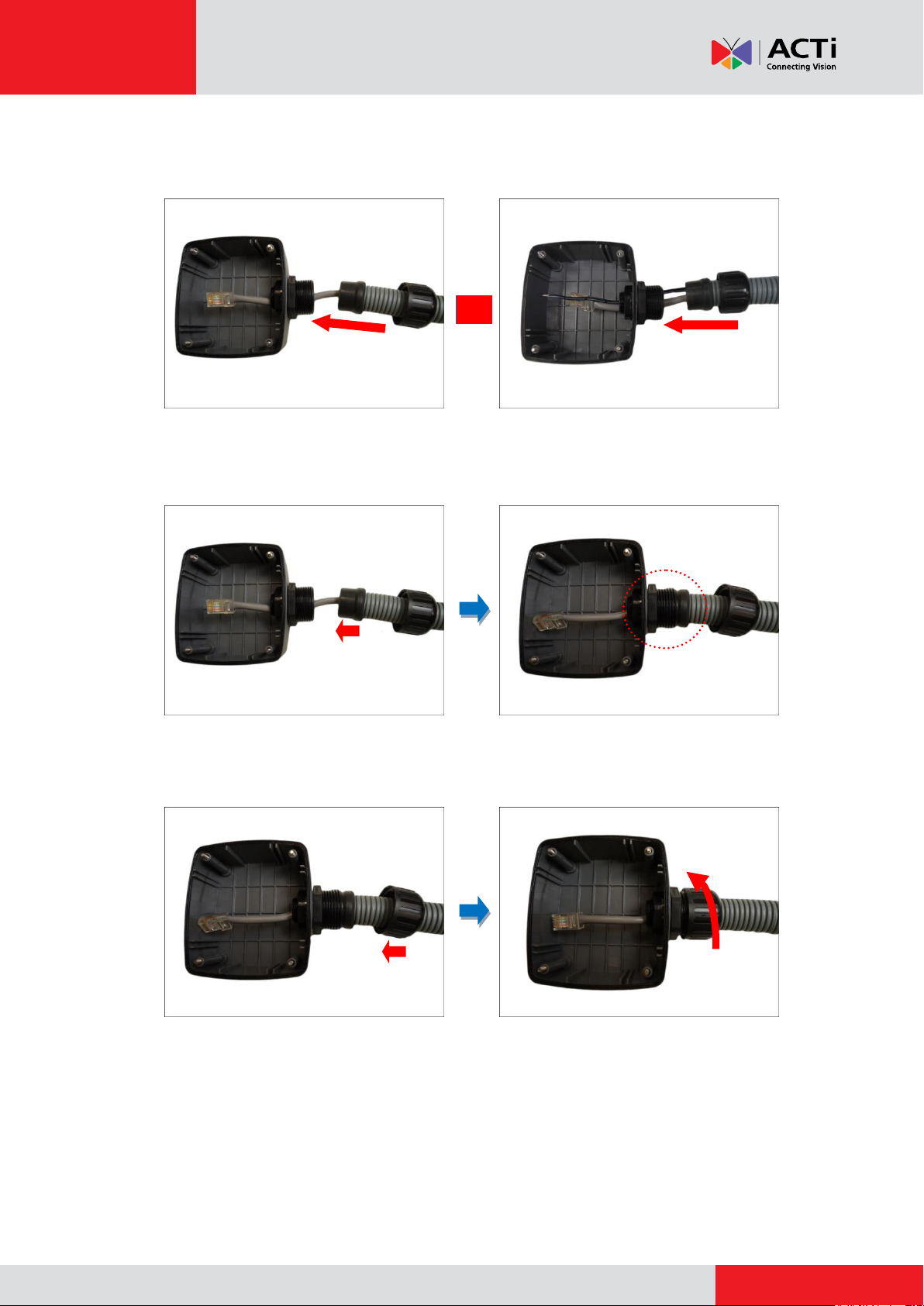

2. Insert the clamping nut through the flex conduit.

3. Insert the sealing insert and attach it at the end of the flex conduit.

4. Detach the conduit gland from the back cover of the camera as shown below:

6
