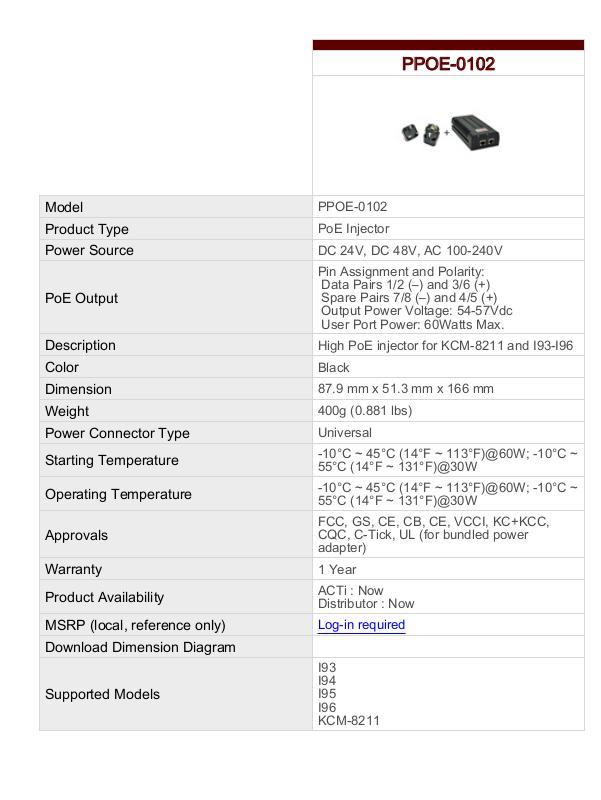

ACTi PPOE-0102 Specsheet

PPOE-0102

Model

Product Type

Power Source

PoE Output

Description

Color

Dimension

Weight

Power Connector Type

Starting Temperature

Operating Temperature

Approvals

PPOE-0102

PoE Injector

DC 24V, DC 48V, AC 100-240V

Pin Assignment and Polarity:
Data Pairs 1/2 (–) and 3/6 (+)
Spare Pairs 7/8 (–) and 4/5 (+)
Output Power Voltage: 54-57Vdc
User Port Power: 60Watts Max.

High PoE injector for KCM-8211 and I93-I96

Black

87.9 mm x 51.3 mm x 166 mm

400g (0.881 lbs)

Universal

-10°C ~ 45°C (14°F ~ 113°F)@60W; -10°C ~
55°C (14°F ~ 131°F)@30W

-10°C ~ 45°C (14°F ~ 113°F)@60W; -10°C ~
55°C (14°F ~ 131°F)@30W

FCC, GS, CE, CB, CE, VCCI, KC+KCC,
CQC, C-Tick, UL (for bundled power
adapter)

Warranty

Product Availability

MSRP (local, reference only)

Download Dimension Diagram

Supported Models

1 Year

ACTi : Now
Distributor : Now

Log-in required

I93
I94
I95
I96
KCM-8211
