ACTi D92 User Manual
Indoor Mini Dome &
Indoor Mini Fisheye Dome
Hardware Manual
D91, D92, E91, E92, E93, E94, E95, E96,
E97
Ver. 2014/01/09
www.acti.com
Hardware Manual
Table of Contents
Precautions 4
Safety Instructions ........................................................................... 6
Introduction 7
List of Models .................................................................................... 7
Package Contents ............................................................................. 8
Physical Description ........................................................................ 9
Installation Procedures 11
Installing the Camera on a Surface ............................................... 12
Installing the Camera on a Gang Box ........................................... 15

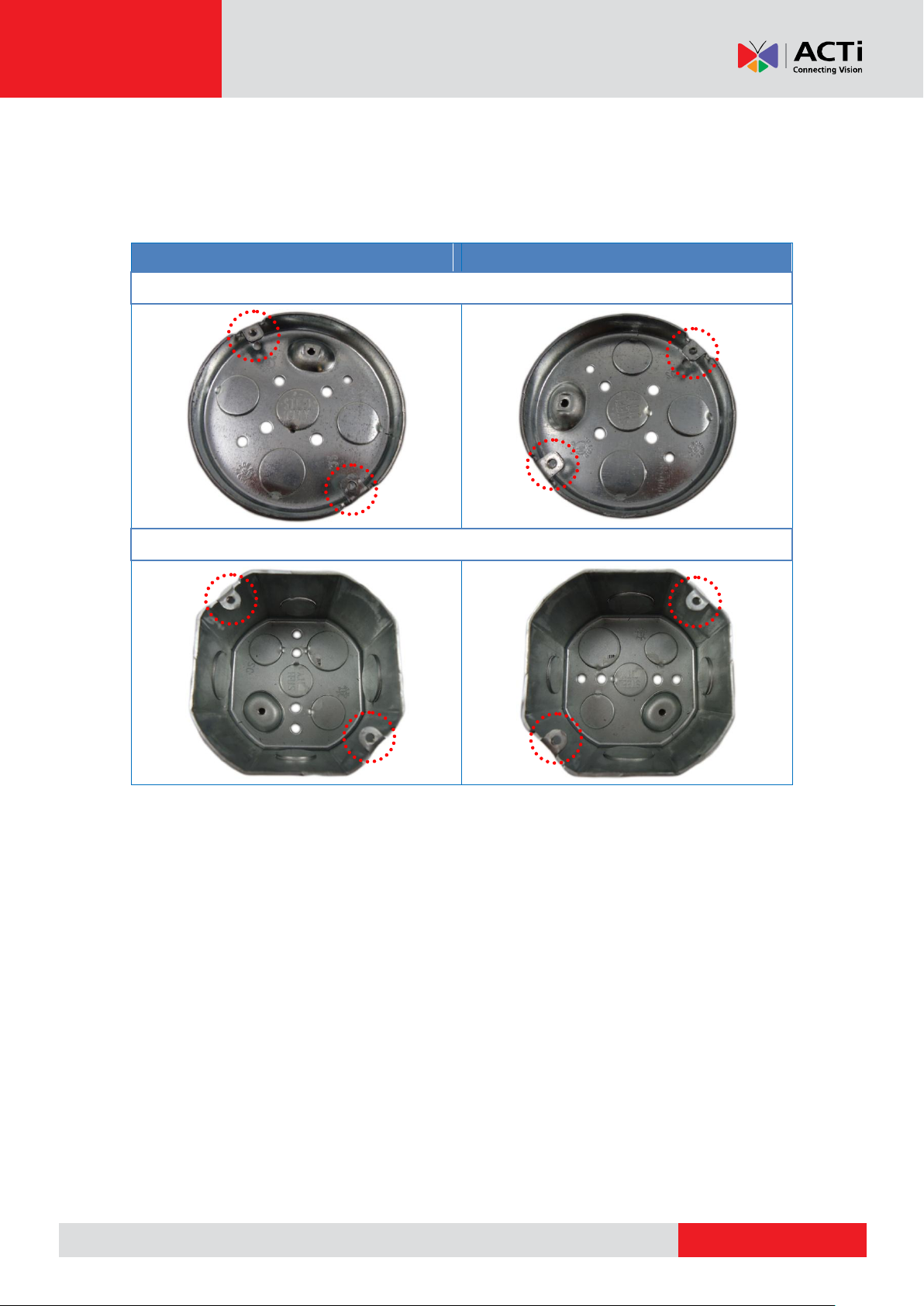

Step 1: Install the Gang Box ........................................................ 16

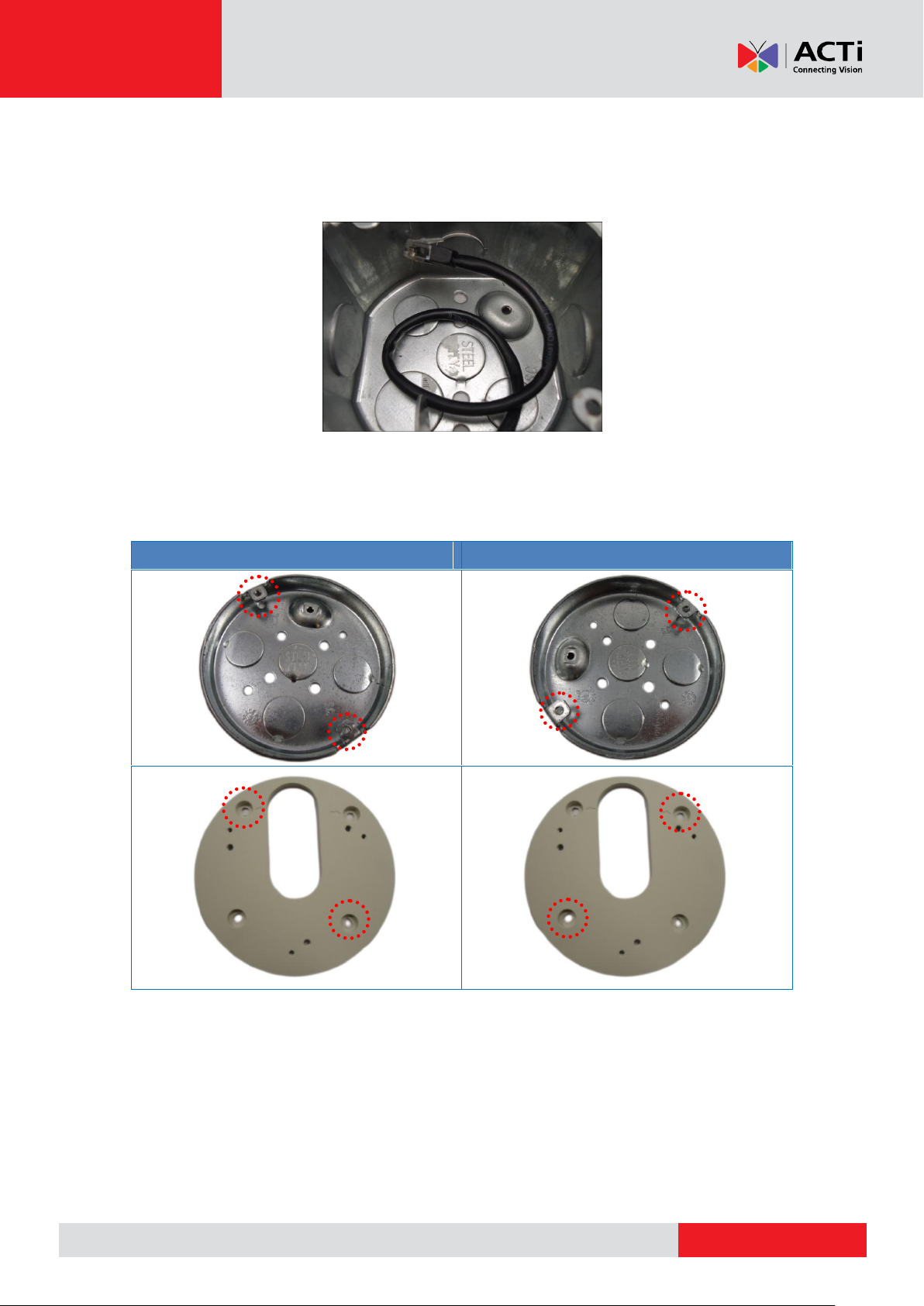

Step 2: Install the Gang Box Converter ........................................ 17
Step 3: Connect the Cable ........................................................... 18
Step 4: Install the Camera ............................................................ 18
Step 5: Connect to Network ......................................................... 19
Step 6: Access the Camera Live View ......................................... 19
Step 7: Adjust the Viewing Angle and Focus ................................ 19
Step 8: Close the Dome Cover .................................................... 19

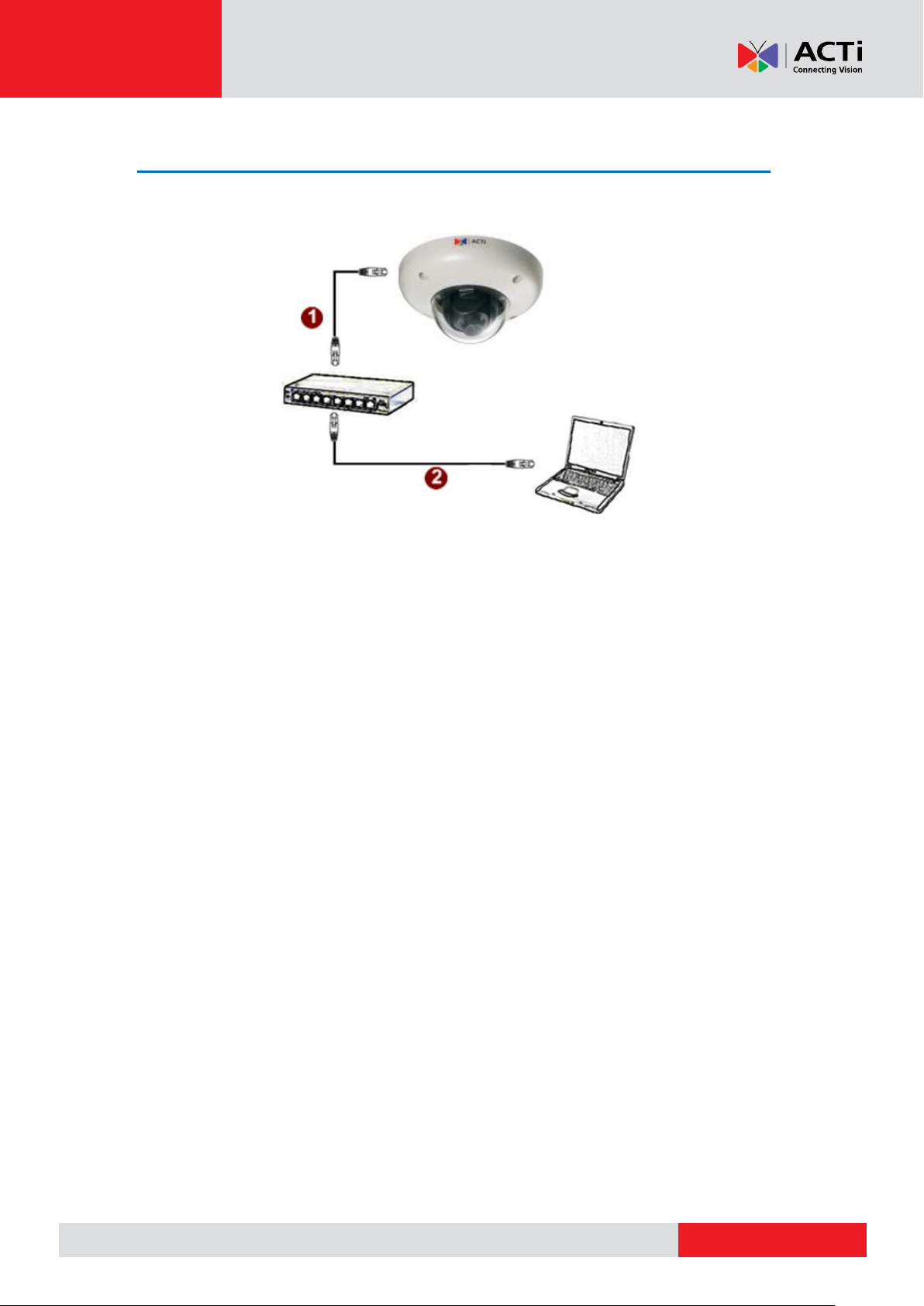

Basic Connections ......................................................................... 20
Other Adjustments and Accessories 21

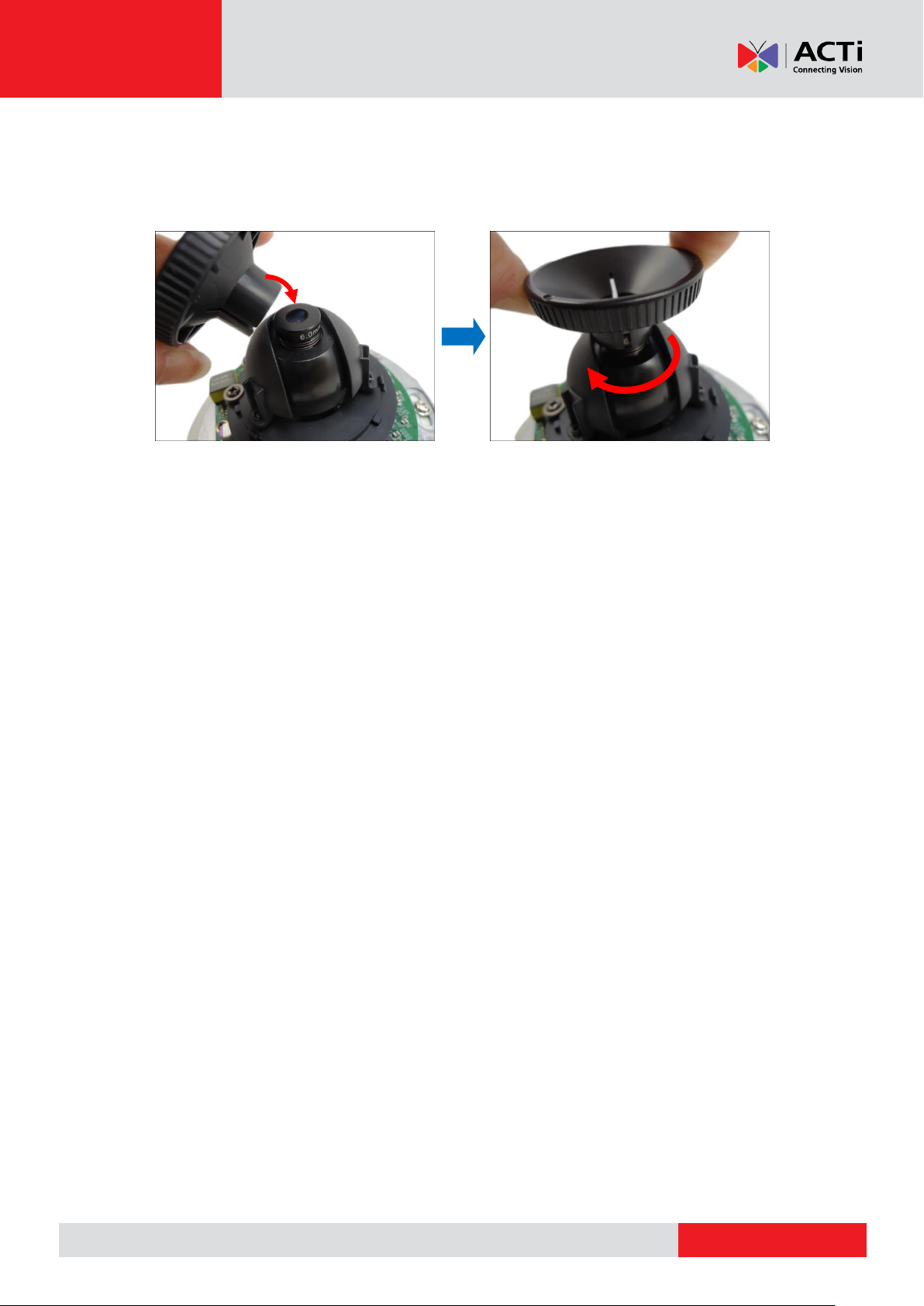

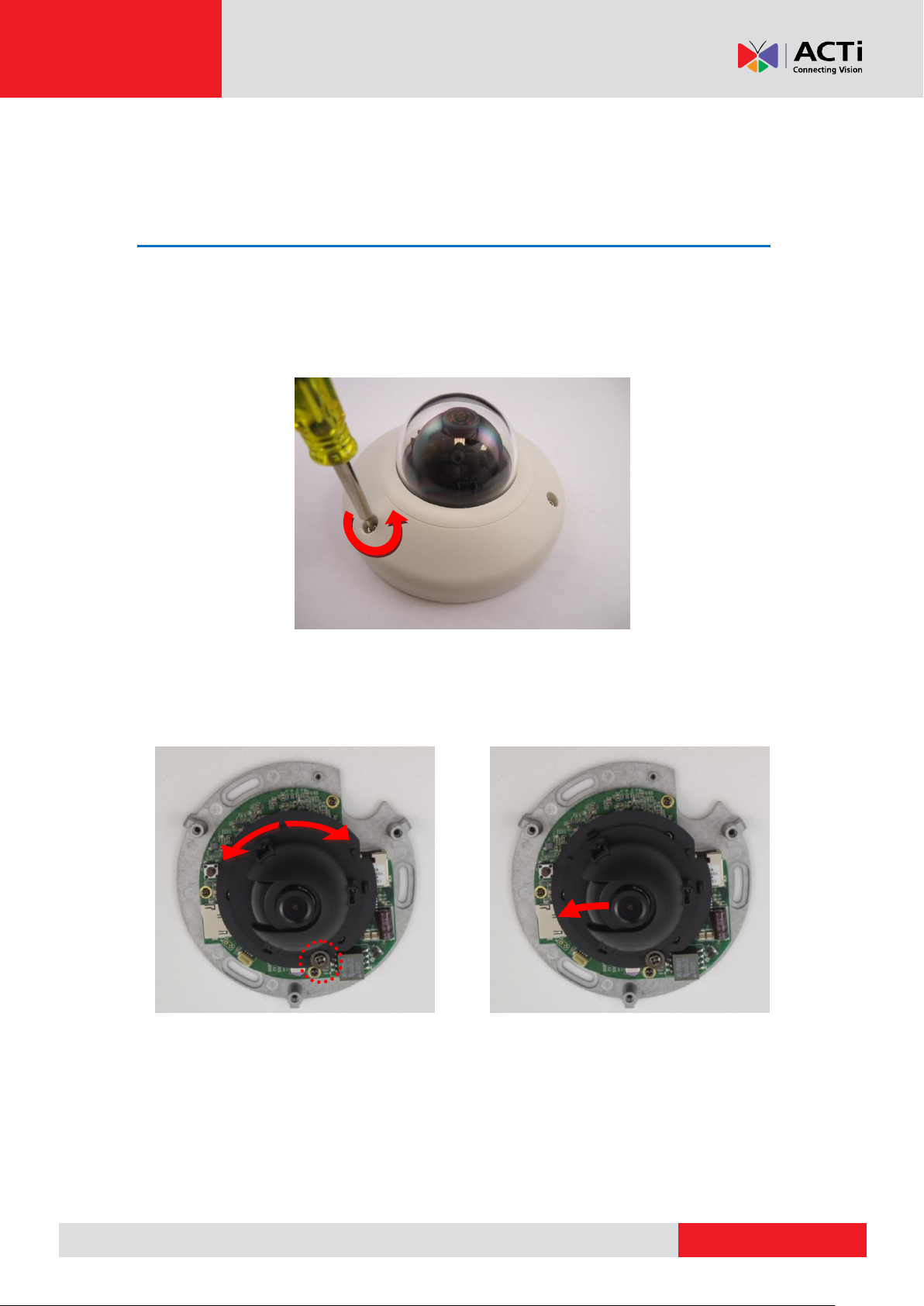

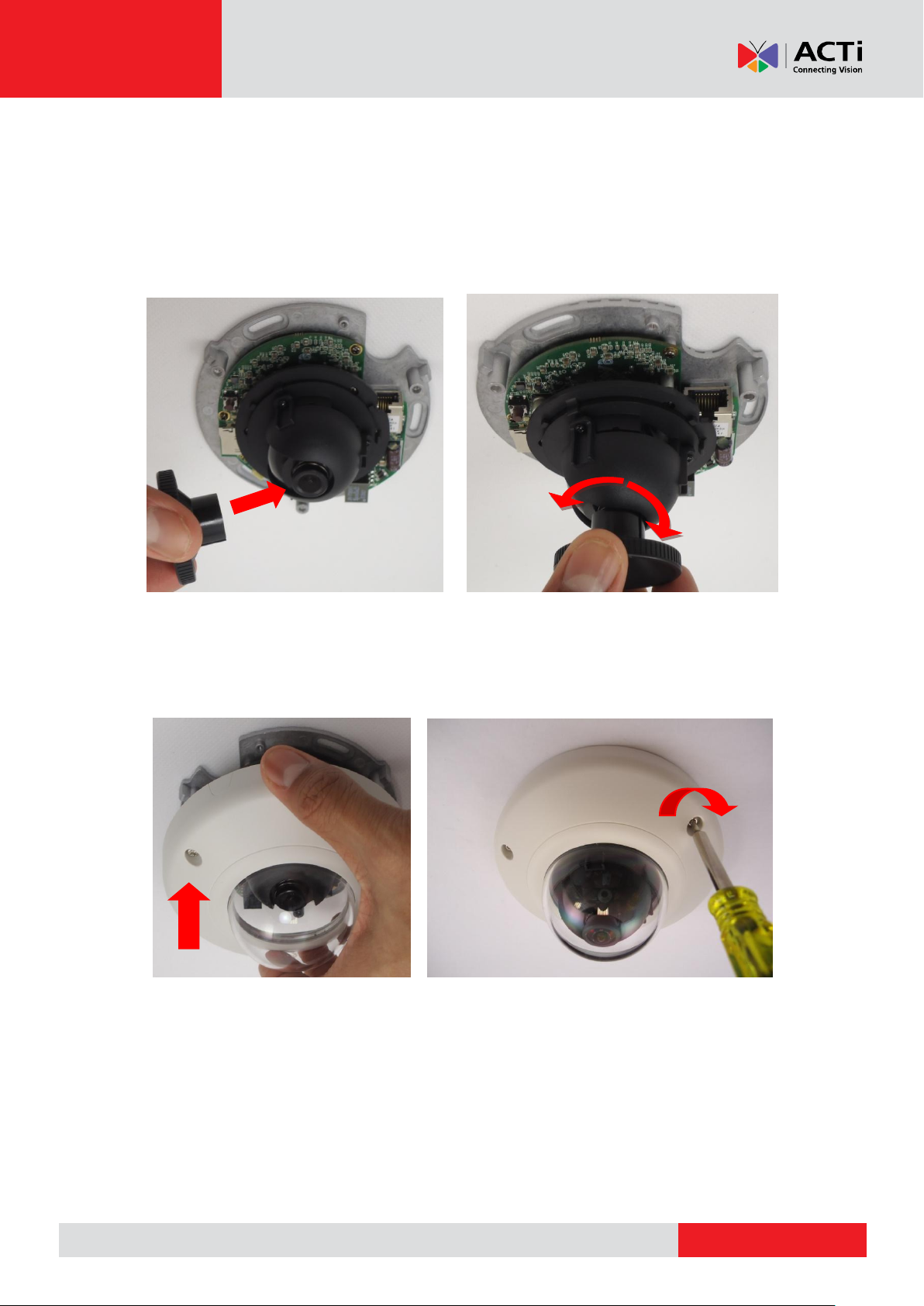

How to Adjust the Viewing Angle and Focus ............................... 21

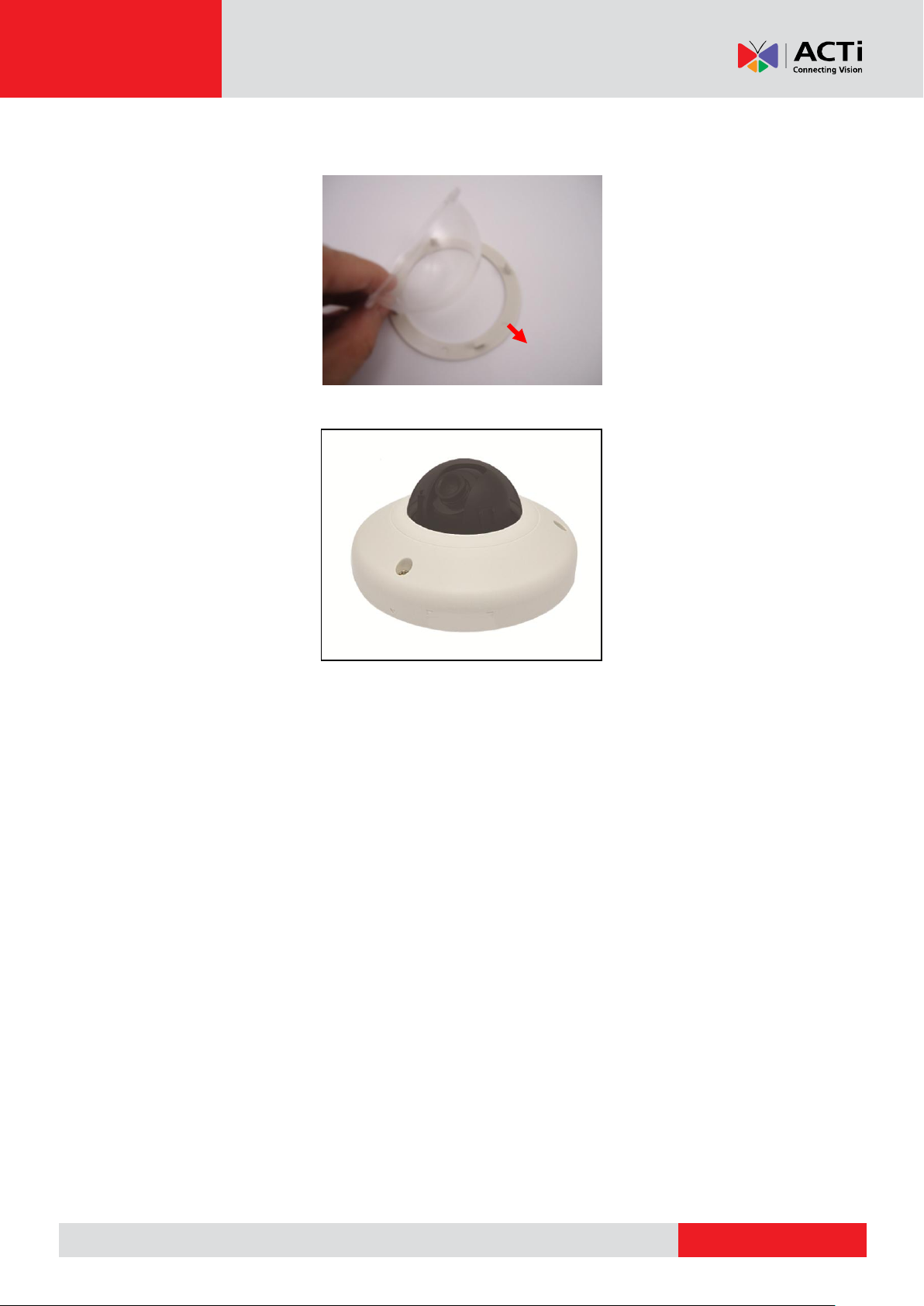

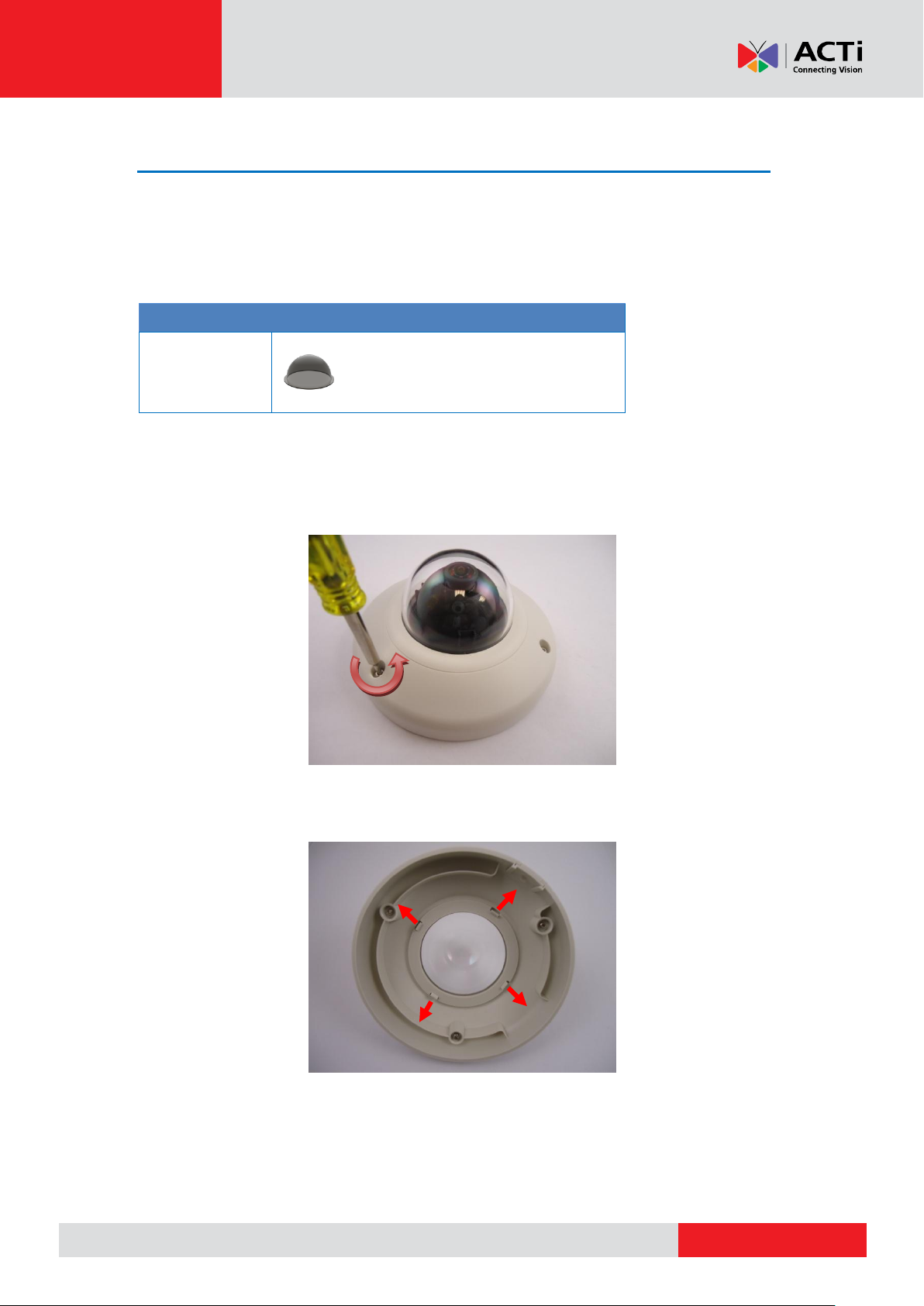

How to Replace the Dome Cover ................................................... 23

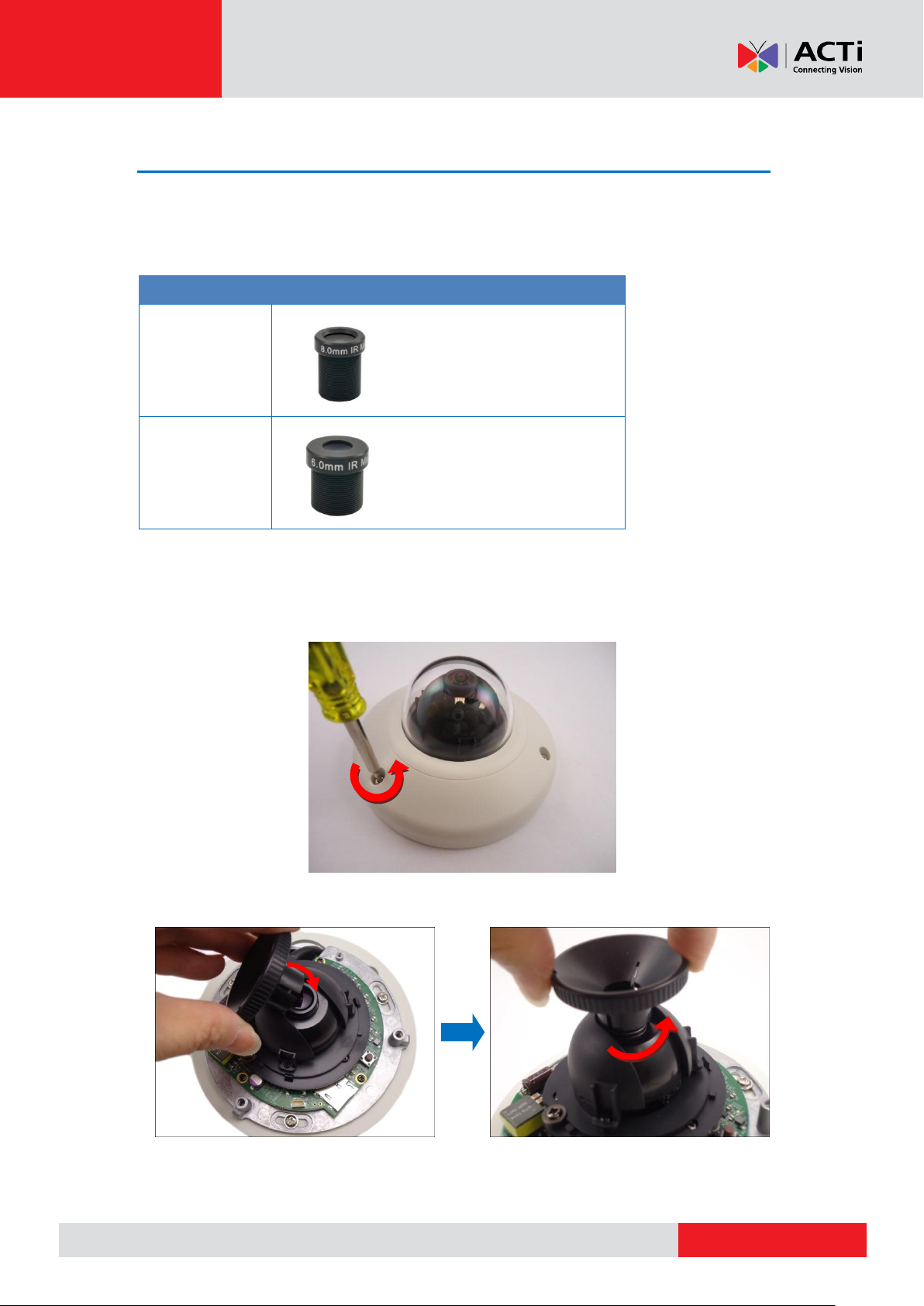

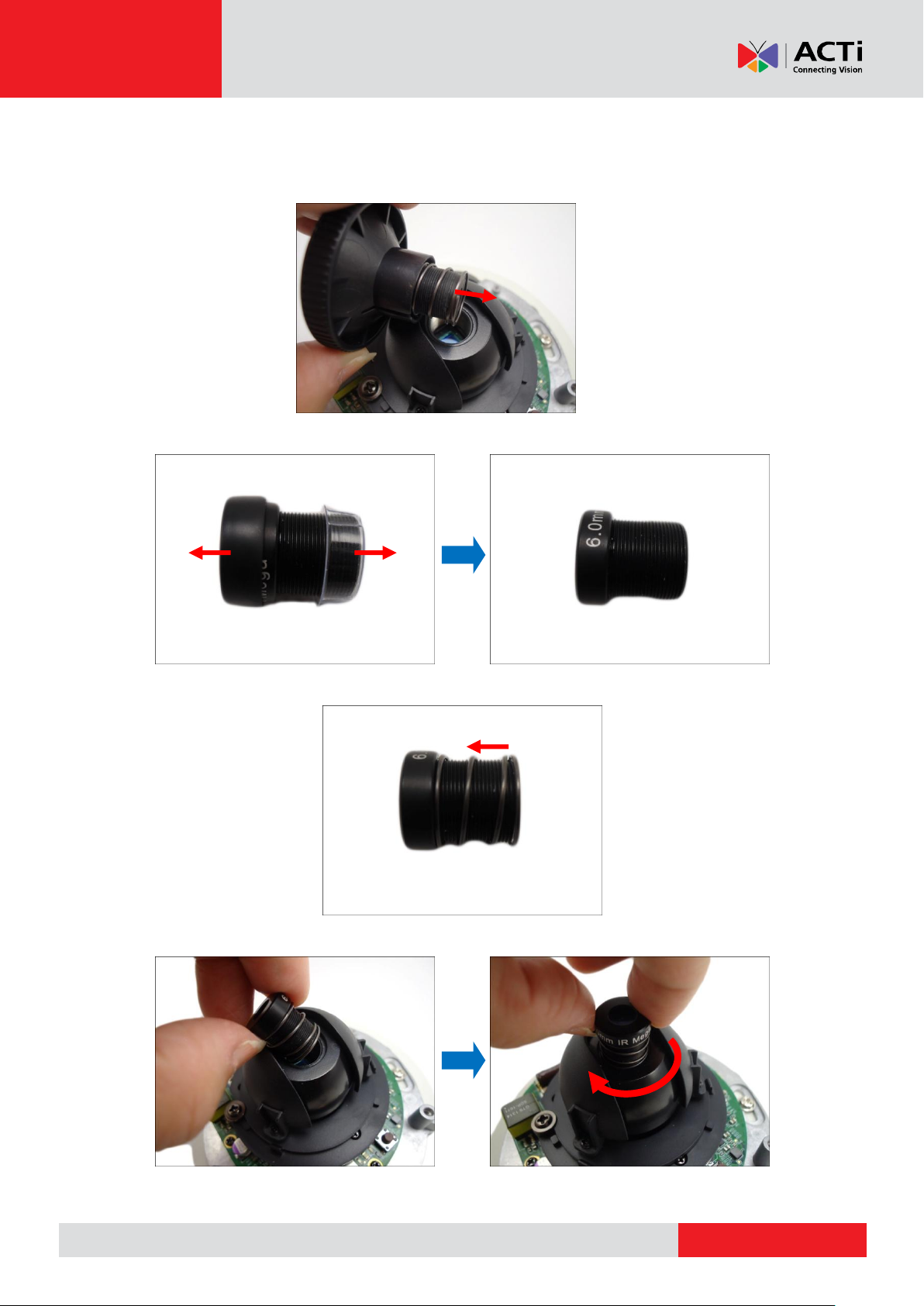

How to Replace the Lens (for D91, D92, E91, E92 only) .............. 25
Accessing the Camera 28
Configure the IP Addresses ........................................................... 28

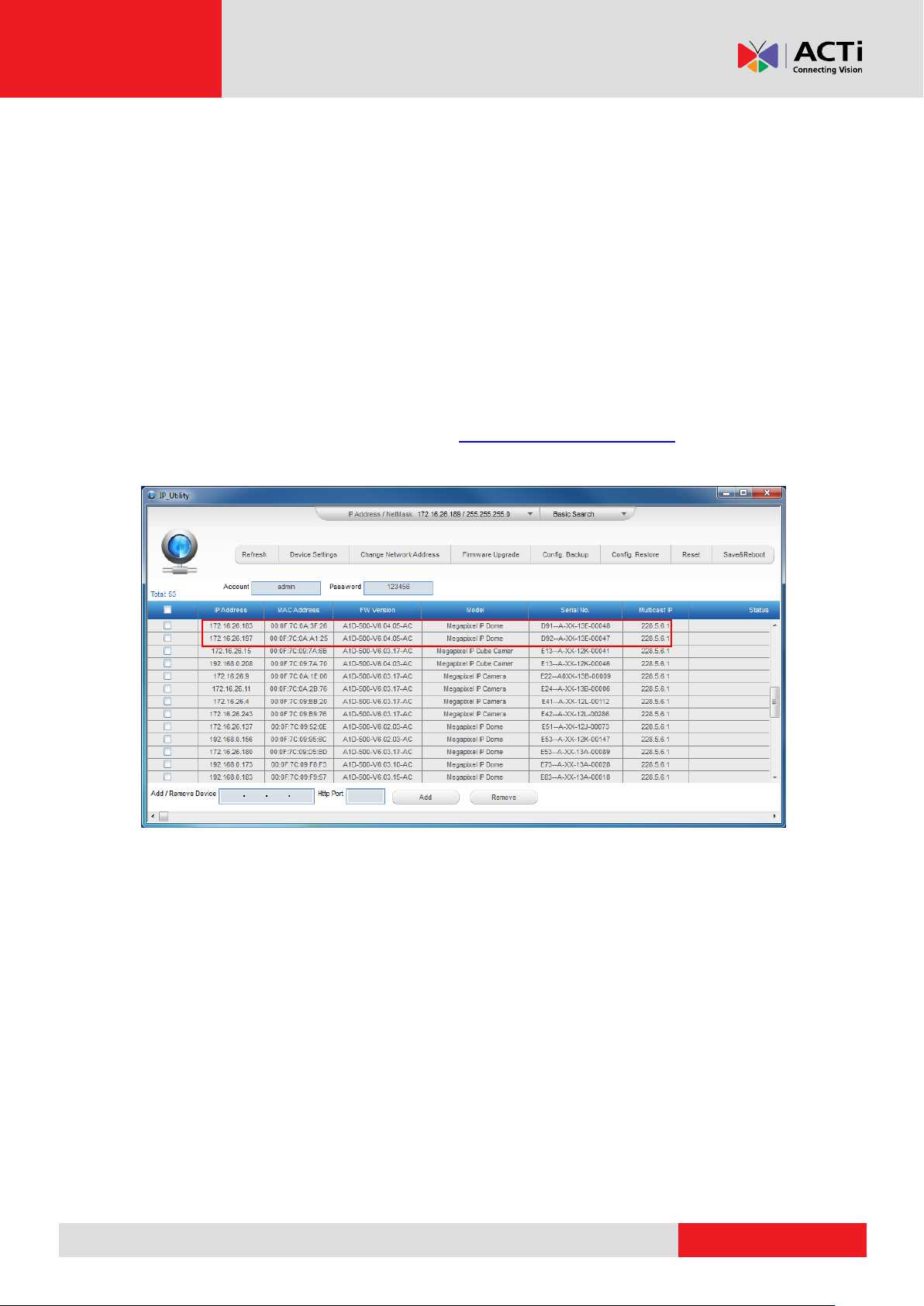

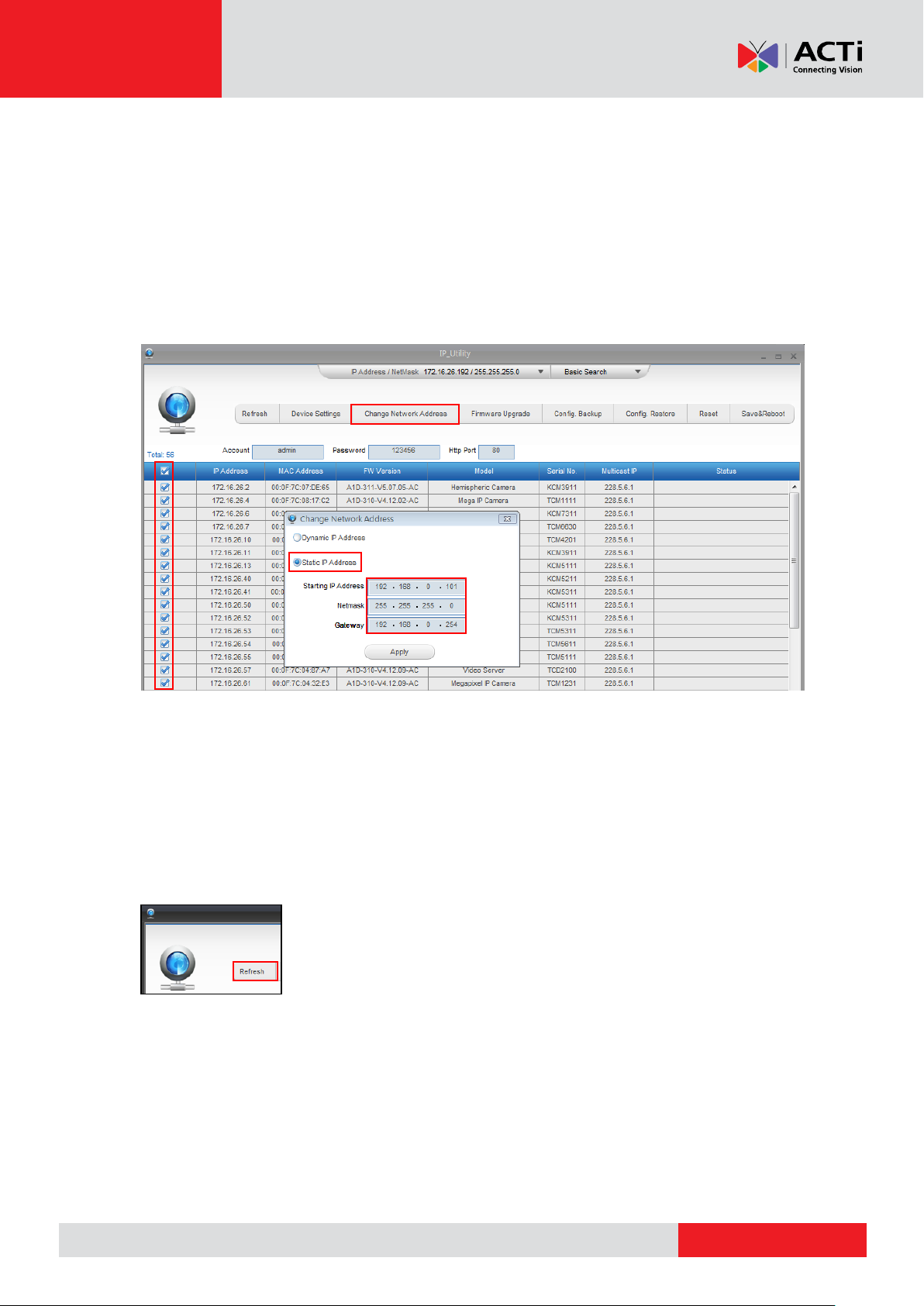

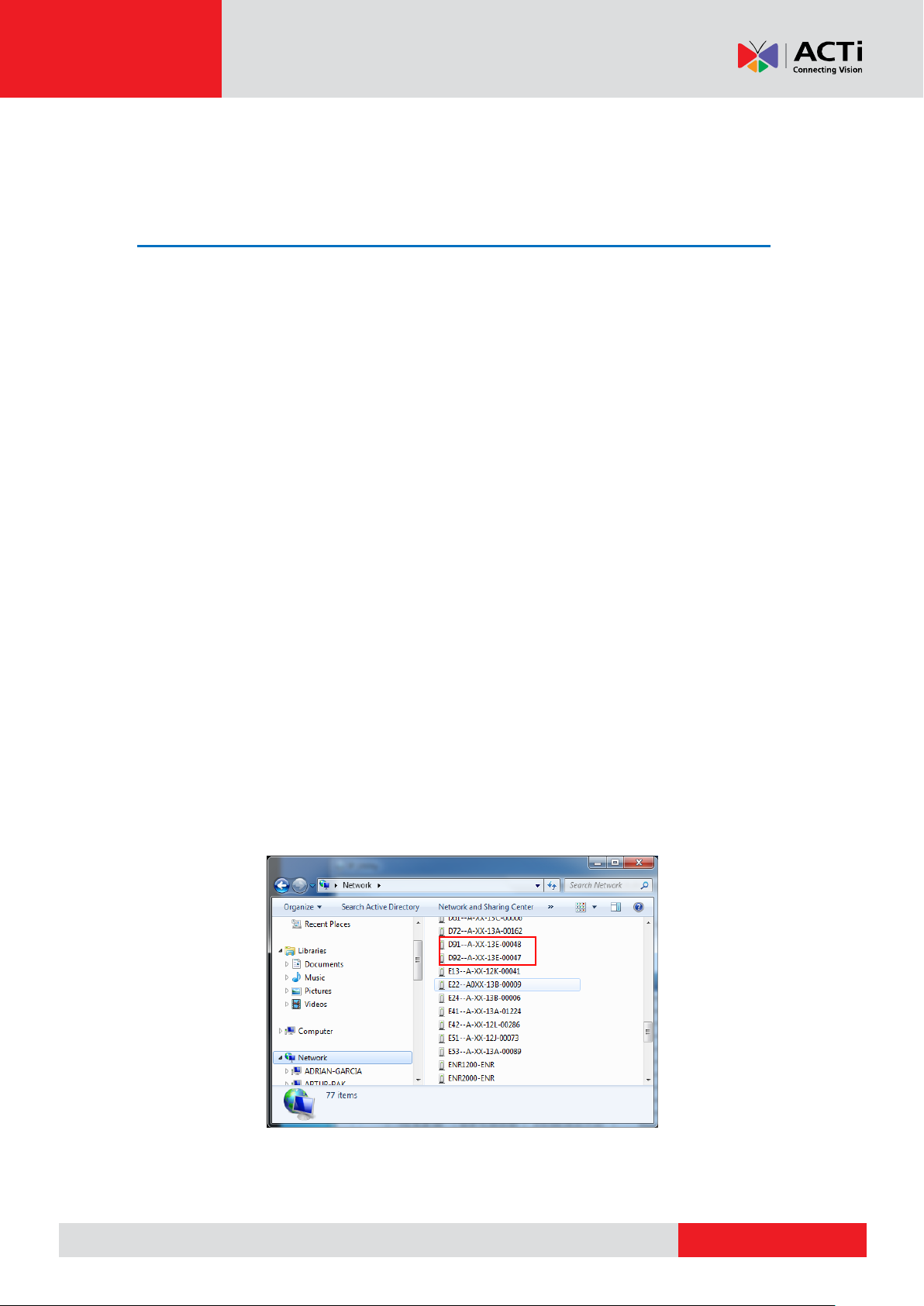

Using DHCP Server to Assign IP Addresses ................................ 28
2
www.acti.com
Hardware Manual

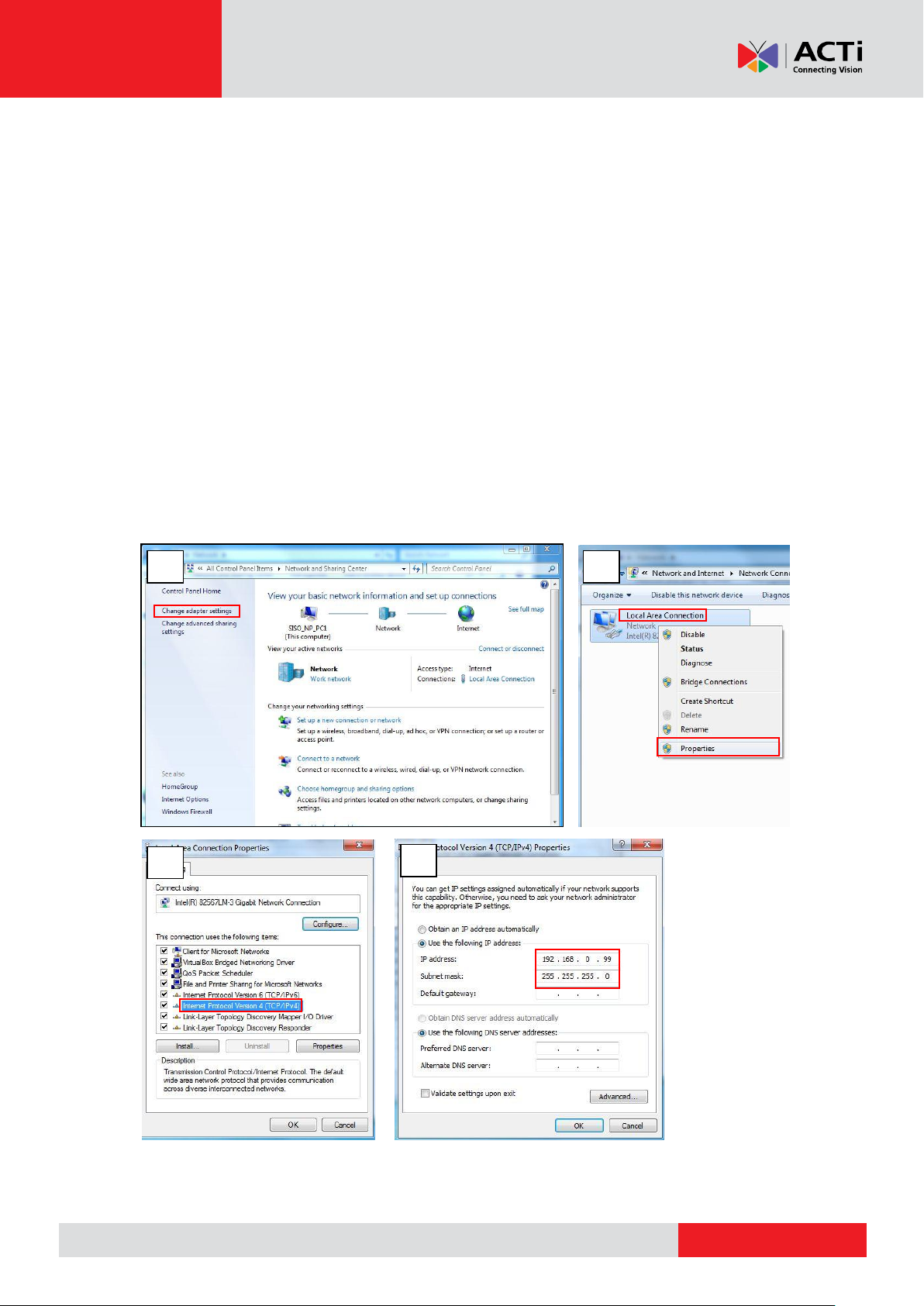

Using the Default Camera IP Address .......................................... 30

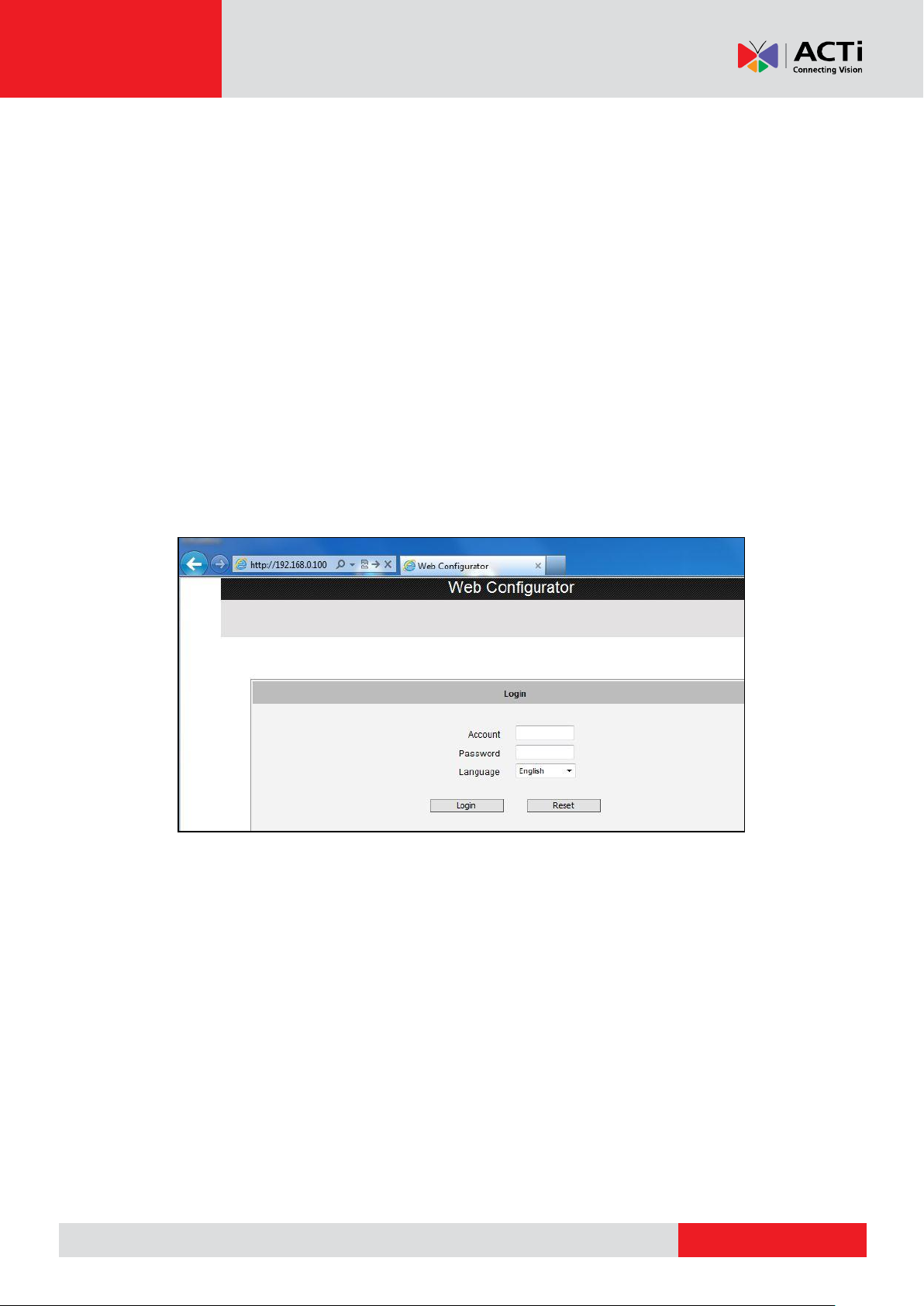

Access the Camera ......................................................................... 32
3
www.acti.com
Hardware Manual
Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to
follow the safety instruction given may directly endanger people, cause damage to the system
or to other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your
local office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
4
www.acti.com
Hardware Manual
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to the equipment that are not expressly approved by the
responsible party for compliance could void the user’s authority to operate the equipment.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.
5
www.acti.com
Hardware Manual
Safety Instructions
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to
qualified service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this
manual. Adjust only those controls that are covered by the instruction manual, as an
improper adjustment of other controls may result in damage, and will often require
extensive work by a qualified technician to restore the video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.
6
www.acti.com
D91
1MP Indoor Mini Dome with Fixed lens
D92
3MP Indoor Mini Dome with Fixed lens
E91
1MP Indoor Mini Dome with Basic WDR, Fixed lens
E92
3MP Indoor Mini Dome with Basic WDR, Fixed lens
E93
5MP Indoor Mini Dome with Basic WDR, Fixed lens
E94
1.3MP Indoor Mini Dome with Basic WDR, SLLS, Fixed lens
E95
2MP Indoor Mini Dome with Basic WDR, SLLS, Fixed lens
E96
5MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens
E97
10MP Indoor Mini Dome with Basic WDR, Fixed lens
Hardware Manual
Introduction
List of Models
This hardware manual contains the following models:
7
www.acti.com
Camera
Camera
E96 (Mini Fisheye Dome)
Screw Kit
Drill Template
Hexagon Screwdriver
Lens Focus Tuner
(Not available in E93, E96, and E97 models)
Quick Installation Guide
Warranty Card
Drill Template
or
Package Contents
Hardware Manual
8
www.acti.com
Physical Description
Mini Dome
Hardware Manual
Mini Fisheye Dome
9
www.acti.com
Hardware Manual
1) Ethernet Port
The Ethernet port connects to a network using an Ethernet cable.
2) Reset Button
The Reset Button is used to restore the factory default settings of the camera, including
the administrator’s password.
How to reset the camera?
While the power is on, press and hold the Reset Button for 5 seconds or until the Blue
LED lights up.
3) LED Indicators
Blue LED: The Power LED lights blue when the camera is powered on, the light goes
off once the initial boot up process is complete.
Amber LED: The Ethernet Activity LED blinks amber when network activity is in
progress.
Green LED: The Ethernet Link LED lights green when a network connection is
established.
4) Memory Card Slot
Insert a memory card (not included) into this slot for local recording.
NOTE: Supports microSDHC and microSDXC cards.
How to install the memory card?
Insert the memory card into the slot with the metal contacts facing down, and then push the
card until it clicks into place.
How to remove the memory card?
Access the Web Configurator to “safely unmount” the card (see the camera Firmware
Manual for details). Once unmounted from the firmware, push the card to eject it from the
slot.
10
www.acti.com
Hardware Manual
Installation Procedures

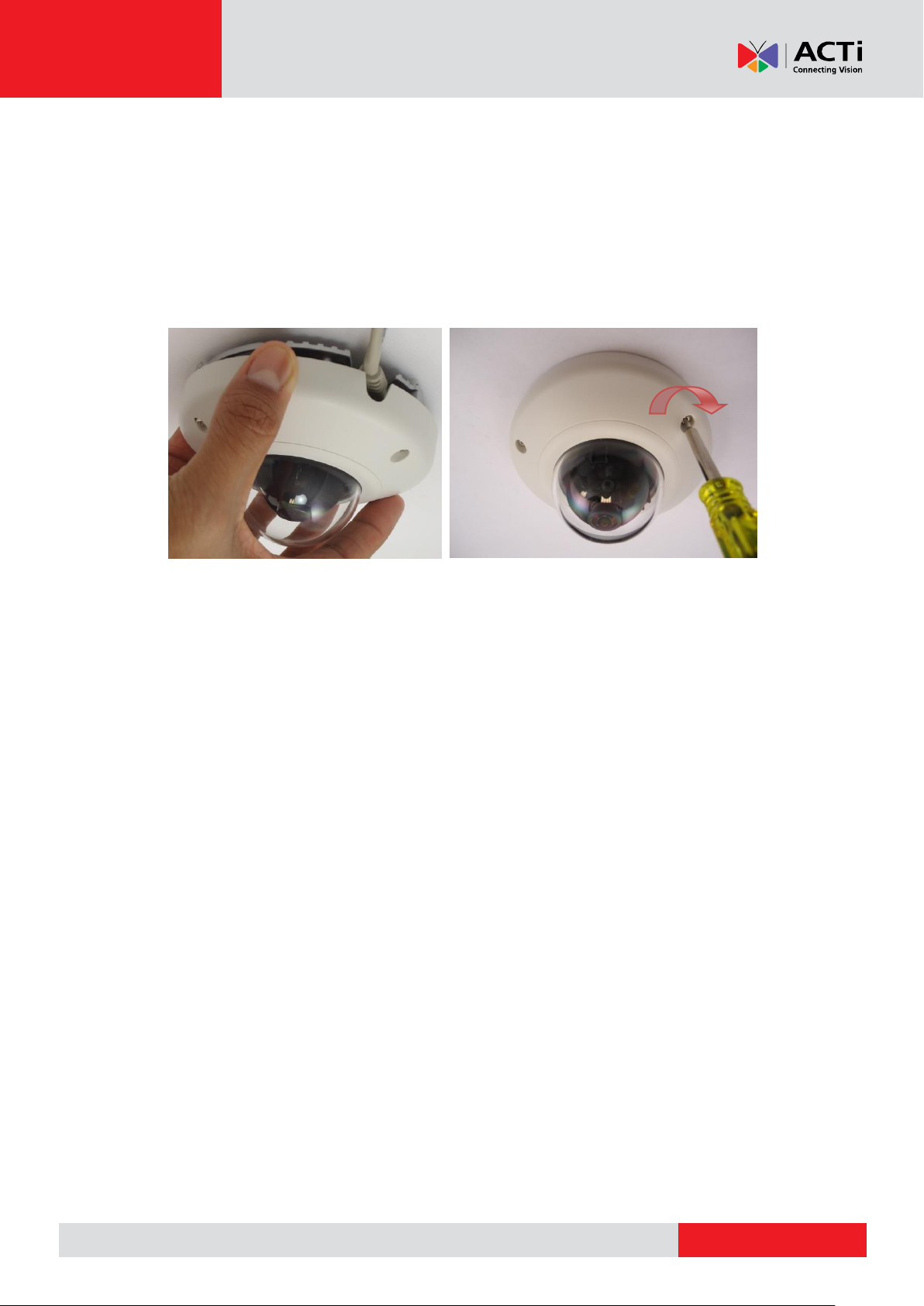

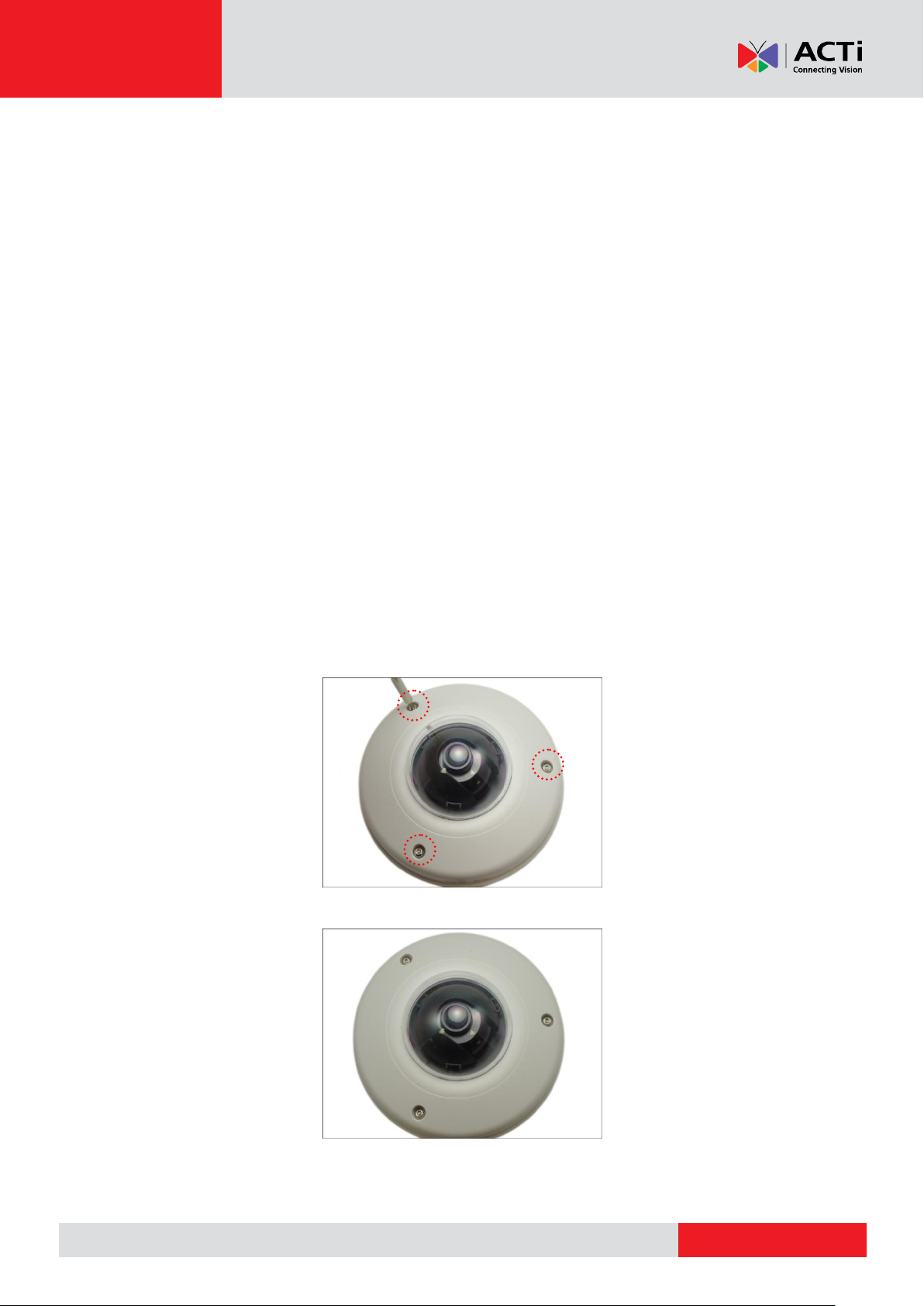

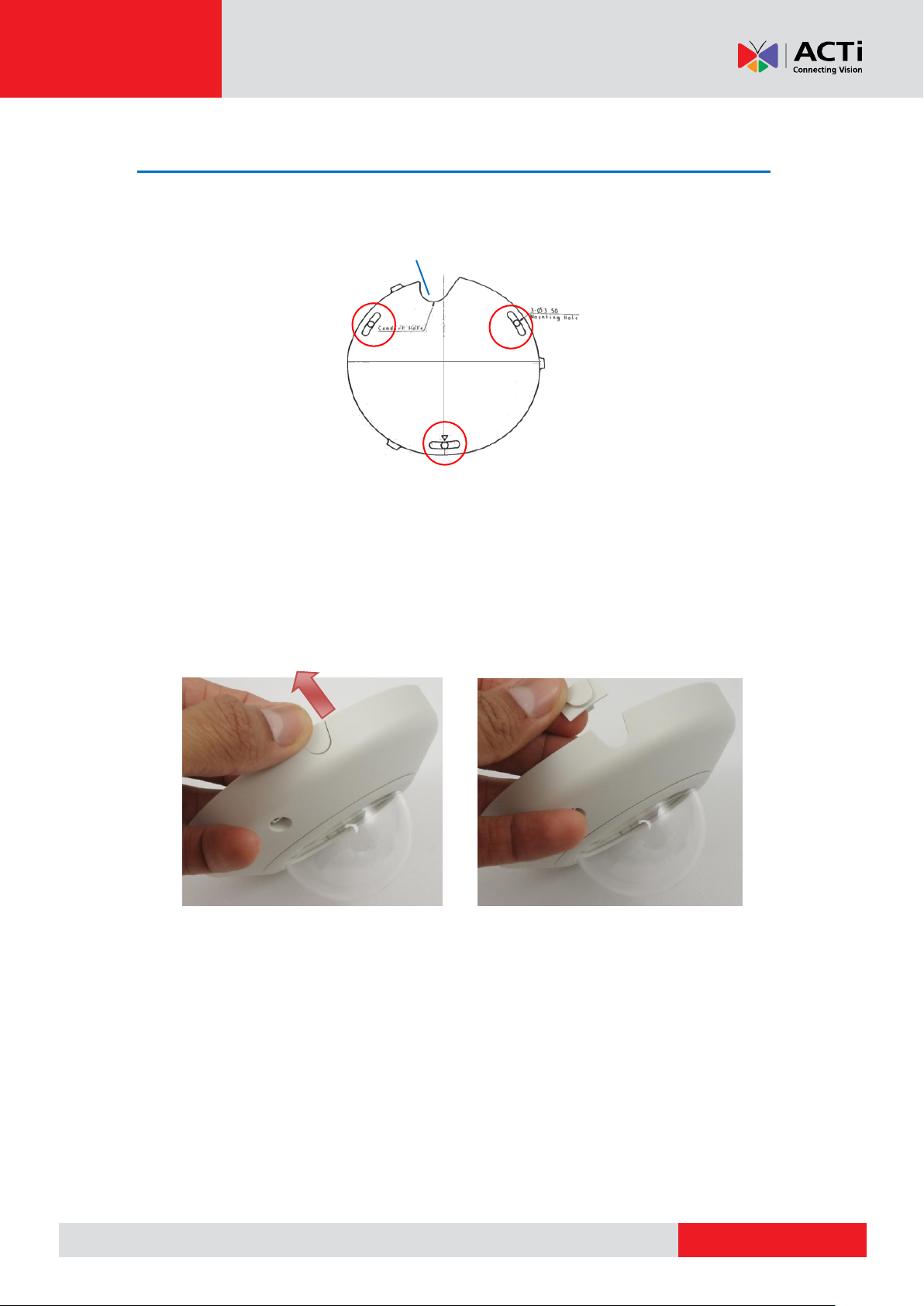

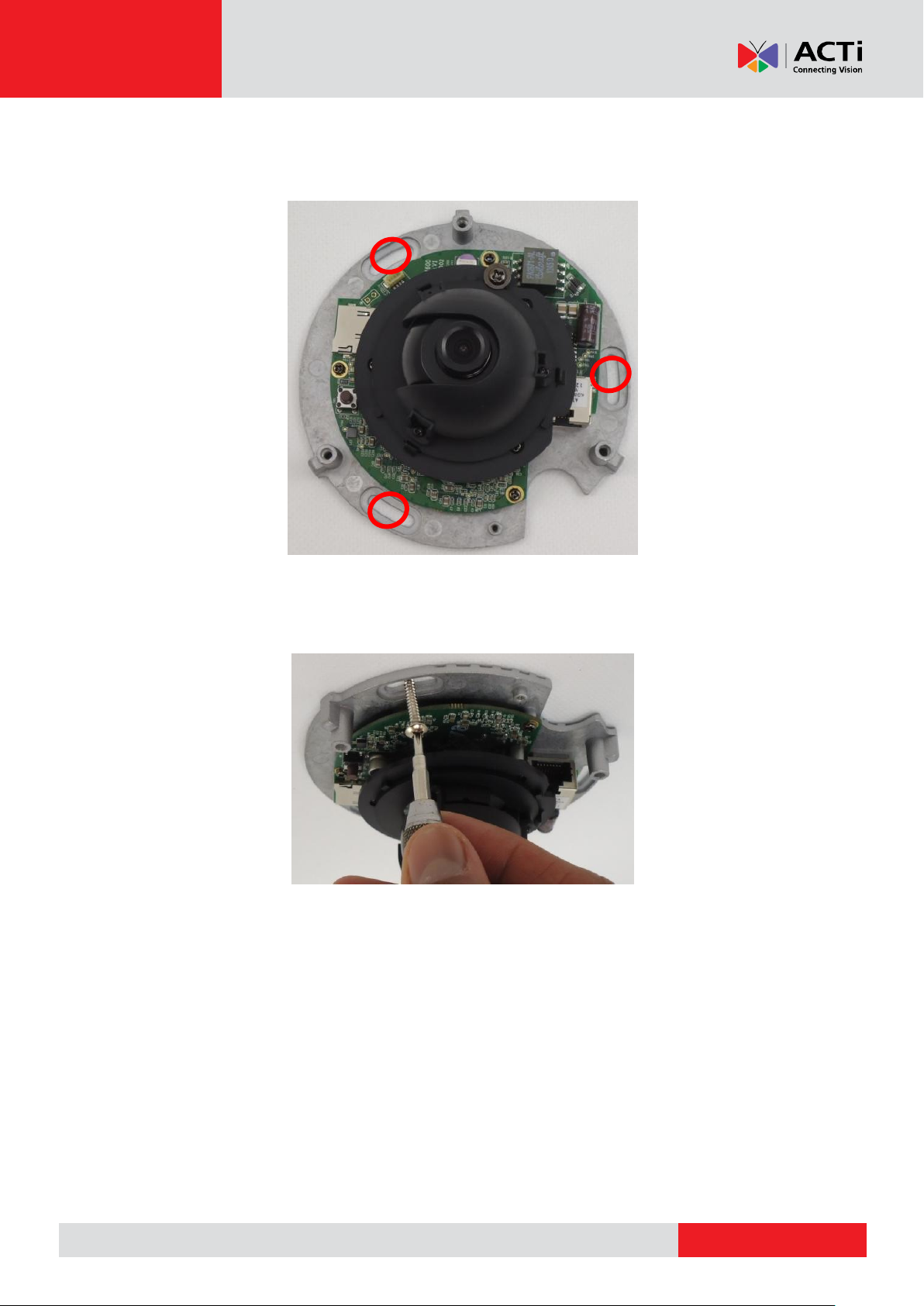

Before mounting the camera, remove the dome cover by loosening the three (3) screws.
There are two ways to mount the camera:
Surface mount: Use this method to mount the camera directly on the ceiling. See
Installing the Camera on a Surface on page 12.
Gang Box Mount: If the camera will be mounted on a gang box (applicable in some

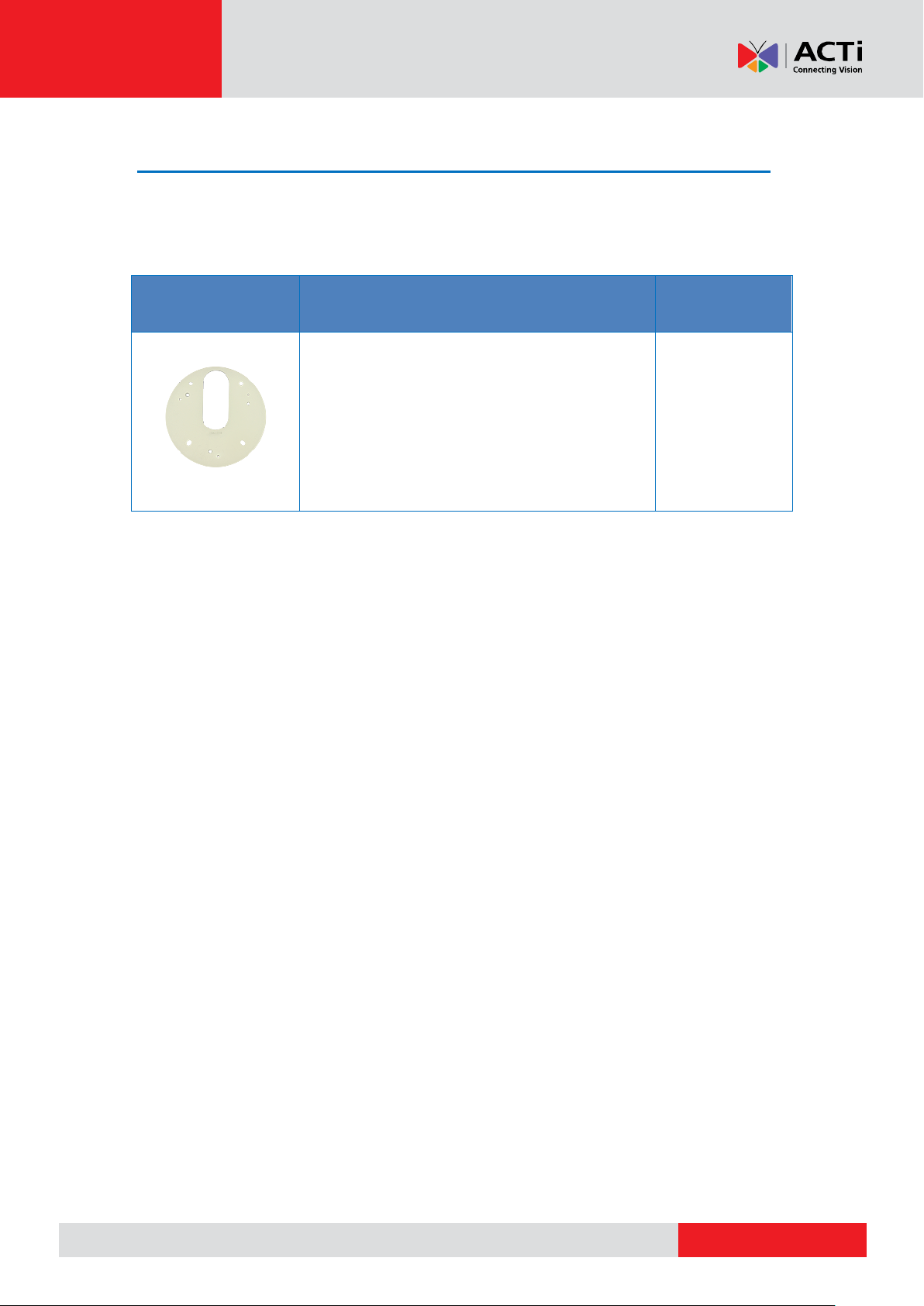

areas in the US), a gang box converter (not included in the camera package) is needed.
See Installing the Camera on a Gang Box on page 15.
11
