ACTi D61A User Manual
Indoor Dome Series
Hardware Manual
D61A, D65A
E62A, E63A, E65A, E66A
E68, E69
2014/08/22
www.acti.com
Hardware Manual
Table of Contents
Precautions ............................................................. 4
Safety Instructions .................................................................................... 6
Introduction ............................................................. 7
The List of Models ..................................................................................... 7
Package Contents ...................................................................................... 8
Physical Description ................................................................................. 9
Mounting Options ..................................................................................... 11
Other Mounting Accessories ................................................................. 13
Before Installation................................................. 14

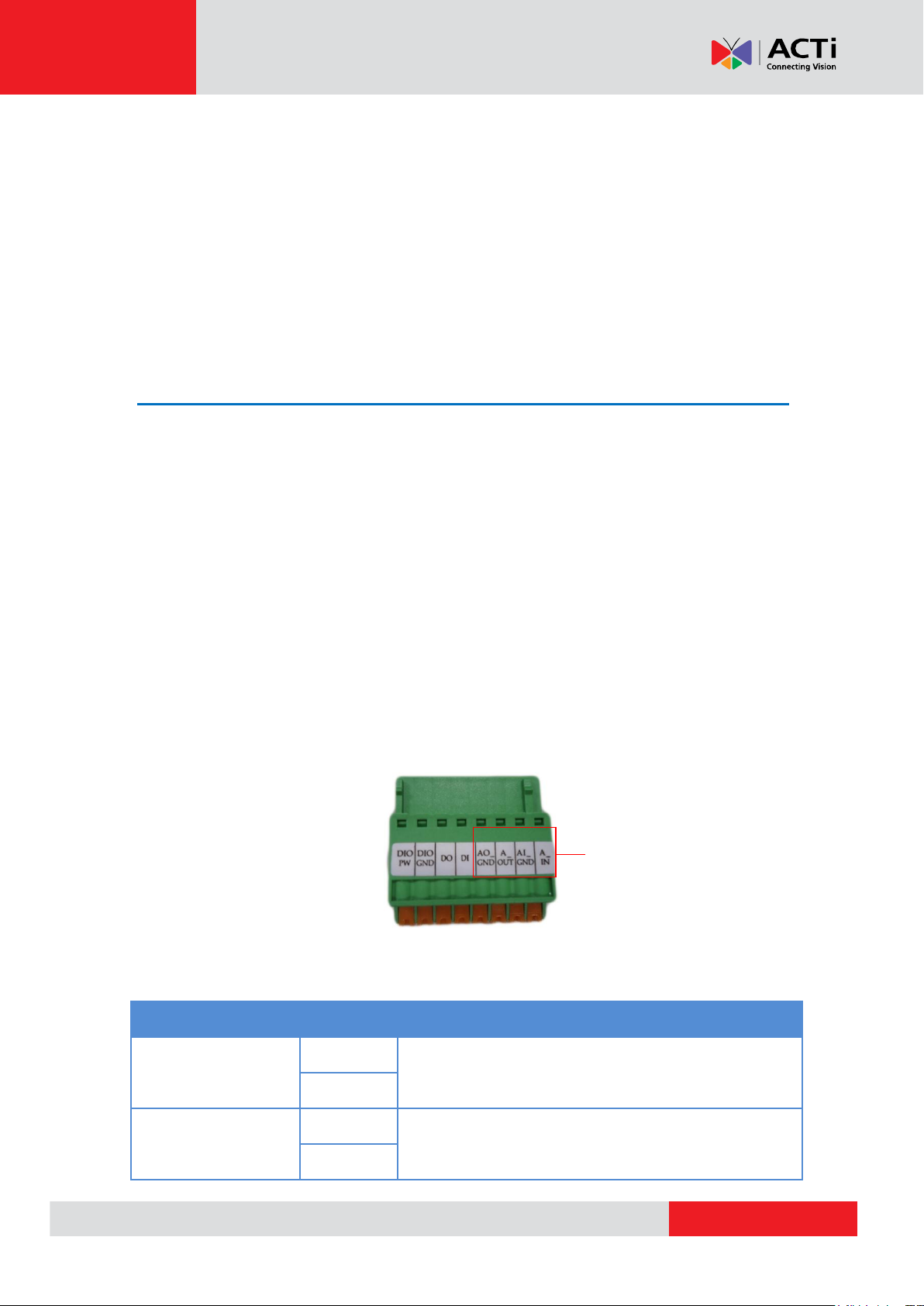

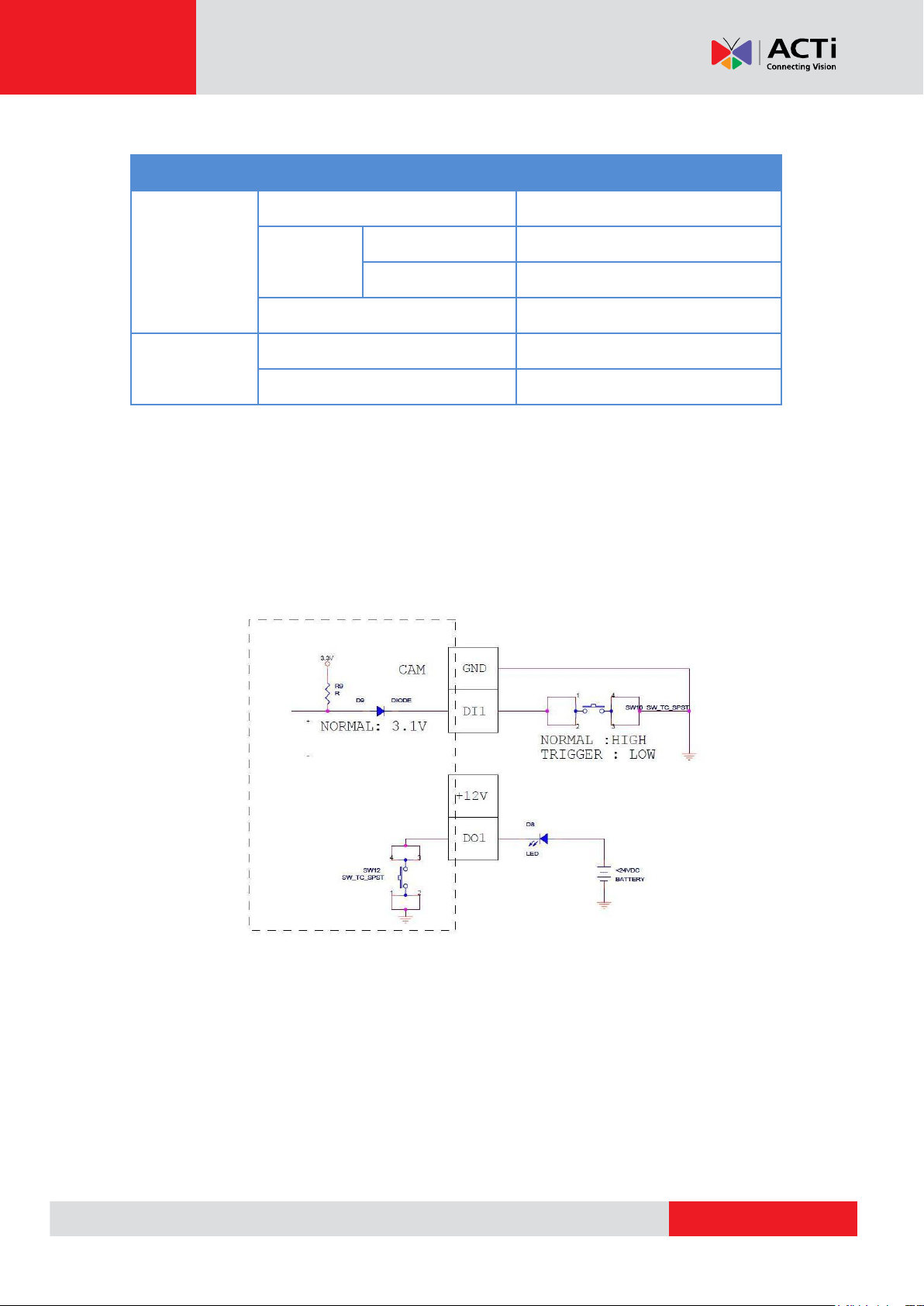

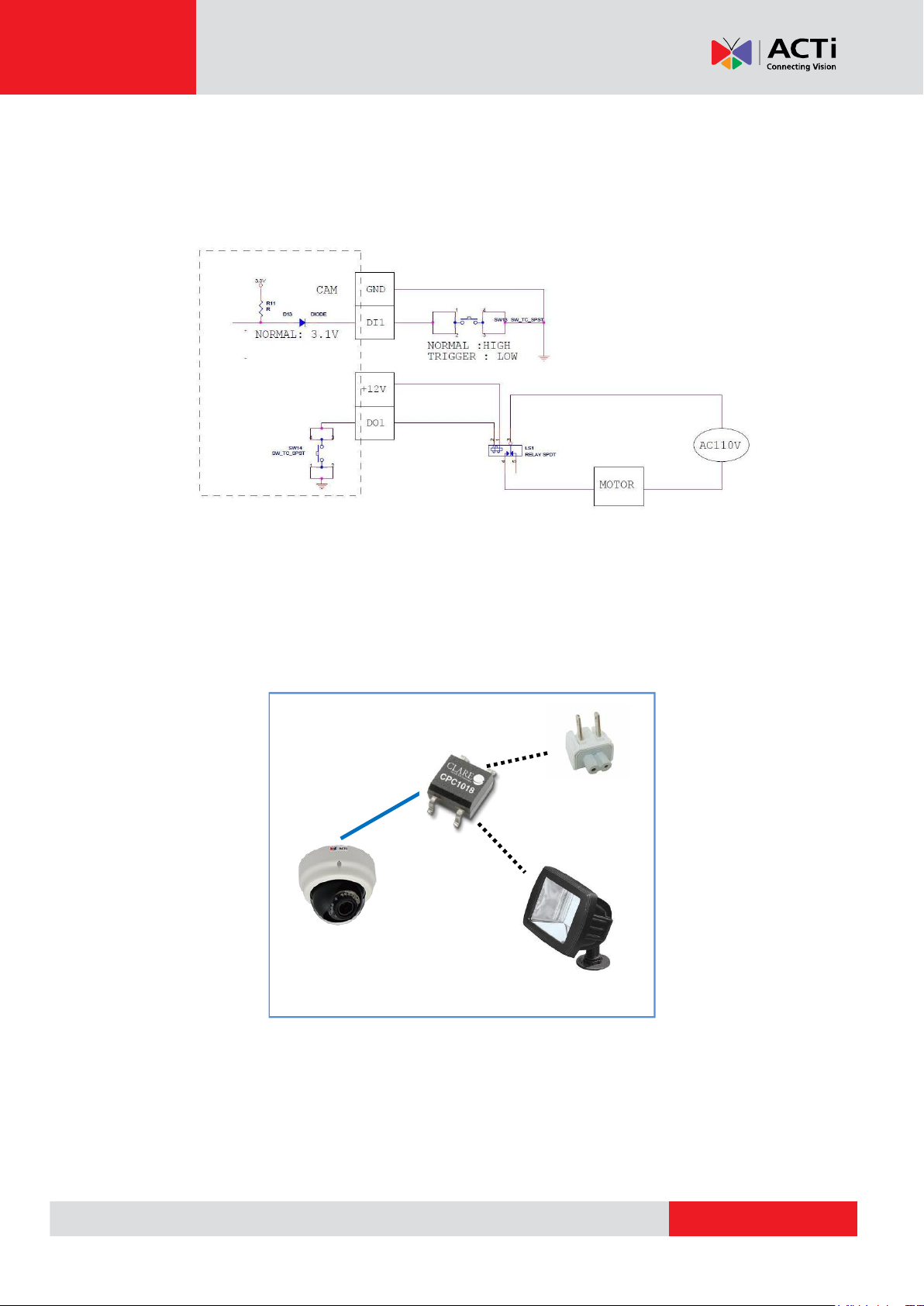

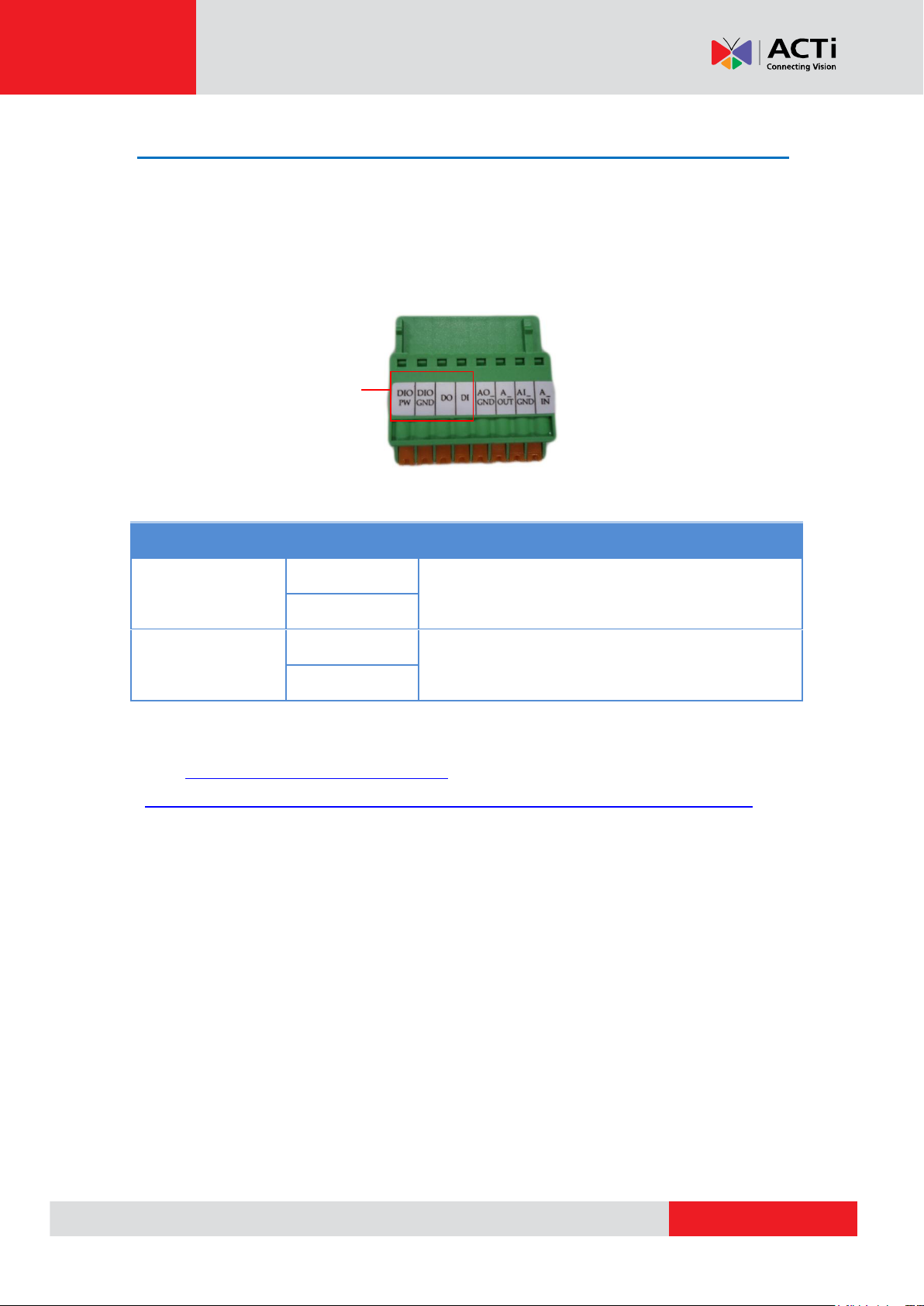

How to Connect DI/Do Devices ............................................................... 14
How to Connect Audio Devices .............................................................. 17
Installing the Camera on a Surface ..................... 18
Step 1: Drill the Holes .............................................................................. 18

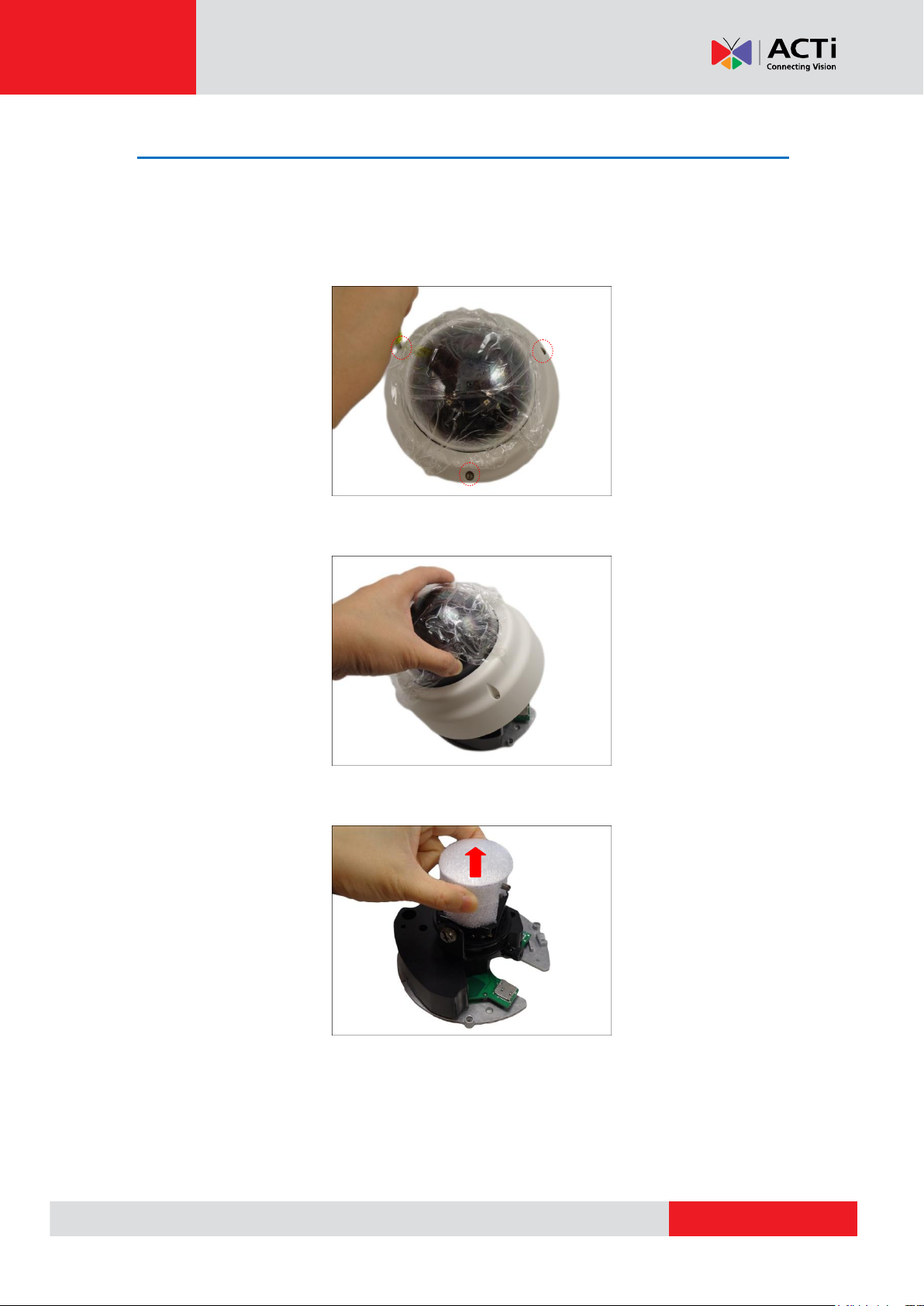

Step 2: Open the Dome Cover ................................................................ 19

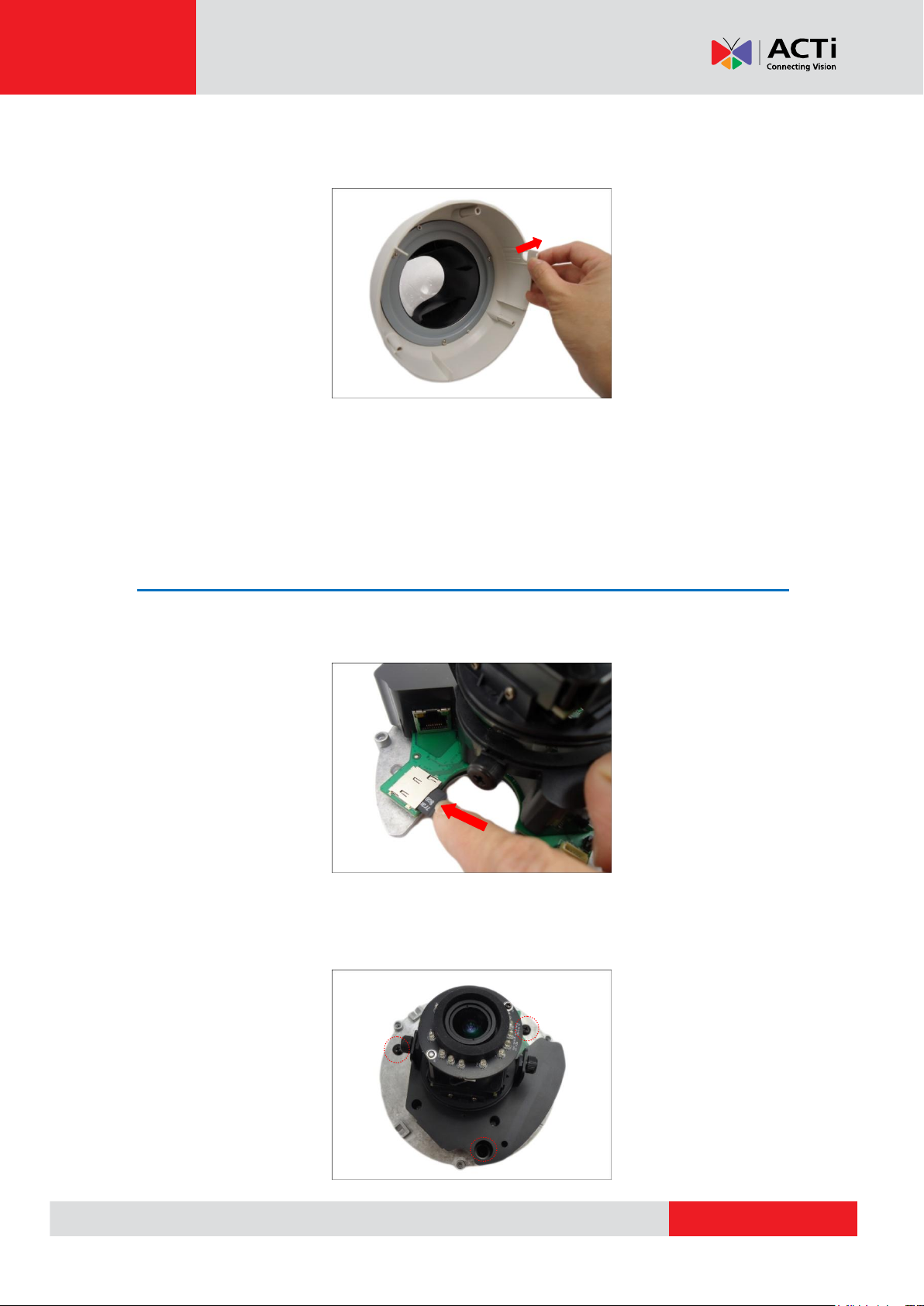

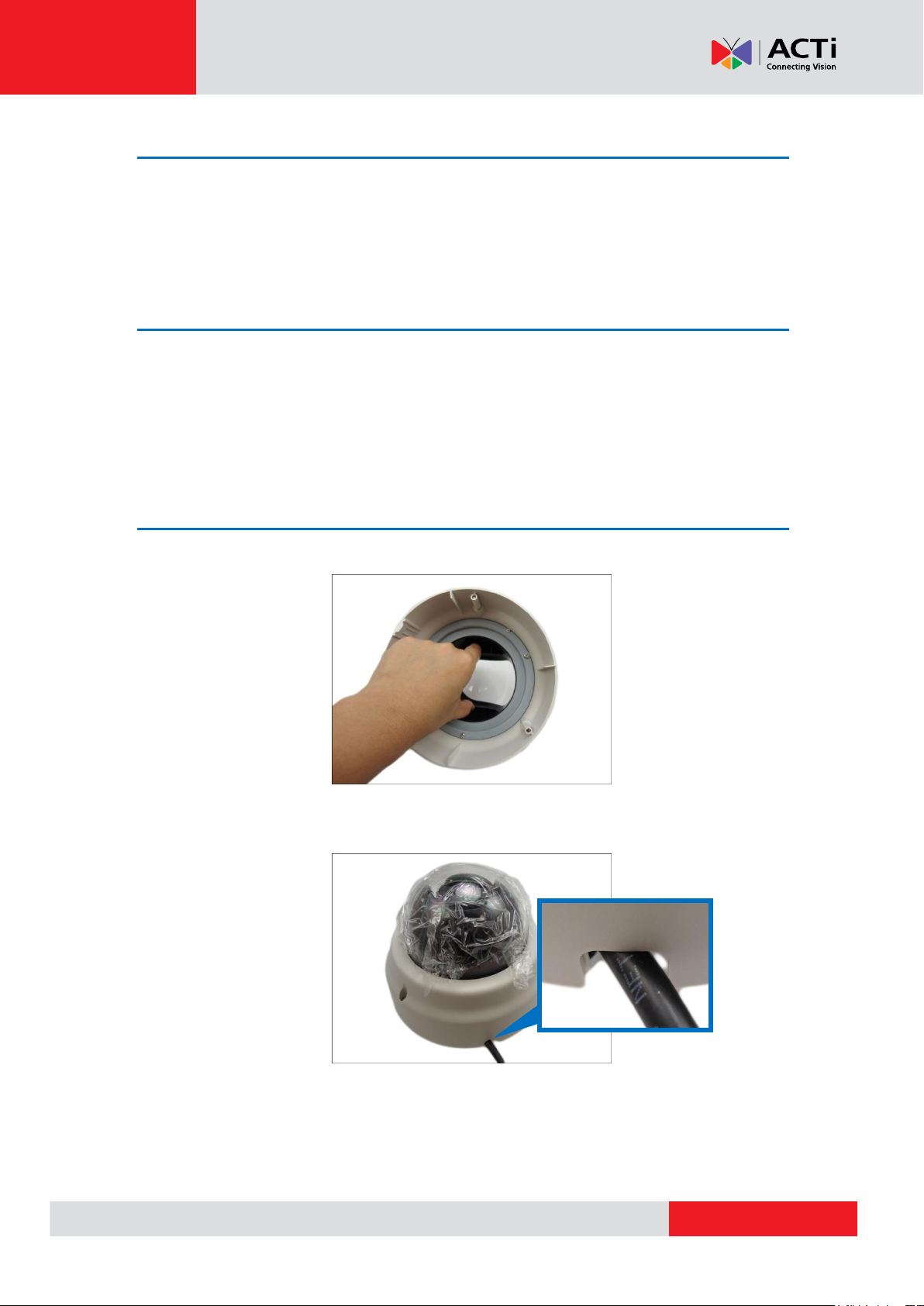

Step 3: Install the Camera to the Surface .............................................. 20

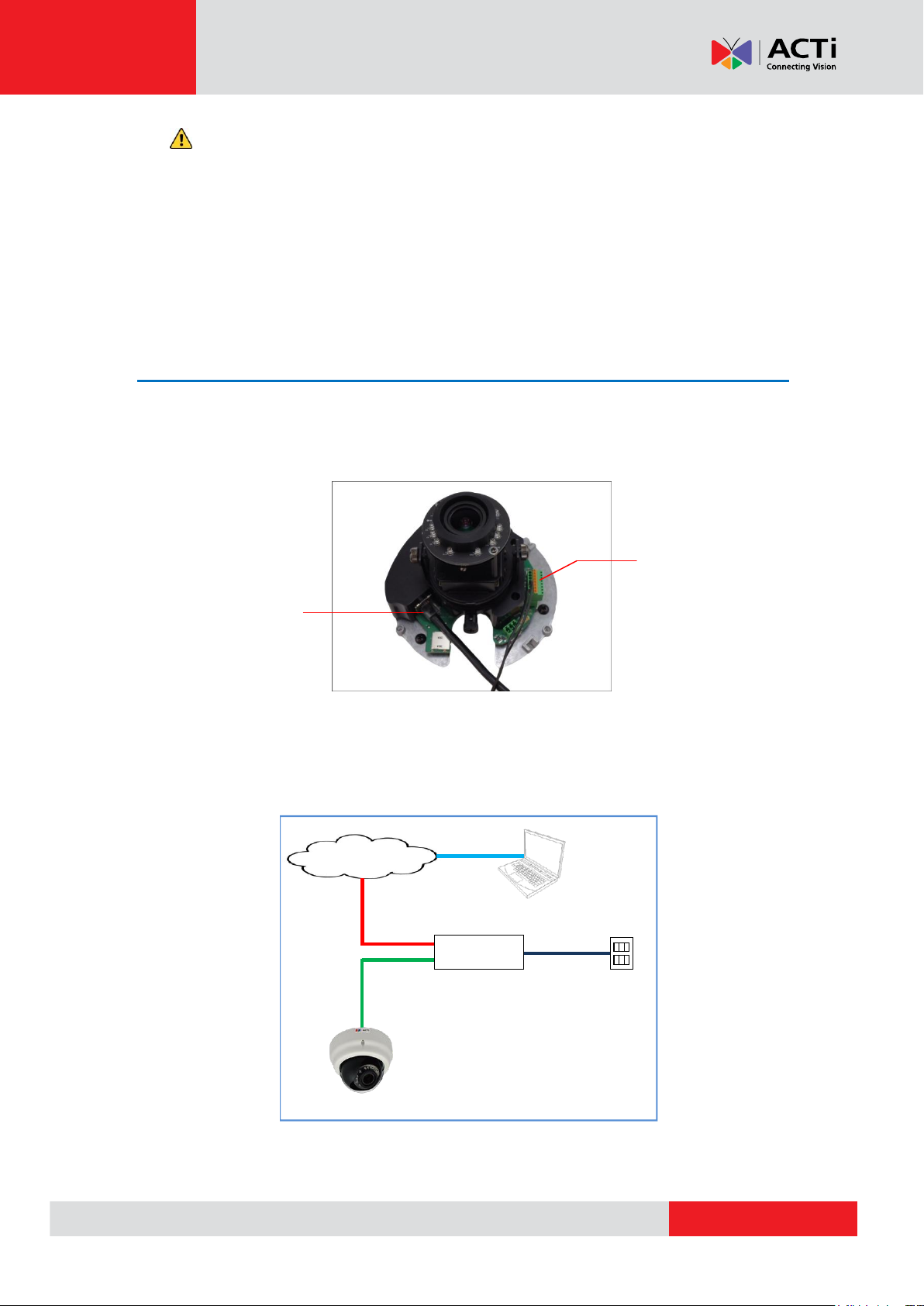

Step 4: Connect the Cable ...................................................................... 21
Step 5: Access the Camera Live View .................................................... 22
Step 6: Adjust the Viewing Angle and Focus ........................................ 22

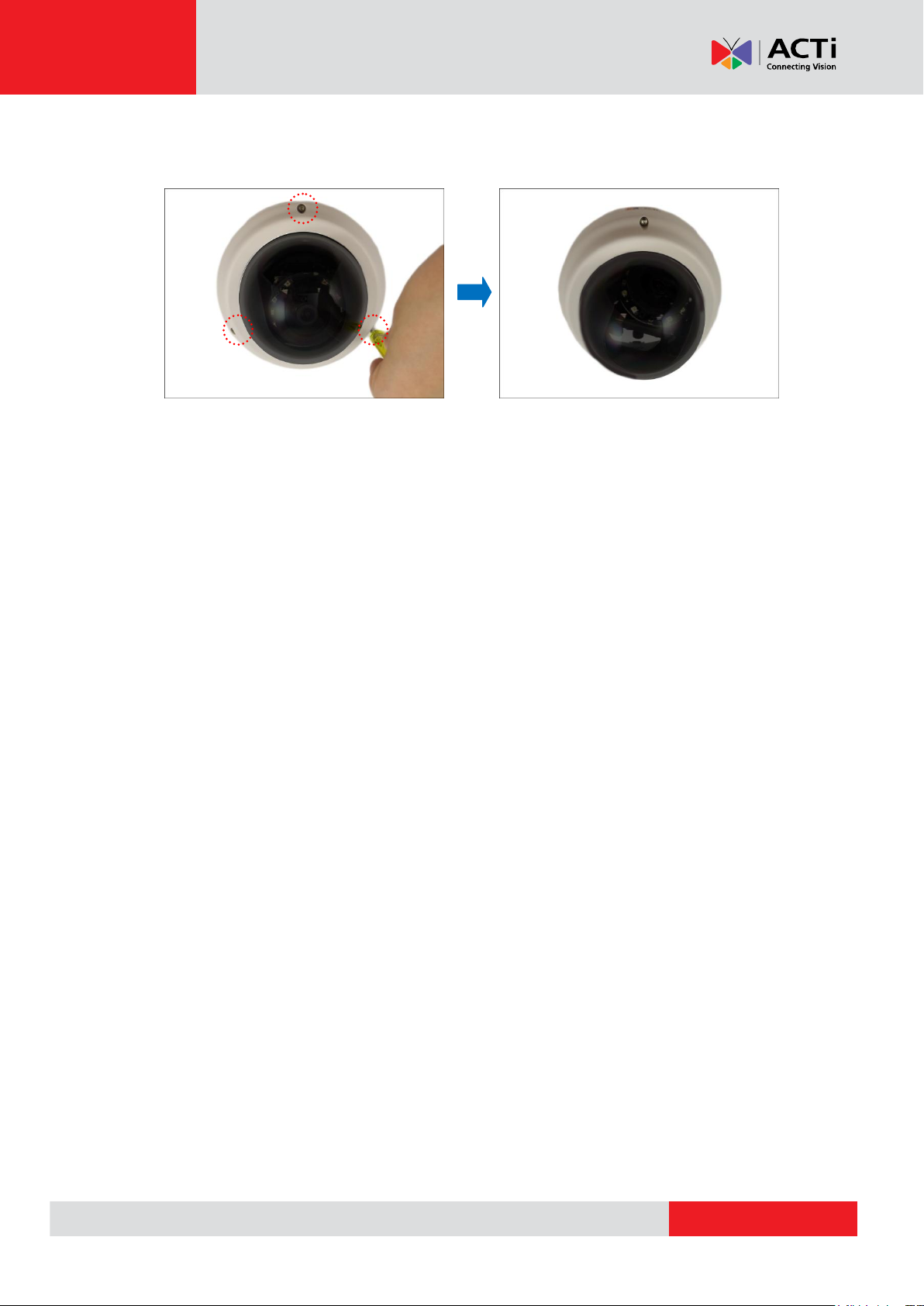

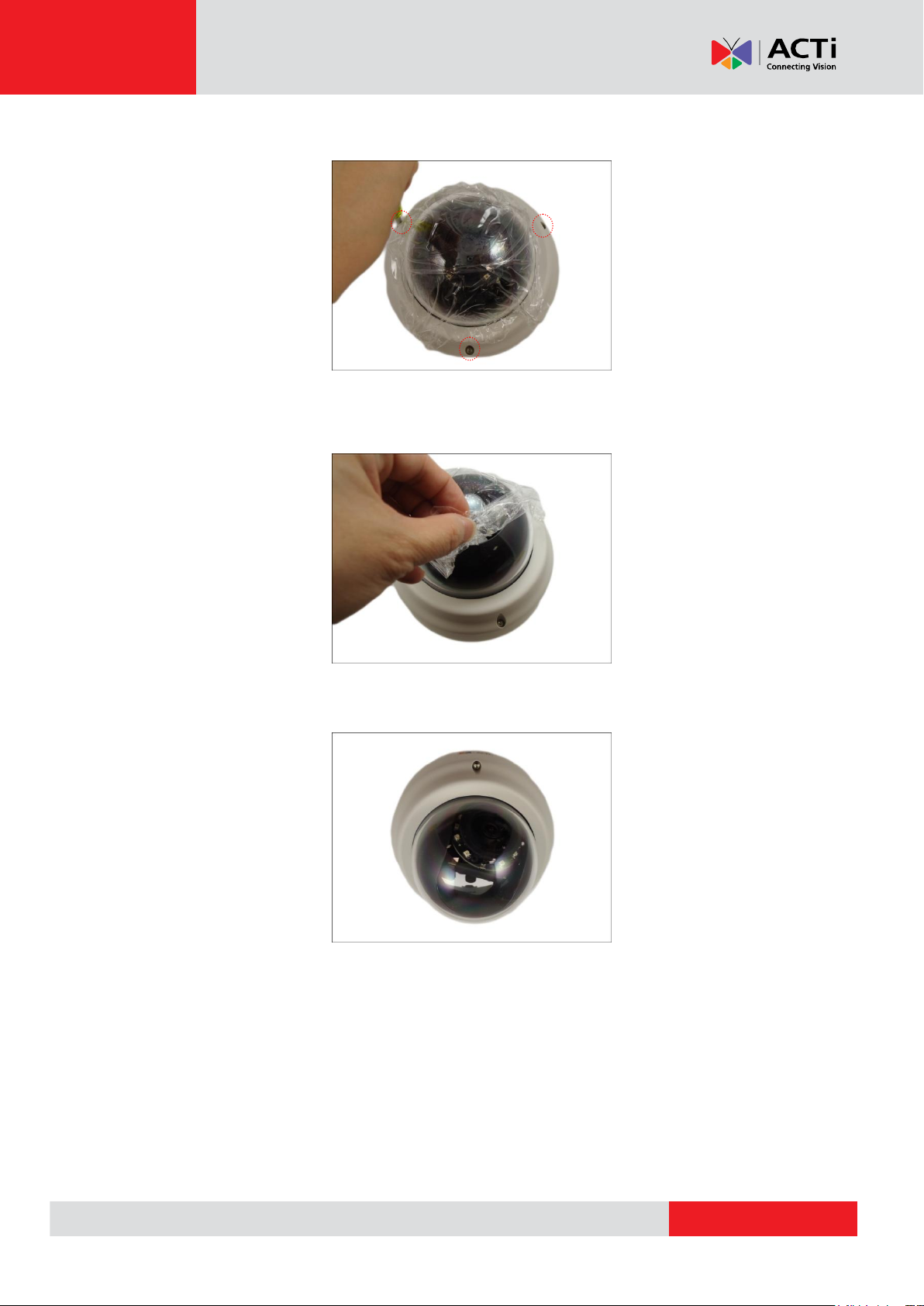

Step 7: Close the Dome Cover ................................................................ 22
Other Adjustments and Accessories .................. 24
2
www.acti.com
Hardware Manual

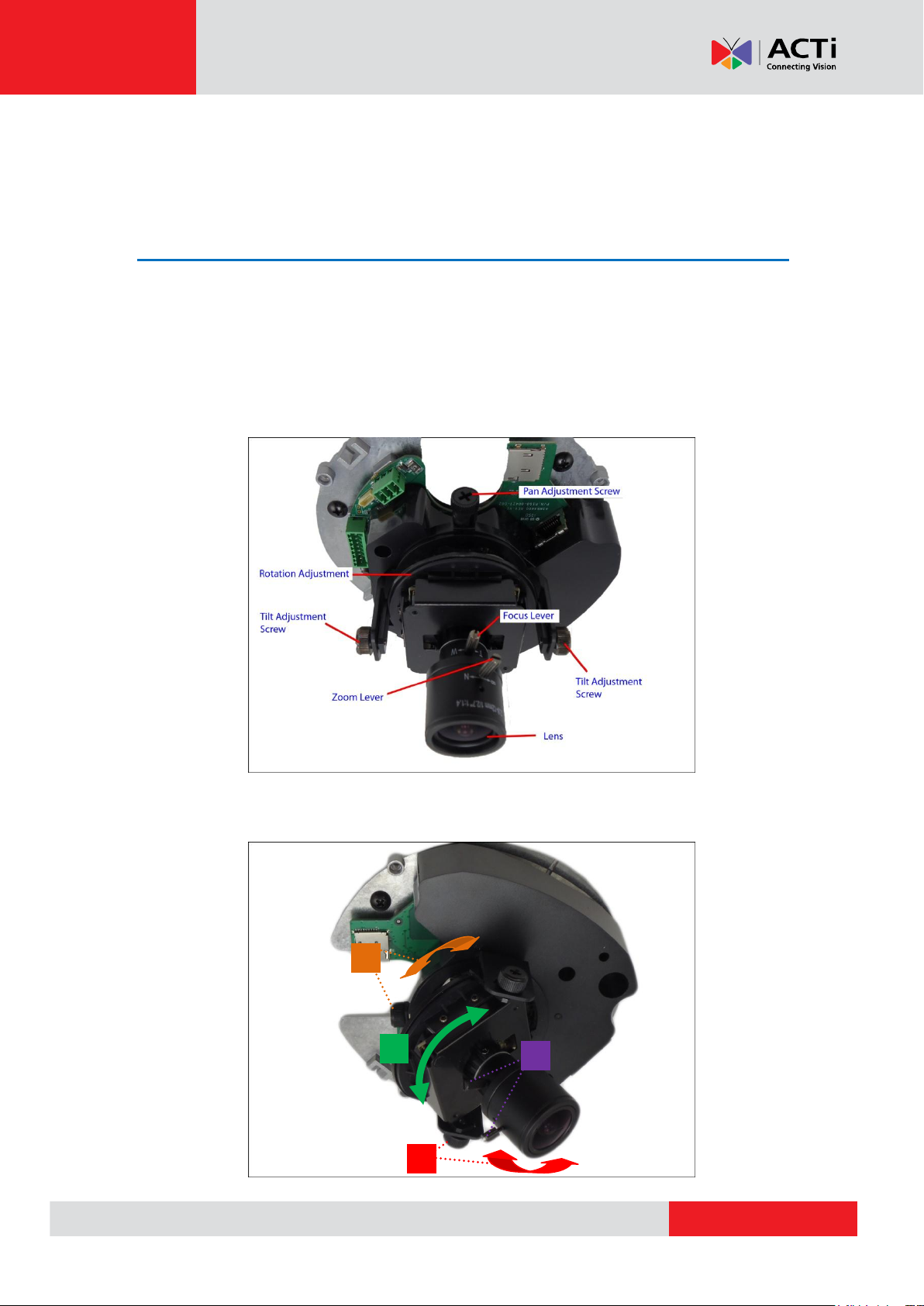

How to Adjust the Camera Viewing Angle and Focus .......................... 24
D61A, E66A Camera Models ................................................................ 24
D65A, E62A, E63A, E65A, E68, E69 Camera Models .......................... 26

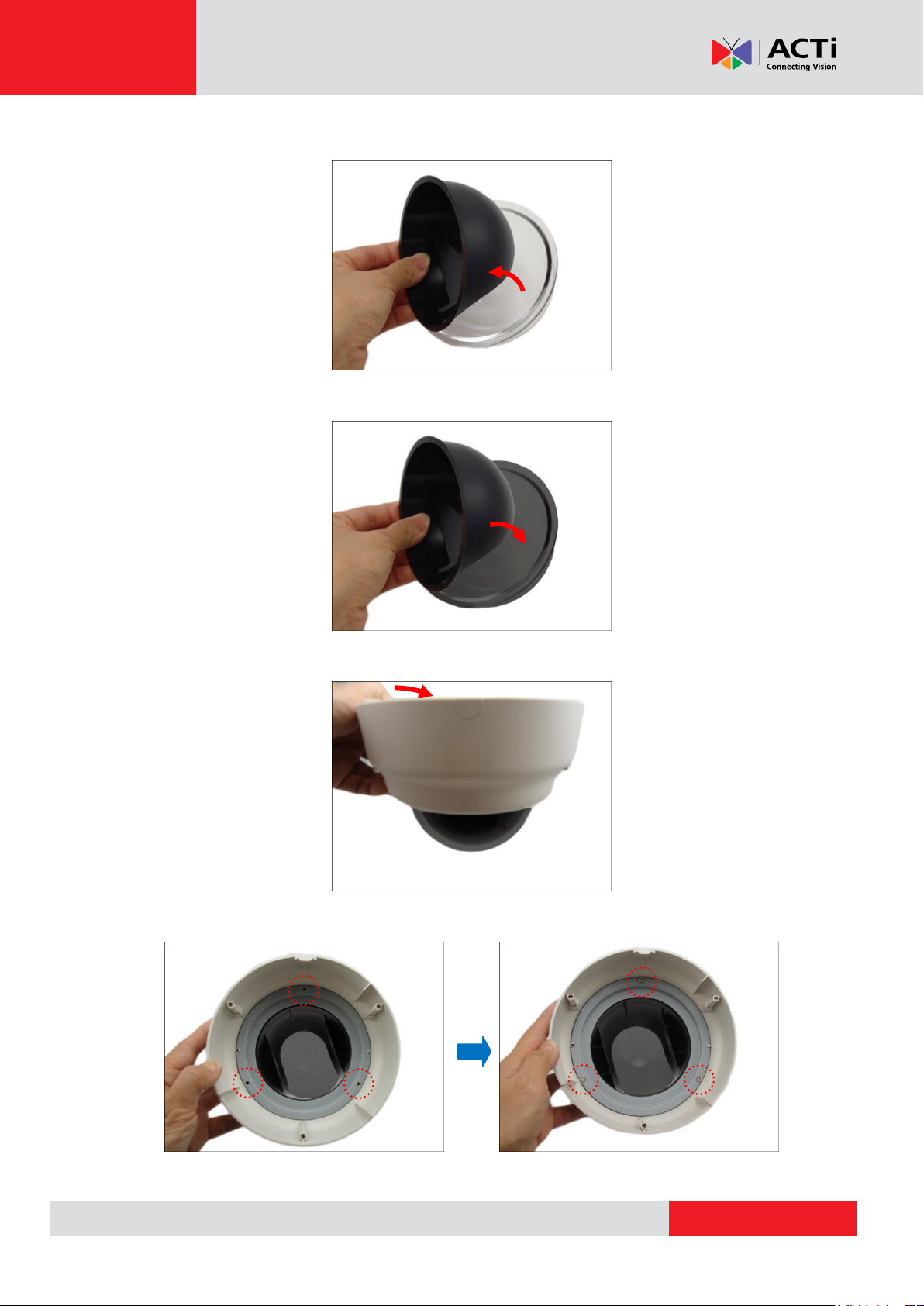

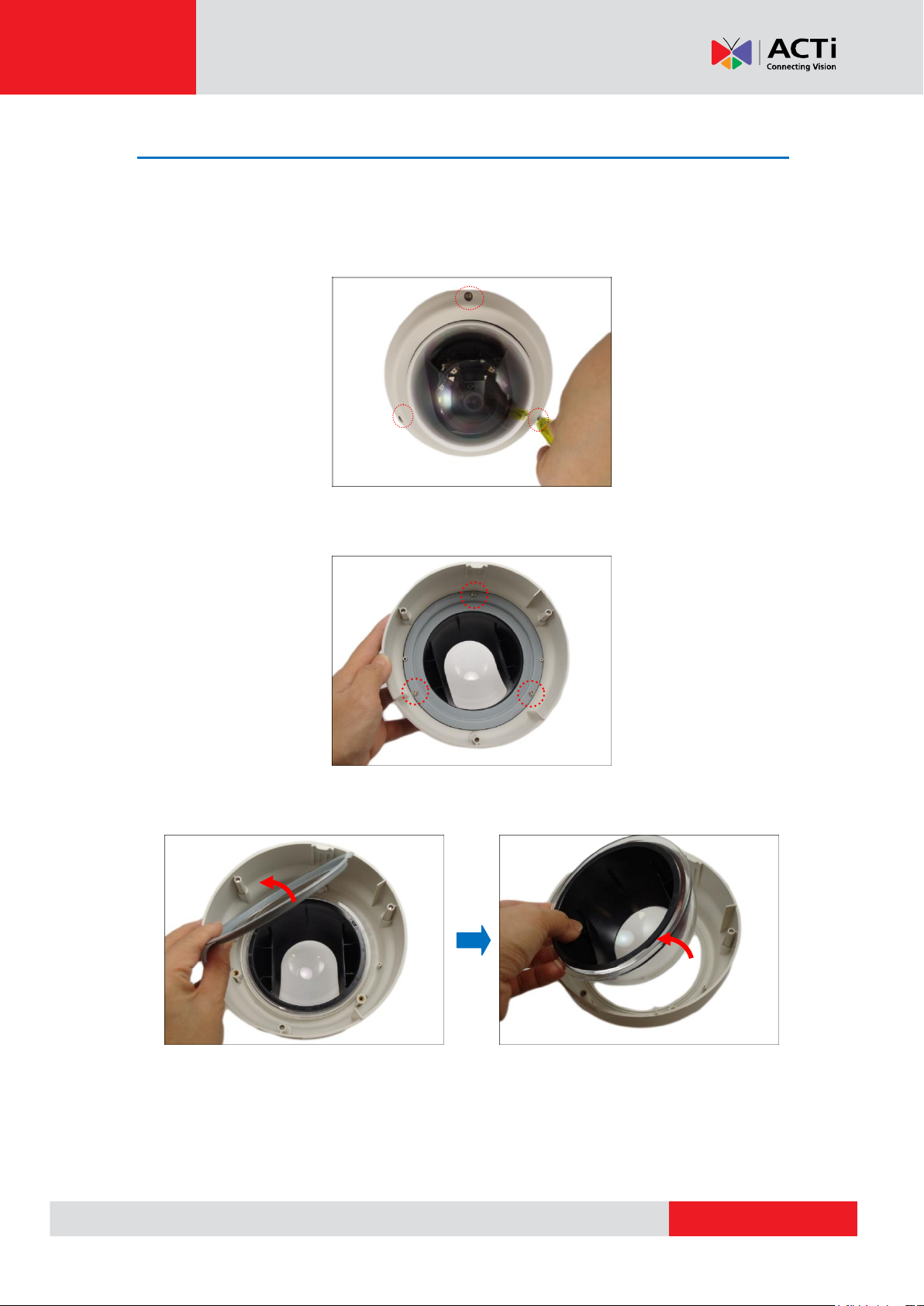

How to Replace the Dome Cover ............................................................ 27

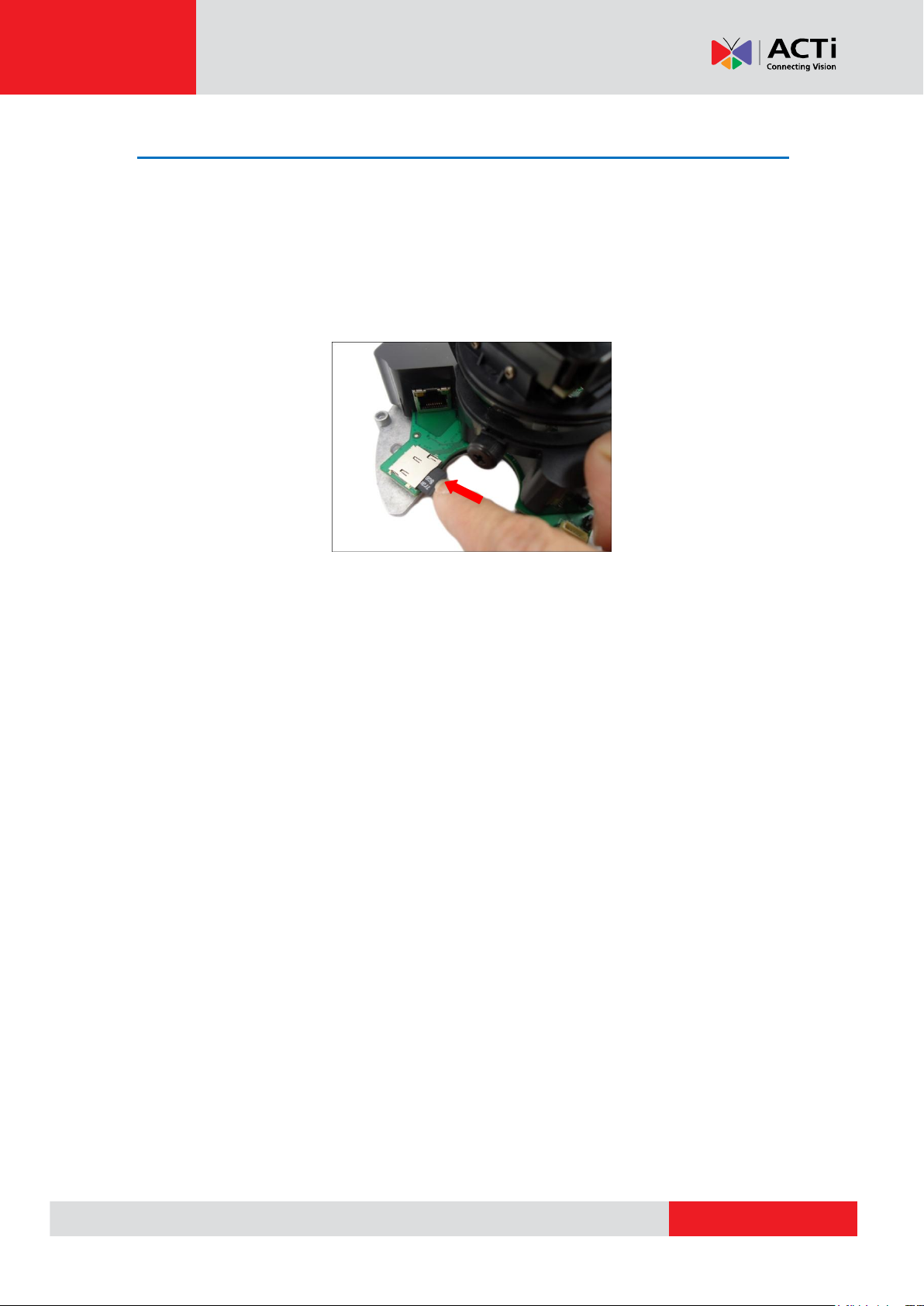

How to Use a Memory Card .................................................................... 30
How to Insert the Memory Card ............................................................ 30
How to Remove the Memory Card ........................................................ 30
Accessing the Camera ......................................... 31

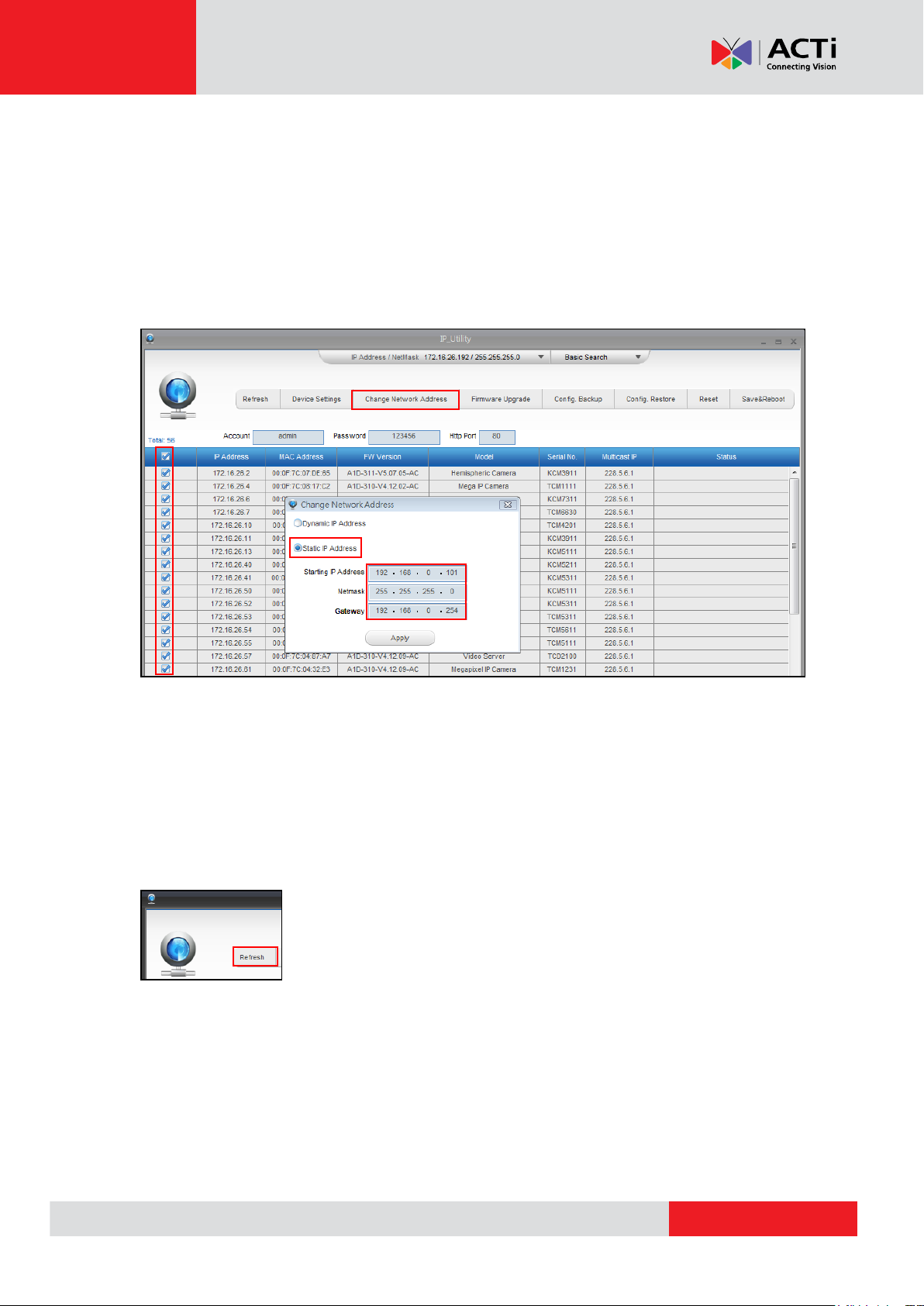

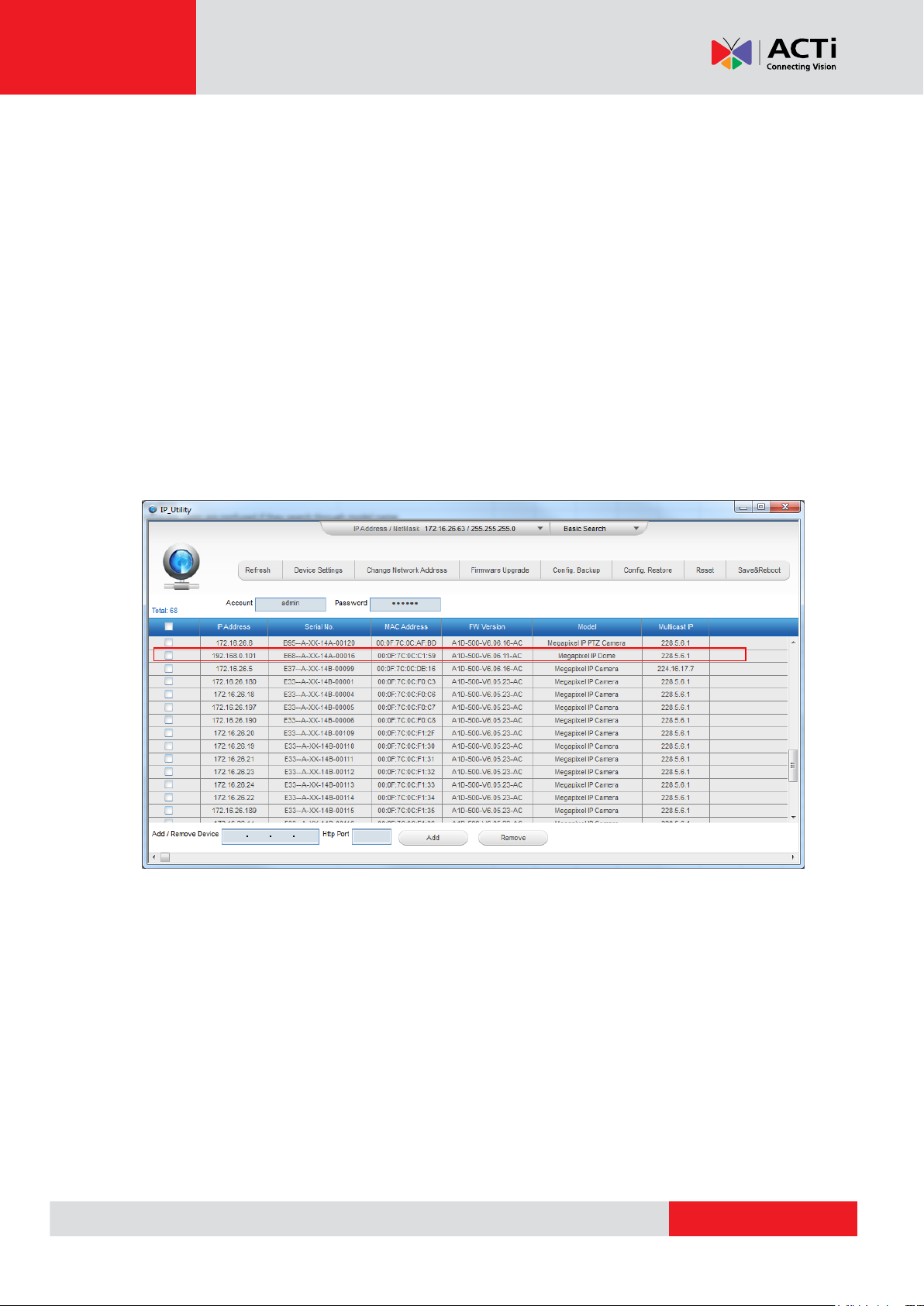

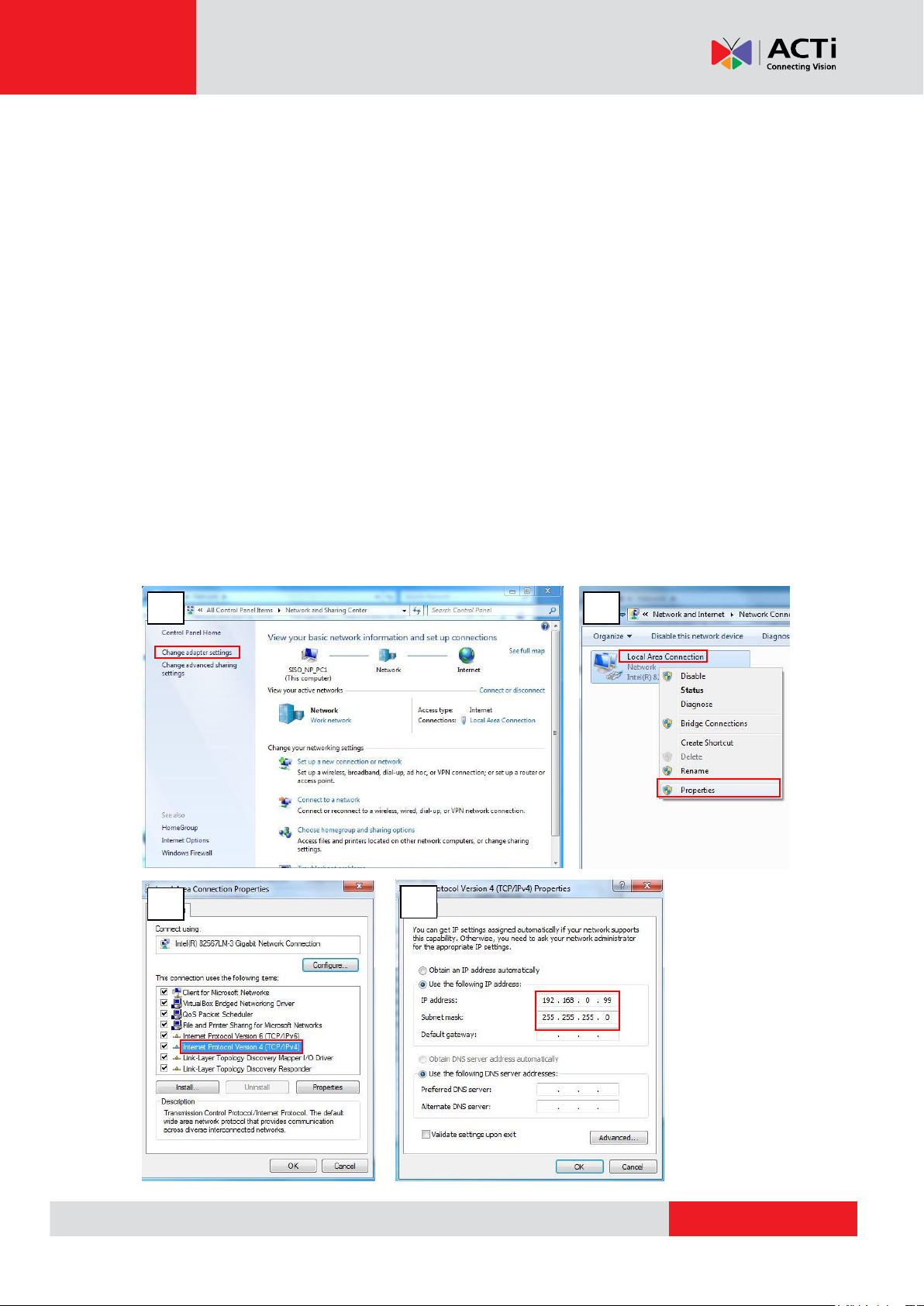

Configure the IP Addresses .................................................................... 31

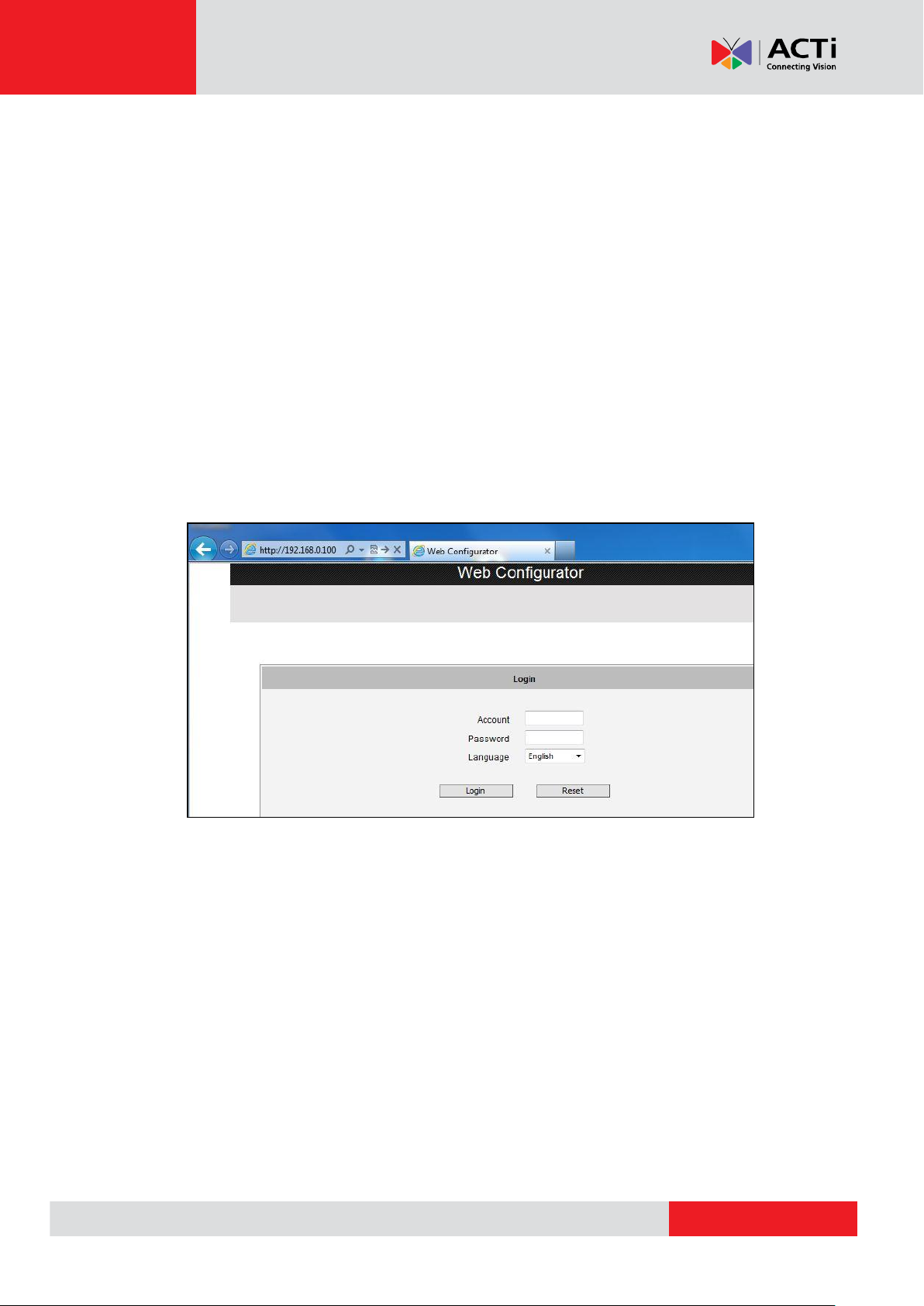

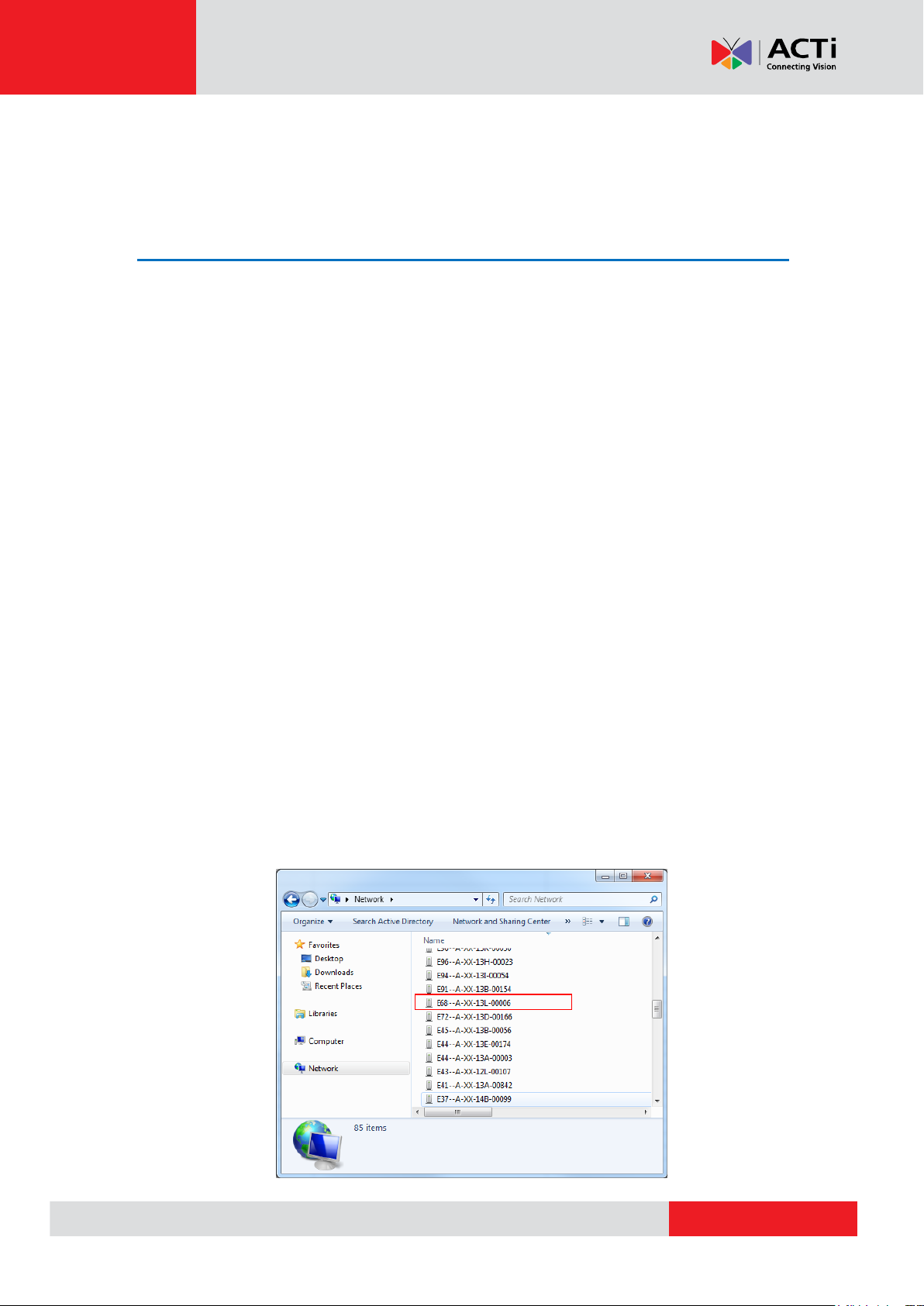

Access the Camera .................................................................................. 35
3
www.acti.com
Hardware Manual
Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to follow
the safety instruction given may directly endanger people, cause damage to the system or to
other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
4
www.acti.com
Hardware Manual
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to the equipment that are not expressly approved by the
responsible party for compliance could void the user’s authority to operate the equipment.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.
5
www.acti.com
Hardware Manual
Safety Instructions
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may cause
hazards.
Do not use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this
manual. Adjust only those controls that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often require extensive work by a
qualified technician to restore the video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.
6
www.acti.com
Hardware Manual
D61A
1.3MP Indoor Dome with SLLS, Vari-focal lens
D65A
3MP Indoor Dome with D/N, Adaptive IR, Vari-focal lens
E62A
3MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens
E63A
5MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens
E65A
3MP Indoor Dome with D/N, Adaptive IR, Superior WDR, Vari-focal lens
E66A
1.3MP Indoor Dome with Basic WDR, SLLS, Vari-focal lens
E68
1.3MP Indoor Dome with D/N, Adaptive IR, Basic WDR, SLLS, Vari-focal
lens
E69
2MP Indoor Dome with D/N, Adaptive IR, Basic WDR, SLLS, Vari-focal
lens
Introduction
The List of Models
This hardware manual contains the following models:
From the installation perspective these models are very similar; therefore you can use one
manual for all of them.
7
www.acti.com
Package Contents
Camera
(D61A, E66A)
Camera
Mounting Screw Kit
Hexagon Screwdriver
Terminal Block
(for Audio and DI/DO)
Drill Template
Quick Installation Guide
Warranty Card
Drill Template
or
Hardware Manual
8
www.acti.com
Physical Description
D61A, E66A
Hardware Manual
D65A, E62A, E63A, E65A, E66A, E68, E69
NOTE: Actual camera may slightly differ.
9
www.acti.com
Hardware Manual
1) Ethernet Port
Connects to a network using an Ethernet cable.
2) Memory Card Slot
Insert a memory card into this slot for local recording purposes. See How to Use a Memory Card
on page 30 for more information.
NOTE: Supports microSDHC and microSDXC cards.
3) Reset Button
The purpose of reset button is to restore the factory default settings of the camera, including
the administrator’s password.
The reset button can be used for following purposes:
The administrator’s password has been forgotten and therefore the camera cannot be
accessed.
1. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to
modify these settings.
2. In case of connectivity issues or abnormal video quality.
How to do the reset properly?
Press and hold the reset button for 5 seconds.
4) Digital Input / Output (DI/DO) and Audio Input / Output
This connector connects to digital input or output devices, such as an alarm trigger, panic
button, etc., as well as audio input and output devices, such as microphones and speakers.
Digital Input (DI) and Digital Output (DO) devices are used in applications like motion
detection, event triggering, alarm notifications, etc. See How to Connect DI/Do Devices on
page 14 and How to Connect Audio Devices on page 17 for more information.
10
www.acti.com
Hardware Manual
Mount Types
Accessories
Surface Mount
Suitable when mounting the camera directly on walls or ceilings without
extra accessories. See Installing the Camera on a Surface on page 18 for
mounting instructions.
Flush Mount
Suitable when mounting the camera discretely above dropped ceilings
wherein only the dome cover will be visible underneath the ceiling.
PMAX-1003
Gang Box
Converter
Suitable for locations which require the use of gang boxes. The Gang Box
Converter can be attached to a “two-gang” or 4” square gang box. Then, the
camera can be installed on the Gang Box Converter. All cables are hidden
inside the gang box.
PMAX-0803
Pendant Mount
Suitable when mounting the camera on hard and high ceilings.
PMAX-0101 PMAX-0103 (Straight Tube with Bracket)
PMAX-0101 PMAX-0102 (Straight Tube)
Mounting Options
There are several mounting options that you can use to install the camera. Select the most
suitable solution for your installation environment. Below are some examples only.
11
www.acti.com
Hardware Manual
Mount Types
Accessories
Straight Wall
Mount
Suitable when mounting the camera on straight walls.
PMAX-0313
Vertical Pole
Mount
Suitable when mounting the camera on vertical poles.
PMAX-0313 PMAX-0503
Horizontal Pole
Mount
Suitable when mounting the camera on horizontal poles.
PMAX-0101 PMAX-0102 PMAX-0503
Corner Mount
Suitable when mounting the camera on a corner wall.
PMAX-0313 PMAX-0402
NOTE: More options are available in our website (http://www.acti.com/mountingselector).
12
