Installation Procedures
This section describes the procedures in installing the camera directly on a dropped ceiling with
flat surface. Prepare a screwdriver and network cable for this installation; no additional
accessories are required. For simplicity, most of the camera images used in the succeeding
sections were taken using the camera model with heat sink; same procedures apply to the model
without heat sink unless specified.
Step 1: Unpack the Camera
NOTE: To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain
the plastic covering the dome cover until the camera is completely installed.
1. Slide the mounting plate counter-clockwise to detach it from the camera.
2. Remove the silicon bag.
3
www.acti.com
Installation Guide
This arrow aligns with
the camera logo.
Rotate the template,
as needed.
Step 2: Attach the Mounting Plate
NOTE: Before installation, consider the camera viewing angle and logo placement. The arrow on
the drill template and mounting plate align with the direction of the camera logo. Rotate the drill
template as needed.
1. Using the drill template or mounting plate, mark the holes on the surface. If necessary, drill
the three (3) screw holes and insert the plastic plugs.
2. Determine how the cable will be routed:
a. The cable will pass through a hole on the surface: In this case, drill the cable hole
based on the drill template.
b. The cable will go along the surface: Skip this step.
3. Attach the mounting plate on the surface using the three (3) supplied screws. Note that the
direction of the arrow on the mounting plate aligns with the camera logo.
NOTE: Make sure the screw is flat on the plate.
4
www.acti.com
Installation Guide
or
Step 3: Connect the Cable
1. If the cable will pass through the hole on the surface, route the network cable through the
hole. If the cable will go along the surface, remove the cable exit tab on the camera and
route the cable along the surface.
Cable Passing Through a Hole on the Surface Cable Going Along the Surface
2. Connect the network cable to the Ethernet port of the camera.
5
www.acti.com
Installation Guide
Step 4: Attach the Fixing Bracket
This step is required only for D54, D55, E52, E53, E54 camera models with cables going along
the surface. Otherwise, skip this step.
1. Route the cable to pass through the gap on the camera.
2. Attach the fixing bracket using the two (2) supplied screws to secure the cable.
6
www.acti.com
Installation Guide
Logo is
Arrow is
here
Step 5: Install the Camera
1. If the cable passes through a hole on the surface, push the extra length of cable into the
hole. Otherwise, skip this step.
2. With the arrow on the mounting plate aligned to the direction of the camera logo, insert the
hooks on the camera to the slots on the mounting plate.
3. Slide the camera clockwise until it locks into place.
7
www.acti.com
Installation Guide
Step 6: Access the Camera Live View
See How to Access the Camera Live View on page 10 for more information on how to access
the Live View screen of the camera.
Step 7: Adjust the Viewing Angle and Focus
1. Rotate the dome cover counter-clockwise and then pull to remove it.
2. Based on the live view, adjust the viewing angle and orientation of the camera. Adjustments
vary depending on model; see How to Adjust Focus and Viewing Angle on page 18 for
detailed information.
8
www.acti.com
Installation Guide
Step 8: Close the Dome Cover
1. Slightly press on the edges of the dome cover and push it into the groove until it clicks.
2. Remove the plastic covering the dome cover.
Below is an installation example.
9
www.acti.com
Installation Guide
Appendices
How to Access the Camera Live View
Connect the Equipment
To be able to connect to the camera firmware from your PC, both the camera and the PC have to
be connected to each other via Ethernet cable. At the same time, the camera has to have its own
power supply. In case of PoE cameras, you can use a PoE Injector or a PoE Switch between the
camera and the PC. The cameras that have the DC power connectors may be powered on by
using a power adaptor.
Configure the IP Addresses
In order to be able to communicate with the camera from your PC, both the camera and the PC
have to be within the same network segment. In most cases, it means that they both should have
very similar IP addresses, where only the last number of the IP address is different from each
other. There are 2 different approaches to IP Address management in Local Area Networks – by
DHCP Server or Manually.
Using DHCP Server to Assign IP Addresses
If you have connected the computer and the camera into the network that has a DHCP server
running, then you do not need to configure the IP addresses at all – both the camera and the PC
would request a unique IP address from DHCP server automatically. In such case, the camera
will immediately be ready for the access from the PC. The user, however, might not know the IP
address of the camera yet. It is necessary to know the IP address of the camera in other to be
able to access it by using a Web browser.
10
www.acti.com
Installation Guide
The quickest way to discover the cameras in the network is to use the simplest network
search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the
local area network will be discovered by Windows thanks to the UPnP function support of our
cameras.
In the example below, we successfully found the camera that we had just connected to the
network.
By double-clicking the mouse button on the camera model, it is possible to automatically launch
the default browser of the PC with the IP address of the target camera filled in the address bar of
the browser already.
If you work with our cameras regularly, then there is even a better way to discover the
cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not
only discover the cameras, but also list lots of valuable information, such as IP and MAC
addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple
devices at the same time.
11
www.acti.com
Installation Guide
The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility
With just one click, you can launch the IP Utility and there will be an instant report as follows:
You can quickly see the camera model in the list. Click on the IP address to automatically launch
the default browser of the PC with the IP address of the target camera filled in the address bar of
the browser already.
Using the Default Camera IP Address
If there is no DHCP server in the given network, the user may have to assign the IP addresses to
both PC and camera manually to make sure they are in the same network segment.
When the camera is plugged into network and it does not detect any DHCP services, it will
automatically assign itself a default IP:
192.168.0.100
Whereas the default port number would be 80. In order to access that camera, the IP address of
the PC has to be configured to match the network segment of the camera.
12
www.acti.com
Installation Guide
1 2 3
4
Manually adjust the IP address of the PC:
In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99
and set Subnet Mask to 255.255.255.0 by using the steps below:
13
www.acti.com
Installation Guide
Manually adjust the IP addresses of multiple cameras:
If there are more than one camera to be used in the same local area network and there is no
DHCP server to assign unique IP addresses to each of them, all of the cameras would then have
the initial IP address of 192.168.0.100, which is not a proper situation for network devices – all

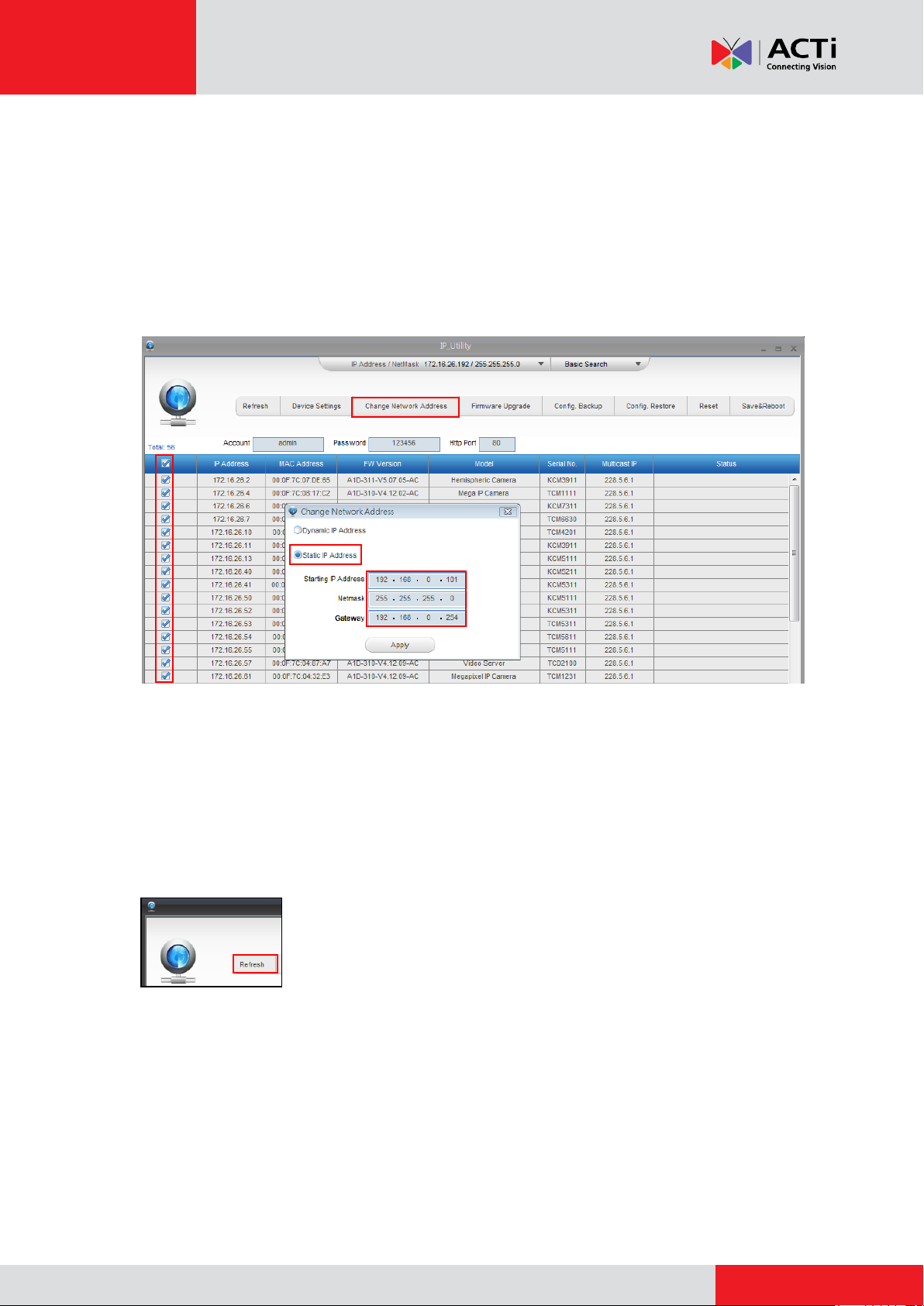

the IP addresses have to be different from each other. The easiest way to assign cameras the IP
addresses is by using IP Utility:
With the procedure shown above, all the cameras will have unique IP addresses, starting from
192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have
the IP 192.168.0.120.
Later, by pressing the “Refresh” button of the IP Utility, you will be able to see the list of cameras
with their new IP addresses.
Please note that it is also possible to change the IP addresses manually by using the Web
browser. In such case, please plug in only one camera at a time, and change its IP address by
using the Web browser before plugging in the next one. This way, the Web browser will not be
confused about two devices having the same IP address at the same time.
14
www.acti.com
Installation Guide
Functionality
Internet Explorer
Other browsers
Live Video
Yes
Yes*
Live Video Area Resizable
Yes
No
PTZ Control
Yes
Yes
Capture the snapshot
Yes
Yes
Video overlay based configuration (Motion
Detection regions, Privacy Mask regions)
Yes
No
All the other configurations
Yes
Yes
Firmware Version
Required Plug-In
A1D-500-V6.04.xx-AC or older
Basic VLC Media Player (http://www.videolan.org)
A1D-500-V6.05.xx-AC or newer
QuickTime (http://www.apple.com/quicktime/download/)
Access the Camera
Now that the camera and the PC are both having their unique IP addresses and are under the
same network segment, it is possible to use the Web browser of the PC to access the camera.
You can use any of the browsers to access the camera, however, the full functionality is
provided only for Microsoft Internet Explorer.
The browser functionality comparison:
* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed
to the PC first to be able to get the live video feed from the camera. Check the firmware version of
the camera to determine which plug-in is necessary:
The camera firmware version can be found on the FW Version column of the IP utility or access
the Setup page of the Web Configurator (see page 17).
Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras
with VLC player or QuickTime – since these are third party softwares. The third parties have the
right to modify their utility any time which might affect the compatibility. In such cases, please use
Internet Explorer browser instead.
When using Internet Explorer browser, the ActiveX control for video stream management will be
downloaded from the camera directly – the user just has to accept the use of such control when
prompted so. No other third party utilities are required to be installed in such case.
15
www.acti.com
Installation Guide
The following examples in this manual are based on Internet Explorer browser in order to
cover all functions of the camera.
Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the Web
browser and typing the following address into Web browser’s address bar:
http://192.168.0.100
Upon successful connection to the camera, the user interface called Web Configurator would
appear together with the login page. The HTTP port number was not added behind the IP
address since the default HTTP port of the camera is 80, which can be omitted from the address
for convenience.
Before logging in, you need to know the factory default Account and Password of the camera.
Account: Admin
Password: 123456
16
www.acti.com
Installation Guide
3 2 1
To check the firmware version through the Web Configurator, access the Setup page and click
System > System Info.
For further operations, please refer to the Firmware User Manual downloadable from the website
(www.acti.com).
17
www.acti.com
Installation Guide
1
2
How to Adjust Focus and Viewing Angle
This section describes the procedures in adjusting the viewing angle and focus of the camera.
D51 / D52 / E51
Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
2. Move the rotation adjustment to rotate the viewing orientation.
3. Attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus.
18
www.acti.com
D54 / D55 / E52 / E53 / E54
1
2
Camera Parts Overview
Installation Guide
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the
tilt position.
2. Move the rotation adjustment to rotate the viewing orientation.
3. Attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus.
19
www.acti.com
Installation Guide
Safety Information
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to follow
the safety instruction given may directly endanger people, cause damage to the system or to
other equipment.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may cause
hazards.
Do not use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself. Refer all servicing to qualified service
personnel.
20
www.acti.com
Installation Guide
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this
manual. Adjust only those controls that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often require extensive work by a
qualified technician to restore the video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.
21
Loading...
