ACTi ACM-7411 User Manual
MegaPixel IP Outdoor Rugged Dome
(with DC 12V / PoE)
ACM-7411 series
Ver. 081218
Hardware User’s Manual
Megapixel IP D/N Vandal Proof PoE
Outdoor Fixed Dome
ACM-7411
Ver. 120305
Hardware User’s Manual
0
Full D1 CAM-7200 series
CAM-5200
User’s Manual
0 PRECAUTIONS
1. Read these instructions
All the safety and operating instructions should be read before the product is
operated.
2. Heed all warnings
All warnings on the product and in the instruction manual should be adhered to.
The symbol indicates the following items, please carefully read the
description next to each symbol.
a. Failure to follow the safety instruction given may directly endanger
people, cause damage to the system or to other equipment.
b. The requirements to make this device work, including hardware,
computer settings, network settings, and operation procedures.
c. The tips to make using this device easier, more convenient and more
efficient.
3. Servicing
Do not attempt to service this video product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
Trademarks
All names used in this manual for hardware and software are probably registered
trademarks of respective companies.
Liability
Every care has been taken during writing this manual. Please inform your local office
if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product
and manuals without prior notice.
FCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
0-1
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
0-2
Table of Contents
0 PRECAUTIONS________________________________________________ 0-1
Trademarks ______________________________________________________________ 0-1
Liability ________________________________________________________________ 0-1
FCC/CE Regulation _______________________________________________________ 0-1
1 INTRODUCTION ______________________________________________ 1-1
1.1 Package Contents____________________________________________ 1-1
1.2 Features and Benefits_________________________________________ 1-2
1.3 Safety Instructions ___________________________________________ 1-4

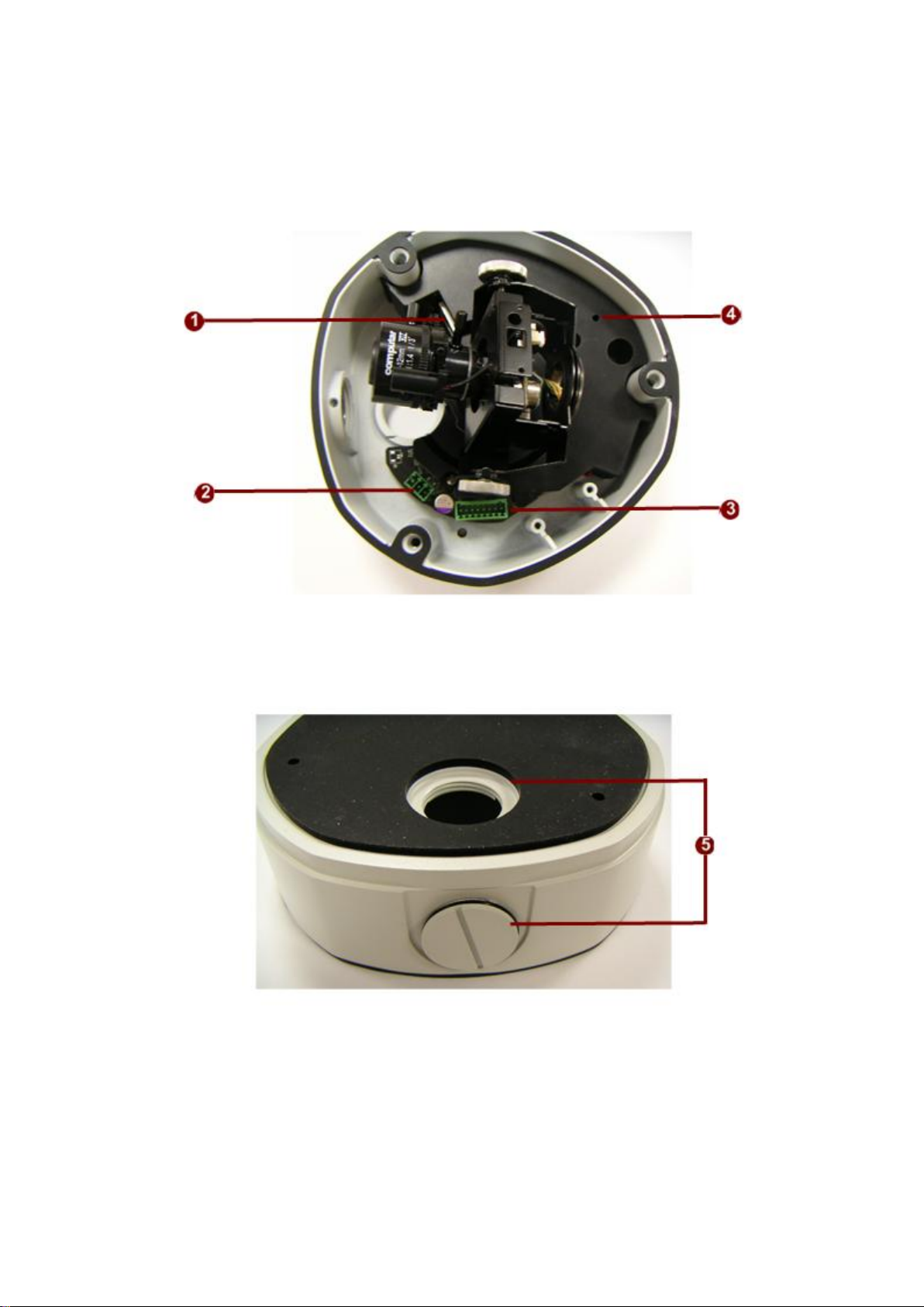

1.4 Physical Description__________________________________________ 1-6
2 Installation Procedure ___________________________________________ 2-9
2.1 Connect the IP Outdoor Rugged Dome ___________________________ 2-9
2.1.1 Remove the cover ________________________________ __________________ 2-9
2.1.2 Insert the cable ________________________________ ___________________ 2-10
2.1.3 Connect cables to connectors _________________________________________ 2-10
2.1.4 LED Description __________________________________________________ 2-11
2.2 Mount the IP Outdoor Fixed Dome (Surface) _____________________ 2-12
2.3 Mount the IP Outdoor Fixed Dome (Flush) _______________________ 2-13
2.4 Mount the IP Indoor Fixed Dome (Wall) _________________________ 2-14
3 Adjust the camera______________________________________________ 3-15
3.1 Adjust zoom and focus _______________________________________ 3-15
3.2 Adjust camera functions _____________________________________ 3-15
4 Product Specification ___________________________________________ 4-16
0-3
1-1
1
1 INTRODUCTION
1.1 Package Contents
ACM-7411 series
(DC12V / PoE)
Product CD Terminal Blocks for Power, DI/O & Audio
Warranty Card Accessory
Drill Template
