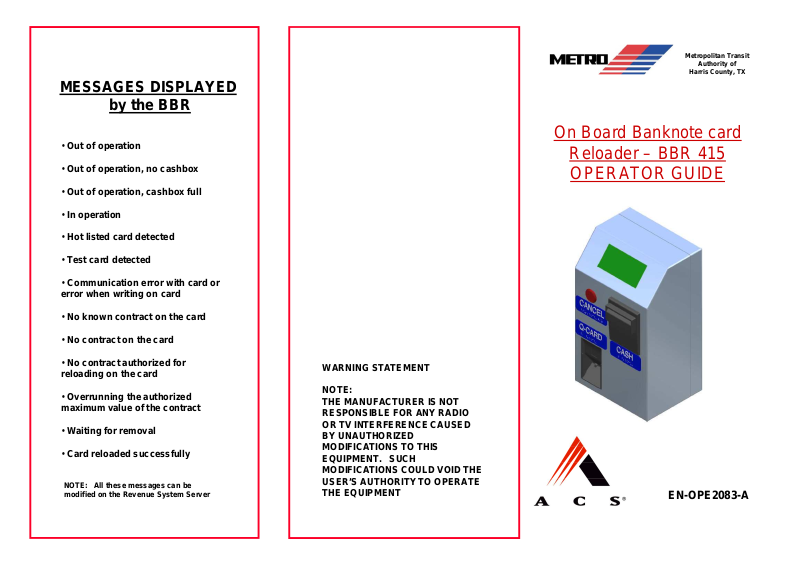

MESSAGES DISPLAYED

by the BBR

• Out of operation

• Out of operation, no cashbox

• Out of operation, cashbox full

• In operation

• Hot listed card detected

• Test card detected

• Communication error with card or

error when writing on card

• No known contract on the card

Metropolitan Transit

Authority of

Harris County, TX

On Board Banknote card

Reloader – BBR 415

OPERATOR GUIDE

• No contract on the card

• No contract authorized for

reloading on the card

• Overrunning the authorized
maximum value of the contract

• Waiting for removal

• Card reloaded successfully

NOTE: All these messages can be
modified on the Revenue System Server

WARNING STATEMENT

NOTE:
THE MANUFACTURER IS NOT
RESPONSIBLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED
MODIFICATIONS TO THIS
EQUIPMENT. SUCH
MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE
THE EQUIPMENT

EN-OPE2083-A

IN OPERATION

Then PRESENT YOUR CARD

Result of the reloading

operation

Welcome message

The BBR displays a welcome message

asking the patron to insert a bank bill.

First INSERT YOUR BILL

Once a bank bill is inserted, the BBR

verifies its validity and checks if it

belongs to the list of authorized bills:

$1, $5, $10, $20

Any bill not belonging to the list of

authorized bills is given back to the

patron. Another bank bill can be inserted

as soon as the refused bill is removed by

the patron.

If the bank bill is accepted, the BBR asks

the patron to present his transportation

card. If the patron doesn’t present his
card within ten seconds, the operation is
cancelled and the bank bill is given back

to the patron.

CANCELLATION

As long as no transportation card is

presented, the patron has the possibility

to cancel the reloading operation by

pressing the CANCEL button placed on
the BBR. On activation of this button, the
BBR cancels the reloading operation and

returns the bank bill to the patron.

CARD RELOADING

As soon as the transportation card is

presented, the BBR reads the data

stored on this one and performs the

reloading operations.

When the stored value contract is

reloaded, the BBR indicates to the patron

the success of the reloading operation by :

• An acceptance message which include
the new balance of the contract.

• The green indicator is switched on.

• A short beep is emitted.

If no contract is reloaded, the terminal

indicates the failure of the operation by :

• A specific refusal message linked to the
refusal cause.

• The red indicator is switched on.

• A long beep is emitted.

If the reloading is done, the BBR cashed

the bank bills otherwise the bank bill is

returned to the patron.
