8
WALL MOUNTED
SPLIT TYPE AIR CONDITIONER
MANUAL
OM-G12-ACSON
1
1. Transmission source
• The source where the signal will be transmitted.
2. Signal transmission indication
• Blink to confirm that the last setting has been transmitted to the unit.
3. “ON/OFF” Button
• Press once to start the air conditioner unit.
• Press again to stop the unit.
4. Temperature setting
• To set the desired room temperature, press the ▲ or ▼ button to increase or decrease the set temperature.
• The temperature setting range is from 16°C to 30°C (Optional setting 20°C to 30°C).
• Press both buttons simultaneously to toggle ▲ and ▼ from °C to °F setting.
5. Operation mode
• Press the MODE button to select the type of operating mode.
•
For cooling only unit, the available modes are: COOL ( ), DRY ( ) and FAN ( ).
6. Fan speed selection
• Press the button continuously will toggle the fan speed in the following order:
Low –––: Med –––: High –––: Auto
• Stop pressing when the desired fan speed appears on the display screen.
7. Turbo function
• Press for fast cooling.
• The temperature will be decreased if in COOL or DRY mode.
Fan speed will be increased if it is not at maximum speed.
• The temperature and fan speed will resume to user setting if is pressed again or after 20 minutes.
• Available under COOL and DRY modes only.
8. ON timer setting
• Press the SET button will activate the on timer function.
• Set the desired on time by pressing the SET button continuously. If the timer is set to 7.30am, the air conditioner will
turn on at 7.30am sharp.
• Press the CLR button to cancel the on timer setting.
9. OFF timer setting
• Press the SET button will activate the off timer function.
• Set the desired off time by pressing the SET button continuously.
• Press the CLR button to cancel the off timer setting.
10. Automatic air swing (optional)
• Press the SWING button to activate the automatic air swing function.
• To distribute the air to a specific direction, press the SWING button and wait until the louver move to the desired
direction and press the button once again.
11. Sleep mode setting
• Press the SLEEP button will activate the sleep mode function.
• This is an energy saving option. When the unit is operating under cooling mode, the set temperature is
increased by 0.5°C after the first half an hour, 1°C after the second half an hour and total of 2°C after
the following 1 hour. This function will prevent excessive cooling during summer season.
• This function is available under COOL and AUT O mode.
12. Clock time setting
• Press + button to increase the clock time.
• Press -- button to decrease the clock time.
13. Personalize setting
•
Press and hold for 3s, then will blink. Press again to cycle between and .
• Set the desire setting, then leave the handset for 4s without pressing any key and it will save the setting into the
programme.
• Press once to activate the P1 setting, press again to cycle between P1 and P2.
• Press any key to deactivate the personalize setting.
14. Ionizer setting (optional)
• Press will activate the ionizer function.
• Press again to deactivate the function.
OPERATING GUIDE
+2 C
+1 C
- 1 C
- 2 C
0 0.5 1 1.5 2
CONTENTS
- Operating Guide page 1
- G12 Remote Controller Indication page 2

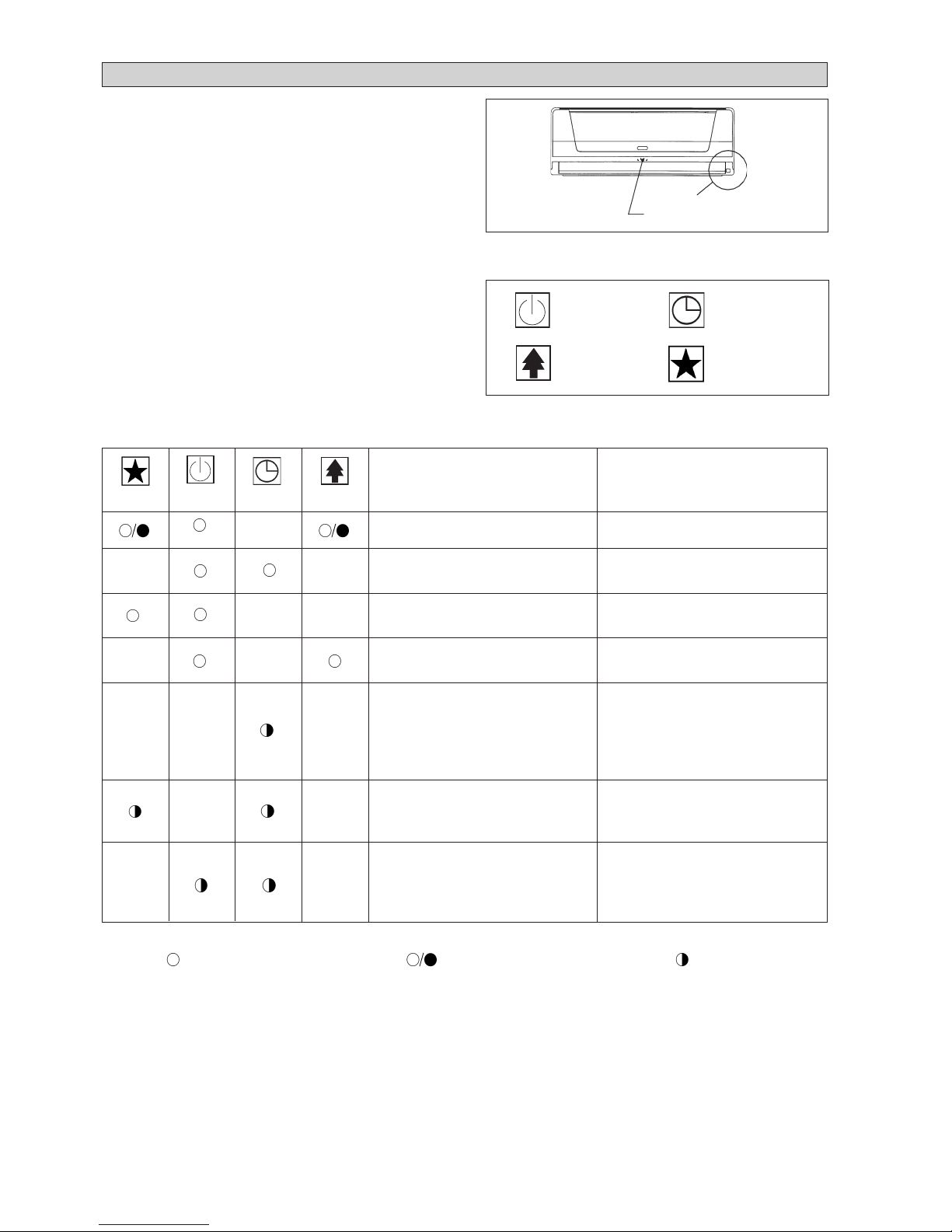

- Indicator Lights page 4

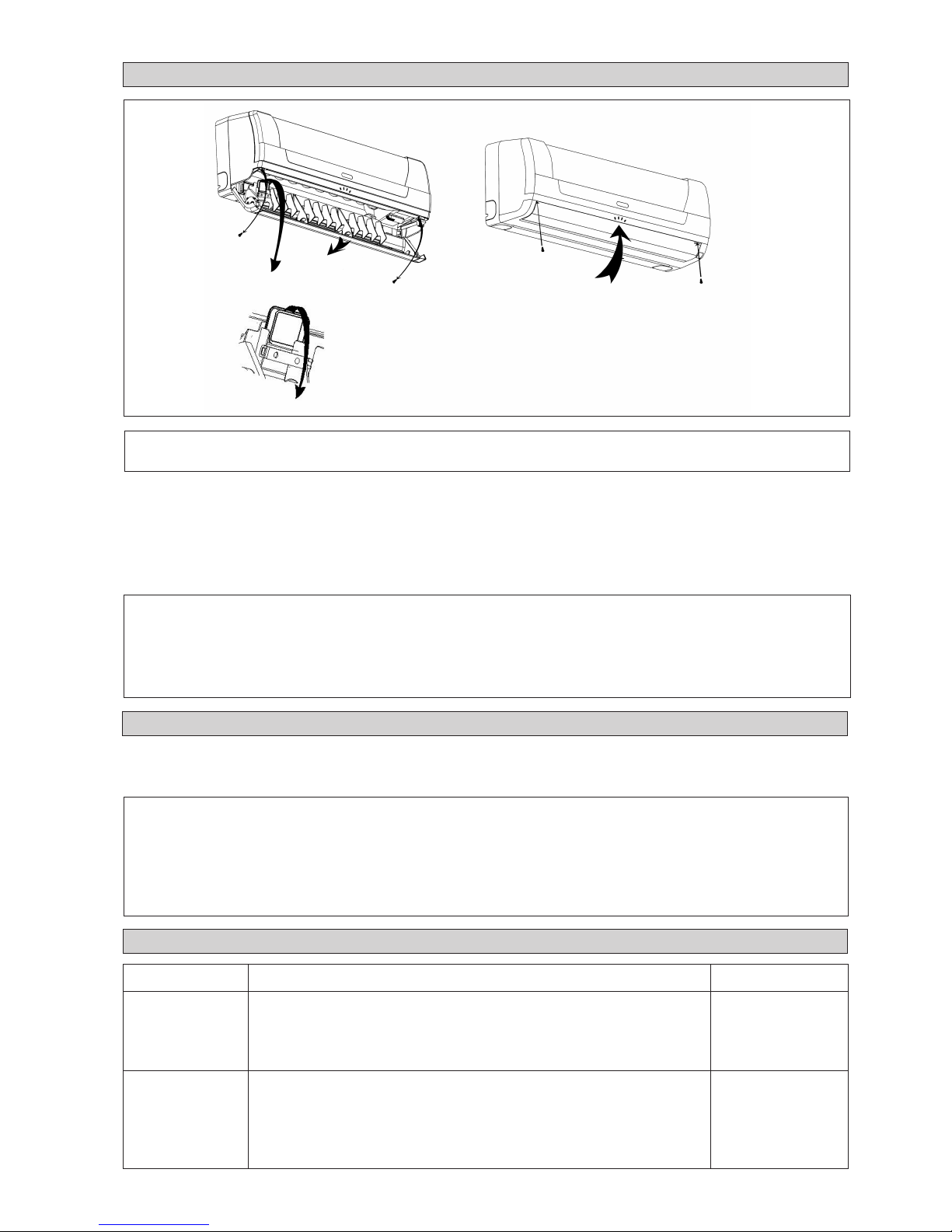

- Installation of Aroma page 5
- Auto Random Re-Start Function page 5

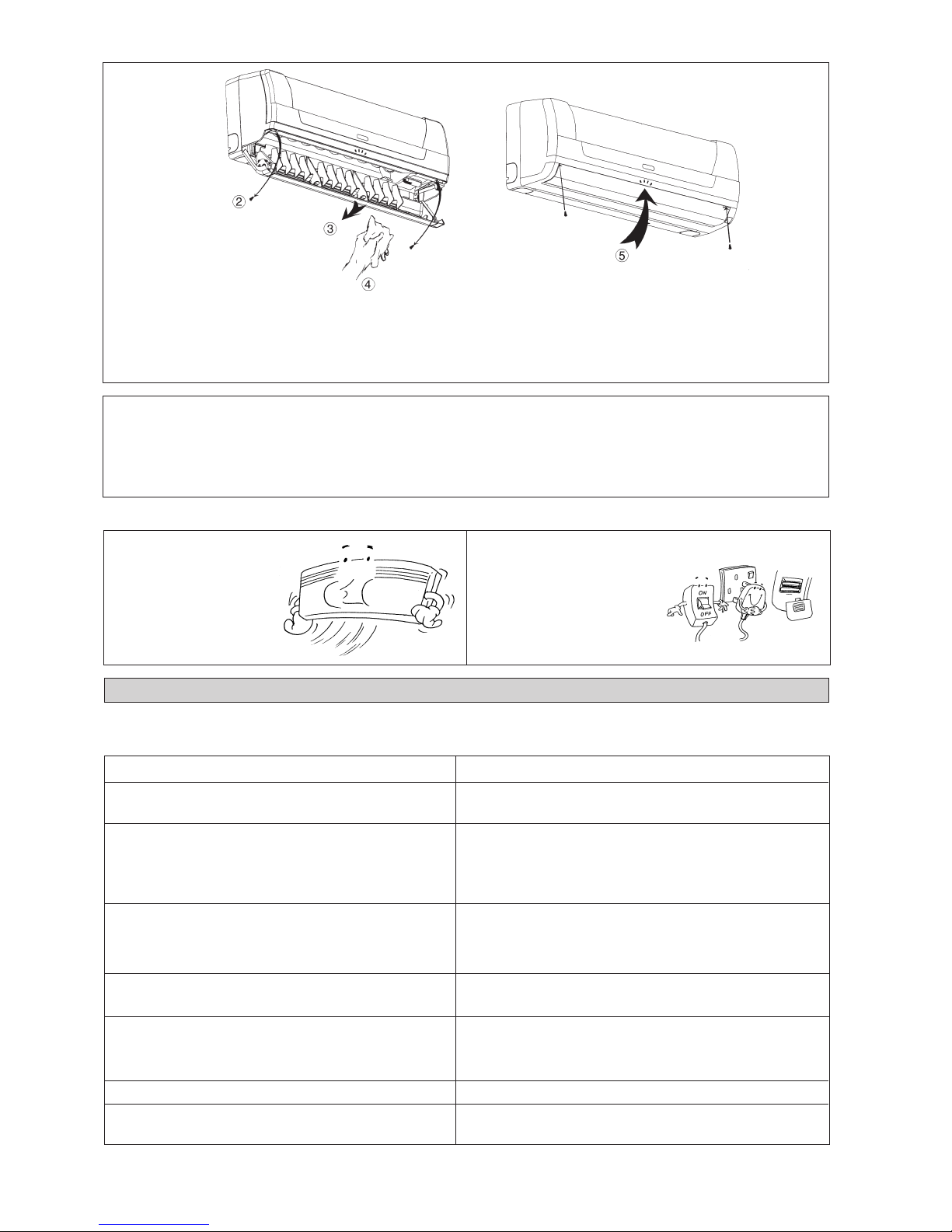

- Service and Maintenance page 5
- Troubleshooting page 6
2

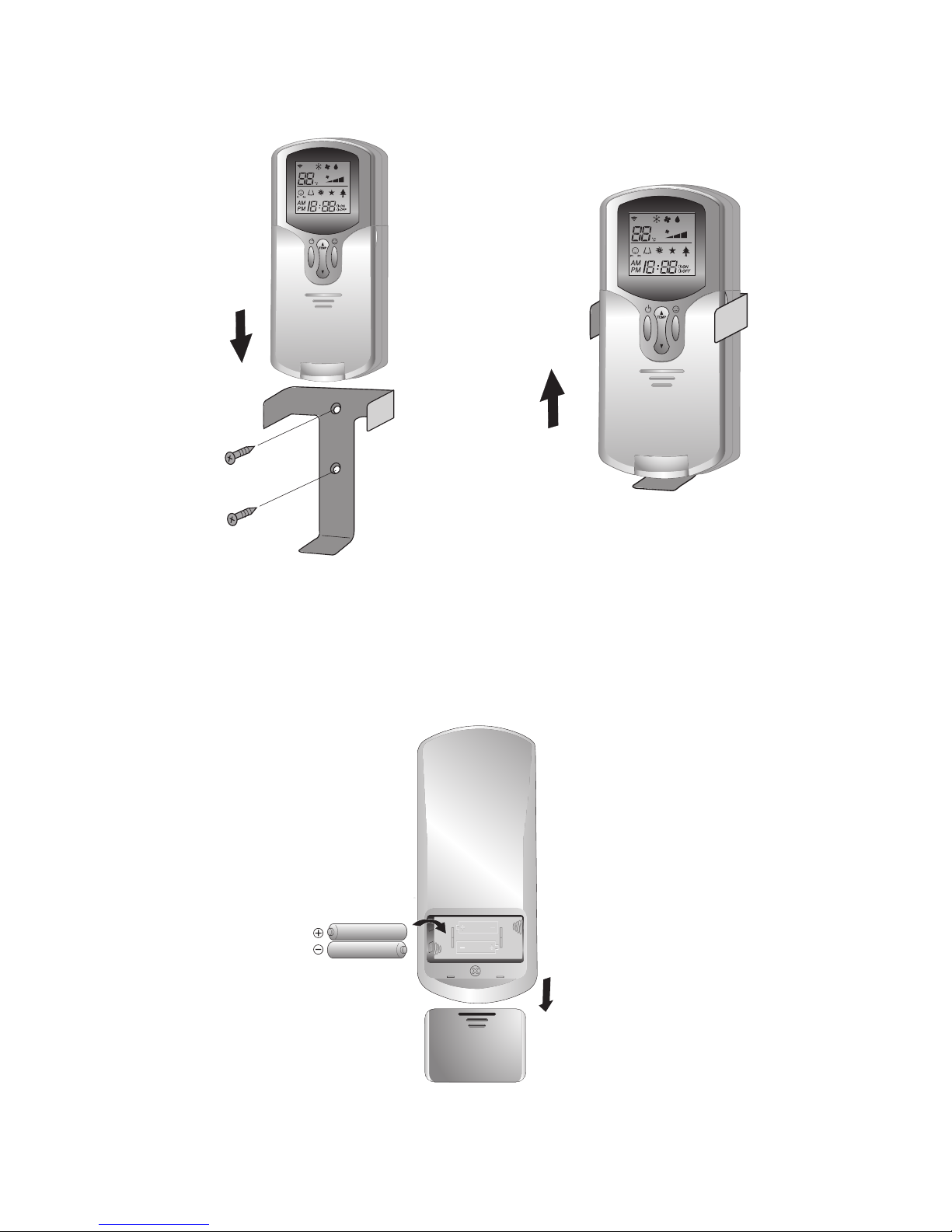

G12 Remote Controller Indication
Part No.: A08019019719 OM-G12-ACSON
Key Function
RECALL
PROGRAM
CLOCK
REAL TIME
CLOCK
(RTC)
Actions
PRESS ONCE for P1 & TWICE FOR P2
PRESS & HOLD BUTTON for 3s to
INITATE PERSONALISED SETTING
SELECT P1 OR P2
SET INDIVIDUAL SETTINGS eg.
MODE, SET TEMP or FAN SPEED
LEAVE for 4s to SAVE
PRESS & HOLD BUTTON for 2s to
ACTIVATE
PRESS '+' or '-' to DESIRED TIME
LEAVE for 4s to SAVE
1
2
4
13
9
12
11
5
10
7
6
14
8
3
