Acson AWM 07G, AWM 09G, AWM 10G, AWM 15G, AWM 20G user guide manual

Models:

AWM 07G/GR
AWM 09G/GR
AWM 10G/GR
AWM 15G/GR
AWM 20G/GR
AWM 25G/GR
AWM 301/301R

A5WM 07G/GR
A5WM 09G/GR
A5WM 10G/GR
A5WM 15G/GR
A5WM 20G/GR
A5WM 25G/GR
A5WM 311/301R

AWM - G - 2007

Wall Mounted Split Systems

TABLE OF CONTENTS

1. NOMENECLATURE ................................................................................................... 1

- PRODUCT LINE-UP ............................................................................................ 3

2. FEATURES ................................................................................................................ 7

3. APPLICATION INFORMATION

- OPERATING RANGE .......................................................................................... 9

- REFRIGERANT CIRCUIT DIAGRAMS .............................................................. 10

- CONTROLLERS ................................................................................................. 17

- INSTALLATION .................................................................................................. 25

4. SOUND DATA ........................................................................................................... 39

5. ENGINEERING AND PHYSICAL DATA

- GENERAL DATA ................................................................................................ 43

- COMPONENTS DATA ........................................................................................ 59

6. PERFORMANCE DATA ............................................................................................ 75

- PERFORMANCE TABLES ................................................................................. 79

7. DIMENSIONAL DATA............................................................................................... 106

8. ELECTRICAL DATA ................................................................................................. 110

9. WIRING DIAGRAMS ................................................................................................ 118

10. SERVICING AND MAINTENANCE ........................................................................ 127

11. TROUBLESHOOTING ........................................................................................... 129

12. EXPLODED VIEW & PARTS LIST ........................................................................ 134

1. NOMENCLATURE

Indoor

Others

A : First issue

Grille Type

A : Grille A

Air Treatment Devices & Control

I : Negative Ion with wireless controller
N : NTP with wireless controller

X : Oxygen unit

Market Region

C : Export with CE mark
U : UTL Spec.

Electrical

A : 220 - 240V/1Ph/50Hz

A

WM 10 G

R

A

C A-

I A

Model Type

R : Heatpump
Omitted if Cooling Only

Series

G : G series

Capacity

10 : 9,500 Btu/h

Model Name

WM : Wall Mounted

Refrigerant

5 : R410A
Omitted if R22

Brand

A : ACSON

1

Outdoor

Others

A : First issue

Specification Variation

O : Standard Unit I : Gold Fins
B : With Contactor L : Long Piping Unit
G : Low Ambient Kit S : With H/L Pressure Switch
H : High Ambient Kit X : Oxygen Unit

Compressor

P : Matsushita Rotary T : Toshiba Rotary
M : Mitsubishi Rotary S : Samsung Rotary

Market Region

C : Export with CE marking
E : Export without marking

U : ETL Spec.

Electrical

A : 220 - 240V/1Ph/50Hz

A LC 10 C

5 P O

R

A

C A-

Model Type

R : Heatpump
Omitted if Cooling Only

Series

C : C series

Capacity

10 : 9,500 Btu/h

Model Name

LC : Single Split Condensing Unit

Refrigerant

5 : R410A
Omitted if R22 Model

Brand

A : ACSON

2

Product Line Up

INDOOR UNIT
AWM-G SERIES PRODUCT LINE UP

CLASSIFICATIONS

Handset

PCB Air Purification

Grille

Marking

AWM

Nomenclature

07GACIADX X XX XX

09GACIACX X XX XX

10GACIACX X XX XX

15GACIACX X XX XX

20GACIACX X XX XX

Cooling Model

25GACIACX X XX XX

30FAFDBXXXX XX

07GRACIACX X XX XX

09GRACIACX X XX XX

10GRACIACX X XX XX

15GRACIACX X XX XX

20GRACIACX X XX XX

25GRACIACX X XX XX

Heatpump Model

30FR AFCA X X X X X

G12

L2.0

G12 (W/O Turbo mode)

U1.5

D2.0

Ionizer Filter

Negative Ion

Saranet Filter

O2 Theraphy

Non-Thermal Plasma (NTP)

Nano Technology Air Filteration

CE

A

Orifice Kit

3

INDOOR UNIT
A5WM-G SERIES PRODUCT LINE UP

CLASSIFICATIONS

Handset

PCB Air Purification

A5WM

Nomenclature

07G ACIAC X X X X X X

09G ACIAC X X X X X X

10G ACIAC X X X X X X

15G ACIAC X X X X X X

20G ACIAC X X X X X X

Cooling ModelHeatpump Model

25G ACIAC X X X X X X

311 AFCA X X X X X X

07GR ACIAC X X X X X X

09GR ACIAC X X X X X X

10GR ACIAC X X X X X X

15GR ACIAC X X X X X X

20GR ACIAC X X X X X X

25GR ACIAC X X X X X X

301R AFCA X X X X X X

G12

G12 (W/O Turbo mode)

L2.0

D2.0

Ionizer Filter

Saranet Filter

Negative Ion

Non-Thermal Plasma (NTP)

Nano Technology Air Filteration

Marking

CE

Grille

B

4

OUTDOOR UNIT
ALC PRODUCT LINE UP

CLASSIFICATIONS

ALC

Cooling Model

Heatpump Model

07C

09C

10C

15C

18C

20C

25C

18CR

20CR

25CR

Refrigerant Ctrl + Fin

Nomenclature

3/8" Coil

7mm Coil

Cap. Tube

ACPOE X X X X X

ACPIEXXXXXX

ACPOD X X X X

ACPIDXXX XX

ACPOB X X X X

ACPIBXXX XX

ACPOD X X X X

ACPIDXXX XX

ATPOD X X X X X X

ACPOD X X X X

ACPIDXXX XX

ACPBD X X X X X X X

ACPOD X X X X

ACPIDXXX XX

ACPBD X X X X X X X

ATPOD X X X X X

ACPBD X X X X X

ACPOD X X X X

ACPIDXXX XX

ACPOD X X X X

ACPIDXXX XX

ACPBD X X X X X X X

ACPOD X X X X

ACPIDXXX XX

ACPBD X X X X X X X

ACPBD X X X X X

ACPOD X X X X

ACPIDXXX XX

Safety

Devices

Compressor

Gold Fin

W/O Contactor

Contactor

Rotary Comp.

Marking Market

ETL

Thai

CE Marking

W/O Marking

HK

Singapore

5

OUTDOOR UNIT

g

A5LC PRODUCT LINE UP

A5LC

Nomenclature

07C ACPOE X X X

10C ACPOB X X X

15C ACPOC X X X

Refri

erant

Ctrl + Fin

Cap. Tube

Safety Devices

Gold Fin

Contactor

CLASSIFICATIONS

Compressor

HP

LP

Marking Others

Mat. Rotary

CE Marking

Drain Elbow

20C ACPOC X X X

25C ACPOC X X X

Cooling Model

28C ACPOA X X X

07CR ACPOE X X X X

10CR ACPOB X X X X

15CR ACPOC X X X X

20CR ACPOC X X X X

25CR ACPOC X X X X

Heatpump Model

28CR ACPOA X X X X

6

2. FEATURES

• EASY INSTALLATION

- The wall mounted fan coil unit is easily installed because of its compact size, slimness and light weight.

- Slim and short outdoor unit can be easily installed even in a narrow balcony and passageway and yet
have a stable profile.

• SPACE SAVING

- No space is required on either floor or ceiling. This newly developed super slim design for wall mounting
maximizes floor space usage and enhances ceiling appearance where ceilings are low.

• QUIET OPERATION

- Cooling comfort is improved by whisper-quiet operation which is achieved by a tangential fan.

• EXCELLENT AIR DISTRIBUTION

- Air discharge direction can be adjusted in four directions, manually or automatically by using LCD
remote control.

- The new double louver design with automatic air swing function fully optimizes the room comfort by
distributing the air evenly to the room.

- The unique skew fan design with larger diameter creates better air flow to the operating environment.

• FACILITATED MAINTENANCE ENSURED

- The new design of air discharge housing whereby the fan blower can be easily accessed by just loosing
two screws on the unit to provides a flexible, faster and easier way to clean up the fan blower and
ionizer.

- Maintenance is easy for electrical components, piping and wiring as these are all easily accessible by
merely removing front plastic panel.

• WIRELESS REMOTE CONTROL

- The compact LCD transmitter is able to operate the air conditioner unit within the distance of 9 meters.

- Fan motor speed can be set at low/medium/high or automatic.

- Sleep mode auto control will gradually increase or decrease the setting temperature to provide a
comfortable surrounding for sleeping.

- Air flow direction can be controlled automatically.

- Room temperature is controlled by electronic thermostat.

- The real time timer allows the air conditioner to be switched On and Off automatically based on user
settings.

- Turbo mode function is available to enables the required set temperature to be achieved in a short time.

- Ionizer or non-thermal plasma is available to create better air quality.

- Personalized Setting allows user to preset and store 2 groups of personal settings (including timer
setting) in the handset.

- Auto random restart is a function whereby when there is power failure occurred during operation, the
unit will automatically restart as the last setting condition once the power is resumed.

••

• MOISTURE REMOVAL

••

- Dry mode with super low indoor fan speed can achieve more affective moisture removal.

- If the room temperature is lower than the set temperature (Cooling mode only), the compressor will cut

out and force on after 9 minutes to remove moisture effectively.

7

• HIGH EFFICIENCY HEAT EXCHANGER

- The compact design of the 3-fold structure heat exchanger provides a large surface are for better and
efficient heat exchange.

- The unique Hydrophilic slit fin has greatly improved the air flow and the contact surfaces with the air thus

to boost the cooling capacity.

• ROTARY COMPRESSOR

- The ever popular rotary compressor is more energy efficient and has a higher output to weight ratio.

• SELF DIAGNOSIS

- This function is able to detect and to diagnose any faults occurring in the system by blinking of the LED

lights.

- Simplify and ease for troubleshooting.

8

3. APPLICATION INFORMATION

g

)

g

)

g

)

Operating Range

Ensure the operating temperature is in allowable range.

Cooling only

Coolin

Heatpump

54

46

35

19

Outdoor temp. (°CDB)

0

HIGH AMBIENT
UNIT

STD

LOW AMBIENT
KIT

15

24

Indoor temp. (°CWB

Heatin

Caution :

The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.

Coolin

18

54

46

35

HIGH AMBIENT
UNIT

STD

6

Outdoor temp. (°CWB)

-9

STD

15 21

Indoor temp. (°CDB

27

19

Outdoor temp. (°CDB)

0

LOW AMBIENT
KIT

15

24

Indoor temp. (°CWB

9

Refrigerant Circuit Diagram

Cooling Only Models

MODEL : AWM 07G - ALC 07C A5WM 07G - A5LC 07C

AWM 09G - ALC 09C A5WM 09G - A5LC 10C
AWM 10G - ALC 10C A5WM 10G - A5LC 10C
AWM 15G - ALC 15C A5WM 15G - A5LC 15C

10

Cooling Only Models

MODEL : AWM 20G - ALC 18C A5WM 20G - A5LC 20C

AWM 20G - ALC 20C A5WM 25G - A5LC 25C

MODEL : AWM 25G - ALC 25C A5WM 31F - A5LC 28C

11

Cooling Only Models

MODEL : AWM 30F - ALC 28C

12

Heatpump Models

MODEL : AWM 09GR - ALC 09CR A5WM 07GR - A5LC 07CR

MODEL : AWM 10GR - ALC 10CR

A5WM 09GR - A5LC 10CR A5WM 10GR - A5LC 10CR

13

Heatpump Models

MODEL : AWM 15GR - ALC 15CR A5WM 15GR - A5LC 15CR

14

Heatpump Models

MODEL : AWM 20GR - ALC 20CR A5WM 20GR - A5LC 20CR

A5WM 25GR - A5LC 25CR

MODEL : AWM 25GR - ALC 25CR

15

Heatpump Models

MODEL : AWM 30FR - ALC 28CR A5WM 30FR - A5LC 28CR

16

Controllers

G12 Remote Controller

Temperature Setting

• To set the desired room
temperature, press the button to
increase or decrease the set
temperature.

• The temperature setting range is
from 16°C to 30°C

• Press both buttons simultaneously
to toggle the temperature setting
between °C and °F

On/Off Button

• Press Once to start the air
conditioner

• Press again to stop the unit

ON Timer Setting

• Press the SET button will activate
the on timer function.

• Set the desired on time by pressing
the SET button continuously.

• Press the CLR button to cancel the
off timer setting

Personalised Setting

• Press and hold the button for 3s to
initiate personalized setting.

• Set the individual setting e.g.
MODE, SET TEMP or FAN SPEED
and leave for 4s to save

• 2 groups of settings are allowed to
stored in the handset

OFF Timer Setting

• Press the SET button will activate
the off timer function.

• Set the desired off time by
pressing the SET button
continuously.

• Press the CLR button to cancel the
off timer setting

Clock Time Setting

• Press button + or - to increase or
decrease the clock time.

Fan Speed Selection

• Press the button until the desired
fan speed is achieved.

Turbo Mode

• Press the TURBO button to
achieve the required set
temperature in a short time.

Automatic Air Awing

• Press the SWING button to activate
the automatic air swing function.

• To distribute the air to a specific
direction, press the SWING button
and wait until the louver move to
the desired direction and press the
button once again.

Ionizer

• Press the button to activate the
negative Ion function, which will
refresh the indoor air effectively.

Sleep Mode

• Press the button to activate sleep
mode. This function is available
under COOL, HEAT & AUTO
mode.

• When it is activated in COOL
mode, the set temperature will be
increased 0.5°C after 30mins, 1°C
after 1 hour and 2°C after 2 hours.

• When it is activated in HEAT
mode, the set temperature will be
decreased 1°C after 30mins, 2°C
after 1 hour and 3°C after 2 hours.

Operating Mode

• Press the MODE button to select
the type of operating mode.

• For Cooling only unit, the available
modes are: COOL, DRY & FAN.

• For Heatpump unit, the available
modes are: AUTO, COOL, DRY,
FAN & HEAT.

17

Indicator Lights

AWM / A5WM - G SERIES
IR signal receiver

When there is infrared remote control operating
signal, the signal receiver on indoor unit will made a
(beep) for signal acceptance confirmation.

Cooling unit / Heatpump unit

The table below shows the LED indicator light for air
conditioner unit under normal operation and fault
condition. The LED indicator lights are located at the
middle of the air conditioner unit.

The heat pump units is equipped with an “auto” mode,
whereby the unit will provide reasonable room
temperature by switching the unit automatically to
either “cool” mode or “heat” mode, according to the
temperature setting set by the user.

LED Indicator Lights for Cooling Unit / Heatpump
Unit

LED Indicator Lights : Normal Operation And Faulty Indication Table

COOL/HEAT

(GREEN/RED)

/

/



/

/



Green



Red



Red



Green











1 time

3 times



/

/

/

/



/

/

Normal Operation / Fault Indication Action

Cool mode

Heat mode

Auto mode in Heating operation

Auto mode in Cooling operation

Timer on

Sleep mode on

Ionizer on

Fan mode on

Dry mode on

Room air sensor contact Loose / Short

Outdoor coil sensor open

Indoor coil sensor open

Call your dealer

Call your dealer

Call your dealer

-

-

-

-

-

-

-

-

 - ON

Red

Compressor overload /

1 time

3 times

5 times

6 times

Indoor coil sensor short /
Outdoor coil sensor short

Defrost operation

Gas leak

Outdoor coil sensor exist (MS mode)

Hardware error (tact switch pin short)

/ - ON or OFF

Call your dealer

-

Call your dealer

Call your dealer

Call your dealer

- Blinking

18

AWM 30F / 30FR , A5WM 31F / 30FR

LED Indicator Lights For Cooling Unit

LED Indicator Lights : Normal Operation And Fault Conditions For Cooling Unit

Operation / Fault Indication Action

Power Dry Timer Sleep







Continuously

once every 2 sec.

twice every 2 sec.

3 times every 2 sec.

 - ON



/





Timer on

Sleep mode on

Dry mode on

Frost prevention

Room air sensor contact loose / short

Indoor coil sensor contact loose / short

Sensor contact problem, compressor overload
protection trip or gas leak

/ - ON or OFF

-

-

-

Clean the filter and switch to high fan

Call your dealer

Call your dealer

Call your dealer

- Blinking

19

LED Indicator Lights For Heatpump Unit

Cooling mode Dry mode Heat/Fan mode

(red/green)

Sleep mode

LED Indicator Lights : Normal Operation And Fault Conditions For Cooling Unit

Normal Operation / Fault Indication Action

Cool Dry Fan Heat













Sleep



/

/



/

/



Cooling mode

Dry mode

Fan mode

Heat mode

Auto mode in heating operation

Auto mode in cooling operation

Defrost operation

-

-

-

-

-

-

-

 - ON

/ - ON or OFF

Compressor overload protection

Indoor coil sensor contact loose/short

Outdoor coil sensor contact loose/short

Room air sensor contact loose/short

If the system is in cool mode or heat mode (with the sleep function off), the
sensor may have a contact problem, compressor overload protection trip or
gas leak.

- Blinking

Call your dealer

Call your dealer

Call your dealer

Call your dealer

20

30s

30s

Controller Specifications

(A) 3 HOT SYSTEM (HEATING CYCLE)

a) Hot start
At the beginning of heating operation (cold start, after defrosting or thermostat resumes operation) the indoor
fan operation is controlled in accordance with the temperature of the indoor heat exchanger to send warm air
from the start.

18°C

b) Hot keep (Apply to MWM030FR)
After thermostat cut out, the indoor fan operation is controlled in accordance with the indoor heat exchanger
temperature to utilize the extra heat and preserve indoor comfort.

The indoor fan can be switched to ON, OFF, INTERVAL by setting the slide switch shown in the diagram. This
slide switch is located at the front frame cover.

HOT KEEP

OFF

INTERVAL

ON

Slide Switch

Note 1 : Fan ON (default)

18°C

Note 3 : Interval

COMP
& OF

INDOOR
FAN

RUN

SET AIR FLOW

ON/OFF

Note 2: Fan OFF

STOP

LOW FAN

LOW FAN

FAN OFF

120s

21

Hot Keep (Apply to AWM-GR)

After thermostat cut out, the indoor fan operation is controlled in accordance with the indoor heat exchanger
temperature to utilize the extra heat and preserve indoor comfort.

The indoor fan can be switched to ON, OFF by setting the slide switch shown in the diagram. This slide switch is
located at the front frame cover.

Multisplit Model Selection

The indoor unit can be changed to multisplit model by just selecting MS through the slide switch.

c) Hot spurt
During cold start, the set temperature of controller is increased by 2oC to stabilize the room temperature quickly.

22

(B) TURBO MODE (APPLY TO AWM-GR)

TURBO function is available in COOL, HEAT and DRY modes only. When TURBO function is set, working
temperature for cooling cycle is decreased by 2oC, working temperature for heating cycle is increased by 2oC.
The indoor fan will force to HIGH fan. After 20 minutes, this function will clear automatically, no more offset
temperature for set temperature and indoor fan will restore. Cold start will be overridden when TURBO function
is activated. If TURBO and SLEEP are activated at the same time, the SLEEP mode timer will be reset, it will
resume after TURBO function is cleared.

TURBO MODE

Temperature °C

20 min 30 min

CONVENTIONAL

(C) OVERLOAD PREVENTION IN HEATING OPERATION

During heating operation, if the room temperature and outdoor temperature are high, or when the indoor air
filter is choked, the condensing pressure will increase rapidly. To prevent the burn out of compressor, the M.
C. controller will stop the operation of the air conditioner under this condition.

COMP.,
OUTDOOR FAN &
4-WAY VALVE

• For manual reset type, the ON / OFF button must be pressed to reset the system.

(D) OVERLOAD PROTECTION IN COOLING OPERATION

When outdoor and indoor air temperature raise beyond the operation limit, or when the outdoor coil choked
with dirt, the M.C. controller detects abnormal increase in condensing temperature. It will stop the operation

to prevent compressor burn out.

23

(E) FROST PREVENTION AND FILTER CHECK

In order to prevent the freezing of indoor coil, the controller will operate as follow.

1°C

(F) AUTO RANDOM RESTART

When power resumed, the unit will automatically restart and operate at the previous setting as before power
failure occurred.

24

Installation

Installation Diagram

25

CAUTION: Before installing the unit, ensure that the power supply matches the power requirement of the air

conditioner.

1) SELECTION OF LOCATION AND SPACE

(A) INDOOR UNIT

Install the fan coil (indoor) unit at a location with the following requirements

• Location is suitable for wiring, piping and drainage.

• No obstruction of air flow into and out of unit where cooler air can be evenly distributed.(See fig. 1)

• Ensure that air discharge is not short circuited with air intake.

• Ensure that wall is sufficiently strong, rigid, flat, perpendicular and vibration free.

• Where air filter cassette can be slided in or out easily.

• Where there is no danger of flammable gases.

• Where there is no direct sunlight on unit.

• Also to take into consideration a place for the installation of the Wireless LCD Remote Controller.

Fig. 1

26

CAUTION : Do not install unit near the door way

because excessive fresh air may cause
panel condensation on the unit.

(B) OUTDOOR UNIT

As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum
cooling capacity, the location selected for outdoor unit should fulfill the following requirements :

• Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit cannot be
drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient space for maintenance around the

.

unit

• Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air intake or
discharge.

• The location must be well ventilated, so that the unit can draw in and distribute plenty of air thus lowering the condensing
temperature.

• A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.

• A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.

• The location must not be susceptible to dust or oil mist.

INSTALLATION CLEARANCE

• Outdoor units must be installed such that there is no short circuit of the hot discharge air or obstruction to smooth air
flow. Select the coolest possible place where intake air should not be hotter than the outside temperature (max. 45°C)

ALL MODELS A B C D

Minimum Distance 300 mm 1000 mm 300 mm 500 mm

CAUTION : If the condensing unit is operated in an atmosphere containing oils(including machine oils),
salt(coastal area), sulphide gas(near hot spring, oil refinery plant), such substances may lead to failure of the

unit.

27

CONDENSED WATER DISPOSAL OF OUTDOOR UNIT (HEATPUMP UNIT ONLY)

• There are 2 holes on the base of outdoor unit for condensed water to flow out. Insert the drain elbow to

one of the holes.

• To install the drain elbow, first insert one portion of the hook to the base (portion A), then pull the drain

elbow in the direction shown by the arrow while inserting the other portion to the base. After installation,

check to ensure that the drain elbow clings to base firmly.

• If the unit is installed in a snowy and chilly area, condensed water may freeze in the base. In such case,

please remove plug at the bottom of unit to smooth the drainage.

A

28

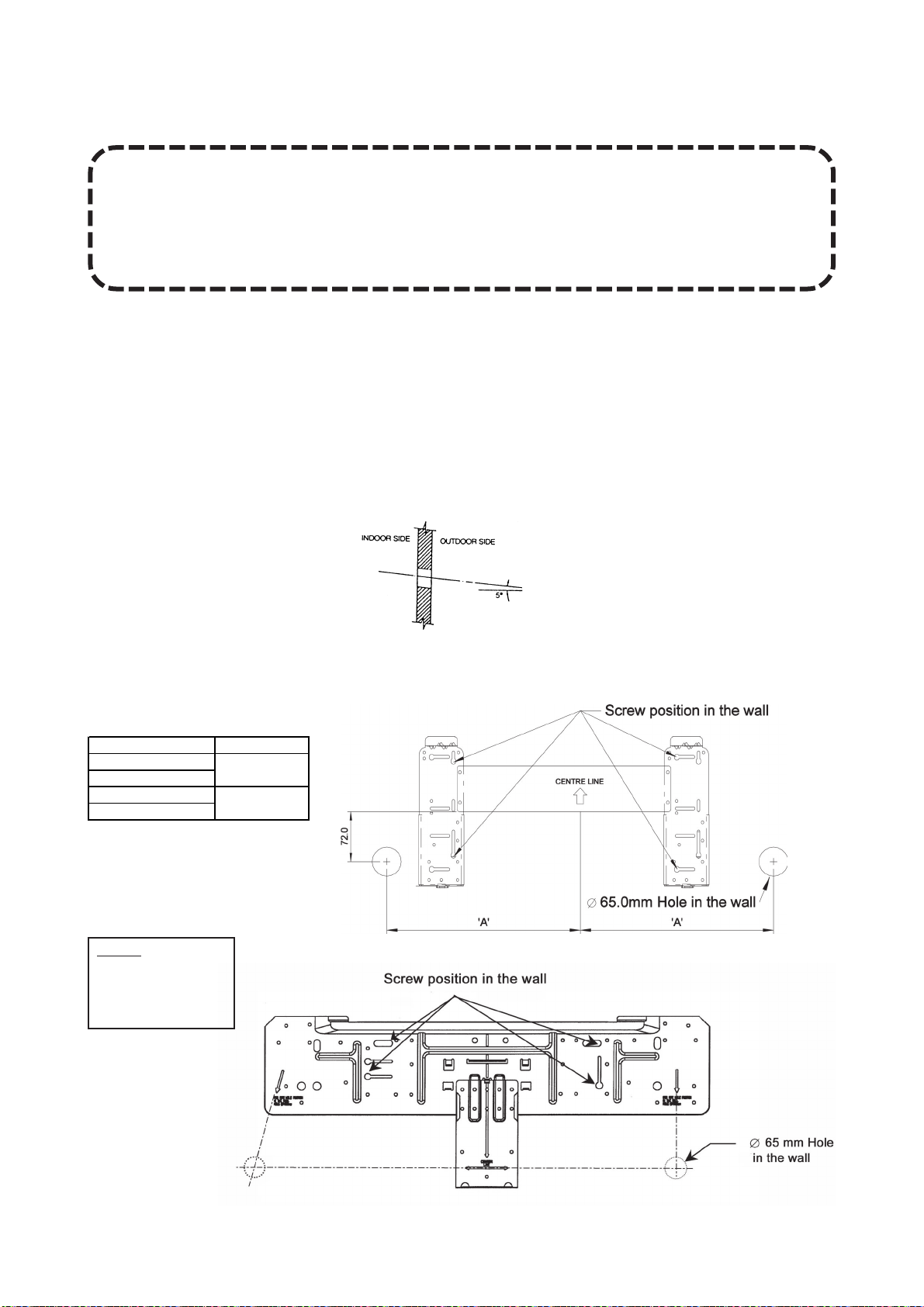

2) DRILLING HOLES AND MOUNTING INSTALLATION PLATE

CAUTION:

i) Please check the unit weight for each model. Always ensure that the wall is sufficiently strong to withstand

the weight. If not, it is necessary to reinforce the wall with plate, beams or pillars.

ii) The unit cannot be directly fixed onto the wall or the likes. In all cases, the installation plate provided MUST

be used.

• Paste the installation plan provided on the desired location on the wall and mark the holes location accordingly.

• Ensure that the minimum maintenance and servicing space at the top, left and right side of the unit is

reserved.

• Ensure also the levelness of the installation plate.

• Drill the screw mounting holes (minimum 4 screws are required).

• Drill the pipe hole at the location as per plan. (This is only applicable for rear piping outlet installation).

Note: The hole should be drilled slightly lower at outdoor side as per figure below:--

• Fix the installation plate firmly to wall, without tilting to left or right. Use a plumb line, if available.

MODEL DIMENSION 'A'

AWM 07/09 G/GR

A5WM 07/09 G/GR

AWM 10/15 G/GR

A5WM 10/15 G/GR

MODEL
AWM 20 / 25 G/GR
A5WM 20 / 25 G/GR
AWM 30F / 30FR
A5WM 31F / 30FR

350.0 mm

400.0 mm

29

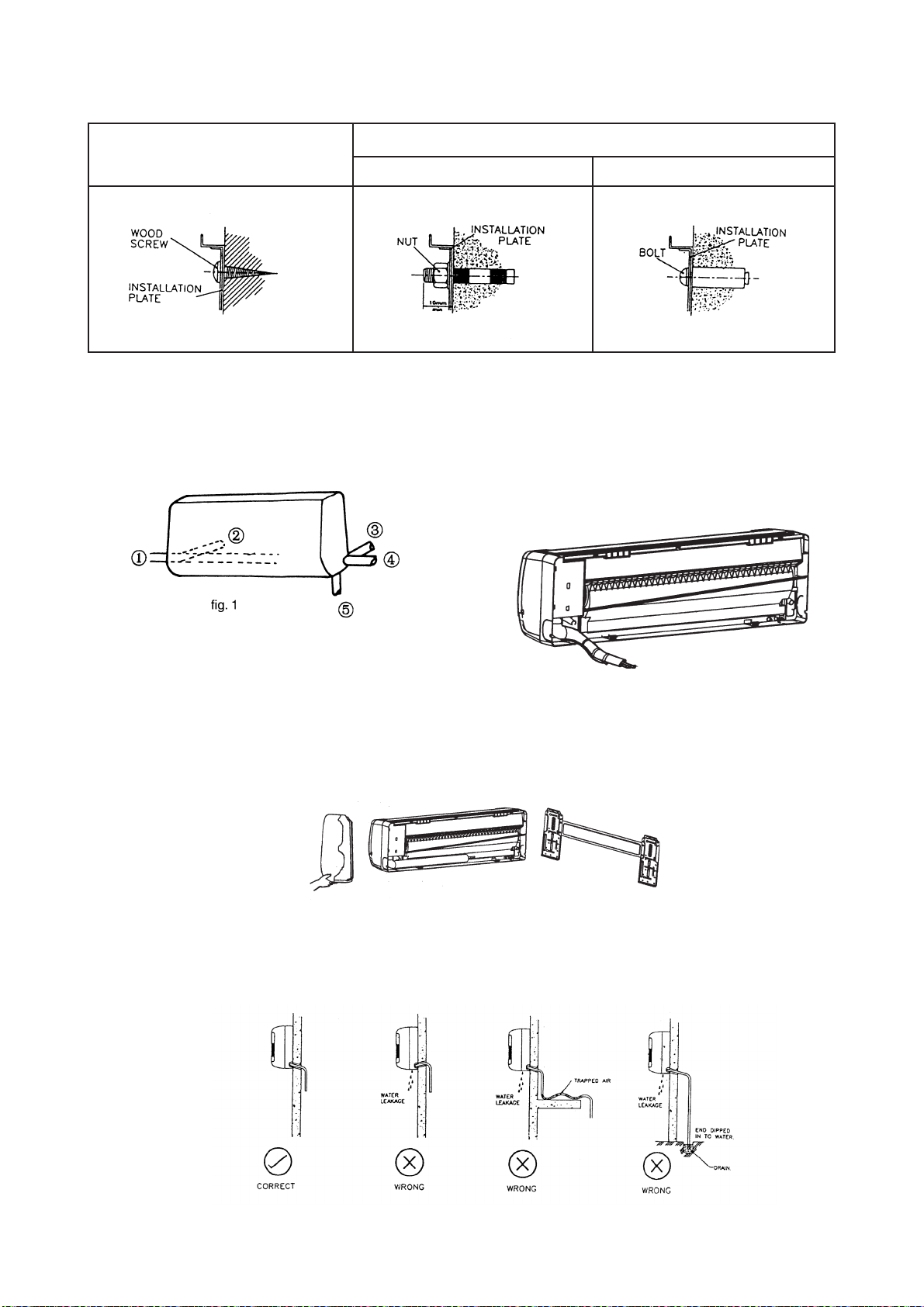

• Fixing method:-

WOODEN

FRAME WALL

3) INDOOR UNIT PREPARATION

• The refrigerant piping can be routed to the unit in 5

direction, by using the cut outs in the unit casing.
(See fig. 1)

REINFORCED CONCRETE BUILDING

NUT ANCHOR BOLT ANCHOR

• Carefully bend the pipes to the required position to

align with the hole. For right hand and rear side draw
out, hold the bottom of the piping and fix direction
before shaping it to the desired position (See fig. 2).
The condensation drain hose should be taped to the
pipes with vinyl tape. The electrical cable can also be
taped to the pipes.

fig. 2

4) MOUNTING INDOOR UNIT

Hook the indoor unit onto the upper portion of installation plate. (Engage the 2 hooks of rear top of the indoor unit with
the upper edge of the installation plate). Ensure the hooks are properly seated on the installation plate by moving in
left and right.

5) WATER DRAINAGE PIPING

The indoor drain pipe must be downward gradient for smooth drainage. Avoid situation as shown in figure
below.

30

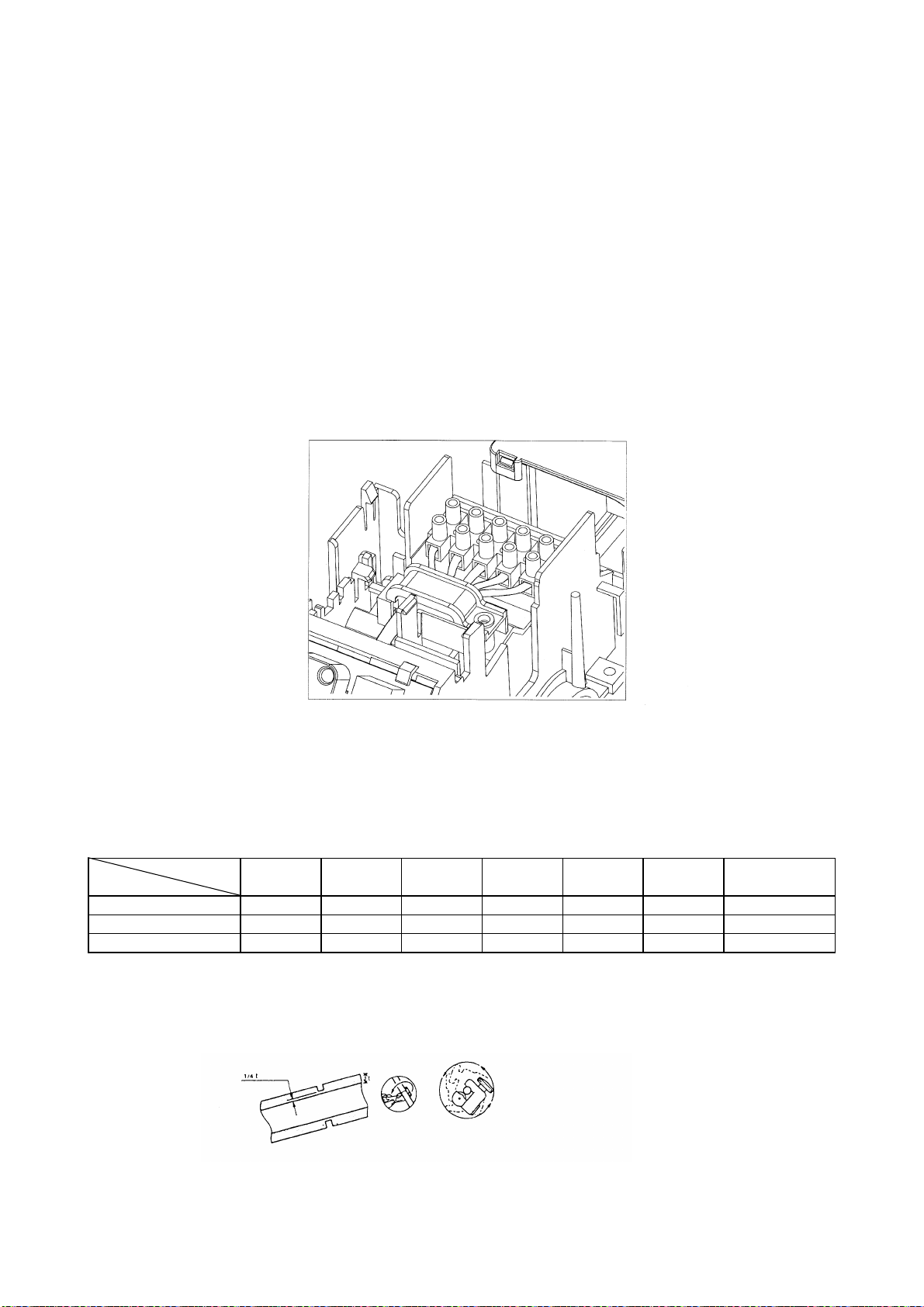

6) WIRING

ELECTRICAL CONNECTION

• Wiring regulation on wire diameters differ from country to country. Please refer to your LOCAL ELECTRICAL
CODES for field wiring rules. Be sure that installation comply with such rules and regulations.

GENERAL PRECAUTIONS

• Ensure that the rated voltage of the unit corresponds to the name plate before carrying out proper wiring

according to the wiring diagram.

• Provide a power outlet to be used exclusively for each unit. A power supply disconnect and a circuit breaker

for over current protection should be provided in the exclusive line.

• The unit must be GROUNDED to prevent possible hazards due to insulation failures.

• All wiring must be firmly connected.

• All wiring must not touch the hot refrigerant piping, compressor or any moving parts of fan motors.

• The field wires from the indoor unit must be clamped on the wire clamp as per shown in the figure.

7) REFRIGERANT PIPING

MAXIMUM PIPE LENGTH AND MAXIMUM NUMBER OF BENDS

Always choose the shortest path for refrigerant piping and follow the recommendations as tabulated below:

Model

AWM/A5W M

Data

Max. Length, L (m) 12 12 12 12 15 15 35

Max. Elevation, H (m) 5 5 5 5 8 8 15

Max. No. of Bends 10 10 10 10 10 10 10

07G/GR

AWM 09G/GR

AWM/A5WM

10G/GR

AWM/A5W M

15G/GR

AWM/A5W M

20G/GR

AWM/A5WM

25G/GR

A5WM 311/301R

AWM 301/R

FLARE CONNECTION

• Cut the pipe stages by stages, advancing the blade of pipe cutter slowly.

31

• Remove burr with the burr remover. Hold the flaring end down to prevent burrs from dropping inside pipe.

• The exact length of pipe protruding from the face of the flare die is determined by the flaring tool. The table shows

the use of an imperial die and riged die.

PIPE ∅, D (mm)

A(mm)

IMPERIAL DIE RIGED DIE

6.35 (1/4”) 1.3 0.7

9.52 (3/8”) 1.6 1

12.7 (1/2”) 1.9 1.3

15.88 (5/8”) 2.2 1.7

Fix the pipe firmly on the flare die. Match the centers of both the flare die and the flaring punch, and tighten
flaring punch fully.

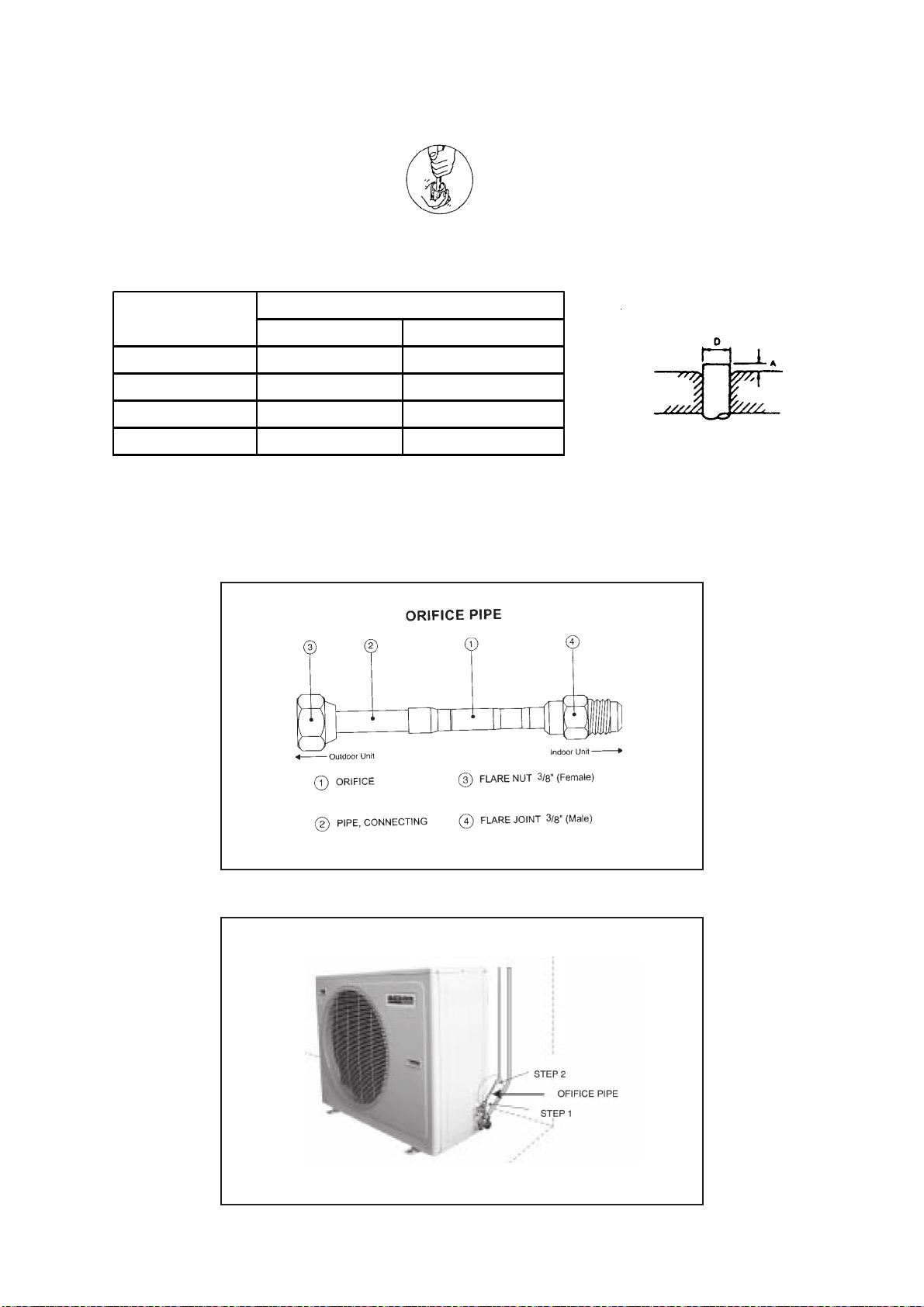

8) INSTALLATION OF SEPARATE ORIFICE KIT AT OUTDOOR

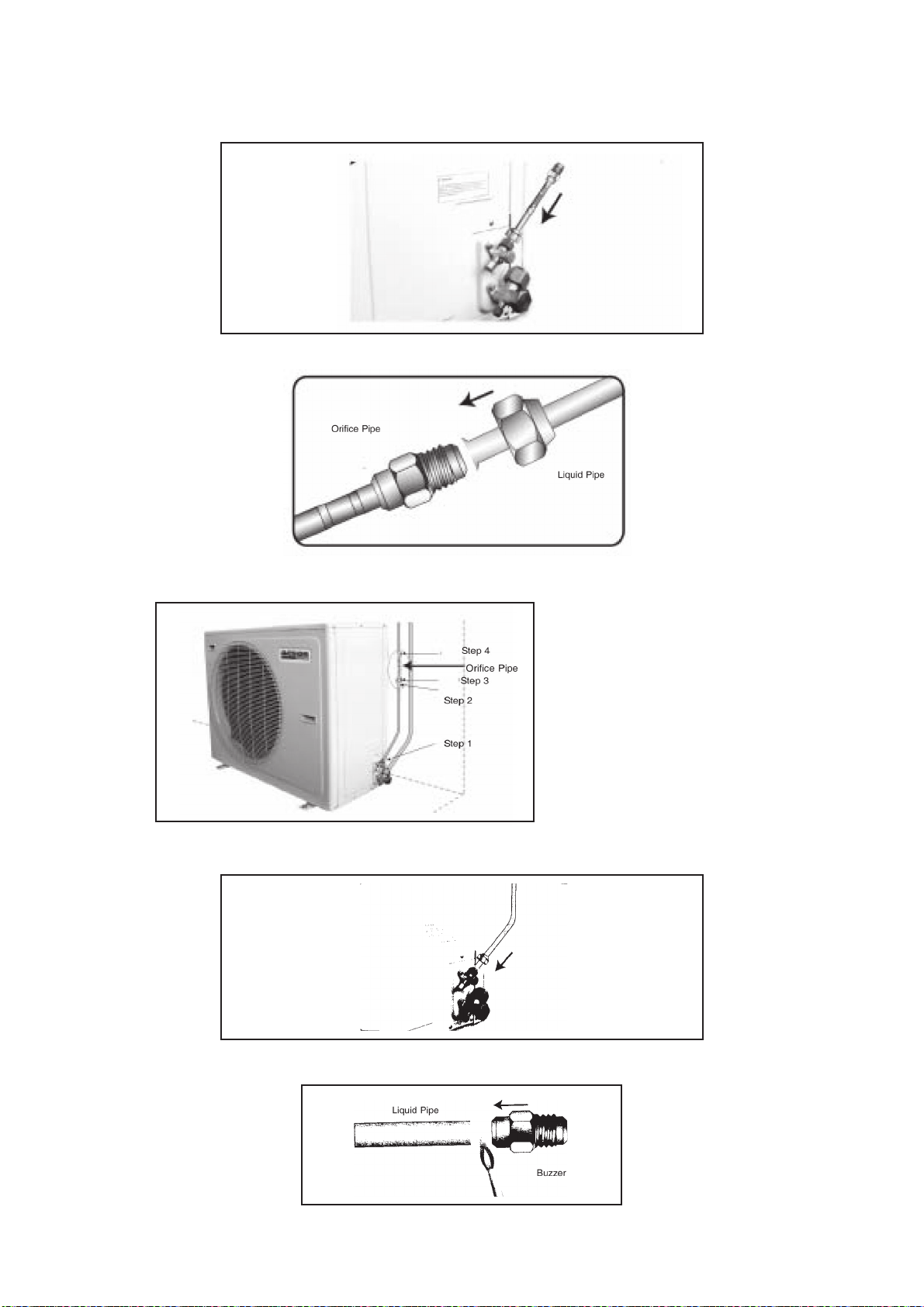

i) Outdoor Unit Installation Space Is Wide Enough

32

Steps :

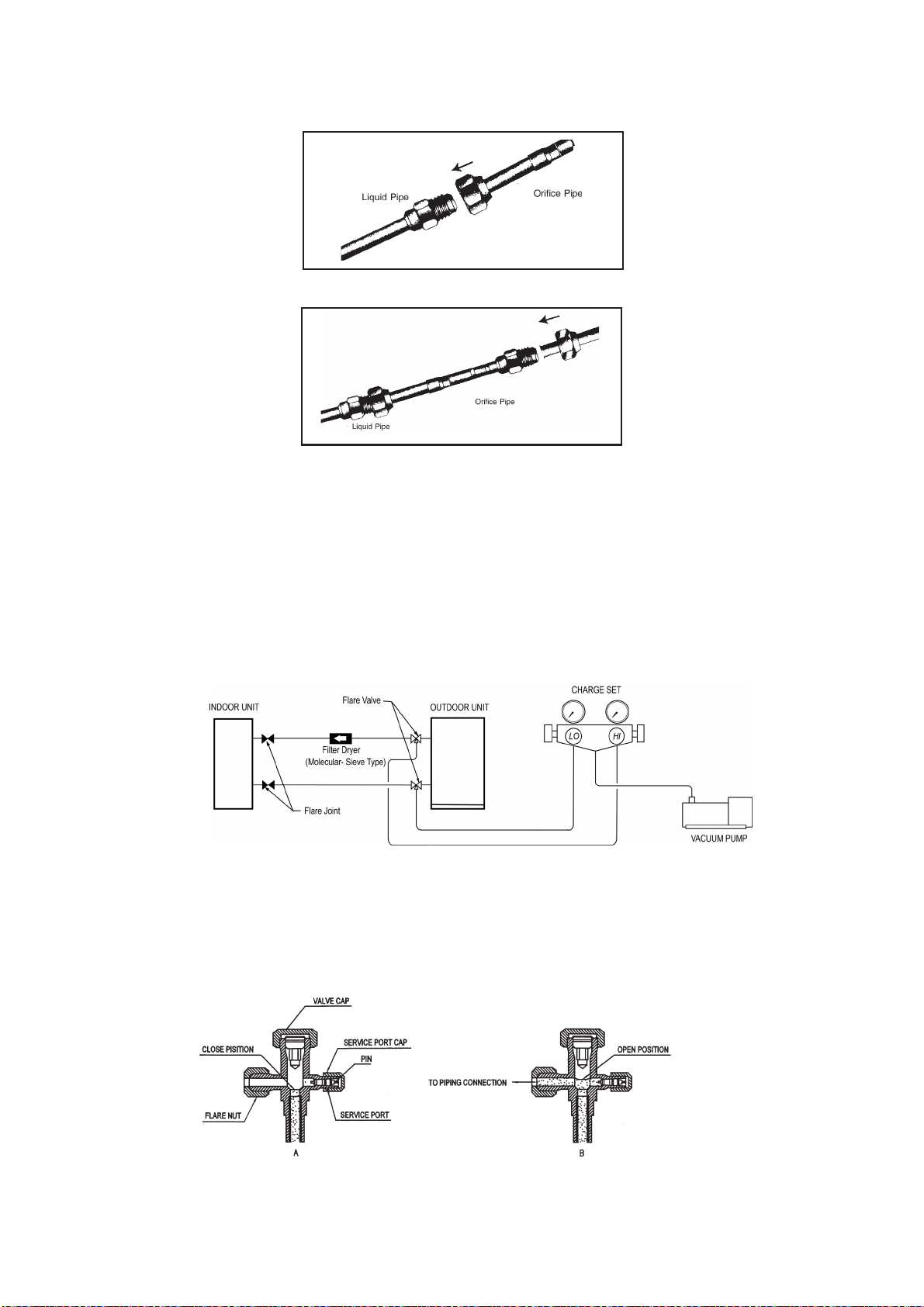

a) Directly connect the “Female” nut of orifice pipe to the liquid pipe.

b) Flare the liquid pipe and connect it to the “Male” joint of the orifice pipe.

ii) Outdoor Installation Space Is Limited

Steps :
a) Flare the liquid pipe and connect it to the liquid valve.

If the orifice pipe can not be connected
directly to the liquid valve due to
limitation space, it can be connected
between the liquid pipes.

b) Braze an addition “Male” joint to the liquid pipe.

33

c) Connect the “Female” nut of the orifice pipe to the “Male” joint.

d) Flare another liquid pipe and connect it to the “Male”joint of the orifice pipe.

9) VACUUMING AND CHARGING

• The precharged outdoor unit does not need any vacuuming or charging. However once it is connected, the
connecting pipe line and the indoor need to be vacuumed before releasing the R22/R407C/R410A from the
outdoor unit.

1) Open the service port core cap.

2) Connect pressure gauge to the service port.

3) Connect the line to vacuum pump. Open the charging manifold valve and turn the pump on. Vacuum to

–0.1 MPa (-760mmHg) or lower. (Evacuation time varies by the pump but averagely in 1 hour).

Note : R407C – Fix filter dryer

R22 - Nil
R410A - Nil

4) After evacuation, unscrew the spindle (diagram B) for the gas to run to indoor unit.

34

5) Decision by low side pressure. Turn compressor on for 10 or 15 min.

Model

AWM 07G
AWM 09G 4.7 ~ 5.5 66.6 ~ 78.6 5.0 ~ 5.8 71.2 ~ 83.1
AWM 10G 4.9 ~ 5.7 70.6 ~ 81.8 5.4 ~ 6.1 76.5 ~ 86.6
AWM 15G
AWM 20G 4.6 ~ 4.8 66 ~ 69 4.9 ~ 5.2 70 ~ 74
AWM 25G 4.1 ~ 4.7 59 ~ 67 4.7 ~ 5.1 67 ~ 73

AWM 301
AWM 07GR 5.2 ~ 5.8 74.8 ~ 82.3 5.6 ~ 6.1 79.3 ~ 87.7
AWM 09GR 4.8 ~ 5.7 68.9 ~ 81.4 5.2 ~ 5.9 73.7 ~ 84.8
AWM 10GR
AWM 15GR 4.9 ~ 6.3 69.4 ~ 89.3 5.0 ~ 6.6 71.7 ~ 93.8
AWM 20GR 4.6 ~ 5.0 66 ~ 72 4.9 ~ 5.4 70 ~ 77
AWM 25GR

AWM 301R

Standard Condition Heavy Load Condition

Indoor 27°C / Outdoor 35°C Indoor 32°C / Outdoor 43°C

kg/cm² psig kg/cm² psig

5.2 ~ 5.7 74.3 ~ 81.0 5.7 ~ 6.2 81.9 ~ 89.1

4.7 ~ 5.2 67.6 ~ 74.7 5.2 ~ 5.6 74.0 ~ 80.4

4.0 ~ 4.8 56.9 ~ 68.3 4.5 ~ 5.0 64.0 ~ 71.1

4.9 ~ 5.9 70.5 ~ 83.7 5.4 ~ 6.3 76.5 ~ 90.7

4.2 ~ 4.8 60 ~ 68 4.7 ~ 5.1 67 ~ 73

4.0 ~ 4.8 56.9 ~ 68.3 4.5 ~ 5.0 64.0 ~ 71.1

A5WM 07G 9.6 ~ 10.0 137.5 ~ 143.2 10.4 ~ 10.7 148.4 ~ 153.1

A5WM 09G/10G

A5WM 15G 8.9 ~ 9.3 127.3 ~ 132.3 9.3 ~ 9.7 133.1 ~ 138.1
A5WM 20G 8.5 ~ 8.8 121 ~ 125 9.3 ~ 9.6 133 ~ 137
A5WM 25G

A5WM 311 8.0 ~ 8.6 114 ~ 122 8.7 ~ 9.4 124 ~ 133

A5WM 07 GR 9.6 ~ 9.9 136.6 ~ 141.0 10.8 ~ 11.1 154.1 ~ 159.1

A5WM 09GR/10GR

A5WM 15 GR 9.0 ~ 9.4 128.0 ~ 134.2 9.4 ~ 9.9 134.6 ~ 142.0
A5WM 20 GR 8.3 ~ 8.8 119 ~ 125 8.8 ~ 9.2 125 ~ 132
A5WM 25 GR

A5WM 301R 8.0 ~ 8.6 114 ~ 122 8.7 ~ 9.4 124 ~ 133

9.4 ~ 9.9 134.9 ~ 141.8 10.2 ~ 10.6 145.4 ~ 152.1

8.0 ~ 8.3 114 ~ 118 9.0 ~ 9.2 128 ~ 132

9.4 ~ 9.9 134.4 ~ 141.9 9.9 ~ 10.5 141.4 ~ 149.7

7.7 ~ 8.3 110 ~ 118 8.4 ~ 9.0 120 ~ 129

Within the value refrigerant cycle normal.
Lower than value refrigerant cycle has some leaks check, amend and top up is necessary.
Extremely low ( ≅ zero) needs evacuation and charge.

Additional Charge

• The refrigerant gas is charged in the outdoor unit and, if the piping length is 7.6m, additional charge of the
refrigerant after vacuuming is not necessary.

• When the piping length is more than 7.6m, please use the table below :

Additional charge in gram.

10m 12m 15m 25m 35m

R22 MODELS

AWM 07G / 09G / 10G / 15G

AWM 20G

AWM 25G

AWM 301

AWM 07GR / 09GR / 10GR / 15GR

AWM 20GR

AWM 25GR

AWM 301R

R410A MODELS

A5WM 07G / 09G / 10G / 15G

A5WM 20G

A5WM 25G

A5WM 311

A5WM 07GR / 09GR / 10GR / 15GR

A5WM 20GR

A5WM 25GR

A5WM 301R

35 65 - - -

35 65 110 - -

90 165 280 - -

90 165 280 650 1030

50 90 - - -

60 110 185 - -

120 220 370 - -

120 220 370 870 1370

35 60 - - -

35 60 100 - -

80 150 255 - -

80 150 255 600 950

45 80 - - -

55 100 165 - -

110 200 335 - -

110 200 335 790 1250

35

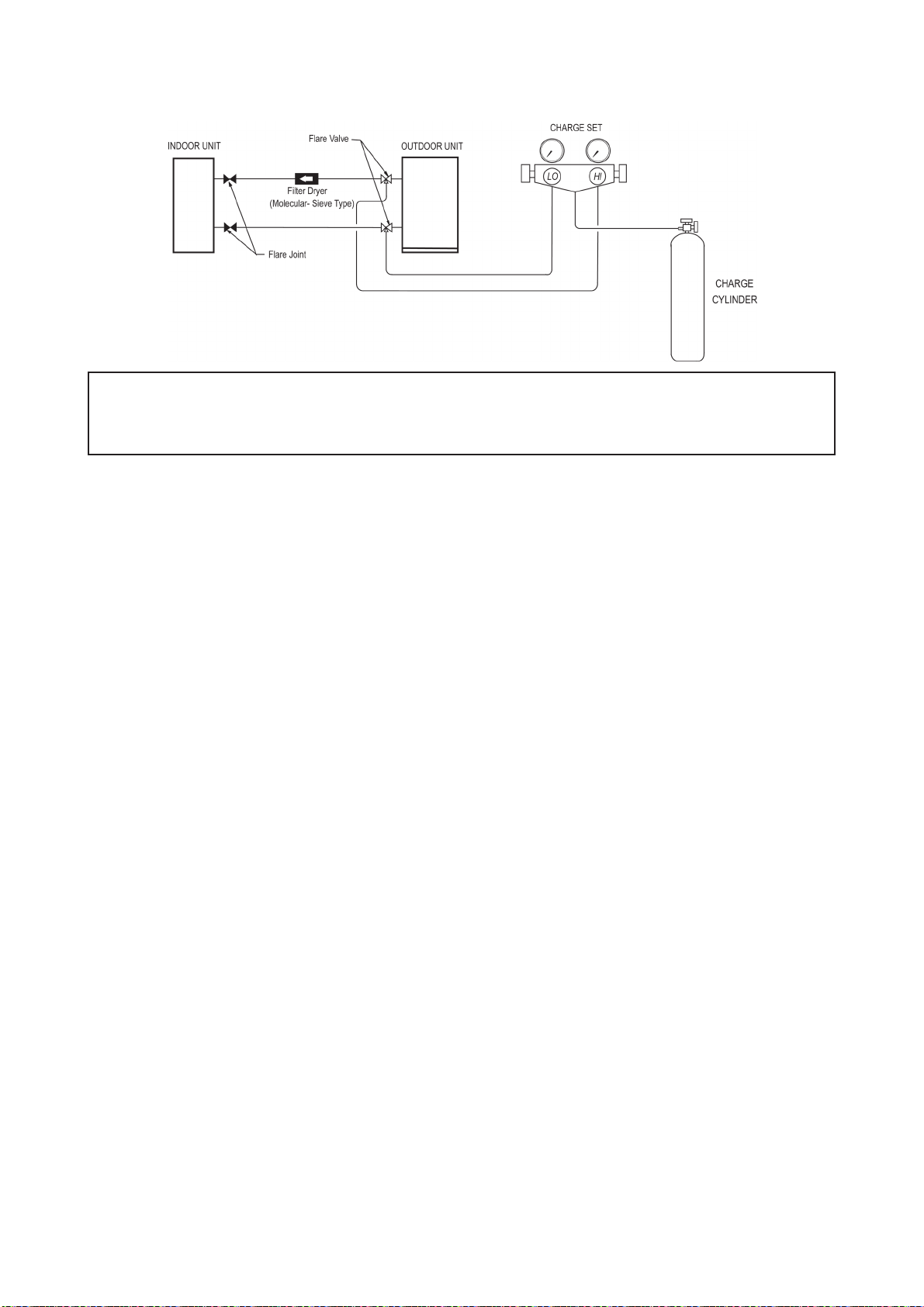

Diagram shows typical charging method.

Note : R22 - Nil

R410A - Nil

CAUTION FOR R410A

Avoid prolong exposure of an opened compressor, or the internal part of refrigerant piping
to moist air. The POE oil in the compressor and piping can absorb moisture from air.

10) FINAL CHECKING

• Ensure that steps 1 to 8 are closely followed.

• Ensure the following, in particular :-

1) The unit is mounted solidly and rigidly in position.

2) Piping and connections are leak proof after charging.

3) Proper wiring has been done.

• Trial run

1) Conduct a trial run after water drainage test and gas leakage test.

2) Watch out for the following :-

a) Is the electric plug firmly inserted into the socket?
b) Is there any abnormal sound from unit?
c) Is there any abnormal vibrations with regard to unit itself or pipings?
d) Is there smooth drainage of water?

• Check that :

1) Condenser fan is running, with warm air blowing off the condensing unit.

2) Evaporator blower is running and discharging cool air.

3) Suction (Low side) pressure as per recommended.

4) The remote controller incorporate a 3 minute delay in their circuit. Thus, it requires about 3 minutes upon

cut off before the outdoor condensing unit can start up.

36

SPECIAL PRECAUTIONS WHEN DEALING WITH REFRIGERANT R410A UNIT

1) WHAT IS NEW REFRIGERANT R410A?

R410A is a new HFC refrigerant which does not damage the ozone layer. The working pressure of this
new refrigerant is 1.6 times higher than conventional refrigerant (R22), thus proper installation / servicing
is essential.

2) COMPONENTS

Mixture weight composition R32(50%) and R125(50%)

3) CHARACTERISTIC

• R410A liquid and vapor components have different compositions when the fluid evaporates or condenses.

Hence, when leak occurs and only vapor leaks out, the composition of the refrigerant mixture left in the
system will change and subsequently affect the system performance. DO NOT add new refrigerant to
leaked system. It is recommended that the system should be evacuated thoroughly before recharging with
R410A.

• When refrigerant R410A is used, the composition will differ depending on whether it is in gaseous or liquid

phase. Hence when charging R410A, ensure that only liquid is being withdrawn from the cylinder or can.
This is to make certain that only original composition of R410A is being charged into the system.

• POE oil is used as lubricant for R410A compressor, which is different from the mineral oil used for R22

compressor. Extra precaution must be taken not to expose the R410A system too long to moist air.

4) CHECK LIST BEFORE INSTALLATION/SERVICING

• Tubing

Refrigerant R410A is more easily affected by dust of moisture compared with R22, make sure to temporarily
cover the ends of the tubing prior to installation

• Compressor oil

No additional charge of compressor oil is permitted.

• Refrigerant

No other refrigerant other that R410A

• Tools (size of service port is different from R22 system)

Tools specifically for R410A only (must not be used for R22 or other refrigerant)

i) Manifold gauge and charging hose
ii) Gas leak detector
iii) Refrigerant cylinder/charging cylinder
iv) Vacuum pump c/w adapter
v) Flare tools
vi) Refrigerant recovery machine

5) HANDLING AND INSTALLATION GUIDELINES

Like R22 system, the handling and installation of R410A system are closely similar. All precautionary measures;
such as ensuring no moisture, no dirt or chips in the system, clean brazing using nitrogen, and thorough leak
check and vacuuming are equally important requirements. However, due to its hydroscopic POE oil, additional
precautions must be taken to ensure optimum and trouble free system operation.

a) During installation or servicing, avoid prolong exposure of the internal part of the refrigerant system to

moist air. Residual POE oil in the piping and components can absorb moisture from the air.

b) Ensure that the compressor is not expose to open air for more than the recommended time specified by

its manufacturer (typically less than 10 minutes). Removed the seal plugs only when the compressor is
about to be brazed.

c) The system should be thoroughly vacuumed to 1.0 Pa ( 700mmHg) or lower. This vacuuming level is

more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.

37

d) When charging R410A, ensure that only liquid is being withdrawn from the cylinder or can. This is to

ensure that only the original composition of R410A is being delivered into the system. The liquid composition
can be different from the vapor composition.

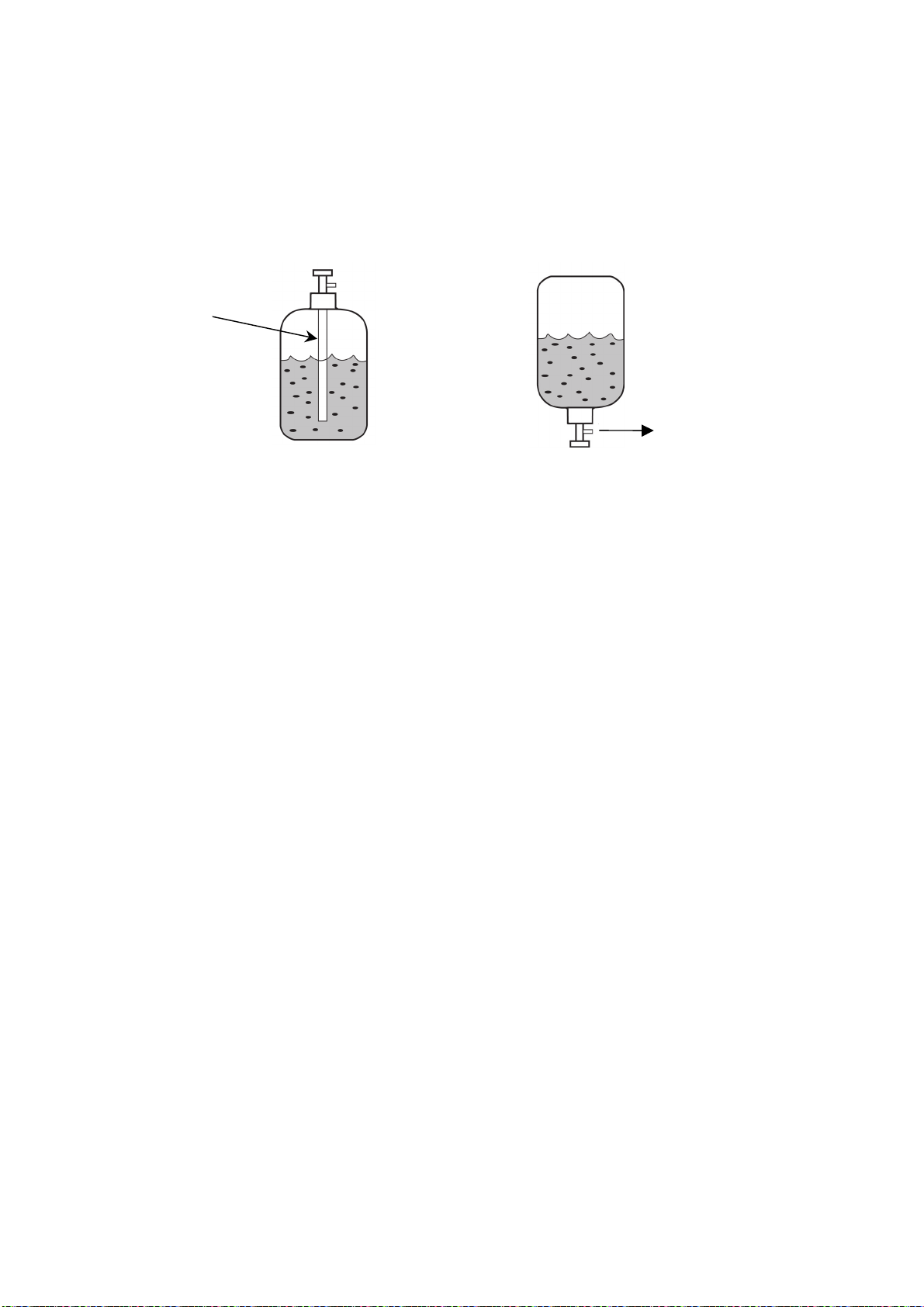

Invert cylinder

Dip-pipe

without dip-pipe

Liquid
withdrawal

f) Normally, the R410A cylinder or can is being equipped with a dip pipe for liquid withdrawal. However, if the

dip pipe is not available, invert the cylinder or can so as to withdraw liquid from the valve at the bottom.

38

4. SOUND DATA

Sound Pressure Level (Measured In Anechoic Room)

WALL MOUNTED FAN COIL UNIT

Model

AWM 07G/GR
AWM 09G/GR
A5WM 07G/GR
A5WM 09G/GR

AWM 10G/GR
A5WM 10G/GR

AWM 15G/GR
A5WM 15G/GR

AWM 20G/GR
A5WM 20G/GR

AWM 25G/GR
A5WM 25G/GR

AWM 311/301R
A5WM 311/301R

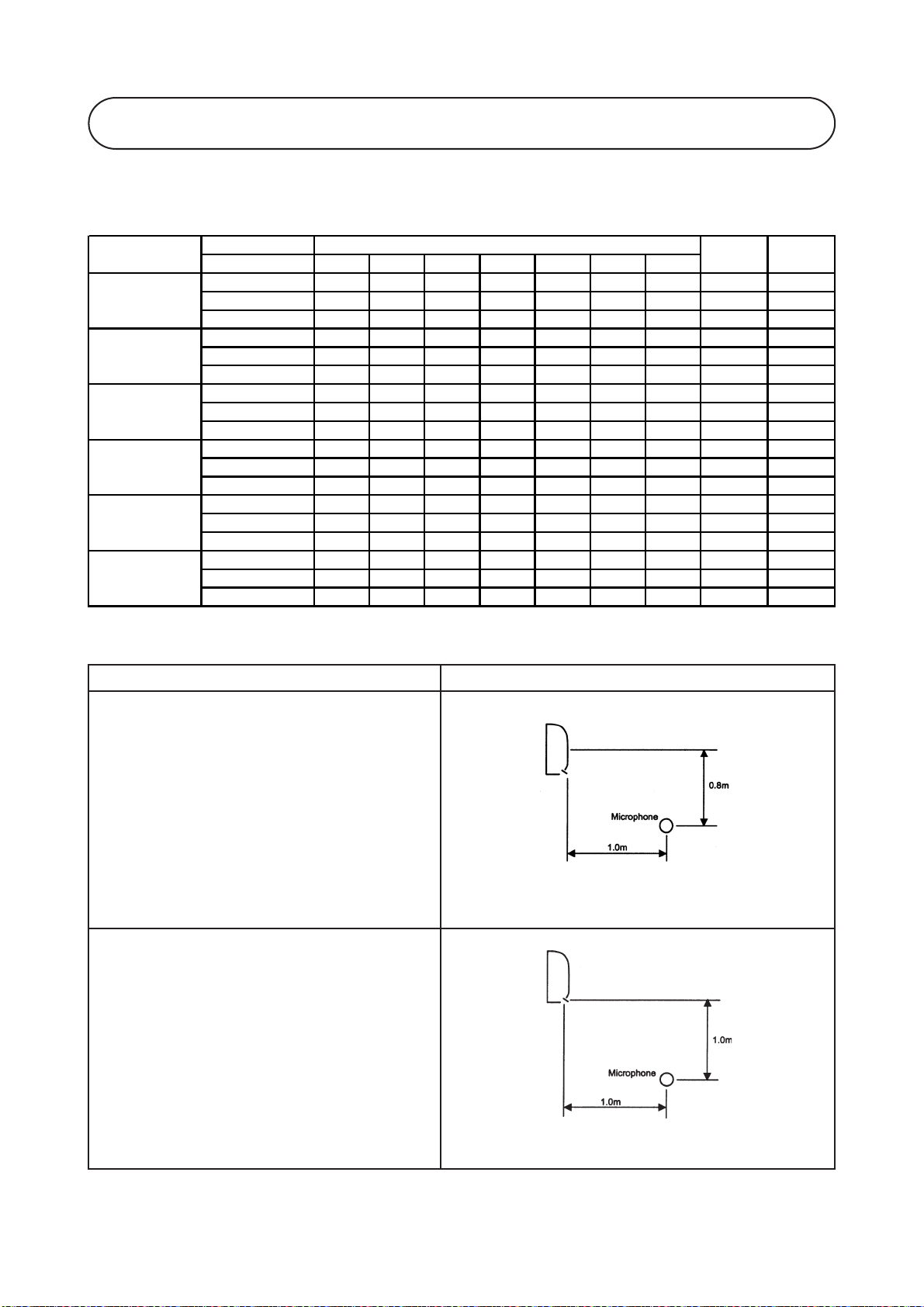

Microphone position - A5WM/AWM-G/GR : 1m in front and 0.8m below the vertical centre line of the unit. (JIS C 9612)

Speed

(RPM) 125 Hz 250 Hz 500 Hz 1k Hz 2k Hz 4k Hz 8k Hz

HIGH 32 34 38 37 32 23 15 40 36

MEDIUM 27 30 34 32 26 17 14 35 31

LOW 24272926201313 29 24

HIGH 28 34 37 36 31 22 13 39 35

MEDIUM 27 30 33 31 25 17 12 34 30

LOW 24262825191211 28 23

HIGH 30 35 39 38 33 25 15 42 37

MEDIUM 28 31 34 33 26 18 13 36 32

LOW 24262826201312 29 24

HIGH 37 44 42 37 34 25 15 43 37

MEDIUM 34 40 39 34 30 21 14 40 34

LOW 30353530261813 35 30

HIGH 41 48 47 43 40 32 23 49 43

MEDIUM 39 44 43 39 35 28 20 44 38

LOW 37414036322519 42 35

HIGH 42 46 45 44 41 35 28 49 43

MEDIUM 40 45 44 43 35 33 27 47 42

LOW 37434340353026 45 39

- A5WM/AWM 30F/FR : 1m in front and 1m below the vertical centre line of the unit. (JIS B 8615)

1/1 Octave Sound Pressure Level (dB, ref 20µPa)

Overall

(dBA)

Noise

Criteria

Model Measuring location

AWM 07G/GR AWM 20G/GR
AWM 09G/GR AWM 25G/GR
AWM 10G/GR
AWM 15G/GR

A5WM 07G/GR A5WM 20G/GR
A5WM 09G/GR A5WM 25G/GR
A5WM 10G/GR
A5WM 15G/GR

AWM 311/301R
A5WM 311/301R

Standard : JIS C 9612

Standard : JIS B 8615

39

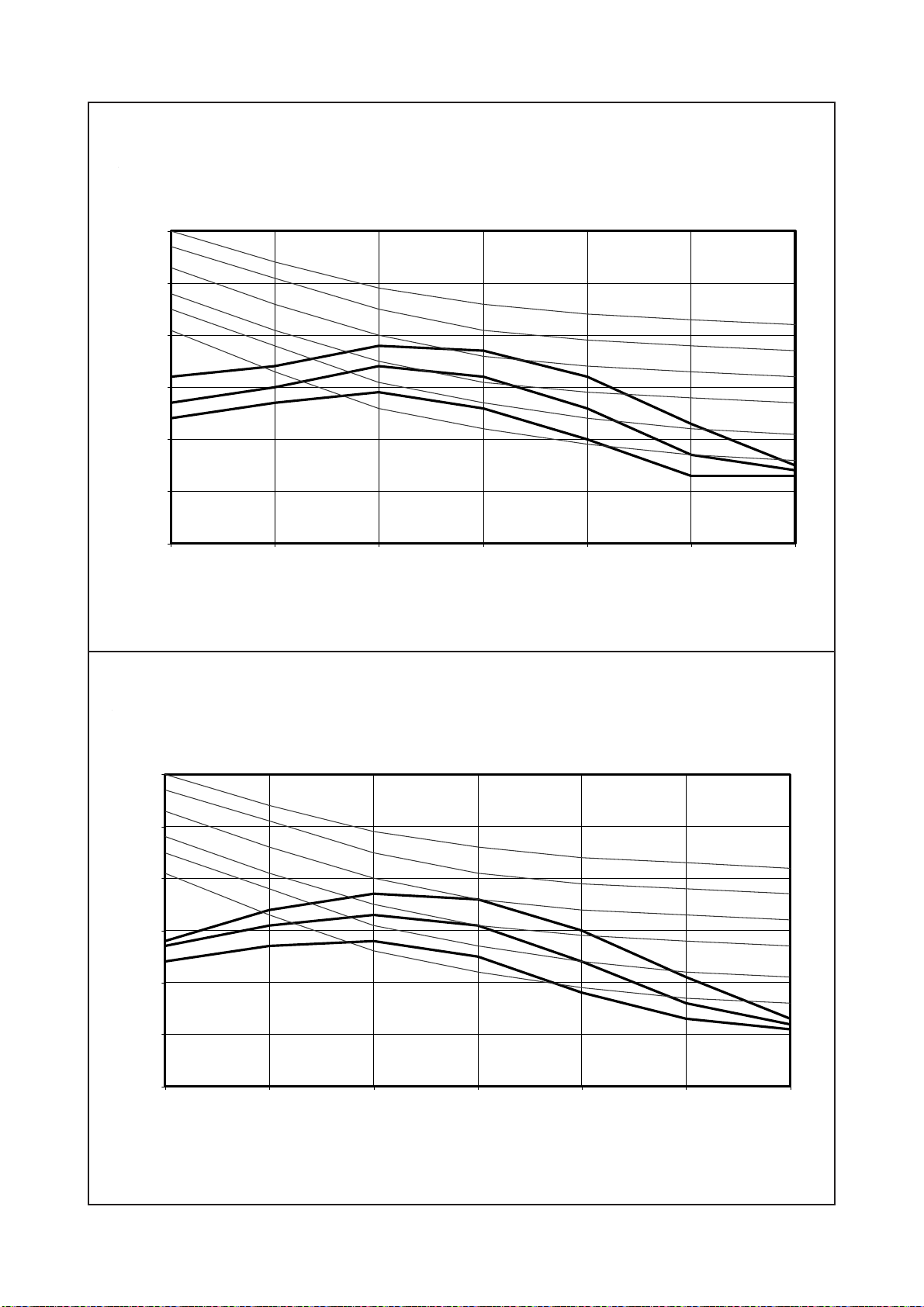

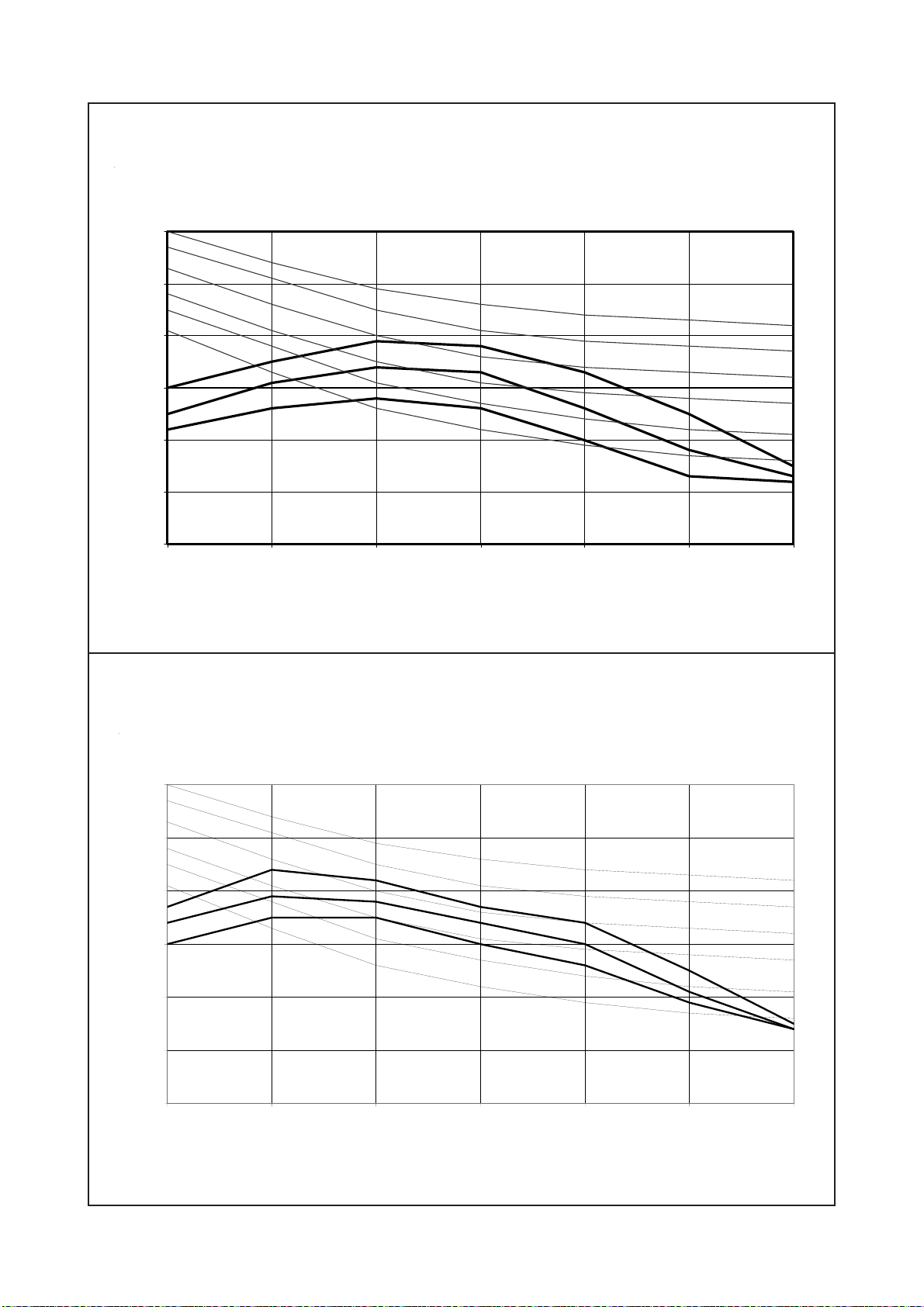

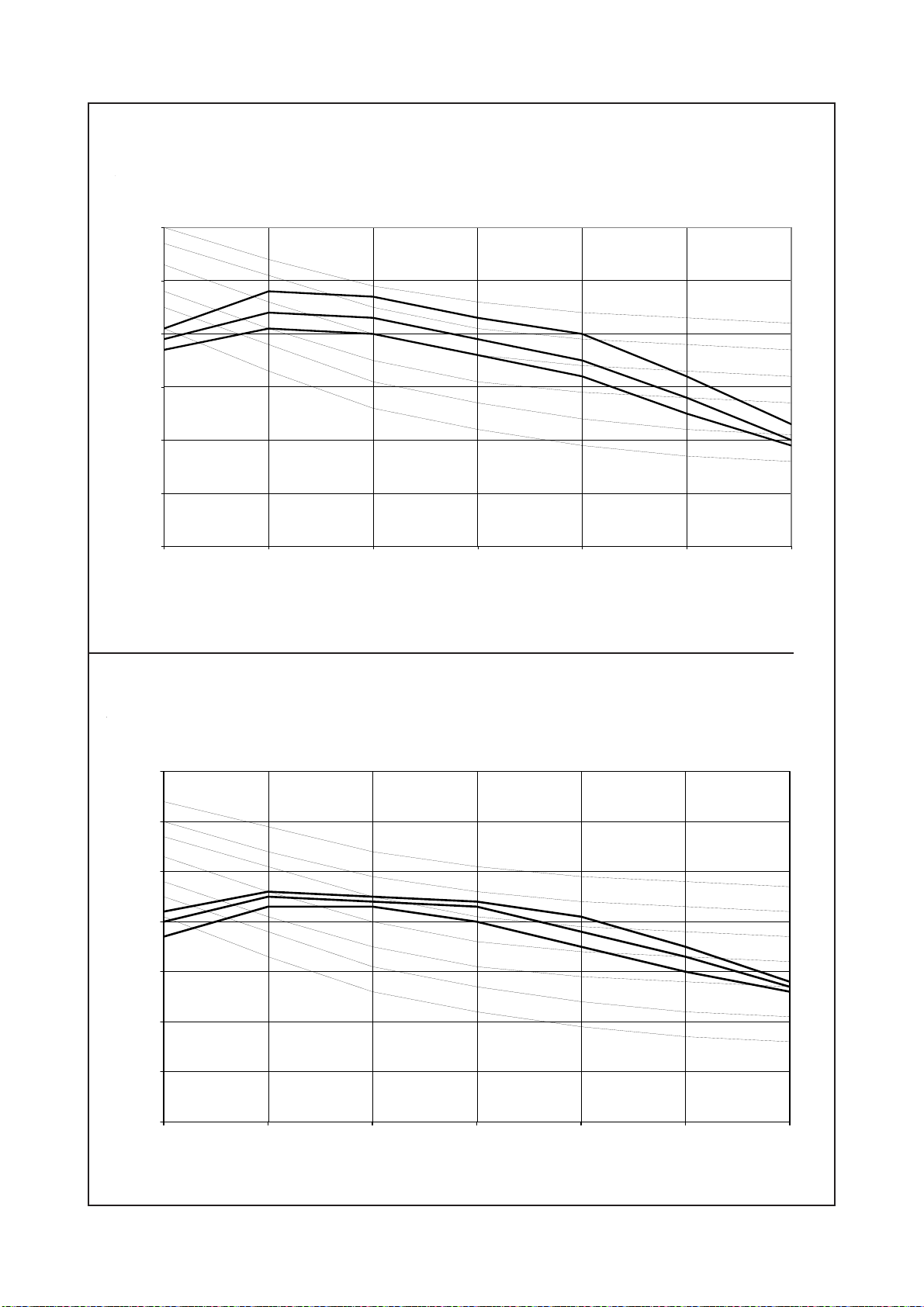

AWM 07G, 09 G/GR , A5WM 07 / 09 G/GR

NC CURVES

60

50

NC-45

40

30

Low Fan

20

Sound pressure level (dB,ref 20µPa)

10

0

125 250 500 1000 2000 4000 8000

Octave-b and fre quency (Hz)

High Fan

Medium Fan

NC-20

NC-40

NC-35

NC-30

NC-25

AWM 10 G/GR , A5WM 10 G/GR

NC CURVES

60

50

40

Medium Fan

30

Low Fan

20

Sound pressure level (dB, ref 20µPa)

10

0

125 250 500 1000 2000 4000 8000

Octave-band freque ncy (Hz)

High Fan

NC-45

NC-40

NC-35

NC-30

NC-25

NC-20

40

AWM 15 G/GR , A5WM 15 G/GR

NC CURVES

60

50

40

30

20

Sound pressure level (dB, ref 20µ Pa)

10

0

125 250 500 1000 2000 4000 8000

Octave-b and fre qu ency (Hz)

High Fa n

Medium Fan

NC-20

Low Fa n

NC-45

NC-40

NC-35

NC-30

NC-25

AWM 20 G/GR , A5WM 20 G/GR

NC CURVES

60

50

NC-45High Fan

40

30

20

Sound pressure level (dB, ref 20 µPa)

10

0

125 250 500 1000 2000 4000 8000

Medium Fan

Low Fan

NC-40

NC-35

NC-30

NC-25

NC-20

Octave-band frequency (Hz)

41

AWM 25 G/GR , A5WM 25 G/GR

NC CURVES

60

50

40

30

20

Sound pressure level (dB, ref 20 µPa)

10

0

125 250 500 1000 2000 4000 8000

High Fan

Medium Fan

Low Fan

NC-45

NC-40

NC-35

NC-30

NC-25

NC-20

Octave-band frequency (Hz)

AWM 311/301R , A5WM 311/301R

NC CURVES

70

60

50

High Fan

40

Low Fan

30

20

Medium Fan

Sound pressure level (dB, ref20µPa)

10

0

125 250 500 1000 2000 4000 8000

NC-50

NC-45

NC-40

NC-35

NC-25

NC-20

Octave-band frequency (Hz)

42

5. ENGINEERING AND PHYSICAL DATA

General Data - Cooling Only (R22)

MODEL

NOMINAL CAPACITY

NOMINAL TOTAL INPUT POWER

NOMINAL RUNNING CURRENT

POWER SOURCE

EER

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm

MEDIUM l/s / cfm 104 / 220 106 / 225

LOW l/s / cfm 85 / 180 83 / 175

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in 337 / 13.3 337 / 13.3

WIDTH mm/in 857 / 33.7 857 / 33.7

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h

W 2050 2640

W

A 2.7 4.1

V/Ph/Hz

W/W 3.47 2.87

dBA 38 / 33 / 28 40 / 35 / 29

kg/lb 8.5 / 18.74 10/22.05

mm/in

l/s / cfm 321 / 680 307 / 650

dBA

kg/lb

kg/lb 0.5/ 1.1 0.525/ 1.156

AWM 07G AWM 09G

MWM 007G MWM 009G

ALC 07C ALC 09C

MLC 007C MLC 009C

7000 9000

590 919

220-240/1/50

R22

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

118 / 250 130 / 275

260 / 10.2

799 / 31.5

198 / 7.8

270 / 10.6 270 / 10.6

16 / 0.63

45

495/19.5

600/23.6

245/9.7

575/22.6

715/28.1

330/13.0

28/61.73

FLARE VALVE

6.35 / 1/4

9.52 / 3/8

43

General Data - Cooling Only (R22)

MODEL

NOMINAL CAPACITY

NOMINAL TOTAL INPUT POWER

NOMINAL RUNNING CURRENT

POWER SOURCE

EER

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 142 / 300 163 / 345

MEDIUM l/s / cfm 118 / 250 135 / 285

LOW l/s / cfm 94 / 200 104 / 220

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in 9.52 / 3/8 12.70 / 1/2

Btu/h 9500 12000

W 2780 3520

W 860 1100

A 3.8 5.4

V/Ph/Hz

W/W 3.23 3.2

dBA 39 / 34 / 28 42 / 36 / 29

kg/lb

mm/in

l/s / cfm 396 / 840 453 / 960

dBA 46 49

kg/lb

kg/lb 0.63/ 1.393 0.6/ 1.327

AWM 10G AWM 15G

MWM 010G MWM 015G

ALC 10C ALC 15C

MLC 010C MLC 015C

220-240/1/50

R22

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

260 / 10.2

899 / 35.4

198 / 7.8

337 / 13.3

957 / 37.7

270 / 10.6

12/26.46

16 / 0.63

540/21.3

700/27.6

250/9.8

620/24.4

810/31.9

330/13.0

32/70.55

FLARE VALVE

6.35 / 1/4

44

General Data - Cooling Only (R22)

MODEL

NOMINAL CAPACITY

NOMINAL TOTAL INPUT POWER

NOMINAL RUNNING CURRENT

POWER SOURCE

EER

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm

MEDIUM l/s / cfm

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h 18000 19000

W 5280 5570

W

A

V/Ph/Hz

W/W 2.92 3.08

dBA

kg/lb

mm/in

l/s / cfm 632 / 1340 614 / 1300

dBA

kg/lb

kg/lb 0.85 / 1.88 1.35 / 2.99

AWM 20G AWM 20G

MWM 020G MWM 020G

ALC 18C ALC 20C

MLC 018C MLC 020C

1,810 1,807

8.1 8.0

220-240/1/50

R22

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

231 / 490

193 / 410

160 / 340

43 / 40 / 35

304 / 12.0

1062 / 41.8

222 / 8.7

378 / 14.9

1130 / 44.5

292 / 11.5

16 / 35.27

20 / 0.79

51 52

651 / 25.6

855 / 33.7

328 / 12.9

710 / 28.0

990 / 39.0

415 / 16.3

58 / 127.9 59 / 130.1

FLARE VALVE

6.35 / 1/4

15.88 / 5/8

45

General Data - Cooling Only (R22)

MODEL

NOMINAL CAPACITY

NOMINAL TOTAL INPUT POWER

NOMINAL RUNNING CURRENT

POWER SOURCE

EER

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 297 / 630 316 / 670

MEDIUM l/s / cfm 231 / 490 297 / 630

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in 1062 / 41.8 1200 / 47.2

DEPTH mm/in

HEIGHT mm/in 378 / 14.9 420 / 16.5

WIDTH mm/in

DEPTH mm/in 292 / 11.5 260 / 10.2

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h 23,500 27000

W 6,890 7913

W

A 11.3 13.1

V/Ph/Hz

W/W 2.72 2.89

DOUBLE LOUVER (UP & DOWN) &

dBA 49 / 44 / 42 49 / 47 / 45

kg/lb

mm/in

l/s / cfm

dBA 52 54

kg/lb

kg/lb

AWM 25G AWM 311

MWM 025G MW M 030F

ALC 25C ALC 28C

MLC 025C MLC 028C

2,530 2732

220-240 /1/50

R22

OUTDOOR CAP. TUBE

GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

208 / 440 236 / 500

304 / 12.0 360 / 14.2

222 / 8.7 200 / 7.9

1130 / 44.5 1267 / 49.9

16 / 35.27 17 / 37.48

755 / 1600 632 / 1340

62 / 136.7 68 / 149.9

FLARE VALVE

1.5 / 3.3 2.1 / 4.63

AUTO LOUVER (UP & DOWN) &

GRILLE (LEFT & RIGHT)

20 / 0.79

750 / 29.5

855 / 33.7

328 / 12.9

810 / 31.9

990 / 39.0

415 / 16.3

9.52 / 3/8

15.88 / 5/8

46

General Data - Heatpump Only (R22)

MODEL

NOMINAL COOLING CAPACITY

NOMINAL HEATING CAPACITY

INDOOR UNIT

OUTDOOR UNIT

Btu/h 9000

W 2640

Btu/h 9000

W

NOMINAL TOTAL INPUT POWER (COOLING)

NOMINAL TOTAL INPUT POWER (HEATING)

NOMINAL RUNNING CURRENT (COOLING)

NOMINAL RUNNING CURRENT (HEATING)

POWER SOURCE

EER

COP

W 910

W 750

A

A 3.4

V/Ph/Hz 220-240/1/50

W/W 2.9

W/W

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR DISCHARGE

OPERATION

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

HIGH l/s / cfm 130 / 275

AIR FLOW

MEDIUM l/s / cfm 106 / 225

LOW l/s / cfm

SOUND PRESSURE LEVEL (H/M/L)

dBA 40 / 35 / 29

HEIGHT mm/in 260 / 10.2

UNIT DIMENSION

INDOOR UNIT

WIDTH mm/in

DEPTH mm/in 198 / 7.8

HEIGHT mm/in 337 / 13.3

PACKING DIMENSION

WIDTH mm/in 857 / 33.7

DEPTH mm/in

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

kg/lb 10/22.05

mm/in 16 / 0.63

l/s / cfm

dBA 45

HEIGHT mm/in 495/19.5

UNIT DIMENSION

WIDTH mm/in 600/23.6

DEPTH mm/in

HEIGHT mm/in 575/22.6

PACKING DIMENSION

WIDTH mm/in 715/28.1

DEPTH mm/in

OUTDOOR UNIT

UNIT WEIGHT

kg/lb 28/61.73

TYPE

PIPE CONNECTION

SIZE

LIQUID mm/in 6.35 / 1/4

GAS mm/in

REFR IGERAN T C HARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

kg/lb 0.75/1.65

AWM 09GR

MWM 009GR

ALC 09CR

MLC 009CR

2640

4.0

3.52

R22

OUTDOOR CAP. TUBE

LCD REMOTE CONTROL

83 / 175

799 / 31.5

270 / 10.6

307 / 650

245/9.7

330/13.0

FLARE VALVE

9.52 / 3/8

47

General Data - Heatpump (R22)

MODEL

NOMINAL COOLING CAPACITY

NOMINAL HEATING CAPACITY

NOMINAL TOTAL INPUT POWER (COOLING)

NOMINAL TOTAL INPUT POWER (HEATING)

NOMINAL RUNNING CURRENT (COOLING)

NOMINAL RUNNING CURRENT (HEATING)

POWER SOURCE

EER

COP

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 142 / 300 163 / 345

MEDIUM l/s / cfm

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in 9.52 / 3/8 12.70 / 1/2

Btu/h 9500 12000

W 2780 3520

Btu/h

W 2780 3520

W 837 1100

W 757 980

A 3.8 5.0

A

V/Ph/Hz

W/W 3.32 3.2

W/W 3.67 3.59

dBA 39 / 34 / 28 42 / 36 / 29

kg/lb

mm/in

l/s / cfm 396 / 840 453 / 960

dBA 46 49

kg/lb

kg/lb 0.88/1.94 0.8/1.76

AWM 10GR AWM 15GR

MWM 010GR MWM 015GR

ALC 10CR ALC 15CR

MLC 010CR MLC 015CR

9500 12000

3.4 4.5

220-240/1/50

R22

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

118 / 250 135 / 285

94 / 200 104 / 220

260 / 10.2

899 / 35.4

198 / 7.8

337 / 13.3

957 / 37.7

270 / 10.6

12/26.46

16 / 0.63

540/21.3

700/27.6

250/9.8

620/24.4

810/31.9

330/13.0

32/70.55

FLARE VALVE

6.35 / 1/4

48

General Data - Heatpump (R22)

MODEL

NOMINAL COOLING CAPACITY

NOMINAL HEATING CAPACITY

NOMINAL TOTAL INPUT POWER (COOLING)

NOMINAL TOTAL INPUT POWER (HEATING)

NOMINAL RUNNING CURRENT (COOLING)

NOMINAL RUNNING CURRENT (HEATING)

POWER SOURCE

EER

COP

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm

MEDIUM l/s / cfm

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h 18000 19000

W 5280 5570

Btu/h

W 5390 5720

W 1,820 1,807

W 1,660 1,757

A 8.1 8.0

A

V/Ph/Hz

W/W 2.9 3.08

W/W 3.25 3.26

dBA

kg/lb

mm/in

l/s / cfm 632 / 1340 614 / 1300

dBA 51 52

kg/lb

kg/lb 0.85 / 1.88 1.35 / 2.99

AWM 20GR AWM 20GR

MWM 020GR MWM 020GR

ALC 18CR ALC 20CR

MLC 018CR MLC 020CR

18400 19500

7.4 7.8

220-240/1/50

R22

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

231 / 490

193 / 410

160 / 340

43 / 40 / 35

304 / 12.0

1062 / 41.8

222 / 8.7

378 / 14.9

1130 / 44.5

292 / 11.5

16 / 35.27

20 / 0.79

651 / 25.6

855 / 33.7

328 / 12.9

710 / 28.0

990 / 39.0

415 / 16.3

58 / 127.9 59 / 130.1

FLARE VALVE

6.35 / 1/4

15.88 / 5/8

49

General Data - Heatpump (R22)

MODEL

NOMINAL COOLING CAPACITY

NOMINAL HEATING CAPACITY

NOMINAL TOTAL INPUT POWER (COOLING)

NOMINAL TOTAL INPUT POWER (HEATING)

NOMINAL RUNNING CURRENT (COOLING)

NOMINAL RUNNING CURRENT (HEATING)

POWER SOURCE

EER

COP

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FL OW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FL OW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 297 / 630 316 / 670

MEDIUM l/s / cfm 231 / 490 297 / 630

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in 222 / 8.7 200 / 7.9

HEIGHT mm/in 378 / 14.9 420 / 16.5

WIDTH mm/in 1130 / 44.5 1267 / 49.9

DEPTH mm/in 292 / 11.5 260 / 10.2

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h 23,500 27000

W

Btu/h

W

W

W 2,450 2818

A 11.3 13.2

A 11.1 13.3

V/Ph/Hz

W/W

W/W

dBA

kg/lb

mm/in

l/s / cfm

dBA

kg/lb

kg/lb 1.5 / 3.3 2.1 / 4.63

AWM 25GR AWM 301R

MWM 025GR MWM 030FR

ALC 25CR ALC 28CR

MLC 025CR MLC 028CR

6,890 7913

24,000 27000

7,030 7913

2,530 2778

220-240/1/50

2.72 2.85

2.87 2.81

R22

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

208 / 440 236 / 500

49 / 44 / 42 49 / 47 / 45

304 / 12.0 360 / 14.2

1062 / 41.8 1200 / 47.2

16 / 35.27 17 / 37.48

20 / 0.79

755 / 1600 632 / 1340

52 54

750 / 29.5

855 / 33.7

328 / 12.9

810 / 31.9

990 / 39.0

415 / 16.3

62 / 136.7 68 / 149.9

FLARE VALVE FLARE VALVE

9.52 / 3/8

15.88 / 5/8

50

General Data - Cooling Only (R410A)

MODEL

NOMINAL CAPACITY

NOMINAL TOTAL INPUT POWER

NOMINAL RUNNING CURRENT

POWER SOURCE

EER

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm

MEDIUM l/s / cfm

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in 495/19.5 540/21.3

WIDTH mm/in 600/23.6 700/27.6

DEPTH mm/in 245/9.7 250/9.8

HEIGHT mm/in 575/22.6 620/24.4

WIDTH mm/in 715/28.1 810/31.9

DEPTH mm/in 330/13.0 330/13.0

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h 7500 9000

W 2200 2640

W 620 865

A 2.9 3.9

V/Ph/Hz

W/W 3.54 3.05

dBA

kg/lb

mm/in

l/s / cfm 307 / 650 396 / 840

dBA 44 46

kg/lb 26/57.32 33/72.75

kg/lb 0.6/1.32 0.69/1.52

A5WM 07G A5WM 09G

M5WM 007G M5WM 009G

A5LC 07C A5LC 09C

M5LC 007C M5LC 010C

220-240/1/50

R410A

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

130 / 275

106 / 225

83 / 175

40 / 35 / 29

260 / 10.2

799 / 31.5

198 / 7.8

337 / 13.3

857 / 33.7

270 / 10.6

10/22.05

16 / 0.63

FLARE VALVE

6.35 / 1/4

9.52 / 3/8

51

General Data - Cooling Only (R410A)

MODEL

NOMINAL CAPACITY

NOMINAL TOTAL INPUT POWER

NOMINAL RUNNING CURRENT

POWER SOURCE

EER

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 142 / 300 163 / 345

MEDIUM l/s / cfm 118 / 250 135 / 285

LOW l/s / cfm 94 / 200 104 / 220

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in 9.52 / 3/8 12.70 / 1/2

Btu/h 9500 12000

W 2780 3520

W 867 1230

A 3.9 5.5

V/Ph/Hz

W/W 3.21 2.86

dBA 39 / 34 / 28 42 / 36 / 29

kg/lb

mm/in

l/s / cfm 396 / 840 453 / 960

dBA 46 49

kg/lb

kg/lb 0.69/1.52 0.8/1.76

A5WM 10G A5WM 15G

M5WM 010G M5WM 015G

A5LC 10C A5LC 15C

M5LC 010C M5LC 015C

220-240/1/50

R410A

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

260 / 10.2

899 / 35.4

198 / 7.8

337 / 13.3

957 / 37.7

270 / 10.6

12/26.46

16 / 0.63

540/21.3

700/27.6

250/9.8

620/24.4

810/31.9

330/13.0

33/72.75

FLARE VALVE

6.35 / 1/4

52

General Data - Cooling Only (R410A)

MODEL

NOMINAL CAPACITY - 1Ø / <3Ø>

NOMINAL TOTAL INPUT POWER - 1Ø / <3Ø>

NOMINAL RUNNING CURRENT - 1Ø / <3Ø>

POWER SOURCE

EER - 1Ø / <3Ø>

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 231 / 490 397 / 630

MEDIUM l/s / cfm 193 / 410 231 / 490

LOW l/s / cfm 160 / 340 208 / 440

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in 651 / 25.6 750 / 29.5

WIDTH mm/in 855 / 33.7 855 / 33.7

DEPTH mm/in 328 / 12.9 328 / 12.9

HEIGHT mm/in 710 / 28.0 810 / 31.9

WIDTH mm/in 990 / 39.0 990 / 39.0

DEPTH mm/in 415 / 16.3 415 / 16.3

TYPE

SIZE

LIQUID mm/in

GAS mm/in 12.70 / 1/2 15.88 / 5/8

Btu/h 18000 / <18000> 21000 / <22500>

W 5280 / <5280> 6155 / <6590>

W 1652 / <1663> 1915 / <2195>

A 7.3 / <3.2> 8.4 / <4.2>

V/Ph/Hz

W/W 3.2 / <3.17> 3.21 / <3>

dBA 43 / 40 / 35 49 / 44 / 42

kg/lb

mm/in

l/s / cfm 614 / 1300 689 / 1460

dBA

kg/lb 59 / 130.1 62 / 136.7

kg/lb 1.375 / 3.03 1.54 / 3.4

A5WM 20G A5WM 25G

M5WM 020G M5WM 025G

A5LC 20C A5LC 25C

M5LC 020C M5LC 025C

220-240/ 1/ 50 / <380-415/ 3/ 50>

R410A

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

304 / 12.0

1062 / 41.8

222 / 8.7

378 / 14.9

1130 / 44.5

292 / 11.5

16 / 35.27

20 / 0.79

52

FLARE VALVE

6.35 / 1/4

53

General Data - Cooling Only (R410A)

MODEL

NOMINAL CAPACITY - 1Ø / <3Ø>

NOMINAL TOTAL INPUT POWER - 1Ø / <3Ø>

NOMINAL RUNNING CURRENT - 1Ø / <3Ø>

POWER SOURCE

EER - 1Ø / <3Ø>

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFR IGERAN T C HARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm

MEDIUM l/s / cfm 297 / 630

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in 1200 / 47.2

DEPTH mm/in 200 / 7.9

HEIGHT mm/in 420 / 16.5

WIDTH mm/in 1267 / 49.9

DEPTH mm/in 260 / 10.2

HEIGHT mm/in 750 / 29.5

WIDTH mm/in

DEPTH mm/in 328 / 12.9

HEIGHT mm/in

WIDTH mm/in 990 / 39.0

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in 9.52 / 3/8

GAS mm/in

Btu/h 26000 / <26000>

W 7620 / <7620>

W 2560 / <2631>

A 12.2 / <4.6>

V/Ph/Hz

W/W 2.98 / <2.89>

AUTO LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

dBA 49 / 47 / 45

kg/lb 17 / 37.48

mm/in 20 / 0.79

l/s / cfm 632 / 1340

dBA

kg/lb 68 / 149.9

kg/lb 1.75 / 3.86

220-240/ 1/ 50 / <380-415/ 3/ 50>

A5WM 311

M5WM 031F

A5LC 28C

M5LC 028C

R410A

OUTDOOR CAP. TUBE

LCD REMOTE CONTROL

316 / 670

236 / 500

360 / 14.2

54

855 / 33.7

810 / 31.9

415 / 16.3

FLARE VALVE

15.88 / 5/8

54

General Data - Heatpump (R410A)

MODEL

NOMINAL COOLING CAPACITY

NOMINAL HEATING CAPACITY

NOMINAL TOTAL INPUT POWER (COOLING)

NOMINAL TOTAL INPUT POWER (HEATING)

NOMINAL RUNNING CURRENT (COOLING)

NOMINAL RUNNING CURRENT (HEATING)

POWER SOURCE

EER

COP

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm

MEDIUM l/s / cfm

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in 495/19.5 540/21.3

WIDTH mm/in 600/23.6 700/27.6

DEPTH mm/in 245/9.7 250/9.8

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h

W

Btu/h 7500 9000

W 2200 2640

W 680 860

W 550 745

A 3.1 3.9

A 2.6 3.4

V/Ph/Hz

W/W

W/W

dBA

kg/lb

mm/in

l/s / cfm 307 / 650 396 / 840

dBA 44 46

kg/lb 26/57.32 33/72.75

kg/lb 0.8/1.76 0.73/1.61

A5WM 07GR A5WM 09GR

M5WM 007GR M5WM 009GR

A5LC 07CR A5LC 09CR

M5LC 007CR M5LC 010CR

7500 9000

2200 2640

220-240/1/50

3.24 3.07

43.54

R410A

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

130 / 275

106 / 225

83 / 175

40 / 35 / 29

260 / 10.2

799 / 31.5

198 / 7.8

337 / 13.3

857 / 33.7

270 / 10.6

10/22.05

16 / 0.63

575/22.6 620/24.4

715/28.1 810/31.9

330/13.0 330/13.0

FLARE VALVE

6.35 / 1/4

9.52 / 3/8

55

General Data - Heatpump (R410A)

MODEL

NOMINAL COOLING CAPACITY

NOMINAL HEATING CAPACITY

NOMINAL TOTAL INPUT POWER (COOLING)

NOMINAL TOTAL INPUT POWER (HEATING)

NOMINAL RUNNING CURRENT (COOLING)

NOMINAL RUNNING CURRENT (HEATING)

POWER SOURCE

EER

COP

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 142 / 300 163 / 345

MEDIUM l/s / cfm

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in 9.52 / 3/8 12.70 / 1/2

Btu/h

W

Btu/h 9500 12000

W 2780 3520

W 867 1230

W 747 1080

A 3.9 5.4

A 3.4 4.9

V/Ph/Hz

W/W

W/W

dBA

kg/lb

mm/in

l/s / cfm 396 / 840 453 / 960

dBA 46 49

kg/lb

kg/lb 0.73/1.61 0.825/ 1.82

A5WM 10GR A5WM 15GR

M5WM 010GR M5WM 015GR

A5LC 10CR A5LC 15CR

M5LC 010CR M5LC 015CR

9500 12000

2780 3520

220-240/1/50

3.21 2.86

3.72 3.26

R410A

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

118 / 250 135 / 285

94 / 200 104 / 220

39 / 34 / 28 42 / 36 / 29

260 / 10.2

899 / 35.4

198 / 7.8

337 / 13.3

957 / 37.7

270 / 10.6

12/26.46

16 / 0.63

540/21.3

700/27.6

250/9.8

620/24.4

810/31.9

330/13.0

32/70.55

FLARE VALVE

6.35 / 1/4

56

General Data - Heatpump (R410A)

MODEL

NOMINAL COOLING CAPACITY - 1Ø / <3Ø>

NOMINAL HEATING CAPACITY - 1Ø / <3Ø>

NOMINAL TOTAL INPUT POWER (COOLING) - 1Ø / <3Ø>

NOMINAL TOTAL INPUT POWER (HEATING) - 1Ø / <3Ø>

NOMINAL RUNNING CURRENT (COOLING) - 1Ø / <3Ø>

NOMINAL RUNNING CURRENT (HEATING) - 1Ø / <3Ø>

POWER SOURCE

EER - 1Ø / <3Ø>

COP - 1Ø / <3Ø>

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FLOW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FLOW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REFRIGERANT C HAR GE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm

MEDIUM l/s / cfm

LOW l/s / cfm

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in 855 / 33.7 855 / 33.7

DEPTH mm/in 328 / 12.9 328 / 12.9

HEIGHT mm/in 710 / 28.0 810 / 31.9

WIDTH mm/in

DEPTH mm/in

TYPE

SIZE

LIQUID mm/in

GAS mm/in 12.70 / 1/2 15.88 / 5/8

Btu/h 17850 / <18000> 20350 / <22500>

W 5230 / <5280> 5960 / <6590>

Btu/h 18000 / <18500> 22000 / <23000>

W

W

W

A 7.2 / <3.2> 8.4 / <4.2>

A 6.8 / <3.1> 8.4 / <4.2>

V/Ph/Hz

W/W

W/W

dBA 43 / 40 / 35 49 / 44 / 42

kg/lb

mm/in

l/s / cfm

dBA

kg/lb

kg/lb

A5WM 20GR A5WM 25GR

M5WM 020GR M5WM 025GR

A5LC 20CR A5LC 25CR

M5LC 020CR M5LC 025CR

5280 / <5420> 6450 / <6740>

1630 / <1663> 1860 / <2195>

1546 / <1630> 1870 / <2106>

220-240/ 1/ 50 / <380-415/ 3/ 50>

3.21 / <3.17> 3.2 / <3>

3.41 / <3.33> 3.45 / <3.2>

R410A

OUTDOOR CAP. TUBE

DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

LCD REMOTE CONTROL

231 / 490 397 / 630

193 / 410 231 / 490

160 / 340 208 / 440

304 / 12.0

1062 / 41.8

222 / 8.7

378 / 14.9

1130 / 44.5

292 / 11.5

16 / 35.27

20 / 0.79

614 / 1300 689 / 1460

52

651 / 25.6 750 / 29.5

990 / 39.0 990 / 39.0

415 / 16.3 415 / 16.3

59 / 130.1 62 / 136.7

FLARE VALVE

6.35 / 1/4

1.375 / 3.03 1.54 / 3.40

57

General Data - Heatpump (R410A)

MODEL

NOMINAL COOLING CAPACITY - 1Ø / <3Ø>

NOMINAL HEATING CAPACITY - 1Ø / <3Ø>

NOMINAL TOTAL INPUT POWER (COOLING) - 1Ø / <3Ø>

NOMINAL TOTAL INPUT POWER (HEATING) - 1Ø / <3Ø>

NOMINAL RUNNING CURRENT (COOLING) - 1Ø / <3Ø>

NOMINAL RUNNING CURRENT (HEATING) - 1Ø / <3Ø>

POWER SOURCE

EER - 1Ø / <3Ø>

COP - 1Ø / <3Ø>

REFRIGERANT TYPE

REFRIGERANT CONTROL (EXPANSION DEVICE)

CONTROL

AIR FL OW

SOUND PRESSURE LEVEL (H/M/L)

UNIT DIMENSION

INDOOR UNIT

PACKING DIMENSION

UNIT WEIGHT

CONDENSATE DRAIN SIZE

AIR FL OW

SOUND PRESSURE LEVEL

UNIT DIMENSION

PACKING DIMENSION

OUTDOOR UNIT

UNIT WEIGHT

PIPE CONNECTION

REF RI GE RANT CHARGE

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

INDOOR UNIT

OUTDOOR UNIT

AIR DISCHARGE

OPERATION

HIGH l/s / cfm 316 / 670

MEDIUM l/s / cfm 297 / 630

LOW l/s / cfm 236 / 500

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in

WIDTH mm/in 1267 / 49.9

DEPTH mm/in 260 / 10.2

HEIGHT mm/in

WIDTH mm/in

DEPTH mm/in

HEIGHT mm/in 810 / 31.9

WIDTH mm/in 990 / 39.0

DEPTH mm/in 415 / 16.3

TYPE

SIZE

LIQUID mm/in

GAS mm/in

Btu/h 26000 / <26000>

W 7620 / <7620>

Btu/h

W

W

W

A 12.2 / <4.6>

A 11.6 / <4.2>

V/Ph/Hz 220-240/ 1/ 50 / <380-415/ 3/ 50>

W/W 2.98 / <2.89>

W/W

AUTO LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)

dBA 49 / 47 / 45

kg/lb 17 / 37.48

mm/in 20 / 0.79

l/s / cfm

dBA

kg/lb 68 / 149.9

kg/lb

A5WM 311

M5WM 030FR

A5LC 28CR

M5LC 028CR

26000 / <26000>

7620 / <7620>

2560 / <2631>

2442 / <2294>

3.12 / <3.32>

R410A

OUTDOOR CAP. TUBE

LCD REMOTE CONTROL

360 / 14.2

1200 / 47.2

200 / 7.9

420 / 16.5

632 / 1340

54

750 / 29.5

855 / 33.7

328 / 12.9

FLARE VALVE

9.52 / 3/8

15.88 / 5/8

1.75 / 3.86

58

Components Data - Cooling Only (R22)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUALITY

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

AWM 07G AWM 09G

MWM 007G MWM 009G

ALC 07C ALC 09C

MLC 007C MLC 009C

GLASS REINFORCED ACRYL STYRENE RESIN

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

CROSS FLOW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

617.5/24.3

INDUCTION

1

IP24

PROPELLER

1

DIRECT

356/14

INDUCTION

1

IP54

ROTARY HERMETIC

ATMOS M60 or SUNISO 4GDID

320/11.3

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.201 / 2.161

2

18

7.0 / 0.276

0.28 / 0.011

RAISE LANCE

0.11/0.004

0.31/3.40

1

18

NANO FILTER

2

304/11.9

298/11.7

1.5/0.06

YES

HIGH IMPACT POLYSTYRENE

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

59

Components Data - Cooling Only (R22)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUAL ITY

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

AWM 10G AWM 15G

MWM 010G MWM 015G

ALC 10C ALC 15C

MLC 010C MLC 015C

GLASS REINFORCED ACRYL STYRENE RESIN

320 / 11.3 350 / 11.8

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

CORRUGATED RASE LANCE

CROSS FLOW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

717.5/28.2

INDUCTION

1

IP24

PROPELLER

1

DIRECT

404/16

INDUCTION

1

IP54

ROTARY HERMETIC

ATMOS M60 or SUNISO 4GDID

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.234 / 2.516

2

18

7.0 / 0.276

0.28 / 0.011

0.11/0.004

0.36/3.94

1

18

NANO FILTER

2

304/11.9

348/13.7

1.5/0.06

YES

HIGH IMPACT POLYSTYRENE

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

60

Components Data - Cooling Only (R22)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUAL ITY

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

AWM 20G AWM 20G

MWM 020G MWM 020G

ALC 18C ALC 20C

MLC 018C MLC 020C

GLASS REINFORCED ACRYL STYRENE RESIN

600 / 21.1 1000 / 35.2

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

20 18

CROSS FLOW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

108/4.25

810/31.9

INDUCTION

1

IP20

PROPELLER

1

DIRECT

457.2/18

INDUCTION

1

IP54

ROTARY HERMETIC

ATMOS NM56M or SUNISO 4GDID

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.269 / 2.900

2

18

7.0 / 0.276

0.28 / 0.011

ALUMINIUM (RAISE LANCE FIN)

0.11 / 0.0043

0.52 / 5.59

12

NANO FILTER

2

351/13.8

386/15.2

1.5/0.06

YES

HIGH IMPACT POLYSTYRENE

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

61

Components Data - Cooling Only (R22)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUALITY

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

HIGH IMPACT POLYSTYRENE ABS

AWM 25G AWM 311

MWM 025G MWM 030F

ALC 25C ALC 28C

MLC 025C MLC 028C

CROSS FLOW FAN ANTI FUNGUS CROSS FLOW FAN

108/4.25 106 / 4.17

810/31.9 950 / 37.4

INDUCTION INDUCTION

IP20 IP24

GLASS REINFORCED ACRYL STYRENE RESIN

700 / 24.6 1130 / 39.8

SEAMLESS INNER GROOVE COPPER TUBE

7.0 / 0.276 9.52 / 0.375

0.28 / 0.011 0.35 / 0.013

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

0.269 / 2.900 0.291 / 3.130

18 16

SEAMLESS INNER GROOVE COPPER TUBE

7.0 / 0.276 9.52 / 3/8

0.28 / 0.011 0.33 / 0.013

RAISE LANCE ALUMINIUM (SLIT FIN)

NANO FILTER SARANET + IONIZER

351/13.8 330/13.0

386/15.2 317/12.4

1.5/0.06 1.8/0.07

YES NO

1

ACRYLO NITRILE STYRENE

DIRECT

1

PROPELLER

1

DIRECT

457.2/18

INDUCTION

1

IP54

ROTARY HERMETIC

ATMOS NM56M or SUNISO 4GDID

0.11 / 0.0043

2

0.127 / 0.005

0.61 / 6.52

2

18

23 X 3

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

62

Components Data - Heatpump (R22)

MODEL

INDOOR FAN

INDOOR FAN
MOTOR

OUTDOOR FAN MATERIAL

OUTDOOR FAN
MOTOR

COMPRESSOR

INDOOR COIL

OUTDOOR COIL

AIR QUALI TY

CASING

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

MATERIAL

DRIVE

DIAMETER

LENGTH

TYPE

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

DRIVE

DIAMETER

TYPE

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

OIL TYPE

OIL AMOUNT

MATERIAL

TUBE

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FIN

FACE AREA

ROW

FIN PER INCH

MATERIAL

TUBE

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FIN

FACE AREA

ROW

FIN PER INCH

TYPE

QUANTITY

FILTER

SIZE

LENGTH mm/in

WIDTH mm/in

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

OUTDOOR UNIT

MATERIAL

COLOUR

MATERIAL

COLOUR

cm

mm/in

mm/in

mm/in

3

/ fl.oz.

mm/in

mm/in

mm/in

2

/ft

m

mm/in

mm/in

mm/in

2

/ft

m

pc

GLASS REINFORCED ACRYL STYRENE RESIN

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

2

SEAMLESS INNER GROOVE COPPER TUBE

2

AWM 09GR

MWM 009GR

ALC 09CR

MLC 009CR

ANTI FUNGUS SKEW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

617.5/24.3

INDUCTION

1

IP24

PROPELLER

1

DIRECT

356/14

INDUCTION

1

IP54

ROTARY HERMETIC

ATMOS M60 or SUNISO 4GDID

320/11.3

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.201 / 2.161

2

18

9.52 / 3/8

0.33 / 0.013

ALUMINIUM (SLIT FIN)

0.11/0.004

0.31/3.40

1

18

NANO FILTER

2

304/11.9

298/11.7

1.5/0.06

YES

HIGH IMPACT POLYSTYRENE

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

63

Components Data - Heatpump (R22)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUAL IT Y

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

AWM 10GR AWM 15GR

MWM 010GR MWM 015GR

ALC 10CR ALC 15CR

MLC 010CR MLC 015CR

GLASS REINFORCED ACRYL STYRENE RESIN

320 / 11.3 350 / 11.8

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

ANTI FUNGUS SKEW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

717.5/28.2

INDUCTION

1

IP24

PROPELLER

1

DIRECT

404/16

INDUCTION

1

IP54

ROTARY HERMETIC

ATMOS M60 or SUNISO 4GDID

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.234 / 2.516

2

18

9.52 / 3/8

0.33 / 0.013

ALUMINIUM (SLIT FIN)

0.11/0.004

0.36/3.94

1

18

NANO FILTER

2

304/11.9

348/13.7

1.5/0.06

YES

HIGH IMPACT POLYSTYRENE

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

64

Components Data - Heatpump (R22)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUAL IT Y

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

AWM 20GR AWM 20GR

MWM 020GR MWM 020GR

ALC 18CR ALC 20CR

MLC 018CR MLC 020CR

GLASS REINFORCED ACRYL STYRENE RESIN

600 / 21.1 1000 / 35.2

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

CROSS FLOW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

108/4.25

810/31.9

INDUCTION

1

IP20

PROPELLER

1

DIRECT

457.2/18

INDUCTION

1

IP54

ROTARY HERMETIC

ATMOS NM56M or SUNISO 4GDID

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.269 / 2.900

2

18

7.0 / 0.276

0.28 / 0.011

ALUMINIUM (RAISE LANCE FIN)

0.11 / 0.0043

0.52 / 5.59

12

20 18

NANO FILTER

2

351/13.8

386/15.2

1.5/0.06

YES

HIGH IMPACT POLYSTYRENE

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

65

Components Data - Heatpump (R22)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

ATMOS NM56M or SUNISO 4GDID ATMOS M60 or SUNISO 4GDID

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

TYPE

AIR QUAL IT Y

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

AWM 25GR AWM 311 R

MWM 025GR MWM 030FR

ALC 25CR ALC 28CR

MLC 025CR MLC 028CR

CROSS FLOW FAN ANTI FUNGUS CROSS FLOW FAN

108/4.25 106 / 4.17

810/31.9 950 / 37.4

IP20 IP24

GLASS REINFORCED ACRYL STYRENE RESIN

700 / 24.6 1130 / 39.8

SEAMLESS INNER GROOVE COPPER TUBE

7.0 / 0.276 9.52 / 0.375

0.28 / 0.011 0.35 / 0.013

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

0.269 / 2.900 0.291 / 3.130

SEAMLESS INNER GROOVE COPPER TUBE

7 / 0.275 9.52 / 3/8

0.28 / 0.011 0.33 / 0.013

ALUMINIUM (RAISE LANCE) ALUMINIUM (SLIT FIN)

0.11 / 0.0043 0.11/0.004

NANO FILTER SARANET + IONIZER

351/13.8 330/13.0

386/15.2 317/12.4

1.5/0.06 1.8/0.07

YES NO

HIGH IMPACT POLYSTYRENE ABS

1

ACRYLO NITRILE STYRENE

DIRECT

INDUCTION

1

PROPELLER

1

DIRECT

457.2/18

INDUCTION

1

IP54

ROTARY HERMETIC

0.11 / 0.0043

22

18 16

0.61 / 6.52

2

18

23 X 3

LIGHT GREY

GALVANISED MILD STEEL

LIGHT GREY

66

Components Data - Cooling Only (R410A)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUALIT Y

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 07G A5WM 09G

M5WM 007G M5WM 009G

A5LC 07C A5LC 10C

M5LC 007C M5LC 010C

GLASS REINFORCED ACRYL STYRENE RESIN

300 / 10.5 350 / 12.3

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

0.31/3.40 0.36/3.94

ANTI FUNGUS SKEW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

617.5/24.3

INDUCTION

1

IP24

PROPELLER

1

DIRECT

356/14

INDUCTION

1

IP54

ROTARY HERMETIC

RB68A or Freol Alpha68M

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.201 / 2.161

2

18

9.52 / 3/8

0.33 / 0.013

ALUMINIUM (SLIT FIN)

0.11/0.004

1

18

NANO FILTER

2

304/11.9

298/11.7

1.5/0.06

YES

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

67

Components Data - Cooling Only (R410A)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUALIT Y

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 10G A5WM 15G

M5WM 010G M5WM 015G

A5LC 10C A5LC 15C

M5LC 010C M5LC 015C

GLASS REINFORCED ACRYL STYRENE RESIN

350 / 12.3 430 / 15.1

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

ANTI FUNGUS SKEW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

717.5/28.2

INDUCTION

1

IP24

PROPELLER

1

DIRECT

404/16

INDUCTION

1

IP24

ROTARY HERMETIC

RB68A or Freol Alpha68M

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.234 / 2.516

2

18

9.52 / 3/8

0.33 / 0.013

ALUMINIUM (SLIT FIN)

0.11/0.004

0.36/3.94

1

18

NANO FILTER

2

304/11.9

348/13.7

1.5/0.06

YES

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

68

Components Data - Cooling Only (R410A)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

/ft

m

2

ROW

FIN PER INCH

TYPE

AIR QUALIT Y

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 20G A5WM 25G

M5WM 020G M5WM 025G

A5LC 20C A5LC 25C

M5LC 020C M5LC 025C

GLASS REINFORCED ACRYL STYRENE RESIN

670 / 23.5 1130 / 39.7

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

0.51 / 5.47 0.62 / 6.64

ANTI FUNGUS SKEW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

108/4.25

810/31.9

INDUCTION

1

IP20

PROPELLER

1

DIRECT

457.2/18

INDUCTION

1

IP54

ROTARY HERMETIC

RB68A or Freol Alpha68M

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.269 / 2.900

2

18

7.0 / 0.276

0.28 / 0.011

ALUMINIUM (CORR. FIN)

0.127 / 0.005

2

18

NANO FILTER

2

351/13.8

386/15.2

1.5/0.06

YES

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

69

Components Data - Cooling Only (R410A)

MODEL

INDOOR FAN

INDOOR FAN
MOTOR

OUTDOOR FAN MATERIAL

OUTDOOR FAN
MOTOR

COMPRESSOR

INDOOR COIL

OUTDOOR COIL

AIR Q UAL ITY

CASING

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

MATERIAL

DRIVE

DIAMETER

LENGTH

TYPE

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

DRIVE

DIAMETER

TYPE

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

OIL TYPE

OIL AMOUNT

MATERIAL

TUBE

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FIN

FACE AREA

ROW

FIN PER INCH

MATERIAL

TUBE

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FIN

FACE AREA

ROW

FIN PER INCH

TYPE

QUANTITY

FILTER

SIZE

NEGATIVE IONIZER

INDOOR UNIT

OUTDOOR UNIT

mm/in

mm/in

GLASS REINFORCED ACRYL STYRENE RESIN

mm/in 457.2/18

3

/ fl.oz.

cm

SEAMLESS INNER GROOVE COPPER TUBE

mm/in 7.0 / 0.276

mm/in 0.28 / 0.011

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

mm/in 0.11 / 0.0043

2

2

/ft

m

SEAMLESS INNER GROOVE COPPER TUBE

mm/in

mm/in

mm/in

2

2

/ft

m

pc 3 X 3

LENGTH mm/in 330/13.0

WIDTH mm/in

THICKNESS mm/in

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 311

M5WM 031F

A5LC 28C

M5LC 028C

ANTI FUNGUS CROSS FLOW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

106 / 4.17

950 / 37.4

INDUCTION

1

IP24

PROPELLER

1

DIRECT

INDUCTION

1

IP54

ROTARY HERMETIC

RB68A or Freol Alpha68M

1130 / 39.7

0.30 / 3.23

2

18

7.0 / 0.276

0.28 / 0.011

ALUMINIUM (CORR. FIN)

0.11/0.004

0.62 / 6.63

2

18

SARANET + IONIZER

317/12.4

1.8/0.07

NO

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

70

Components Data - Heatpump (R410A)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in 9.52 / 3/8 7.0 / 0.276

mm/in

mm/in

2

2

m

/ft

ROW

FIN PER INCH

TYPE

AIR Q UALITY

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 07GR A5WM 09GR

M5WM 007GR M5WM 009GR

A5LC 07CR A5LC 10CR

M5LC 007CR M5LC 010CR

ANTI FUNGUS SKEW FAN CROSS FLOW FAN

GLASS REINFORCED ACRYL STYRENE RESIN

300 / 10.5 350 / 12.3

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

0.33 / 0.013 0.28 / 0.011

ALUMINIUM (SLIT FIN) RAISE LANCE

0.11/0.004 0.1/ 0.004

0.31/3.40 0.193/ 2.112

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

617.5/24.3

INDUCTION

1

IP24

PROPELLER

1

DIRECT

356/14

INDUCTION

1

IP54

ROTARY HERMETIC

RB68A or Freol Alpha68M

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.201 / 2.161

2

18

1

18

NANO FILTER

2

304/11.9

298/11.7

1.5/0.06

YES

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

71

Components Data - Heatpump (R410A)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in 7.0 / 0.276 9.52 / 3/8

mm/in

mm/in

2

2

m

/ft

ROW

FIN PER INCH

TYPE

AIR Q UALITY

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 10GR A5WM 15GR

M5WM 010GR M5WM 015GR

A5LC 10CR A5LC 15CR

M5LC 010CR M5LC 015CR

ANTI FUNGUS SKEW FAN CROSS FLOW FAN

GLASS REINFORCED ACRYL STYRENE RESIN

350 / 12.3 430 / 15.1

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

0.28 / 0.011 0.33 / 0.013

RAISE LANCE ALUMINIUM (SLIT FIN)

0.1/ 0.004 0.11/0.004

1

ACRYLO NITRILE STYRENE

DIRECT

97/3.8

717.5/28.2

INDUCTION

1

IP24

PROPELLER

1

DIRECT

404/16

INDUCTION

1

IP54

ROTARY HERMETIC

RB68A or Freol Alpha68M

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.234 / 2.516

2

18

0.36/3.94

1

18

NANO FILTER

2

304/11.9

348/13.7

1.5/0.06

YES

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

72

Components Data - Heatpump (R410A)

MODEL

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

INDOOR FAN

MATERIAL

DRIVE

DIAMETER

LENGTH

mm/in

mm/in

TYPE
INDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

OUTDOOR FAN MATERIAL

DRIVE

DIAMETER

mm/in

TYPE
OUTDOOR FAN
MOTOR

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

COMPRESSOR

OIL TYPE

OIL AMOUNT

cm

3

/ fl.oz.

MATERIAL

TUBE

INDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

MATERIAL

TUBE

OUTDOOR COIL

FIN

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FACE AREA

mm/in

mm/in

mm/in

2

m

/ft

2

ROW

FIN PER INCH

TYPE

AIR Q UALITY

FILTER

QUANTITY

SIZE

LENGTH mm/in

WIDTH mm/in

pc

THICKNESS mm/in

NEGATIVE IONIZER

INDOOR UNIT

CASING

OUTDOOR UNIT

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 20GR AWM 25GR

M5WM 020GR M5WM 025GR

A5LC 20CR ALC 25CR

M5LC 020CR M5LC 025CR

GLASS REINFORCED ACRYL STYRENE RESIN

670 / 23.5 1130 / 39.7

SEAMLESS INNER GROOVE COPPER TUBE

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

SEAMLESS INNER GROOVE COPPER TUBE

0.51 / 5.47 0.62 / 6.64

CROSS FLOW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

108/4.25

810/31.9

INDUCTION

1

IP20

PROPELLER

1

DIRECT

457.2/18

INDUCTION

1

IP54

ROTARY HERMETIC

RB68A or Freol Alpha68M

7.0 / 0.276

0.28 / 0.011

0.11 / 0.0043

0.269 / 2.900

2

18

7.0 / 0.276

0.28 / 0.011

RAISE LANCE

0.1 / 0.004

2

18

NANO FILTER

2

351/13.8

386/15.2

1.5/0.06

YES

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

73

Components Data - Heatpump (R410A)

MODEL

INDOOR FAN

INDOOR FAN
MOTOR

OUTDOOR FAN MATERIAL

OUTDOOR FAN
MOTOR

COMPRESSOR

INDOOR COIL

OUTDOOR COIL

AIR QUALITY

CASING

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

INDOOR UNIT

OUTDOOR UNIT

TYPE

QUANTITY

MATERIAL

DRIVE

DIAMETER

LENGTH

TYPE

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

QUANTITY

DRIVE

DIAMETER

TYPE

QUANTITY

INDEX OF PROTECTION (IP)

TYPE

OIL TYPE

OIL AMOUNT

MATERIAL

TUBE

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FIN

FACE AREA

ROW

FIN PER INCH

MATERIAL

TUBE

DIAMETER

THICKNESS

MATERIAL

THICKNESS

FIN

FACE AREA

ROW

FIN PER INCH

TYPE

QUANTITY

FILTER

SIZE

NEGATIVE IONIZER

INDOOR UNIT

OUTDOOR UNIT

mm/in 106 / 4.17

mm/in

GLASS REINFORCED ACRYL STYRENE RESIN

mm/in

3

/ fl.oz.

cm

SEAMLESS INNER GROOVE COPPER TUBE

mm/in

mm/in 0.28 / 0.011

ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)

mm/in

2

2

/ft

m

SEAMLESS INNER GROOVE COPPER TUBE

mm/in 7.0 / 0.276

mm/in 0.28 / 0.011

mm/in

2

2

/ft

m

pc 3 X 3

LENGTH mm/in 330/13.0

WIDTH mm/in

THICKNESS mm/in

MATERIAL

COLOUR

MATERIAL

COLOUR

A5WM 311R

M5WM 030FR

A5LC 28CR

M5LC 028CR

ANTI FUNGUS CROSS FLOW FAN

1

ACRYLO NITRILE STYRENE

DIRECT

950 / 37.4

INDUCTION

1

IP24

PROPELLER

1

DIRECT

457.2/18

INDUCTION

1

IP54

ROTARY HERMETIC

RB68A or Freol Alpha68M

1130 / 39.7

7.0 / 0.276

0.11 / 0.0043

0.30 / 3.23

2

18

ALUMINIUM (CORR. FIN)

0.11/0.004

0.62 / 6.63

2

18

SARANET + IONIZER

317/12.4

1.8/0.07

NO

HIPS

IVORY

GALVANISED MILD STEEL

LIGHT GREY

74

6. PERFORMANCE DATA

Interpolation and Extrapolation method can be used to get the total capacity, TC and sensible capacity, SC at
those temperatures which are not stated out in the table.

Example:

Model: AWM 10G / ALC 10C
Indoor Condition: 23°C DB, 15°C WB
Outdoor Condition: 37°C DB

Solution:

Overall

Based on the Performance table of AWM 10G / ALC 10C

1. Refer to the Indoor DB column,

- 23°C is located between 20°C and 24°C (Thus, Interpolation need to be applied)

2. Refer to the Indoor WB column,

- 15°C only available in the case of Indoor DB = 20°C. (Thus, Extrapolation between 16°C WB
and 17°C WB during 24°C indoor DB is required)

3. Refer to the Outdoor DB column,

- 37°C is located between 35°C and 40°C. (Thus, Interpolation need to be applied)

Please follow the steps below in order to get the required capacity.

1st Step
Extrapolation of Indoor WB

Find TC, SC for

(a) Indoor : 24°C DB, 15°C WB

Outdoor : 35°C DB

(b) Indoor : 24°C DB, 15°C WB

Outdoor : 40°C DB

2nd Step
Interpolation of Indoor DB

Find TC, SC for

(a) Indoor : 23°C DB, 15°C WB

Outdoor : 35°C DB

(b) Indoor : 23°C DB, 15°C WB

Outdoor : 40°C DB

3rd Step
Interpolation of Outdoor DB

Find TC, SC for

(a) Indoor : 23°C DB, 15°C WB

Outdoor : 37°C DB

75

Details:

1st Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 24°C DB, 15°C WB

Outdoor Condition: 35°C DB

Outdoor DB ° C

Indoor DB Indoor WB 35

° C ° C TC (kW) SC (kW)

15 x

1

y

1

24 16 2.623 1.892

17 2.687 1.794

Total capacity, TC

x1 = 2.558kW (Same as Total capacity at 20°C Indoor DB / 15°C Indoor WB & 35°C Outdoor WB)*

⇒

Sensible capacity, SC

Extrapolation Method:

17°C - 15°C

⇒

1.794kW - y

=

1

17°C - 16°C 1.794kW - 1.892kW

⇒ y1 = 1.990kW

(b) Indoor Condition: 24°C DB, 15°C WB

Outdoor Condition: 40°C DB

Outdoor DB ° C

Indoor DB Indoor WB 40

° C ° C TC (kW) SC (kW)

15 x

2

y

2

24 16 2.429 1.728

17 2.502 1.653

Total capacity, TC

x2 = 2.355kW (Same as Total capacity at 20°C Indoor DB / 15°C Indoor WB & 40°C Outdoor WB)*

⇒

Sensible capacity, SC

Extrapolation Method:

⇒

17°C - 15°C

1.653kW - y

=

2

17°C - 16°C 1.653kW - 1.728kW

⇒ y2 = 1.802kW

* This is due to 2 different conditions with same WB temperature, will have the same level of enthalpy. For
more details, please refer to psychrometrics chart

76

2nd Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 23°C DB, 15°C WB
Outdoor Condition: 35°C DB

Outdoor DB ° C

Indoor DB Indoor WB 35

° C ° C TC (kW) SC (kW)

20 15 2.558 1.403

23 15 x

3

y

3

24 15 2.558 1.990

Total capacity, TC

x3 = 2.558kW (Same as Total capacity at 20°C Indoor DB / 15°C Indoor WB & 35°C Outdoor WB)*

⇒

Sensible capacity, SC

Interpolation Method:

⇒

24°C - 20°C = 1.990kW - 1.403kW

24°C - 23°C 1.990kW - y

3

⇒ y3 = 1.844kW

(b) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 40°C DB

Outdoor DB ° C

Indoor DB Indoor WB 40

° C ° C TC (kW) SC (kW)

20 15 2.355 1.215

23 15 x

4

y

4

24 15 2.355 1.802

Total capacity, TC

x4 = 2.355kW (Same as Total capacity at 20°C Indoor DB / 15°C Indoor WB & 40°C Outdoor WB)*

⇒

Sensible capacity, SC

Interpolation Method:

24°C - 20°C = 1.802kW - 1.215kW

⇒

24°C - 23°C 1.802kW - y

4

⇒ y4 = 1.655kW

* This is due to 2 different conditions with same WB temperature will have the same level of enthalpy. For
more details, please refer to psychrometrics chart

77

3rd Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 37°C DB

Outdoor DB ° C

Indoor DB Indoor WB 35 37 40

° C ° C TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)

23 15 2.558 1.844 xy2.355 1.655

Total capacity, TC

Interpolation Method:

40°C - 35°C = 2.355kW - 2.558kW

⇒

40°C - 37°C 2.355kW - x

⇒ x = 2.477kW

Sensible capacity, SC

Interpolation Method:

40°C - 35°C = 1.655kW - 1.844kW

⇒

40°C - 37°C 1.655kW - y

⇒ y = 1.768kW

78

R22 Models
(Cooling Only)

MODEL : AWM 07G / ALC 07C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.418 1.484 2.249 1.335 2.080 1.186 1.910 1.037 1.741 0.889 1.538 0.710

2.453 1.349 2.286 1.221 2.119 1.094 1.952 0.966 1.785 0.839 1.585 0.686

2.453 1.799 2.286 1.671 2.119 1.544 1.952 1.416 1.785 1.288 1.585 1.135

2.488 1.664 2.323 1.558 2.159 1.451 1.994 1.345 1.829 1.239 1.632 1.111

2.523 1.529 2.360 1.444 2.198 1.359 2.036 1.274 1.873 1.189 1.679 1.087

2.557 1.394 2.397 1.331 2.237 1.267 2.077 1.203 1.917 1.139 1.725 1.062

2.593 1.259 2.437 1.210 2.281 1.162 2.126 1.113 1.970 1.064 1.783 1.006

2.523 1.979 2.360 1.894 2.198 1.809 2.036 1.724 1.873 1.638 1.679 1.536

2.557 1.844 2.397 1.780 2.237 1.716 2.077 1.652 1.917 1.589 1.725 1.512

2.593 1.709 2.437 1.660 2.281 1.611 2.126 1.563 1.970 1.514 1.783 1.456

2.628 1.573 2.478 1.535 2.328 1.498 2.179 1.460 2.029 1.423 1.849 1.378

2.663 1.437 2.519 1.411 2.375 1.384 2.231 1.358 2.087 1.332 1.915 1.300

2.699 1.301 2.560 1.286 2.422 1.271 2.284 1.256 2.146 1.241 1.980 1.223

2.734 1.165 2.602 1.161 2.469 1.157 2.337 1.154 2.205 1.150 2.046 1.145

2.593 1.934 2.437 1.885 2.281 1.836 2.126 1.788 1.970 1.739 1.783 1.680

2.628 1.798 2.478 1.760 2.328 1.723 2.179 1.685 2.029 1.648 1.849 1.603

2.663 1.662 2.519 1.636 2.375 1.609 2.231 1.583 2.087 1.557 1.915 1.525

2.699 1.526 2.560 1.511 2.422 1.496 2.284 1.481 2.146 1.466 1.980 1.448

2.734 1.390 2.602 1.386 2.469 1.382 2.337 1.379 2.205 1.375 2.046 1.370

Outdoor DB°C

MODEL : AWM 09G / ALC 09C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.034 1.916 2.829 1.742 2.623 1.568 2.418 1.393 2.213 1.219 1.966 1.010

3.114 1.748 2.903 1.597 2.692 1.445 2.480 1.294 2.269 1.142 2.016 0.961

3.114 2.257 2.903 2.105 2.692 1.954 2.480 1.802 2.269 1.651 2.016 1.469

3.194 2.088 2.977 1.960 2.760 1.831 2.543 1.703 2.326 1.574 2.065 1.420

3.274 1.920 3.051 1.815 2.828 1.709 2.605 1.603 2.382 1.497 2.115 1.371

3.354 1.752 3.125 1.669 2.896 1.586 2.668 1.504 2.439 1.421 2.164 1.321

3.435 1.583 3.205 1.519 2.976 1.454 2.747 1.389 2.517 1.324 2.242 1.246

3.274 2.429 3.051 2.323 2.828 2.217 2.605 2.112 2.382 2.006 2.115 1.879

3.354 2.261 3.125 2.178 2.896 2.095 2.668 2.012 2.439 1.929 2.164 1.830

3.435 2.092 3.205 2.027 2.976 1.962 2.747 1.897 2.517 1.833 2.242 1.755

3.516 1.923 3.289 1.873 3.063 1.823 2.837 1.773 2.611 1.723 2.339 1.663

3.597 1.754 3.374 1.719 3.150 1.683 2.927 1.648 2.704 1.613 2.436 1.571

3.678 1.585 3.458 1.564 3.238 1.544 3.018 1.524 2.798 1.503 2.533 1.479

3.759 1.416 3.542 1.410 3.325 1.404 3.108 1.399 2.891 1.393 2.631 1.387

3.435 2.346 3.205 2.281 2.976 2.216 2.747 2.152 2.517 2.087 2.242 2.009

3.516 2.177 3.289 2.127 3.063 2.077 2.837 2.027 2.611 1.977 2.339 1.917

3.597 2.008 3.374 1.973 3.150 1.938 2.927 1.902 2.704 1.867 2.436 1.825

3.678 1.839 3.458 1.819 3.238 1.798 3.018 1.778 2.798 1.757 2.533 1.733

3.759 1.670 3.542 1.664 3.325 1.659 3.108 1.653 2.891 1.648 2.631 1.641

Outdoor DB°C

79

R22 Models
(Cooling only)

MODEL : AWM 10G / ALC 10C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.169 1.968 2.966 1.780 2.762 1.592 2.558 1.403 2.355 1.215 2.111 0.989

3.206 1.800 3.012 1.635 2.817 1.470 2.623 1.306 2.429 1.141 2.195 0.943

3.206 2.386 3.012 2.222 2.817 2.057 2.623 1.892 2.429 1.728 2.195 1.530

3.243 2.218 3.058 2.077 2.872 1.936 2.687 1.794 2.502 1.653 2.280 1.484

3.280 2.049 3.104 1.932 2.928 1.814 2.752 1.697 2.576 1.579 2.364 1.438

3.317 1.881 3.150 1.787 2.983 1.693 2.816 1.599 2.649 1.505 2.449 1.392

3.353 1.711 3.193 1.635 3.033 1.559 2.873 1.483 2.713 1.407 2.521 1.315

3.280 2.636 3.104 2.518 2.928 2.401 2.752 2.283 2.576 2.166 2.364 2.025

3.317 2.467 3.150 2.373 2.983 2.279 2.816 2.186 2.649 2.092 2.449 1.979

3.353 2.298 3.193 2.222 3.033 2.146 2.873 2.070 2.713 1.993 2.521 1.902

3.389 2.128 3.235 2.066 3.080 2.004 2.925 1.942 2.771 1.879 2.585 1.805

3.426 1.959 3.276 1.910 3.127 1.862 2.978 1.814 2.828 1.765 2.649 1.707

3.462 1.789 3.318 1.754 3.174 1.720 3.030 1.686 2.886 1.651 2.713 1.610

3.499 1.619 3.360 1.599 3.221 1.578 3.082 1.558 2.943 1.537 2.776 1.513

3.353 2.591 3.193 2.515 3.033 2.439 2.873 2.363 2.713 2.287 2.521 2.195

3.389 2.422 3.235 2.359 3.080 2.297 2.925 2.235 2.771 2.173 2.585 2.098

3.426 2.252 3.276 2.204 3.127 2.155 2.978 2.107 2.828 2.059 2.649 2.001

3.462 2.082 3.318 2.048 3.174 2.013 3.030 1.979 2.886 1.945 2.713 1.903

3.499 1.912 3.360 1.892 3.221 1.872 3.082 1.851 2.943 1.831 2.776 1.806

Outdoor DB°C

35 40

46

MODEL : AWM 15G / ALC 15C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

4.051 2.628 3.785 2.373 3.519 2.118 3.253 1.863 2.987 1.608 2.668 1.302

4.086 2.387 3.834 2.156 3.582 1.925 3.330 1.694 3.078 1.464 2.776 1.186

4.086 3.056 3.834 2.825 3.582 2.594 3.330 2.363 3.078 2.133 2.776 1.855

4.120 2.815 3.882 2.608 3.645 2.402 3.407 2.195 3.169 1.988 2.884 1.740

4.155 2.574 3.931 2.392 3.707 2.209 3.484 2.026 3.260 1.843 2.991 1.624

4.189 2.333 3.980 2.175 3.770 2.016 3.560 1.858 3.351 1.699 3.099 1.509

4.223 2.093 4.025 1.961 3.826 1.830 3.627 1.699 3.428 1.568 3.190 1.410

4.155 3.243 3.931 3.061 3.707 2.878 3.484 2.695 3.260 2.513 2.991 2.293

4.189 3.002 3.980 2.844 3.770 2.685 3.560 2.527 3.351 2.368 3.099 2.178

4.223 2.762 4.025 2.631 3.826 2.499 3.627 2.368 3.428 2.237 3.190 2.079

4.257 2.521 4.067 2.420 3.877 2.318 3.687 2.216 3.498 2.115 3.270 1.993

4.291 2.281 4.110 2.209 3.929 2.137 3.748 2.065 3.567 1.993 3.349 1.906

4.325 2.041 4.153 1.998 3.980 1.956 3.808 1.913 3.636 1.871 3.429 1.819

4.359 1.801 4.195 1.788 4.032 1.775 3.868 1.761 3.705 1.748 3.508 1.733

4.223 3.096 4.025 2.965 3.826 2.834 3.627 2.703 3.428 2.571 3.190 2.414

4.257 2.856 4.067 2.754 3.877 2.653 3.687 2.551 3.498 2.449 3.270 2.327

4.291 2.616 4.110 2.544 3.929 2.471 3.748 2.399 3.567 2.327 3.349 2.241

4.325 2.375 4.153 2.333 3.980 2.290 3.808 2.248 3.636 2.205 3.429 2.154

4.359 2.135 4.195 2.122 4.032 2.109 3.868 2.096 3.705 2.083 3.508 2.067

Outdoor DB°C

40 46

80

R22 Models
(Cooling only)

MODEL : AWM 20G / ALC 18C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

5.954 3.645 5.566 3.311 5.179 2.977 4.791 2.642 4.404 2.308 3.939 1.907

6.132 3.309 5.730 3.009 5.329 2.709 4.927 2.409 4.525 2.109 4.043 1.749

6.132 4.352 5.730 4.052 5.329 3.752 4.927 3.451 4.525 3.151 4.043 2.791

6.310 4.016 5.894 3.750 5.478 3.484 5.062 3.218 4.646 2.952 4.147 2.633

6.488 3.680 6.058 3.448 5.628 3.216 5.198 2.985 4.767 2.753 4.251 2.475

6.667 3.344 6.222 3.147 5.778 2.949 5.333 2.751 4.888 2.554 4.355 2.317

6.846 3.008 6.397 2.846 5.947 2.684 5.498 2.521 5.049 2.359 4.510 2.164

6.488 4.723 6.058 4.491 5.628 4.259 5.198 4.027 4.767 3.795 4.251 3.517

6.667 4.387 6.222 4.189 5.778 3.991 5.333 3.794 4.888 3.596 4.355 3.359

6.846 4.051 6.397 3.889 5.947 3.726 5.498 3.564 5.049 3.401 4.510 3.206

7.026 3.715 6.578 3.589 6.131 3.462 5.683 3.336 5.235 3.209 4.698 3.058

7.206 3.380 6.760 3.289 6.314 3.199 5.868 3.108 5.422 3.017 4.886 2.909

7.386 3.044 6.942 2.989 6.497 2.935 6.053 2.880 5.608 2.826 5.075 2.760

7.567 2.708 7.124 2.689 6.681 2.671 6.238 2.652 5.795 2.634 5.263 2.611

6.846 4.572 6.397 4.410 5.947 4.247 5.498 4.085 5.049 3.923 4.510 3.728

7.026 4.236 6.578 4.110 6.131 3.984 5.683 3.857 5.235 3.731 4.698 3.579

7.206 3.901 6.760 3.810 6.314 3.720 5.868 3.629 5.422 3.539 4.886 3.430

7.386 3.565 6.942 3.511 6.497 3.456 6.053 3.401 5.608 3.347 5.075 3.281

7.567 3.229 7.124 3.211 6.681 3.192 6.238 3.174 5.795 3.155 5.263 3.133

Outdoor DB°C

46

MODEL : AWM 20G / ALC 20C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

5.778 3.640 5.473 3.396 5.169 3.153 4.864 2.909 4.559 2.666 4.194 2.373

6.026 3.334 5.701 3.125 5.376 2.917 5.051 2.709 4.726 2.501 4.336 2.251

6.026 4.248 5.701 4.040 5.376 3.832 5.051 3.624 4.726 3.416 4.336 3.166

6.274 3.942 5.929 3.770 5.583 3.597 5.238 3.424 4.892 3.252 4.478 3.044

6.523 3.636 6.157 3.499 5.791 3.362 5.425 3.224 5.059 3.087 4.620 2.922

6.771 3.330 6.384 3.228 5.998 3.126 5.612 3.025 5.225 2.923 4.762 2.800

7.019 3.023 6.614 2.947 6.210 2.870 5.805 2.794 5.400 2.718 4.915 2.626

6.523 4.551 6.157 4.414 5.791 4.276 5.425 4.139 5.059 4.002 4.620 3.837

6.771 4.245 6.384 4.143 5.998 4.041 5.612 3.939 5.225 3.837 4.762 3.715

7.019 3.938 6.614 3.861 6.210 3.785 5.805 3.709 5.400 3.633 4.915 3.541

7.268 3.630 6.846 3.572 6.424 3.515 6.003 3.458 5.581 3.401 5.075 3.332

7.516 3.321 7.077 3.283 6.639 3.245 6.200 3.207 5.761 3.169 5.235 3.123

7.765 3.013 7.309 2.994 6.853 2.975 6.398 2.956 5.942 2.937 5.395 2.914

8.013 2.705 7.541 2.705 7.068 2.705 6.595 2.705 6.123 2.705 5.556 2.705

7.019 4.395 6.614 4.319 6.210 4.242 5.805 4.166 5.400 4.090 4.915 3.998

7.268 4.087 6.846 4.030 6.424 3.973 6.003 3.915 5.581 3.858 5.075 3.789

7.516 3.779 7.077 3.741 6.639 3.703 6.200 3.664 5.761 3.626 5.235 3.581

7.765 3.471 7.309 3.452 6.853 3.433 6.398 3.414 5.942 3.394 5.395 3.372

8.013 3.163 7.541 3.163 7.068 3.163 6.595 3.163 6.123 3.163 5.556 3.163

Outdoor DB°C

40 46

81

R22 Models
(Cooling only)

MODEL : AWM 25G / ALC 25C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

7.657 5.145 7.196 4.692 6.735 4.238 6.275 3.785 5.814 3.331 5.261 2.787

7.728 4.693 7.300 4.280 6.873 3.867 6.446 3.454 6.019 3.042 5.507 2.546

7.728 5.852 7.300 5.439 6.873 5.026 6.446 4.614 6.019 4.201 5.507 3.705

7.798 5.400 7.405 5.028 7.011 4.656 6.618 4.283 6.224 3.911 5.752 3.464

7.869 4.948 7.509 4.617 7.149 4.285 6.789 3.953 6.430 3.621 5.998 3.223

7.940 4.496 7.613 4.205 7.287 3.914 6.961 3.623 6.635 3.332 6.243 2.982

8.008 4.045 7.701 3.803 7.394 3.560 7.086 3.318 6.779 3.075 6.410 2.784

7.869 6.107 7.509 5.776 7.149 5.444 6.789 5.112 6.430 4.781 5.998 4.383

7.940 5.655 7.613 5.364 7.287 5.073 6.961 4.782 6.635 4.491 6.243 4.142

8.008 5.205 7.701 4.962 7.394 4.720 7.086 4.477 6.779 4.235 6.410 3.944

8.076 4.754 7.778 4.566 7.479 4.377 7.181 4.189 6.883 4.000 6.525 3.774

8.144 4.304 7.855 4.169 7.565 4.035 7.276 3.900 6.986 3.766 6.639 3.604

8.212 3.854 7.931 3.773 7.651 3.693 7.370 3.612 7.090 3.532 6.754 3.435

8.279 3.403 8.008 3.377 7.737 3.350 7.465 3.324 7.194 3.297 6.868 3.265

8.008 5.784 7.701 5.542 7.394 5.299 7.086 5.057 6.779 4.814 6.410 4.523

8.076 5.334 7.778 5.145 7.479 4.957 7.181 4.768 6.883 4.580 6.525 4.354

8.144 4.883 7.855 4.749 7.565 4.614 7.276 4.480 6.986 4.345 6.639 4.184

8.212 4.433 7.931 4.353 7.651 4.272 7.370 4.192 7.090 4.111 6.754 4.015

8.279 3.983 8.008 3.956 7.737 3.930 7.465 3.903 7.194 3.877 6.868 3.845

Outdoor DB°C

MODEL : AWM 311 / ALC 28C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

7.657 5.145 7.196 4.692 6.735 4.238 6.275 3.785 5.814 3.331 5.261 2.787

7.728 4.693 7.300 4.280 6.873 3.867 6.446 3.454 6.019 3.042 5.507 2.546

7.728 5.852 7.300 5.439 6.873 5.026 6.446 4.614 6.019 4.201 5.507 3.705

7.798 5.400 7.405 5.028 7.011 4.656 6.618 4.283 6.224 3.911 5.752 3.464

7.869 4.948 7.509 4.617 7.149 4.285 6.789 3.953 6.430 3.621 5.998 3.223

7.940 4.496 7.613 4.205 7.287 3.914 6.961 3.623 6.635 3.332 6.243 2.982

8.008 4.045 7.701 3.803 7.394 3.560 7.086 3.318 6.779 3.075 6.410 2.784

7.869 6.107 7.509 5.776 7.149 5.444 6.789 5.112 6.430 4.781 5.998 4.383

7.940 5.655 7.613 5.364 7.287 5.073 6.961 4.782 6.635 4.491 6.243 4.142

8.008 5.205 7.701 4.962 7.394 4.720 7.086 4.477 6.779 4.235 6.410 3.944

8.076 4.754 7.778 4.566 7.479 4.377 7.181 4.189 6.883 4.000 6.525 3.774

8.144 4.304 7.855 4.169 7.565 4.035 7.276 3.900 6.986 3.766 6.639 3.604

8.212 3.854 7.931 3.773 7.651 3.693 7.370 3.612 7.090 3.532 6.754 3.435

8.279 3.403 8.008 3.377 7.737 3.350 7.465 3.324 7.194 3.297 6.868 3.265

8.008 5.784 7.701 5.542 7.394 5.299 7.086 5.057 6.779 4.814 6.410 4.523

8.076 5.334 7.778 5.145 7.479 4.957 7.181 4.768 6.883 4.580 6.525 4.354

8.144 4.883 7.855 4.749 7.565 4.614 7.276 4.480 6.986 4.345 6.639 4.184

8.212 4.433 7.931 4.353 7.651 4.272 7.370 4.192 7.090 4.111 6.754 4.015

8.279 3.983 8.008 3.956 7.737 3.930 7.465 3.903 7.194 3.877 6.868 3.845

Outdoor DB°C

82

R22 Models
(Heatpump)

MODEL : AWM 09GR / ALC 09CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.163 2.063 2.934 1.852 2.705 1.641 2.476 1.430 2.247 1.219 1.972 0.966

3.205 1.896 2.978 1.704 2.752 1.513 2.525 1.322 2.299 1.130 2.027 0.901

3.205 2.420 2.978 2.228 2.752 2.037 2.525 1.846 2.299 1.654 2.027 1.425

3.246 2.252 3.022 2.081 2.798 1.909 2.574 1.737 2.351 1.565 2.082 1.359

3.287 2.085 3.066 1.933 2.845 1.781 2.624 1.629 2.402 1.476 2.137 1.294

3.329 1.918 3.110 1.785 2.891 1.653 2.673 1.520 2.454 1.388 2.192 1.228

3.370 1.750 3.158 1.637 2.947 1.524 2.735 1.410 2.523 1.297 2.268 1.161

3.287 2.609 3.066 2.457 2.845 2.305 2.624 2.153 2.402 2.001 2.137 1.818

3.329 2.442 3.110 2.309 2.891 2.177 2.673 2.044 2.454 1.912 2.192 1.752

3.370 2.274 3.158 2.161 2.947 2.048 2.735 1.934 2.523 1.821 2.268 1.685

3.413 2.107 3.210 2.012 3.007 1.918 2.805 1.823 2.602 1.729 2.359 1.615

3.455 1.939 3.261 1.864 3.068 1.788 2.875 1.713 2.681 1.637 2.449 1.546

3.497 1.772 3.313 1.715 3.129 1.658 2.945 1.602 2.761 1.545 2.540 1.477

3.539 1.605 3.364 1.567 3.190 1.529 3.015 1.491 2.840 1.453 2.631 1.408

3.370 2.536 3.158 2.423 2.947 2.310 2.735 2.196 2.523 2.083 2.268 1.947

3.413 2.369 3.210 2.274 3.007 2.180 2.805 2.085 2.602 1.991 2.359 1.877

3.455 2.201 3.261 2.126 3.068 2.050 2.875 1.975 2.681 1.899 2.449 1.808

3.497 2.034 3.313 1.977 3.129 1.921 2.945 1.864 2.761 1.807 2.540 1.739

3.539 1.867 3.364 1.829 3.190 1.791 3.015 1.753 2.840 1.715 2.631 1.670

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15 1.181 1.181 1.471 1.471 1.568 1.568 2.630 2.630 3.210 3.210 3.500 3.500 3.790 3.790

17

19 1.126 1.126 1.413 1.413 1.508 1.508 2.552 2.552 3.035 3.035 3.305 3.305 3.574 3.574

21

23 1.094 1.094 1.360 1.360 1.449 1.449 2.416 2.416 2.860 2.860 3.110 3.110 3.359 3.359

25

27 1.086 1.086 1.314 1.314 1.389 1.389 2.224 2.224 2.686 2.686 2.914 2.914 3.143 3.143

-9 -6 -5 6 12 15

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

1.154 1.154 1.442 1.442 1.538 1.538 2.591 2.591 3.123 3.123 3.402 3.402 3.682 3.682

1.098 1.098 1.383 1.383 1.479 1.479 2.512 2.512 2.948 2.948 3.207 3.207 3.466 3.466

1.090 1.090 1.337 1.337 1.419 1.419 2.320 2.320 2.773 2.773 3.012 3.012 3.251 3.251

FROST REGION

18

83

R22 Models
(Heatpump)

MODEL : AWM 10GR / ALC 10CR

COOLING MODE

20 25 30 35 40

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

3.169 1.968 2.966 1.780 2.762 1.592 2.558 1.403 2.355 1.215 2.111 0.989

3.206 1.800 3.012 1.635 2.817 1.470 2.623 1.306 2.429 1.141 2.195 0.943

3.206 2.386 3.012 2.222 2.817 2.057 2.623 1.892 2.429 1.728 2.195 1.530

3.243 2.218 3.058 2.077 2.872 1.936 2.687 1.794 2.502 1.653 2.280 1.484

3.280 2.049 3.104 1.932 2.928 1.814 2.752 1.697 2.576 1.579 2.364 1.438

3.317 1.881 3.150 1.787 2.983 1.693 2.816 1.599 2.649 1.505 2.449 1.392

3.353 1.711 3.193 1.635 3.033 1.559 2.873 1.483 2.713 1.407 2.521 1.315

3.280 2.636 3.104 2.518 2.928 2.401 2.752 2.283 2.576 2.166 2.364 2.025

3.317 2.467 3.150 2.373 2.983 2.279 2.816 2.186 2.649 2.092 2.449 1.979

3.353 2.298 3.193 2.222 3.033 2.146 2.873 2.070 2.713 1.993 2.521 1.902

3.389 2.128 3.235 2.066 3.080 2.004 2.925 1.942 2.771 1.879 2.585 1.805

3.426 1.959 3.276 1.910 3.127 1.862 2.978 1.814 2.828 1.765 2.649 1.707

3.462 1.789 3.318 1.754 3.174 1.720 3.030 1.686 2.886 1.651 2.713 1.610

3.499 1.619 3.360 1.599 3.221 1.578 3.082 1.558 2.943 1.537 2.776 1.513

3.353 2.591 3.193 2.515 3.033 2.439 2.873 2.363 2.713 2.287 2.521 2.195

3.389 2.422 3.235 2.359 3.080 2.297 2.925 2.235 2.771 2.173 2.585 2.098

3.426 2.252 3.276 2.204 3.127 2.155 2.978 2.107 2.828 2.059 2.649 2.001

3.462 2.082 3.318 2.048 3.174 2.013 3.030 1.979 2.886 1.945 2.713 1.903

3.499 1.912 3.360 1.892 3.221 1.872 3.082 1.851 2.943 1.831 2.776 1.806

Outdoor DB°C

46ID DB°C ID WB°C

HEATING MODE

Outdoor WB°C

ID DB°C -9 -6

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

15 1.274 1.274 1.577 1.577 1.678 1.678 2.789 2.789 3.395 3.395 3.698 3.698 4.001 4.001

1.246 1.246 1.546 1.546 1.646 1.646 2.743 2.743 3.302 3.302 3.595 3.595 3.887 3.887

17

19 1.219 1.219 1.516 1.516 1.615 1.615 2.697 2.697 3.210 3.210 3.492 3.492 3.773 3.773

1.191 1.191 1.485 1.485 1.583 1.583 2.652 2.652 3.118 3.118 3.388 3.388 3.659 3.659

21

23 1.184 1.184 1.460 1.460 1.551 1.551 2.554 2.554 3.025 3.025 3.285 3.285 3.546 3.546

1.178 1.178 1.434 1.434 1.520 1.520 2.457 2.457 2.933 2.933 3.182 3.182 3.432 3.432

25

27 1.172 1.172 1.409 1.409 1.488 1.488 2.359 2.359 2.841 2.841 3.079 3.079 3.318 3.318

FROST REGION

-5 6 12 15

18

84

R22 Models
(Heatpump)

MODEL : AWM 15GR / ALC 15CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.852 2.383 3.608 2.179 3.365 1.974 3.121 1.769 2.877 1.564 2.584 1.318

4.062 2.259 3.784 2.056 3.506 1.852 3.228 1.648 2.950 1.445 2.616 1.201

4.062 2.917 3.784 2.713 3.506 2.510 3.228 2.306 2.950 2.103 2.616 1.858

4.271 2.793 3.959 2.590 3.647 2.388 3.335 2.186 3.022 1.983 2.647 1.741

4.481 2.668 4.134 2.467 3.788 2.266 3.441 2.065 3.095 1.864 2.679 1.623

4.691 2.544 4.310 2.344 3.929 2.145 3.548 1.945 3.168 1.745 2.711 1.505

4.902 2.421 4.503 2.227 4.103 2.034 3.704 1.841 3.305 1.648 2.826 1.416

4.481 3.326 4.134 3.125 3.788 2.924 3.441 2.723 3.095 2.522 2.679 2.281

4.691 3.202 4.310 3.002 3.929 2.803 3.548 2.603 3.168 2.403 2.711 2.163

4.902 3.078 4.503 2.885 4.103 2.692 3.704 2.499 3.305 2.306 2.826 2.074

5.115 2.955 4.707 2.773 4.300 2.590 3.893 2.407 3.485 2.224 2.996 2.005

5.328 2.832 4.912 2.660 4.497 2.487 4.081 2.315 3.666 2.142 3.167 1.935

5.540 2.709 5.117 2.547 4.693 2.385 4.270 2.222 3.846 2.060 3.338 1.866

5.753 2.586 5.321 2.434 4.890 2.282 4.458 2.130 4.026 1.978 3.508 1.796

4.902 3.407 4.503 3.214 4.103 3.021 3.704 2.828 3.305 2.635 2.826 2.403

5.115 3.284 4.707 3.101 4.300 2.919 3.893 2.736 3.485 2.553 2.996 2.334

5.328 3.161 4.912 2.989 4.497 2.816 4.081 2.644 3.666 2.471 3.167 2.264

5.540 3.038 5.117 2.876 4.693 2.714 4.270 2.551 3.846 2.389 3.338 2.195

5.753 2.915 5.321 2.763 4.890 2.611 4.458 2.459 4.026 2.307 3.508 2.125

Outdoor DB°C

35 40 46

HEATING MODE

Outdoor WB°C

612ID DB°C-9-6-5 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

15 1.533 1.533 1.925 1.925 2.055 2.055 3.489 3.489 4.271 4.271 4.662 4.662 5.053 5.053

1.494 1.494 1.885 1.885 2.016 2.016 3.442 3.442 4.154 4.154 4.531 4.531 4.909 4.909

17

19 1.454 1.454 1.846 1.846 1.976 1.976 3.396 3.396 4.038 4.038 4.401 4.401 4.765 4.765

1.414 1.414 1.806 1.806 1.937 1.937 3.350 3.350 3.921 3.921 4.271 4.271 4.621 4.621

21

23 1.413 1.413 1.776 1.776 1.898 1.898 3.215 3.215 3.805 3.805 4.141 4.141 4.478 4.478

1.411 1.411 1.746 1.746 1.858 1.858 3.081 3.081 3.688 3.688 4.011 4.011 4.334 4.334

25

27 1.409 1.409 1.717 1.717 1.819 1.819 2.946 2.946 3.572 3.572 3.881 3.881 4.190 4.190

FROST REGION

15

85

R22 Models
(Heatpump)

MODEL : AWM 20GR / ALC 18CR

COOLING MODE

ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46ID DB°C

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

5.954 3.645 5.566 3.311 5.179 2.977 4.791 2.642 4.404 2.308 3.939 1.907

6.132 3.309 5.730 3.009 5.329 2.709 4.927 2.409 4.525 2.109 4.043 1.749

6.132 4.352 5.730 4.052 5.329 3.752 4.927 3.451 4.525 3.151 4.043 2.791

6.310 4.016 5.894 3.750 5.478 3.484 5.062 3.218 4.646 2.952 4.147 2.633

6.488 3.680 6.058 3.448 5.628 3.216 5.198 2.985 4.767 2.753 4.251 2.475

6.667 3.344 6.222 3.147 5.778 2.949 5.333 2.751 4.888 2.554 4.355 2.317

6.846 3.008 6.397 2.846 5.947 2.684 5.498 2.521 5.049 2.359 4.510 2.164

6.488 4.723 6.058 4.491 5.628 4.259 5.198 4.027 4.767 3.795 4.251 3.517

6.667 4.387 6.222 4.189 5.778 3.991 5.333 3.794 4.888 3.596 4.355 3.359

6.846 4.051 6.397 3.889 5.947 3.726 5.498 3.564 5.049 3.401 4.510 3.206

7.026 3.715 6.578 3.589 6.131 3.462 5.683 3.336 5.235 3.209 4.698 3.058

7.206 3.380 6.760 3.289 6.314 3.199 5.868 3.108 5.422 3.017 4.886 2.909

7.386 3.044 6.942 2.989 6.497 2.935 6.053 2.880 5.608 2.826 5.075 2.760

7.567 2.708 7.124 2.689 6.681 2.671 6.238 2.652 5.795 2.634 5.263 2.611

6.846 4.572 6.397 4.410 5.947 4.247 5.498 4.085 5.049 3.923 4.510 3.728

7.026 4.236 6.578 4.110 6.131 3.984 5.683 3.857 5.235 3.731 4.698 3.579

7.206 3.901 6.760 3.810 6.314 3.720 5.868 3.629 5.422 3.539 4.886 3.430

7.386 3.565 6.942 3.511 6.497 3.456 6.053 3.401 5.608 3.347 5.075 3.281

7.567 3.229 7.124 3.211 6.681 3.192 6.238 3.174 5.795 3.155 5.263 3.133

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15

17 2.552 2.552 3.090 3.090 3.269 3.269 5.285 5.285 6.290 6.290 6.823 6.823 7.356 7.356

19 2.512 2.512 3.034 3.034 3.208 3.208 5.210 5.210 6.115 6.115 6.628 6.628 7.141 7.141

21

23

25 2.415 2.415 2.872 2.872 3.024 3.024 4.738 4.738 5.590 5.590 6.042 6.042 6.495 6.495

27 2.387 2.387 2.819 2.819 2.963 2.963 4.540 4.540 5.415 5.415 5.847 5.847 6.280 6.280

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.593 2.593 3.146 3.146 3.330 3.330 5.359 5.359 6.465 6.465 7.018 7.018 7.572 7.572

2.471 2.471 2.978 2.978 3.147 3.147 5.136 5.136 5.940 5.940 6.433 6.433 6.926 6.926

2.443 2.443 2.925 2.925 3.085 3.085 4.937 4.937 5.765 5.765 6.238 6.238 6.710 6.710

FROST REGION

86

R22 Models
(Heatpump)

MODEL : AWM 20GR / ALC 20CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

5.778 3.640 5.473 3.396 5.169 3.153 4.864 2.909 4.559 2.666 4.194 2.373

6.026 3.334 5.701 3.125 5.376 2.917 5.051 2.709 4.726 2.501 4.336 2.251

6.026 4.248 5.701 4.040 5.376 3.832 5.051 3.624 4.726 3.416 4.336 3.166

6.274 3.942 5.929 3.770 5.583 3.597 5.238 3.424 4.892 3.252 4.478 3.044

6.523 3.636 6.157 3.499 5.791 3.362 5.425 3.224 5.059 3.087 4.620 2.922

6.771 3.330 6.384 3.228 5.998 3.126 5.612 3.025 5.225 2.923 4.762 2.800

7.019 3.023 6.614 2.947 6.210 2.870 5.805 2.794 5.400 2.718 4.915 2.626

6.523 4.551 6.157 4.414 5.791 4.276 5.425 4.139 5.059 4.002 4.620 3.837

6.771 4.245 6.384 4.143 5.998 4.041 5.612 3.939 5.225 3.837 4.762 3.715

7.019 3.938 6.614 3.861 6.210 3.785 5.805 3.709 5.400 3.633 4.915 3.541

7.268 3.630 6.846 3.572 6.424 3.515 6.003 3.458 5.581 3.401 5.075 3.332

7.516 3.321 7.077 3.283 6.639 3.245 6.200 3.207 5.761 3.169 5.235 3.123

7.765 3.013 7.309 2.994 6.853 2.975 6.398 2.956 5.942 2.937 5.395 2.914

8.013 2.705 7.541 2.705 7.068 2.705 6.595 2.705 6.123 2.705 5.556 2.705

7.019 4.395 6.614 4.319 6.210 4.242 5.805 4.166 5.400 4.090 4.915 3.998

7.268 4.087 6.846 4.030 6.424 3.973 6.003 3.915 5.581 3.858 5.075 3.789

7.516 3.779 7.077 3.741 6.639 3.703 6.200 3.664 5.761 3.626 5.235 3.581

7.765 3.471 7.309 3.452 6.853 3.433 6.398 3.414 5.942 3.394 5.395 3.372

8.013 3.163 7.541 3.163 7.068 3.163 6.595 3.163 6.123 3.163 5.556 3.163

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15

17 2.446 2.446 3.062 3.062 3.267 3.267 5.546 5.546 6.648 6.648 7.245 7.245 7.841 7.841

19 2.386 2.386 2.999 2.999 3.204 3.204 5.494 5.494 6.462 6.462 7.037 7.037 7.612 7.612

21

23

25 2.311 2.311 2.838 2.838 3.014 3.014 4.965 4.965 5.903 5.903 6.413 6.413 6.923 6.923

27 2.304 2.304 2.789 2.789 2.951 2.951 4.726 4.726 5.717 5.717 6.205 6.205 6.694 6.694

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.506 2.506 3.124 3.124 3.330 3.330 5.597 5.597 6.834 6.834 7.452 7.452 8.071 8.071

2.326 2.326 2.937 2.937 3.140 3.140 5.443 5.443 6.276 6.276 6.829 6.829 7.382 7.382

2.319 2.319 2.887 2.887 3.077 3.077 5.204 5.204 6.089 6.089 6.621 6.621 7.153 7.153

FROST REGION

87

R22 Models
(Heatpump)

MODEL : AWM 25GR / ALC 25CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

7.657 5.145 7.196 4.692 6.735 4.238 6.275 3.785 5.814 3.331 5.261 2.787

7.728 4.693 7.300 4.280 6.873 3.867 6.446 3.454 6.019 3.042 5.507 2.546

7.728 5.852 7.300 5.439 6.873 5.026 6.446 4.614 6.019 4.201 5.507 3.705

7.798 5.400 7.405 5.028 7.011 4.656 6.618 4.283 6.224 3.911 5.752 3.464

7.869 4.948 7.509 4.617 7.149 4.285 6.789 3.953 6.430 3.621 5.998 3.223

7.940 4.496 7.613 4.205 7.287 3.914 6.961 3.623 6.635 3.332 6.243 2.982

8.008 4.045 7.701 3.803 7.394 3.560 7.086 3.318 6.779 3.075 6.410 2.784

7.869 6.107 7.509 5.776 7.149 5.444 6.789 5.112 6.430 4.781 5.998 4.383

7.940 5.655 7.613 5.364 7.287 5.073 6.961 4.782 6.635 4.491 6.243 4.142

8.008 5.205 7.701 4.962 7.394 4.720 7.086 4.477 6.779 4.235 6.410 3.944

8.076 4.754 7.778 4.566 7.479 4.377 7.181 4.189 6.883 4.000 6.525 3.774

8.144 4.304 7.855 4.169 7.565 4.035 7.276 3.900 6.986 3.766 6.639 3.604

8.212 3.854 7.931 3.773 7.651 3.693 7.370 3.612 7.090 3.532 6.754 3.435

8.279 3.403 8.008 3.377 7.737 3.350 7.465 3.324 7.194 3.297 6.868 3.265

8.008 5.784 7.701 5.542 7.394 5.299 7.086 5.057 6.779 4.814 6.410 4.523

8.076 5.334 7.778 5.145 7.479 4.957 7.181 4.768 6.883 4.580 6.525 4.354

8.144 4.883 7.855 4.749 7.565 4.614 7.276 4.480 6.986 4.345 6.639 4.184

8.212 4.433 7.931 4.353 7.651 4.272 7.370 4.192 7.090 4.111 6.754 4.015

8.279 3.983 8.008 3.956 7.737 3.930 7.465 3.903 7.194 3.877 6.868 3.845

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15

17 3.141 3.141 3.865 3.865 4.107 4.107 6.822 6.822 8.128 8.128 8.838 8.838 9.547 9.547

19 3.078 3.078 3.791 3.791 4.028 4.028 6.760 6.760 7.901 7.901 8.585 8.585 9.268 9.268

21

23

25 2.970 2.970 3.588 3.588 3.794 3.794 6.112 6.112 7.220 7.220 7.825 7.825 8.430 8.430

27 2.947 2.947 3.523 3.523 3.715 3.715 5.819 5.819 6.993 6.993 7.572 7.572 8.150 8.150

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.204 3.204 3.940 3.940 4.185 4.185 6.883 6.883 8.355 8.355 9.091 9.091 9.827 9.827

3.015 3.015 3.716 3.716 3.950 3.950 6.699 6.699 7.674 7.674 8.331 8.331 8.989 8.989

2.992 2.992 3.652 3.652 3.872 3.872 6.406 6.406 7.447 7.447 8.078 8.078 8.709 8.709

FROST REGION

88

R22 Models
(Heatpump)

MODEL : AWM 311R / ALC 28CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

8.187 5.330 7.772 4.967 7.356 4.604 6.941 4.241 6.525 3.877 6.026 3.441

8.441 4.894 8.027 4.579 7.614 4.265 7.200 3.951 6.786 3.637 6.289 3.260

8.441 6.144 8.027 5.830 7.614 5.516 7.200 5.202 6.786 4.888 6.289 4.511

8.695 5.707 8.283 5.442 7.871 5.177 7.459 4.912 7.047 4.647 6.552 4.329

8.949 5.271 8.539 5.055 8.128 4.839 7.718 4.623 7.307 4.407 6.815 4.147

9.203 4.834 8.795 4.667 8.386 4.500 7.977 4.333 7.568 4.166 7.078 3.966

9.456 4.395 9.037 4.266 8.617 4.136 8.198 4.007 7.779 3.877 7.276 3.722

8.949 6.521 8.539 6.305 8.128 6.089 7.718 5.873 7.307 5.657 6.815 5.398

9.203 6.084 8.795 5.918 8.386 5.751 7.977 5.584 7.568 5.417 7.078 5.217

9.456 5.646 9.037 5.517 8.617 5.387 8.198 5.257 7.779 5.128 7.276 4.972

9.708 5.207 9.270 5.107 8.832 5.007 8.394 4.907 7.956 4.806 7.430 4.686

9.959 4.768 9.503 4.697 9.046 4.626 8.590 4.556 8.133 4.485 7.585 4.400

10.211 4.328 9.736 4.287 9.261 4.246 8.785 4.205 8.310 4.164 7.740 4.114

10.462 3.889 9.969 3.877 9.475 3.866 8.981 3.854 8.487 3.842 7.895 3.828

9.456 6.272 9.037 6.142 8.617 6.012 8.198 5.883 7.779 5.753 7.276 5.598

9.708 5.832 9.270 5.732 8.832 5.632 8.394 5.532 7.956 5.432 7.430 5.312

9.959 5.393 9.503 5.322 9.046 5.252 8.590 5.181 8.133 5.110 7.585 5.026

10.211 4.954 9.736 4.913 9.261 4.871 8.785 4.830 8.310 4.789 7.740 4.739

10.462 4.515 9.969 4.503 9.475 4.491 8.981 4.479 8.487 4.468 7.895 4.453

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15 3.527 3.527 4.422 4.422 4.720 4.720 8.000 8.000 9.790 9.790 10.684 10.684 11.579 11.579

17

19 3.347 3.347 4.241 4.241 4.540 4.540 7.877 7.877 9.256 9.256 10.088 10.088 10.920 10.920

21

23 3.252 3.252 4.082 4.082 4.359 4.359 7.461 7.461 8.722 8.722 9.492 9.492 10.262 10.262

25

27 3.242 3.242 3.945 3.945 4.179 4.179 6.750 6.750 8.188 8.188 8.896 8.896 9.603 9.603

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.437 3.437 4.332 4.332 4.630 4.630 7.939 7.939 9.523 9.523 10.386 10.386 11.250 11.250

3.256 3.256 4.151 4.151 4.449 4.449 7.816 7.816 8.989 8.989 9.790 9.790 10.591 10.591

3.247 3.247 4.014 4.014 4.269 4.269 7.105 7.105 8.455 8.455 9.194 9.194 9.932 9.932

FROST REGION

89

R410A Models
(Cooling only)

MODEL : A5WM 07G / A5LC 07C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.541 1.631 2.345 1.434 2.152 1.241 1.959 1.048 1.766 0.854 1.535 0.623

2.588 1.515 2.402 1.335 2.217 1.157 2.033 0.979 1.849 0.801 1.627 0.588

2.588 2.038 2.402 1.858 2.217 1.680 2.033 1.502 1.849 1.325 1.627 1.111

2.635 1.922 2.459 1.759 2.283 1.597 2.107 1.434 1.931 1.271 1.720 1.076

2.680 1.804 2.513 1.657 2.346 1.511 2.179 1.364 2.012 1.217 1.812 1.041

2.722 1.686 2.547 1.558 2.372 1.430 2.197 1.302 2.064 1.168 1.904 1.006

2.768 1.563 2.610 1.424 2.451 1.284 2.293 1.145 2.135 1.006 1.944 0.839

2.680 2.327 2.513 2.181 2.346 2.034 2.179 1.887 2.012 1.740 1.812 1.564

2.722 2.210 2.547 2.082 2.372 1.954 2.197 1.826 2.064 1.691 1.904 1.529

2.768 2.086 2.610 1.947 2.451 1.808 2.293 1.668 2.135 1.529 1.944 1.362

2.812 1.963 2.652 1.816 2.493 1.668 2.334 1.520 2.175 1.372 1.984 1.195

2.855 1.840 2.695 1.684 2.535 1.528 2.376 1.371 2.216 1.215 2.024 1.028

2.898 1.717 2.738 1.553 2.577 1.388 2.417 1.223 2.257 1.058 2.064 0.860

2.941 1.594 2.780 1.421 2.619 1.248 2.458 1.074 2.297 0.901 2.104 0.693

2.768 2.348 2.610 2.209 2.451 2.069 2.293 1.930 2.135 1.791 1.944 1.624

2.812 2.225 2.652 2.077 2.493 1.929 2.334 1.782 2.175 1.634 1.984 1.456

2.855 2.102 2.695 1.946 2.535 1.789 2.376 1.633 2.216 1.477 2.024 1.289

2.898 1.979 2.738 1.814 2.577 1.649 2.417 1.485 2.257 1.320 2.064 1.122

2.941 1.856 2.780 1.683 2.619 1.509 2.458 1.336 2.297 1.163 2.104 0.955

Outdoor DB°C

MODEL : A5WM 09G / A5LC 10C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.720 1.771 2.556 1.606 2.406 1.457 2.257 1.307 2.108 1.158 1.929 0.978

2.816 1.656 2.654 1.511 2.499 1.374 2.344 1.236 2.189 1.099 2.003 0.934

2.816 2.202 2.654 2.057 2.499 1.920 2.344 1.782 2.189 1.645 2.003 1.480

2.912 2.087 2.752 1.962 2.591 1.837 2.431 1.711 2.270 1.586 2.078 1.436

3.001 1.964 2.837 1.854 2.674 1.744 2.511 1.634 2.348 1.524 2.152 1.392

3.092 1.835 2.940 1.706 2.789 1.577 2.637 1.449 2.451 1.403 2.227 1.348

3.177 1.713 3.003 1.603 2.829 1.492 2.656 1.381 2.482 1.271 2.274 1.138

3.001 2.510 2.837 2.400 2.674 2.290 2.511 2.180 2.348 2.070 2.152 1.938

3.092 2.381 2.940 2.252 2.789 2.123 2.637 1.995 2.451 1.949 2.227 1.894

3.177 2.259 3.003 2.148 2.829 2.038 2.656 1.927 2.482 1.817 2.274 1.684

3.264 2.130 3.083 2.004 2.901 1.878 2.720 1.751 2.538 1.625 2.320 1.474

3.352 2.002 3.162 1.860 2.973 1.718 2.784 1.576 2.594 1.434 2.367 1.263

3.439 1.873 3.242 1.715 3.045 1.558 2.848 1.400 2.650 1.242 2.414 1.053

3.527 1.744 3.322 1.571 3.117 1.398 2.912 1.224 2.707 1.051 2.461 0.843

3.177 2.532 3.003 2.421 2.829 2.311 2.656 2.200 2.482 2.089 2.274 1.957

3.264 2.403 3.083 2.277 2.901 2.151 2.720 2.024 2.538 1.898 2.320 1.747

3.352 2.275 3.162 2.133 2.973 1.991 2.784 1.849 2.594 1.707 2.367 1.536

3.439 2.146 3.242 1.988 3.045 1.831 2.848 1.673 2.650 1.515 2.414 1.326

3.527 2.017 3.322 1.844 3.117 1.671 2.912 1.497 2.707 1.324 2.461 1.116

Outdoor DB°C

90

R410A Models
(Cooling only)

MODEL : A5WM 10G / A5LC 10C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.028 1.998 2.824 1.793 2.631 1.600 2.439 1.407 2.247 1.215 2.016 0.983

3.110 1.857 2.909 1.675 2.714 1.500 2.519 1.324 2.325 1.148 2.091 0.937

3.110 2.450 2.909 2.268 2.714 2.093 2.519 1.917 2.325 1.741 2.091 1.530

3.192 2.309 2.995 2.151 2.797 1.992 2.600 1.833 2.402 1.675 2.165 1.484

3.268 2.163 3.070 2.024 2.873 1.884 2.675 1.745 2.477 1.606 2.240 1.439

3.347 2.008 3.159 1.844 2.971 1.680 2.783 1.517 2.570 1.460 2.314 1.393

3.420 1.864 3.217 1.731 3.013 1.598 2.810 1.465 2.607 1.332 2.363 1.173

3.268 2.756 3.070 2.617 2.873 2.477 2.675 2.338 2.477 2.199 2.240 2.032

3.347 2.601 3.159 2.437 2.971 2.273 2.783 2.110 2.570 2.053 2.314 1.986

3.420 2.457 3.217 2.324 3.013 2.191 2.810 2.058 2.607 1.925 2.363 1.766

3.495 2.304 3.287 2.158 3.078 2.012 2.870 1.867 2.662 1.721 2.412 1.546

3.570 2.151 3.357 1.992 3.143 1.834 2.930 1.675 2.716 1.517 2.460 1.326

3.646 1.998 3.427 1.827 3.208 1.655 2.990 1.484 2.771 1.312 2.509 1.107

3.721 1.845 3.497 1.661 3.273 1.477 3.050 1.292 2.826 1.108 2.557 0.887

3.420 2.753 3.217 2.620 3.013 2.488 2.810 2.355 2.607 2.222 2.363 2.063

3.495 2.600 3.287 2.455 3.078 2.309 2.870 2.163 2.662 2.018 2.412 1.843

3.570 2.448 3.357 2.289 3.143 2.130 2.930 1.972 2.716 1.813 2.460 1.623

3.646 2.295 3.427 2.123 3.208 1.952 2.990 1.780 2.771 1.609 2.509 1.403

3.721 2.142 3.497 1.958 3.273 1.773 3.050 1.589 2.826 1.405 2.557 1.183

Outdoor DB°C

MODEL : A5WM 15G / A5LC 15C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.525 2.306 3.328 2.109 3.156 1.936 2.983 1.764 2.811 1.591 2.604 1.384

3.668 2.159 3.482 1.989 3.308 1.831 3.134 1.673 2.960 1.515 2.751 1.325

3.668 2.856 3.482 2.686 3.308 2.528 3.134 2.370 2.960 2.212 2.751 2.022

3.810 2.709 3.635 2.566 3.460 2.422 3.285 2.279 3.109 2.135 2.899 1.963

3.941 2.551 3.769 2.427 3.597 2.302 3.425 2.178 3.253 2.053 3.047 1.904

4.069 2.381 3.885 2.215 3.701 2.049 3.517 1.883 3.370 1.866 3.195 1.845

4.200 2.226 4.020 2.099 3.839 1.971 3.659 1.843 3.478 1.715 3.262 1.561

3.941 3.248 3.769 3.123 3.597 2.999 3.425 2.874 3.253 2.750 3.047 2.601

4.069 3.078 3.885 2.912 3.701 2.746 3.517 2.580 3.370 2.563 3.195 2.541

4.200 2.923 4.020 2.795 3.839 2.668 3.659 2.540 3.478 2.412 3.262 2.258

4.329 2.757 4.136 2.606 3.944 2.456 3.752 2.306 3.559 2.156 3.329 1.975

4.457 2.590 4.253 2.418 4.049 2.245 3.845 2.072 3.641 1.899 3.396 1.692

4.585 2.424 4.369 2.229 4.153 2.034 3.938 1.838 3.722 1.643 3.463 1.409

4.713 2.257 4.486 2.040 4.258 1.822 4.031 1.605 3.803 1.387 3.530 1.126

4.200 3.272 4.020 3.144 3.839 3.016 3.659 2.888 3.478 2.760 3.262 2.607

4.329 3.105 4.136 2.955 3.944 2.805 3.752 2.654 3.559 2.504 3.329 2.324

4.457 2.939 4.253 2.766 4.049 2.593 3.845 2.421 3.641 2.248 3.396 2.041

4.585 2.772 4.369 2.577 4.153 2.382 3.938 2.187 3.722 1.992 3.463 1.757

4.713 2.606 4.486 2.388 4.258 2.171 4.031 1.953 3.803 1.735 3.530 1.474

Outdoor DB°C

91

R410A Models
(Cooling only)

MODEL : A5WM 20G / A5LC 20C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

5.147 3.507 4.918 3.236 4.654 3.002 4.390 2.769 4.126 2.535 3.809 2.255

5.349 3.308 5.102 3.073 4.838 2.858 4.574 2.642 4.310 2.427 3.992 2.168

5.349 4.197 5.102 3.963 4.838 3.747 4.574 3.532 4.310 3.316 3.992 3.057

5.551 3.997 5.287 3.800 5.022 3.602 4.758 3.405 4.493 3.208 4.176 2.971

5.769 3.780 5.498 3.608 5.227 3.435 4.956 3.263 4.685 3.091 4.360 2.884

5.994 3.549 5.755 3.330 5.515 3.112 5.276 2.894 4.943 2.850 4.543 2.798

6.201 3.333 5.901 3.151 5.600 2.968 5.300 2.785 4.999 2.603 4.639 2.383

5.769 4.669 5.498 4.497 5.227 4.325 4.956 4.152 4.685 3.980 4.360 3.774

5.994 4.438 5.755 4.220 5.515 4.001 5.276 3.783 4.943 3.739 4.543 3.687

6.201 4.223 5.901 4.040 5.600 3.857 5.300 3.675 4.999 3.492 4.639 3.273

6.416 3.993 6.093 3.775 5.769 3.557 5.446 3.338 5.122 3.120 4.734 2.858

6.631 3.764 6.284 3.510 5.938 3.256 5.592 3.002 5.245 2.748 4.829 2.444

6.845 3.534 6.476 3.245 6.107 2.956 5.737 2.666 5.368 2.377 4.925 2.029

7.060 3.305 6.668 2.980 6.276 2.655 5.883 2.330 5.491 2.005 5.020 1.615

6.201 4.667 5.901 4.485 5.600 4.302 5.300 4.119 4.999 3.936 4.639 3.717

6.416 4.438 6.093 4.220 5.769 4.001 5.446 3.783 5.122 3.565 4.734 3.303

6.631 4.209 6.284 3.955 5.938 3.701 5.592 3.447 5.245 3.193 4.829 2.888

6.845 3.979 6.476 3.690 6.107 3.400 5.737 3.111 5.368 2.821 4.925 2.474

7.060 3.750 6.668 3.425 6.276 3.100 5.883 2.775 5.491 2.450 5.020 2.060

Outdoor DB°C

MODEL : A5WM 25G / A5LC 25C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

6.276 4.244 5.917 3.885 5.599 3.567 5.282 3.250 4.964 2.932 4.583 2.551

6.510 3.997 6.156 3.682 5.822 3.388 5.489 3.094 5.156 2.800 4.756 2.447

6.510 5.158 6.156 4.843 5.822 4.549 5.489 4.255 5.156 3.961 4.756 3.608

6.743 4.911 6.394 4.640 6.045 4.370 5.696 4.099 5.347 3.828 4.928 3.504

6.958 4.644 6.601 4.405 6.244 4.166 5.887 3.926 5.530 3.687 5.101 3.399

7.177 4.367 6.835 4.102 6.494 3.837 6.153 3.572 5.753 3.446 5.274 3.295

7.384 4.097 7.000 3.847 6.615 3.597 6.231 3.347 5.846 3.097 5.385 2.797

6.958 5.805 6.601 5.566 6.244 5.327 5.887 5.087 5.530 4.848 5.101 4.561

7.177 5.528 6.835 5.263 6.494 4.998 6.153 4.733 5.753 4.607 5.274 4.456

7.384 5.258 7.000 5.008 6.615 4.758 6.231 4.508 5.846 4.258 5.385 3.958

7.596 4.977 7.192 4.685 6.788 4.393 6.384 4.102 5.980 3.810 5.495 3.460

7.808 4.696 7.385 4.362 6.961 4.029 6.538 3.695 6.114 3.362 5.606 2.962

8.020 4.415 7.577 4.040 7.134 3.664 6.691 3.289 6.248 2.914 5.717 2.463

8.232 4.134 7.770 3.717 7.307 3.300 6.845 2.883 6.383 2.466 5.828 1.965

7.384 5.839 7.000 5.589 6.615 5.339 6.231 5.089 5.846 4.839 5.385 4.539

7.596 5.558 7.192 5.266 6.788 4.974 6.384 4.682 5.980 4.391 5.495 4.040

7.808 5.277 7.385 4.943 6.961 4.609 6.538 4.276 6.114 3.942 5.606 3.542

8.020 4.996 7.577 4.620 7.134 4.245 6.691 3.870 6.248 3.494 5.717 3.044

8.232 4.715 7.770 4.297 7.307 3.880 6.845 3.463 6.383 3.046 5.828 2.546

Outdoor DB°C

92

R410A Models
(Cooling only)

MODEL : A5WM 311 / A5LC 28C

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

7.648 4.989 7.255 4.595 6.798 4.252 6.341 3.908 5.884 3.565 5.336 3.153

7.911 4.701 7.503 4.359 7.062 4.043 6.621 3.727 6.180 3.411 5.650 3.032

7.911 5.947 7.503 5.606 7.062 5.290 6.621 4.974 6.180 4.658 5.650 4.278

8.175 5.659 7.750 5.370 7.325 5.081 6.900 4.793 6.475 4.504 5.965 4.157

8.469 5.347 8.048 5.095 7.627 4.843 7.206 4.591 6.785 4.338 6.280 4.036

8.770 5.014 8.387 4.696 8.004 4.378 7.621 4.060 7.155 3.994 6.595 3.915

9.050 4.705 8.605 4.442 8.159 4.178 7.714 3.915 7.268 3.651 6.734 3.335

8.469 6.593 8.048 6.341 7.627 6.089 7.206 5.837 6.785 5.585 6.280 5.282

8.770 6.261 8.387 5.942 8.004 5.624 7.621 5.306 7.155 5.240 6.595 5.161

9.050 5.952 8.605 5.688 8.159 5.425 7.714 5.161 7.268 4.898 6.734 4.581

9.337 5.623 8.863 5.311 8.389 4.999 7.915 4.687 7.441 4.375 6.872 4.001

9.625 5.294 9.122 4.934 8.619 4.574 8.116 4.213 7.614 3.853 7.011 3.421

9.912 4.965 9.381 4.556 8.849 4.148 8.318 3.740 7.787 3.331 7.149 2.841

10.199 4.635 9.639 4.179 9.079 3.722 8.519 3.266 7.959 2.809 7.288 2.261

9.050 6.575 8.605 6.312 8.159 6.048 7.714 5.784 7.268 5.521 6.734 5.204

9.337 6.246 8.863 5.934 8.389 5.622 7.915 5.311 7.441 4.999 6.872 4.624

9.625 5.917 9.122 5.557 8.619 5.197 8.116 4.837 7.614 4.477 7.011 4.044

9.912 5.588 9.381 5.179 8.849 4.771 8.318 4.363 7.787 3.954 7.149 3.464

10.199 5.259 9.639 4.802 9.079 4.346 8.519 3.889 7.959 3.432 7.288 2.884

Outdoor DB°C

93

R410A Models
(Heatpump)

MODEL : A5WM 07GR / A5LC 07CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.247 1.520 2.115 1.388 1.997 1.269 1.878 1.151 1.760 1.032 1.618 0.890

2.329 1.431 2.195 1.314 2.067 1.204 1.940 1.094 1.813 0.985 1.660 0.853

2.329 1.849 2.195 1.732 2.067 1.622 1.940 1.513 1.813 1.403 1.660 1.271

2.410 1.759 2.274 1.658 2.138 1.557 2.002 1.456 1.866 1.356 1.703 1.234

2.486 1.663 2.343 1.574 2.201 1.484 2.058 1.395 1.916 1.305 1.745 1.197

2.566 1.564 2.443 1.468 2.320 1.372 2.197 1.277 2.011 1.224 1.787 1.161

2.636 1.466 2.480 1.374 2.324 1.281 2.168 1.188 2.012 1.096 1.825 0.984

2.486 2.082 2.343 1.992 2.201 1.903 2.058 1.813 1.916 1.723 1.745 1.616

2.566 1.982 2.443 1.886 2.320 1.791 2.197 1.695 2.011 1.642 1.787 1.579

2.636 1.885 2.480 1.792 2.324 1.699 2.168 1.607 2.012 1.514 1.825 1.403

2.711 1.784 2.548 1.676 2.385 1.569 2.221 1.462 2.058 1.355 1.862 1.226

2.786 1.682 2.616 1.561 2.445 1.439 2.275 1.318 2.104 1.196 1.900 1.050

2.861 1.581 2.683 1.445 2.506 1.309 2.328 1.173 2.151 1.037 1.937 0.874

2.936 1.480 2.751 1.330 2.566 1.179 2.382 1.029 2.197 0.878 1.975 0.697

2.636 2.094 2.480 2.001 2.324 1.908 2.168 1.816 2.012 1.723 1.825 1.612

2.711 1.993 2.548 1.886 2.385 1.778 2.221 1.671 2.058 1.564 1.862 1.435

2.786 1.892 2.616 1.770 2.445 1.648 2.275 1.527 2.104 1.405 1.900 1.259

2.861 1.790 2.683 1.654 2.506 1.518 2.328 1.382 2.151 1.246 1.937 1.083

2.936 1.689 2.751 1.539 2.566 1.388 2.382 1.238 2.197 1.087 1.975 0.906

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15 1.329 1.329 1.504 1.504 1.562 1.562 2.205 2.205 2.555 2.555 2.730 2.730 2.905 2.905

17

19 1.259 1.259 1.332 1.332 1.483 1.483 2.199 2.199 2.432 2.432 2.600 2.600 2.767 2.767

21

23 1.189 1.189 1.282 1.282 1.403 1.403 2.063 2.063 2.309 2.309 2.469 2.469 2.629 2.629

25

27 1.120 1.120 1.272 1.272 1.323 1.323 1.882 1.882 2.186 2.186 2.339 2.339 2.491 2.491

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

1.294 1.294 1.418 1.418 1.522 1.522 2.202 2.202 2.494 2.494 2.665 2.665 2.836 2.836

1.224 1.224 1.287 1.287 1.443 1.443 2.153 2.153 2.371 2.371 2.535 2.535 2.698 2.698

1.155 1.155 1.277 1.277 1.363 1.363 1.972 1.972 2.248 2.248 2.404 2.404 2.560 2.560

FROST REGION

94

R410A Models
(Heatpump)

MODEL : A5WM 09GR / A5LC 10CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.779 1.868 2.617 1.706 2.474 1.562 2.330 1.419 2.187 1.275 2.014 1.102

2.868 1.747 2.707 1.607 2.555 1.476 2.403 1.345 2.250 1.214 2.067 1.056

2.868 2.271 2.707 2.131 2.555 2.000 2.403 1.869 2.250 1.738 2.067 1.580

2.958 2.151 2.797 2.032 2.636 1.914 2.475 1.795 2.314 1.676 2.121 1.534

3.039 2.022 2.873 1.919 2.706 1.817 2.540 1.714 2.373 1.611 2.174 1.488

3.123 1.882 2.961 1.743 2.799 1.604 2.637 1.465 2.451 1.455 2.227 1.442

3.202 1.757 3.023 1.655 2.845 1.552 2.666 1.449 2.488 1.346 2.274 1.223

3.039 2.546 2.873 2.443 2.706 2.341 2.540 2.238 2.373 2.135 2.174 2.012

3.123 2.406 2.961 2.267 2.799 2.128 2.637 1.989 2.451 1.979 2.227 1.966

3.202 2.281 3.023 2.179 2.845 2.076 2.666 1.973 2.488 1.870 2.274 1.747

3.283 2.146 3.098 2.027 2.913 1.908 2.728 1.789 2.542 1.670 2.320 1.527

3.364 2.011 3.173 1.876 2.981 1.740 2.789 1.605 2.597 1.470 2.367 1.308

3.446 1.875 3.247 1.724 3.049 1.573 2.850 1.421 2.652 1.270 2.414 1.088

3.527 1.740 3.322 1.572 3.117 1.405 2.912 1.237 2.707 1.070 2.461 0.869

3.202 2.543 3.023 2.441 2.845 2.338 2.666 2.235 2.488 2.132 2.274 2.009

3.283 2.408 3.098 2.289 2.913 2.170 2.728 2.051 2.542 1.932 2.320 1.789

3.364 2.273 3.173 2.138 2.981 2.002 2.789 1.867 2.597 1.732 2.367 1.570

3.446 2.137 3.247 1.986 3.049 1.835 2.850 1.683 2.652 1.532 2.414 1.350

3.527 2.002 3.322 1.834 3.117 1.667 2.912 1.499 2.707 1.332 2.461 1.131

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15 1.595 1.595 1.805 1.805 1.875 1.875 2.646 2.646 3.066 3.066 3.276 3.276 3.486 3.486

17

19 1.511 1.511 1.768 1.768 1.788 1.788 2.639 2.639 2.964 2.964 3.172 3.172 3.379 3.379

21

23 1.427 1.427 1.667 1.667 1.701 1.701 2.517 2.517 2.862 2.862 3.067 3.067 3.272 3.272

25

27 1.344 1.344 1.546 1.546 1.614 1.614 2.356 2.356 2.761 2.761 2.963 2.963 3.165 3.165

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

1.553 1.553 1.786 1.786 1.831 1.831 2.642 2.642 3.015 3.015 3.224 3.224 3.433 3.433

1.469 1.469 1.728 1.728 1.744 1.744 2.597 2.597 2.913 2.913 3.120 3.120 3.326 3.326

1.386 1.386 1.607 1.607 1.657 1.657 2.436 2.436 2.811 2.811 3.015 3.015 3.219 3.219

FROST REGION

95

R410A Models
(Heatpump)

MODEL : A5WM 10GR / A5LC 10CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.107 2.083 2.884 1.859 2.669 1.644 2.455 1.429 2.241 1.214 1.983 0.956

3.179 1.934 2.958 1.734 2.742 1.538 2.527 1.342 2.311 1.146 2.052 0.911

3.179 2.524 2.958 2.324 2.742 2.128 2.527 1.932 2.311 1.736 2.052 1.501

3.250 2.376 3.033 2.199 2.815 2.022 2.598 1.845 2.381 1.668 2.120 1.456

3.318 2.224 3.100 2.067 2.883 1.911 2.666 1.754 2.449 1.598 2.188 1.411

3.388 2.064 3.187 1.891 2.985 1.718 2.783 1.546 2.543 1.464 2.256 1.365

3.452 1.912 3.231 1.765 3.010 1.619 2.789 1.472 2.568 1.325 2.303 1.149

3.318 2.813 3.100 2.657 2.883 2.501 2.666 2.344 2.449 2.188 2.188 2.000

3.388 2.653 3.187 2.481 2.985 2.308 2.783 2.135 2.543 2.053 2.256 1.955

3.452 2.502 3.231 2.355 3.010 2.208 2.789 2.062 2.568 1.915 2.303 1.739

3.519 2.343 3.294 2.185 3.069 2.028 2.845 1.870 2.620 1.712 2.351 1.523

3.585 2.184 3.357 2.016 3.129 1.847 2.900 1.678 2.672 1.509 2.398 1.307

3.652 2.025 3.420 1.846 3.188 1.666 2.956 1.486 2.724 1.306 2.445 1.090

3.718 1.867 3.483 1.676 3.247 1.485 3.011 1.294 2.776 1.103 2.493 0.874

3.452 2.797 3.231 2.650 3.010 2.503 2.789 2.357 2.568 2.210 2.303 2.034

3.519 2.638 3.294 2.480 3.069 2.322 2.845 2.165 2.620 2.007 2.351 1.818

3.585 2.479 3.357 2.310 3.129 2.142 2.900 1.973 2.672 1.804 2.398 1.601

3.652 2.320 3.420 2.141 3.188 1.961 2.956 1.781 2.724 1.601 2.445 1.385

3.718 2.162 3.483 1.971 3.247 1.780 3.011 1.589 2.776 1.398 2.493 1.169

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15 1.683 1.683 1.905 1.905 1.979 1.979 2.793 2.793 3.236 3.236 3.458 3.458 3.680 3.680

17

19 1.595 1.595 1.835 1.835 1.884 1.884 2.786 2.786 3.114 3.114 3.331 3.331 3.548 3.548

21

23 1.507 1.507 1.735 1.735 1.789 1.789 2.643 2.643 2.991 2.991 3.203 3.203 3.415 3.415

25

27 1.418 1.418 1.626 1.626 1.695 1.695 2.454 2.454 2.868 2.868 3.075 3.075 3.283 3.283

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

1.639 1.639 1.870 1.870 1.932 1.932 2.789 2.789 3.175 3.175 3.394 3.394 3.614 3.614

1.551 1.551 1.790 1.790 1.837 1.837 2.737 2.737 3.052 3.052 3.267 3.267 3.481 3.481

1.463 1.463 1.680 1.680 1.742 1.742 2.548 2.548 2.930 2.930 3.139 3.139 3.349 3.349

FROST REGION

96

R410A Models
(Heatpump)

MODEL : A5WM 15GR / A5LC 15CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.618 2.383 3.422 2.162 3.193 1.960 2.965 1.757 2.736 1.555 2.461 1.312

3.728 2.236 3.525 2.040 3.305 1.853 3.085 1.667 2.865 1.480 2.601 1.256

3.728 2.892 3.525 2.697 3.305 2.510 3.085 2.323 2.865 2.137 2.601 1.913

3.839 2.745 3.627 2.575 3.416 2.404 3.205 2.233 2.994 2.062 2.740 1.857

3.965 2.590 3.756 2.438 3.547 2.287 3.339 2.135 3.130 1.983 2.879 1.801

4.093 2.429 3.901 2.268 3.709 2.107 3.517 1.947 3.291 1.855 3.019 1.745

4.214 2.271 3.996 2.118 3.778 1.966 3.561 1.813 3.343 1.661 3.082 1.478

3.965 3.247 3.756 3.095 3.547 2.943 3.339 2.792 3.130 2.640 2.879 2.458

4.093 3.085 3.901 2.925 3.709 2.764 3.517 2.603 3.291 2.512 3.019 2.402

4.214 2.928 3.996 2.775 3.778 2.622 3.561 2.470 3.343 2.317 3.082 2.134

4.337 2.764 4.108 2.592 3.878 2.419 3.649 2.246 3.420 2.074 3.146 1.867

4.460 2.601 4.219 2.408 3.979 2.215 3.738 2.023 3.498 1.830 3.209 1.599

4.583 2.437 4.331 2.225 4.079 2.012 3.827 1.799 3.575 1.587 3.272 1.331

4.706 2.274 4.442 2.041 4.179 1.809 3.915 1.576 3.652 1.343 3.336 1.064

4.214 3.256 3.996 3.103 3.778 2.951 3.561 2.798 3.343 2.646 3.082 2.463

4.337 3.092 4.108 2.920 3.878 2.747 3.649 2.575 3.420 2.402 3.146 2.195

4.460 2.929 4.219 2.736 3.979 2.544 3.738 2.351 3.498 2.159 3.209 1.927

4.583 2.766 4.331 2.553 4.079 2.340 3.827 2.128 3.575 1.915 3.272 1.660

4.706 2.602 4.442 2.370 4.179 2.137 3.915 1.904 3.652 1.671 3.336 1.392

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15 2.126 2.126 2.406 2.406 2.500 2.500 3.528 3.528 4.088 4.088 4.368 4.368 4.649 4.649

17

19 2.015 2.015 2.169 2.169 2.381 2.381 3.519 3.519 3.937 3.937 4.212 4.212 4.486 4.486

21

23 1.903 1.903 2.087 2.087 2.262 2.262 3.342 3.342 3.786 3.786 4.055 4.055 4.324 4.324

25

27 1.792 1.792 2.055 2.055 2.143 2.143 3.108 3.108 3.635 3.635 3.898 3.898 4.162 4.162

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

2.070 2.070 2.288 2.288 2.440 2.440 3.523 3.523 4.013 4.013 4.290 4.290 4.568 4.568

1.959 1.959 2.102 2.102 2.321 2.321 3.459 3.459 3.862 3.862 4.133 4.133 4.405 4.405

1.847 1.847 2.071 2.071 2.202 2.202 3.225 3.225 3.711 3.711 3.977 3.977 4.243 4.243

FROST REGION

97

R410A Models
(Heatpump)

MODEL : A5WM 20GR / A5LC 20CR

COOLING MODE

ID DB°C ID WB°C

20

24

28

30

15

16

16

17

18

19

20

18

19

20

21

22

23

24

20

21

22

23

24

20 25 30 35 40 46

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

5.147 3.507 4.918 3.236 4.654 3.002 4.390 2.769 4.126 2.535 3.809 2.255

5.349 3.308 5.102 3.073 4.838 2.858 4.574 2.642 4.310 2.427 3.992 2.168

5.349 4.197 5.102 3.963 4.838 3.747 4.574 3.532 4.310 3.316 3.992 3.057

5.551 3.997 5.287 3.800 5.022 3.602 4.758 3.405 4.493 3.208 4.176 2.971

5.769 3.780 5.498 3.608 5.227 3.435 4.956 3.263 4.685 3.091 4.360 2.884

5.994 3.549 5.755 3.330 5.515 3.112 5.276 2.894 4.943 2.850 4.543 2.798

6.201 3.333 5.901 3.151 5.600 2.968 5.300 2.785 4.999 2.603 4.639 2.383

5.769 4.669 5.498 4.497 5.227 4.325 4.956 4.152 4.685 3.980 4.360 3.774

5.994 4.438 5.755 4.220 5.515 4.001 5.276 3.783 4.943 3.739 4.543 3.687

6.201 4.223 5.901 4.040 5.600 3.857 5.300 3.675 4.999 3.492 4.639 3.273

6.416 3.993 6.093 3.775 5.769 3.557 5.446 3.338 5.122 3.120 4.734 2.858

6.631 3.764 6.284 3.510 5.938 3.256 5.592 3.002 5.245 2.748 4.829 2.444

6.845 3.534 6.476 3.245 6.107 2.956 5.737 2.666 5.368 2.377 4.925 2.029

7.060 3.305 6.668 2.980 6.276 2.655 5.883 2.330 5.491 2.005 5.020 1.615

6.201 4.667 5.901 4.485 5.600 4.302 5.300 4.119 4.999 3.936 4.639 3.717

6.416 4.438 6.093 4.220 5.769 4.001 5.446 3.783 5.122 3.565 4.734 3.303

6.631 4.209 6.284 3.955 5.938 3.701 5.592 3.447 5.245 3.193 4.829 2.888

6.845 3.979 6.476 3.690 6.107 3.400 5.737 3.111 5.368 2.821 4.925 2.474

7.060 3.750 6.668 3.425 6.276 3.100 5.883 2.775 5.491 2.450 5.020 2.060

Outdoor DB°C

HEATING MODE

Outdoor WB°C

ID DB°C

15 3.189 3.189 3.610 3.610 3.750 3.750 5.291 5.291 6.132 6.132 6.553 6.553 6.973 6.973

17

19 3.022 3.022 3.418 3.418 3.605 3.605 5.279 5.279 6.080 6.080 6.517 6.517 6.954 6.954

21

23 2.855 2.855 3.279 3.279 3.459 3.459 5.173 5.173 6.029 6.029 6.482 6.482 6.935 6.935

25

27 2.688 2.688 3.157 3.157 3.314 3.314 5.037 5.037 5.977 5.977 6.447 6.447 6.917 6.917

-9 -6 -5 6 12 15 18

TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW)

3.106 3.106 3.514 3.514 3.677 3.677 5.285 5.285 6.106 6.106 6.535 6.535 6.964 6.964

2.938 2.938 3.340 3.340 3.532 3.532 5.241 5.241 6.055 6.055 6.500 6.500 6.945 6.945

2.771 2.771 3.218 3.218 3.387 3.387 5.105 5.105 6.003 6.003 6.464 6.464 6.926 6.926

FROST REGION

98
