Models:
A5LCY 10DR A5LCY 15DR A5LCY 20CR A5LCY 25CR
A5LCY_(i)
Inverter-Y Single Split Series I
Table of Contents A5LCY_(i)
Supercedes: A5LCY-I-2010
Table of Contents
Nomenclature......................................................................................................................1
Indoor ............................................................................................................................1
Product Line-Up .............................................................................................................3
Application Information .....................................................................................................6
Operating Range ...........................................................................................................6
Refrigerant Circuit Diagram ...........................................................................................6
Installation Guideline .....................................................................................................7
Engineering & Physical Data .............................................................................................9
Safety Devices Data ....................................................................................................14
Outline and Dimension ....................................................................................................17
Wiring Diagram .................................................................................................................21
Service and Maintenance.................................................................................................30
Troubleshooting ...............................................................................................................32

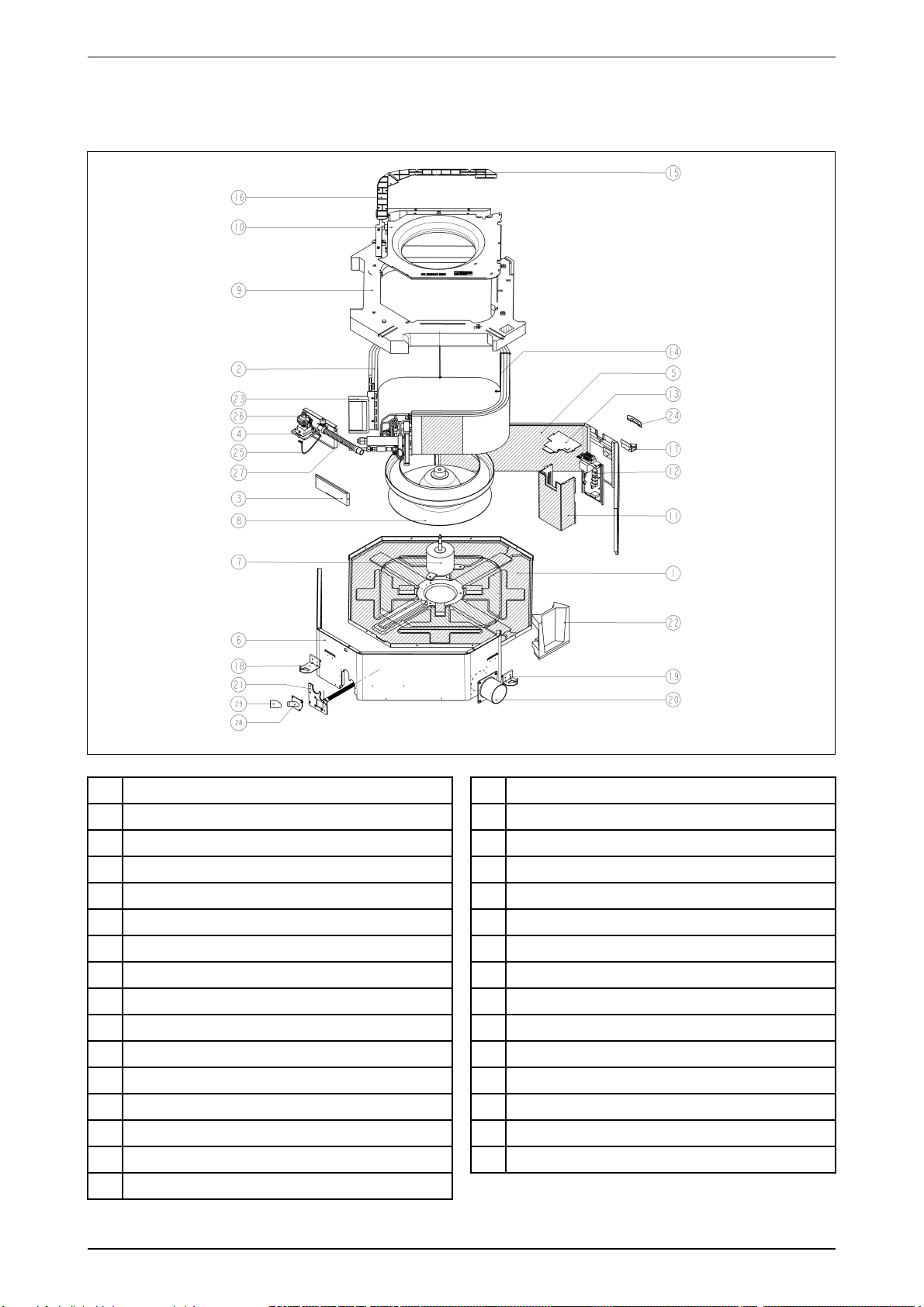

Exploded View and Part List ...........................................................................................41
Nomenclature A5LCY_(i)
g
g
g
Nomenclature
Indoor
A 5 WM Y 10 J R – A C L B D
Product Specification
Brand
A: Acson
Refrigerant
5: R410A
Product Type
WM: Wall Mounted CK: Ceiling Cassette CC: Ceiling Concealed CM: Ceilin
Inverter System Type
Y: Y Series
Size
10 : 8,872~10,236 Btu/h 15 : 11,942~12,966 Btu/h 20 : 18,600~19,176 Btu/h 25 : 21,200~21,837 Btu/h
Product series
J: J Series
C: C Series E: E Series
Convertible
Type of Air Filter
C: Export with CE Markin
Electrical Characteristics
A : 50Hz / 1Ph / 220-240V F : 50Hz / 3Ph / 380-415V
Variation
D: Fourth Issue
Grille
B: Grille B
L: Saranet
Market Region
Model
“ ”: Cooling Only
R: Heat Pump
Outdoor
Brand
A: Acson
Refrigerant
5: R410A
Product Type
LC: Single Split Condensing Unit
Inverter System Type
Y: Y Series
Size
10 : 8,872~10,236 Btu/h 15 : 11,942~12,966 Btu/h
Product series
D: D Series
A 5 LC Y 10 D R – A C O U B
Product Specification
Variation
B: Second Issue
Compressor
U: Panasonic
Specifications Variation
O: Standard Unit
Market Region
C: Export with CE Markin
Electrical Characteristics
A : 50Hz / 1Ph / 220-240V
F : 50Hz / 3Ph / 380-415V
Model
“ ”: Cooling Only
R: Heat Pump
1
A5LCY_(i) Nomenclature
A 5 LC Y 20 C R – A C D O A
Product Specification
Brand
A: Acson
Refrigerant
5: R410A
Product Type
LC: Single Split Condensing Unit
Inverter System Type
Y: Y Series
Size
20 : 18,600~19,176 Btu/h 25 : 21,200~21,837 Btu/h
Product series
C: C Series
Specifications Variation
C: Export with CE Marking
Electrical Characteristics
A : 50Hz / 1Ph / 220-240V
F : 50Hz / 3Ph / 380-415V
Variation
A: First Issue
Compressor
D: Daikin
O: Standard Unit
Market Region
Model
“ ”: Cooling Only
R: Heat Pump
2
Nomenclature A5LCY_(i)
Product Line-Up
Indoor Unit A5WMY-J Series
Classifi cation
A5WMY
10JR ACLBD X X X X X
15JR ACLBD X X X X X
20JR ACLTC X X X X X
HEATPUMP
25JR ACLTC X X X X X
Indoor Unit A5CKY-C Series
Nomenclature
APGS02
Handset
PCB
W_2_03A
Air Purifi cation
Saranet Filter
Negative Ionizer
Classifi cation
Nano Technology Air Filtration
CE
Marking
Others
Auto Restart
3
Handset
A5CKY
Nomenclature
APGS02
10CR ACOB X X X
15CR ACOB X X X
20CR ACOB X X X
HEATPUMP
PLCKY-CR NGS02 X X X
PCB
C_2_01A_M
Air Purifi cation
Saranet Filter
Negative Ionizer
Nano Technology Air Filtration
CE
Marking
Others
Auto Restart
A5LCY_(i) Nomenclature
Indoor Unit A5CKY-E Series
Classifi cation
A5CKY
20ER ACOB X X X
25ER ACOB X X X
PLCKY-ER NGS02 X X X
HEATPUMP
Indoor Unit A5CCY-C Series
Nomenclature
APGS02
Handset
PCB
C_2_01A_M
Air Purifi cation
Saranet Filter
Negative Ionizer
Classifi cation
Nano Technology Air Filtration
CE
Marking
Others
Auto Restart
Handset
A5CCY
Nomenclature
Netware 3C
10CR ACPA X X X X X
15CR ACPA X X X X X
20CR ACPA X X X X X
HEATPUMP
25CR ACPA X X X X X
PCB
C_2_01A_M
Air Purifi cation
Saranet Filter
Negative Ionizer
Nano Technology Air Filtration
CE
Marking
Others
Auto Restart
4
Nomenclature A5LCY_(i)
Indoor Unit A5CMY-E Series
Classifi cation
A5CMY
15ER ACAA X X X X X
20ER ACAA X X X X X
25ER ACAA X X X X X
HEATPUMP
Outdoor Unit A5LCY
Nomenclature
APGS02
Handset
PCB
C_2_01A_M
Classifi cation
Air Purifi cation
Saranet Filter
Negative Ionizer
Nano Technology Air Filtration
CE
Marking
Others
Auto Restart
5
PCB
A5LCY
Nomenclature
OYL CONTROLLER
10DR ACOUB X X X X X
15DR ACOUB X X X X X
20CR ACDOA X X X X X
HEATPUMP
25CR ACDOA X X X X X
Refrigerant
Control
Cap Tube
EXV
FIN
Gold Coated
Blue Coated
Bare Fin
Safety
Devices
ContactorHPLP
DC Inverter Single Rotary
Compressor
DC Inverter Swing Compressor
Marking
CE
Others
A5LCY_(i) Application Information
Application Information
Operating Range
Ensure the operating temperature is in allowable range.
Heatpump
Heating
18
10
6
Outdoor temp. (°CWB)
-15
15 20 27
Indoor temp. (°CDB)
STD
21
Standard
point
Outdoor temp. (°CDB)
46 43
35
-10
Cooling
STD
14 2319
Indoor temp. (°CWB)
Caution :
The use of your air conditioner outside the range of working temperature and humidity can result in serious failure
.
Refrigerant Circuit Diagram
Model: A5LCY 10DR - A5WMY 10JR / A5CKY 10CR / A5CCY 10CR A5LCY 15DR - A5WMY 15JR / A5CKY 15CR / A5CCY 15CR / A5CMY 15ER A5LCY 20CR - A5WMY 20JR / A5CKY 20C/ER / A5CCY 20CR / A5CMY 20ER A5LCY 25CR - A5WMY 25JR / A5CKY 25ER / A5CCY 25CR / A5CMY 25ER
70034106462
6
Application Information A5LCY_(i)
Installation Guideline
Outdoor Unit Installation
• Where a wall or other obstacle is in the path of outdoor unit’s intake or exhaust airfl ow, follow the
installation guidelines below.
Wall facing one side Walls facing two sides
More than 50 More than 100
More than 50
Side view
More than 100
Top view
More than 150
More than 50
Walls facing three sides
More than 150
More than 300
More than 50
Top view
Unit: mm
Electrical Wiring Connection
IMPORTANT : * The fi gures shown in the table are for information purpose only. They should be checked
and selected to comply with the local/national codes of regulations. This is also subject to the type of installation and conductors used.
** The appropriate voltage range should be checked with label data on the unit.
Indoor Unit
Terminal Block
1
2
SIG
N
L
Outdoor Unit
Terminal Block
1
2
SIG
Power Supply Cable
Voltage range
Power supply cable size* mm2 Number of core
Power supply cable size* mm2 Number of core
Recommended time delay fuse A 15
* If the length of the cable is more than 2m, use cable with bigger
Model 10/15
220V-240V/ 1Ph/ 50Hz +
1.5 3
1.5 4
size.
There must be a double pole
!
switch with a minimum 3mm contact gap and fuse/circuit breaker as recommended in the fixed installation circuit.
• All wires must be fi rmly connected.
• All wires must not touch the refrigerant piping, compressor or any moving parts of the fan motor.
• The connecting wires between the indoor unit and the outdoor unit must be clamped on the wire clamps.
• The power supply cord must be equivalent to H07RN-F (245IEC57) which is the minimum requirement.
7
A5LCY_(i) Application Information
Refrigerant Piping
Piping Length and Elevation
If the pipe is too long, both the capacity and reliability of the unit will drop. As the number of bends increases, resistance to the fl ow of refrigerant system increases, thus lowering cooling capacity. As a result, the compressor may become defective. Always choose the shortest path and follow the recommendations as tabulated below:
Outdoor A5LCY10DR A5LCY15DR A5LCY20CR A5LCY25CR
Indoor A5WMY10JR A5WMY15JR A5WMY20JR A5WMY25JR
Max. allowable length, m 15 15 30 30
Max. allowable elevation, m 10 10 10 10
Liquid pipe, mm O.D. 6.4 O.D. 6.4 O.D. 6.4 O.D. 6.4
Gas pipe, mm O.D. 9.5 O.D. 12.7 O.D. 12.7 O.D. 15.9
Additional charge of refrigerant, g/m (for piping length above 7.5m)
Outdoor A5LCY10DR A5LCY15DR A5LCY20CR
Indoor A5CKY10CR A5CKY15CR A5CKY20CR
Max. allowable length, m 15 15 30
Max. allowable elevation, m 10 10 10
Liquid pipe, mm O.D. 6.4 O.D. 6.4 O.D. 6.4
Gas pipe, mm O.D. 9.5 O.D. 12.7 O.D. 12.7
Additional charge of refrigerant, g/m (for piping length above 7.5m)
20 20 20 20
20 20 20
Outdoor A5LCY20CR A5LCY25CR
Indoor A5CKY20ER A5CKY25ER
Max. allowable length, m 30 30
Max. allowable elevation, m 10 10
Liquid pipe, mm O.D. 6.4 O.D. 6.4
Gas pipe, mm O.D. 12.7 O.D. 15.9
Additional charge of refrigerant, g/m (for piping length above 7.5m)
Outdoor A5LCY10DR A5LCY15DR A5LCY20CR A5LCY25CR
Indoor A5CCY10CR A5CCY15CR A5CCY20CR A5CCY25CR
Max. allowable length, m 15 15 30 30
Max. allowable elevation, m 10 10 10 10
Liquid pipe, mm O.D. 6.4 O.D. 6.4 O.D. 6.4 O.D. 6.4
Gas pipe, mm O.D. 9.5 O.D. 12.7 O.D. 12.7 O.D. 15.9
Additional charge of refrigerant, g/m (for piping length above 7.5m)
Outdoor A5LCY15DR A5LCY20CR A5LCY25CR
Indoor A5CMY15ER A5CMY20ER A5CMY25ER
Max. allowable length, m 15 30 30
Max. allowable elevation, m 10 10 10
Liquid pipe, mm O.D. 6.4 O.D. 6.4 O.D. 6.4
Gas pipe, mm O.D. 12.7 O.D. 12.7 O.D. 15.9
Additional charge of refrigerant, g/m (for piping length above 7.5m)
20 20
20 20 20 20
20 20 20
* Be sure to add the proper amount of additional refrigerant. Failure to do so may result in reduced performance.
Remark: The refrigerant pre-charged in the outdoor unit is for piping length up to 7.5m.
8
Engineering & Physical Data A5LCY_(i)
Engineering & Physical Data
MODEL: A5WMY-LR
MODEL
NOMINAL COOLING CAPACITY
NOMINAL HEATING CAPACITY
NOMINAL TOTAL INPUT POWER (COOLING) W 760 1050 1460 1880 NOMINAL TOTAL INPUT POWER (HEATING) W 828 1050 1500 1710 NOMINAL RUNNING CURRENT (COOLING) A 4.10 5.00 6.53 8.45 NOMINAL RUNNING CURRENT (HEATING) A 4.00 4.90 6.72 7.63 EER W/W 3.42 3.33 3.73 3.30 COP W/W 3.62 3.62 3.75 3.74 REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR EXV REFRIGERANT CHARGE kg 0.75 1.10 1.45 1.50 POWER SOURCE V/Ph/Hz 220~240 /1/ 50 REFRIGERANT TYPE R410A
CONTROL
AIR FLOW

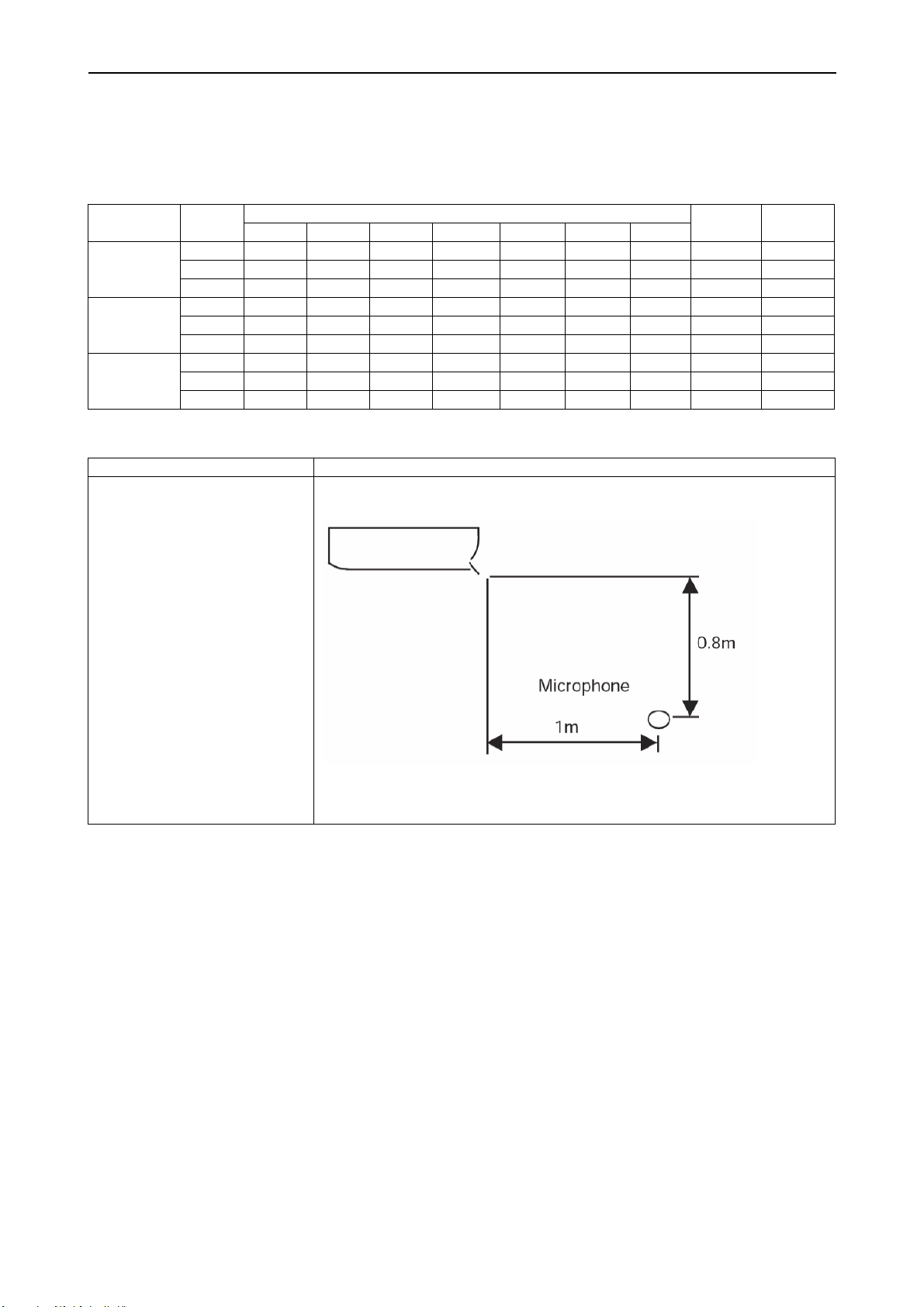

SOUND PRESSURE LEVEL (SH/H/M/L/SL) dBA 41 / 40 / 34 / 29 / 25 42 / 41 / 34 / 30 / 28 44 / 42 / 39 / 36 / 33 46 / 44 / 41 / 37 / 34 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 288 X 800 X 206 310 X 1065 X 224 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 351 X 894 X 280 386 X 1136 X 285 UNIT WEIGHT kg 9 6.3 CONDENSATE DRAIN SIZE mm 16 19.1
FAN
INDOOR UNIT
FAN MOTOR
COIL
AIR QUALITY FILTER
CASING COLOUR WHITE AIR FLOW l/s / CFM 521 / 1100 473 / 1000 869 / 1842 SOUND PRESSURE LEVEL dBA 48 49 51 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 550 X 765 X 285 753 X 855 X 328 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 610 X 895 X 360 793 X 990 X 415 UNIT WEIGHT kg 31 33 49
PIPE CONNECTION
FAN
FAN MOTOR
OUTDOOR UNIT
COMPRESSOR
COIL
CASING COLOUR LIGHT GREY
DRAWING NUMBER 000452103D10 000452103D15 000452103E20 000452103E25
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
INDOOR UNIT A5WMY10JR A5WMY15JR A5WMY20JR A5WMY25JR OUTDOOR UNIT A5LCY10DR A5LCY15DR A5LCY20CR A5LCY25CR
AIR DISCHARGE AUTO LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT) OPERATION WIRELESS MICROCOMPUTER REMOTE CONTROL TURBO l/s / CFM 178 / 378 185 / 392 273 / 578 332 / 703 HIGH l/s / CFM 153 / 324 160 / 337 250 / 529 309 / 654 MEDIUM l/s / CFM 119 / 252 124 / 262 222 / 471 276 / 585 LOW l/s / CFM 93 / 197 101 / 213 197 / 418 239 / 507 QUIET l/s / CFM 86 / 182 177 / 374 206 / 437
TYPE CROSS FLOW FAN DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP44 IP20 INSULATION GRADE CLASS E RATED INPUT POWER W 34 42 37 63 RATED RUNNING CURRENT MOTOR OUTPUT W 18 40 POLES 48
TUBE
FIN
TYPE FLARE VALVE
SIZE
TYPE PROPELLER DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP24 IP34 INSULATION GRADE CLASS E CLASS F RATED INPUT POWER W 66 67 120 RATED RUNNING CURRENT MOTOR OUTPUT W 26 66 POLES 6 TYPE ROTARY ROTARY SWING OIL TYPE RB68A or FREOL ALPHA68M ETHER OIL AMOUNT cm RATED INPUT POWER (COOLING) W 660 941 1303 1697 RATED INPUT POWER (HEATING)
RATED RUNNING CURRENT (COOLING)
RATED RUNNING CURRENT (HEATING)
LOCKED ROTOR AMP. A -
TUBE
FIN
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (HYDROPHILIC FIN) FACE AREA m ROW TYPE WASHABLE SARANET FILTER QUANTITY pc 2
LIQUID mm 6.4 6.4 6.4 6.4 GAS mm 9.5 12.7 12.7 15.9
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (CORR.) FACE AREA m ROW 12
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 8°C DB / 6°C WB
Btu/h 8872 (3754 - 11260) 11942 (4436 - 13307) 18600 (6415 - 21155) 21200 (6824 - 22178)
W 2600 (1100 - 3300) 3500 (1300 - 3900) 5450 (1880 - 6200) 6210 (2000 - 6500)
Btu/h 10236 (3412 - 13990) 12966 (3412 - 15696) 19176 (4504 - 22520) 21837 (5323 - 24226)
W 3000 (1000 - 4100) 3800 (1000 - 4600) 5620 (1320 - 6600) 6400 (1560 - 7100)
A 0.19 0.21 0.32 0.56
2
A 0.31 0.52
3
320 N/A
W 728 941 1343 1527
A 3.6 4.48 5.69 7.37
A 3.5 4.38 5.88 6.55
2
COOLING HEATING
0.42 0.4 0.62
0.18 0.29 2
9
A5LCY_(i) Engineering & Physical Data
MODEL: A5CKY-CR
MODEL
NOMINAL COOLING CAPACITY
NOMINAL HEATING CAPACITY
NOMINAL TOTAL INPUT POWER (COOLING) W 780 1006 1654 NOMINAL TOTAL INPUT POWER (HEATING) W 792 1024 1701 NOMINAL RUNNING CURRENT (COOLING) A 4.26 4.68 7.26 NOMINAL RUNNING CURRENT (HEATING) A 4.01 4.91 7.78 EER W/W 3.68 3.61 3.21 COP W/W 4.03 3.79 3.28 REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR EXV REFRIGERANT CHARGE kg 0.75 1.10 1.45 POWER SOURCE V/Ph/Hz 220~240 /1/ 50 REFRIGERANT TYPE R410A
CONTROL
AIR FLOW
SOUND PRESSURE LEVEL (H/M/L) dBA 44 / 41 / 36 45 / 42 / 38 47 / 46 / 44 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 250 X 570 X 570 WITH PANEL HEIGHT X WIDTH X DEPTH mm 295 X 640 X 640 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 317 X 630 X 630 PANEL HEIGHT X WIDTH X DEPTH mm 127 X 700 X 700 UNIT WEIGHT (UNIT + PANEL) kg 22 + 2 23 + 2 CONDENSATE DRAIN SIZE mm 19.1
FAN
INDOOR UNIT
FAN MOTOR
COIL
AIR QUALITY FILTER
CASING COLOUR GREY AIR FLOW l/s / CFM 521 / 1100 473 / 1000 869 / 1842 SOUND PRESSURE LEVEL dBA 48 49 51 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 550 X 765 X 285 753 X 855 X 328 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 610 X 895 X 360 793 X 990 X 415 UNIT WEIGHT kg 31 33 49
PIPE CONNECTION
FAN
FAN MOTOR
OUTDOOR UNIT
COMPRESSOR
COIL
CASING COLOUR LIGHT GREY
DRAWING NUMBER 000452103G10 000452103G15 000452103H20
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
INDOOR UNIT A5CKY10CR A5CKY15CR A5CKY20CR OUTDOOR UNIT A5LCY10DR A5LCY15DR A5LCY20CR
AIR DISCHARGE 4 WAY AUTOMATIC LOUVER (UP & DOWN) OPERATION WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL HIGH l/s / CFM 189 / 400 193 / 410 212 / 450 MEDIUM l/s / CFM 184 / 390 184 / 390 203 / 430 LOW l/s / CFM 175 / 370 170 / 360 193 / 410
TYPE TURBO DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP20 INSULATION GRADE CLASS B RATED INPUT POWER W 62 62 RATED RUNNING CURRENT MOTOR OUTPUT W 18 18 22 POLES 6
TUBE
FIN
TYPE FLARE VALVE
SIZE
TYPE PROPELLER DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP24 IP34 INSULATION GRADE CLASS E CLASS F RATED INPUT POWER W 67 67 120 RATED RUNNING CURRENT MOTOR OUTPUT W 26 66 POLES 6 TYPE ROTARY ROTARY SWING OIL TYPE RB68A or FREOL ALPHA68M ETHER OIL AMOUNT cm RATED INPUT POWER (COOLING) W 651 877 1 RATED INPUT POWER (HEATING)
RATED RUNNING CURRENT (COOLING)
RATED RUNNING CURRENT (HEATING)
LOCKED ROTOR AMP. A -
TUBE
FIN
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (HYDROPHILIC FIN) FACE AREA m ROW TYPE WASHABLE SARANET FILTER QUANTITY pc 1
LIQUID mm 6.4 6.4 6.4 GAS mm 9.5 12.7 12.7
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (CORR.) FACE AREA m ROW 12
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 8°C DB / 6°C WB
Btu/h 9792 (4026 - 11942) 12385 (5254 - 13306) 18118 (6346 - 20643)
W 2870 (1180 - 3500) 3630 (1540 - 3900) 5310 (1860 - 6050)
Btu/h 10884 (3753 - 13989) 13239 (3650 - 15865) 19039 (5050 - 19517)
W 3190 (1100 - 4100) 3880 (1070 - 4650) 5580 (1480 - 5720)
A 0.28 0.28 0.32
2
A 0.31 0.53
3
320 N/A
W 663 895 1507
A 3.67 4.09 6.41
A 3.42 4.32 6.93
2
COOLING HEATING
0.42 0.4 0.62
0.25 2
74
460
10
Engineering & Physical Data A5LCY_(i)
MODEL: A5CKY-ER
MODEL
NOMINAL COOLING CAPACITY
NOMINAL HEATING CAPACITY
NOMINAL TOTAL INPUT POWER (COOLING) W 1587 1945 NOMINAL TOTAL INPUT POWER (HEATING) W 1495 1632 NOMINAL RUNNING CURRENT (COOLING) A 7.37 8.89 NOMINAL RUNNING CURRENT (HEATING) A 6.96 7.53 EER W/W 3.41 3.25 COP W/W 3.70 3.99 REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR EXV REFRIGERANT CHARGE kg 1.45 1.50 POWER SOURCE V/Ph/Hz 220~240 /1/ 50 REFRIGERANT TYPE R410A
CONTROL
AIR FLOW
SOUND PRESSURE LEVEL (H/M/L) dBA 34 / 31 / 28 37 / 34 / 31 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 265 X 820 X 820 WITH PANEL HEIGHT X WIDTH X DEPTH mm 340 X 990 X 990 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 335 X 900 X 900 PANEL HEIGHT X WIDTH X DEPTH mm 410 X 1070 X 1070 UNIT WEIGHT (UNIT + PANEL) kg 29 + 6 CONDENSATE DRAIN SIZE mm 19.1
FAN
INDOOR UNIT
FAN MOTOR
COIL
AIR QUALITY FILTER
CASING COLOUR GREY AIR FLOW l/s / CFM 869 / 1842 SOUND PRESSURE LEVEL dBA 51 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 753 X 922 X 392 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 793 X 990 X 415 UNIT WEIGHT kg 49
PIPE CONNECTION
FAN
FAN MOTOR
OUTDOOR UNIT
COMPRESSOR
COIL
CASING COLOUR LIGHT GREY
DRAWING NUMBER 000452103N20 000452103N25
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
INDOOR UNIT A5CKY20ER A5CKY25ER OUTDOOR UNIT A5LCY20CR A5LCY25CR
AIR DISCHARGE 4 WAY AUTOMATIC LOUVER (UP & DOWN)
OPERATION
HIGH l/s / CFM 283 / 600 321 / 680 MEDIUM l/s / CFM 250 / 530 283 / 600 LOW l/s / CFM 203 / 430 250 / 530
TYPE TURBO DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP20 INSULATION GRADE CLASS B RATED INPUT POWER W 89 103 RATED RUNNING CURRENT MOTOR OUTPUT W 20 30 POLES 6
TUBE
FIN
TYPE FLARE VALVE
SIZE
TYPE PROPELLER DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP34 INSULATION GRADE CLASS F RATED INPUT POWER W 120 RATED RUNNING CURRENT MOTOR OUTPUT W 66 POLES 6 TYPE ROTARY SWING OIL TYPE ETHER OIL AMOUNT cm RATED INPUT POWER (COOLING) W 1378 1 RATED INPUT POWER (HEATING)
RATED RUNNING CURRENT (COOLING)
RATED RUNNING CURRENT (HEATING)
LOCKED ROTOR AMP. A -
TUBE
FIN
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (HYDROPHILIC FIN) FACE AREA m ROW TYPE WASHABLE SARANET FILTER QUANTITY pc 1
LIQUID mm 6.4 6.4 GAS mm 12.7 15.9
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (CORR.) FACE AREA m ROW 2
Btu/h 18459 (5220 - 20608) 21564 (2081 - 21564)
W 5410 (1530 - 6040) 6320 (610 - 6320)
Btu/h 18868 (5323 - 20574) 22212 (5357 - 24873)
W 5530 (1560 - 6030) 6510 (1570 - 7290)
WIRELESS OR WIRED MICROCOMPUTER
A 0.40 0.45
2
A 0.52
3
N/A
W 1286 1409
A 6.45 7.92
A 6.04 6.56
2
REMOTE CONTROL
0.39 2
722
0.62
11
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 8°C DB / 6°C WB
A5LCY_(i) Engineering & Physical Data
MODEL: M5CCY-CR
MODEL
NOMINAL COOLING CAPACITY
NOMINAL HEATING CAPACITY
NOMINAL TOTAL INPUT POWER (COOLING) W 805 1106 1604 1909 NOMINAL TOTAL INPUT POWER (HEATING) W 836 1085 1694 1775 NOMINAL RUNNING CURRENT (COOLING) A 4.43 4.91 7.34 8.90 NOMINAL RUNNING CURRENT (HEATING) A 4.29 4.76 7.74 8.11 EER W/W 3.19 3.32 3.24 3.17 COP W/W 3.31 3.41 3.41 3.61 REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR EXV REFRIGERANT CHARGE kg 0.75 1.10 1.45 1.50 POWER SOURCE V/Ph/Hz 220~240 /1/ 50 REFRIGERANT TYPE R410A
CONTROL
AIR FLOW
EXTERNAL STATIC PRESSURE (H/M/L) Pa 29 / 20 / 10 29 / 20 / 10 SOUND PRESSURE LEVEL (H/M/L) dBA 35 / 32 / 26 37 / 34 / 29 38 / 36 / 34 40 / 39 / 36 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 261 X 905 X 411 261 X 1065 X 411 261 X 1200 X 411 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 376 X 1091 X 541 376 X 1251 X 541 376 X 1386 X 541 UNIT WEIGHT (UNIT + PANEL) kg 9.5 11.3 CONDENSATE DRAIN SIZE mm 19.1
FAN
INDOOR UNIT
FAN MOTOR
COIL
AIR QUALITY FILTER
CASING COLOUR WITHOUT POWDER PAINT AIR FLOW l/s / CFM 521 / 1100 473 / 1000 869 / 1842 SOUND PRESSURE LEVEL dBA 48 49 51 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 550 X 765 X 285 753 X 855 X 328 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 610 X 895 X 360 793 X 990 X 415 UNIT WEIGHT kg 31 33 49
PIPE CONNECTION
FAN
FAN MOTOR
OUTDOOR UNIT
COMPRESSOR
COIL
CASING COLOUR LIGHT GREY
DRAWING NUMBER 000452113J10 000452113J15 000452113K20 000452113K25
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
INDOOR UNIT A5CCY10CR A5CCY15CR A5CCY20CR A5CCY25CR OUTDOOR UNIT A5LCY10DR A5LCY15DR A5LCY20CR A5LCY25CR
AIR DISCHARGE DUCTED OPERATION WIRED MICROCOMPUTER REMOTE CONTROL HIGH l/s / CFM 118 / 250 194 / 410 269 / 570 326 / 690 MEDIUM l/s / CFM 111 / 235 175 / 370 255 / 540 302 / 640 LOW l/s / CFM 99 / 210 118 / 250 213 / 450 245 / 520
TYPE SIROCCO DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) N/A INSULATION GRADE CLASS B CLASS B CLASS B RATED INPUT POWER W 100 107 133 164 RATED RUNNING CURRENT MOTOR OUTPUT W 40 50 80 100 POLES 4
TUBE
FIN
TYPE FLARE VALVE
SIZE
TYPE PROPELLER DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP24 IP34 INSULATION GRADE CLASS E CLASS F RATED INPUT POWER W 67 67 120 RATED RUNNING CURRENT MOTOR OUTPUT W 26 66 POLES 6 TYPE ROTARY ROTARY SWING OIL TYPE RB68A or FREOL ALPHA68M ETHER OIL AMOUNT cm RATED INPUT POWER (COOLING) W 638 932 1351 16 RATED INPUT POWER (HEATING)
RATED RUNNING CURRENT (COOLING)
RATED RUNNING CURRENT (HEATING)
LOCKED ROTOR AMP. A -
TUBE
FIN
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (HYDROPHILIC FIN) FACE AREA m ROW TYPE WASHABLE SARANET FILTER QUANTITY pc 1
LIQUID mm 6.4 6.4 6.4 6.4 GAS mm 9.5 12.7 12.7 15.9
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (CORR.) FACE AREA m ROW 12
Btu/h 8769 (4504 - 11361) 12522 (5050 - 12829) 17742 (6892 - 20472) 20643 (6346 - 20643)
W 2570 (1320 - 3330) 3670 (1480 - 3760) 5200 (2020 - 6000) 6050 (1860 - 6050)
Btu/h 9451 (2389 - 12897) 12624 (3719 - 14671) 19687 (5391 - 22895) 21873 (5357 - 22758)
W 2770 (700 - 3780) 3700 (1090 - 4300) 5770 (1580 - 6710) 6400 (1570 - 6670)
A 0.44 0.48 0.61 0.74
2
A 0.31 0.52
3
320 N/A
W 669 911 1441 1491
A 3.68 4.12 6.21 7.64
A 3.54 3.97 6.61 6.85
2
0.42 0.4 0.62
0.13 0.16 0.19
3
25
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 8°C DB / 6°C WB
12
Engineering & Physical Data A5LCY_(i)
MODEL: A5CMY-ER
MODEL
NOMINAL COOLING CAPACITY
NOMINAL HEATING CAPACITY
NOMINAL TOTAL INPUT POWER (COOLING) W 928 1683 2007 NOMINAL TOTAL INPUT POWER (HEATING) W 972 1617 1873 NOMINAL RUNNING CURRENT (COOLING) A 4.55 7.75 9.23 NOMINAL RUNNING CURRENT (HEATING) A 4.68 7.45 8.52 EER W/W 3.87 3.19 3.01 COP W/W 3.97 3.45 3.30 REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR EXV REFRIGERANT CHARGE kg 1.10 1.45 1.50 POWER SOURCE V/Ph/Hz 220~240 /1/ 50 REFRIGERANT TYPE R410A
CONTROL
AIR FLOW
SOUND PRESSURE LEVEL (H/M/L) dBA 46 / 38 / 35 50 / 43 / 41 53 / 51 / 49 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 218 X 1080 X 630 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 297 X 1197 X 740 UNIT WEIGHT (UNIT + PANEL) kg 25 27 CONDENSATE DRAIN SIZE mm 19.1
FAN
FAN MOTOR
INDOOR UNIT
COIL
AIR QUALITY FILTER
CASING COLOUR LIGHT GREY AIR FLOW l/s / CFM 473 / 1000 869 / 1842 SOUND PRESSURE LEVEL dBA 49 51 UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 550 X 765 X 285 753 X 855 X 328 PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 610 X 895 X 360 793 X 990 X 415 UNIT WEIGHT kg 33 49
PIPE CONNECTION
FAN
FAN MOTOR
OUTDOOR UNIT
COMPRESSOR
COIL
CASING COLOUR LIGHT GREY
DRAWING NUMBER 000452103L15 000452103M20 000452103M25
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
INDOOR UNIT A5CMY15ER A5CMY20ER A5CMY25ER OUTDOOR UNIT A5LCY15DR A5LCY20CR A5LCY25CR
AIR DISCHARGE AUTOMATIC LOUVER (UP & DOWN) OPERATION WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL HIGH l/s / CFM 240 / 508 245 / 520 274 / 580 MEDIUM l/s / CFM 182 / 386 217 / 460 250 / 530 LOW l/s / CFM 165 / 350 192 / 406 231 / 490
TYPE SIROCCO DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) N/A IP20 INSULATION GRADE CLASS B RATED INPUT POWER W 84 101 109 RATED RUNNING CURRENT MOTOR OUTPUT W 40 50 65 POLES 4
TUBE
FIN
TYPE FLARE VALVE
SIZE
TYPE PROPELLER DRIVE DIRECT TYPE INDUCTION INDEX OF PROTECTION (IP) IP24 IP34 INSULATION GRADE CLASS E CLASS F RATED INPUT POWER W 67 120 RATED RUNNING CURRENT MOTOR OUTPUT W 26 66 POLES 6 TYPE ROTARY ROTARY SWING
OIL TYPE
OIL AMOUNT cm RATED INPUT POWER (COOLING) W 777 1462 1778 RATED INPUT POWER (HEATING)
RATED RUNNING CURRENT (COOLING)
RATED RUNNING CURRENT (HEATING)
LOCKED ROTOR AMP. A -
TUBE
FIN
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (HYDROPHILIC FIN) FACE AREA m ROW TYPE WASHABLE SARANET FILTER QUANTITY pc 2
LIQUID mm 6.4 6.4 6.4 GAS mm 12.7 12.7 15.9
MATERIAL SEAMLESS INNER GROOVE COPPER DIAMETER mm 7.00 MATERIAL ALUMINIUM (CORR.) FACE AREA m ROW 2
Btu/h 12249 (5936 - 14671) 18322 (5527 - 20199) 20608 (5323 - 21291)
W 3590 (1740 - 4300) 5370 (1620 - 5920) 6040 (1560 - 6240)
Btu/h 13170 (3650 - 16991) 19039 (5220 - 20199) 21086 (5596 - 21700)
W 3860 (1070 - 4980) 5580 (1530 - 5920) 6180 (164 - 6360)
A 0.37 0.46 0.49
2
23
A 0.31 0.52
RB68A or FREOL
3
W 821 1396 1644
A 3.87 6.77 8.22
A 4.00 6.47 7.51
2
ALPHA68M
320 N/A
0.4 0.62
0.27
ETHER
13
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 8°C DB / 6°C WB
A5LCY_(i) Engineering & Physical Data
Safety Devices Data
MODEL
SAFETY DEVICE
MODEL
SAFETY DEVICE
OUTDOOR UNIT A5LCY 10DR A5LCY 15DR
INDOOR UNIT A5WMY 10JR A5WMY 15JR
TYPE N/A N/A
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING
OUTDOOR UNIT A5LCY 20CR A5LCY 25CR
INDOOR UNIT A5WMY 20JR A5WMY 25JR
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
°C / °F N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
°C / °F N/A N/A
MODEL
SAFETY DEVICE
MODEL
SAFETY DEVICE
1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
OUTDOOR UNIT A5LCY 10DR A5LCY 15DR
INDOOR UNIT A5CKY 10CR A5CKY 15CR
TYPE N/A N/A
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING
OUTDOOR UNIT A5LCY 20CR
INDOOR UNIT A5CKY 20CR
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
°C / °F N/A N/A
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
°C / °F N/A
14
Engineering & Physical Data A5LCY_(i)
Safety Devices Data
MODEL
SAFETY DEVICE
MODEL
SAFETY DEVICE
OUTDOOR UNIT A5LCY 20CR A5LCY 25CR
INDOOR UNIT A5CKY 20ER A5CKY 25ER
TYPE N/A N/A
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING
OUTDOOR UNIT A5LCY 10DR A5LCY 15DR
INDOOR UNIT A5CCY 10CR A5CCY 15CR
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
°C / °F N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
°C / °F N/A N/A
MODEL
SAFETY DEVICE
MODEL
SAFETY DEVICE
1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
OUTDOOR UNIT A5LCY 20CR A5LCY 25CR
INDOOR UNIT A5CCY 20CR A5CCY 25CR
TYPE N/A N/A
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING
OUTDOOR UNIT A5LCY 15DR A5LCY 20CR
INDOOR UNIT A5CMY 15ER A5CMY 20ER
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
°C / °F N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
°C / °F N/A N/A
15
A5LCY_(i) Engineering & Physical Data
Safety Devices Data
MODEL
SAFETY DEVICE
1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
OUTDOOR UNIT A5LCY 25CR
INDOOR UNIT A5CMY 25ER
TYPE N/A
HIGH PRESSURE SWITCH
LOW PRESSURE SWITCH
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
°C / °F N/A
16
Outline and Dimension A5LCY_(i)
Outline and Dimension
Outdoor Unit Model: A5LCY 10/15DR
490
311
13
29.5
574
76512 638285
105.5
Outdoor Unit Model: A5LCY 20/25CR
550
Note: Dimension in mm
17
Note: Dimension in mm
A5LCY_(i) Outline and Dimension
Indoor Unit Model: A5WMY 10/15JR
800
206
288
Indoor Unit Model: A5WMY 20/25JR
288
Note: Dimension in mm
1065
310
224
310
Note: Dimension in mm
18
Outline and Dimension A5LCY_(i)
Indoor Unit Model: A5CKY 10/15/20CR
A
MODEL A B C D E F G H I J K
A5CKY 10/15/20CR 570 570 295 275 20 640 640 408 408 364 364
Indoor Unit Model: A5CKY 20/25ER
A
Note: Dimension in mm
B
C
D
E
F
H
I
J
G
19
K
MODEL A B C D E F G H I J K
A5CKY 20/25ER 820 820 350 290 60 990 990 627 627 607 607
Note: Dimension in mm
A5LCY_(i) Outline and Dimension
Indoor Unit Model: A5CCY 10/15/20/25CR
MODEL
A5CCY 10/15CR
A5CCY 20CR
A5CCY 25CR
ABCDEFGH I JKLMNO
31 881 842 802 10 905 72 261 411 351 225 211 232 212.8 114
31 1041 1002 962 10 1065 72 261 411 351 225 211 232 212.8 114
31 1176 1137 1097 10 1200 72 261 411 351 225 211 232 212.8 114
Indoor Unit Model: A5CMY 15/20/25ER
Note: Dimension in mm
Note: Dimension in mm
20
Wiring Diagram A5LCY_(i)
Wiring Diagram
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 10/15DR Model: A5WMY 10/15JR
21
70034106463
A5LCY_(i) Wiring Diagram
Outdoor Unit Indoor Unit Model: A5LCY 20/25CR Model: A5WMY 20/25JR
22
Wiring Diagram A5LCY_(i)
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 10/15DR Model: A5CKY 10/15CR
23
70034108590
A5LCY_(i) Wiring Diagram
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 20CR Model: A5CKY 20CR
24
Wiring Diagram A5LCY_(i)
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 20/25CR Model: A5CKY 20/25ER
25
70034110364
A5LCY_(i) Wiring Diagram
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 10/15DR Model: A5CCY 10/15CR
70034108589
26
Wiring Diagram A5LCY_(i)
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 20/25CR Model: A5CCY 20/25CR
27
70034110366
A5LCY_(i) Wiring Diagram
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 15DR Model: A5CMY 15ER
70034108591
28
Wiring Diagram A5LCY_(i)
Heat Pump
Outdoor Unit Indoor Unit Model: A5LCY 20/25CR Model: A5CMY 20/25ER
29
70034110365
A5LCY_(i) Service and Maintenance
Service and Maintenance
Warning
• Disconnect from main supply before servicing the air conditioner.
• The unit is designed to give long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention.
Components Maintenance Procedures Period
Air Filter (Indoor Unit)
Indoor Unit 1. Clean any dirt or dust on the grille or panel by wiping it with a
Condense Drain Pan & Pipe
Indoor Fan Check if there is any abnormal noise. If necessary.
Indoor / Outdoor Coil
Power Supply 1. Check the running current and voltage for indoor and outdoor
Compressor No maintenance needed if refrigerant circuit remains sealed. How-
1. Remove any dust adhering to the fi lter by using a vacuum cleaner or wash in lukewarm water (below 40˚C) with a neutral cleaning detergent.
2. Rinse the fi lter well and dry before placing it back onto the unit.
At least once every 2 weeks. More frequently if necessary.
3. Note: Never use gasoline, volatile substances or chemicals to clean the fi lter.
At least once every 2
soft cloth soaked in lukewarm water (below 40˚C) and a neutral detergent solution.
2. Note: Never use gasoline, volatile substances or chemicals to
weeks. More frequently if necessary.
clean the indoor unit.
1. Check the cleanliness and clean it if necessary.
Every 3 months.
2. Check the condensate water fl ow.
1. Check and remove the dirt between the fi ns.
Every month.
2. Check and remove any obstacles which hinder air fl ow through the indoor or outdoor.
3. Note: Avoid direct contact of any coil treatment material on the plastic part. This may cause plastic part to deform as a result of chemical reaction.
Every 2 months.
unit.
2. Check the electrical wiring and tighten the wire onto the terminal
Every year.
block if necessary.
Every 6 months.
ever, check for refrigerant leak at joint and fi tting.
Indoor Models
1. Open the front panel
• Hold the panel at the recesses on the main unit (2 recesses on right and left sides) and lift it until it stops.
2. Remove the front panel
• While lifting the front panel further, slide it to the right and pull it to the front side. The left rotating shaft is detached. Slide the right rotating shaft to the left and pull it to the front side to remove it.
3. Attach the front panel
• Align the right and left rotating shafts of the front panel with the grooves and push them all the way in.
• Gently close the front panel. (Push both ends and the center on the front panel.)
Rotating shaft
Recess on main unit
30
Service and Maintenance A5LCY_(i)
Air Filter
1. Open the front panel.
• Hold the panel at the recesses on the main unit (2 recesses on right and left sides) and lift it until it stops.
Recess on main unit
2. Pull out the air fi lters.
• Push a little upwards the tab at the center of each air fi lter, then pull it down.
3. Clean or replace each fi lter.
• When shaking off remaining water, do not wring the fi lter.
4. Set the air fi lter and close the front panel.
• Insert claws of the fi lters into slots of the front panel. Close the front panel slowly and push the panel at the 3 points. (1 on each side and 1 in the middle.)
• The air fi lter have a symmetrical form in the horizontal direction.
FRONT
Caution
• Don’t touch the metal parts of the indoor unit. It may cause an injury.
• When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully.
• When removing or attaching the front panel, support the panel securely with hand to prevent from it falling.
• For cleansing, do no use hot water above 40°C, benzene, gasoline, thinner, nor other volatile oils, polishing compound, scrubbing brushes, nor other hand stuff.
• After cleaning, make sure that the front panel is securely fi xed.
Pre Start Up Maintenance
(After Extended Shutdown)
• Inspect thoroughly and clean indoor and outdoor units.
• Clean or replace air fi lters.
• Clean condensates drain line.
• Clean clogged indoor and outdoor coils.
• Check fan imbalance before operation.
• Tighten all wiring connections and panels.
• Check for refrigerant leakage.
Outdoor Models
The design of the A5LCY outdoor series allows servicing to be carried out easily. The removal of the top, front and side panels makes almost every part accessible. Under normal circumstances, these outdoor units only require a check and cleaning of air intake coil surface once every 3 months. However, if a unit is installed in areas subjected to much oil mist and dust, the coils must be regularly cleaned by qualifi ed Air Conditioner Service Technicians to ensure suffi cient heat exchange and proper operation. Otherwise, the systems life span may be shortened.
Caution
• Do not charge OXYGEN, ACETYLENE OR OTHER FLAMMABLE and poisonous gases into the unit when performing a leakage test or an airtight test. These gases could cause severe explosion and damage if exposed to high temperature and pressure.
• It is recommended that only nitrogen or refrigerant be charged when performing the leakage or airtight test.
31
A5LCY_(i) Troubleshooting
Troubleshooting
Fault Condition
When a malfunction of the air conditioner unit is detected, immediately switch off the main power supply before proceeding with the following troubleshooting procedures. The following are common fault conditions and simple troubleshooting tips. If any other fault conditions which are not listed occur, contact your nearest local dealer. DO NOT attempt to troubleshoot the unit by yourself.
No Fault conditions Possible causes / corrective actions
1 The air conditioner unit will not resume after
power failure.
2 The airfl ow is too slow or room cannot be
cooled suffi ciently.
3 Discharge airfl ow has bad odor. • Cigarettes, smoke particles, perfume and
4 Condensation on the front air grille of the indoor
unit.
5 Water fl owing out from the air conditioner. • Switch off the unit and contact your nearest
6 Hissing airfl ow sound from the air conditioner
unit during operation.
7 The wireless controller display is dim. • The batteries are discharged.
8 Compressor operates continuously. • Dirty air fi lter. Clean the air fi lter.
9 No cool air comes out during cooling cycle, or
no hot air comes out during heating cycle.
10 On heating cycle, warm air does not come out. • Unit is in defrost mode. Heating operation will
• The auto restart function is not functioning. Please turn on the unit with the wireless / wired controller.
• The air fi lter is dirty.
• The doors and windows are opened.
• The air suction and discharge of both indoor and outdoor units are clogged or blocked.
• The regulated temperature or temperature setting is not low enough.
others, which might have adhered onto the coil, may cause odor.
• Contact your nearest dealer.
• This is caused by air humidity after an extended period of operation.
• The set temperature is too low. Increase the temperature setting and operate the unit at high fan speed.
dealer. This might be due to tilted installation.
• Liquid refrigerant fl owing into the evaporator coil.
• The batteries are not correctly inserted.
• The assembly is not good.
• Temperature setting too low (cooling). Use higher temperature setting.
• Temperature setting too high (heating), Use lower temperature setting.
• Temperature setting too high (cooling). Use lower temperature setting.
• Temperature setting too low (heating). Use higher temperature setting.
resume after defrost cycle ends.
32
Troubleshooting A5LCY_(i)
Indicator Lights
IR Signal Receiver
When an infrared remote control operating signal has been transmitted, the signal receiver on the indoor unit will respond as below to confi rm acceptance of the signal transmission.
ON to OFF 1 Long Beep
OFF to ON Pump down/Cool force on
2 Short Beep
Others 1 Short Beep
Heat Pump Unit
The table shows the LED indicator lights for the air conditioner unit under normal operation and fault conditions. The LED indicator lights are located at the side of the air conditioner unit.The heat pump units are equipped with an “auto” mode sensor whereby it will provide reasonable room temperature by switching automatically to either “cool” or “heat” mode according to the temperature set by the user.
IR Receiver
Cool / Heat
Timer Sleep
ON/OFF
ON/OFF switch
IR Receiver
LED Indicator Lights: Normal Operation and Fault Conditions for Heat Pump Unit
SLEEP
(RED)
1
COOL/HEAT
(GREEN/RED)
Green
Red
Red
Green
TIMER
(YELLOW)
Normal Operation / Fault Indication
Cool mode
Heat mode
Auto mode in Heating operation
Auto mode in Cooling operation
Time off (when unit is on)
Time on (when unit is off)
Sleep mode on
Green
Fan mode on
33
Green
Red
Green
ON Blinking
Dry mode on
Defrost operation
Error indication
A5LCY_(i) Troubleshooting
Error Code Diagnosis by Wireless Handset GS02
MODE
TIMER
CLOCK
FAN
OFF
CANCEL
TIMER ON
SWING
TURBO
QUIET SLEEP
ON
CANCEL
TIMER OFF
Diagnosis Step
1. Hold down ON TIMER CANCEL button or OFF TIMER CANCEL button for 5 seconds, a “ ” indication
fl ashes on the temperature display section.
2. Press ON TIMER CANCEL or OFF TIMER CANCEL repeatedly until indoor buzzer produces a long beep. This indicates the error code, refers to Error Codes table and is displayed on the temperature display section.
3. A short beep or two consecutive beeps indicate non-corresponding error codes.
4. To cancel the error code display, hold down ON TIMER CANCEL or OFF TIMER CANCEL button for 5 seconds. Alternatively, the code display will cancel itself if the button is not pressed for 1 minute.
Error Code Diagnosis by Unit Last State Memory Using Wireless Handset
1. Remove battery from wireless handset.
2. Wait for the display to fi nally go off (as this handset uses very small amount of power, hence it takes
longer for the memory to reset).
3. Replace battery again and immediately (before display comes back on the LCD screen), press on Mode
and ON/OFF buttons together until you see “00” is being displayed.
4. Press Mode button to 5:00.
5. Press ON/OFF button once.
6. After that, remove battery from wireless handset and wait until the display has gone off. Then, replace
battery again into the handset.
7. Finally, repeat the fault diagnosis steps by wireless handset GS02 above.
34
Troubleshooting A5LCY_(i)
Error Code Diagnosis by Wired Handset Netware 3C
Error code flashes e.g. A1
Error display using normal running
Error Code Diagnosis by Unit Last State Memory Using Wired Handset
1. Press SLEEP and TIMER ACTIVE buttons together until error code starts fl ashing on the fan speed
indicator area.
Error code flashes e.g. A1
&S
35
Error display using unit last state memory
A5LCY_(i) Troubleshooting
Error Codes
Error
Codes
U0 Insuffi cient gas
U2 DC voltage out of range
U4 Communication error
U7
UA Installation error
UF
UH Anti-freeze function in other room
A1 Indoor PCB error
A3 Water pump error
A5 Antifreeze
A6 Indoor fan motor abnormal
C4
C9 Indoor room thermistor short / open
E1 Outdoor PCB error
Error Description Action
0 Normal No action.
1. Check sensor connection.
2. Check stop valve.
3. Check for gas leak.
4. Check the EXV.
5. Check H8.
1. Check the supply voltage.
2. Check the outdoor fan by rotating with hand.
3. Restart the system.
4. Check power supply waveform.
1. Check the indoor unit - outdoor unit connection wires.
2. Check the voltage of the signal terminal.
3. Check the indoor fan by rotating with hand.
4. Check the power supply waveform.
Signal transmission error (on outdoor unit PCB)
Communication Error (indoor and outdoor) piping and wiring
Indoor heat exchanger thermistor short / open
1. Restart the system.
2. Replace outdoor PCB.
3. Long term monitor on external factor.
1. Check the indoor and outdoor unit model name.
2. Check the part code on the indoor and outdoor PCB.
1. Check the wiring and piping between indoor and outdoor units.
2. Check refrigerant level.
3. Check refrigerant line on blockage.
1. Check which indoor having error A5.
2. Check the supply voltage.
3. Check the indoor and outdoor model name.
1. Check connector connection.
2. Replace indoor PCB.
1. Check for short circuit.
2. Check connection on drain pump.
3. Restart the system.
4. Check the drain water level.
5. Check fl oat switch connection.
1. Check the air passage.
2. Check the intake air fi lter.
3. Check dust accumulation on indoor coil.
4. Check wiring and piping.
5. Check the EXV.
6. Check indoor coil sensor resistance value.
7. Check refrigerant level.
8. Check room sensor resistance value.
1. Check the indoor fan by rotating with hand.
2. Replace indoor fan motor if not rotating smoothly.
3. Check fan motor voltage.
4. Replace indoor PCB if not at the rated voltage.
5. Check fan capacitor's conductivity (AC Motor).
6. Replace fan capacitor if there's conductivity.
1. Check the connector connection.
2. Check the sensor resistance value.
1. Restart the system.
2. Replace outdoor PCB.
3. Check to see that the unit is grounded.
4. Check power supply waveform.
36
Troubleshooting A5LCY_(i)
Error
Codes
E3 High pressure protection
E4 Low pressure protection
E5 Compressor motor lock/overload
E6 Compressor lock/start-up error
E7 Outdoor DC fan motor lock
E8 Ac input over current
E9 EXV error
EA 4-way valve error
F3 Discharge pipe overheat
F6 Heat exchanger overheat
H0
H3 High pressure switch error
H6 Position sensor abnormality
Error Description Action
Compressor sensor system abnormality
1. Check installation conditions.
2. Check stop valve.
3. Check HPS connection.
4. Check pressure level by pressure gauge.
5. Wait for 10 minutes then restart the system.
6. Check if H3 is displayed.
1. Check stop valve.
2. Check low pressure sensor connection.
3. Check low side pressure and voltage.
4. Check outdoor coil sensor connection.
5. Check sensor resistance value.
6. Check refrigerant level.
1. Check connection on discharge pipe sensor.
2. Check discharge pipe sensor resistance value.
3. Check the EXV.
4. Check the refrigerant line on blockage or shortage.
1. Check with inverter checker.
2. Check the EXV.
1. Check the fan motor connection.
2. Check if foreign matters exist around or in the fan.
1. Measure the input current.
2. Check the main circuit electrolytic capacitor.
3. Check with inverter checker.
4. Check discharge pressure.
5. Check the installation condition.
1. Restart the system.
2. Check the EXV connection.
3. Check EXV coil resistance.
4. Check sensors resistance value.
1. Check 4WV coil connection.
2. Check the continuity of the 4WV coil and harness.
3. Check the 4WV switching output.
4. Check sensor connection.
5. Check sensor resistance value.
6. Check the refrigerant line on blockage or shortage.
1. Check the discharge pipe sensor.
2. Check the EXV.
3. Check the refrigerant line on blockage or shortage.
1. Check the installation space.
2. Check the outdoor fan.
3. Check the EXV.
4. Check the coil sensor.
1. Check the reactor connection.
2. Check the compressor connection.
3. Measure the resistance value between the reactor terminals.
4. Measure the resistance value between the compressor terminals.
1. Check pressure sensor connection.
2. Check HPS continuity.
1. Check for short circuit.
2. Check the electrolytic capacitor voltage.
3. Check compressor harness wire.
4. Check with inverter checker.
37
A5LCY_(i) Troubleshooting
Error
Codes
H8 AC current sensor error
H9 Outdoor air thermistor short / open
J1 Pressure sensor error
J3
J5 Suction pipe thermistor short / open Same as H9.
J6 Outdoor heat exchanger Same as H9.
J7
J8 Liquid pipe thermistor short / open Same as H9.
J9 Gas pipe thermistor abnormality Same as H9.
LC
L1 Outdoor PCB error
L3 Electrical box temperature rise
L4 Heat sink overheat
L5 IPM error / IGBT error
L8 Electrical thermal switch Contact dealers for assistance.
L9 Stall prevention
P1 Open phase or voltage unbalance
P4 Heat sink thermistor short / open Same as H9.
PJ Capacity setting error 1. Check the connection between capacitor and Outdoor PCB.
Error Description Action
1. Restart the system.
2. Check capacitor voltage.
3. Measure the rectifi er input voltage.
4. Check compressor harness wire.
5. Check with inverter checker.
1. Check the sensor connection.
2. Check the sensor resistance value.
1. Check pressure sensor connection.
2. Check pressure and voltage level.
Compressor discharge pipe thermistor short / open / misplaced
Subcooling heat exchanger thermistor short / open
Communication Error (control PCB and inverter PCB)
1. Check the sensor connection.
2. Check the sensor resistance value.
3. Check indoor coil sensor resistance value.
Same as H9.
1. Check fan motor connection.
2. Check if LED blinking normally at outdoor PCB.
1. Check the range of power supply.
2. Check connection between compressor and PCB.
3. Check fan motor resistance.
4. Check the power supply waveform.
1. Restart the system.
2. Check sensor resistance value.
3. Check heat sink temperature and conditions.
4. Check outdoor fan.
5. Check the installation condition.
1. Restart the system.
2. Check the silicon grease condition on heat sink.
3. Check sensor resistance value.
4. Check heat sink temperature and conditions.
5. Check outdoor fan.
6. Check the installation condition.
1. Check stop valve.
2. Check with inverter checker.
3. Check the power transistor.
4. Check the supply voltage.
5. Check the compressor phase.
6. Check the discharge pressure.
7. Check the installation condition.
1. Check installation conditions.
2. Check stop valve.
3. Check difference between high and low pressure side.
4. Check continuity on the power transistor.
5. Check the output voltage.
1. Check LED on outdoor PCB.
2. Check open phase of power supply voltage.
3. Check voltage balance between phases.
38
Troubleshooting A5LCY_(i)
Unit Running Parameter
Parameter
Number
Parameter Description Unit/ range
00 Compressor Actual Rotation r/s
01 Compressor Target Rotation r/s
02 DC Bus Voltage VDC
03 Total Current (÷10) A
04 Outdoor Air Temperature °C
05 Outdoor Heat Exchanger Temperature °C
06 Compressor Discharge Temperature °C
07 Outdoor Heatsink Temperature °C
08 Indoor Air Temperature °C
09 Indoor Heat exchanger Temperature °C
10 EXV Opening Pulse
11 Outdoor fan speed W0 ~ W6
12 Horse power 15: 1.5hp
13 Software version (Production)
14 Software version (Development)
15 3 minutes count up stop timer
16 Communication stage 0~3
17 Indoor On/Off 0- Off, 1-ON
18 Delta D
19 Running mode 0-Fan, 1- Heat, 2-Cool
20 Startup up timer
21 Comp initial control fl ag ok
22 Fuzzy control Delta H
23 Comp freq set pointer
24 Comp stop pointer
25 Comp limit pointer
26 Comp limit speed Max r/s
27 Discharge high temp zone 0-Normal, Other-Active
28 High pressure zone 0-Normal, Other-Active
29 Current control zone 0-Normal, Other-Active
30 Oil return status 0-Normal, Other-Active
31 De-ice setting 0-Normal, Other-Active
32 Dew drop setting 0-Normal, Other-Active
33 Heatsink protection zone 0-Normal, Other-Active
34 Turbo setting 0-Normal, Other-Active
35 Silent setting 0-Normal, Other-Active
36 Low ambient zone 0-Normal, Other-Active
37 Defrost status 0-Normal, Other-Active
38 Pump down status 0-Normal, Other-Active
39 O/D capacity fl ag 0- Comp off, 1- Comp On
40 O/D output capacity In %
41 Target discharge temp
42 EXV control status 0-Initial , 1- Feedback
43 Indoor fan tap
39
A5LCY_(i) Troubleshooting
Parameter
Number
Parameter Description Unit/ range
44 O/D error code
45 I/D error code
46 Low voltage control zone 0-Normal, Other-Active
47 Gas leak detection 0-Normal, Other-Active
48 Discharge sensor disconnected 0-Normal, Other-Active
49 Offi cial test setting 0-Normal, Other-Active
50 Skip frequency fl ag 0-Normal, Other-Active
51 Last O/D error code
52 2nd last O/D error code
53 3rd last O/D error code
40
Exploded View and Part List A5LCY_(i)
Exploded View and Part List
Outdoor Unit Model: A5LCY 10/15DR
14 2
28
4
6
22
15
22
29
16
20
7
19
21
3
23
27
11
9
17
8
18
25
241011330265 12
No Description
1 Assy. Botttom Frame
2 Top Plate
3 Right Side Plate
4 Left Side Plate
5 Front Panel
6 Sealing Material
7 Assy. Coil
8 Assy. 4WV
9 Valve, Rev 4 Way
10 Valve, 3 Way 1/2”
11 Assy. EXV w/o Service Valve
12 Valve, 2 Way 1/4”
13 Compressor
14 Assy. Fan Motor
15 Motor
No Description
16 Assy. Control Box
17 EXV Solenoid Coil
18 Assy. 4WV Coil
19 Reactor
20 Assy. Reactor Wire
21 Thermistor Holder
22 Assy. Propeller Fan
23 Assy. Panel Partition
24 Stop Valve Mounting Plate
25 Assy. Stop Valve Cover
26 Ins. Comp. Sound
27 Releasable Tie
28 Handle
29 Front Grille
30 Drain Joint
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
41
A5LCY_(i) Exploded View and Part List
Outdoor Unit Model: A5LCY 20/25CR
No Description
1 Assy. Base Fan
2 Panel, Service
3 Panel, Top
4 Panel, Front/Left
5 Assy. Coil
6 Assy. Propeller Fan
7 Assy. Control Box
8 Assy. Valve Cover
9 Compressor
10 Plastic, Front Grille
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No Description
11 Panel, Right Back
12 Assy. Valve Bracket
13 Assy. 4WV
14 Assy. EXV
15 Assy. Partition
16 Nut M8, with fl ange
17 Bracket, Motor
18 Plastic, Handle
19 Motor
42
Exploded View and Part List A5LCY_(i)
Indoor Unit Model: A5WMY 10/15JR
16
15
14
13
11
8
12
18
4
3
1
2
No
Description
1 Assy. Front Grille
No
Description
11 Blower
10
9
17
7
20
5
6
19
2 Panel, McQuay
3 Disch. Grille Hor.Blade Assy.
4 Assy. Bottom Frame
5 Assy. Control Box
6 Assy. Service Cover
7 Assy. Piping Fixture
8 Motor
9 Motor Mounting Plate (1)
10 Motor Mounting Plate (2)
12 Assy. Installation Plate
13 Right Side Panel
14 Cover, Drip Proof
15 Clip, Coil Sensor
16 Assy. Heat Exchanger
17 Assy. Drain Hose
18 Fan Bearing Vibration Absorber
19 Air Filter
20 Assy. Control Module
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
43
A5LCY_(i) Exploded View and Part List
Indoor Unit Model: A5WMY 20/25JR
No Description
1
Assy. Chasis
2
Motor
3
Blower
4
Fan Bush
5
Cover, Motor
6
Assy. Heat Exchanger
7
Assy. Air Discharge Housing
8
Assy. Louver
9
Hose
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No Description
10
Assy. Control Box
11
Assy. Control Module
12
Cover, Control Box
13
Cover, Service
14
Assy. Mounting Plate
15
Assy. Front Cover
16
Cover, Front
17
Intake Grille
18
Filter
44
Exploded View and Part List A5LCY_(i)
Indoor Unit Model: PLCKY-CR
No Description
1
Frame
2
Assy. Intake Grille B
3
Filter
4
Lock, Grille
5
Discharge, Foam
6
Discharge, Foam LED
7
Discharge, Foam Short
8
Louver
9
Louver, LED
10
Lingkage, Cover
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No Description
11
Lingkage, Motor Cover
12
Assy. Bracket Receiver (LED/SLM)
13
Assy. Motor
14
Crank, Connector
15
Louver, Holder
16
Cross, Crank
17
Ins. Long
18
Ins. Short
19
Ins. Corner
45
A5LCY_(i) Exploded View and Part List
Indoor Unit Model: A5CKY 10/15/20CR
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
46
Exploded View and Part List A5LCY_(i)
Indoor Unit Model: A5CKY 10/15/20CR
No Description
1
Assy. Base
2
Assy. Casing
3
Assy. Heat Exchanger
4
Cover, Fan
5
Blower
6
Plate, Wire
7
Motor
8
Bush, Motor
9
Bush, Motor Ring
10
Assy. Control Box
11
Pump, Water
12
Switch, Water Level
13
Bush, Wire
No Description
14
Bush, Pump
15
Assy. Drain Pump Support Bracket
16
Assy. End Plate Support
17
Clip, Coil Sensor
18
Support, Heat Exchanger
19
Cover, Terminal
20
Assy. Cover Wire
21
Connector, Drain
22
Hose, Drain
23
Assy. Cover Valve
24
Assy. Drain Pan
25
Bush, Wire
26
Cover, Wire Bracket
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
47
A5LCY_(i) Exploded View and Part List
Indoor Unit Model: PLCKY-ER
No
Description
1 Front, Frame
2 Assy. Intake Grille
3 Assy. Air Discharge Main
4 Assy. Air Discharge Main Right
5 Assy. Air Discharge Main Left
6 Air Filter, CK-A/AR
7 Assy. Air Swing Motor
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No
Description
8 Crank Connector
9 Assy. LED
10 Wire, Guide
11 Cover, Cross Connector
12 Assy. Cover Corner A
13 Assy. Cover Corner B
14 Mounting Plate
48
Exploded View and Part List A5LCY_(i)
Indoor Unit Model: A5CKY 20/25ER
No Description
1 Assy. Base Pan
2 Assy. Coil
3 Assy. Coil Bracket
4 Assy. Drain Pump Mounting
5 Assy. Panel Side Back
6 Assy. Side Panel Front
7 Assy. Motor & Rubber
8 Blower, Turbo Fan DIA462 X 171.5 3P085496-1
9 Assy. Drain Pan
10 Assy. Fan Cover
11 Assy. Cover Control Box
12 Assy. Control Box
13 Assy. Cover Terminal
14 Support, Coil
15 Cover, Wire A
No Description
16 Cover, Wire B
17 Bracket, Hanger A
18 Bracket, Hanger B
19 Bracket, Hanger C
20 Fresh Air Adaptor
21 Assembly, Valve Plate
22 Assy. Air Guide
23 Assy. Partition Holder
24 Cover, Wire
25 Switch Water Level 1A - CK Drain Pump
26 Pump, Water PC-04226-OYOB YCK
27 Hose, Drain PE 18.3 X 0.5 X 315.0
28 Connector, Drain
29 Ins., Drain Connector
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
49
A5LCY_(i) Exploded View and Part List
Indoor Unit Model: A5CCY 10/15/20/25CR
No Description
1
Cabinet
2
Assy. Fan Deck
3
Assy. Heat Exchanger
4
Assy. Drain Pan
5
Assy. Secondary Drain Pan
6
Hanger
7
Control Module
8
Assy. Blower Right
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
No Description
9
Assy. Blower Left
10
Motor
Parts Not in Diagram
Handset, Wired
Air Filter
Holder, Thermistor
Clip, Coil Sensor
50
Exploded View and Part List A5LCY_(i)
Indoor Unit Model: A5CMY 15/20/25ER
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
51
A5LCY_(i) Exploded View and Part List
Indoor Unit Model: A5CMY 15/20/25ER
No Description
1
Assy. Top Panel
2
Assy. Heat Exchanger
3
Assy. Vane
4
Assy. Drain Pan
5
Assy. Control Box
6
Terminal Box Cover
7
Motor
8
Bracket, Motor
9
Blower
10
Housing, Blower
11
Motor, Louver
No Description
12
Assy. Panel Bottom
13
Cover, Hanger L1 (C)
14
Cover, Hanger L2 (D)
15
Cover, Hanger R1 (A)
16
Cover, Hanger R2 (B)
17
Bracket, Mounting
18
Control Box Cover
Parts Not in Diagram
Handset, Wireless
Control Module
Intake Grille
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
52
Sound Data A5LCY_(i)
Sound Data
Sound Pressure Level
Model Speed
A5CKY
10CR
A5CKY
15CR
A5CKY
20CR
A5CKY
20ER
A5CKY
25ER
High 49 46 45 37 30 27 12 44 40 Med 49 44 42 33 27 21 9 41 37
Low 47 41 38 31 22 14 8 38 33 High 48 46 46 38 32 27 13 45 41 Med 51 44 43 33 28 21 12 42 38
Low 49 41 38 28 22 16 9 38 33 High 46 46 45 42 36 38 26 47 41 Med 45 46 43 41 35 37 23 46 40
Low 43 44 42 39 33 35 20 44 38 High 37 38 35 26 17 8 6 34 30 Med 34 34 33 21 11 5 6 31 28
Low 32 30 30 17 8 4 5 28 24 High 39 40 37 29 22 13 6 37 32 Med 37 38 35 26 18 9 5 34 30
Low 35 35 32 22 13 6 5 31 26
Model Measuring Location
1/1 Octave A-Weighted Sound Pressure (dBA), ref 20μPa
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
Part Number: 00015210CKY-C/E

Overall
(dBA)
Noise
Criteria
A5CKY 10CR A5CKY 15CR A5CKY 20CR A5CKY 20ER A5CKY 25ER

Standard: JIS C 9612

A5LCY_(i) Sound Data
NC Curve
A5CKY 10CR
Part Number: 000353103G1010
A5CKY 15CR
Part Number: 000353103G1515
Sound Data A5LCY_(i)
A5CKY 20CR
Part Number: 000353103H2020
A5CKY 20ER
Part Number: 000353103H2020
A5LCY_(i) Sound Data
A5CKY 25ER
Part Number: 000353103N2525
Sound Data A5LCY_(i)
Sound Data
Sound Pressure Level
Model Speed
A5CCY
10CR
A5CCY
15CR
A5CCY
20CR
A5CCY
25CR
High 41 34 34 29 26 16 12 35 29 Med 39 31 32 26 20 14 8 32 26
Low 36 25 27 19 11 6 6 26 22 High 39 36 34 32 27 18 11 37 31 Med 35 34 32 29 23 14 9 34 27
Low 32 29 28 25 17 11 8 29 23 High 42 39 36 24 28 22 17 38 33 Med 41 37 34 31 26 20 15 36 30
Low 40 36 32 29 23 18 13 34 27 High 42 41 37 34 31 29 23 40 33 Med 41 40 36 33 29 28 22 39 32
Low 36 35 31 31 26 27 21 36 30
Model Measuring Location
1/1 Octave A-Weighted Sound Pressure (dBA), ref 20μPa
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
Part Number: 00015210CCY-C
 
Overall
(dBA)
Noise
Criteria
A5CCY 10CR A5CCY 15CR A5CCY 20CR A5CCY 25CR
  

A5LCY_(i) Sound Data
NC Curve
A5CCY 10CR
Part Number: 000353103K1010
A5CCY 15CR
Part Number: 000353103K1515
Sound Data A5LCY_(i)
A5CCY 20CR
Part Number: 000353103K2020
A5CCY 25CR
Part Number: 000353103K2525
Sound Data A5LCY_(i)
Sound Data
Sound Pressure Level
Model Speed
A5CMY
15ER
A5CMY
20ER
A5CMY
25ER
High 40 42 45 41 37 33 27 46 41 Med 34 35 38 32 28 21 13 38 35
Low 32 33 36 29 24 17 9 35 32 High 42 46 49 44 43 36 31 50 45 Med 36 40 43 37 36 27 20 43 38
Low 34 38 41 34 33 23 15 41 36 High 45 47 51 48 48 40 34 53 48 Med 43 46 49 46 46 37 31 51 45
Low 42 46 44 44 44 35 27 49 43
Model Measuring Location
1/1 Octave A-Weighted Sound Pressure (dBA), ref 20μPa
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
Part Number: 00015210CEY-E
 
Overall
(dBA)
Noise
Criteria
A5CMY 15ER A5CMY 20ER A5CMY 25ER
 Standard:JISC9612

A5LCY_(i) Sound Data
NC Curve

A5CMY 15ER
Part Number: 000353103M1515
A5CMY 20ER

Part Number: 000353103M2020
Sound Data A5LCY_(i)

A5CMY 25ER
Part Number: 000353103M2525
While upmost care is taken in ensuring that all details in the publication are correct at time of going to press, we are constantly striving for improvement and therefore reserve the rights to alter model specifications and equipment without prior notice. Details of speci fications andequipment are also subject to change to suit local conditions and equirements and not all models are available in every market.
Revision History List
Manual : Inverter Y Single Split Series I TM : A5LCY-I_(i)
Revision Subject
01 1. Correction on Indoor Unit Dimension Data 16 23.06.2011
02 1. Correction on Engineering Data 11 01.11.2011
1. Correction on Engineeerin g Da ta 9-13
03
2. Sound Data (5CKY, 5CCY, 5CMY) After 52
Amendment on
Manual’s Page No.
14.03.2012
Date
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
