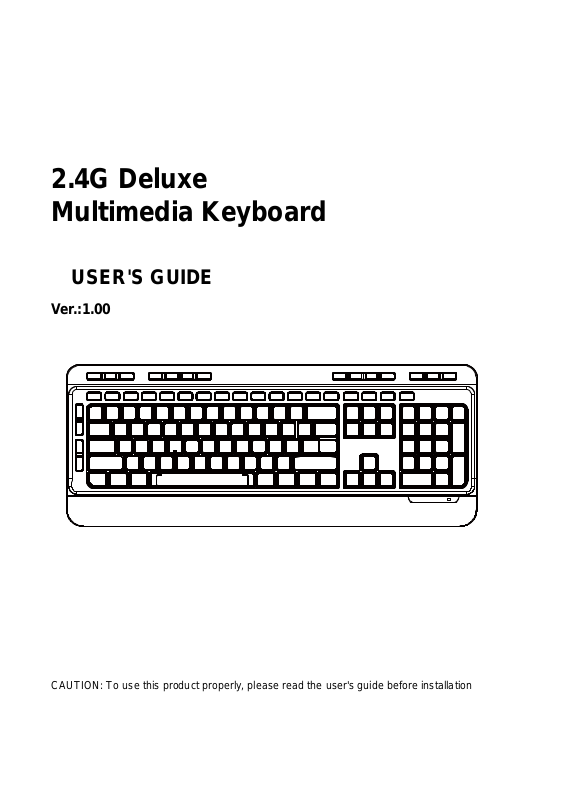

Page 1
2.4G Deluxe
Multimedia Keyboard
USER'S GUIDE
Ver.:1.00
CAUTION: To use this product properly, please read the user's guide before installation
Page 2
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
1
Page 3
Functional Introduction
Media Player
Hot Keys
Keyboard Buttons
AAA battery X2
2
Page 4
Start the default Web browser and loads the
10.
Next
Switch to the next media track
Stop(Media)
Media Player Hot Keys
1.
2
3.
4.
5.
6.
7.
8.
9.
11.
12.
13.
14.
15
16
17
Outlook(E-mail)Default Start the default e-mail program
Homepage(www/e)
Forward Forward to the next page on Internet browser
Back Back to the last page on Internet browser
Search Open the Internet Explorer Search panel
Refresh Reload the current page
My Favorites Start my favorites
Play/Pause Switch between playing and pausing media
Previous Switch to the previous media track
My Computer My Computer
Volume down (Voice-) Decrease the computer's sound volume.
Volume up (Voice+) Increase the computer's sound volume.
Mute Mute (turns off) the computer's sound
Media Player on Open the media player
Sleep let PC into sleep (stand by) mode
home Web page
Stop playing the media in the media player
18
19
20
21 LED Indicator Low Battery & Pairing Indicator
22 Battery Cover
Connect Button
Weak up let PC (had into stand by) to weak up
Power let PC to shut off
Setup the Connection between the Receiver and the Keyboard.
1. Insert the batteries into the Keyboard, then follow the steps below.
2. Plug the Nano receiver into the USB port of your computer.
3
Page 5
3. If the keyboard is not working, please put it into pairing mode.
*
Keyboard
Indicator
Red
LED Blinking
Red LED
Blink
s for 10 sec.
4. Pairing: Re-plug the receiver into the USB port of your computer,
then press the “ESC” and “Connect” button on the keyboard. If the
keyboard does not work after 10 seconds, pair them again. (The
receiver has auto pairing function).
Connect Button
5. The LED indicator on keyboard flashes steadily when it is in pairing
mode and stops blinking when it is successfully paired with the
receiver.
6. When the batteries’ power of the keyboard is low, the Low Power
indicator will start to blink.
Red LED is on for 10 sec.
Power ON
Low Battery Warning
Pairing (LED OFF when paired or
LED indicator
failed after 10 sec.)
4
