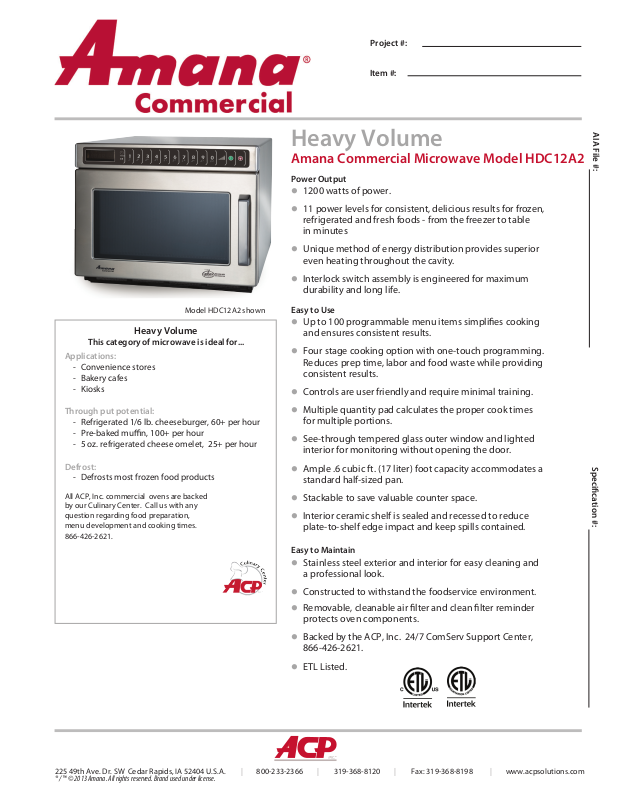

ACP HDC12A2 Spec Sheet
Project #:
Item #:
Heavy Volume
Amana Commercial Microwave Model HDC12A2
Power Output
l
1200 watts of power.
l 11 power levels for consistent, delicious results for frozen,
refrigerated and fresh foods - from the freezer to table
in minutes
l Unique method of energy distribution provides superior
even heating throughout the cavity.
l Interlock switch assembly is engineered for maximum
durability and long life.
AIA File #:
Model HDC12A2 shown
Heavy Volume
This category of microwave is ideal for...
Applications:
- Convenience stores
- Bakery cafes
- Kiosks
Through put potential:
- Refrigerated 1/6 lb. cheeseburger, 60+ per hour
- Pre-baked mun, 100+ per hour
- 5 oz. refrigerated cheese omelet, 25+ per hour
Defrost:
- Defrosts most frozen food products
All ACP, Inc. commercial ovens are backed
by our Culinary Center. Call us with any
question regarding food preparation,
menu development and cooking times.
866-426-2621.
Easy to Use
l
Up to 100 programmable menu items simplies cooking
and ensures consistent results.
l Four stage cooking option with one-touch programming.
Reduces prep time, labor and food waste while providing
consistent results.
l Controls are user friendly and require minimal training.
l Multiple quantity pad calculates the proper cook times
for multiple portions.
l See-through tempered glass outer window and lighted
interior for monitoring without opening the door.
l Ample .6 cubic ft. (17 liter) foot capacity accommodates a
standard half-sized pan.
l Stackable to save valuable counter space.
l Interior ceramic shelf is sealed and recessed to reduce
plate-to-shelf edge impact and keep spills contained.
Easy to Maintain
l
Stainless steel exterior and interior for easy cleaning and
a professional look.
l Constructed to withstand the foodservice environment.
l Removable, cleanable air lter and clean lter reminder
protects oven components.
Specication #:
l Backed by the ACP, Inc. 24/7 ComServ Support Center,
866-426-2621.
l ETL Listed.
225 49th Ave. Dr. SW Cedar Rapids, IA 52404 U.S.A. | 800-233-2366 | 319-368-8120 | Fax: 319-368-8198 | www.acpsolutions.com
® / ™ © 2013 Amana. All rights reserved. Brand used under license.
Amana Commercial Microwave Model HDC12A2 Heavy Volume
16-1/2”
(419)
13-1/2”
(343)
15-1/2”
(394)
Installation Clearance: 7” (177.79) top and sides
1-1/2”
(38)
35-1/2”
(901)
21-5/8”
(549)
Specications
Model HDC12A2 UPC Code 719881159355
Conguration Countertop
Control System Touch
Programmable Control Pads 10
Settings Programmable 100
Max. Cooking Time 60:00
Power Levels 11
Defrost Yes, power level 2
Time Entry Option Yes
Specication #:
Microwave Distribution Double rotating antenna, top and bottom
Magnetrons 2
Display LED
Stackable Yes
Stage Cooking Yes, 4
Interior Light Yes
Door Opening Grab and pull handle
Signal Adjustable, end of cycle
Air Filter Yes, removable with clean lter reminder
Multiple Portion Setting Yes, up to 2 portions
Exterior Dimensions H 13 ½” (343) W 16 ½” (419)
Cavity Dimensions H 6 ¾” (171) W 13” (330)
Door Depth 37” (940mm), 90
o
+ door open
D** 21 ⁄” (549)
D 12” (305)
Usable Cavity Space .6 cubic ft. (17 liter)
Exterior Finish Stainless steel
Interior Finish Stainless steel with sealed-in ceramic shelf
Power Consumption 2000 W, 16.8 A
Power Output* 1200 W* Microwave
Power Source 120V, 60 Hz, 20 A single phase
Plug Conguration / Cord NEMA 5-20 5’ 6” (1.7m)
Frequency 2450 MHz
Product Weight 67 lbs. (30 kg.)
Ship weight (approx.) 74 lbs. (34 kg.)
Shipping Carton Size L 24 ⁄” (625) W 21 ⁄” (556) D 18 ⁄” (473)
UPS Shippable Yes
1”
(25)
17-1/4”
(438)
Drawings available from KCL CADlog - techs@kclcad.com
3-1/2”
(89)
Specications
Commercial microwave 10 touch pad control panel shall be
programmable with the ability to program up to 100 menu
items and shall have automatic cooking capability for up to
two portions. Cooking timer shall be 60 minute, countdown
style with a time entry option and an adjustable end of cycle
audible signal. LED display shall be a backlit. There shall be
11 power levels, 4 cooking stages and defrost mode at 20%
power or power level 2. Microwave output shall be 1200
watts distributed by two magnetrons each with a rotating
antenna to provide superior even heating throughout the
cavity. Heavy duty door shall have a tempered glass outer
window and a grab and pull handle with a 90
o +
opening for
easy access. An interior light shall facilitate monitoring without opening the door. The large .6 cubic ft. (17 liter) cavity
shall accommodate a standard 6” (152 mm) deep half-sized
pan. Interior ceramic shelf shall be sealed and recessed on
oven bottom to reduce plate-to-shelf edge impact. Oven shall
have a stainless steel interior and exterior and be stackable to
save counter and shelf space. Oven shall have a removable,
cleanable splatter shield. Air lter shall be easily accessible
and removable from the front of the oven and have a “clean
lter” reminder feature. Microwave oven shall comply with
standards set by the U.S Department of Health and Human
Services, ETL for safety and sanitation.
Warranty
Warranty Certicate for this product can be found on the ACP,
Inc. website at:
www.acpsolutions.com/warranty
Service
All products are backed by the ACP, Inc. 24/7 ComServ
Support Center.
Measurements in ( ) are millimeters
* IEC 60705 Tested
** Includes handle
AIA File #:
225 49th Ave. Dr. SW Cedar Rapids, IA 52404 U.S.A. | 800-233-2366 | 319-368-8120 | Fax: 319-368-8198 | www.acpsolutions.com
ACP commitment to quality may mean a change in specication without notice. Product of the U.S.A. © 2013 ACP Inc.™ Printed in the U.S.A.
