Acousti PACK PRE-CUT User Manual
AP AntecBQE Pack Contents and Fitting Directions
Pack Contents:
The AcoustiPack™ AP AntecBQE contains
16 pieces, of 2 different acoustic materials
and an optional washable air filter.
Acoustic Foam
Acoustic Composite
Note Regarding Part :
Opt
= Optional
Note Regarding Part :
1. Remove the uppermost 5¼-inch
drive bay cover to help with access,
and turn the case upside down.
2. Peel back only a portion of the selfadhesive backing sheet and fit the
front section of this part first.
Once in position, fit the remainder of
the part.
1
3½-inch drive bay mounting is
shown removed for clarity.
Removal may not be required
for fitting part .
1

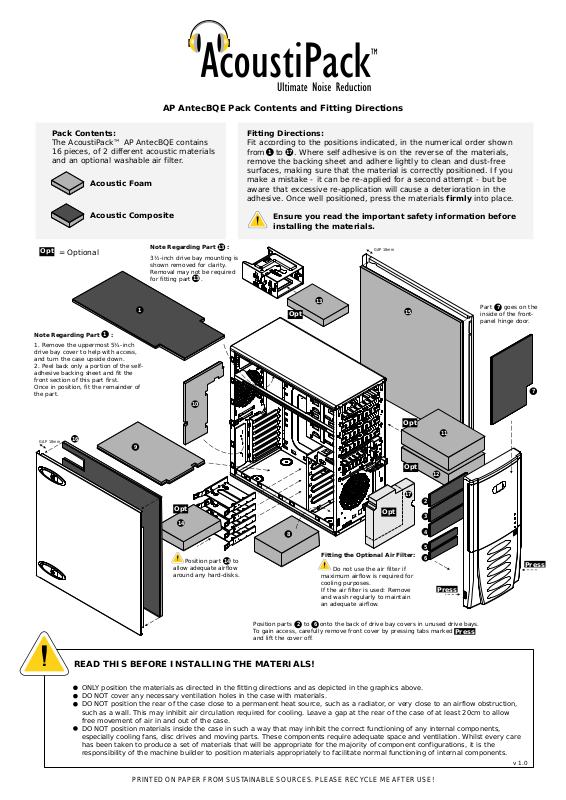

Fitting Directions:
Fit according to the positions indicated, in the numerical order shown
17
1
from to . Where self adhesive is on the reverse of the materials,
remove the backing sheet and adhere lightly to clean and dust-free
surfaces, making sure that the material is correctly positioned. If you
make a mistake - it can be re-applied for a second attempt - but be
aware that excessive re-application will cause a deterioration in the
adhesive. Once well positioned, press the materials firmly into place.
Ensure you read the important safety information before
installing the materials.
13
13
13
Opt
10
GAP 18mm
7
15
Part goes on the
inside of the frontpanel hinge door.
7
GAP 18mm
Opt
16
9
Opt
17
Opt
14
Position part to
allow adequate airflow
around any hard-disks.
14
8
Fitting the Optional Air Filter:
Do not use the air filter if
maximum airflow is required for
cooling purposes.
If the air filter is used: Remove
and wash regularly to maintain
an adequate airflow.
Position parts to onto the back of drive bay covers in unused drive bays.
To gain access, carefully remove front cover by pressing tabs marked
and lift the cover off.
2
6
Opt
11
12
2
3
4
5
6
Press
Press
READ THIS BEFORE INSTALLING THE MATERIALS!
ONLY position the materials as directed in the fitting directions and as depicted in the graphics above.
DO NOT cover any necessary ventilation holes in the case with materials.
DO NOT position the rear of the case close to a permanent heat source, such as a radiator, or very close to an airflow obstruction,
such as a wall. This may inhibit air circulation required for cooling. Leave a gap at the rear of the case of at least 20cm to allow
free movement of air in and out of the case.
DO NOT position materials inside the case in such a way that may inhibit the correct functioning of any internal components,
especially cooling fans, disc drives and moving parts. These components require adequate space and ventilation. Whilst every care
has been taken to produce a set of materials that will be appropriate for the majority of component configurations, it is the
responsibility of the machine builder to position materials appropriately to facilitate normal functioning of internal components.
Press
v 1.0
PRINTED ON PAPER FROM SUSTAINABLE SOURCES. PLEASE RECYCLE ME AFTER USE!
