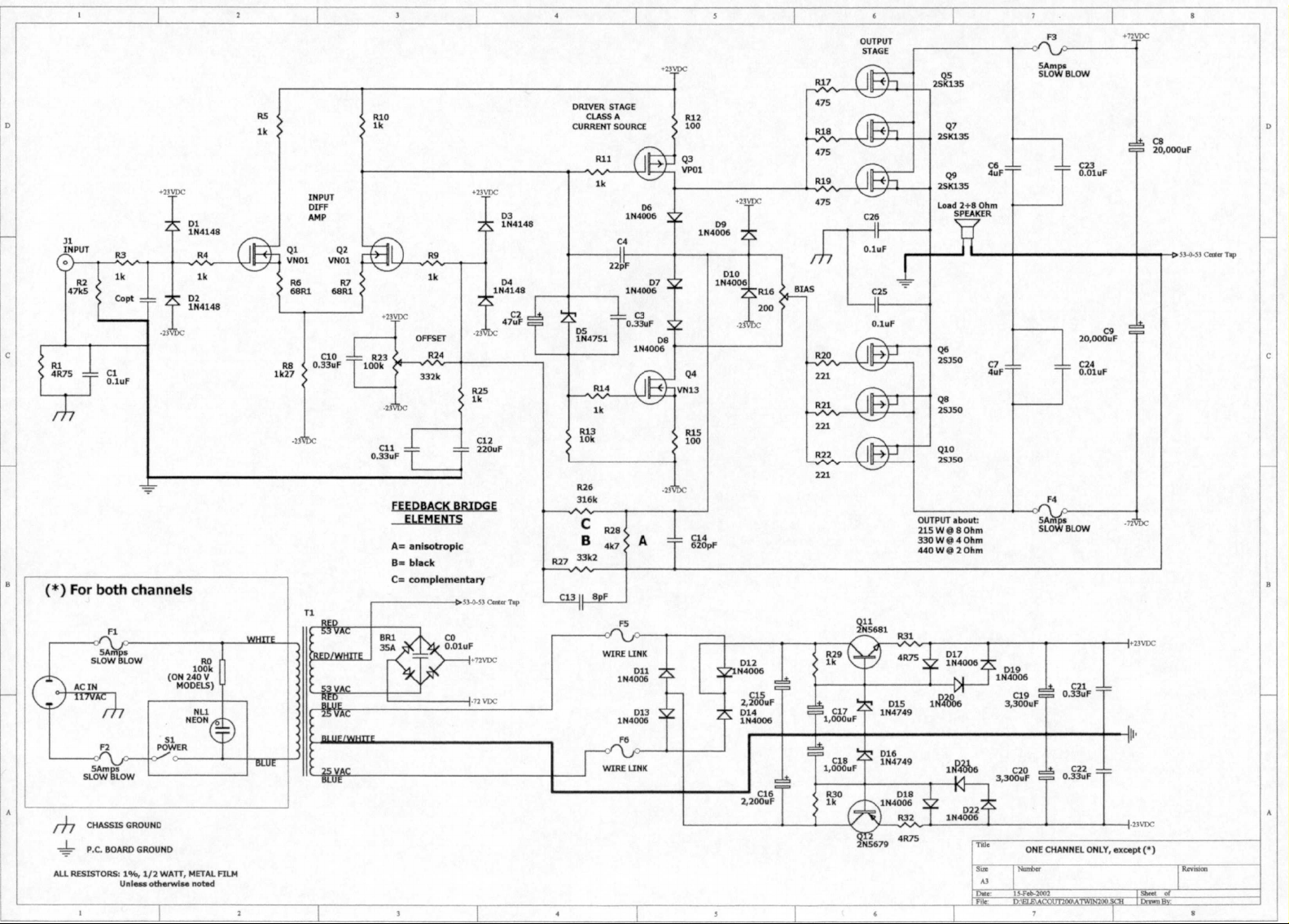

Page 1
Page 2
Designator Value Tolerance V rated Material Manufacturer Remarks
Copt 200pF 10% POLYPROPYLENE Optional
capacitor to
avoid HF input
C0 0.01uF 10% 250VAC
C1 0.1uF CERAMIC DISC
C2 47uF 35VDC ELECTROLYTIC
C3 0.33uF 10% 250VAC POLYPROPYLENE
C4 22pF SILVER MICA
C5 ??? missing in the
original
schematic or
maybe it was
C0, but
unreadable
C6 4uF 5% 250VAC POLYPROPILENE
C7 4uF 5% 250VAC POLYPROPILENE
C8 20,000uF 75VDC ELECTROLYTIC
C9 20,000uF 75VDC ELECTROLYTIC
C10 0.33uF 10% 250VAC POLYPROPYLENE
C11 0.33uF 10% 250VAC POLYPROPYLENE
C12 220uF 35VDC NON-POLARIZED
C13 8pF +/-1pF x SILVER MICA
C14 620pF 2% x POLYSTYRENE
C15 2,200uF 35VDC ELECTROLYTIC
C16 2,200uF 35VDC ELECTROLYTIC
C17 1,000uF 25VDC ELECTROLYTIC
C18 1,000uF 25VDC ELECTROLYTIC
C19 3,300uF 25VDC ELECTROLYTIC
C20 3,300uF 25VDC ELECTROLYTIC
C21 0.33uF 10% 250VAC POLYPROPYLENE
C22 0.33uF 10% 250VAC POLYPROPYLENE
C23 0.01uF 10% 250VAC POLYSTYRENE
C24 0.01uF 10% 250VAC POLYSTYRENE
C25 0.1uF 10% CERAMIC DISC
C26 0.1uF 10% CERAMIC DISC
Diodes
Designator Value Tolerance V rated Material Manufacturer Remarks
D1 1N4148 GLASS
D2 1N4148 GLASS
Page 3
D3 1N4148 GLASS
D4 1N4148 GLASS
D5 1N4751 30V DO41 GLASS
D6 1N4006 DO41 PLASTIC
D7 1N4006 DO41 PLASTIC
D8 1N4006 DO41 PLASTIC
D9 1N4006 DO41 PLASTIC
D10 1N4006 DO41 PLASTIC
D11 1N4006 DO41 PLASTIC
D12 1N4006 DO41 PLASTIC
D13 1N4006 DO41 PLASTIC
D14 1N4006 DO41 PLASTIC
D15 1N4749 24V DO41 GLASS
D16 1N4749 24V DO41 GLASS
D17 1N4006 DO41 PLASTIC
D18 1N4006 DO41 PLASTIC
D19 1N4006 DO41 PLASTIC
D20 1N4006 DO41 PLASTIC
D21 1N4006 DO41 PLASTIC
D22 1N4006 DO41 PLASTIC
BR1 x 35 A Diode Bridge
Transistors
Designator Value Tolerance V rated Material Manufacturer Remarks
Q1 VN0106 TO39 with heatsink Supertex TO39-
SUPERSEDED
Q2 VN0106 TO39 with heatsink Supertex TO39-
SUPERSEDED
Q3 VP0106 TO39 with heatsink Supertex TO39-
SUPERSEDED
Q4 VN1306 TO39 with heatsink Supertex TO39-still
available
Q5 2SK135 TO3 on heatsink Hitachi Available c/o
SEMELAB
Q6 2SJ50 TO3 on heatsink Hitachi Available c/o
SEMELAB
Q7 2SK135 TO3 on heatsink Hitachi Available c/o
SEMELAB
Q8 2SJ50 TO3 on heatsink Hitachi Available c/o
SEMELAB
Q9 2SK135 TO3 on heatsink Hitachi Available c/o
SEMELAB
Q10 2SJ50 TO3 on heatsink Hitachi Available c/o
SEMELAB
Q11 2N5681 TO39 with heatsink Semelab
Q12 2N5679 TO39 with heatsink Semelab
Resistors
Designator Value Tolerance V rated Material Manufacturer Remarks
R0 100k 5% RN55 1/2W, Metal film ON 240 V
Page 4
MODELS
R1 4R75 5% RN55 1/2W, Metal film
R2 47k5 1% RN55 1/2W, Metal film
R3 1k 1% RN55 1/2W, Metal film
R4 1k 1% RN55 1/2W, Metal film
R5 1k 1% RN55 1/2W, Metal film
R6 68R1 1% RN55 1/2W, Metal film
R7 68R1 1% RN55 1/2W, Metal film
R8 1k27 1% RN55 1/2W, Metal film
R9 1k 1% RN55 1/2W, Metal film
R10 1k 1% RN55 1/2W, Metal film
R11 1k 1% RN55 1/2W, Metal film
R12 100 1% RN55 1/2W, Metal film
R13 10k 1% RN55 1/2W, Metal film
R14 1k 1% RN55 1/2W, Metal film
R15 100 1% RN55 1/2W, Metal film
R16 200 10% BIAS TRIMMER
R17 475 1% RN55 1/2W, Metal film
R18 475 1% RN55 1/2W, Metal film
R19 475 1% RN55 1/2W, Metal film
R20 221 1% RN55 1/2W, Metal film
R21 221 1% RN55 1/2W, Metal film
R22 221 1% RN55 1/2W, Metal film
R23 100k 10% OFFSET
TRIMMER
R24 332k 1% RN55 1/2W, Metal film
R25 1k 1% RN55 1/2W, Metal film
R26 316k 1% RN55 1/2W, Metal film
R27 33k2 1% RN55 1/2W, Metal film
R28 4k7 5% 5W, Metal Oxide
Film
R29 1k 1% RN55 1/2W, Metal film
R30 1k 1% RN55 1/2W, Metal film
R31 4R75 1% RN55 1/2W, Metal film
R32 4R75 1% RN55 1/2W, Metal film
Load 2รท8
Ohm
Fuses
Designator Value Tolerance V rated Material Manufacturer Remarks
F1 5 Amps SLOW BLOW
F2 5 Amps SLOW BLOW
F3 5 Amps SLOW BLOW
F4 5 Amps SLOW BLOW
F5 0.005"
SPEAKER
WIRE LINK
diam
Page 5
F6 0.005"
diam
Miscalleneous
Designator Value Tolerance V rated Material Manufacturer Remarks
T1 Transformer 1 Prim
J1 Connector INPUT
NL1 Neon Lamp
S1 Power Switch
AC IN SOCKET 117VAC AC
WIRE LINK
117VAC, 4
dual Secs
LINE
