TransNovaTwin120-pwr
Schematic
2 pgs
286.43 Kb
0
Table of contents
Loading...

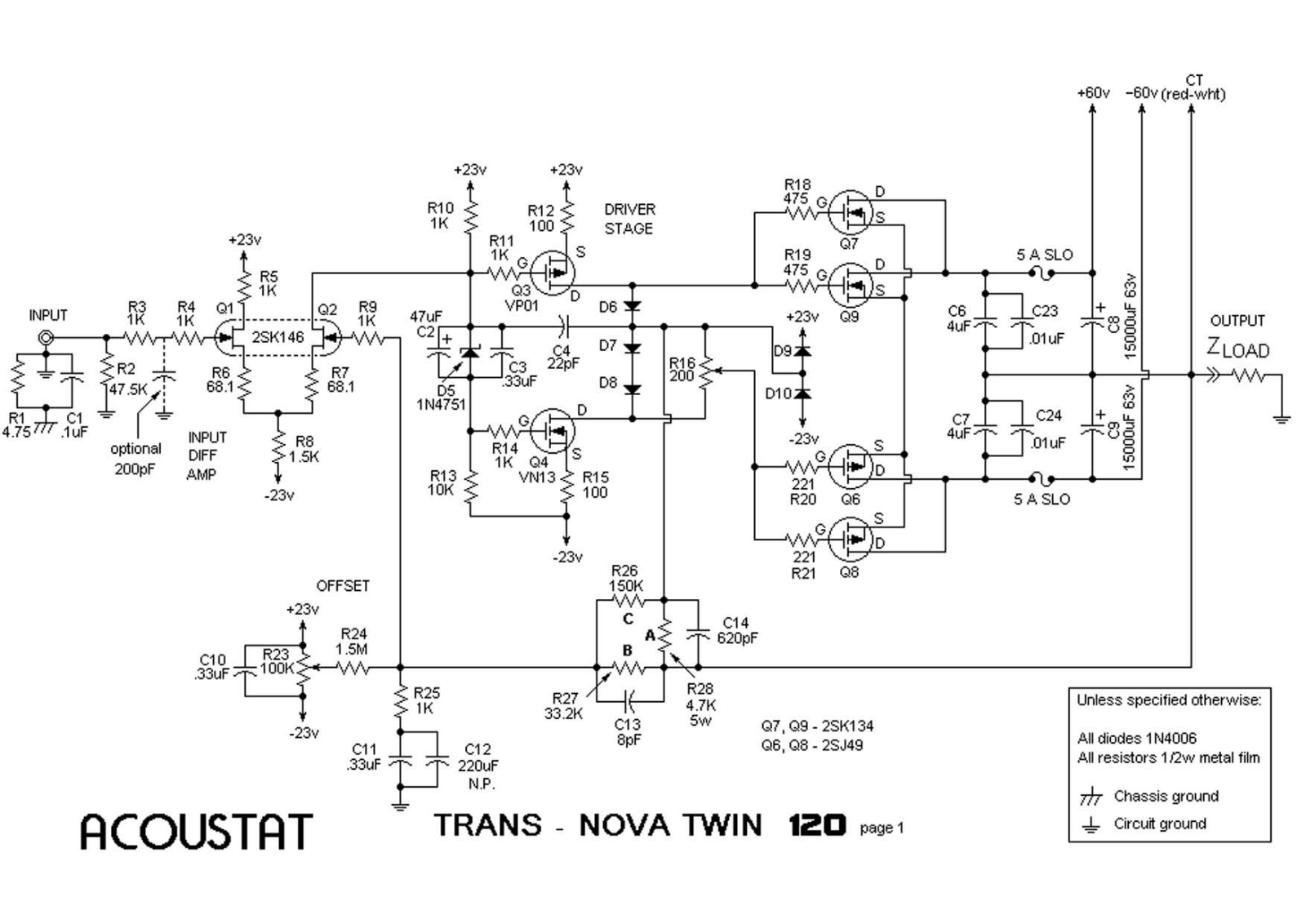

Acoustat TransNovaTwin120-pwr Schematic
...
Acoustat Schematic
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1

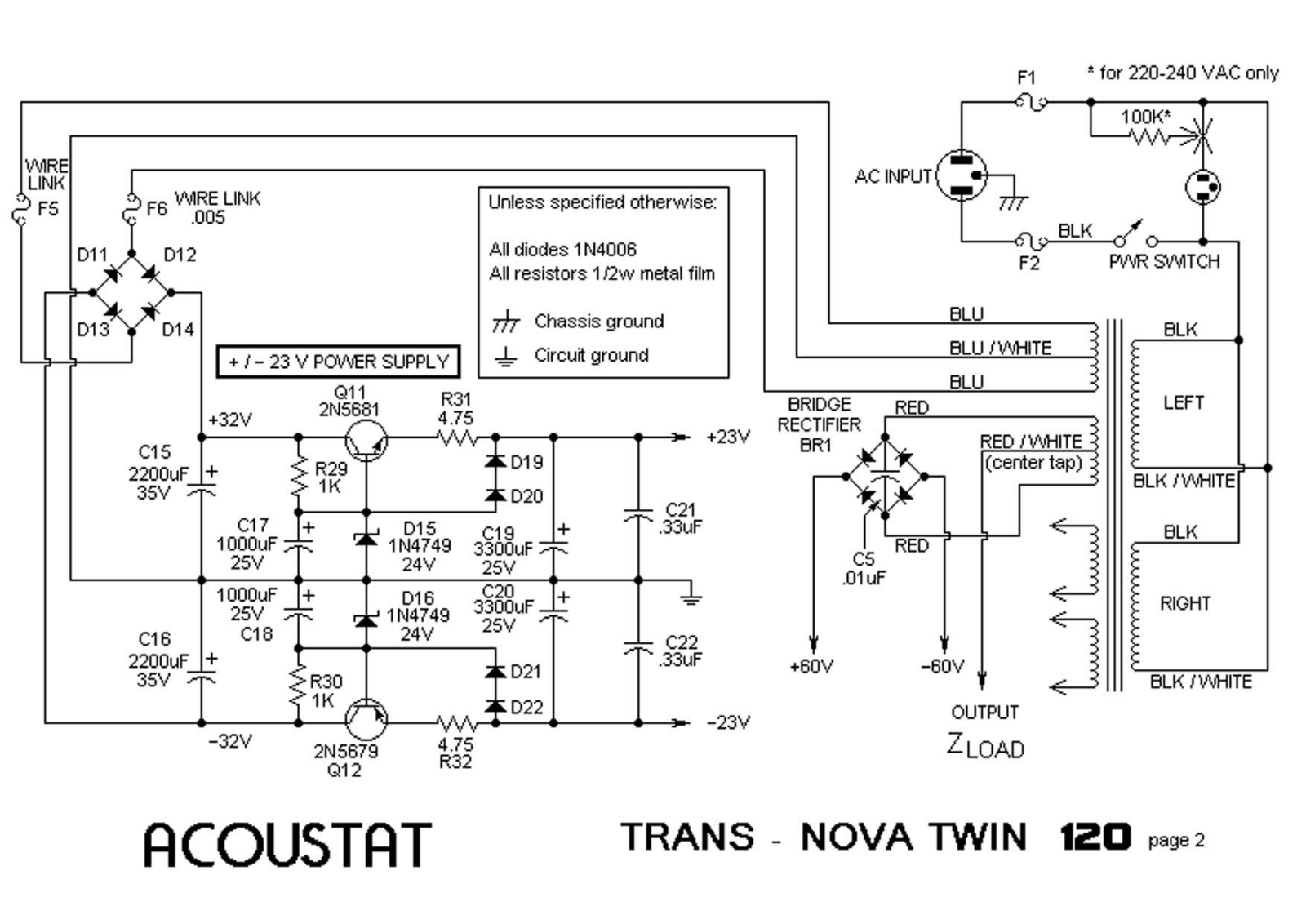

Page 2
