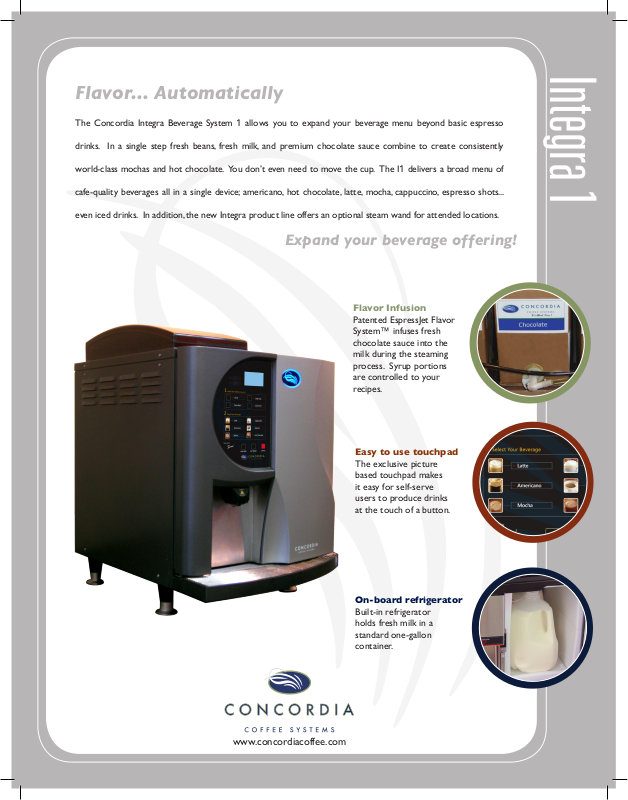

Flavor... Automatically
The Concordia Integra Beverage System 1 allows you to expand your beverage menu beyond basic espresso
drinks. In a single step fresh beans, fresh milk, and premium chocolate sauce combine to create consistently
world-class mochas and hot chocolate. You don’t even need to move the cup. The I1 delivers a broad menu of
cafe-quality beverages all in a single device; americano, hot chocolate, latte, mocha, cappuccino, espresso shots...
even iced drinks. In addition, the new Integra product line offers an optional steam wand for attended locations.
Expand your beverage offering!
Flavor Infusion
Patented EspressJet Flavor
System™ infuses fresh
chocolate sauce into the
milk during the steaming
process. Syrup portions
are controlled to your
recipes.
Integra 1
Easy to use touchpad
The exclusive picture
based touchpad makes
it easy for self-serve
users to produce drinks
at the touch of a button.
On-board refrigerator
Built-in refrigerator
holds fresh milk in a
standard one-gallon
container.
www.concordiacoffee.com
Page 2
More beverage options...
less equipment.
9.75”
[
]
18”
[ ]
45.72
24.77
[
27.7”
70.48
3.11”
[
24.64”
[
62.57
7.91
]
]
]
front view
Integra 1
The Concordia I1 offers a full café menu in one compact system. The I1 replaces multiple machines
saving both space and cost. Menu options include americano, espresso shots, latté, cappuccino, mocha,
hot chocolate & hot water for teas. The I1 even makes sensational iced drinks. You simply ll a cup with
ice, press the cold drink button, select your drink - and the I1 does the rest. The EspressJet™ Flavor
System steams premium chocolate sauce directly into the milk in Concordia’s proprietary, and patented
process. The avor is “infused” into the beverage and won’t settle to the bottom of the cup. The I1 also
features two grinders so you can expand your beverage offering. As with all Concordia systems the I1
is tested and certied by NSF.
With the Concordia Integra 1 it’s no longer about espresso machines
It is about saving time, space, and money while satisfying customer drink preference
Self Serve-Simple to Use, The Most Reliable Espresso Systems in the World
Fresh beans, fresh milk, fresh chocolate sauce; everything needed to make outstanding beverages is built
right into the I1. Your customers just choose their drink and press a button. The I1 does the rest, in one
simple step, with no training required. The simple cleaning process takes only about 10 minutes a day, and
the entire Integra product line is designed for simplicity and reliability.
27.7”
[
]
70.48
16”
[40.64]
left side view
SPECIFICATIONS:
Dimensions: 18in (w) x 25in (d) x 27.7in (h)
45.72cm (w) x 63.5cm (d) x 70.48cm (h)
Weight: 200lb net/91kg net
Electric: 200-240VAC, 30Amp dedicated circuit
Water: Min 30psi, Max 100psi, 25 gallons per hour ow
Drain: 3/4in indirect drain
25”
[63.5]
Quality Beverages
Since you are in charge of portion control, your beverage menu can now taste the same in San Francisco
as it does in Boston. The computer controlled grinding and extraction process is programmed to your
specications, insuring that every beverage is created the same each time the button is pressed. The
temperature and consistency of the milk is also computer controlled, and set to the type of beverage
selected. Fresh chocolate sauce portions are programmed to your specications and precisely measured
for each beverage combination. Espresso, steamed milk, and avors are poured simultaneously, at just
the right time, so perfect cappuccinos, lattés, and mochas are made without moving the cup. The new
Integra series also offers a steam wand option for preparation of soy, egg nog, or other specialty drinks.
Protability
Put it all together...a single beverage solution, simple to use, no complex
training, consistent café quality beverages, no wasted milk or syrup, portion
control, reliability, and productivity. It all adds up to happy customers and
increased prots for your business.
www.concordiacoffee.com
1287 120th Ave. N.E. Bellevue, WA 98005 USA tel: 800.995.9019 fax: 425.453.2167 email: [email protected]
