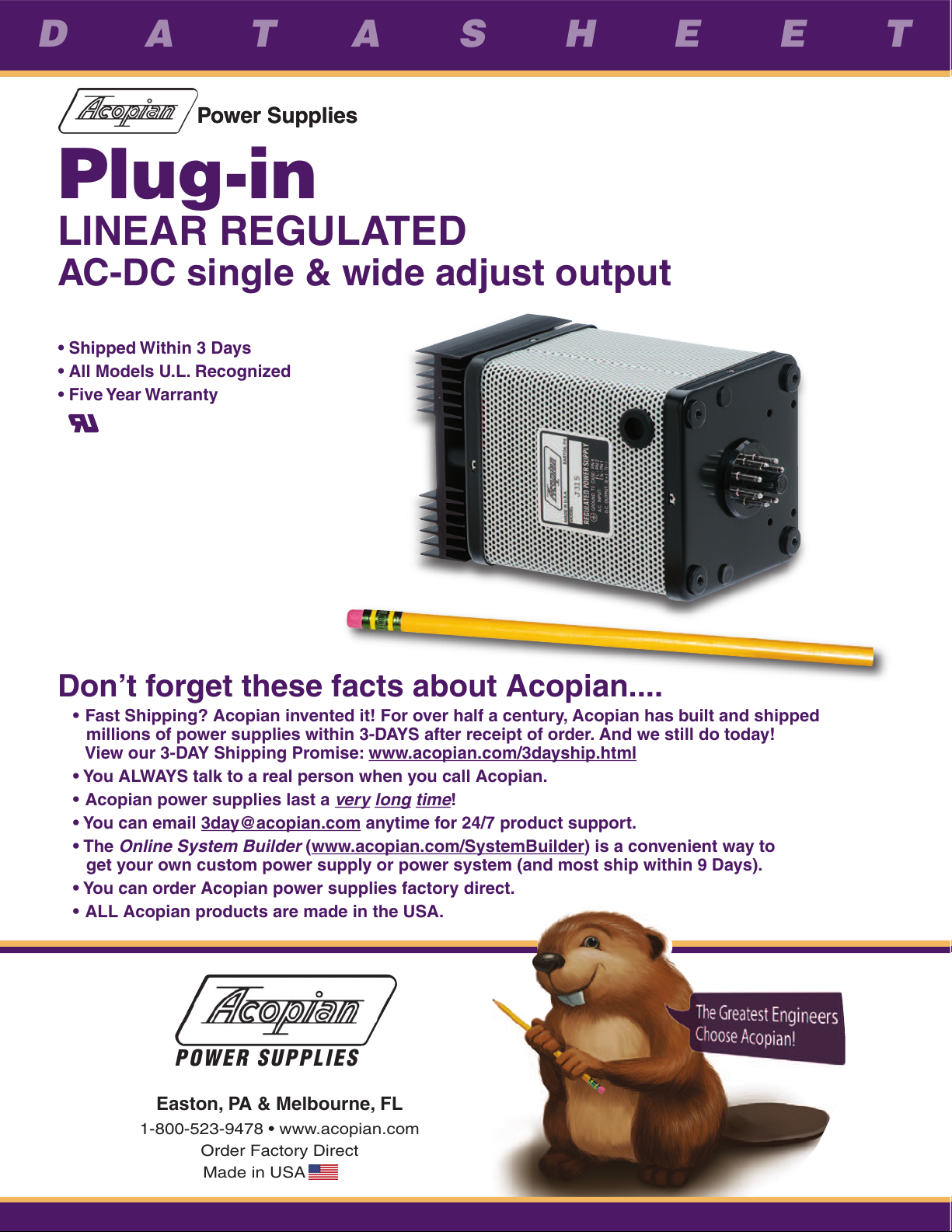

Page 1
Plug-in
LINEAR REGULATED
AC-DC single & wide adjust output
• Shipped Within 3 Days
• All Models U.L. Recognized
• Five Year Warranty
Power Supplies
DATASHEET
Easton, PA & Melbourne, FL
1-800-523-9478 • www.acopian.com
Order Factory Direct
Made in USA
Power Supplies
POWER SUPPLIES
Don’t forget these facts about Acopian....
• Fast Shipping? Acopian invented it! For over half a century, Acopian has built and shipped
millions of power supplies within 3-DAYS after receipt of order. And we still do today!
View our 3-DAY Shipping Promise: www.acopian.com/3dayship.html
• You ALWAYS talk to a real person when you call Acopian.
• Acopian power supplies last a
very long time
!
• The
Online System Builder
(www.acopian.com/SystemBuilder) is a convenient way to
get your own custom power supply or power system (and most ship within 9 Days).
• You can order Acopian power supplies factory direct.
• ALL Acopian products are made in the USA.
Page 2
F43
Online Ordering and Instant Quotes for ALL Acopian power supplies at www.acopian.com
131 Loomis Street, Easton, PA 18045 • Phone: (610) 258-5441 • FAX: (610) 258-2842
LINEAR REGULATED AC
–
DC
Case Approx.
Size L W H*M V J Q Weight
AS 3.40 3.28 4.67 2.625 2.625 1.00 .66 2 lb. 8 oz.
BS 3.40 3.28 5.33 2.625 2.625 1.00 .66 2 lb. 14 oz.
TS 3.33 4.15 4.85 2.562 2.750 1.12 .62 3 lb. 6 oz.
US 3.33 4.15 5.53 2.562 2.750 1.12 .62 3 lb. 8 oz.
WS 3.40 5.02 5.53 2.562 3.562 1.12 .62 4 lb. 14 oz.
HS 3.40 5.02 6.65 2.562 3.562 1.12 .62 5 lb
.
Plug-in
SINGLE OUTPUT &
WIDE ADJUST OUTPUT
LINEAR REGULATED
AC-DC
• Shipped Within 3 Days
• All Models U.L. Recognized
• Five Year Warranty
An Acopian Plug-in power module can be installed in a matter
of seconds. Simply plug it into a standard octal socket. (Threaded
mounting holes are provided in the base for fastening the module
when used in other than the upright position, or if subject to
extreme vibration.) To replace a module - for example, where
added circuitry calls for a higher current rating - just unplug the
old, plug in the new. And as a result of years of product
refinement, your Acopian Plug-in provides the highest reliability
of any available series-regulated power supply.
STANDARD FEATURES
• May be used in series
• Delivers current surges without damage - to protect
against prolonged overload and shorts, use of an
input fuse is recommended
• No derating or additional heat sinking required
• Completely serviceable
• Lightweight
SPECIFICATIONS
Input Voltage: 105-125 VAC, 50-400 Hz, single phase.
Output Specifications: See table.
Polarity: Output floating; either positive or negative
terminal may be grounded or floated up to 300 volts above
ground.
Temperature Coefficient: 0.02%/°C (Typical).
Ambient Operating Temperature: –10 to +65°C.
No derating required.
MIL Tested and Extended Temperature Range:
See page F48.
Storage Temperature: –55 to +85°C.
Installation: Plugs into standard 8-pin octal socket (see
page H4). Four mounting holes (6-32) are provided in the
base for fastening the module when used in other than
the upright position, or if extreme vibration will be
encountered.
PIN CONNECTIONS:
Standard model.
OPTIONS
Solder Terminals: All models can be furnished with solder
terminals instead of the octal type plug. Contact factory or
see web site for detailed information.
*
H dimension includes HEATSINK on BS, US, WS, and HS case sizes.
Remote Output Adjustment: Al l m od el s have a l oc al voltage
adjustment. When provision for remote (external) adjustment
is also desired, add prefix “E” to model number. Example:
Model 12J100 becomes Model E12J100.
Remote Sensing: Provision for remote sensing of the output
voltage to compensate for drops in the load lines can be
furnished. Add prefix “R” to model number when ordering. “R”
power supplies have a local voltage adjustment and provision
for remote (external) output adjustment.
230 Volt Input: All models can be alternately furnished for
operation on inputs of 210 to 250 VAC, 50-400 Hz. Add suffix
“–230” to model number. The “–230” option requires two
additional days.
Overvoltage Protection: An internal preset overvoltage
protector is available. To order, add prefix “V” to the model
number.
All dimensions in inches.
211108
Page 3
F44
Online Ordering and Instant Quotes for ALL Acopian power supplies at www.acopian.com
131 Loomis Street, Easton, PA 18045 • Phone: (610) 258-5441 • FAX: (610) 258-2842
LINEAR REGULATED AC
–
DC
Output Output
Regulation
Ripple
Voltage Current
Load Line
mV
Case
Range Amps.
± % ± %
RMS Model Size
2 to 30 .300 .5 .05 1 J230 AS
3 to 15 .400 .5 .05 1 J315 BS
4 to 10 1.5 .5 .05 1 J410 US
5 to 15 2.0 .5 .1 5 J515 HS
5 to 25 .100 .1 .05 1 J525 AS
6 to 30 .200 .1 .05 1 J630 AS
10 to 18 .600 .3 .05 1 J1018 BS
10 to 40 .200 .1 .05 1 J1040 AS
15 to 25 .500 .1 .05 1 J1525 BS
15 to 30 .300 .1 .05 1 J1530 BS
16 to 24 .750 .15 .05 1 J1624 BS
18 to 30 .400 .1 .05 1 J1830 BS
20 to 28 .500 .1 .05 1 J2028 BS
23 to 32 1.0 .15 .05 1 J2332 US
24 to 32 .500 .1 .05 1 J2432 BS
24 to 40 .400 .1 .05 1 J2440 BS
24 to 50 .250 .1 .05 1 J2450 AS
28 to 60 .250 .1 .05 1 J2860 BS
30 to 70 .300 .1 .05 1 J3070 BS
WIDE ADJUST OUTPUT
Shown below is a partial listing of models with increased voltage
adjustment ranges. Contact the factory for information on other models.
SINGLE OUTPUT
Nominal Adjust Output
Regulation
Ripple
Output Range Current
Load Line
mV Case
Voltage ± V Amps.
± % ± %
RMS Model Size
1 .25 .100 .25 .05 0.5 1J10 AS
1.5 .5 .750 .7 .05 1 1.5J75 AS
2.5 .5 .750 .7 .05 1 2.5J75 AS
3.3 .5 .750 .7 .05 1 3.3J75 AS
3.3 .5 1.0 .5 .05 1 3.3J100 AS
3.3 .5 1.5 .5 .05 1 3.3J150 US
3.3 .5 2.0 .5 .05 1 3.3J200 WS
3.3 .5 3.0 .5 .05 1 3.3J300 WS
3.3 .5 4.0 .5 .05 1 3.3J400 HS
4 1 .750 .4 .05 1 4J75 AS
4 .5 1.0 .5 .05 1 4J100 AS
5 1 .750 .4 .05 1 5J75 AS
5 .5 1.0 .5 .05 1 5J100 AS
5 .5 1.5 .4 .05 1 5J150 US
5 .5 2.0 .5 .05 1 5J200 WS
5 .5 3.0 .5 .05 1 5J300 WS
5 .5 4.0 .5 .05 1 5J400 HS
5 .5 5.0 .7 .05 1 5J500 HS
6 1 .400 .15 .05 1 6J40 AS
6 1 .750 .3 .05 1 6J75 AS
6 1 1.0 .3 .05 1 6J100 AS
6 .5 2.0 .3 .05 1 6J200 WS
6 .5 3.0 .5 .05 1 6J300 WS
6 .5 4.0 .5 .05 1 6J400 HS
6 .5 5.0 .7 .05 1 6J500 HS
8 1 .750 .2 .05 1 8J75 AS
8 1 1.0 .2 .05 1 8J100 AS
9 1 .750 .15 .05 1 9J75 AS
9 1 1.0 .2 .05 1 9J100 AS
9 1 1.5 .3 .05 1 9J150 US
9 .5 2.0 .2 .05 1 9J200 WS
10 1 .750 .15 .05 1 10J75 AS
10 1 1.0 .2 .05 1 10J100 AS
10 1 1.5 .25 .05 1 10J150 US
10 .5 2.0 .15 .05 1 10J200 WS
10 .5 3.0 .25 .05 1 10J300 HS
12 1 .750 .15 .05 1 12J75 AS
12 1 1.0 .1 .05 1 12J100 AS
12 1 1.5 .2 .05 1 12J150 US
12 .5 2.0 .1 .05 1 12J200 WS
12 .5 3.0 .25 .05 1 12J300 HS
15 1 .400 .1 .05 1 15J40 AS
15 1 .750 .15 .05 1 15J75 AS
15 1 1.0 .15 .05 1 15J100 AS
15 1 1.5 .2 .05 1 15J150 US
15 .5 2.0 .1 .05 1 15J200 WS
15 .5 3.0 .25 .05 1 15J300 HS
16 1 .400 .1 .05 1 16J40 AS
16 1 .750 .15 .05 1 16J75 AS
16 1 1.0 .15 .05 1 16J100 AS
18 1 .400 .1 .05 1 18J40 AS
18 1 .750 .15 .05 1 18J75 AS
18 1 1.0 .15 .05 1 18J100 US
18 .5 2.0 .1 .05 1 18J200 WS
20 1 .400 .1 .05 1 20J40 AS
20 1 .750 .15 .05 1 20J75 AS
20 1 1.5 .2 .05 1 20J150 WS
20 .5 2.0 .1 .05 1 20J200 WS
22 1 .400 .1 .05 1 22J40 AS
22 1 .750 .15 .05 1 22J75 AS
22 1 1.0 .15 .05 1 22J100 US
22 1 1.5 .2 .05 1 22J150 WS
22 .5 2.0 .1 .05 1 22J200 WS
24 1 .400 .05 .05 1 24J40 AS
24 1 .750 .1 .05 1 24J75 AS
24 1 1.0 .1 .05 1 24J100 US
24 1 1.5 .15 .05 1 24J150 WS
24 .5 2.0 .1 .05 1 24J200 WS
25 1 .400 .05 .05 1 25J40 AS
25 1 .750 .1 .05 1 25J75 AS
25 1 1.0 .1 .05 1 25J100 US
25 1 1.5 .15 .05 1 25J150 WS
25 .5 2.0 .1 .05 1 25J200 WS
28 1 .400 .05 .05 1 28J40 AS
28 1 .500 .05 .05 1 28J50 AS
28 1 .750 .1 .05 1 28J75 TS
28 1 1.0 .1 .05 1 28J100 US
28 1 1.5 .15 .05 1 28J150 WS
28 .5 2.0 .1 .05 1 28J200 WS
30 1 .400 .05 .05 1 30J40 AS
30 1 .500 .05 .05 1 30J50 AS
30 1 .750 .1 .05 1 30J75 TS
30 1 1.0 .1 .05 1 30J100 US
30 1 1.5 .15 .05 1 30J150 WS
30 .5 2.0 .1 .05 1 30J200 WS
Nominal
Adjust
Output
Regulation
Ripple
Output
Range
Current
Load
Line
mV
Case
Voltage
± V
Amps.
± %
± %
RMS
Model
Size
32
1
.300
.05
.05
1
32J30
AS
32
1
.500
.05
.05
1
32J50
AS
32
1
.600
.1
.05
1
32J60
TS
32
1
1.0
.1
.05
1
32J100
US
32
1
1.5
.1
.05
1
32J150
WS
34
1
.500
.05
.05
1
34J50
AS
35
1
.500
.05
.05
1
35J50
AS
36
1
.300
.05
.05
1
36J30
AS
36
1
.500
.05
.05
1
36J50
AS
36
1
.600
.1
.05
1
36J60
TS
36
1
.800
.1
.05
1
36J80
TS
36
1
1.0
.2
.05
1
36J100
US
36
1
1.5
.1
.05
1
36J150
WS
38
1
.500
.05
.05
1
38J50
AS
38
1
1.0
.2
.05
1
38J100
US
40
1
.300
.05
.05
1
40J30
AS
40
1
.400
.1
.05
1
40J40
AS
40
1
.600
.1
.05
1
40J60
TS
40
1
1.0
.2
.05
1
40J100
US
42
1
.400
.1
.05
1
42J40
AS
42
1
.600
.15
.05
1
42J60
TS
45
1
.400
.1
.05
1
45J40
AS
45
1
.600
.15
.05
1
45J60
TS
48
1
.300
.05
.05
1
48J30
AS
48
1
.400
.1
.05
1
48J40
AS
48
1
.600
.15
.05
1
48J60
TS
50
1
.300
.05
.05
1
50J30
AS
50
1
.500
.1
.05
1
50J50
TS
55
1
.200
.05
.05
1
55J20
AS
60
1
.200
.05
.05
1
60J20
AS
60
1
.300
.05
.05
1
60J30
AS
60
1
.400
.05
.05
1
60J40
TS
65
1
.100
.05
.05
1
65J10
AS
65
1
.300
.05
.05
1
65J30
AS
70
1
.200
.05
.05
1
70J20
AS
70
1
.300
.05
.05
1
70J30
AS
75
1
.200
.05
.05
1
75J20
AS
80
1
.200
.05
.05
1
80J20
AS
90
1
.100
.05
.05
1
90J10
AS
90
1
.200
.05
.05
1
90J20
AS
95
1
.100
.05
.05
1
95J10
AS
95
1
.200
.05
.05
1
95J20
AS
100
1
.100
.05
.05
1
100J10
AS
100
1
.200
.05
.05
1
100J20
AS
105
1
.100
.05
.05
1
105J10
AS
105
1
.200
.05
.05
1
105J20
AS
110
1
.100
.05
.05
1
110J10
AS
110
1
.200
.05
.05
1
110J20
AS
120
1
.100
.05
.05
1
120J10
AS
120
1
.200
.05
.05
1
120J20
AS
125
1
.100
.05
.05
1
125J10
AS
125
1
.200
.05
.05
1
125J20
AS
130
1
.100
.05
.05
1
130J10
AS
130
1
.200
.05
.05
1
130J20
AS
140
1
.200
.05
.05
1
140J20
AS
150
1
.050
.05
.05
1
150J05
AS
150
1
.200
.05
.05
1
150J20
AS
200
1
.100
.05
.05
1
200J10
AS
211108
Page 4
F48
Online Ordering and Instant Quotes for ALL Acopian power supplies at www.acopian.com
131 Loomis Street, Easton, PA 18045 • Phone: (610) 258-5441 • FAX: (610) 258-2842
LINEAR REGULATED AC
–
DC
MIL-option equivalents to all the models included on
pages F39 through F42, except those housed in case
size HS, have been tested to these specifications:
ALTITUDE: MIL-STD-810B, Method 500, Procedure II.
VIBRATION: MIL-STD-810B, Method 514, Procedure I,
Curve D.
SHOCK: MIL-STD-810B, Method 516, Procedure I.
FUNGUS: (additional $25.00/output charge applies.)
MIL-STD-810B, Method 508, Procedure I.
CONDUCTED EMI: MIL-I-6181D, Paragraph 4.3.1.,
Figure II.
RADIATED EMI: MIL-I-6181D, Paragraph 4.3.2.
SUSCEPTIBILITY TO CONDUCTED AND RADIATED
EMI: MIL-I-6181D, Paragraph 4.3.4.
HIGH TEMPERATURE: MIL-STD-810B, Method 501,
Procedure I.
LOW TEMPERATURE: MIL-E-5272C, Paragraph 4.2.2,
Procedure II.
HUMIDITY: MIL-STD-810B, Method 507, Procedure I.
SALT FOG: MIL-STD-810B, Method 509, Procedure I.
SHIPPED WITHIN 3 DAYS
ALL MODELS U.L. RECOGNIZED
Ruggedized construction and capability for operation
through an extended ambient temperature range of –20
to +71°C (without derating) are provided by Acopian
MIL-option supplies. In all other respects they are
identical to our standard Plug-in power supplies.
HOW TO ORDER:
Add prefix “MIL-” to standard model number.
Example: Model 6J200 becomes MIL-6J200.
MIL TESTED and EXTENDED TEMP RANGE
(for Plug-in models on pages F43-F47)
Plug-in Power Supplies
211108
Page 5
H4
OTHER PRODUCTS & INFO
MOUNTING KITS & SOCKETS
Online Ordering and Instant Quotes for ALL Acopian power supplies at www.acopian.com
131 Loomis Street, Easton, PA 18045 • Phone: (610) 258-5441 • FAX: (610) 258-2842
Mounting Kits for ‘Mini Encapsulated - with screw terminals’ power supplies:
Sockets for ‘Mini Encapsulated - PC Board mounting’ power supplies:
For use with PC board mounting Mini Linears and PC board mounting DC-DC Converters.
Each of these sockets has a sturdy phenolic base with gold plated teflon-insulated contacts.
For case sizes ES-10 and ESC-10
For case sizes EL-10, EL-13, EL-20 and ELC-10
For case sizes ELW-13 and ELW-20
Mounting Kit EB35DIN consists of an
aluminum plate, with two DIN clips
attached to it, and four screws for
attaching the plate to the bottom of
any Mini Encapsulated power supply
with screw terminals or any Mini
DC-DC Converter with screw
terminals. The power supply can then
be snapped onto a 35mm ‘top hat’
type of DIN rail.
Mini En c a p sulated
Pow er Su p p ly
WALL MOUNTING
DIN RAIL MOUNTING
Use Mounting Kit EB4A to mount from
the power supply side of the mounting
surface, necessary when the other
side of the mounting surface is
inaccessible. This kit consists of an
aluminum plate and four screws for
attaching it to the power supply,
effectively adding mounting flanges to
any Mini Encapsulated power supply
with screw terminals or any Mini
DC-DC Converter with screw
terminals.
Model EB4A
Model ES-1
Sockets for ‘Plug-In’ power supplies:
RETMA-numbered screw-type terminals simplify wiring and permit the use of wire terminals or
bare wire, 12 to 20 guage. Rated at 300 volts RMS, 10 amp.
For 8-pin plugs.
Model SL608
Model EL-1 Model ELW-1
Model EB35DIN
211108
For 11-pin plugs.
Model SL611
All dimensions in inches.
All dimensions in inches.
Page 6
H8
OTHER PRODUCTS & INFO
ORDERING INFO / TERMS & CONDITIONS
Online Ordering and Instant Quotes for ALL Acopian power supplies at www.acopian.com
131 Loomis Street, Easton, PA 18045 • Phone: (610) 258-5441 • FAX: (610) 258-2842
ACOP IAN SELLS FACTORY DIR ECT WOR LDW ID E: We do not use representatives or distributors. Contact Acopian for technical information or a quote.
WAR RA NTY: Ac op ian pow er s upp li es are war ra nte d t o be fr ee fr om defe cts in mate ri al and wor kman ship for a peri od o f f ive yea rs (e nca ps ulated devices, for
one year) from date of original shipment. Acopian’s obligation under this warranty is limited to repairing any power supply returned to the factory Service
Department in Easton, PA or Melbourne, FL, and replacing any defective parts. Mini Encapsulated power supplies are not repairable. Authorization must be
obtained from Acopian before a power supply may be returned for repair. Units must be well packed when shipping to Acopian; the repair of any damage incurred
during shipment will be charged. Transportation charges are to be paid by the purchaser. A reinspection and handling charge will be applied to returned units
found to have no defects. If a failure has been caused by misuse, operation in excess of specifications, or modification by the customer, repairs will be billed
at cost; in such cases, a cost estimate will be submitted before work is started.
Acopian reserves the right to make changes or improvements in its products without incurring any obligation to install the same on products previously
manufactured.
This warranty is in lieu of all other warranties, obligations, and liabilities, expressed or implied, and is the purchaser’s exclusive remedy. Acopian makes
no warranty, either express or implied, of merchantability, fitness for a particular purpose or otherwise. In no event shall Acopian be liable whether in contract,
tort, or negligence, for special, indirect, incidental or consequential damages of any kind, including loss of business or profits, or any other losses incurred by
the purchaser or any third party, the Customer’s remedies being limited, at Acopian’s option, to replacement, repair or credit at the price on the date of claim.
The validity, performance and construction of all terms and conditions and any sale made by Acopian shall be determined by the law of Pennsylvania,
without regard to its conflict of law principles, and all parties to the transaction expressly consent to the jurisdiction of such courts and consent to the venue of
the Court of Common Pleas for Northampton County, Pennsylvania.
PRICES: The prices shown are F.O.B. our factory; Easton, PA or Melbourne, FL. (‘EXW Factory’ if outside the 50 United States.) All prices and specifications
are subject to change without notice.
TERMS: Net 30 days, subject to credit approval. Visa, MasterCard and American Express also accepted.
SHIPPING: Location permitting, small shipments are made by United Parcel Service, FedEx, DHL (international orders) or by Parcel Post; larger shipments,
by insured motor freight collect. Shipments can be made by air upon request. Risk of loss shall be F.O.B. Our Factory, even in cases where freight may be
prepaid or allowed to destination by Acopian. If equipment is received in damaged condition, it is the customer’s responsibility to contact the carrier and file a
claim for damages.
TIME FOR DELIVERY: The time for delivery quoted by Acopian is the time required to ship from our plants. We will not be liable for delays in delivery caused
by any reason beyond our control, including but not limited to acts of God, casualty, civil disturbance, labor disputes, transportation or supply difficulties, or any
interruption of our facilities, and the quoted time for delivery shall be extended during the continuance of such conditions and for a reasonable time thereafter.
In no event will Acopian be liable for any premium transportation, reprocurement, or similar costs incurred by the Customer as a result of conditions beyond
Acopian’s control resulting in Acopian’s inability to deliver product in accordance with customer’s requested delivery schedules.
QUANTITY DISCOUNTS: Discounts are a vailable to quantity buyers and are d ependent upon t he order quanti ty and the manufacturing scheduling anticipated
by the order, and apply only to the quantity and delivery ordered. Partial shipments are considered as separate orders for discounting purposes.
EXPORT ORDERS: A minimum export documentation charge of $60.00 applies. (A minimum charge of $25.00 applies on orders to certain U.S. territories
requiring customs forms.)
MOISTURE/FUNGUS PROOFING: Power supplies can be furnished with a moisture and fungus resistant varnish applied to interior surfaces. To order, add
the suffix letter F to the model number. This option requires two additional days and is not available on High Voltage, Mini Encapsulated, Rack Mounting, and
Gold Box Switching models.
TAG GI NG : Ad d $1 0.00 to price.
TEST DATA: Cost, $35.00 or 2% of order, whichever is greater.
SPECIAL MODELS/MODIFICATIONS: Cataloged models can be altered at the factory to meet special requirements. Contact the Applications Engineering
Department to discuss your needs.
PA RT S: The de si gn s used in Acopian po we r supplies utilize standard c om po nents t o the grea test pr actical e xt en t. When replacements are required, the types
originally used, or their equivalents, can usually be obtained most quickly from a local electronic components distributor.
Special components, such as transformers, are stocked at the factory warehouses. Contact the Applications Engineering Department for information on
the parts required, referencing the model number of the power supply, the circuit designation of the component, and a description.
PURCHASE ORDER ACCEPTANCE: Orders are accepted subject to Acopian’s Terms and Conditions. Any Terms and Conditions of any Purchaser’s order,
agreement, or understanding which are in addition to or inconsistent with Acopian’s shall not be binding upon Acopian unless made in writing and accepted
over the signature of an authorized officer of Acopian. Orders shall not be considered accepted until entered into production at our plant. Acopian reserves the
right to refuse any order. All typographical and clerical errors are subject to correction by Acopian.
RETURNED GOODS: Ac opia n p rod ucts ar e b uilt on a per -or der bas is, and or din aril y n o c redi t c an be ext ende d f or t hei r r etu rn. No goo ds w ill be accepted for
return unless authorized in writing by Acopian.
CHANGES: The customer may, by a written notice, request changes within the general scope of the order, in the drawings, designs or specifications; method
of shipment; and place of delivery. If any such change causes an increase or decrease in the cost, or the time required for the processing of any part of the
order, an equitable adjustment shall be made in the price or delivery schedule, or both, and the order shall be modified in writing accordingly.
CANCELLATION: Suspension or cancellation of orders may be made only upon our written approval and on terms that will indemnify us against all loss.
OVERTI ME : It is anticipated that any order will be processed during regular working hours on regular working days. If for any reason the Purchaser requests
Acopian to process the order, or any portion of it, outside of such regular working hours, any overtime or other additional expense occasioned thereby shall be
billed to and paid by the Purchaser as an extra cost. Acopian reserves the right to decline to process the order outside regular working hours.
CUSTOMER DELAY OF WORK: If the pe rformance of all or any part of the work is delayed or interrupted by Customer’s failure to act within the time specified
(or within a reasonable time if no time is specified) and such act is not expressed or implied by the order, an adjustment shall be made in the cost of performance
of the order caused by such delay or interruption and the order modified in writing accordingly. Adjustment will also be made in the delivery or performance
dates and any other contractual provisions affected by such delay or interruption.
GOVERNMENT SPECIFICATIONS: Pricing is based upon industrial-grade construction, marking, packing, and packaging. Exception is taken to any MIL
specifications, and to any requirements for the use of special forms, documentation other than quoted, and Government Source Inspection. Acopian must decline
to quote on any other basis.
APPLICATIONS ASSISTANCE:
Questions regarding the specifications, features, and use of any Acopian product should be directed to the
Applications Engineering Department. A staff of power supply specialists will be pleased to assist you.
ACOP IAN IS AN ISO 9001 CERTI FIED COMPANY
211108
Loading...
