ACOEM VMT1002000 User Manual

ORION Smart Vibration Monitoring Terminal

INSTALLATION & SAFETY INSTRUCTIONS

www.acoemgroup.com

support@acoemgroup.com

This document is the property of 01dB-Metravib SAS. Any dissemination, copying or publicising of this

document, in whole or in part, is prohibited without the owner’s written authorisation

Brand of ACOEM

ORION Smart Vibration Monitoring Terminal

INSTALLATION & SAFETY INSTRUCTIONS

Document reference : NOT1561 February 2017 B Name : ORION Installation & Safety instructions

www.acoemgroup.com

support@acoemgroup.com

This document is the property of 01dB-Metravib SAS. Any dissemination, copying or publicising of this

document, in whole or in part, is prohibited without the owner’s written authorisation

Brand of ACOEM

TABLE OF CONTENTS

1. Safety Instructions ................................................................................... 7

1.1. General Safety Warnings ................................................................. 7

1.2. Definitions : Safety Guidelines ......................................................... 7

1.3. Safety Labels and markings ............................................................. 7

1.3.1. ID label on the back plate of the instrument ............................. 7

1.3.2. Markings next to the connectors ............................................... 8

1.3.3. Markings on the keyboard ......................................................... 9

1.3.4. Marking for Earth connection .................................................... 9

1.4. Operating environment ................................................................... 10

1.4.1. Instrument ............................................................................... 10

1.4.2. Power supplies ........................................................................ 10

1.5. Mechanical risk and work area safety ............................................ 11

1.6. Electrical safety .............................................................................. 12

1.6.1. Generalities ............................................................................. 12

1.6.2. External Power supplies ......................................................... 12

General information ............................................................. 12 1.6.2.1.

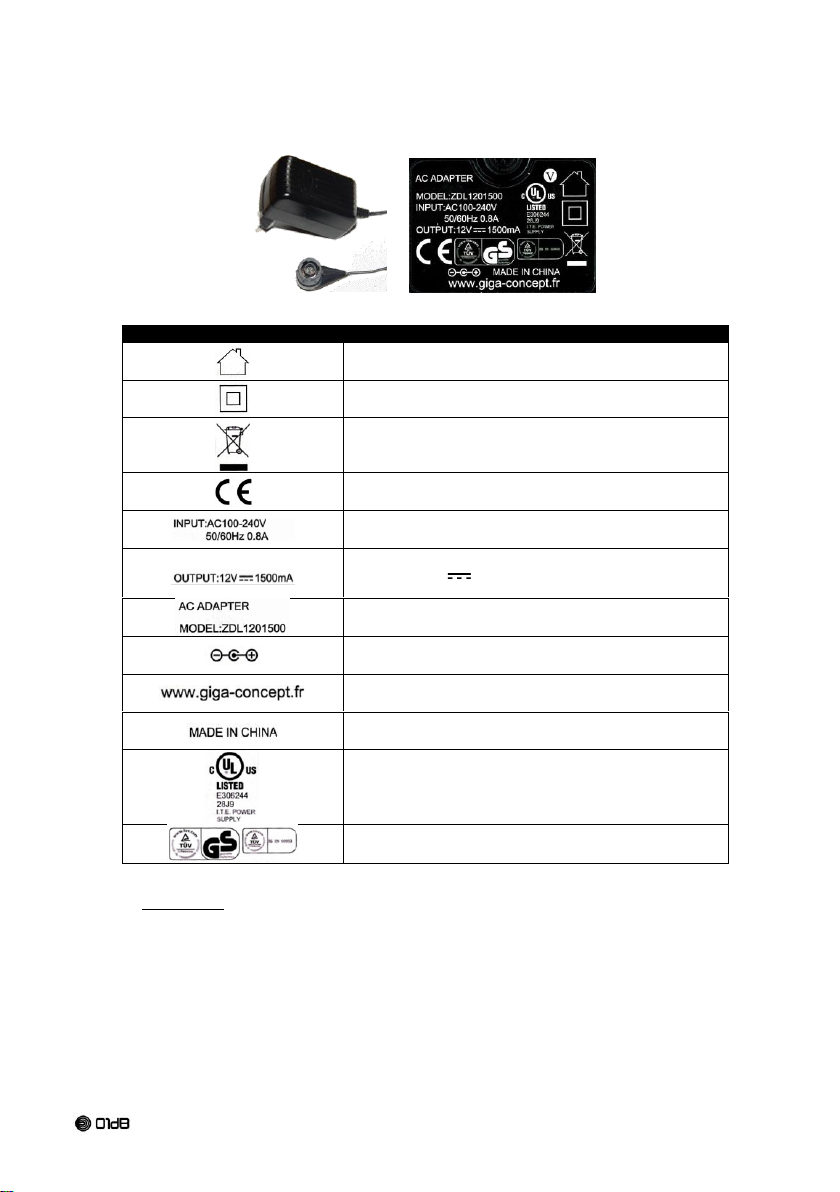

Standard power supply VMT1004000 ................................. 13 1.6.2.2.

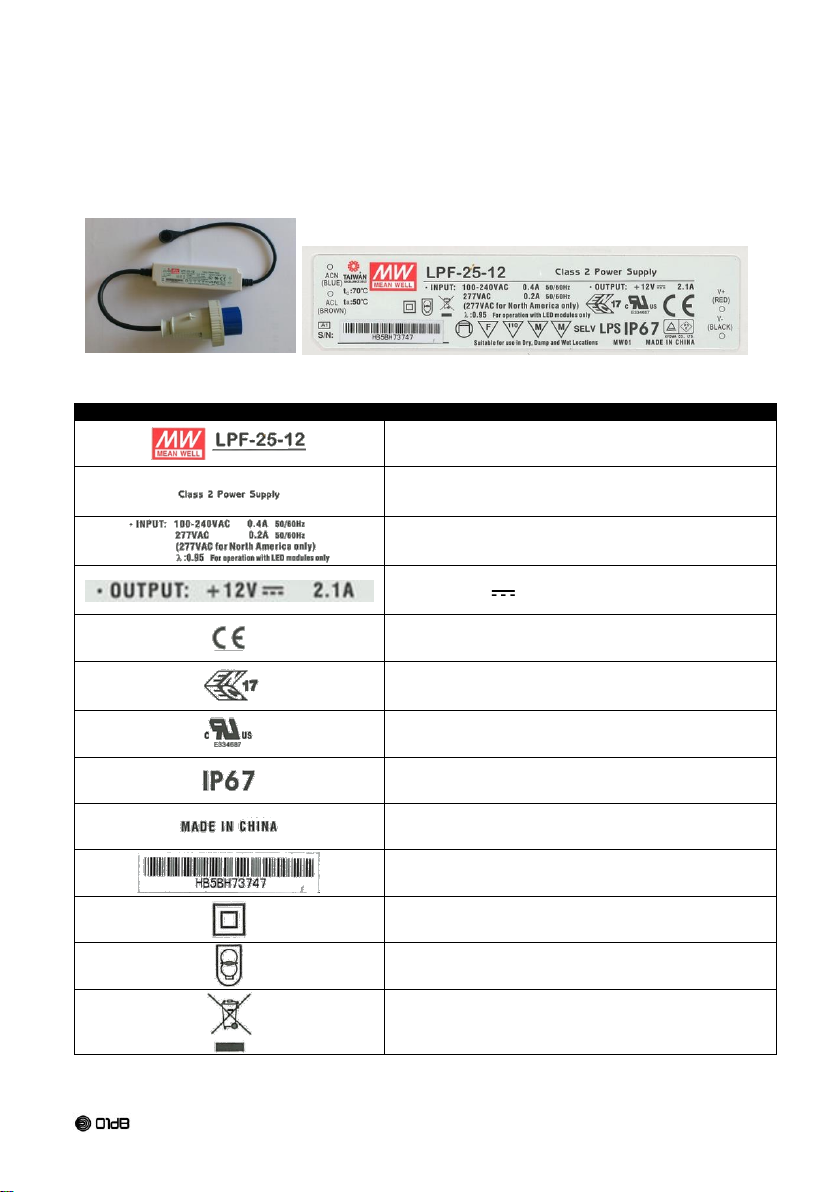

Waterproof power supply VMT1007000 .............................. 14 1.6.2.3.

Existing Power Over Ethernet supply .................................. 16 1.6.2.4.

1.6.3. Inputs and Outputs .................................................................. 16

1.7. Personal safety ............................................................................... 17

1.8. Use and care .................................................................................. 17

1.9. Cleaning ......................................................................................... 17

1.10. Radio .......................................................................................... 18

1.10.1. General information ............................................................. 18

1.10.2. WIFI ..................................................................................... 19

1.10.3. GSM .................................................................................... 19

1.10.4. GPS ..................................................................................... 19

........................................................................................................... 20

1.11. Access hatch .............................................................................. 20

1.12. vent valve .................................................................................... 20

1.13. Service ........................................................................................ 20

1.14. Recycling and Waste disposal .................................................... 20

1.14.1. General information ............................................................. 20

Brand of ACOEM

1.14.2. Charge/Discharge................................................................ 21

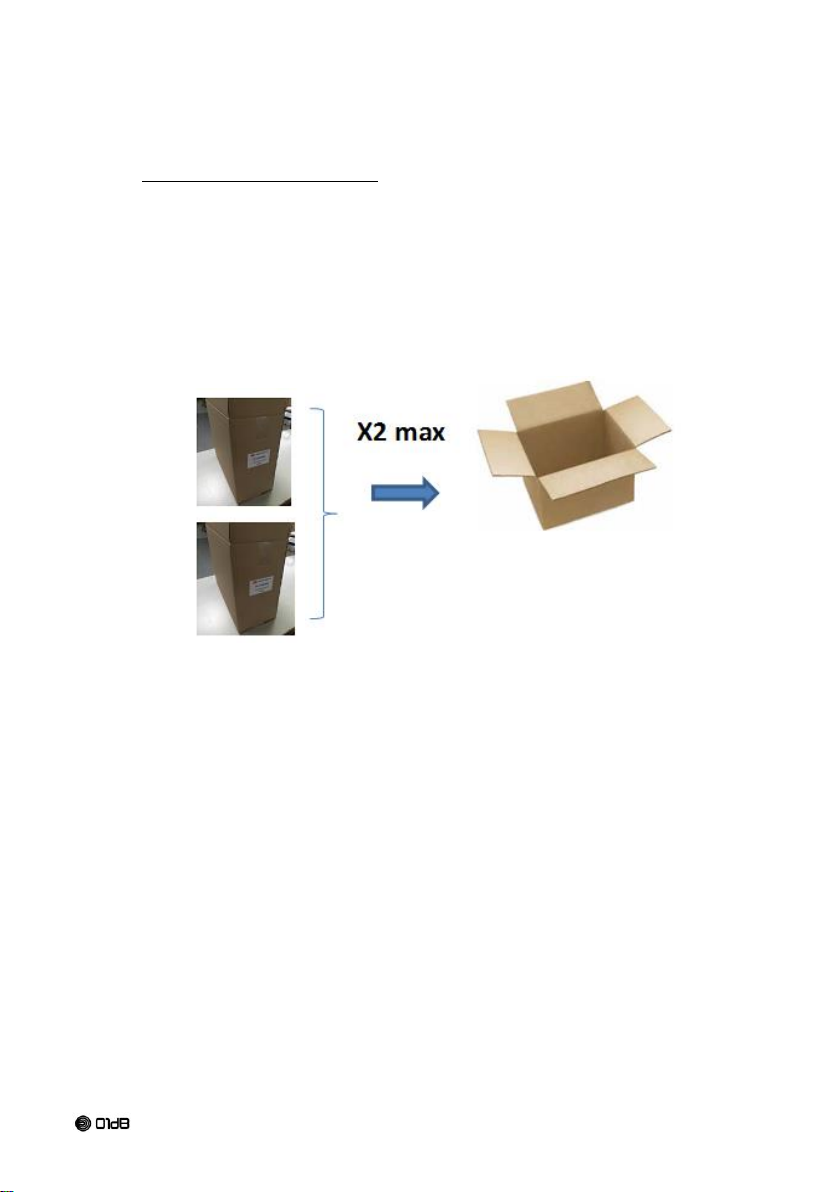

1.15. Transportation ............................................................................. 22

1.16. Storage recommendations ......................................................... 22

2. General Presentation ............................................................................. 23

2.1. Introduction ..................................................................................... 23

2.2. Measurement domains ................................................................... 23

2.3. Overview......................................................................................... 24

2.4. Inputs sensors Description ............................................................. 25

2.4.1. Triaxial internal Accelerometer ............................................... 25

2.4.2. Triaxial external transducer ..................................................... 25

2.4.3. Microphone external sensor .................................................... 25

2.5. Antennas ........................................................................................ 25

2.6. Access hatch .................................................................................. 26

3. Installation.............................................................................................. 26

3.1. Use cases prerequisite ................................................................... 26

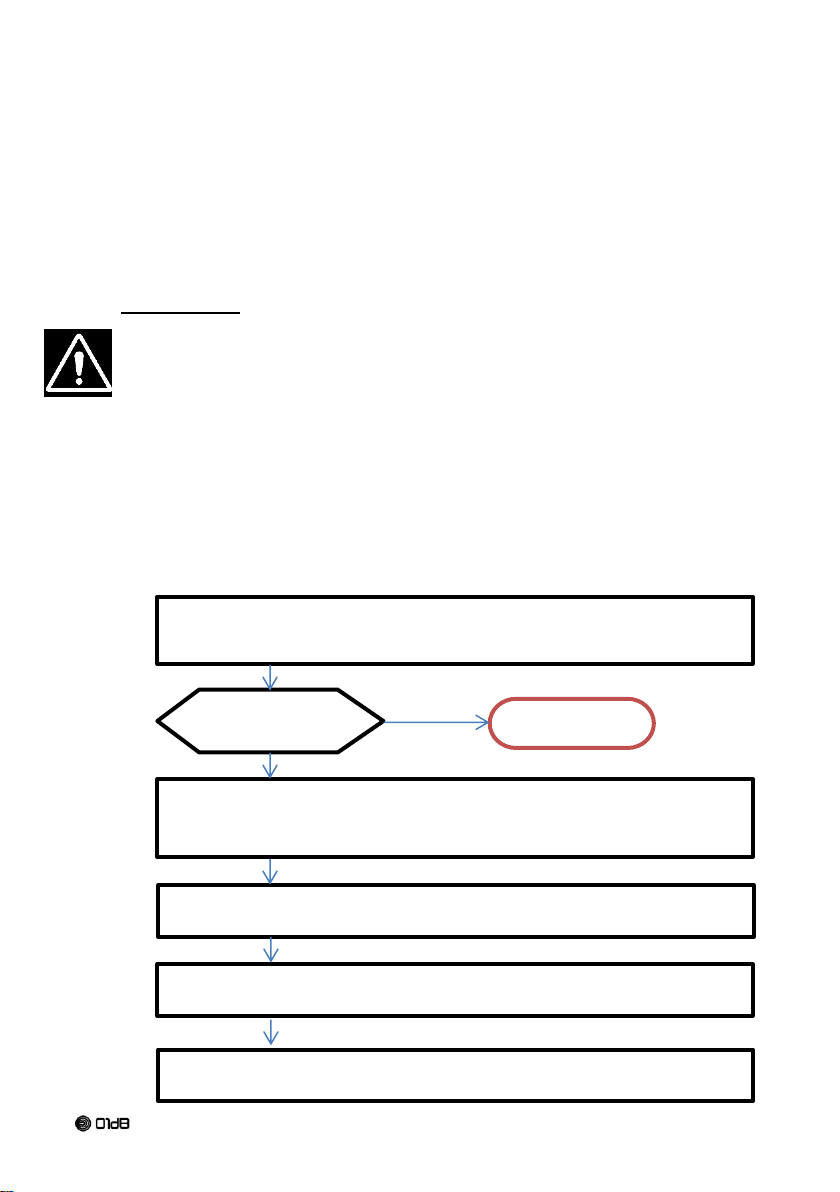

3.2. Flowchart for the installation........................................................... 26

3.3. Installation of the ORION with the optional Mounting Plate ........... 27

3.4. Power supply .................................................................................. 28

3.5. Earth connection ............................................................................ 29

3.6. General installation scheme ........................................................... 30

4. Maintenance .......................................................................................... 30

4.1. Generalities .................................................................................... 30

4.2. Parts replacement .......................................................................... 30

Brand of ACOEM

Welcome to the world of 01dB

ACOEM would like to thank you for purchasing this 01dB product and invites you to refer to this installation and safety instructions. For more information on 01dB’s products and services, please visit www.01db.com.

Receipt of your equipment

This product was carefully inspected and tested prior to shipping. Nevertheless, you are requested to check when opening the packaging that there is no sign of damage and that all the accessories are included. If this is not the case, please notify ACOEM or its approved representative without further delay. You are advised to keep the packaging in case you need to return your equipment for maintenance at ACOEM’s premises.

Warning Before using the product, read the instructions carefully, especially the safety instructions

and the installation section The safety instructions described in this manual should be adhered to and the instruments

should always be used within the limits specified hereafter. Instrument and operator safety is at risk when the instrument is used in conditions that are not intended by ACOEM.

The User Manual (Computer version DOC1154), the Installation and Safety Instruction Manual NOT1561 (computer and paper versions) provided with ORION must be read by the operator before installation or starting to operate. Print this document or use a computer or a tablet to keep them available, especially during installation;

Warranty

For this 01dB product, ACOEM offers a 24-month warranty for parts and labor, against all manufacturing defects, with free shipment to return the equipment to ACOEM. Any defects or damage caused by normal wear or resulting from negligence (poor supervision, maintenance or storage conditions, misuse of product, etc.) or arising from modifications that are not allowed for nor specified by ACOEM are excluded from the warranty. Up to the expiry date of the warranty period, ACOEM undertakes to rectify any defect that adversely affects the normal operation of the product and that fails within the scope of this warranty. In the event that such a defect should arise, you should inform ACOEM is writing without delay, including any information liable to be useful in diagnosing the nature of the defect and providing all supporting data as to the existence of the defect.

For further information:

 Visit our website at www.01db.com  Follow us on Twitter: http://twitter.com/01dB_acoem  Follow us on Facebook: https://www.facebook.com/pages/Acoem/  Follow us on LinkedIn: https://www.linkedin.com/company/01db-prevention-of-noise-&-vibration-

pollution

 Contact our Customer Service Department by e-mail at 01db.support@acoemgroup.com

Brand of ACOEM

Symbol

Description

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING: indicates a potentially hazardous voltage

1. SAFETY INSTRUCTIONS

1.1. GENERAL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. Follow the "Quick Start Guide" and the “User Manual” that can be downloaded on:

http://support.01db.acoemgroup.com .

1.2. DEFINITIONS : SAFETY GUIDELINES

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols:

1.3. SAFETY LABELS AND MARKINGS

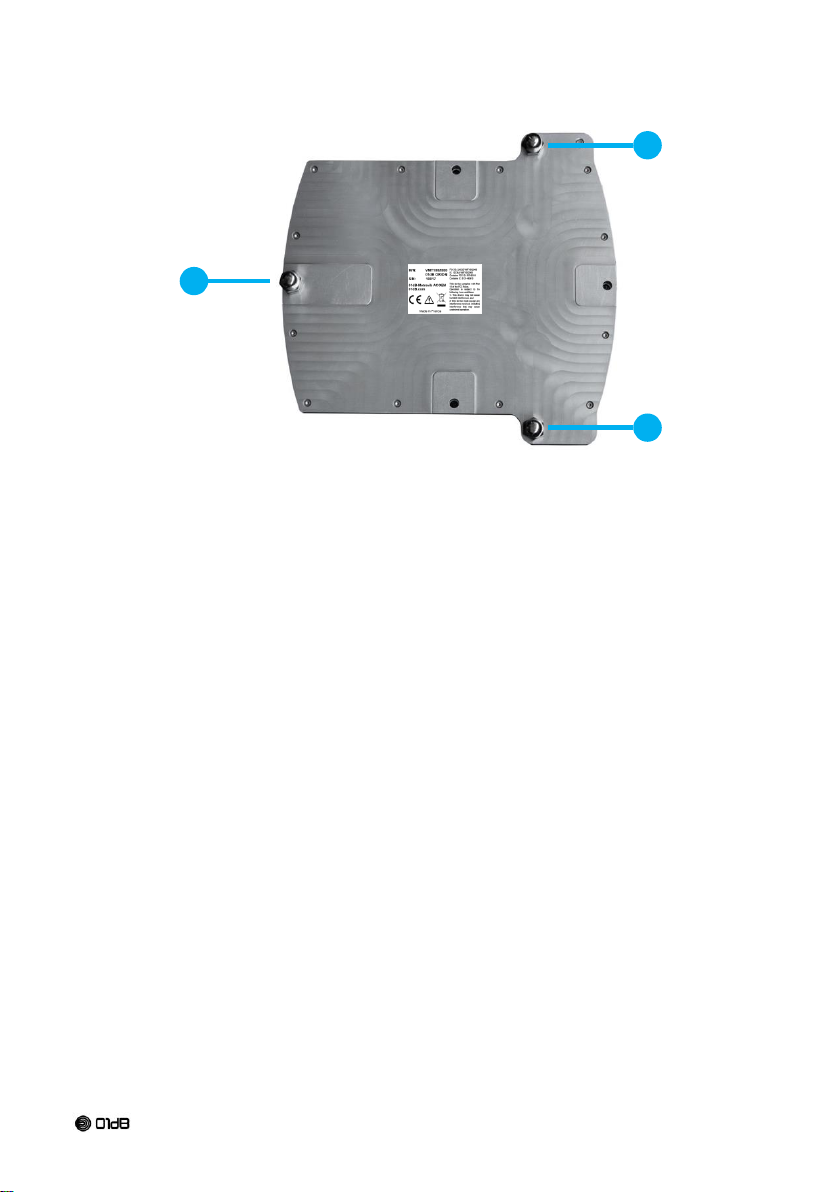

1.3.1. ID label on the back plate of the instrument

Brand of ACOEM

Symbol

Description

Discard the instrument with due care for the environment.

CE certification data. Refer to the copy of the UE certificate

Warning: Whenever this symbol is present on the device, it is essential to refer to the safety instructions documentation and the user manual.

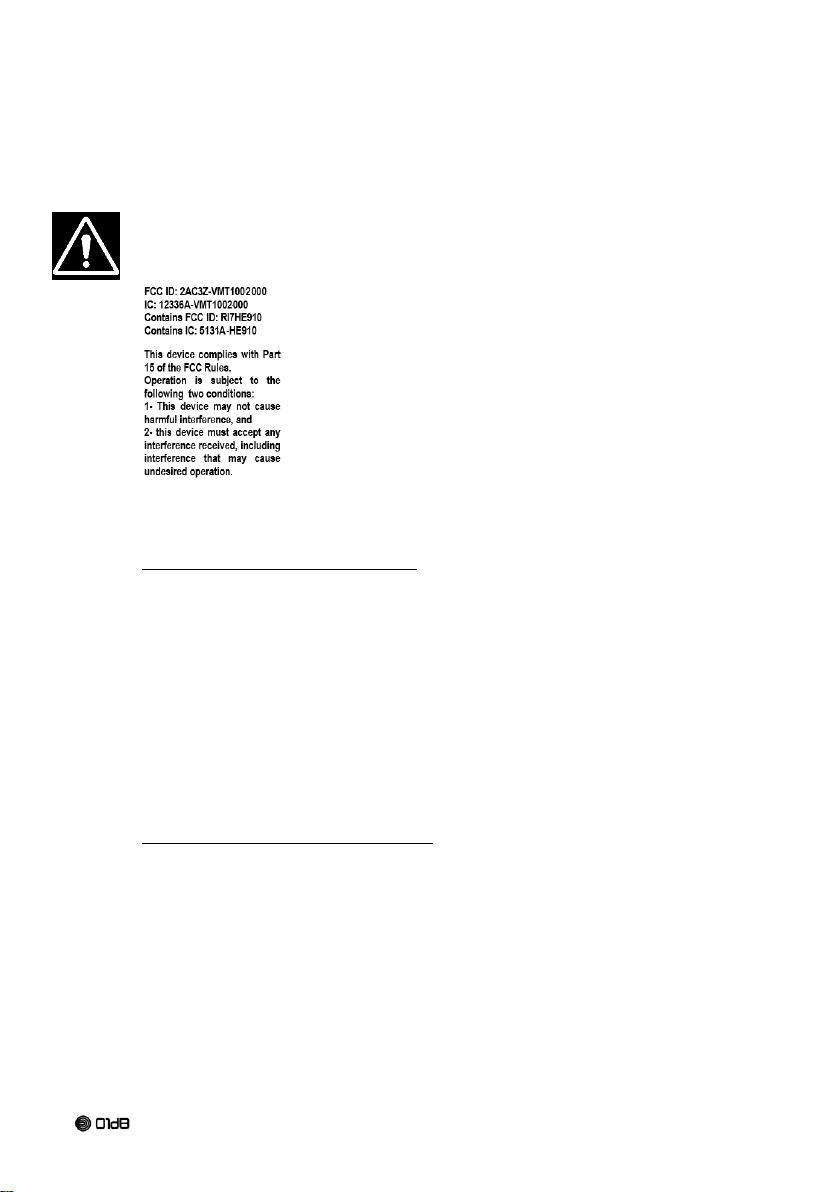

FCC and IC statutory. Refer to section "Radio" FCC and IC number. Refer to section "Radio".

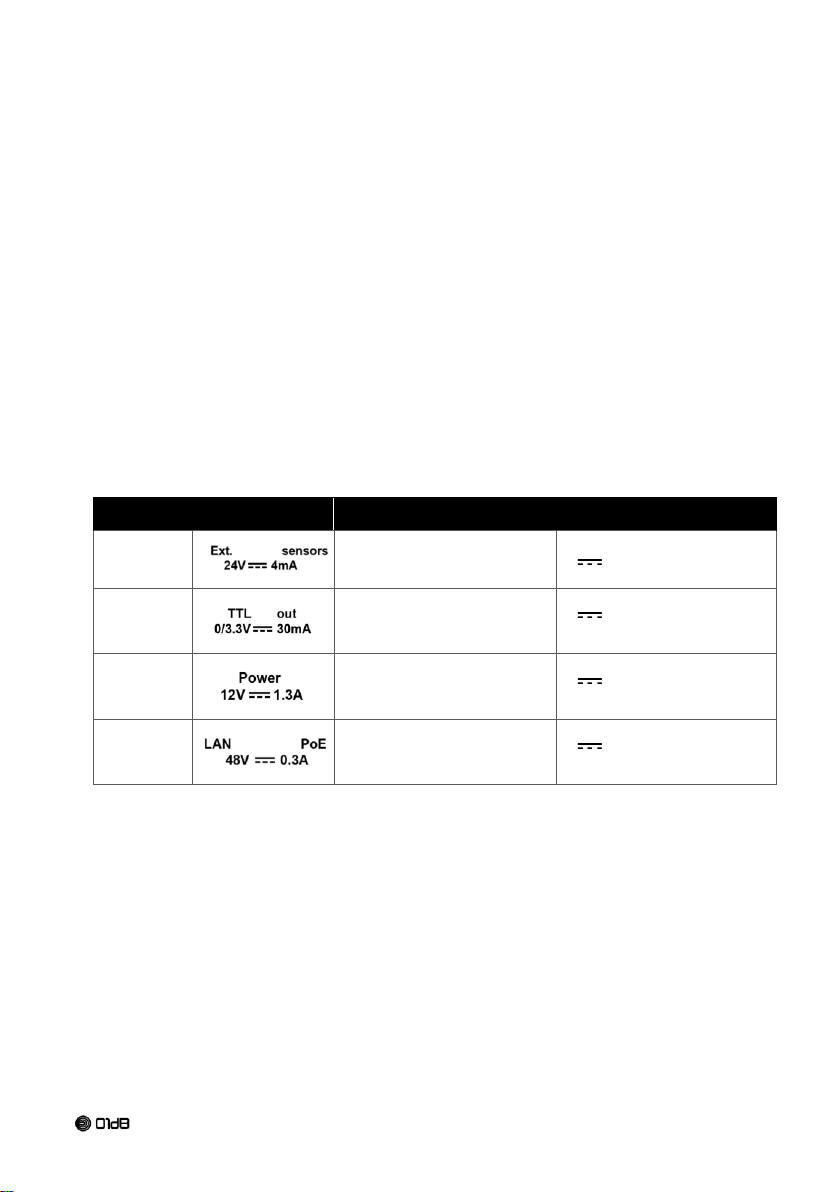

Connector #

Symbol

Description

External sensors

( means dc: direct current)

Constant Current output 4 mA dc at +24

Volts max

TTL output

( means dc: direct current)

+3,3 V dc at 30 mA max

External input Power; Respect tension

and current.

( means dc: direct current)

+12 Volts nominal dc at 1,3 A max

Refer to section external supply (§1.6.2)

Ethernet / External Power over Ethernet;

( means dc: direct current)

+48 Volts dc nominal at 0,3A max

Respect tension and current.

Refer to section PoE (§1.6.2.4)

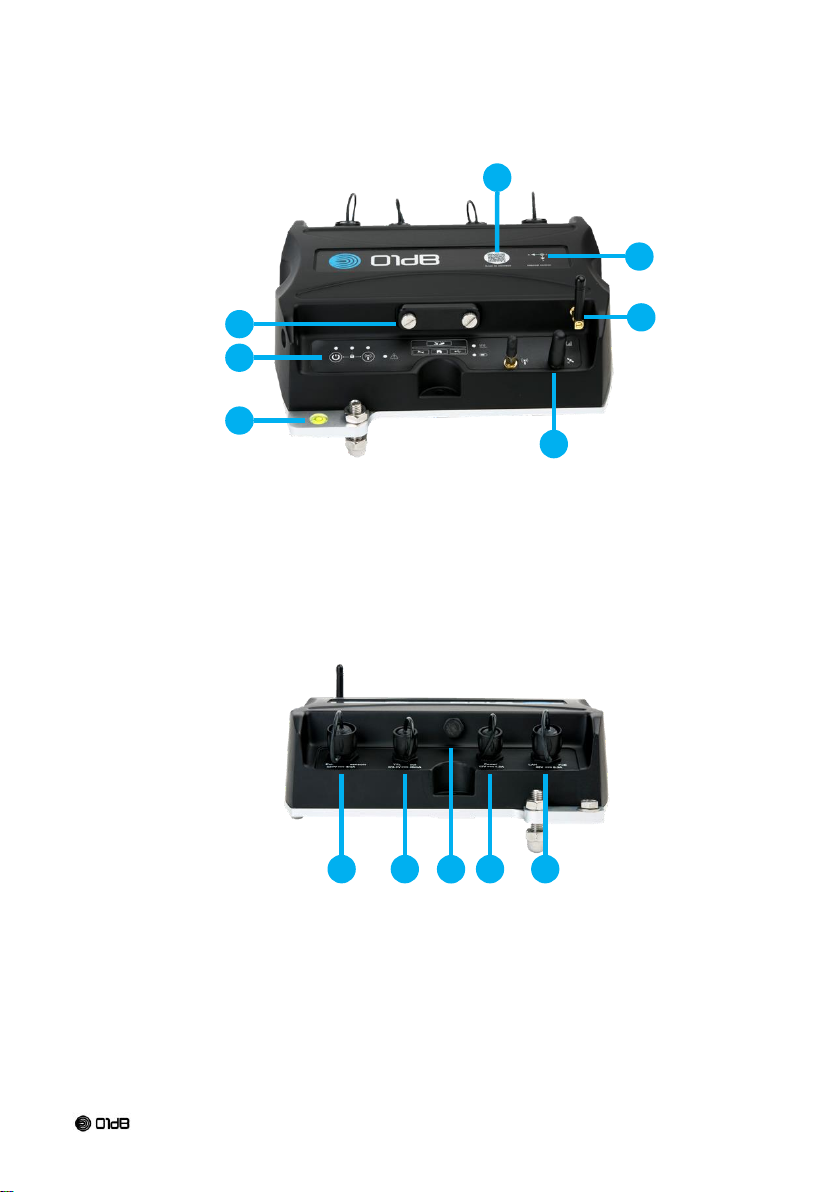

1.3.2. Markings next to the connectors

Brand of ACOEM

Symbol

Description

Power button

Power LED

Lock LED

Sensor error LED

Wi-Fi button

Wi-Fi LED

Memory SD (solid disk) card slot (Behind the hatch)

Micro-USB Factory service only (Behind the hatch)

SIM card slot (Behind the hatch)

Micro-USB Connector (Behind the hatch)

Ethernet LED

Battery LED for charge level indication

Wi-Fi antenna connector

GPS Connector

GSM antenna connector

LED for quality signal

Symbol

Description

Label Earth protection

1.3.3. Markings on the keyboard

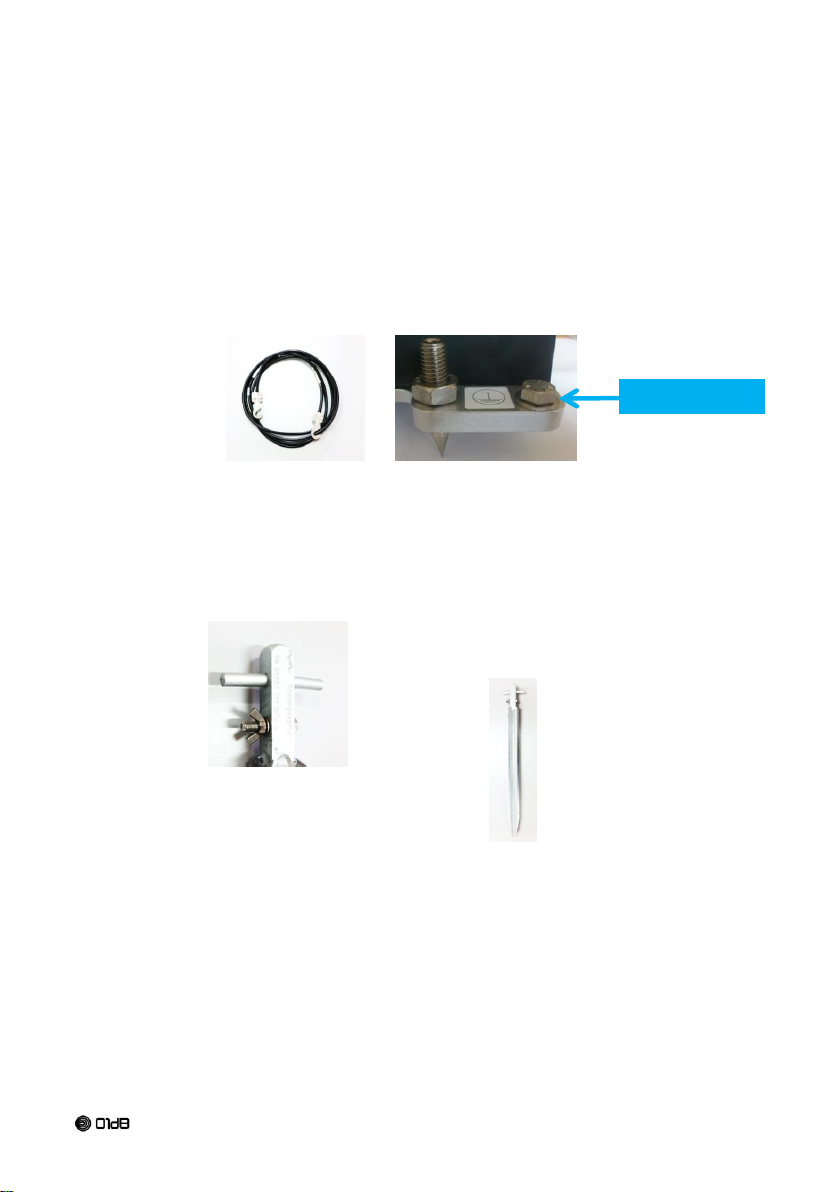

1.3.4. Marking for Earth connection

Brand of ACOEM

1.4. OPERATING ENVIRONMENT

Don't use this instrument, its accessory and its power supply in explosive atmosphere, or near flammable products, or near corrosive products.

1.4.1. Instrument

The instrument has a protection degree IP65 (IEC60529) when hatch is closed and connector's bases are equipped of their protections or their connectors.

The instrument has a protection degree IP20 (IEC60529) when hatch is opened. In an industrial environment, always use the instrument equipped with its connector hatch. Check

the presence of the seals and their condition prior to any use. Check the tightening of the hatches. In an office environment (no water splashes), the instrument can be used when the hatch is open.

Whenever the instrument is used outside, it must have hatch closed and connector's bases equipped of their protections or their connectors.

The instrument (excluding power supply) is designed to operate in environmental conditions as described in Standard IEC61010-1:

 Altitude up to 2,000 m;  Temperature from 5°C to 40°C.  Pollution rating 2  maximum relative humidity 80 % for temperatures up to 31 °C decreasing linearly to 50 %  relative humidity at 40 °C;

And the following extended conditions:

 Outdoor use.  Pollution rating 4  Wet Location  ambient temperatures from -10°C to 55°C.  95% humidity, no condensation.

Warning: The operating environments for power supplies are not the same than for the instrument ORION. Take care to respect the most constraining environment if the power supplies are used.

1.4.2. Power supplies

Respect the emplacement for the power supply.

Use only the power supply described in this document.

Only the waterproof power supply may be used outdoor. For more information on the environment of Power supplies, Refer to §1.6.2 External Power

supplies)
