Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the
solution to your microfiber cloth first, not directly on the parts you are cleaning.
< Part 1 >
< 1.1 > Package Content
KDF81712 unit X 1
- 6ft D VI-D console cable X 1
- Power cord X 1
- M6 s crew, cage nut & cup w asher X 8
< 1.2 > Structure Diagram
1
2
3
4
1
LCD interch angeable module kit
2
Installation Slides
3
LCD membrane
4
Membrane switch (KVM option)
5
Micro switch fo r screen au to power off
5
6
7
8
9
6
Keyboard interchangeable module kit
7
Mouse interchangeable module kit
8
Blue Power LED
9
Front USB port f or device access ( USB Hub KVM only )
10
Molded front handle
10
< 1.2 > Dimension
Model
Product
Dimension
(W x D x
H)
Packing
Dimension
(W x D x
H)
Net
Weight
Gross
Weight
KDF81712
441.6 x 580 x 44 mm
17.4 x 22.8 x
1.73"
590 x 823 x 140 mm
23.2 x 32.4 x
5.5”
15 kg
33 lb
19 kg
42 lb
Front View
Sid e View
UNIT :
1mm = 0.03937 inch
mm
Top View

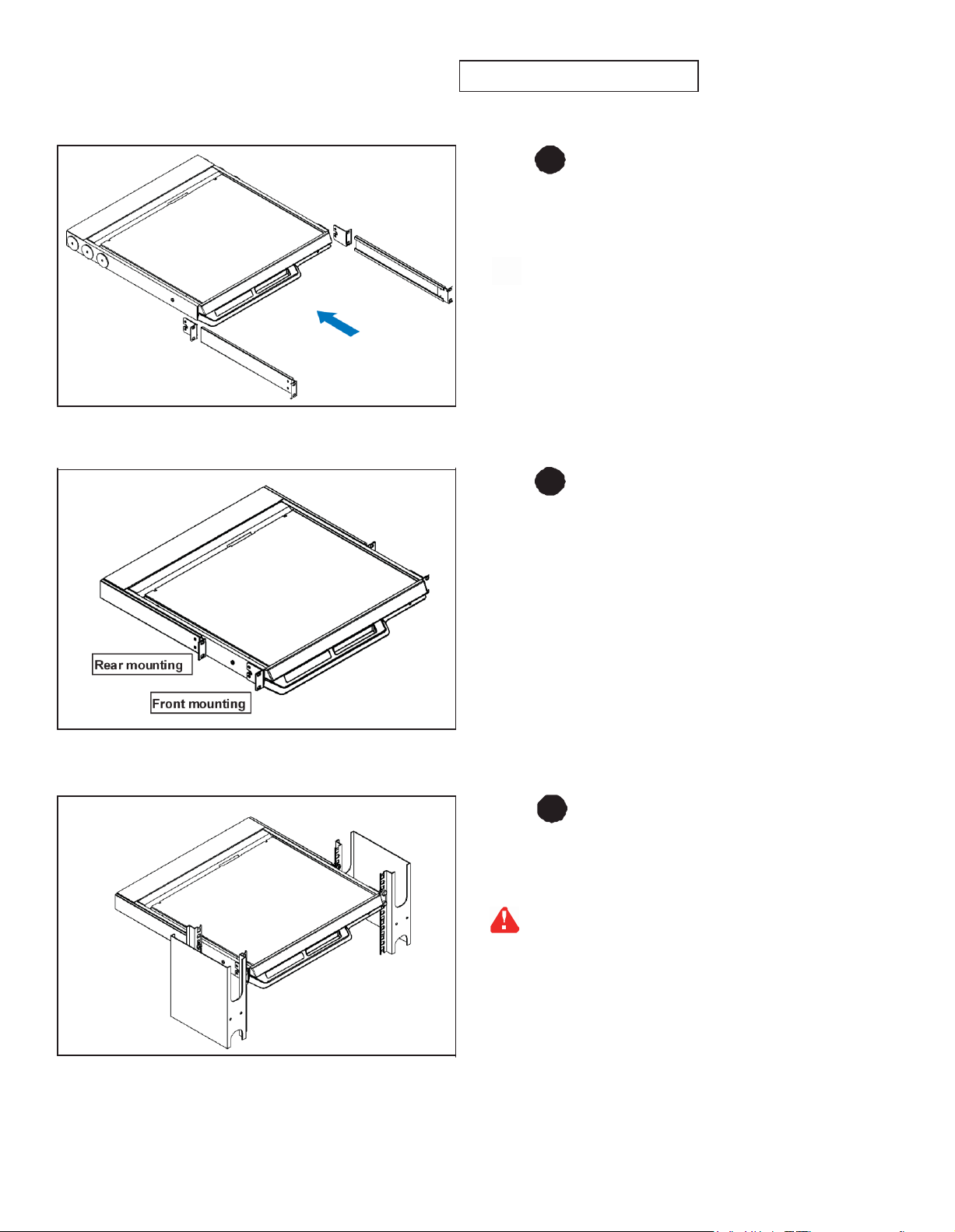

< 1.3 > Installation - How to install Installation Slides
Step
1
¦ Insert the left and right rear mounting brack ets into
the LCD c onsole drawer.
Step
2
¦ Measure the depth of the front and rear mounting rails.
¦ Align each rear mounting bracket to a suitable length.
Step
Complete the installation
3
¦ Fix the LCD console drawer into the rack .
M6 screw, cage nut & cup washer x 8 are provided.
< 1.3 > Installation - How to install
2 post rack brackets
Rear mounting
Front mounting
1
Step
¦ Release front mounting ears before applying 2
r
ac k brackets.
post
¦ Insert rear m ounting brack ets into the LCD console
drawer.
Opt
Model :
Step
ion
MB-751-12
2
Step
Complete the installation
3
¦ Fix the LCD cons ole drawer into the 2 post r ack.
M6 screw, cage nut & cup washer x 8
are not provided.
¦ Align each rear mounting bracket to a suitable length.
< 1.3 > Installation- How to use the drawer
¦ Hold the handle and slide out the
drawer.
¦ Flip up the LCD to a suitable angle.
¦ Operate the LCD cons ole drawer.
LCD
Panel
Panel Size ( diagonal )
17.3-inch Widescreen TFT color LCD
Display pixel ( dots x lines )
1920 x
1080
Brightness ( typ. )
300
Contrast Ratio ( typ. )
600:1
Color
1.07 Billion,
10-bit
Viewing Angle ( L/R/U/D )
89/89/89/89
Response Time ( ms )
35
Dot pitc h ( mm )
0.199
Display Area ( mm )
381.9H x
214.8V
Surface treatm ent
Anti-glare, Har d-coating
Surface hardness
3H
Back light Type
LED
MTBF ( hrs )
20,000
Video
Connectivity
Digital
DVI
DVI-D, TMDS single link
Audio
Connectivity
Audio Input
Connector
3.5mm stereo jack
Impedance / Power level
30kΩ / 750mV
Audio Output
Connector
3.5mm stereo jack
Resistance / Power level
30kΩ / 2.8V
Speaker Output
Power
2 x 2W
Power
Power Supply
Range
Auto-sens ing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen display ON
34W or less
Power saving mode
4W or less
Power button OFF
1W or less
KDF81712
1U Rackmount LCD Keyboard Drawer
< Part 2 >
< 2.1 > Product Specifications
*When the audio output is connected, speaker output is OFF
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
Environmental
Conditions
Operating
Temperature
0 to 50°C degree
Humidity
20~90%, non-condensing
Storage
Temperature
-5 to 60°C degree
Humidity
5~90%, non-condensing
Shock
10G acceleration (11ms duration)
Vibration
5~500Hz 1G RMS random
Physical
Specification
Product ( W x D x H )
441.6 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
Packing ( W x D x H )
590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
Net Weight
15 kgs / 33
lbs
Gross Weight
19 kgs / 42
lbs
Applicable
Format
DVI-D / VGA Input
PC Signal
1920 x 1080 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input
PC Signal
Same as VGA
Video Signal
1080p : 60Hz
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal
2ch Linear PCM ( 32 / 44.1 / 48 KHz )
KDF81712
Regulatory Safety A pproval FCC & CE
1U Rackmount LCD Keyboard Drawer
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
Key force
55 ± 5g
Travelling distance
3 ± 0.3m m
Switch life
> 10 million life cycle time
Soft ware support
MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac
< 2.2 > Keyboard / Mouse Specifications
Ge
G keyboard integrated with touchpad
Gb
G keyboard integrated with tr ackball
Supporting layouts
America
EMEA
United States
United Kingdom Germany France Spain
Italy Russia Switzerland Netherlands Portugal
Norway
Asia
China Japan Korea Arabia
Turkey
F7 F8
F7 F8
< 2.2 > MAC Keyboard / Mouse Options
Me MAC keyboard integrated with touchpad Mb MAC keyboard integrated with track ball
Supporting layouts
America
United States
How to Use "MAC" Keyboard
Keyboa rd Features
F1
Decrease display brightness
F2
Increase display brightness
F3
Missio n control
* Only works with OS X Lion
default Keyboard Shortcuts.
F4
Dashboard
F7
Rewind Eject disc
F8
Play / Pause Command
F9
Fast-forward
F10
Mute sound
F11
Decrease volume
F12
Increase volume
N u m C a ps Sc ro l l Co mp os e
N um C ap s S cr o ll C om p ose
< 2.2 > SUN Keyboard / Mouse Options
Se S keyboard integrated with touchpad Sb S keyboard integrated with trackball
S keyboard integrated with touchpad / trackball
¦ Incorporates SUN keys , inc luding Stop, Cut, Paste, Compose, Copy and Help
¦ 104 key notepad keyboard with full numerical pad and SUN function
¦ USB interface
¦ US layout only
How to Use "S" Keyboard
Num LED in Off mode
Key pad behaves as a SUN Solar
system administration command mode
Num LED in Green mode
Key pad behaves as a normal k ey
pad mode
Audio / Display K eys * P lease ask your supplier for full details
F9
Audio : Mute
Display : Degauss
F11
Audio : Decrease volume
Display : Decrease contrast
F12
Audio : Increase volume
Display : Increase contrast
1
Pictu re
Picture mode :
Standard / Vivid / Soft / User mode to choose
Brightness :
Adjust background black level of the screen imag e
Contrast :
Adjust the difference between the image background
(black level) an d the foreground (white level)
Hue:
Adjust the screen hue value
Saturation :
Adjust the saturation of the ima ge colo r
Picture size :
Adjust the image size
Color temp :
Standard / Cool / Warm / User to choose
Noise red uce :
Red uce the noise of the image
Sharpness :
Adjust the image from wea k to sha rp
< 2.3 > On-screen Display Operation ( OSD )
M embrane Switch Funct ion
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed co ntrol
Exit t he OSD screen
Go back to the previous on-screen sub-men u o r
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power tou ch button will flash continuously when there is no signal input.
1 All the LED touch buttons will au tom atically turn off after 10 minutes of idle status ( excep t the Power ).
2 Light up all membran e bu tton s, please press any button for 1 - 2 seconds ( excep t the Power ).
2
PC
Auto adjust :
Auto mat ically ad just sizes, centers and fine tunes the
video signal to eliminate waviness and distortion.
Clock :
Adjust the clock value
Phase :
Adjust the phase value
H. Po sition :
Align the screen image left or right
V. Position :
Align the screen image up or down
4
MISC
Language :
Select the language in which the OSD menu is
displaye d - English
Sleep timer :
Set the off time
PIP mode :
Adjust picture in pict ure sett ing
PIP position :
Enter into PIP position
PIP source :
Enter into the Sub source and sound so urce
System reset :
Return the adjustment back to factory setting
Information :
Select for Help
< 2.3 > On-screen Display Operation ( OSD )
3
Audio
Audio mode : Movie / Voice / Norm al / Music mode to choose
Volum e : Adjust the volu me of sou nd
Bass :
Treble : Set the value of treble sound
Balance : Set the balance value of treble a nd bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
Set the value of bass sound
LCD Monitor
Large Sub screen
Small Sub screen
1920 x 1200
552 x 414
480 x 360
1920 x 1080
552 x 414
480 x 360
1440 x 900
414 x 310
360 x 270
1366 x 768
392 x 294
340 x 254
1280 x 1024
368 x 276
320 x 240
< 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 2.4.1 > Picture in Picture ( PIP )
Mode
Display the Sub s creen in the M ain screen.
OSD M enu > MISC > PIP Mode > Large / Small / OFF
Main sc reen
Positi on
Adjust the position of the Sub s creen ( top left, bottom left, top right, bottom right )
OSD M enu > MISC > PIP Position > top left / top right / bottom left / bottom right
top left top right
Sub screen
bottom left bottom right
Size
Adjust the size of the Sub s creen ( Large / Small )
OSD M enu > MISC > PIP Mode > Large / Small
Size of Sub screen
KDF81712
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
LCD Monitor
Main / Sub screen
1920 x 1200
955 x 716
1920 x 1080
955 x 716
1440 x 900
715 x 536
1366 x 768
678 x 508
1280 x 1024
635 x 476
< 2.4.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen.
OSD Menu > MISC > PIP Mode > PBP
Main scree n Sub s creen
Size
KDF81712
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Model
12V
24V 48V
Input rating
Input voltage:
12-Volt
24-Volt
48-Volt
Input range:
9 ~ 18V
18 ~ 36V
36 ~ 75V
Input current
- No load
50 mA
50 mA
50 mA
- Full load
4950 mA
2450 mA
1220 mA
Output rating
Out put voltage :
12-Volt
12-Volt
12-Volt
Out put current:
4.16 A
4.1 6A
4.16A
Effi ciency
84%
85 %
85%
< Part 3>
<3.1 > Options :
- Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
< 3.2 > Options : DC Power
***
For DC power option :
( 1 ) Option excludes 1 x power cord and 1 x AC power adapt er.
KDF81712
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
12 11 10 9 8
7
<Part 4> KVM Integration
< 4.1 > KVM port connection
USB Servers
D VI KVM C ab le
6 feet DVI KVM c able
15 feet DVI KVM cable
( Server end : DVI-D + USB + Audio )
( KVM port : DVI-D + USB3.0 )
Audi o
Power
6 5 4 3 2 1
IP console, remote c onsole, daisy- chain and OSD m enu are NOT available for this model.
USB Servers
DVI-D KVM port
KDF81712
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
KVD1201
¯
KVM Port
Number of ports: 12
Connector: DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio )
Connectivity: Com bo 4-in-1, KV M cable, 6 or 15 feet
¯
Audio Out 1 x 3.5mm stereo audio
¯
Management
PC Selection: Front button & k eyboard hotkey
¯
Compatibility
Multi-platform
: Mix PCs, SUN and M ac G3 / G4 Mac / iMac
Support: W indows 7 / Vista / 2003 / XP, Linux, Unix
¯
Power
Input: 100 or 240V AC at 50 or 60 Hz via IEC type cord
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 48 Watt, Standby 5 Watt
¯
Regulatory Approval: FCC, CE
¯
Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
< 4.2 > Specifications
KDF81712
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
4.3 KVM Button
Power ON
¦ Turn off all servers and KVM s witches
¦ Make sure all cables / c onnectors are properly connec ted
¦ Recommend Power ON sequence is m onitor, K VM switch finally computer
Front Panel - Port LED Indications
DVI-D K VM 12 ports
PC port LEDs Channel
PC port LEDs Online : Blue LED on indic ating a PC is connecting to the port
Active : Green LED on indicating a selected channel
Channel button Press to select channel from 01 to 12
button
Button B is
non-functional
KDF81712
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Hotkey
Function
Scroll Lock
+
Scroll Lock
+
Switch to previous port
Scroll Lock
+
Scroll Lock
+
Switch to nex t port
Scroll Lock
+
Scroll Lock
+
Port no.
Switch to specific port
Scroll Lock
+
Scroll Lock
+
S
Auto scan for powered on PC
Scroll Lock
+
Scroll Lock
+
B
Enable / Disable beeper sound
4.4 KVM Hotkey
Remarks:
¦ Example of “Scroll Lock + Scroll Lock + Port no.”
- Port No. : 01 to 12
- e.g. Port 4 : Scroll Lock + Scroll Lock + 0 + 4
- e.g. Port 12 : Scroll Lock + Scroll Lock + 1 + 2
¦ You mus t press the hotk ey within 2 seconds
¦ A beep sound will be heard for s uccessful entering
Hotkey Label
KDF81712
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Model 12V
24V
48V
Input rating
Input voltage:
12-Volt
24-Volt
48-Volt
Input range:
9 ~ 18V
18 ~ 36V
36 ~ 75V
Input current
- No load
50 mA
50 mA
50 mA
- Full load
4950 mA
2450 mA
1220 mA
Output rating
Output voltag e:
12-Volt
12-Volt
12-Volt
Output current:
4.16A
4.16A
4.16A
Efficienc y
84%
85%
85%
4.5 DC Power 12V, 24V, 48V Input
Remarks:
¦ Package does not include power cord
Loading...
