User Manual
KD81712/81912: 1U Rackmount 17/19” Monitor
Keyboard Drawer
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the
contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from
the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
□ Use of supplies or parts not meeting our specifications.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
< Part. 1 > KD81712/KD81912
1.1 Package Content
Contents
P.1
1.2 Structure Diagram & Dimension
1.3 Installation
< Part. 2 > Specifications / OSD
2.1 Product Specifications
2.2 Keyboard / Mouse Specifications
2.3 On-screen Display Operation ( OSD )
< Part. 3 > Options
3.1 HDMI, DVI-D, S-Video + BNC & Audio
3.2 48V, 24V or 12VDC power
P.1 - 2
P.3 - 5
P.6 - 7
P.8
P.9 - 10
P.11
P.12
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
DVI-D
KVM
Loc al Rem ote
IP
12-port
1 0 0
KVD1201
< Part. 4 >
KVM Integration
4.1 KVM port connection
4.2 Specifications
4.3 KVM Button
4.4 KVM Hotkey
4.5 DC power 12V, 24V, 48V Input
Contents
P.13
P.14
P.15
P.16
P.17
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the
solution to your microfiber cloth first, not directly on the parts you are cleaning.
< Part 1 >
< 1.1 > Package Content
KD8 1712 / KD8 19 12 unit X 1
- 6f t Combo KVM cab le X 1
- Pow er c ord X 1
- M6 s crew, ca ge nu t & cup w asher X 8
< 1.2 > Structure Diagram
1
2
3 9
4
1
LCD interchangeable module kit
2
Installation Slid es
3
LCD memb rane
4
Membra ne switch (KVM option)
5
Micro switch for screen auto power off
5
6
7
8
6
Keyb oard interchangeable mod ule kit
7
Mouse interchangeable module kit
8
Blue Power LED
9
Front USB port for device access ( USB Hub KVM only )
10
Molded front handle
10
< 1.2 > Dimension
Model
Product
Dimension
(W x D x
H)
Packing
Dimension
(W x D x
H)
Net
Weight
Gross
Weight
KD81712 series
441.6 x 580 x 44 mm
17.4 x 22.8 x
1.73"
590 x 823 x 140 mm
23.2 x 32.4 x
5.5”
12 kg
26 lb
16.5 kg
36
lb
KD81912 series
441.6 x 620 x 44 mm
17.4 x 24.4 x
1.73"
590 x 823 x 140 mm
23.2 x 32.4 x
5.5”
13 kg
29 lb
17.5 kg
39
lb
Front View
Side View
Top View
UNIT :
1mm = 0.03937 inch
mm

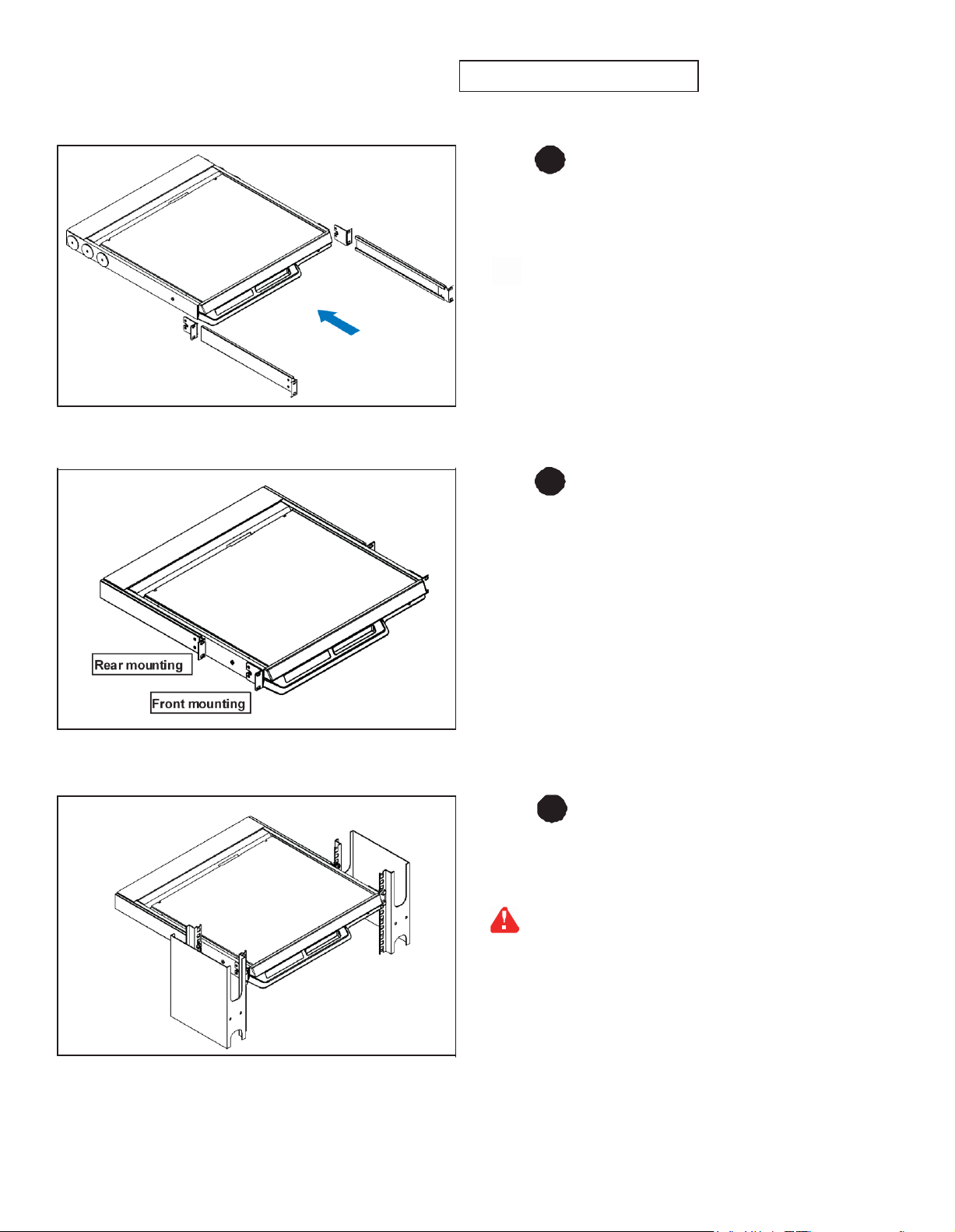

< 1.3 > Installation - How to install Installation Slides
Step
1
¦ Insert the left and right rear mounting brack ets into
the LCD c onsole drawer.
Step
2
¦ Measure the depth of the front and rear mounting rails.
¦ Align each rear mounting bracket to a suitable length.
Step
Complete the installation
3
¦ Fix the LCD console drawer into the rack .
M6 screw, cage nut & cup washer x 8 are provided.
< 1.3 > Installation - How to install
2 post rack brackets
Rear mounting
Front mounting
1
Step
¦ Release front mounting ears before applying 2
r
post
ac k brackets.
¦ Insert rear m ounting brack ets into the LCD console
drawer.
Opt
Model :
Step
ion
MB-751-12
2
Step
Complete the installation
3
¦ Fix the LCD cons ole drawer into the 2 post r ack.
M6 screw, cage nut & cup washer x 8
are not provided.
¦ Align each rear mounting bracket to a suitable length.
< 1.3 > Installation- How to use the drawer
¦ Hold the handle and slide out the
drawer.
¦ Flip up the LCD to a suitable angle.
¦ Operate the LCD cons ole drawer.
LCD
Panel
KD8171 2
K D81912
Manufactur er
Panel Size ( diagonal )
17-inch TFT color LCD
19-inch TFT color LCD
Display pix el ( dots x lines )
1280 x 1024
1280 x 1024
Brightness ( typ. )
250 250
Contras t Ratio ( typ. )
1000:1
1000:1
Color
16.7
M
16.7
M
Viewing Angle ( L/R/U/D )
80/80/80/80
80/80/80/80
Response Tim e ( ms )
5 5
Dot pitch ( mm )
0.264
0.294
Display Ar ea ( mm )
337.92H x 270.33V
376.32H x 301.05V
Surface treatment
Haze 25%, Hard-coating
Surface hardness
3H 3H
Backlight Type
CCFL
CCFL
MTBF ( hrs )
50,000
50,000
Video
Connectivity
Digital
DVI
DVI-D, TMDS single link
Audio
Connectivity
Audio Input
Connector
3.5mm stereo jack
Impedance / Power level
30k Ω / 750mV
Audio Output
Connector
3.5mm stereo jack
Resistance / Power level
30k Ω / 2.8V
Speaker Output
Power
2 x 2W
Power
Power Supply
Range
Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consum ption
Screen display ON
25W or less
Power s aving m ode
4W or less
Power button OFF
1W or less
KD81712/81912
1U Rackmount LCD Keyboard Drawer
< Part 2 >
< 2.1 > Product Specifications
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
*When the audio output is connected, speaker output is OFF
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Environmental
Conditions
Operating
Temperature
0 to 50°C degree
Humidity
20~90%, non-condensing
Storage
Temperature
-5 to 60°C degree
Humidity
5~90%, non-condensing
Shock
10G acceleration (11m s duration)
Vibration
5~500Hz 1G RMS random
Physical
Specification
KD 81712
K D81912
Product ( W x D x H )
441.6 x 580 x 44 m m
17.4 x 22.8 x 1.73 inch
441.6 x 620 x 44 mm
17.4 x 24.4 x 1.73 inch
Packing ( W x D x H )
590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
Net Weight
12 k gs / 26 lbs
13 k gs / 29 lbs
Gross Weight
16.5 k gs / 36 lbs
17.5 k gs / 39 lbs
Applicable
Format
VGA Input
PC Signal
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Regulatory Safety Approval cUL, FCC & CE
Key force
55 ± 5g
Travelling distance
3 ± 0.3m m
Switch life
> 10 million life cycle time
Soft ware support
MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC
Linux / Mac
< 2.2 > Keyboard / Mouse Specifications
Ge
G keyboard integrated with touchpad
Gb
G keyboard integrated with tr ackball
Supporting layouts
America
EMEA
United States
United Kingdom Germany France Spain
Italy Russia Switzerland Netherlands Portugal
Norway
Asia
China Japan Korea Arabia
Turkey
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
< 2.3 > On-screen Display Operation ( OSD )
M embrane Switch Funct ion
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed co ntrol
Exit t he OSD screen
Go back to the previous on-screen sub-men u o r
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power tou ch button will flash continuously when there is no signal input.
1 All the LED touch buttons will au tom atically turn off after 10 minutes of idle status ( excep t the Power ).
2 Light up all membran e bu tton s, please press any button for 1 - 2 seconds ( excep t the Power ).
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
< 2.3 > On-screen Display Operation ( OSD )
OSD C onfiguration Page
Image:
for the brightness, contrast, color temp , red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AV L and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
< Part 3 >
< 3.1 > Options :
- Aud io
( 3.5mm audio jack s for au dio in & o ut, and 2W + 2W spea kers )
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Model
12V
24V 48V
Input rating
Input voltage:
12-Volt
24-Volt
48-Volt
Input range:
9 ~ 18V
18 ~ 36V
36 ~ 75V
Input current
- No load
50 m A
50 mA
50 mA
- Full load
4950 mA
2450 mA
1220 mA
Output rating
Output voltag e:
12-Volt
12-Volt
12-Volt
Output current:
4.16A
4.16A
4.16A
E fficiency
84%
85%
85%
< 3.2 > Options : DC Power
DC power
***
For DC power option :
( 1 ) Option excludes 1 x power cord and 1 x AC power adapter.
K VM
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
12 11 10 9 8
7
<Part 4> KVM Integration
< 4.1 > KVM port connection
USB Servers
D VI KVM C ab le
6 feet DVI KVM c able
15 feet DVI KVM cable
( Server end : DVI-D + USB + Audio )
( KVM port : DVI-D + USB3.0 )
Audi o
Power
6 5 4 3 2 1
IP console, remote c onsole, daisy- chain and OSD m enu are NOT available for this model.
USB Servers
DVI-D KVM port
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
KVD1201
¯
KVM Port
Number of ports: 12
Connector: DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio )
Connectivity: Com bo 4-in-1, KV M cable, 6 or 15 feet
¯
Audio Out 1 x 3.5mm stereo audio
¯
Management
PC Selection: Front button & k eyboard hotkey
¯
Compatibility
Multi-platform
: Mix PCs, SUN and M ac G3 / G4 Mac / iMac
Support: W indows 7 / Vista / 2003 / XP, Linux, Unix
¯
Power
Input: 100 or 240V AC at 50 or 60 Hz via IEC type cord
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 48 Watt, Standby 5 Watt
¯
Regulatory Approval: FCC, CE
¯
Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
< 4.2 > Specifications
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
4.3 KVM Button
Power ON
¦ Turn off all servers and KVM s witches
¦ Make sure all cables / c onnectors are properly connec ted
¦ Recommend Power ON sequence is m onitor, K VM switch finally computer

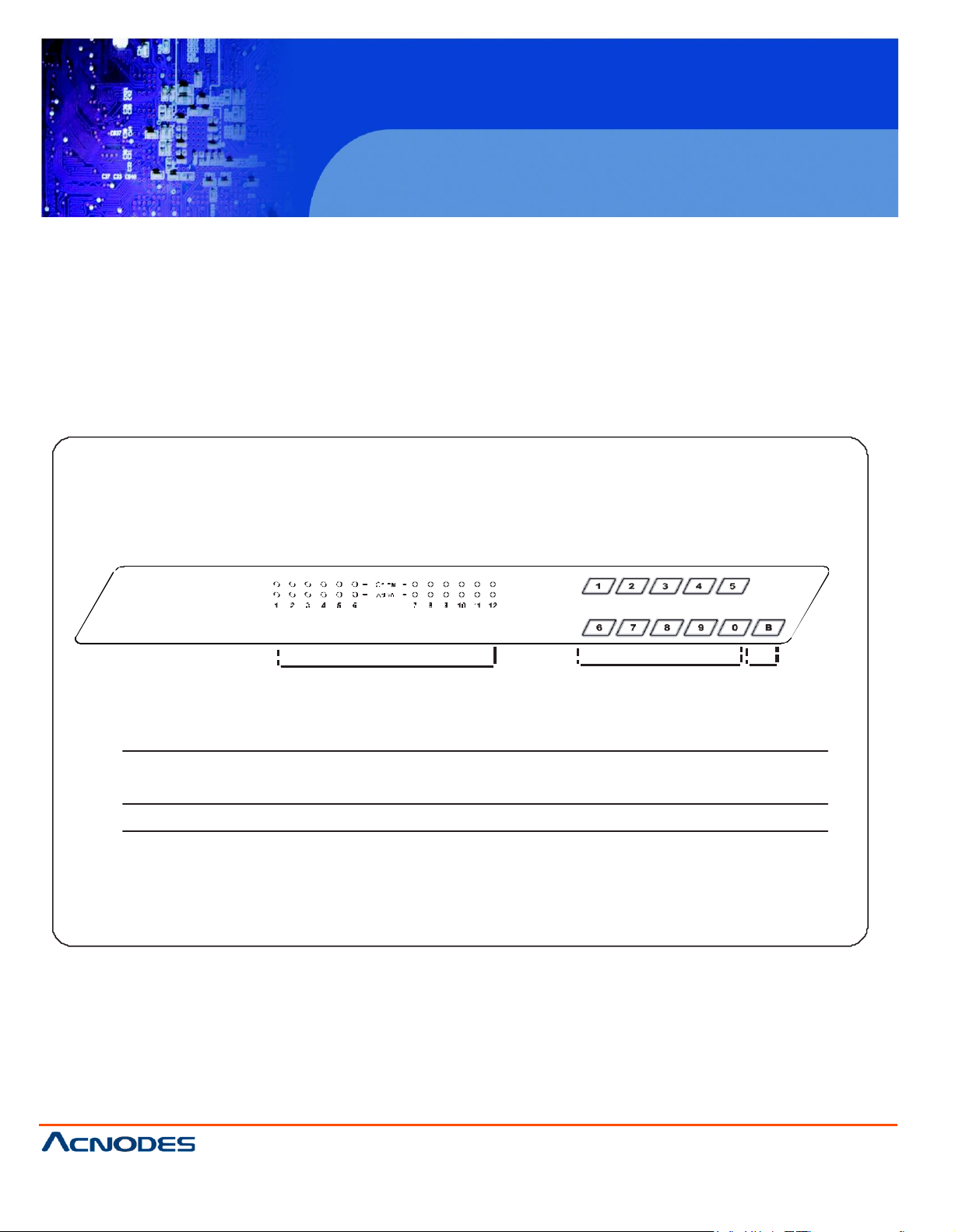

Front Panel - Port LED Indications
DVI-D K VM 12 ports
PC port LEDs Channel
PC port LEDs Online : Blue LED on indic ating a PC is connecting to the port
Active : Green LED on indicating a selected channel
Channel button Press to select channel from 01 to 12
button
Button B is
non-functional
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights reserved. Product description and product specifi cations
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Hotkey
Function
Scroll Lock
+
Scroll Lock
+
Switch to previous port
Scroll Lock
+
Scroll Lock
+
Switch to nex t port
Scroll Lock
+
Scroll Lock
+
Port no.
Switch to specific port
Scroll Lock
+
Scroll Lock
+
S
Auto scan for powered on PC
Scroll Lock
+
Scroll Lock
+
B
Enable / Disable beeper sound
4.4 KVM Hotkey
Remarks:
¦ Example of “Scroll Lock + Scroll Lock + Port no.”
- Port No. : 01 to 12
- e.g. Port 4 : Scroll Lock + Scroll Lock + 0 + 4
- e.g. Port 12 : Scroll Lock + Scroll Lock + 1 + 2
¦ You mus t press the hotk ey within 2 seconds
¦ A beep sound will be heard for s uccessful entering
Hotkey Label
KD81712/81912
1U Rackmount LCD Keyboard Drawer
© Copyrigh t 2013 Acnodes, Inc.
All rights rese rved. Product descri pt ion and produc t specif ication s
are subj ect to c han ge with out notic e. For l atest produ ct informati on,
please visit Acnodes’ web site at www.acnodes.c om.
14628 Central Ave,
Chin o, CA 91710
tel: 909.597.7588, fax:909.597.1939
Model 12V
24V
48V
Input rating
Input voltage:
12-Volt
24-Volt
48-Volt
Input range:
9 ~ 18V
18 ~ 36V
36 ~ 75V
Input current
- No load
50 mA
50 mA
50 mA
- Full load
4950 mA
2450 mA
1220 mA
Output rating
Output voltag e:
12-Volt
12-Volt
12-Volt
Output current:
4.16A
4.16A
4.16A
Efficienc y
84%
85%
85%
4.5 DC Power 12V, 24V, 48V Input
Remarks:
¦ Package does not include power cord
Loading...
