Acnodes FPC 8089 User Manual

Download
User Manual
FPC8089: 8.4” SVGA TFT T ouch panel PC, 800 x 600 with an AMD LX800 500MHz CPU
FPC 8089
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
Disclaimers
This manual has been carefully checked and believed to contain accurate information. Acnodes Corporation assumes no responsibility for any infringements of patents or any third party’s rights, and any liability arising from such use.
Acnodes does not warrant or assume any legal liability or responsibility for the accuracy , completeness or usefulness of any information in this document. Acnodes does not make any commitment to update the information in this manual.
Acnodes reserves the right to change or revise this document and/or product at any time without notice.
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or other­wise, without the prior written permission of ACNODES CO., Lt d.
Copyright 2009 Acnodes Corporation All Rights Reserved September 2007, V ersion A1 Printed in Taiwan
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
Safety Precautions
1. The FPC 8089 does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer .
2. Be sure to ground yourself to prevent static charge when installing the internal components. Use a grounding wrist strap and place all electronic components in any static- shielded devices. Most electronic components are sensitive to static electrical charge.
3. Disconnect the power cord from the FPC 8089 before any installation. Be sure both the sys­tem and external devices are turned OFF . A sudden surge of power could ruin sensitive compo­nents that the FPC 8089 must be properly grounded.
4. The brightness of the flat panel display will be getting weaker as a result of frequent usage. However, the operating period varies depending on the application environment.
5. Turn OFF the system power before cleaning. Clean the system using a cloth only. Do not spray any liquid cleaner directly onto the screen. The FPC 8089 may come with or w/o a touch screen. Although the touch screen is chemical resistant, it is recommended that you spray the liquid cleaner on a cloth first before wiping the screen. In case your system comes without the touch screen, you must follow the same procedure and not spray any cleaner on the flat panel directly .
6. A void using sharp objects to operate the touch screen. Scratches on the touch screen may cause malfunction or internal failure to the touch screen.
7. The flat panel display is not susceptible to shock or vibration. When assembling the FPC 8089, make sure it is securely installed.
8. Do not open the system's back cover. If opening the cover for maintenance is a must, only a trained technician is allowed to do so. Integrated circuits on computer boards are sensitive to static electricity . To avoid damaging chips from electrostatic discharge, observe the following precautions:
Before handling a board or integrated circuit, touch an unpainted portion of the system unit chassis for a few seconds. This will help to discharge any static electricity on your body .When handling boards and components, wear a wrist- grounding strap, available from most electronic component stores.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
T able of Contents
Disclaimers ..........................................................................ii
Safety Approvals................................................................. iii
Safety Precautions..............................................................iv
CHAPTER 1 INTRODUCTION ....................................... 1
1.1 General Description ........................................... 1
1.2 Specifications...................................................... 3
1.2.1 Main CPU Board ......................................................... 3
1.2.2 I/O System ................................................................... 3
1.2.3 System Specification .................................................. 3
1.3 Dimensions ......................................................... 5
1.4 I/O Outlets............................................................. 6
1.5 Packing List ........................................................ 7
CHAPTER 2 HARDWARE INSTALLATION .................. 8
2.1 HDD Installation..................................................... 8
2.2 CF card Installation............................................... 10
2.3 PCI Wireless Card Installation.............................. 12
2.4 3 x Serial Ports.................................................... 14
2.5 VGA...................................................................... 16
2.6 Ethernet................................................................ 16
2.7 Mounting Way: Panel/ W all/ Desktop/ VESA...... 17
2.7.1 VESA-ARM/ Wall-Mount...................................................17
2.7.2 Desktop Kit Assembly.......................................................18
2.7.3 Panel-Mount Kit Assembly................................................19
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
CHAPTER 3 DRIVER INSTALLATION ..................... 20
3.1 Touch Screen................................................... 20
3.1.1 Driver Installation-Windows XP............................................21
3.2 Embedded O.S.................................................24
3.2.1 Windows XP Embedded......................................................24
3.2.2 Windows CE.NET 5.0...........................................................25
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
CHAPTER 1 INTRODUCTION
This chapter contains general information and detailed specifications of the FPC 8121 Chapter 1 includes the following sections:
General Description
System Specification
Dimensions
I/O Outlets
Utilities Supported
Package List
1.1 General Description
FPC 8089 is a fan-less and compact-size touch panel computer , and is equipped with a 8.4” TFT LCD display and low power consumption CPU. The FPC 8089 supports Windows XP, Windows CE. NET, Windows XP embedded. The panel is also able to install a miniPCI module for extended wireless card and a CompactFlash card. The FPC 8089 is cost-effective choice for operator inter­face applications.
-FPC 8089: 8.4” TFT Cost-effective SVGA Fanless Touch Panel Computer.
Reliable and Stable Design
The FPC 8089 adopts a fan-less cooling system and a CompactFlash card, which makes it espe­cially suitable for vibration-heavy environment, best for the transportation, ship, and industrial ma­chinery markets.
Embedded O.S. Supported
The FPC 8089not only supports Windows XP, but also supports embedded OS, such as Windows CE. NET and Windows XP embedded. For storage device, the FPC 8089 supports2.5” HDD or CompactFlash card.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
Industrial-grade Product Design
The FPC 8089 has an incredible design that can be used in different industrial harsh environments.
> A fuse help s prevent over-voltage for power input. >Stainless front bezel (FPC 8089) meet s IP65/NEMA4X and Aluminum front bezel (FPC 8089)
meets the IP65/ NEMA4 standard. >For connecting other devices, the FPC 8089 also features several interfaces: USB, Ethernet,
and RS-232/422/485.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
1.2 Specifications
1.2.1 Main CPI board CPU: AMD LX800 processor 500MHz onboard System Chipset: CS5536AD BIOS: A W ARD 4Mbit with RPL/PEXLAN boot ROM, SmartView and customer CMOS backup. System Memory: One 200-pin DDR DIMM socket. (Maximum up to 1GB)
1.2.2 I/O System Standard I/O:
-3 x serial ports
-2 x RS-232,
1 x RS-232/422/485
-2 x USB 2.0
Ethernet:
-RJ-45 x 2
Expansion: MiniPCI wireless module Audio(Line out)
1.2.3 System Specification
8.4” TFT LCD Heat dispensing design Net weight: 1.8Kg Dimension (main body size): 280 x 69.3 x 200 mm Operating temperature: 0°C to 50°C; Relative humidity: 40%
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
Relative humidity: 10% to 90% @ 40°C, non-condensing Vibration (operating):
5 to 500Hz, 1.3 G random (install HDD) 5 to 500Hz, 2.0 G random (install CompactFlash card)
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
1.3 Dimensions
The following diagrams show the dimensions and outlines of FPC8089.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
1.4 I/O Outlets
The following figure shows the I/O locations of the FPC 8121. Most of the I/O con­nectors are located on the back panel of the FPC 8121.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
1.5 Package list
When you receive the FPC 8089, there are following items in the package. If you can not find it, please contact Acnodes Corp. distributors.
1. FPC 8089 x 1
2. CD driver x 1
3. Panel mount kit x 6
4. Desktop kit x 2 (optional)
5. VESA ARM/ W all-mount kit x 1 (optional)
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
CHAPTER 2 HARDWARE INST ALLATION
The FPC 8089 provides lots of flexible ways for you to select different configuration such as HDD, CF card and more. The chapter will show you how to install the hardware. It includes:
2.1 HDD Installation
The FPC 8089 offers a convenient drive bay module for users to install HDD. The FPC 8089 offers one 2.5” HDD drive for users to install. Please follow the steps:
1. Take out HDD bracket kit, 4 anti-vibration screws, 4 anti-vibration rubbers and 4 bracket screws from the accessory package.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
2. Screw 4 anti-vibration screws and fix HDD on the bracket.
3. Fix the HDD kit to system by 4 screws.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
2.2 CF card Installation
The FPC 8089 offers a solution for users to install CF card. When installing the CF card, refer to the following instructions and illustration:
1. Open the back cover. Find SBC84621 and turn to back side.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
2. Install user’s CF card.
FPC 8089
8.4” TFT Fanless Touch Panel PC
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
2.3 Wireless Card Installation
The FPC8089 provides one miniPCI slot for user to install one wireless card. When installing the wireless card, refer to the following instructions and illustration:
1. Open the back cover and find SBC84621.
2. Install Mini PCI wireless card.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
3. Connect cable from antenna to wireless card.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
2. 4 3 x Serial Ports
The connector, COM 1, is a DB-9 connector , and the following table shows the pin assignments of this connector.
COM Port Connector
COM Port Connectors: CN12 The RS-232 pin assignments are listed on the following table.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
The RS-422/485 pin assignments for COM2/COM4 are listed below .
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
2.5 VGA
The FPC 8089 has an analog RGB interface connector . It is able to connect to an expansion CRT monitor, and the system can display on both the flat p anel and the CRT simultaneously.
2.6 Ethernet
Ethernet RJ-45 Connector: LAN1
The FPC 8089 is equipped with a high performance Plug and Play Ethernet interface which is fully compliant with the IEEE 802.3 standard, and consisting of a RJ-45 connector LAN
3.4.15.1 Pin Assignment
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
2.7 Mountings: Panel / Wall / Desktop / VESA
There are 4 application options for the FPC 8089, Panel/Wall/Desktop/VESA mountings.
2.7.1 VESA-ARM/Wall-Mount
The FPC 8089 provides two ways for VESA mount: 75x75 mm Screw four screws to fix the kit (op­tional) in the back chassis.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
2.7.2 Desktop Kit Assembly
The FPC 8089 is designed for desktop application. Screw 4 screws to fix the kit (Optional) in the side chassis.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
2.7.3 Panel-mount Kit Assembly
The FPC 8089 is designed for panel mount application. To mount the FPC 8089, the standard set of mounting kit (included in the system packaging) is needed.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
CHAPTER 3 DRIVER INST ALLATION
The FPC 8089 could support with Windows 2000/ XP. T o facilit ate installation system driver , you should read the instructions in this chapter carefully before you attempt installation.
3.1 Touch Screen
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089

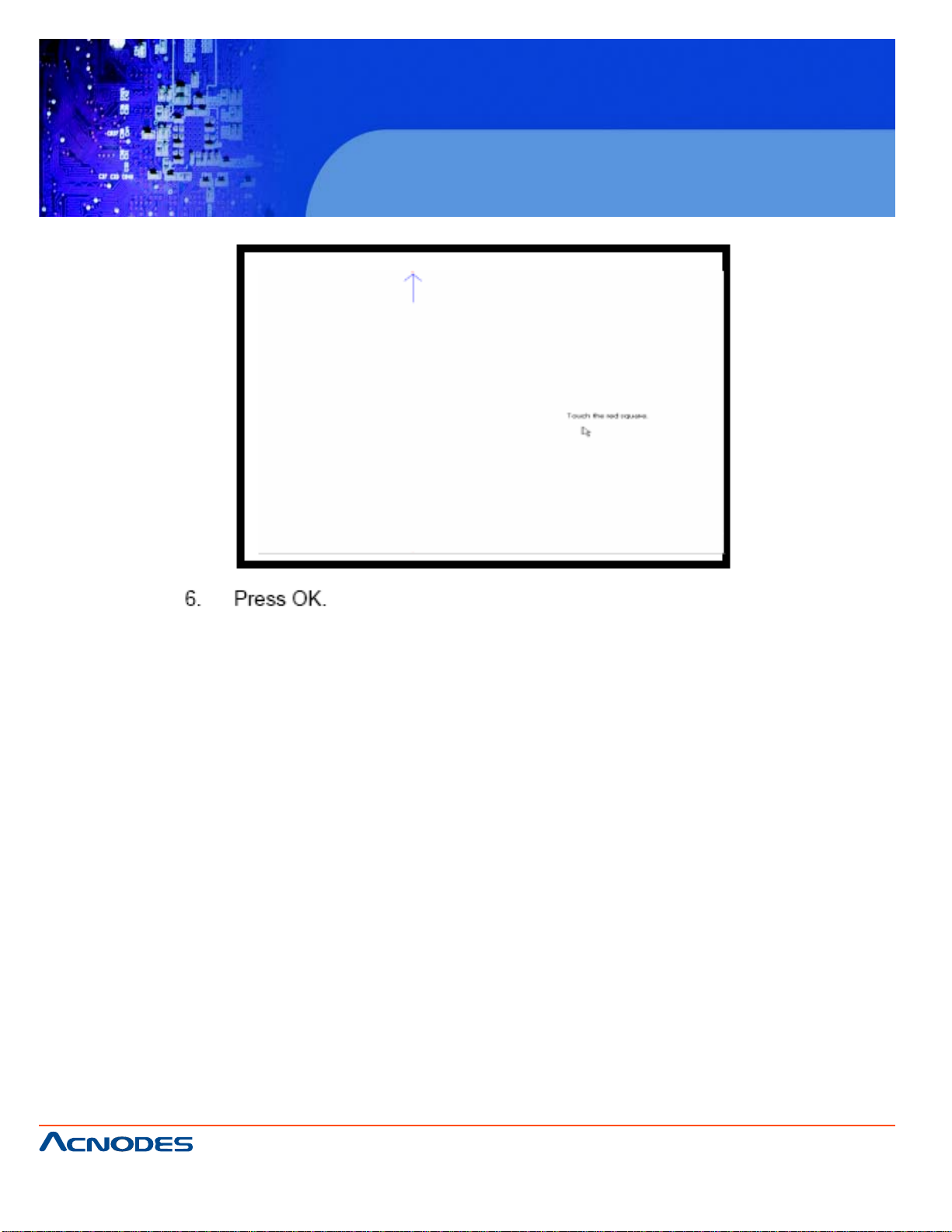

661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2009 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
FPC 8089
8.4” TFT Fanless Touch Panel PC
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2005 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
